Multi-cable reel VB-5200
Multi-cable reel VB-5200
GTIN（JAN）：4937897027161
SKU：VB-5200
Regular price
¥34,485 JPY
Regular price
Sale price
¥34,485 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Product Features]

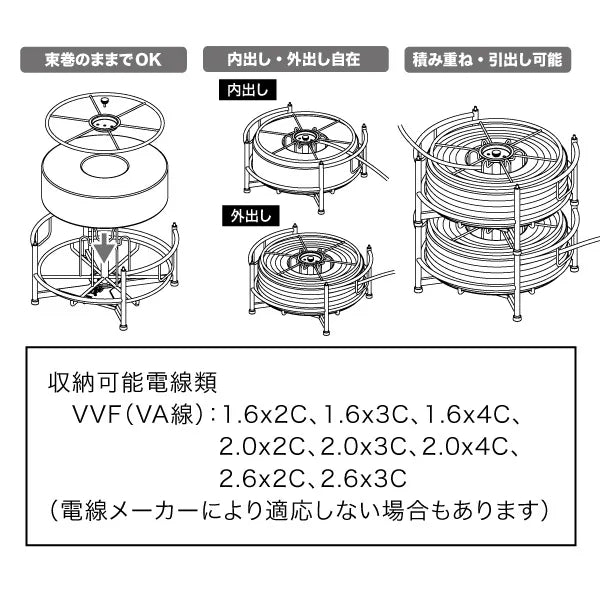

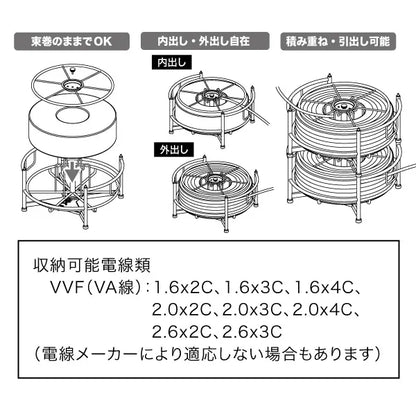

Can store and unwind wires with an outer diameter of up to φ520mm in bundles.
●Can be unwound internally or externally.

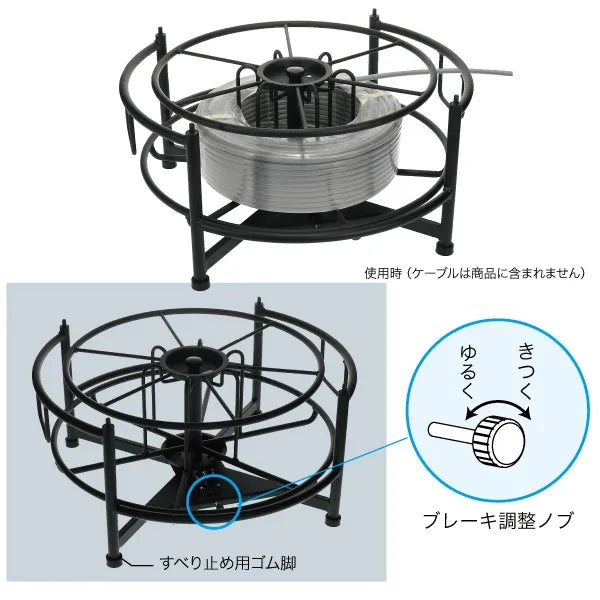

●Equipped with a brake.
●Can be used with wires still in bundles.
●Stackable and retractable.
●Storable wire types
・VVF (VA wire)
1.6x2C, 1.6x3C, 1.6x4C, 2.0x2C,
2.0x3C, 2.0x4C, 2.6x2C, 2.6x3C
(May not be compatible depending on the wire manufacturer)
●If you use the (sold separately) cable reel plate,
VB-4450 and VB-4500 can be stacked on top of VB-5200.
■ Specifications
・Body size and weight: 610mm x 610mm x 295mm, 7.4kg
・Maximum storage load: 0.39kN (40kgf)
・Maximum stacking layers: 4 layers
・Material
Steel, rubber
・Packaging specifications
Individual packaging: Cardboard box
Individual packaging size and weight: W620 x D620 x H300mm, 8.9kg
・1 package
・Country of origin: China
Can store and unwind wires with an outer diameter of up to φ520mm in bundles.
●Can be unwound internally or externally.
●Equipped with a brake.
●Can be used with wires still in bundles.
●Stackable and retractable.
●Storable wire types
・VVF (VA wire)
1.6x2C, 1.6x3C, 1.6x4C, 2.0x2C,
2.0x3C, 2.0x4C, 2.6x2C, 2.6x3C
(May not be compatible depending on the wire manufacturer)
●If you use the (sold separately) cable reel plate,
VB-4450 and VB-4500 can be stacked on top of VB-5200.
■ Specifications
・Body size and weight: 610mm x 610mm x 295mm, 7.4kg
・Maximum storage load: 0.39kN (40kgf)
・Maximum stacking layers: 4 layers
・Material
Steel, rubber
・Packaging specifications
Individual packaging: Cardboard box
Individual packaging size and weight: W620 x D620 x H300mm, 8.9kg
・1 package
・Country of origin: China
