SANWA SUPPLY

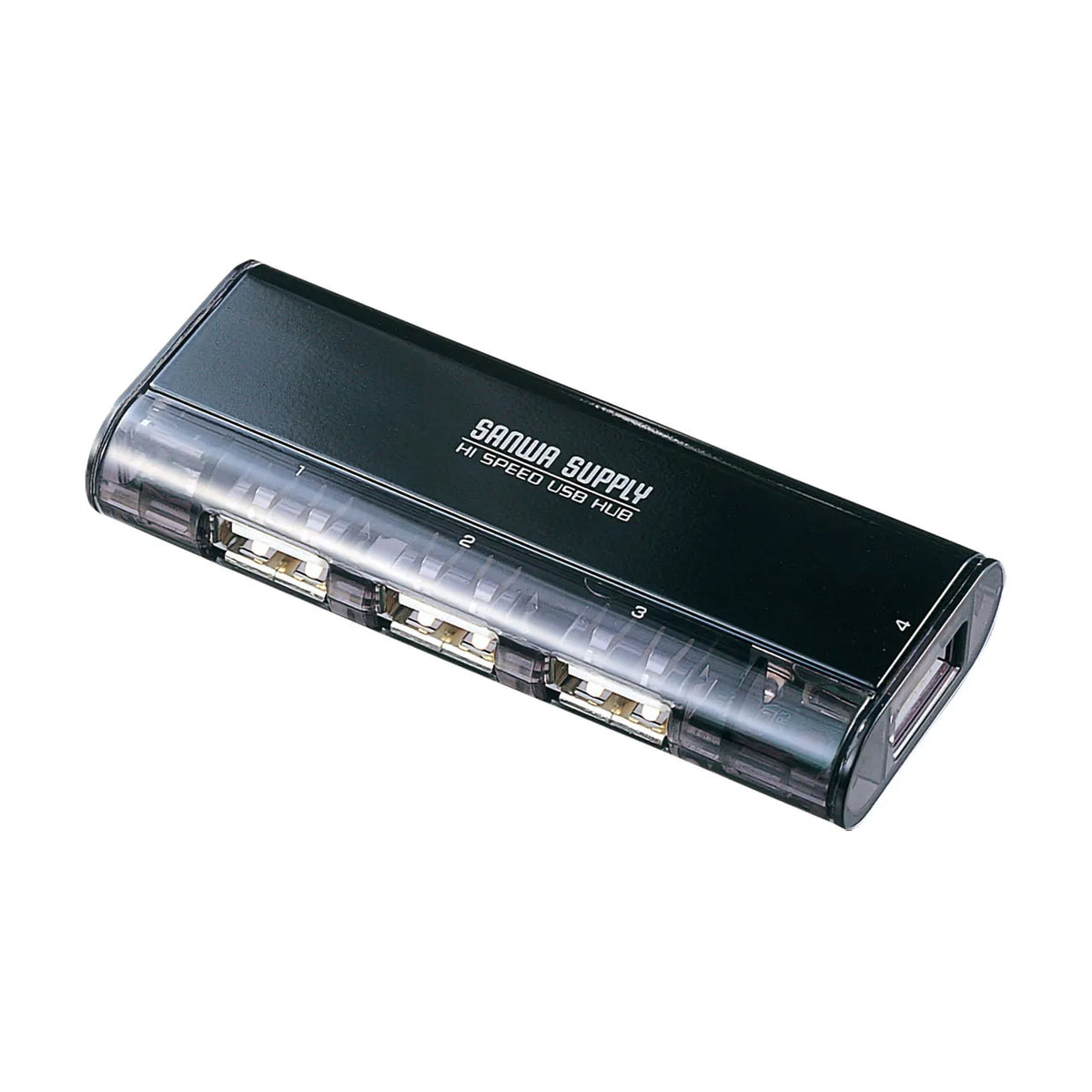

USB 2.0 Hub USB-HUB226GBKN
USB 2.0 Hub USB-HUB226GBKN
GTIN（JAN）：4969887782101
SKU：USB-HUB226GBKN
Regular price
¥4,283 JPY
Regular price
Sale price
¥4,283 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Magnetic, 3+1 Port Bus-Powered USB Hub]

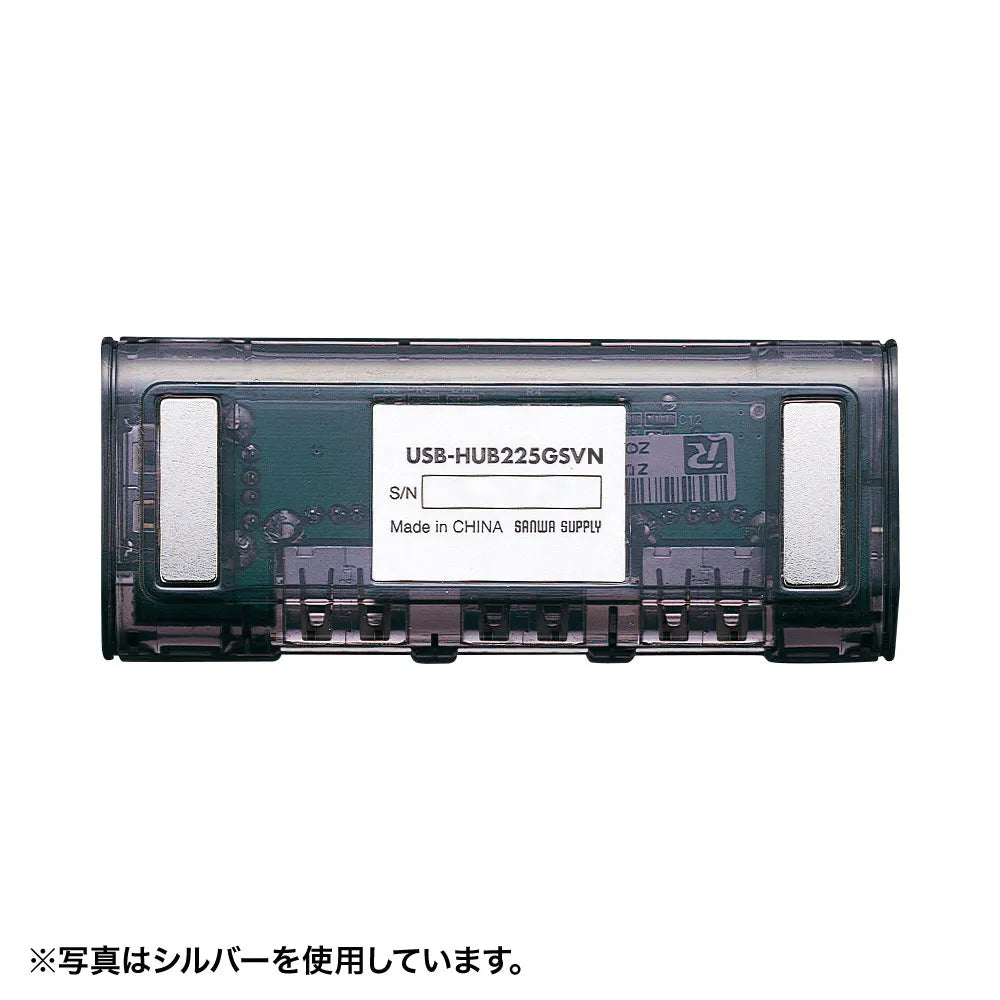

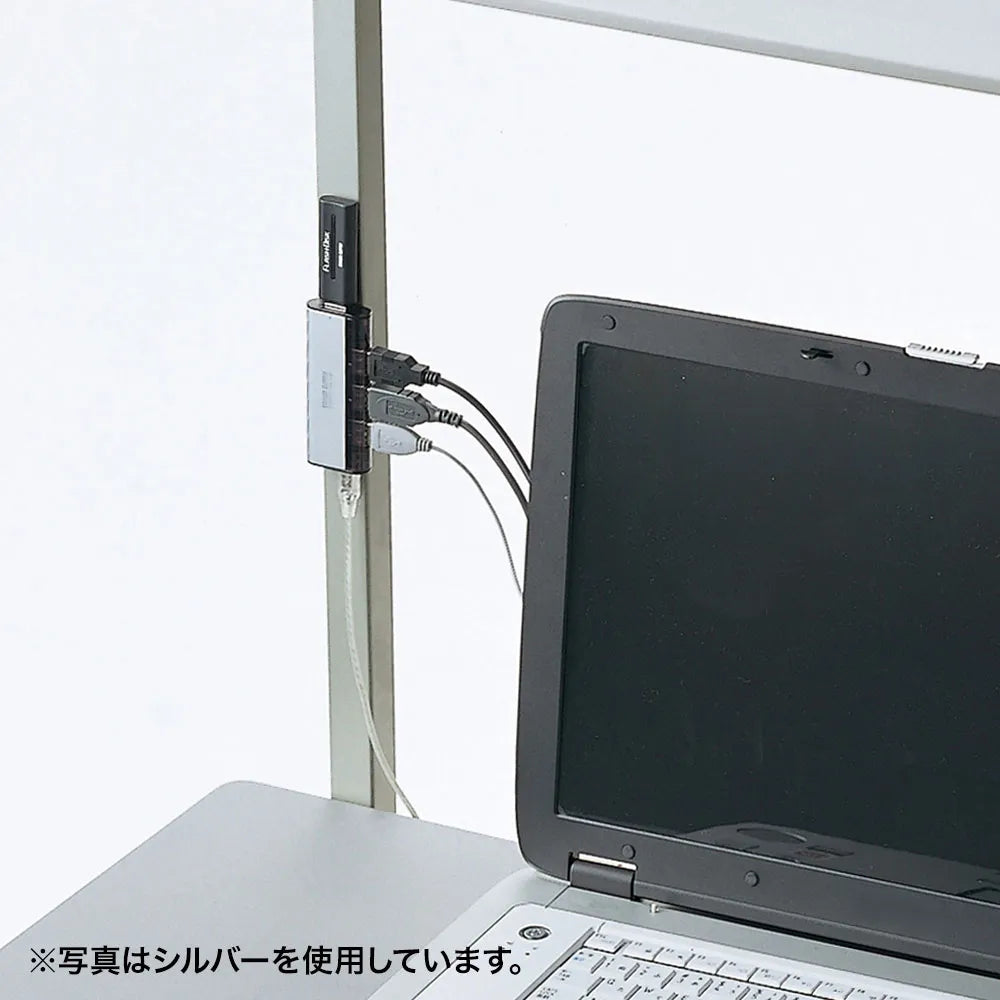

●Strong Magnet USB Hub: The USB hub has a strong magnet on the back, so it can be fixed to steel tops or frames.
●With a layout of 3 ports on one side and 1 port on the side, you can use the side for USB devices with large connectors so they don't block other ports.
●This is a 4-port USB hub compatible with USB 2.0.
●This is a bus-powered USB hub that does not require an AC adapter.
●With the optional AC adapter (sold separately, USB-AC1), it also supports a self-powered mode that can supply 500mA to each port.
＜Notes＞
※When using in bus-powered mode, it may not work depending on the total current consumption of the connected USB devices.
This occurs when the total current consumption of peripherals connected to this USB hub is 350mA or more.The wide range in the total value is because there are differences in computers and USB ports, and therefore differences in the current supplied to the connected USB hub.
※If the hub does not operate due to the total current consumption in bus-powered mode,
1. Do not connect USB devices to this USB hub when the computer starts up, and connect USB devices after startup.
2. If it still does not work, reduce the number of connected peripherals one by one.
3. If it still does not work, connect the separately sold AC adapter (USB-AC1) to the USB hub and use it.
＜Generally, even among bus-powered (non-AC adapter) USB peripherals, scanners, storage devices such as hard disks, CD/CD-R drives, MO drives, and ADSL modems require a large amount of power, so please be sure to use the separately sold AC adapter (USB-AC1).＞
＜PC Connection Terminal＞
■Connector Shape: USB A
■Supported Standard: USB 2.0

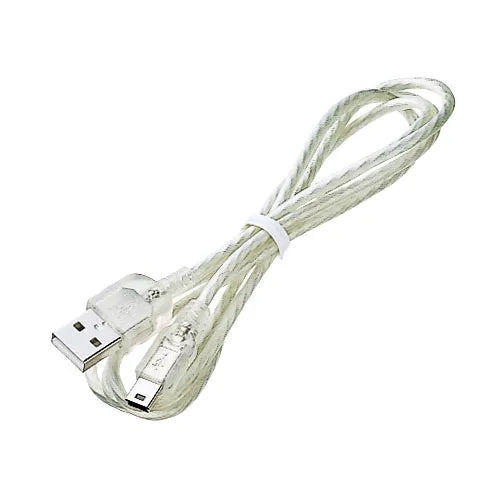

■Cable Length: Approx. 1m
■Cable Type: Detachable Cable
＜USB Ports＞
■Number of Ports: 4 ports
■Maximum Data Transfer Speed (Theoretical Value): 480Mbps
■USB A Female/USB 2.0: 4 ports
■Supply Current: Maximum 350mA
(Total for all ports)
＜Power Supply＞
■Power Supply Method: Bus Power
＜Common Specifications＞
■Driver: Not required
■Size: W83xD34xH15mm
■Weight: Approx. 33g
●Strong Magnet USB Hub: The USB hub has a strong magnet on the back, so it can be fixed to steel tops or frames.
●With a layout of 3 ports on one side and 1 port on the side, you can use the side for USB devices with large connectors so they don't block other ports.
●This is a 4-port USB hub compatible with USB 2.0.
●This is a bus-powered USB hub that does not require an AC adapter.
●With the optional AC adapter (sold separately, USB-AC1), it also supports a self-powered mode that can supply 500mA to each port.
＜Notes＞
※When using in bus-powered mode, it may not work depending on the total current consumption of the connected USB devices.
This occurs when the total current consumption of peripherals connected to this USB hub is 350mA or more.The wide range in the total value is because there are differences in computers and USB ports, and therefore differences in the current supplied to the connected USB hub.
※If the hub does not operate due to the total current consumption in bus-powered mode,
1. Do not connect USB devices to this USB hub when the computer starts up, and connect USB devices after startup.
2. If it still does not work, reduce the number of connected peripherals one by one.
3. If it still does not work, connect the separately sold AC adapter (USB-AC1) to the USB hub and use it.
＜Generally, even among bus-powered (non-AC adapter) USB peripherals, scanners, storage devices such as hard disks, CD/CD-R drives, MO drives, and ADSL modems require a large amount of power, so please be sure to use the separately sold AC adapter (USB-AC1).＞
＜PC Connection Terminal＞
■Connector Shape: USB A
■Supported Standard: USB 2.0
■Cable Length: Approx. 1m
■Cable Type: Detachable Cable
＜USB Ports＞
■Number of Ports: 4 ports
■Maximum Data Transfer Speed (Theoretical Value): 480Mbps
■USB A Female/USB 2.0: 4 ports
■Supply Current: Maximum 350mA
(Total for all ports)
＜Power Supply＞
■Power Supply Method: Bus Power
＜Common Specifications＞
■Driver: Not required
■Size: W83xD34xH15mm
■Weight: Approx. 33g
