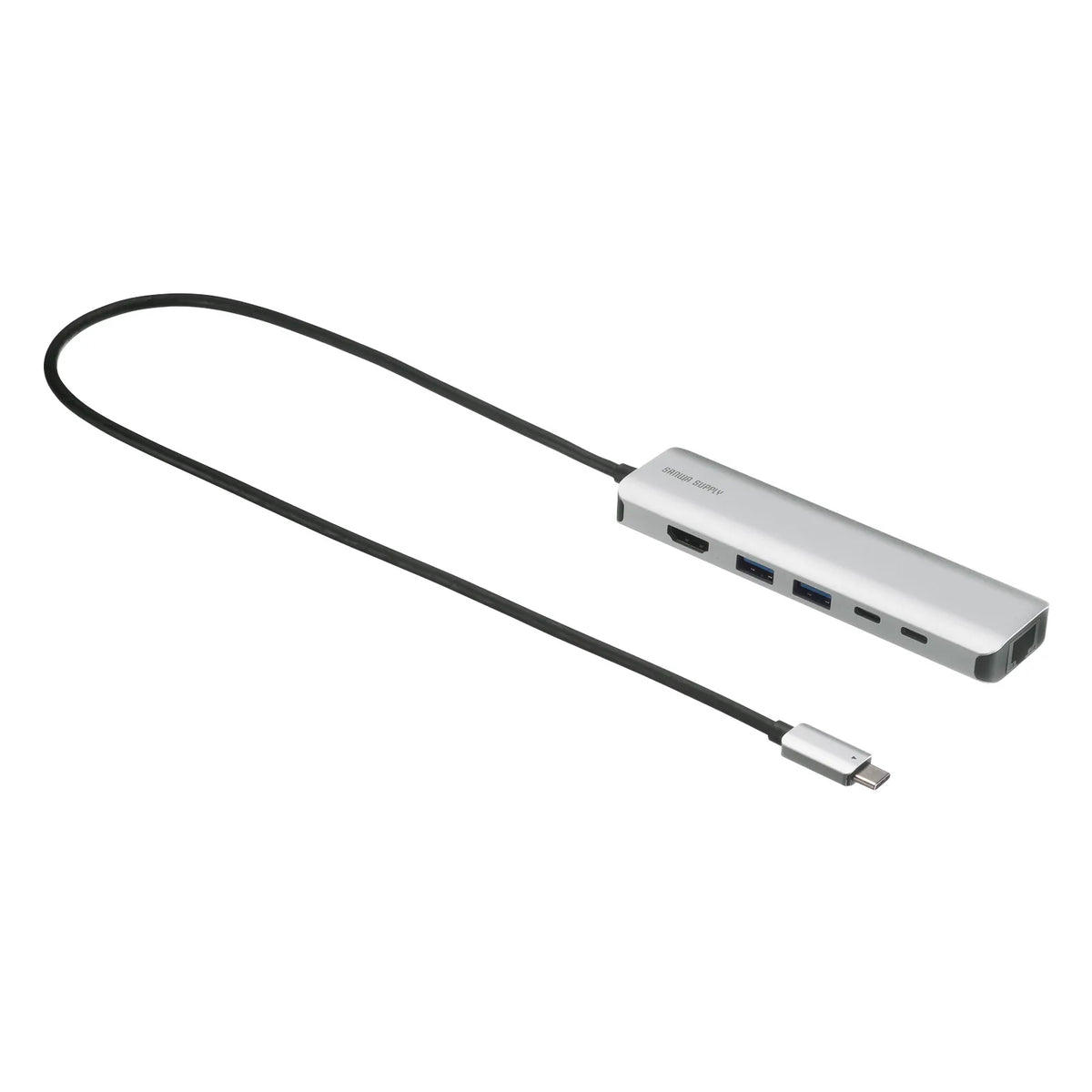

8K compatible USB Type-C docking station USB-DKM9S

[Compact mobile docking station with HDMI port supporting 8K]

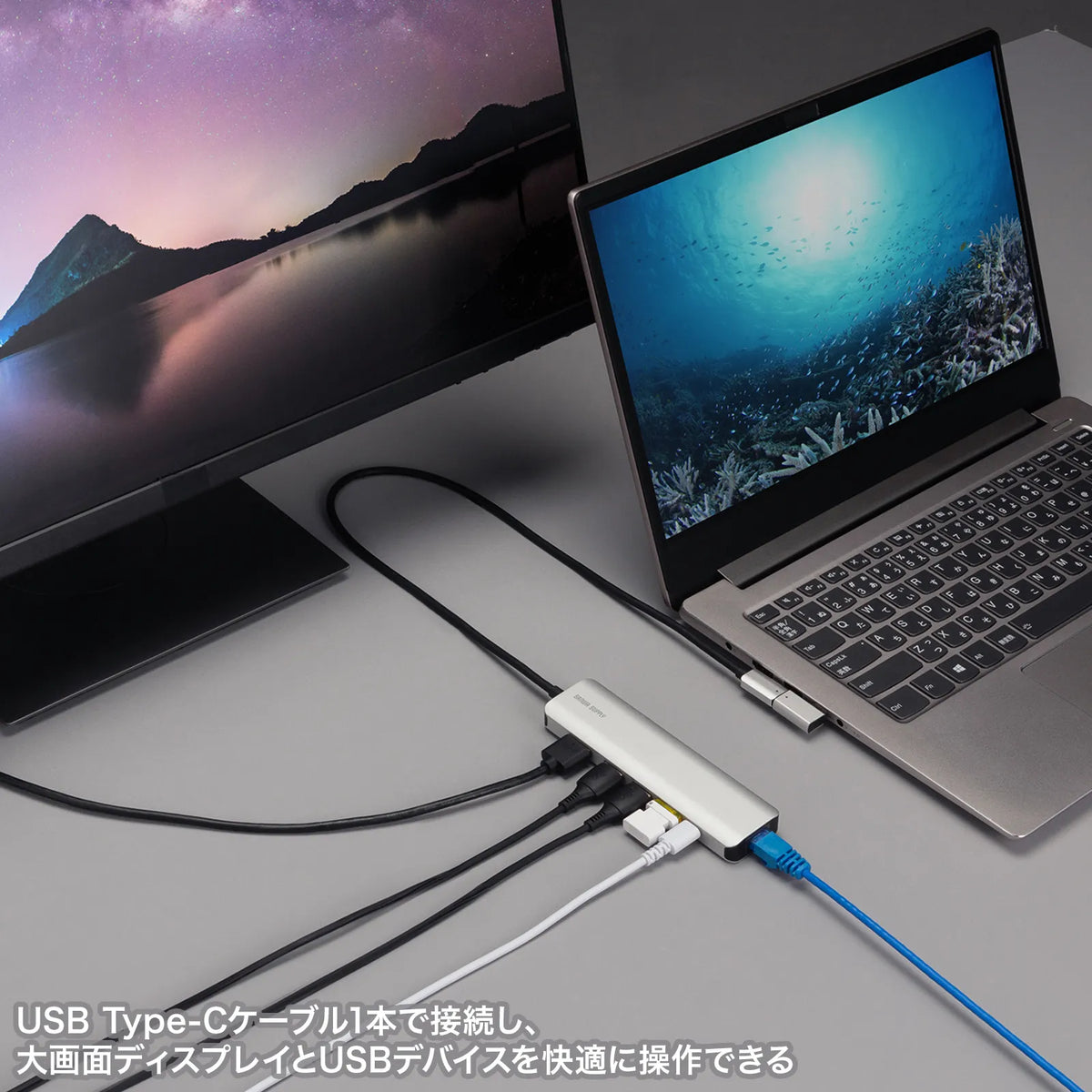

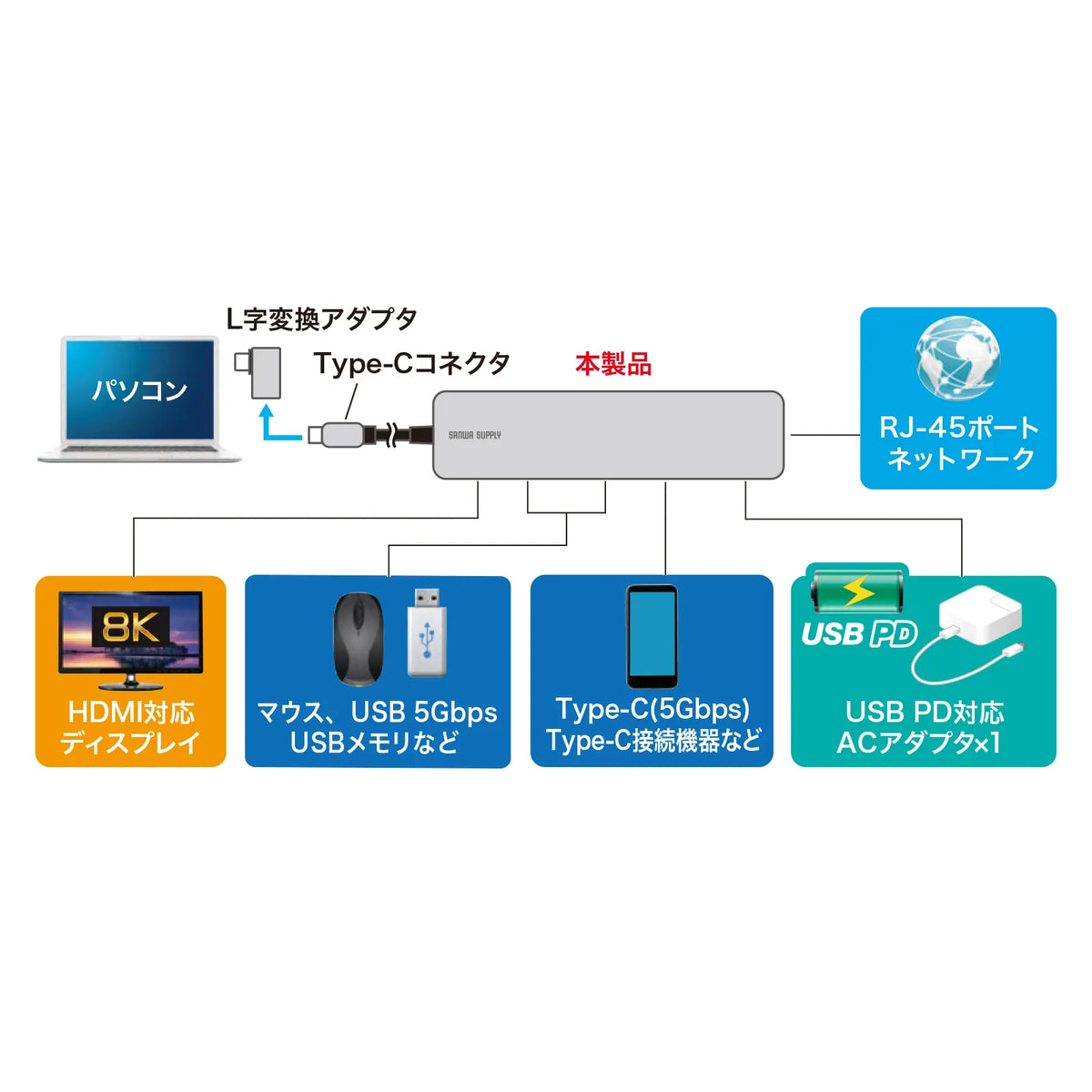

●This Type-C mobile docking station allows you to expand connections to HDMI displays, USB devices, and wired LAN with just one Type-C cable.

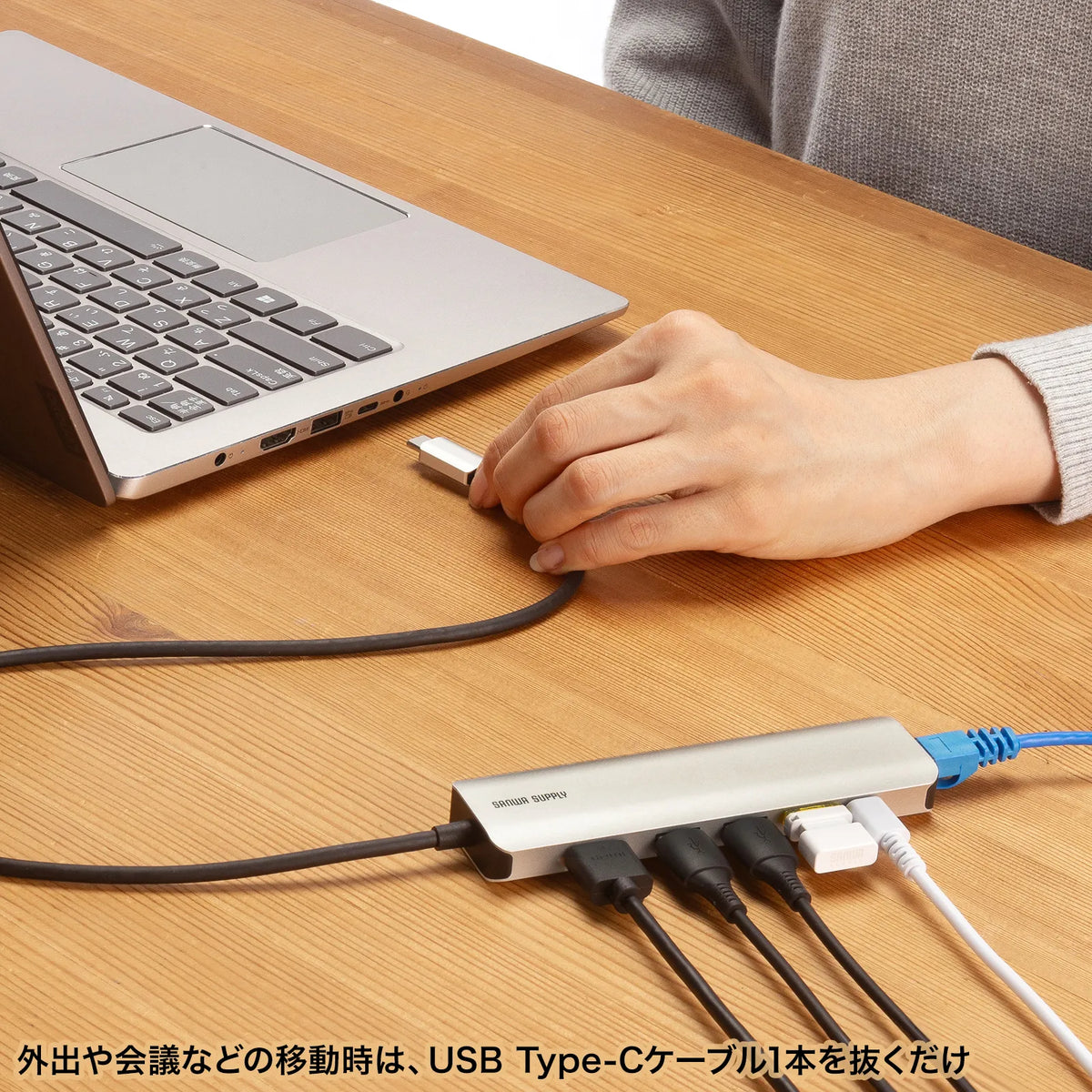

●With just one Type-C cable connection, you can comfortably operate a large screen display and USB devices, and when you're out and about or going to a meeting, you can simply unplug the Type-C cable and take it with you.
●You can easily create a multi-display environment (mirror mode/extended mode) without installing any software to support "DisplayPort Alternate Mode" for adding HDMI displays via USB Type-C connection.

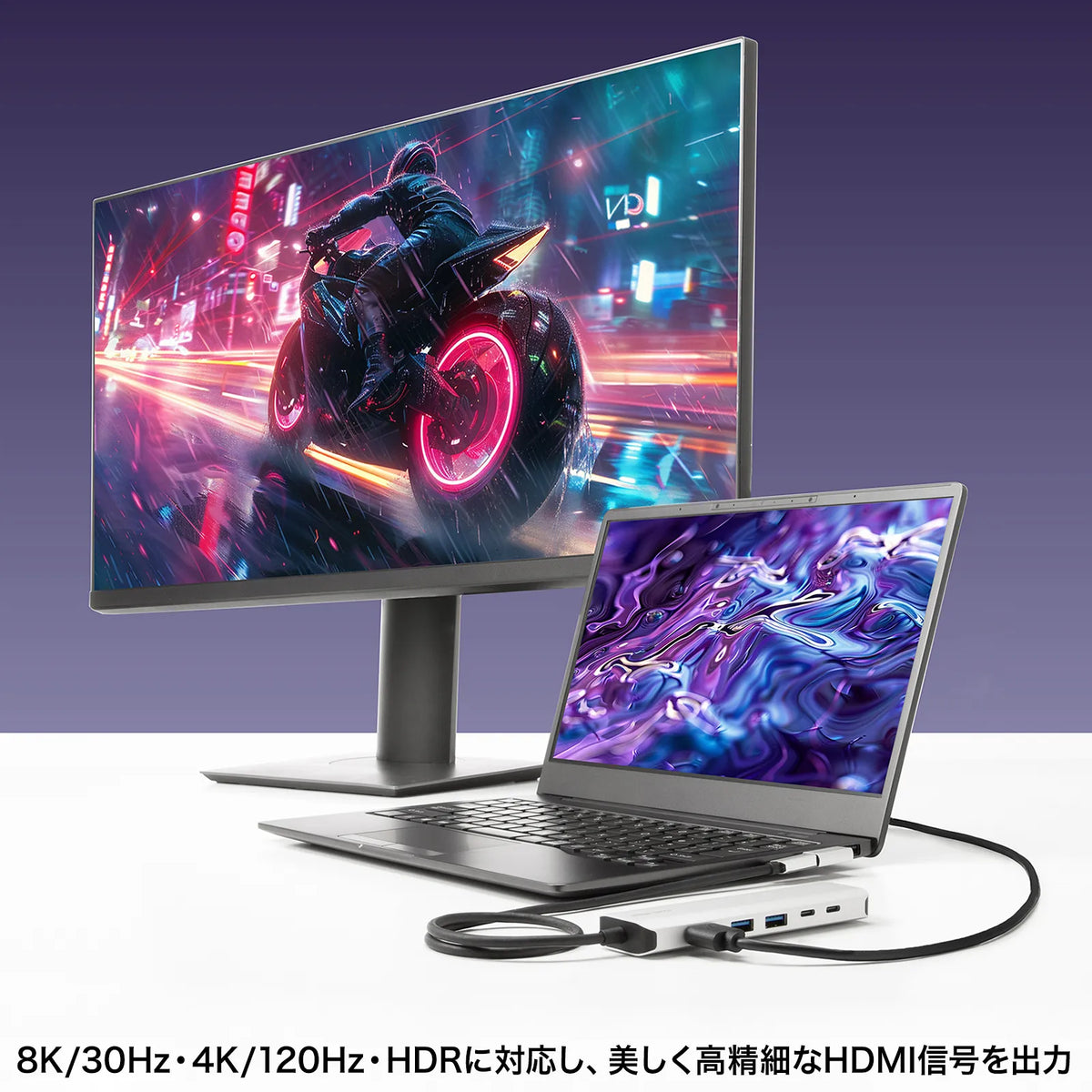

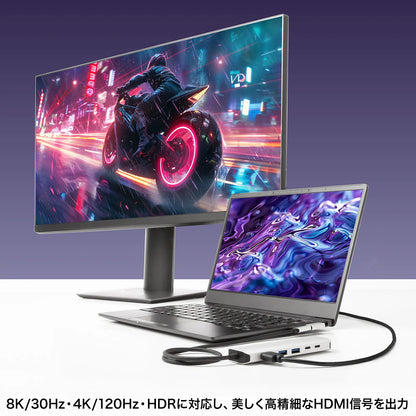

●It supports 8K/30Hz, 4K/120Hz, and HDR, and can output beautiful, high-definition HDMI signals.

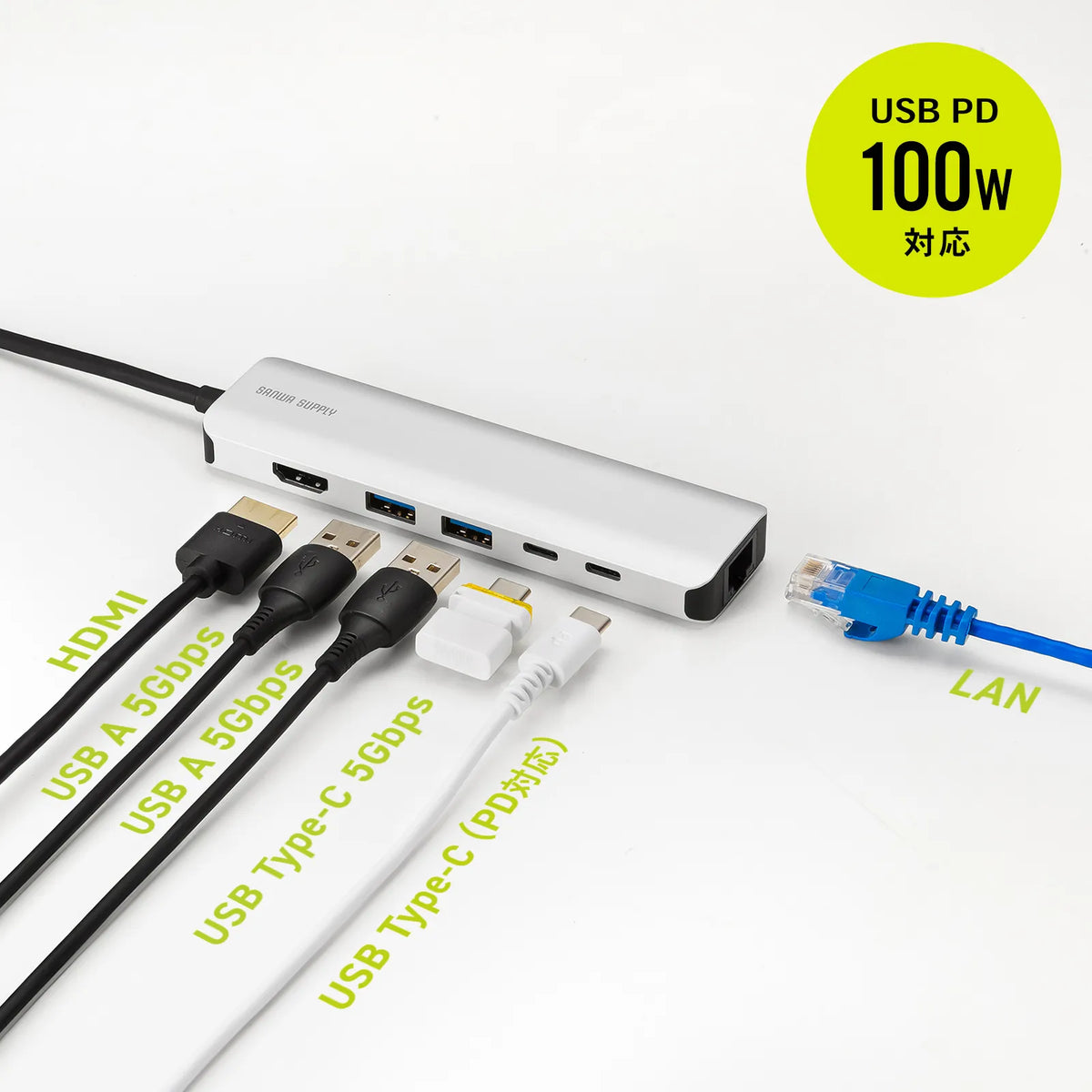

●It supports "USB Power Delivery (USB PD)" via USB Type-C, and you can also supply power to the connected computer through this product. It supports charging up to 100W.
●Supports Gigabit Ethernet, so it is compatible with Gigabit network environments and allows wired LAN connection with a single Type-C cable.
*While it supports Wake On LAN functionality, compatibility varies depending on the PC model, so operation is not guaranteed.
●Features a long cable of approximately 30cm for easy handling.

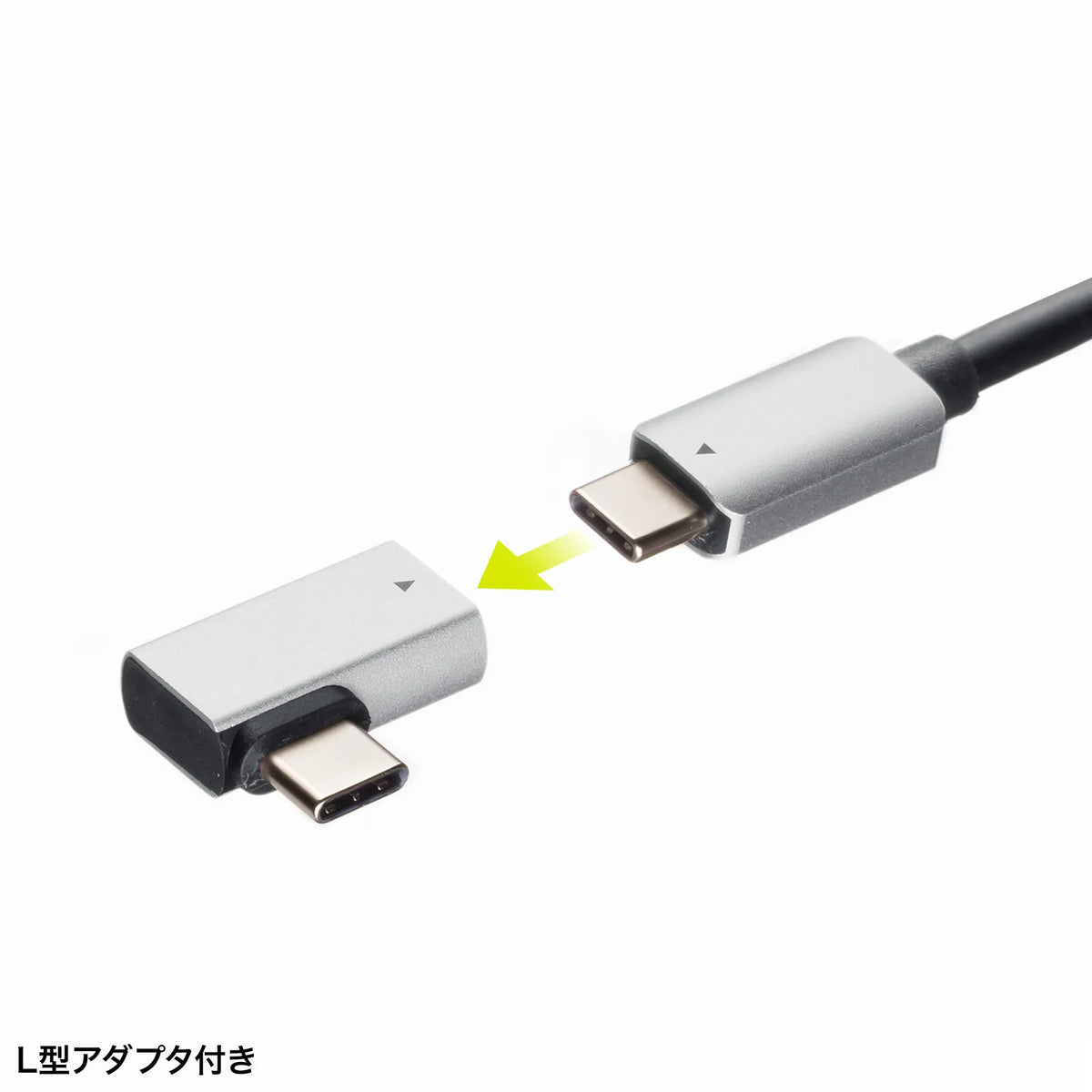

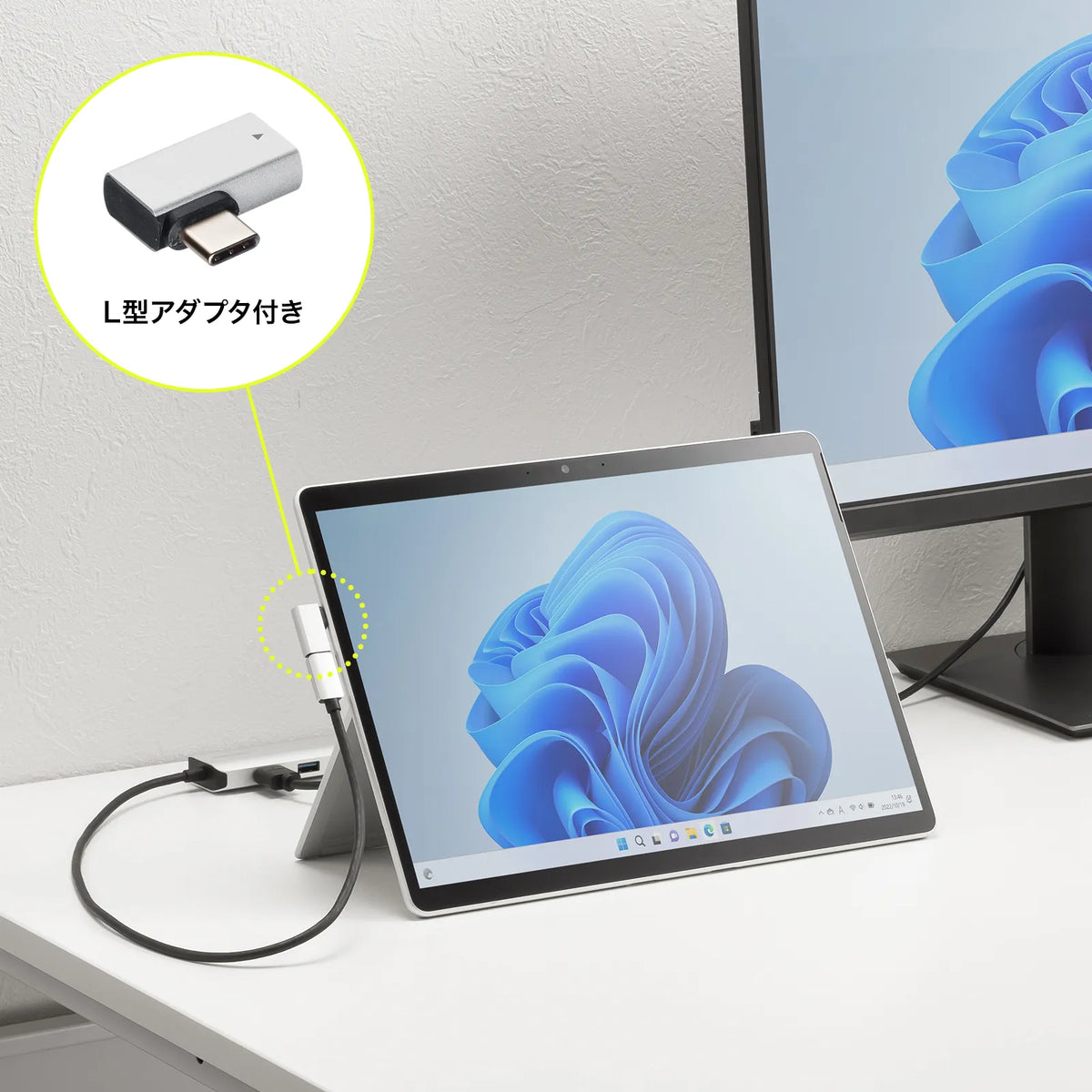

●Comes with an L-shaped adapter for easy connection.

【PC Connection Terminal】
■Connector shape: USB Type-C
■Supported standards: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant
*USB 5Gbps is the same standard as USB3.2 Gen1 (USB3.1 Gen1/USB3.0), which was renamed by USB-IF (USB Implementers Forum).
■Maximum USB PD output: 85W

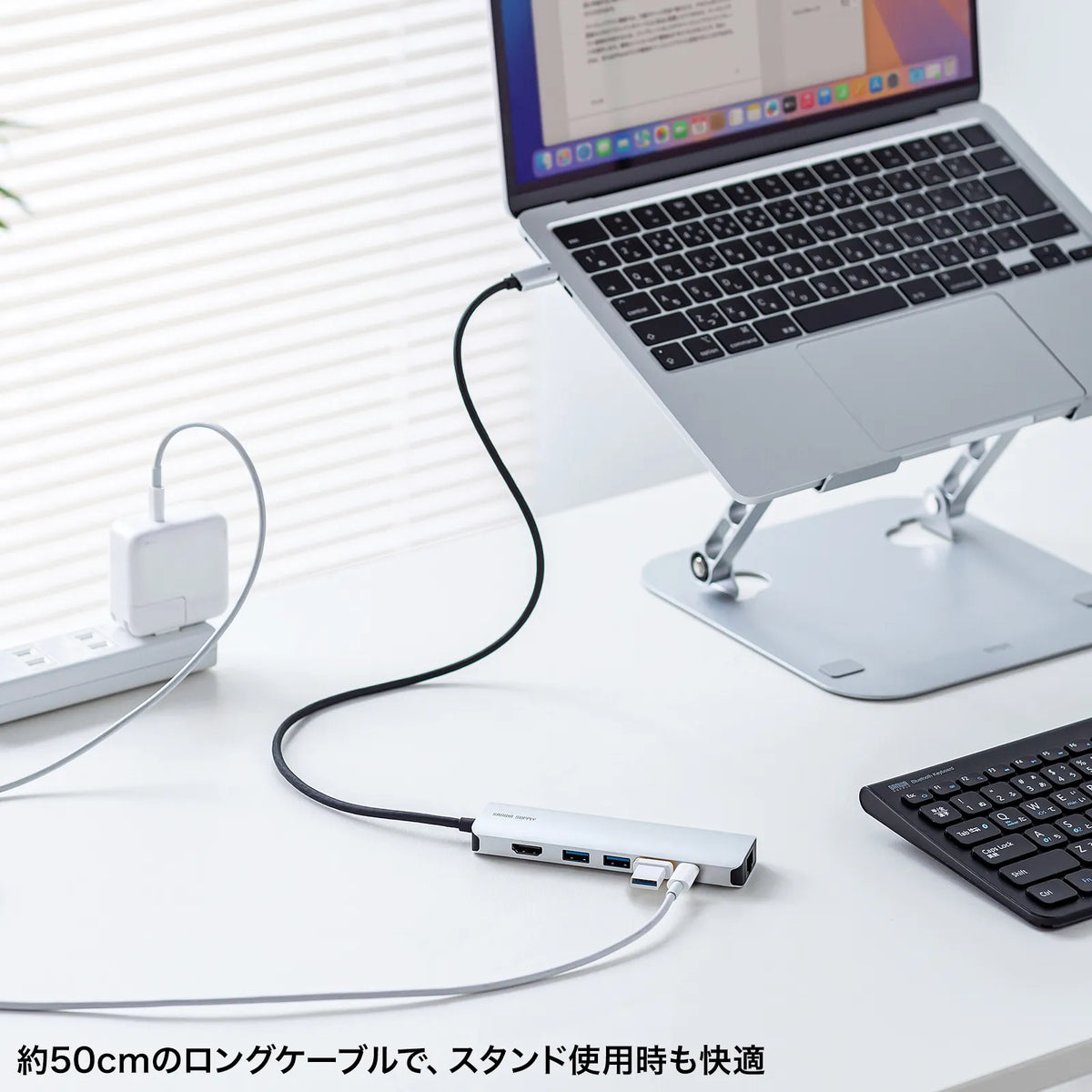

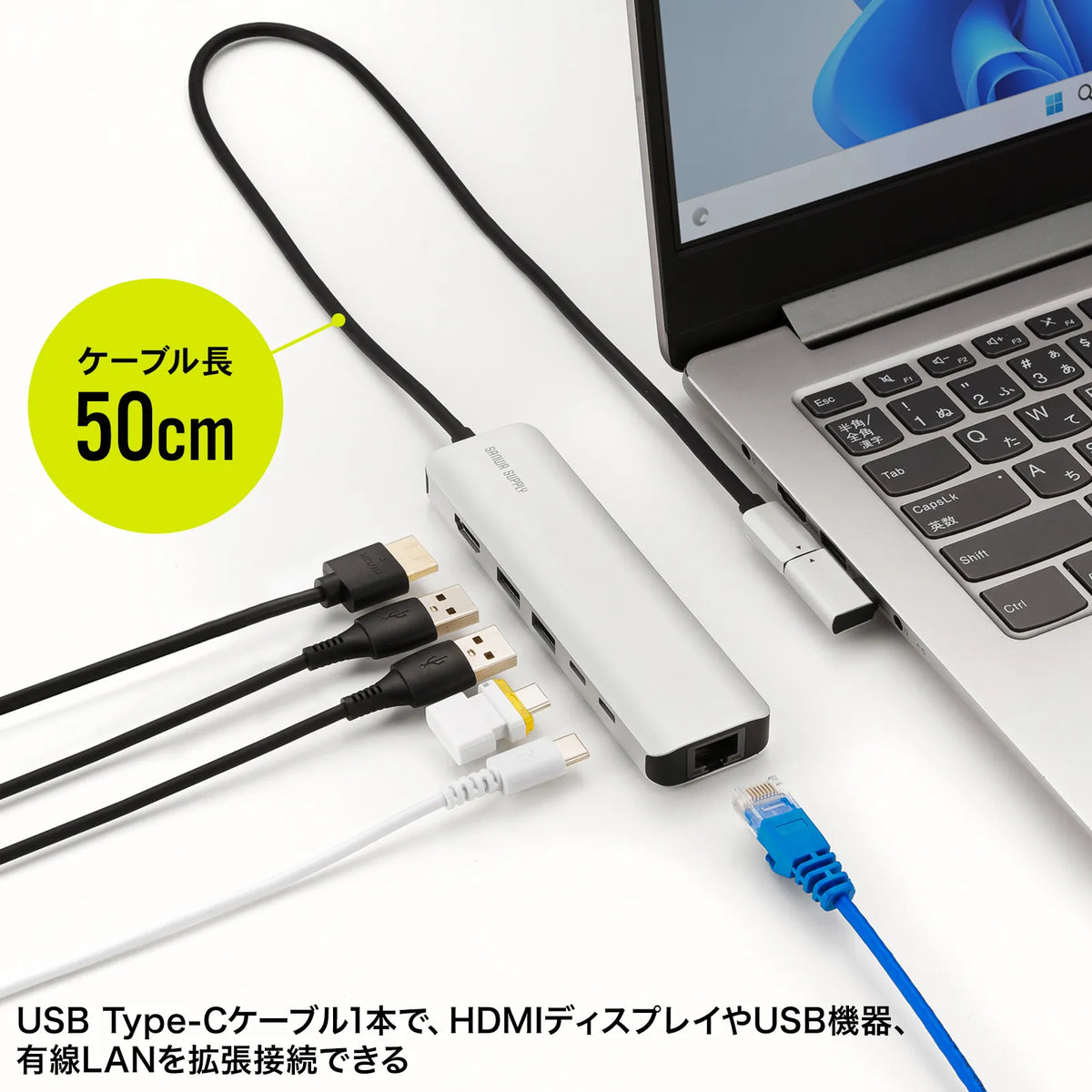

■Cable length: Approx. 50cm
■Cable type: Integrated cable
【USB Ports】
■Number of ports: 3 ports
■Maximum data transfer speed (theoretical value): 5Gbps
■USB Type-C female/USB 5Gbps: 1 port
■USB A female/USB 5Gbps: 2 ports
■Supply current: Maximum 3000mA
(Total for all ports: when bus-powered)
*If the current consumption of the connected device exceeds the supply current of this product, it may not operate normally with bus power.
【Power Supply】
■Power supply method: Bus power/Self-powered (when power is connected)
■Main unit power consumption: 15W
■USB PD input port: Yes
■Maximum USB PD input: 100W
*Depending on the computer or PD power adapter you are using, a warning may be displayed recommending the use of the power adapter attached to your computer, but this does not affect its use.
【Video Output Port】
■Number of Supported Output Displays: 1
■Maximum Supported Resolution: 8K/60Hz
*The supported resolutions listed require your computer to support DisplayPort Alt Mode (DP1.4 or higher).
*For 8K resolution output, both the display and the content being output must support 8K resolution.
■Maximum Supported Resolution/Refresh Rate: 3840x2160
Maximum 7680x4320 (8K/30Hz)
Maximum 3840x2160 (4K/144Hz・120Hz・60Hz)
■HDCP: 2.3, 2.2, 2, 1.4
■HDMI: 1 port
【LAN Port】
■Port Shape: RJ-45 port (Auto MDI/MDI-X), Auto-Negotiation compatible
*While Wake On LAN functionality is supported, compatibility varies depending on the PC model, so operation is not guaranteed.
*Depending on the connected device, Wi-Fi may need to be turned OFF to use a wired network.
■Supported standards: IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T)
■Transmission speed (theoretical value): 1000Mbps, 100Mbps, 10Mbps
*Regarding communication speed, 1000BASE-T is supported only when connected via USB 5Gbps (USB 3.2 Gen1).
■Access Method: CSMA/CD
【Common Specifications】
■Supported OS Windows: 11, 10
■Supported OS Mac: macOS (Sequoia) 15, macOS (Sonoma) 14, macOS (Ventura) 13, macOS (Monterey) 12, macOS (BigSur) 11
■Supported OS iPadOS: iPadOS 17・18
■Supported OS ChromeOS: ChromeOS
■Supported Devices: Windows-based (DOS/V) PCs, Apple Mac series, Chrome OS PCs, iPads
*Devices with a USB port (Type-C female) and whose operation is guaranteed by the PC manufacturer.
*To operate in a USB 5Gbps (USB 3.2 Gen1) environment, the PC itself must have a USB 5Gbps (USB 3.2 Gen1) port.
*Not compatible with USB Type-C connected monitors.
*Only compatible with Type-C ports that support video output. (DisplayPort Alt Mode)
*Some PCs and USB devices may not be compatible.
■Set contents: L-shaped connector
*Instruction manual is available online only.
