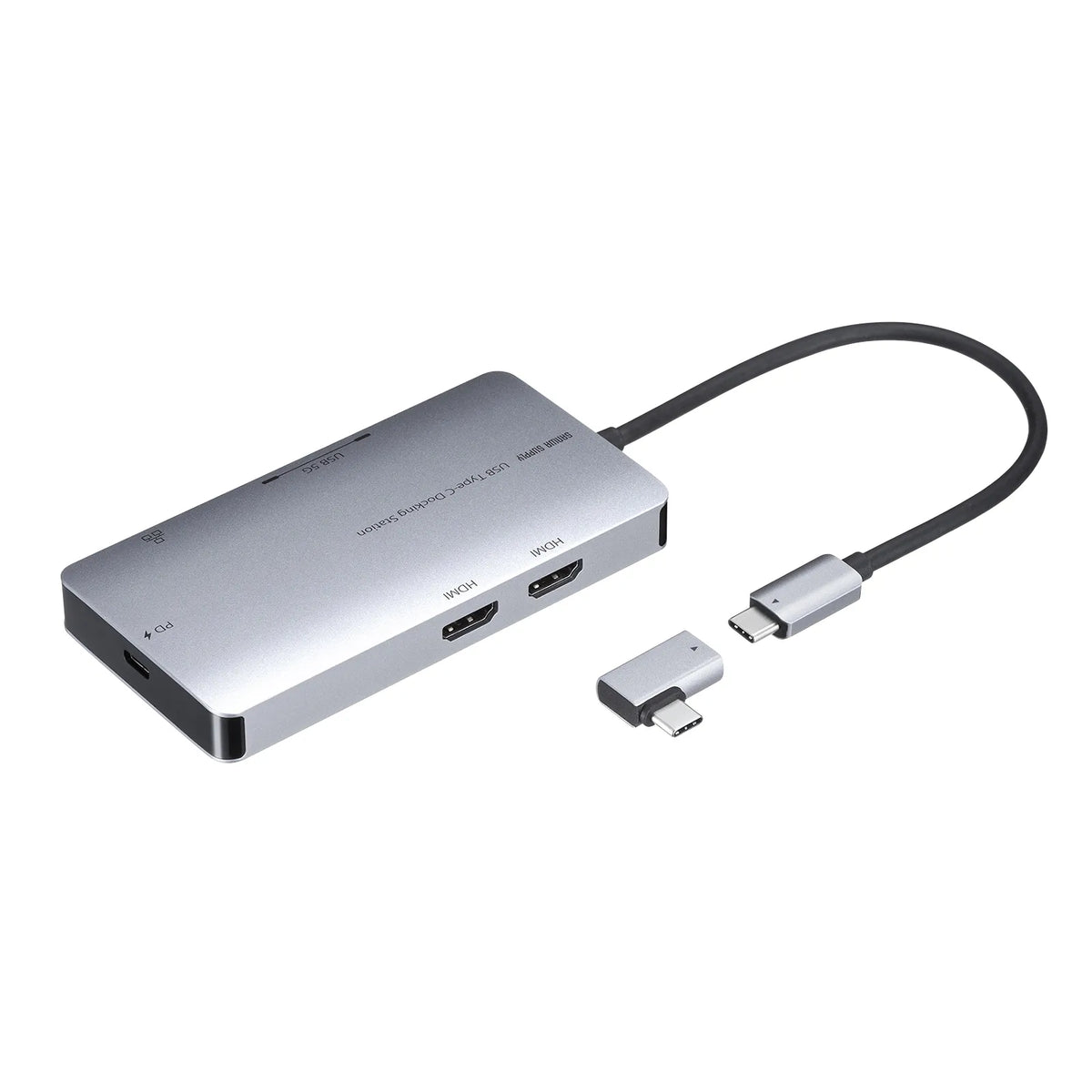

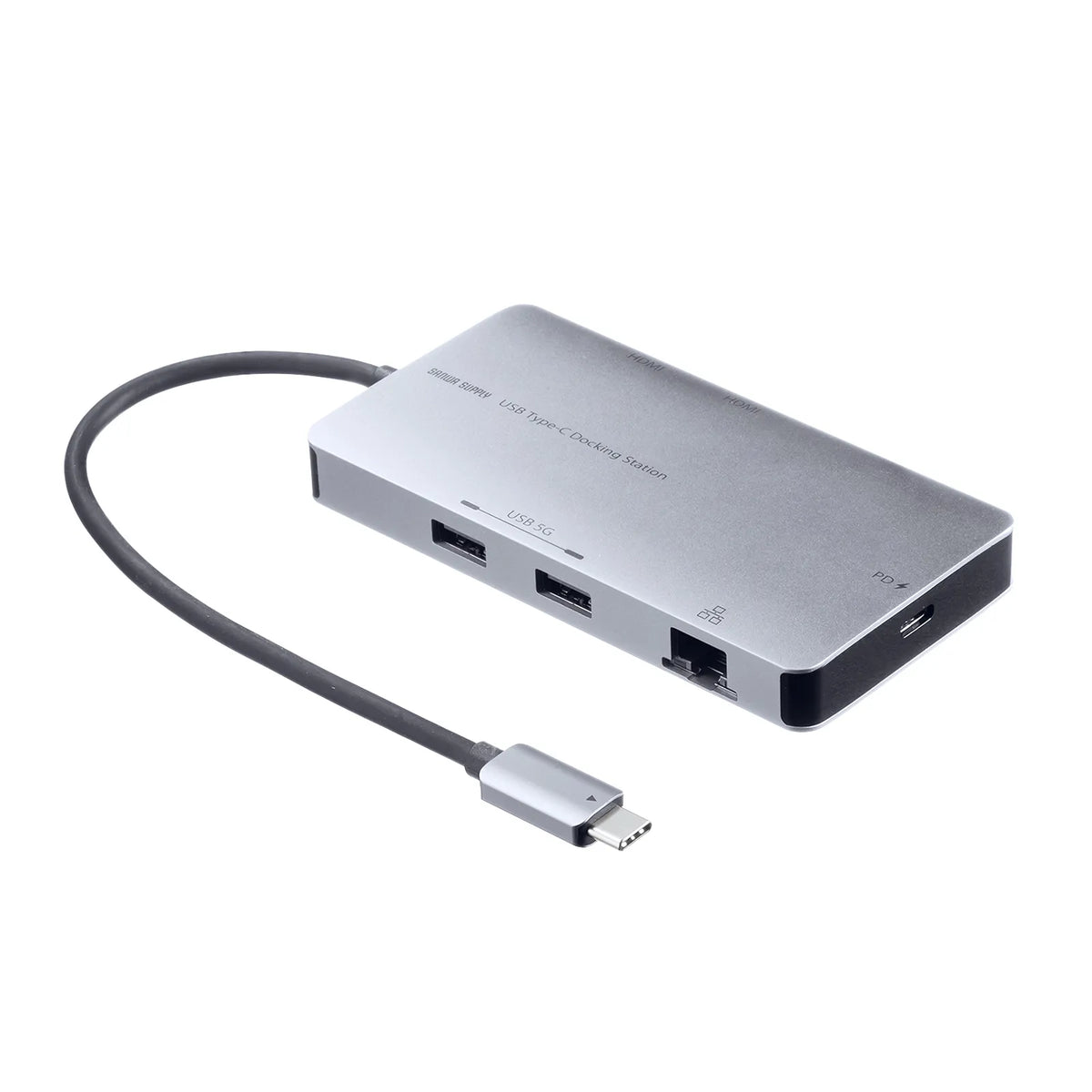

USB Type-C Docking Station USB-DKM8S

[USB Type-C Docking Station with Two HDMI Ports]

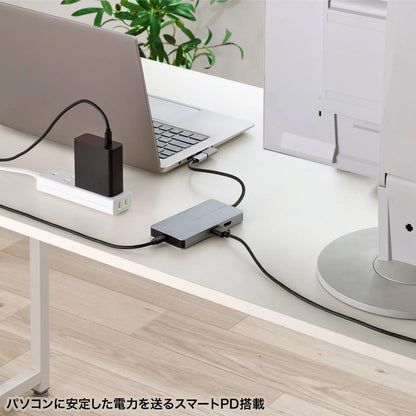

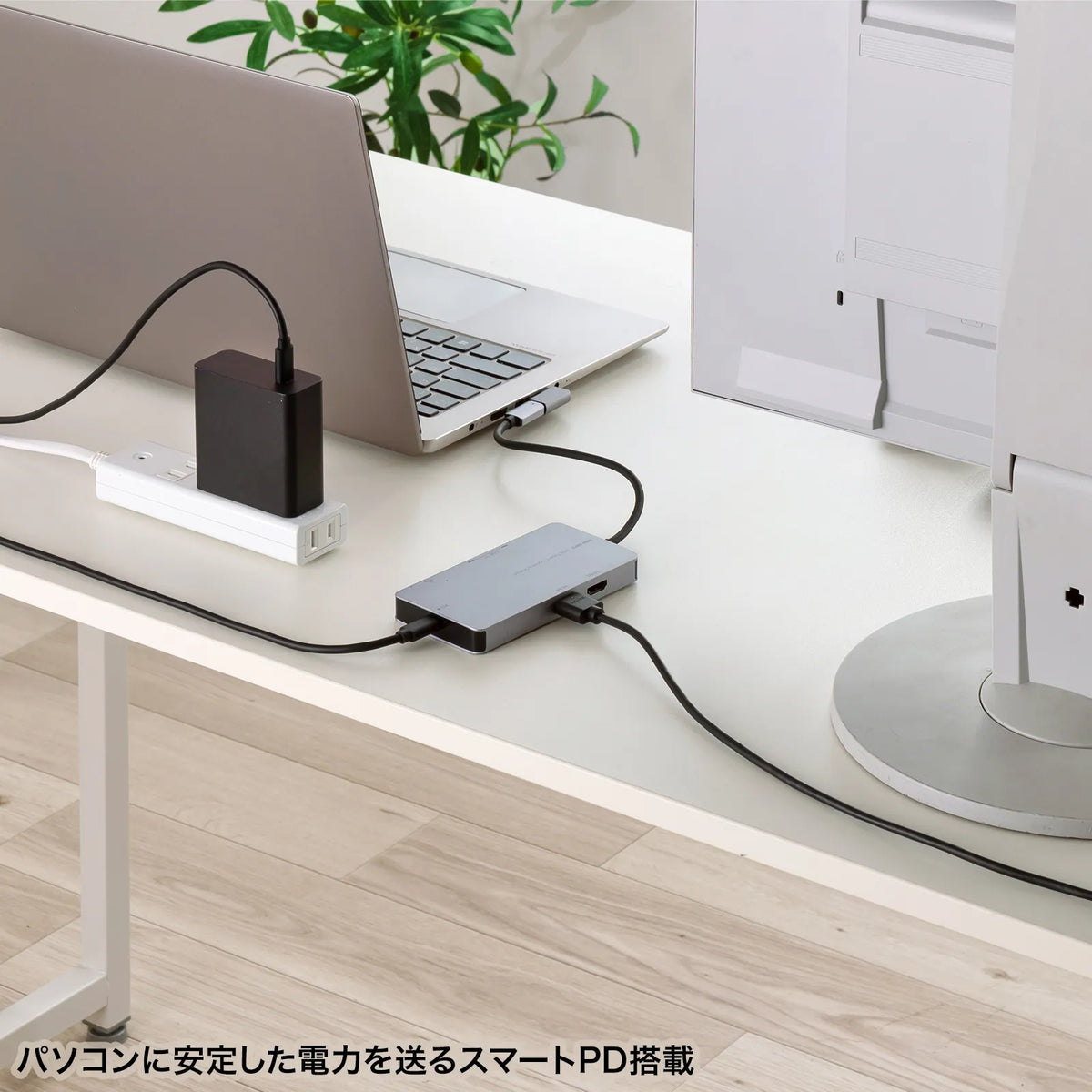

●A docking station equipped with Smart PD that provides stable power to your PC.

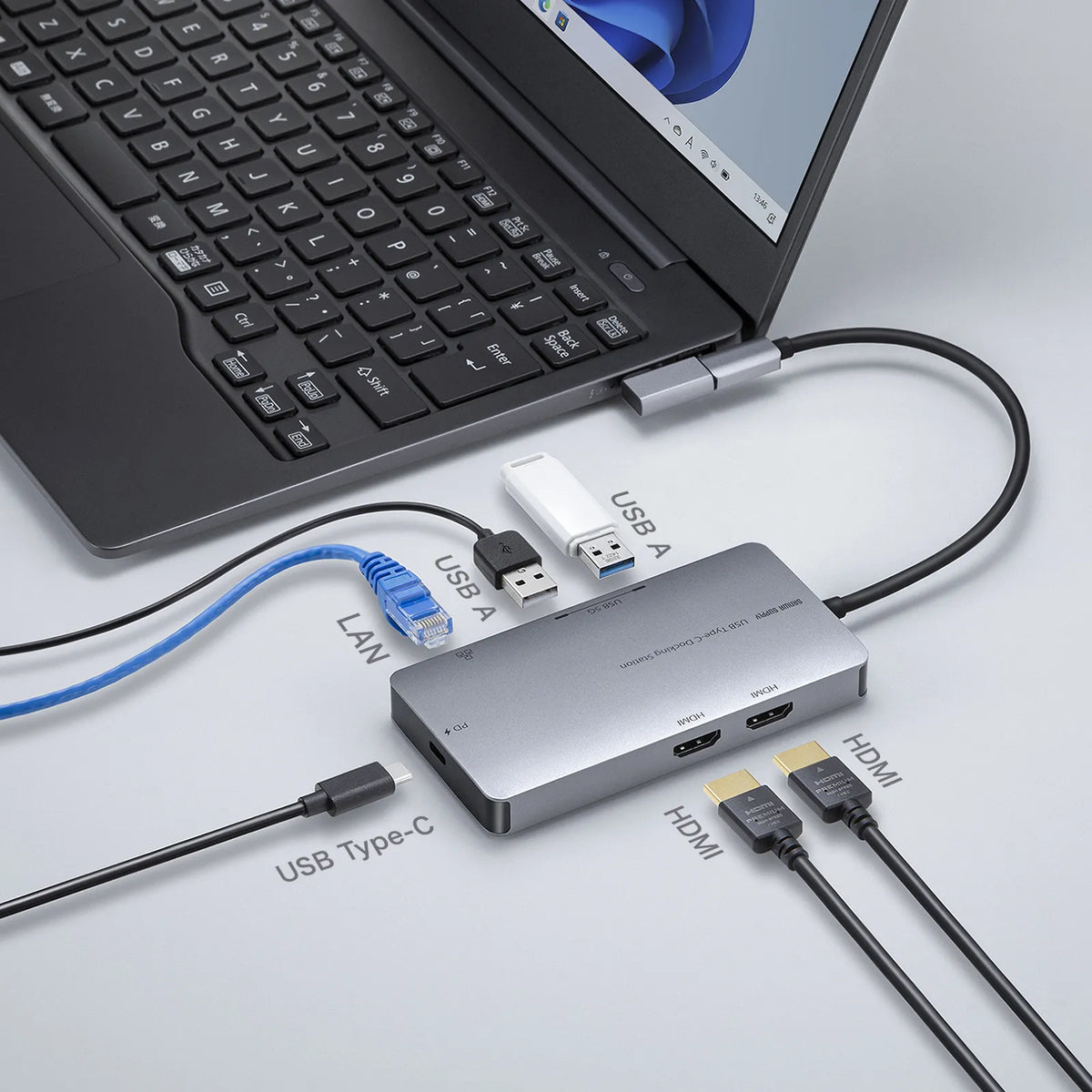

●A Type-C mobile docking station equipped with 2 HDMI ports and a card reader.

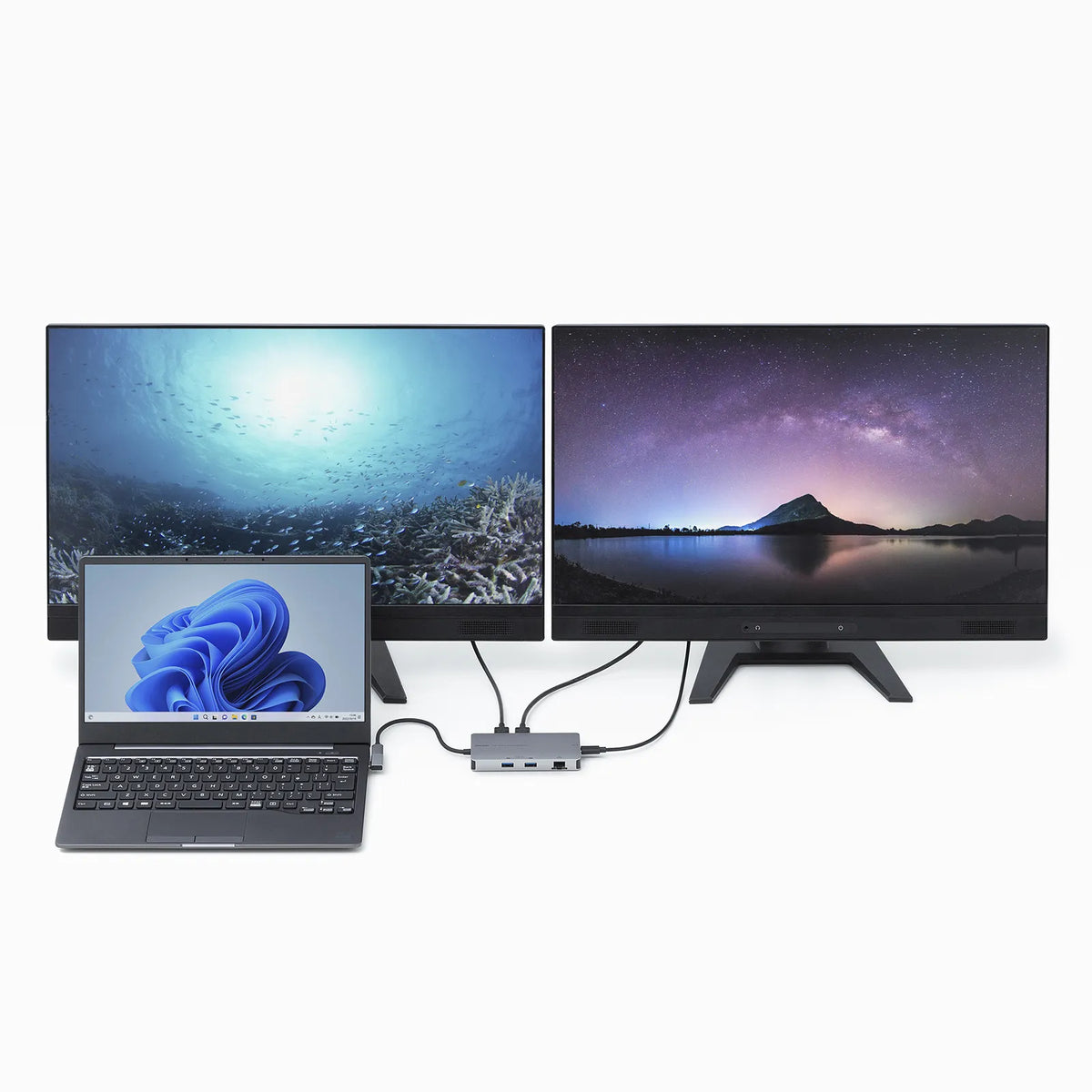

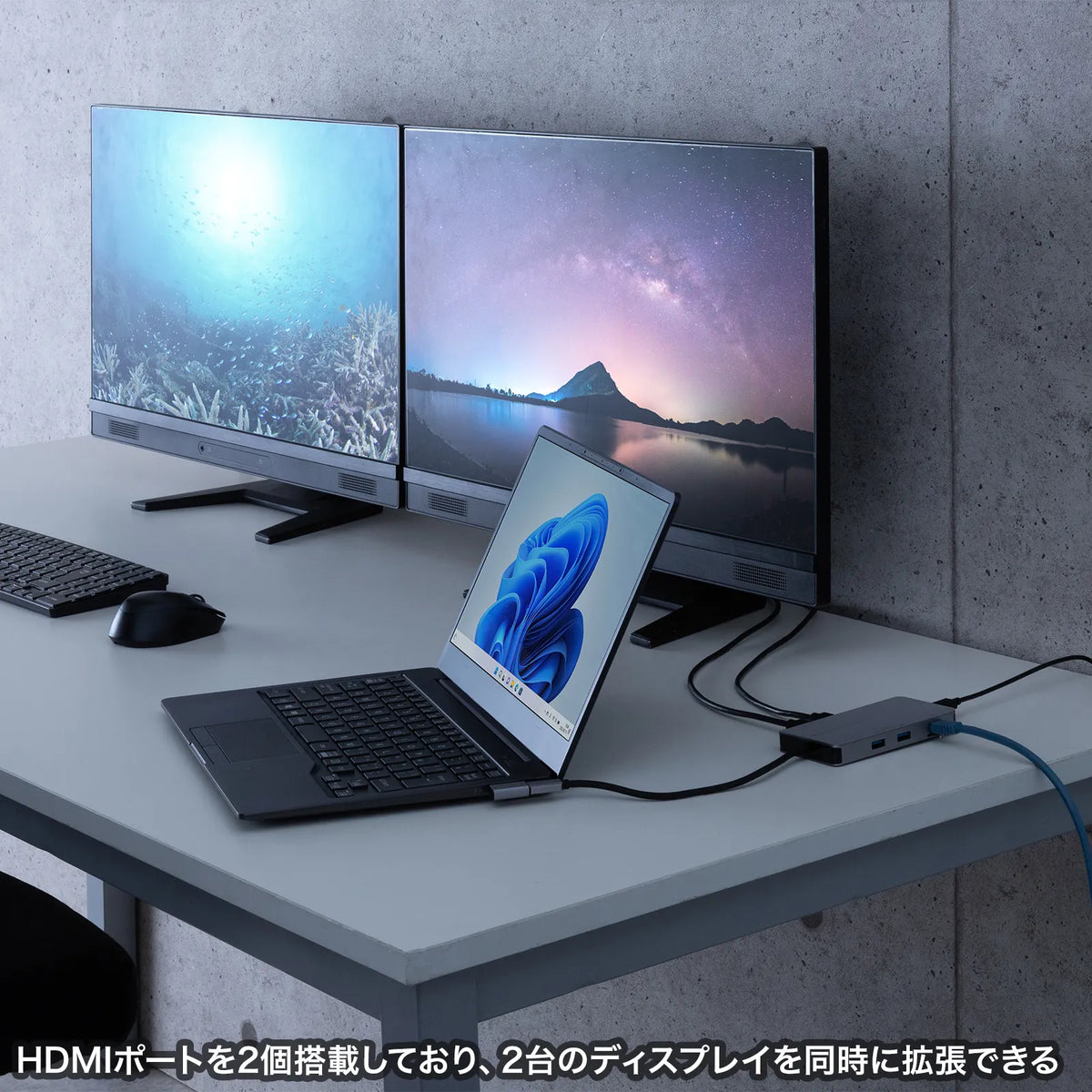

●With two HDMI ports, you can extend to two displays simultaneously.
●You can charge your PC with the dedicated USB PD port.
*Supports PD 100W

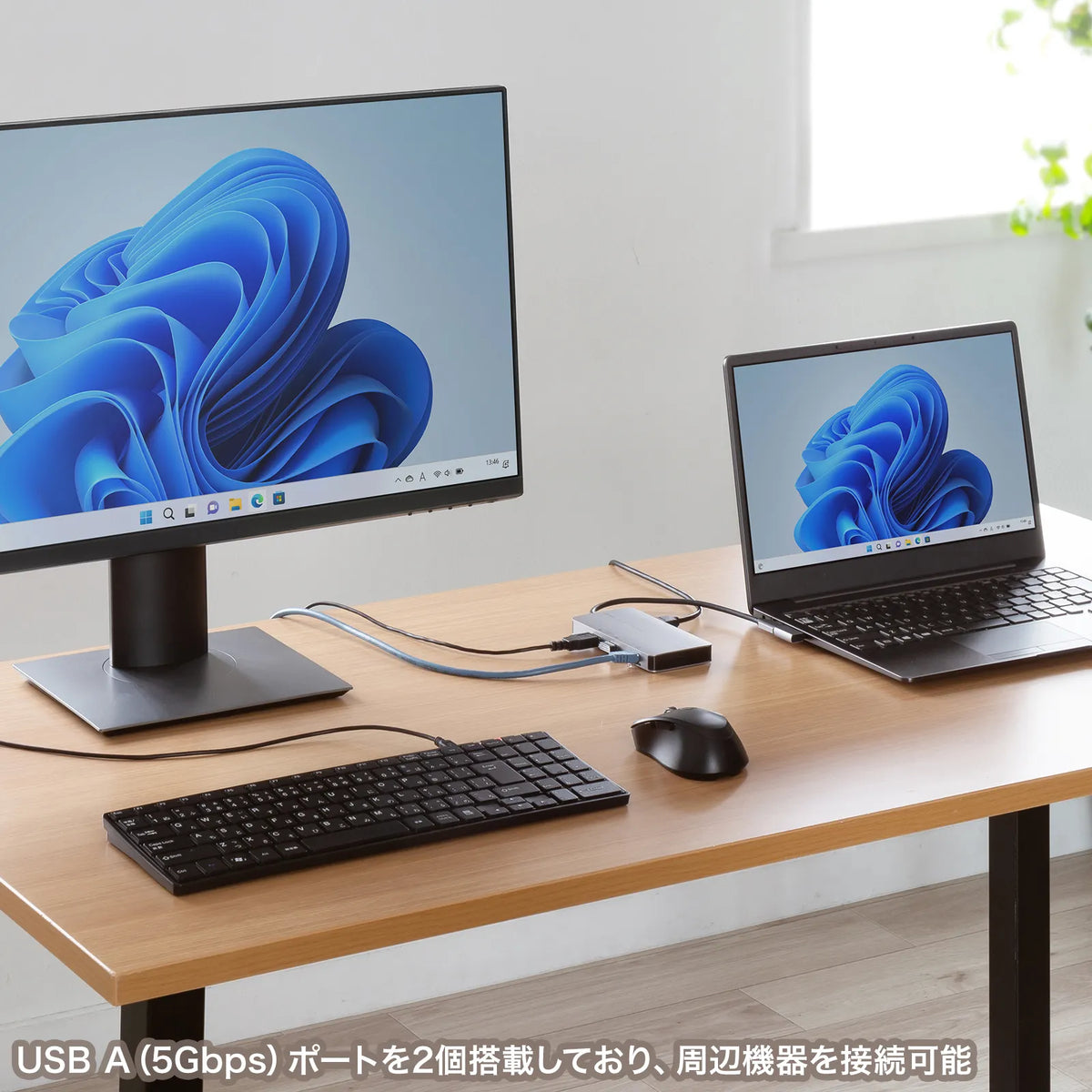

●Equipped with 2 USB 5Gbps (3.2 Gen1) USB A ports for connecting peripherals.

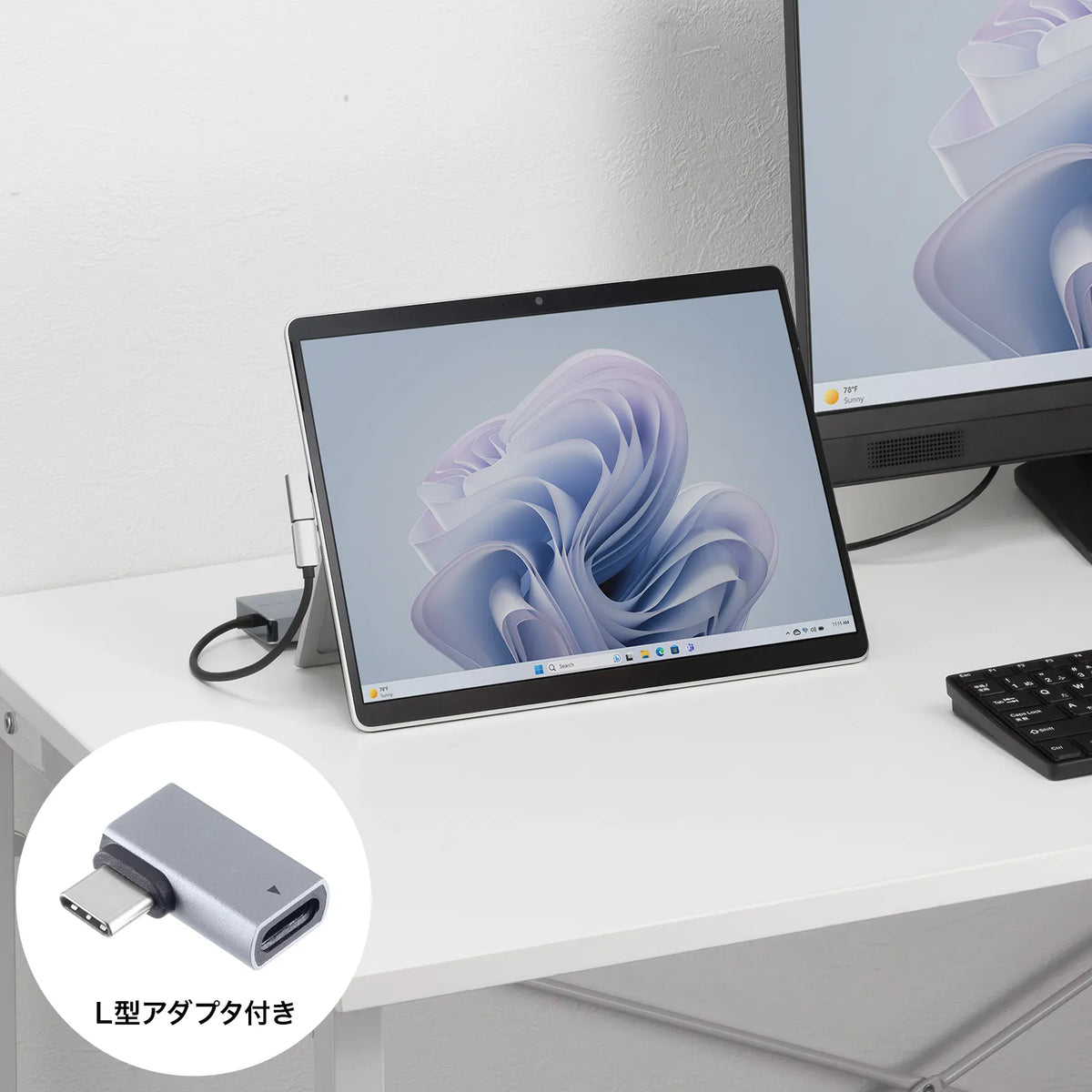

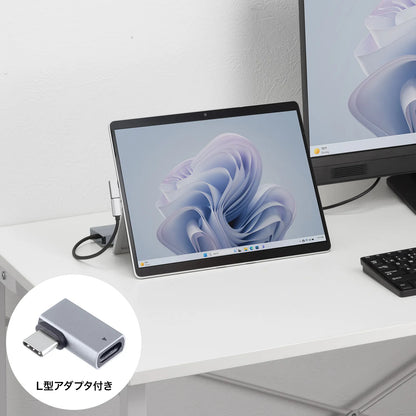

●Comes with an L-shaped adapter


＜PC Connection Terminal＞
■Connector shape: USB Type-C
■Supported standards: Compliant with USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0)
*USB 5Gbps is the same standard as USB3.2 Gen1 (USB3.1 Gen1/USB3.0), which was renamed by USB-IF (USB Implementers Forum).
■Maximum USB PD output: Approx. 100W
■Cable length: 20cm
■Cable type: Integrated type

＜USB Port＞
■Number of ports: 2 ports
■Maximum data transfer speed (theoretical value): 5Gbps
■USB A female/USB 5Gbps: 2 ports
■Supply current: Maximum 1500mA
(Total for all ports/bus powered)
*If the current consumption of the connected device exceeds the supply current of this product, it may not operate normally with bus power.

＜Power supply＞
■Power supply method: Bus power/Self power (when power is connected)
■Main unit power consumption: 0W
■USB PD input port: Yes
■Maximum USB PD input: 100W
*Depending on the computer or PD power adapter you are using, a warning may be displayed recommending the use of the power adapter attached to your computer, but this does not affect its use.

＜Video Output Port＞
■Number of Supported Output Displays: 2
■Connector: HDMI Type A (19pin) Female x2
■Maximum Supported Resolution: Up to 3840x2160 (4K/60Hz)
*The supported resolutions listed require your computer to support DisplayPort Alt Mode (DP1.4 or higher).
*For 4K resolution output, the display must support 4K resolution, and the content being output must also support 4K resolution.
■Maximum Supported Resolution/Refresh Rate:
3840x2160
■HDCP: 2.2, 2, 1.4
■HDMI: 2 ports

＜LAN Port＞
■Port Shape: RJ-45 port (Auto MDI/MDI-X), Auto-Negotiation compatible
*Wake On LAN function is supported, but compatibility varies depending on the computer model, so operation is not guaranteed.
*Depending on the connected device, you may need to turn off Wi-Fi to use a wired network.
■Supported standards: IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T)
■Transmission speed (theoretical value): 1000Mbps, 100Mbps, 10Mbps
*Regarding communication speed, 1000BASE-T is supported only when connected via USB 5Gbps (USB 3.2 Gen1).
■Access method: CSMA/CD

＜Common specifications＞
■Driver: Not required

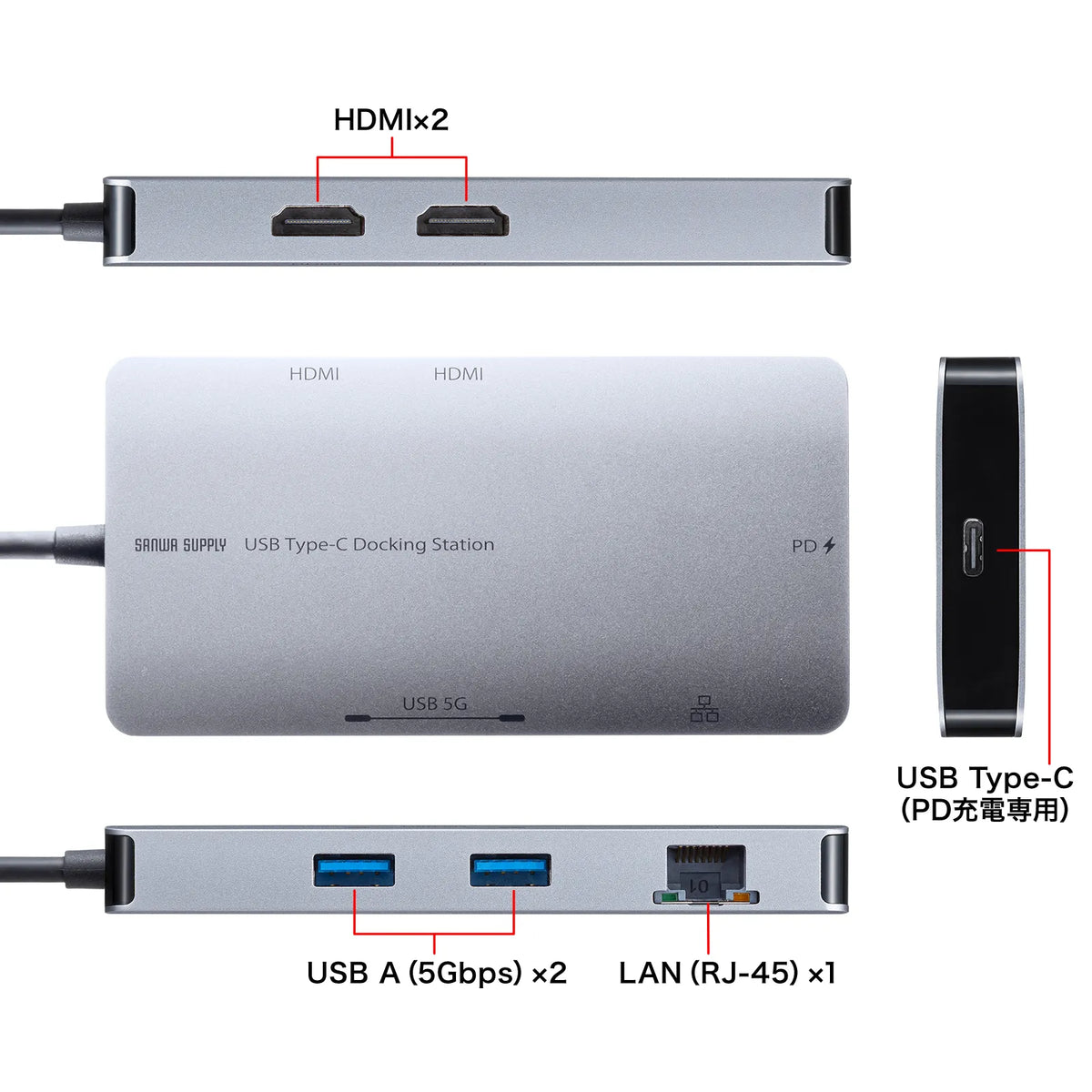

■Total number of ports: 6
■Size: Approx. W115 x D59 x H14mm
■Weight: Approx. 117g
■Set contents: L-shaped conversion adapter, instruction manual
