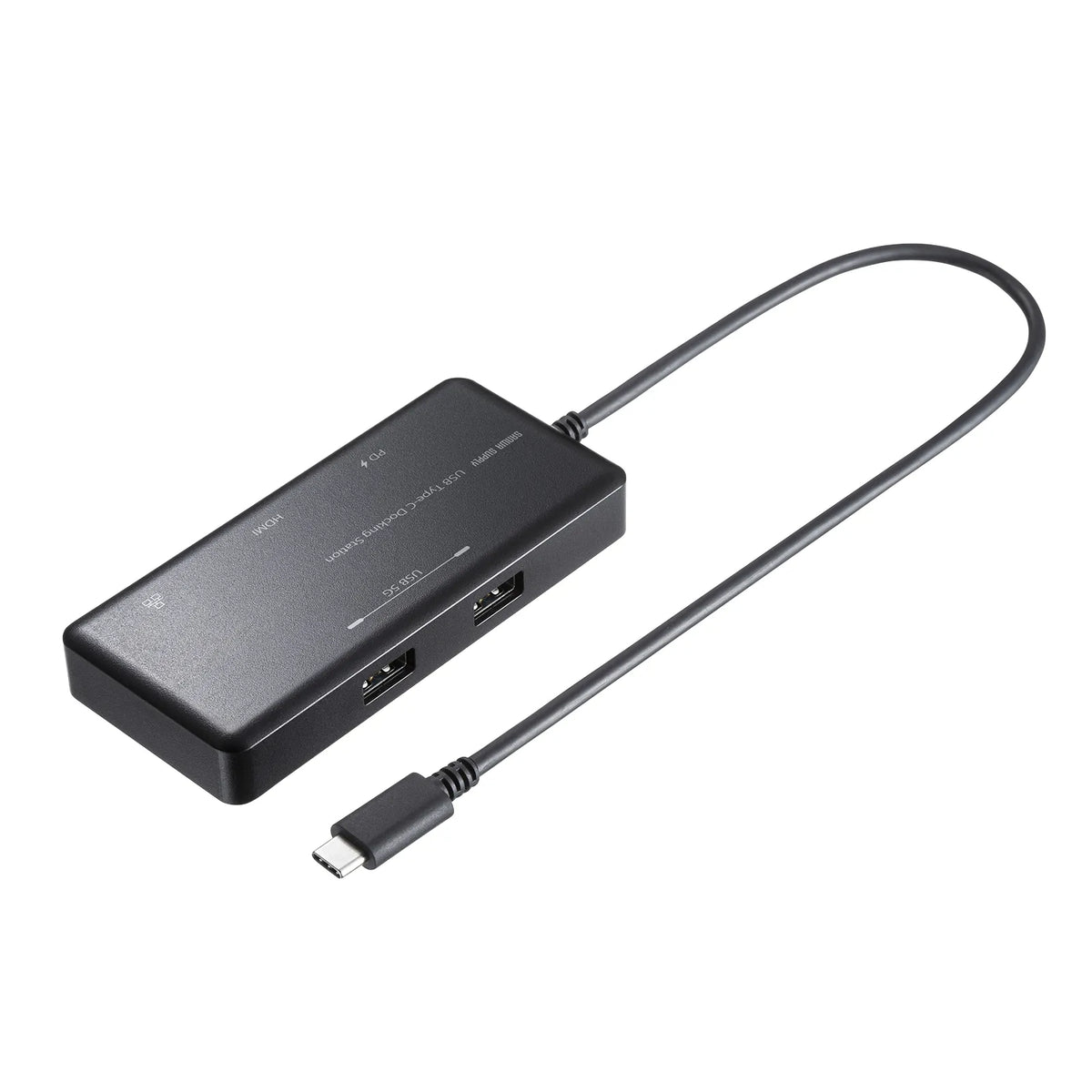

USB Type-C Docking Station USB-DKM7BK

[WWCB Certified Docking Station]

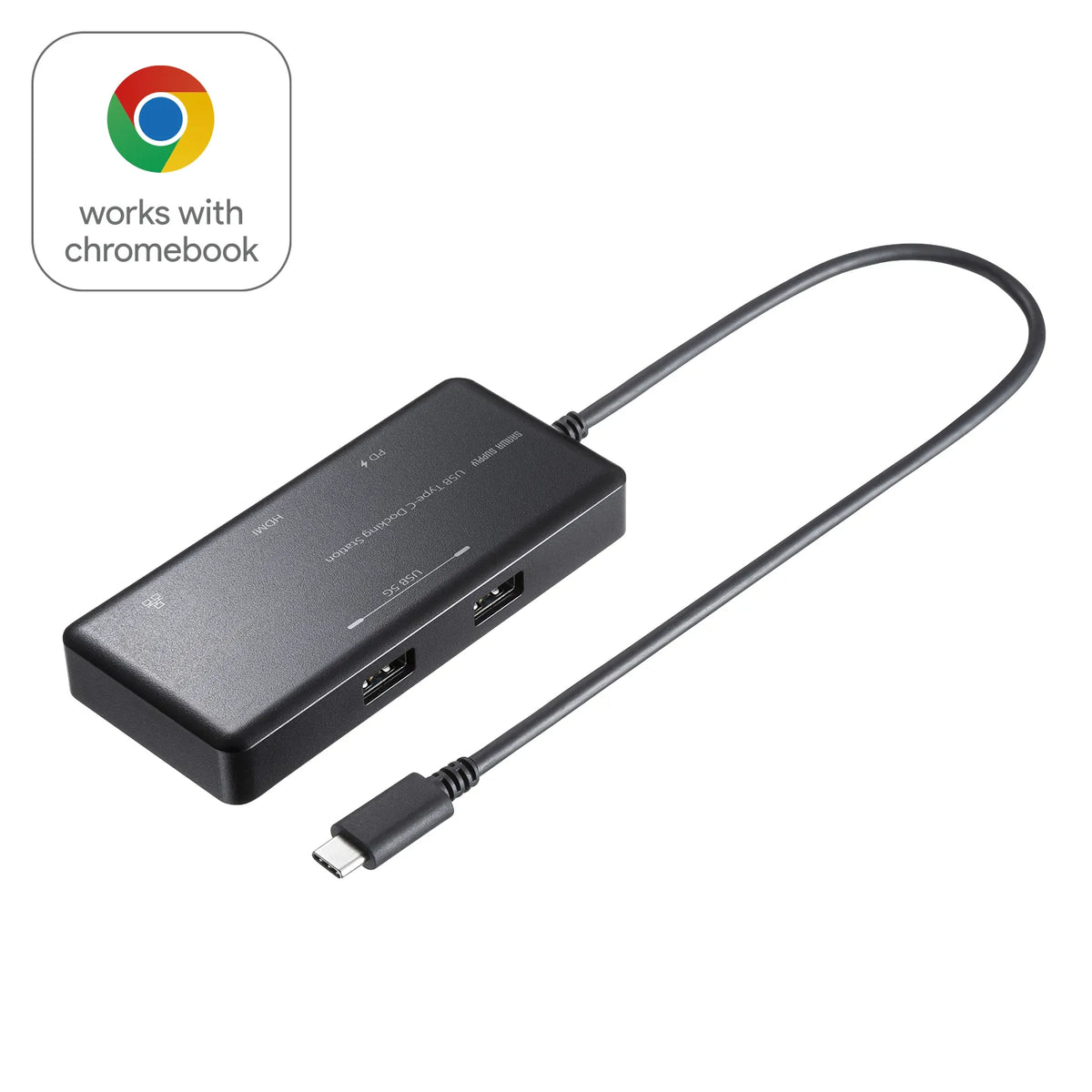

●This docking station is certified Works With Chromebook.

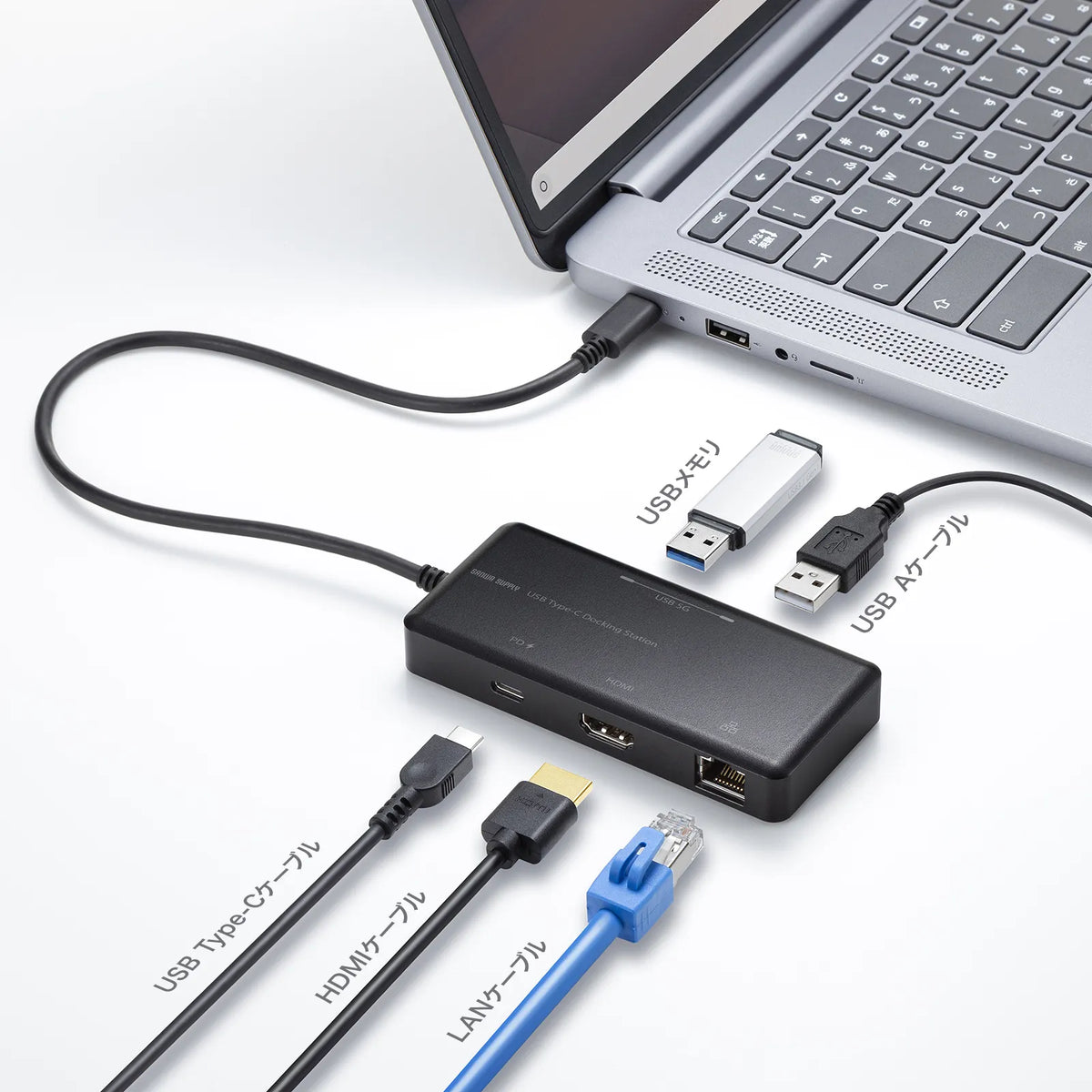

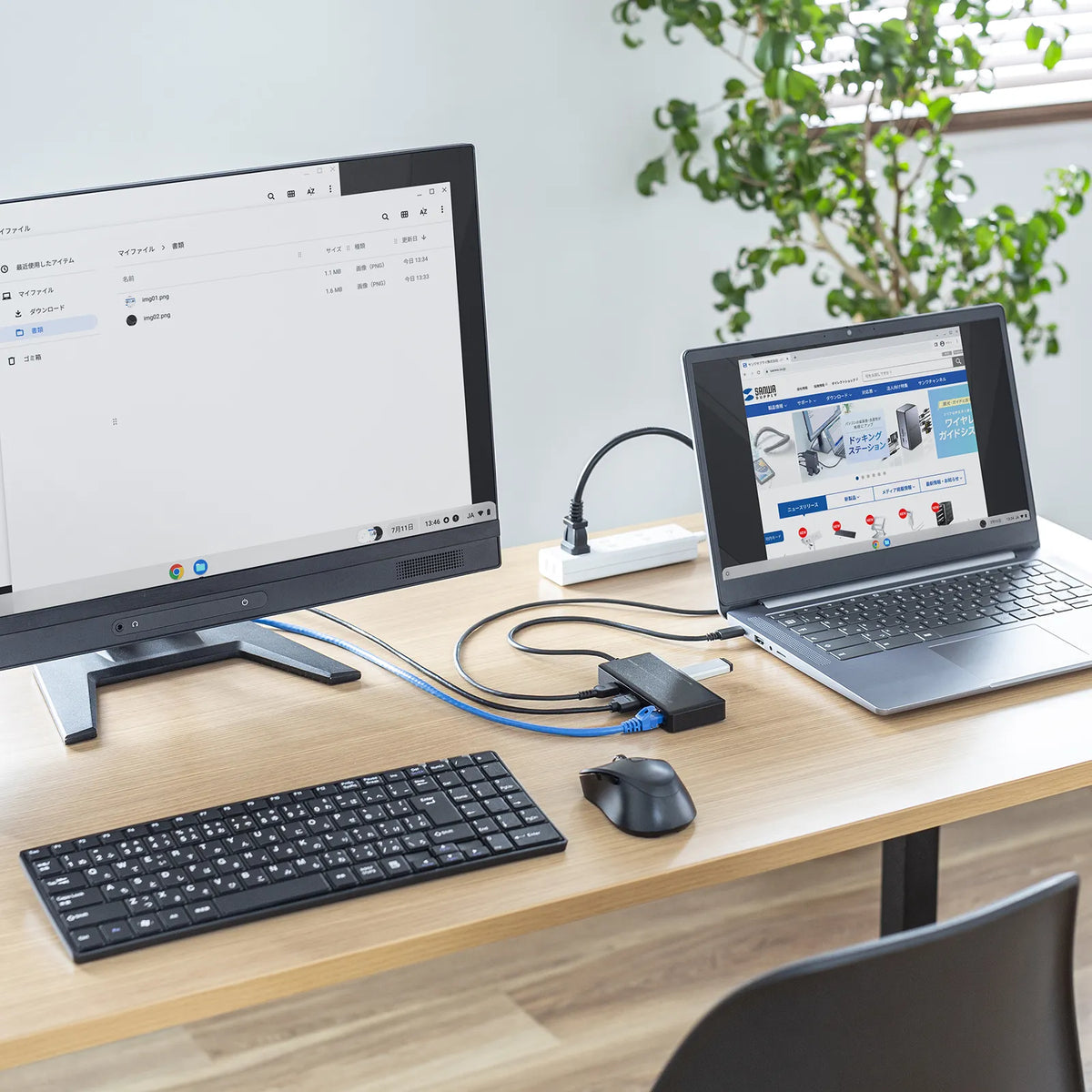

●This USB Type-C docking station allows you to extend the connection of an HDMI display, USB devices, and wired LAN with just one Type-C cable.

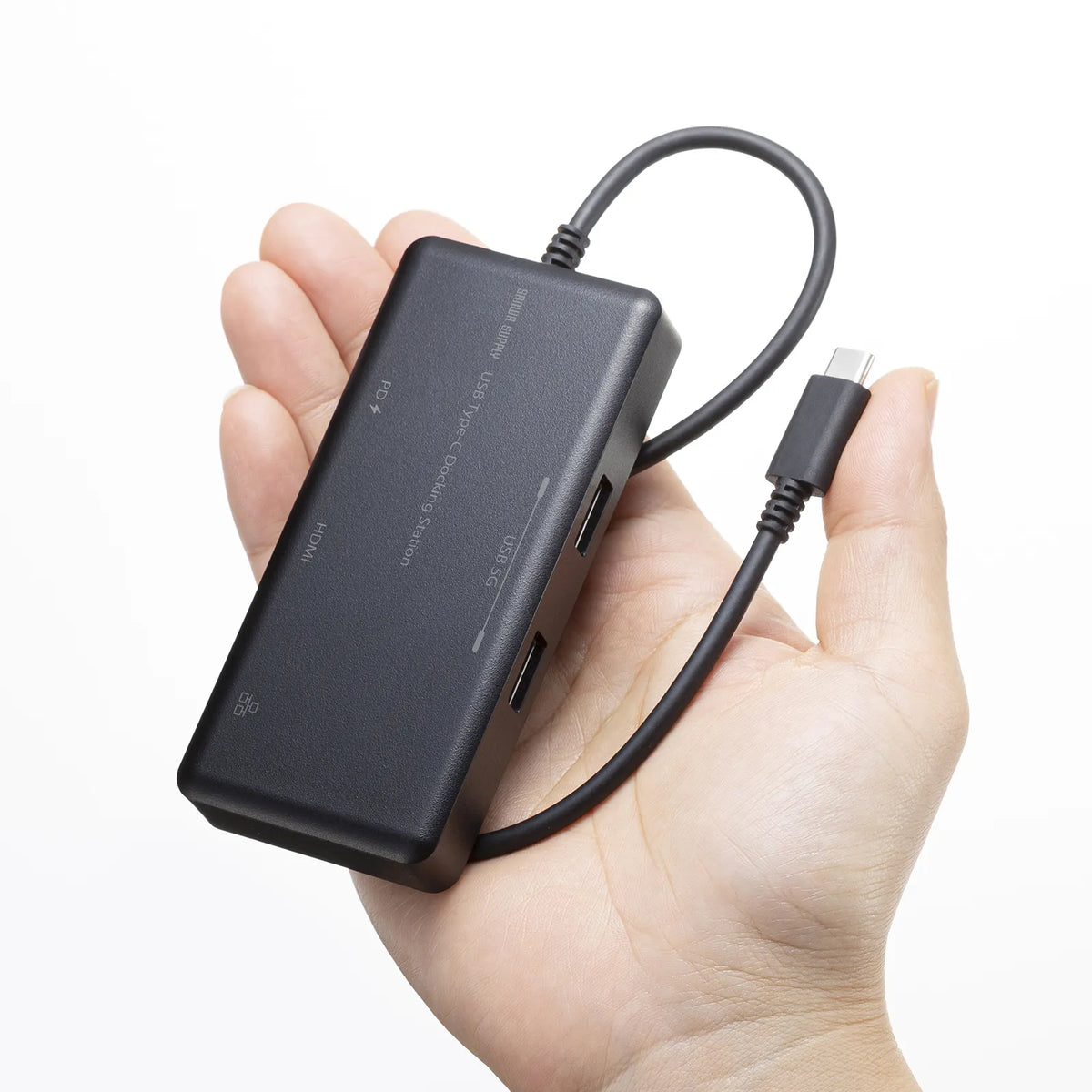

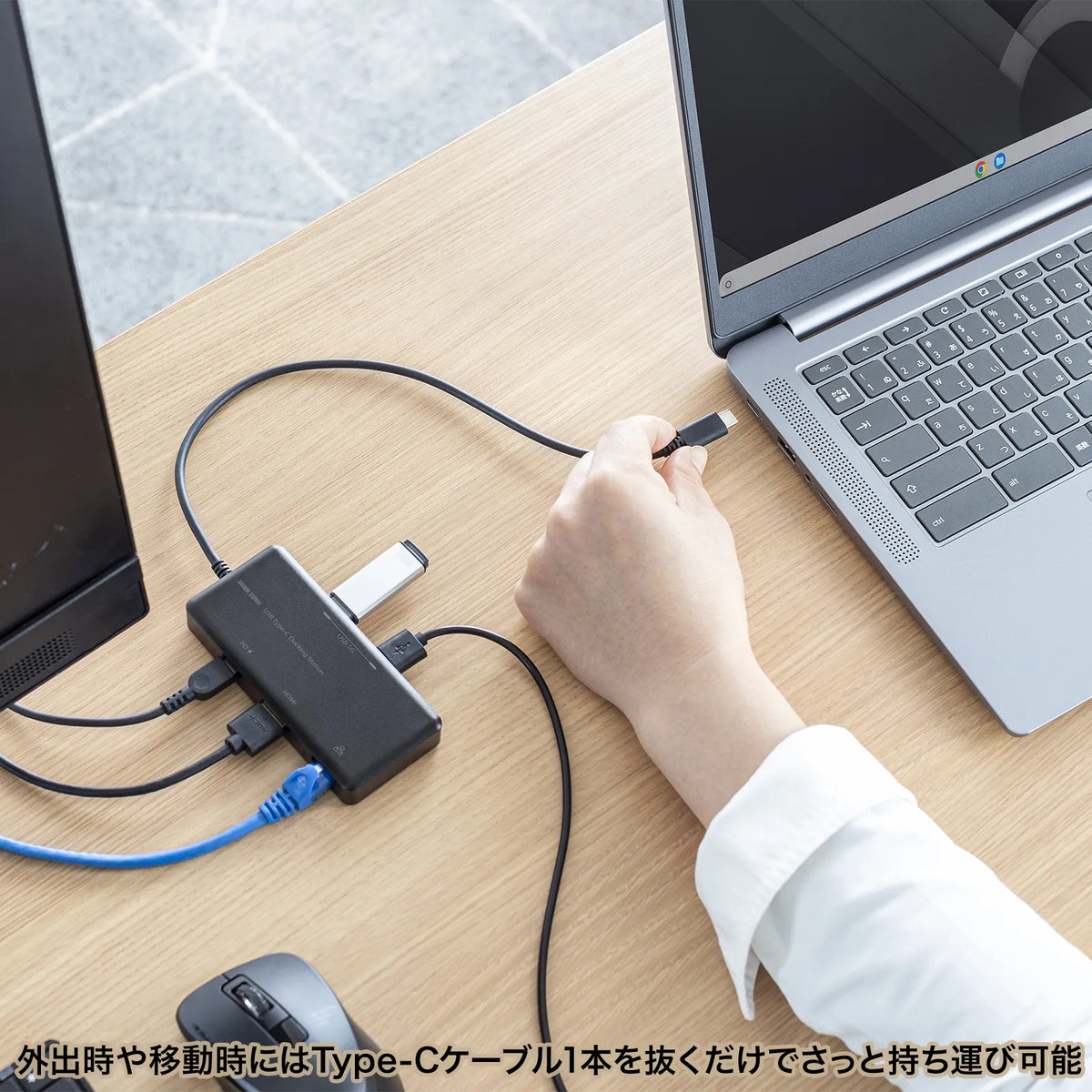

●With just one Type-C cable connection, you can comfortably operate with a large screen display and USB devices, and when you are out or going to a meeting, you can quickly take it with you by simply unplugging the Type-C cable.

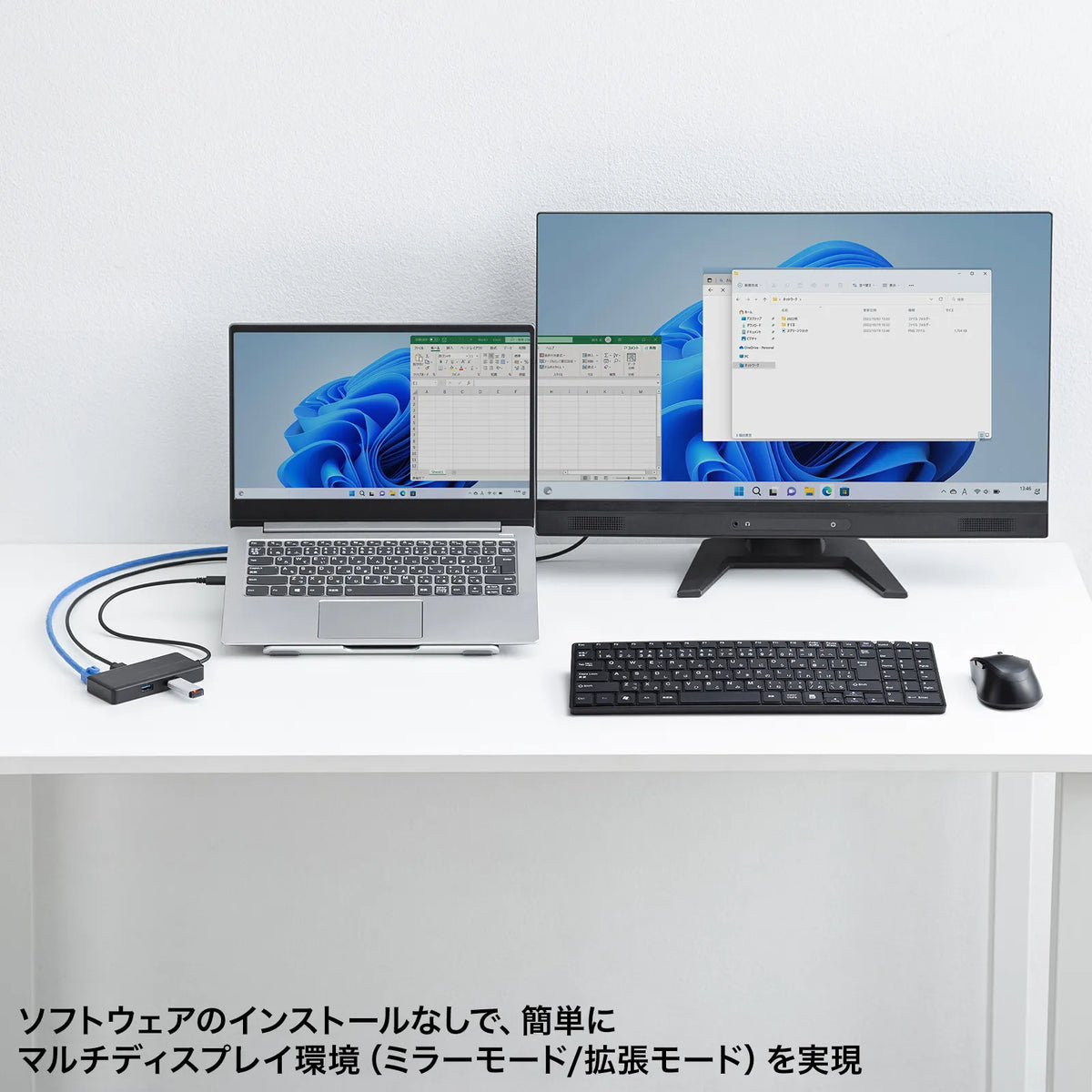

●Supports DisplayPort Alternate Mode for adding an HDMI display via USB Type-C connection, so you can easily create a multi-display environment (mirror mode/extended mode) without installing any software.

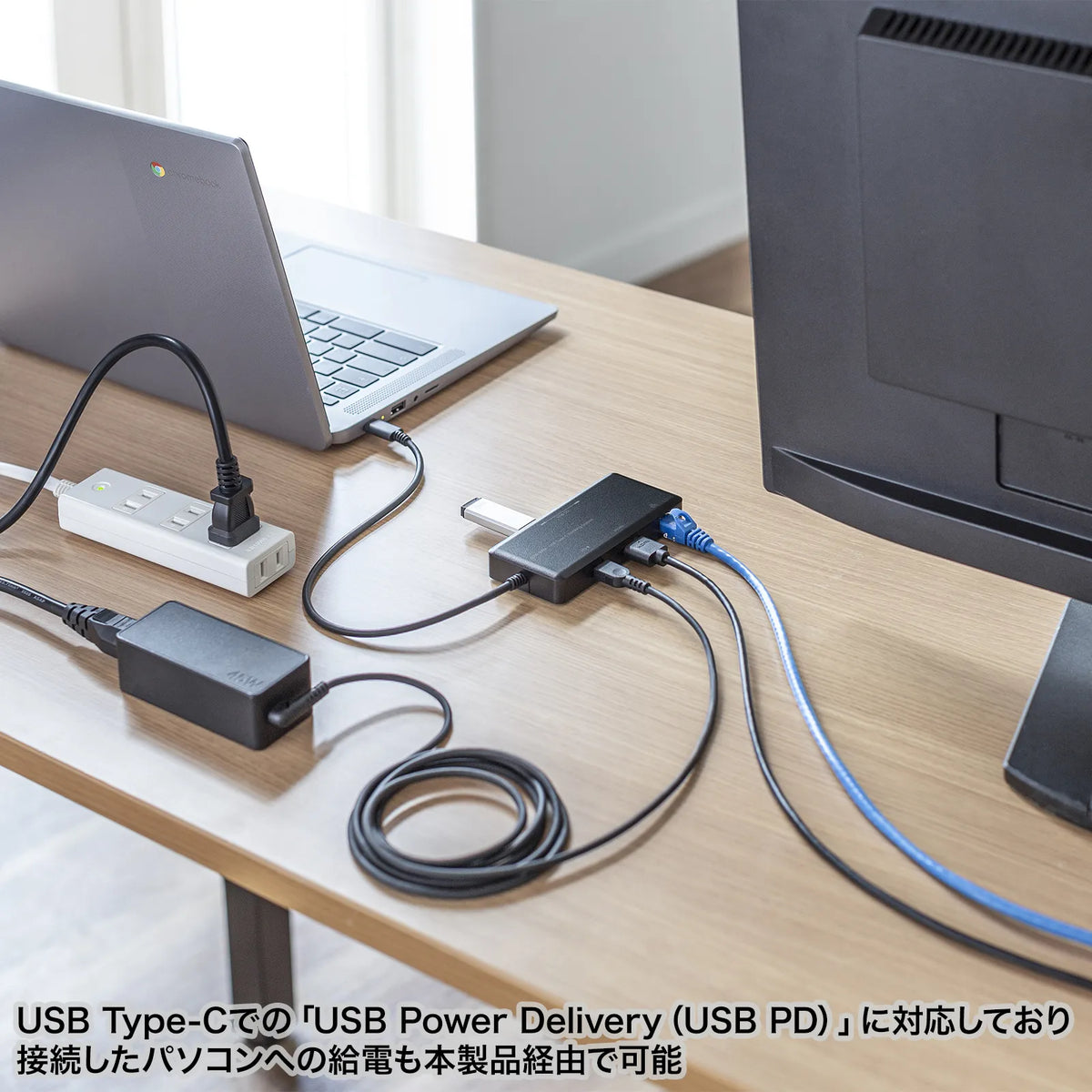

●Supports USB Power Delivery (USB PD) via USB Type-C, so you can also supply power to the connected computer through this product.
●Supports Gigabit Ethernet, so it is compatible with Gigabit network environments and allows for wired LAN connection with just one Type-C cable.
≪Limitations≫
※Please connect this product directly to the Type-C port of your computer. This product cannot be used with USB hubs or additional USB ports.
※Although this product supports USB PD (Power Delivery), it is not compatible with all USB Type-C equipped devices (PD compatible).
※While this product is basically plug-and-play compatible for disconnecting and connecting, in rare cases, it may not display or operate correctly due to a timing error in USB recognition. Please try unplugging and plugging it in again. This is not a defect or malfunction of this product.
※Even with compatible models and compatible connected devices/environments, it may not operate correctly.
※When connecting USB 2.0/11 standard products, please note that the maximum transfer speed will be that of the slower standard.
※Although this product is a USB Type-C docking station, it cannot be guaranteed to connect to and operate with all USB Type-C devices.
※This product supports the USB 3.2 Gen1 (USB 3.1/3.0) standard, but the transfer speed of USB 3.1 Gen1 (USB 3.1/3.0) (5Gbps) is a standard value.

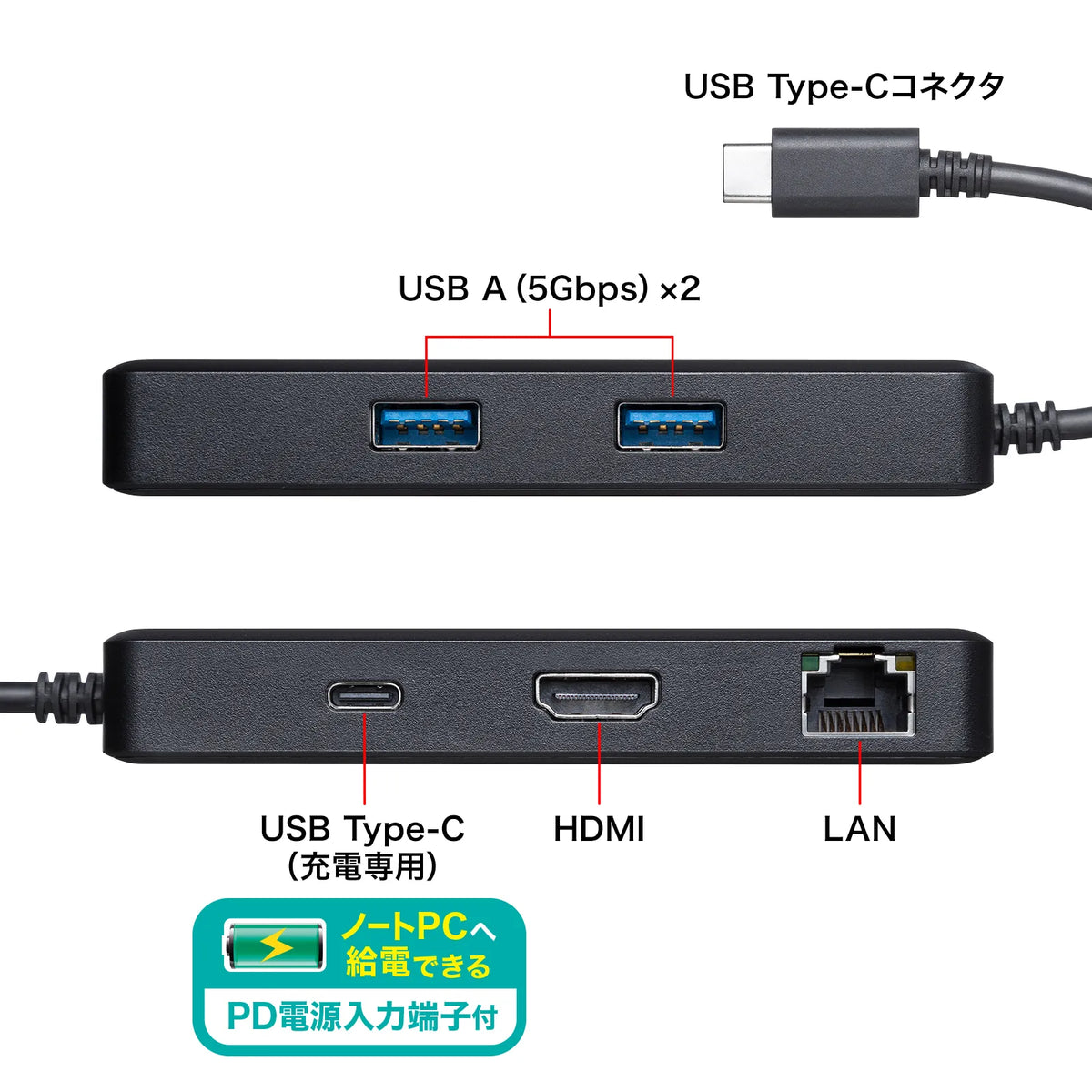

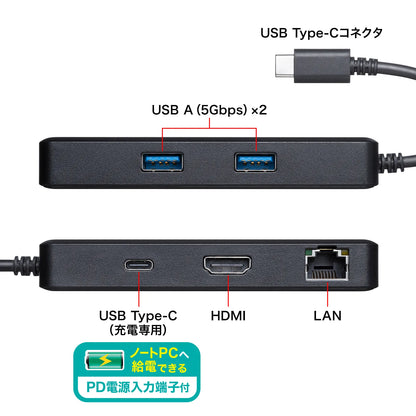

＜PC Connection Terminal＞
■Connector Shape: USB Type-C
■Supported Standards: USB 5Gbps (USB 3.2 Gen1/3.1 Gen1/3.0) compliant
*USB 5Gbps is the same standard as USB 3.2 Gen1 (USB 3.1 Gen1/USB 3.0), which was renamed by USB-IF (USB Implementers Forum).
■Cable Length: 30cm
■Cable Type: Integrated type

＜Video Output Port＞
■Number of Supported Output Displays: 1
■Connector Shape: HDMI Type A (19pin) Female
*Display Alt mode compatible
■Maximum Supported Resolution: 4K/60Hz
*The supported resolutions listed require your computer to support DisplayPort Alt Mode (DP1.4 or higher).
*For 4K resolution output, the display must support 4K resolution, and the content being output must also support 4K resolution.
■Maximum supported resolution/refresh rate: 3840x2160
■HDCP: 1.4
■Connector shape (HDMI): 1 port

＜USB Port＞
■Number of ports: 3 ports
■Maximum data transfer speed (theoretical value): 5Gbps
■Connector shape: USB Type-C female/charging-only port/1 port
USB A female/USB 5Gbps (USB 3.2 Gen1/3.1 Gen1/3.0) compliant/2 ports
■Supply current: Maximum 1500mA
(Total for all ports/bus powered)
*If the current consumption of the connected device exceeds the supply current of this product, it may not operate properly with bus power.

＜LAN Port＞
■Port shape: RJ-45 port (Auto MDI/MDI-X), Auto-Negotiation compatible
*While it supports Wake On LAN function, compatibility varies depending on the PC model, so operation is not guaranteed.
*Depending on the connected device, you may need to turn off Wi-Fi to use a wired network.
■Supported standards: IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T)
■Transmission speed (theoretical value): 1000Mbps, 100Mbps, 10Mbps
*Regarding communication speed, 1000BASE-T is supported only when connected via USB 5Gbps (USB3.2 Gen1).
■Access method: CSMA/CD

＜Power＞
■Power supply method: Bus power/Self power (when power is connected)
■USB PD input port: Yes
■Supported input power (USB PD): Maximum 100W
*Depending on the computer or PD power adapter you are using, a warning may be displayed recommending the use of the power adapter included with your computer, but this does not affect its use.
■Maximum PC power supply (USB PD standard): 86W
■Power consumption of the main unit: 14W

＜Common specifications＞
■Operating conditions: Temperature 0 to 40 degrees (non-condensing)
Humidity -20 to 70% (non-condensing)
■Driver: Not required
■Total number of ports: 5

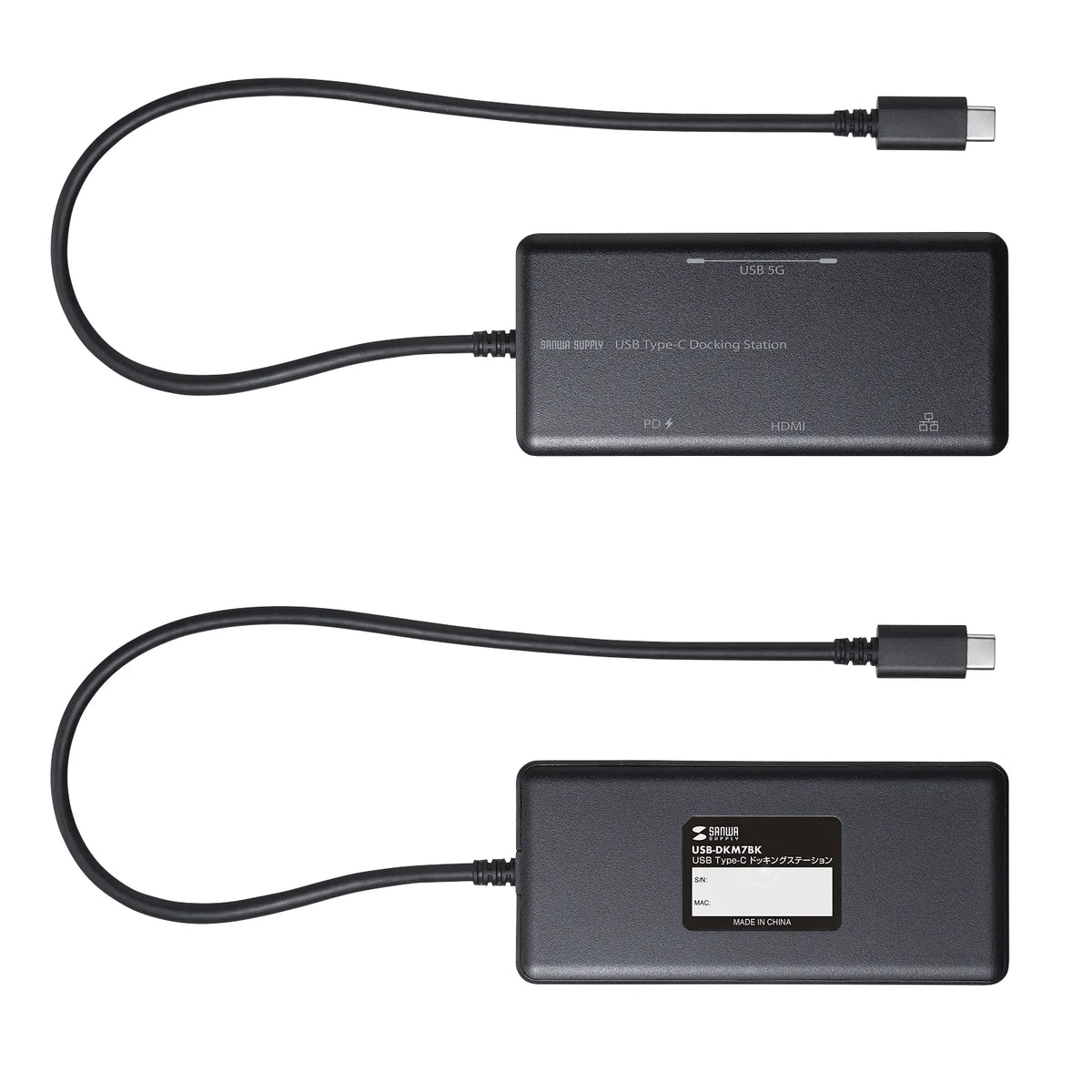

■Size: Approx. W110 x D50.1 x H16.9 mm
■Weight: Approx. 74g
■Set contents: Instruction manual
