USB Type-C Docking Station USB-DKM5BKN

[USB Type-C Docking Station Equipped with a Type-C Port for Video Output]

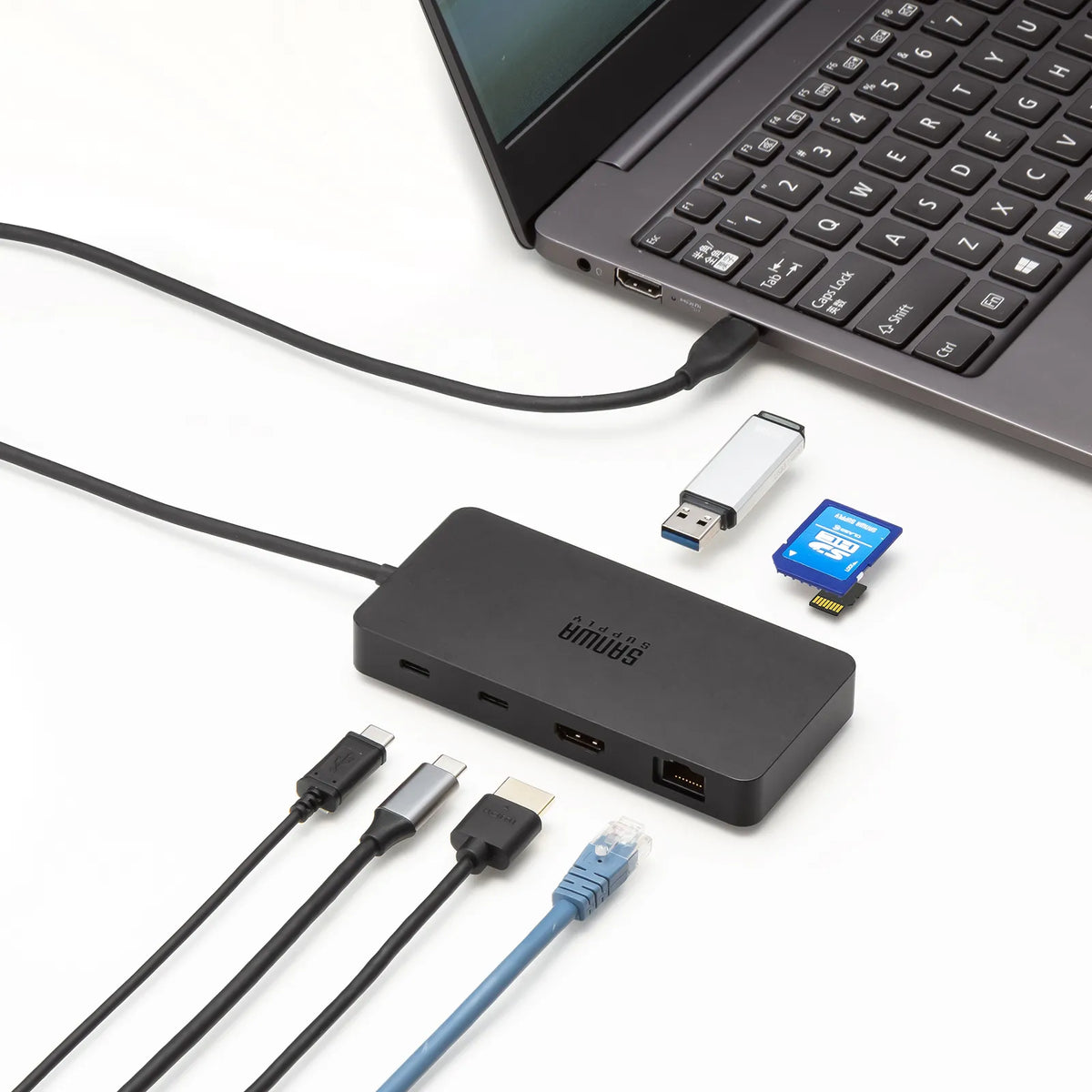

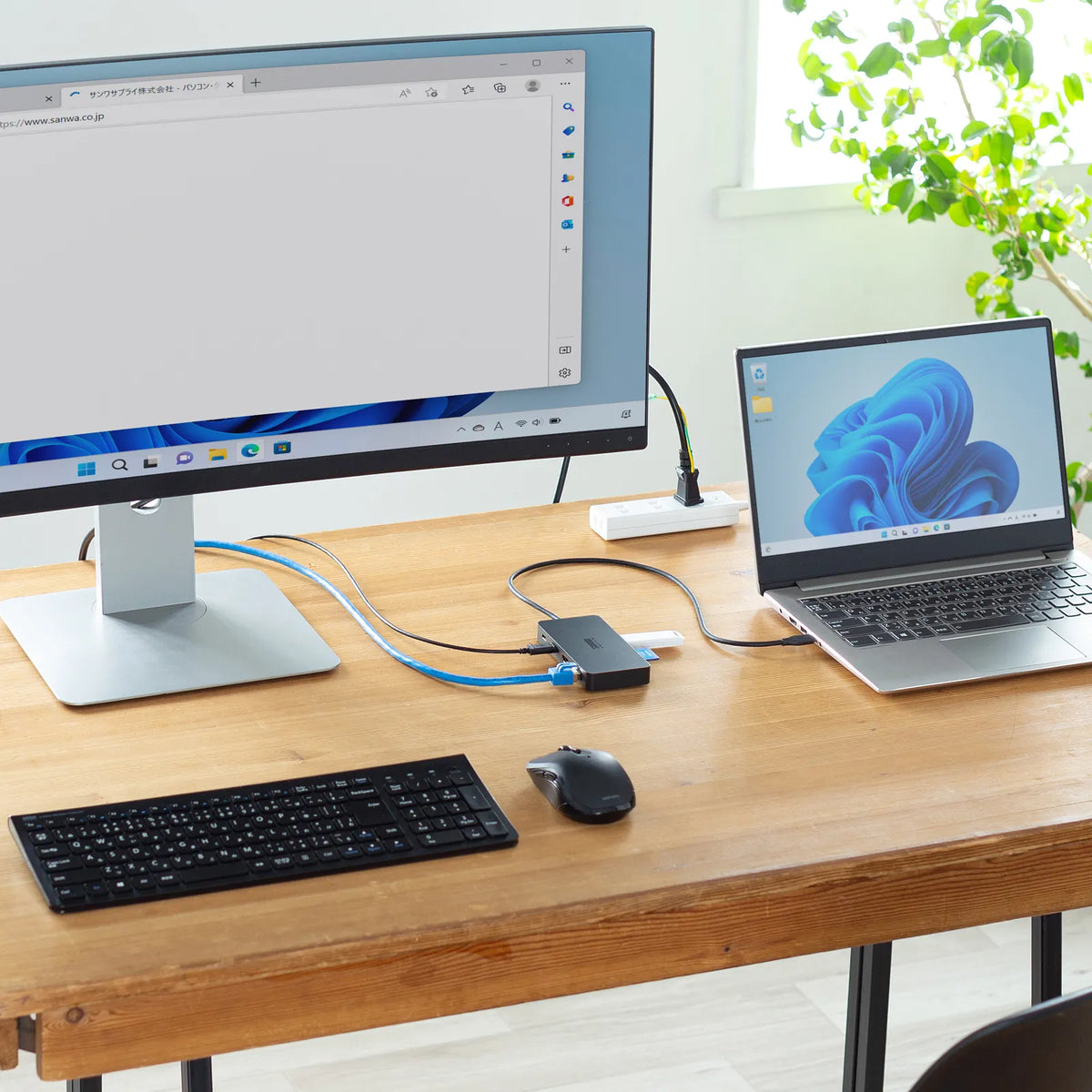

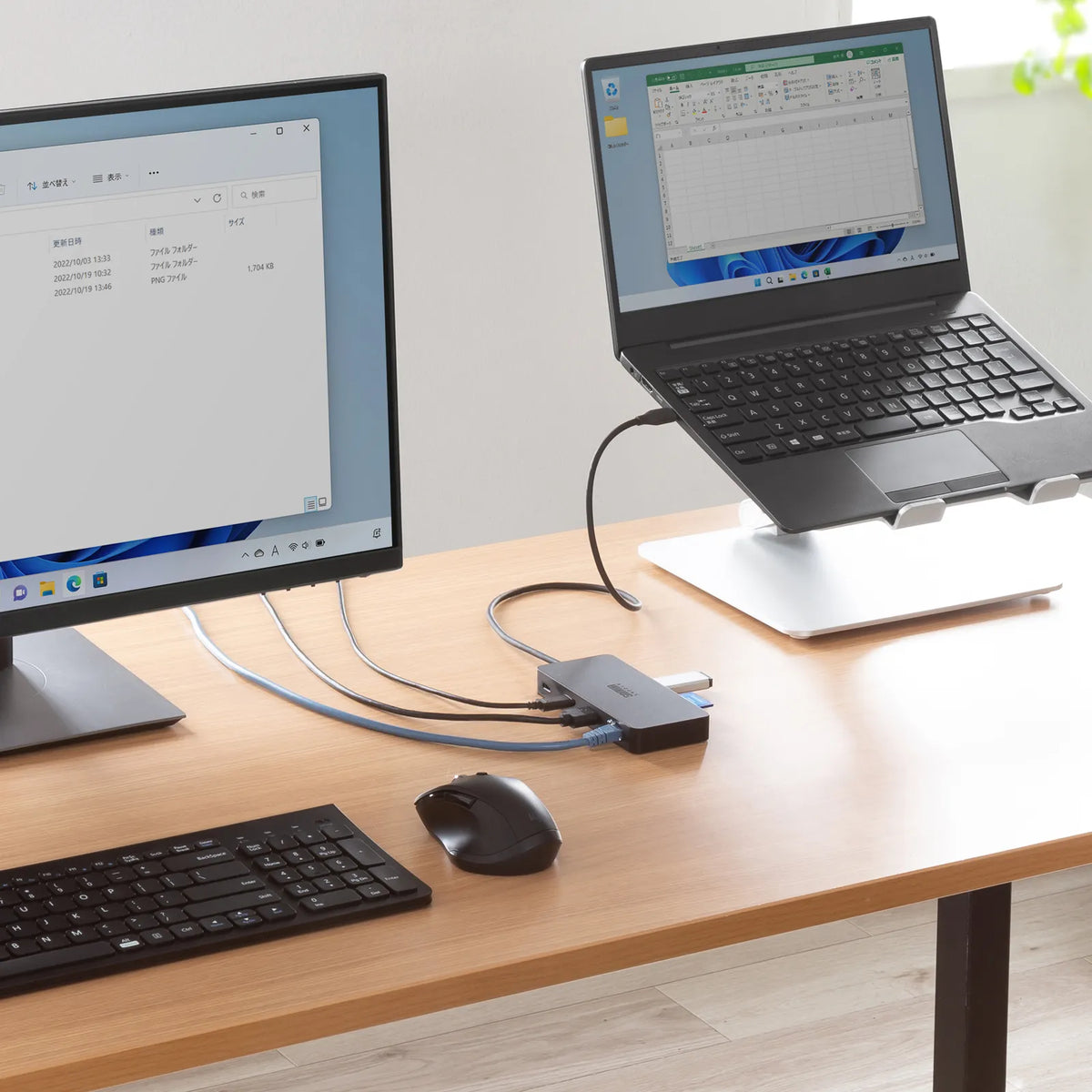

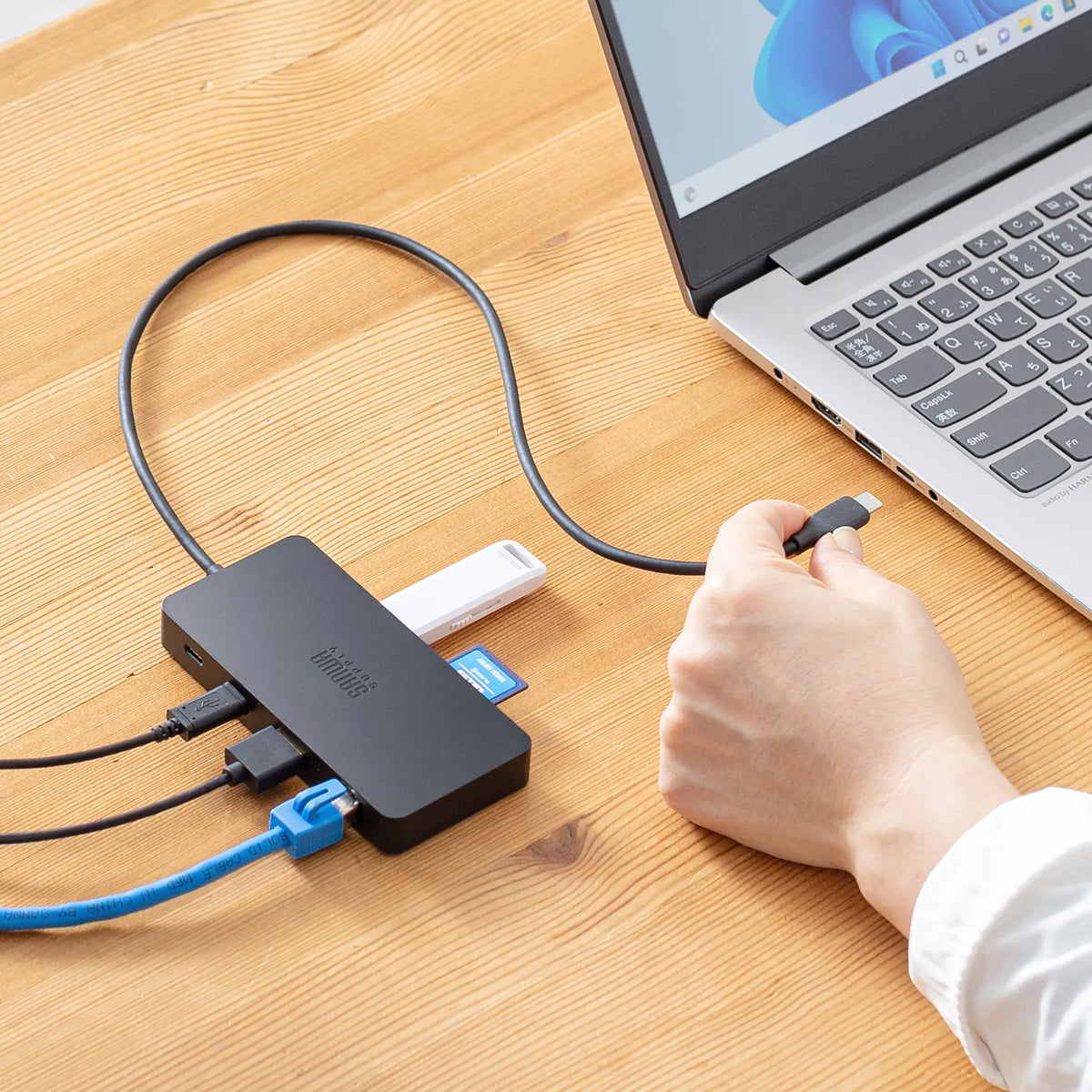

●This USB Type-C docking station allows you to expand connections to an HDMI display, USB devices, and wired LAN with just one Type-C cable.

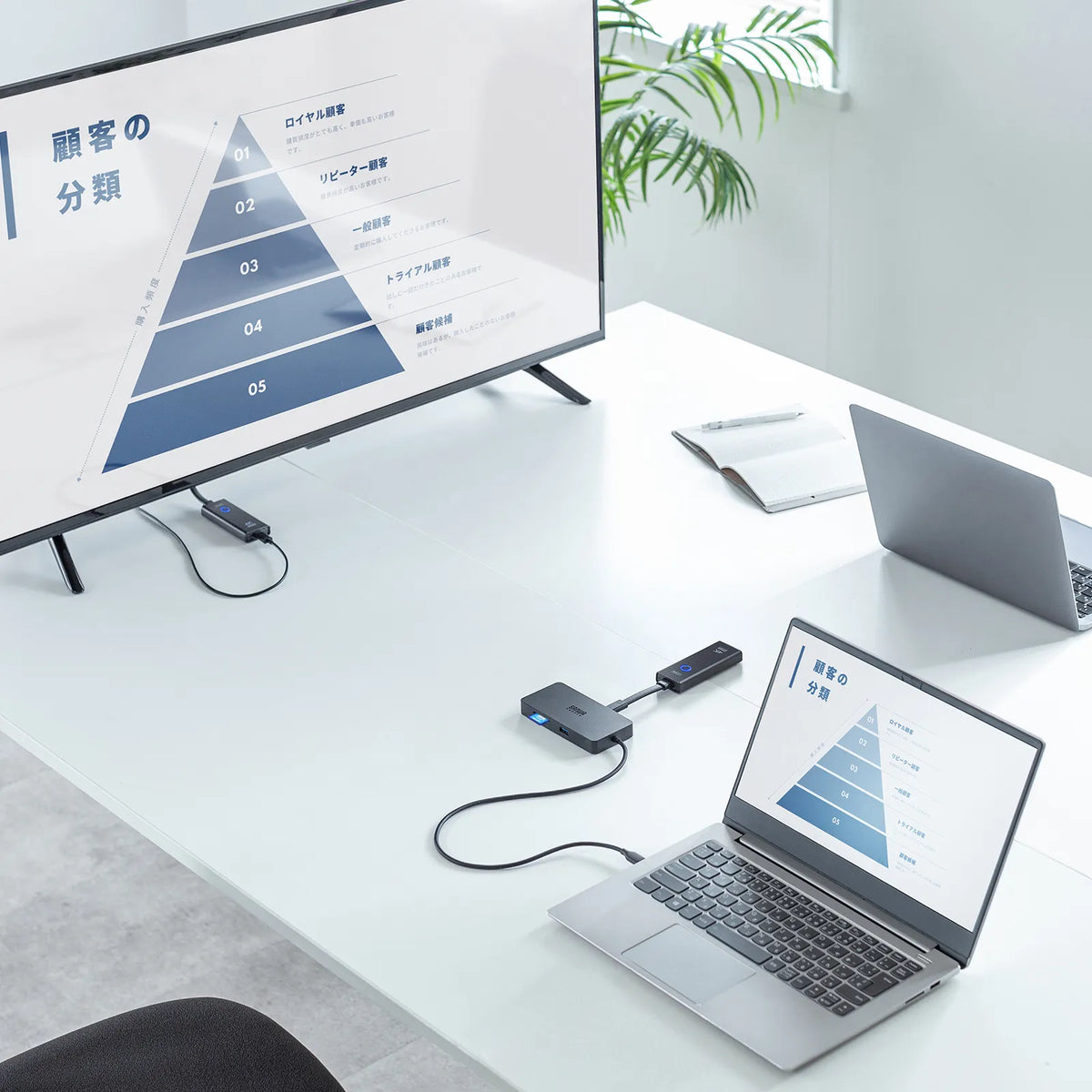

●Equipped with a Type-C port for connecting a Type-C display.
●Also compatible with touch panel type Type-C displays.
*The display built into the docking station may not work.
●The HDMI port supports 8K (30Hz).
●The USB PD dedicated port (100W compatible) can charge your laptop with up to 92W of charging.
●Equipped with USB 5Gbps (3.2 Gen1) USB Ax2 ports for connecting peripherals.
●Supports Gigabit Ethernet, so it is compatible with Gigabit network environments and allows wired LAN connection with just one Type-C cable.

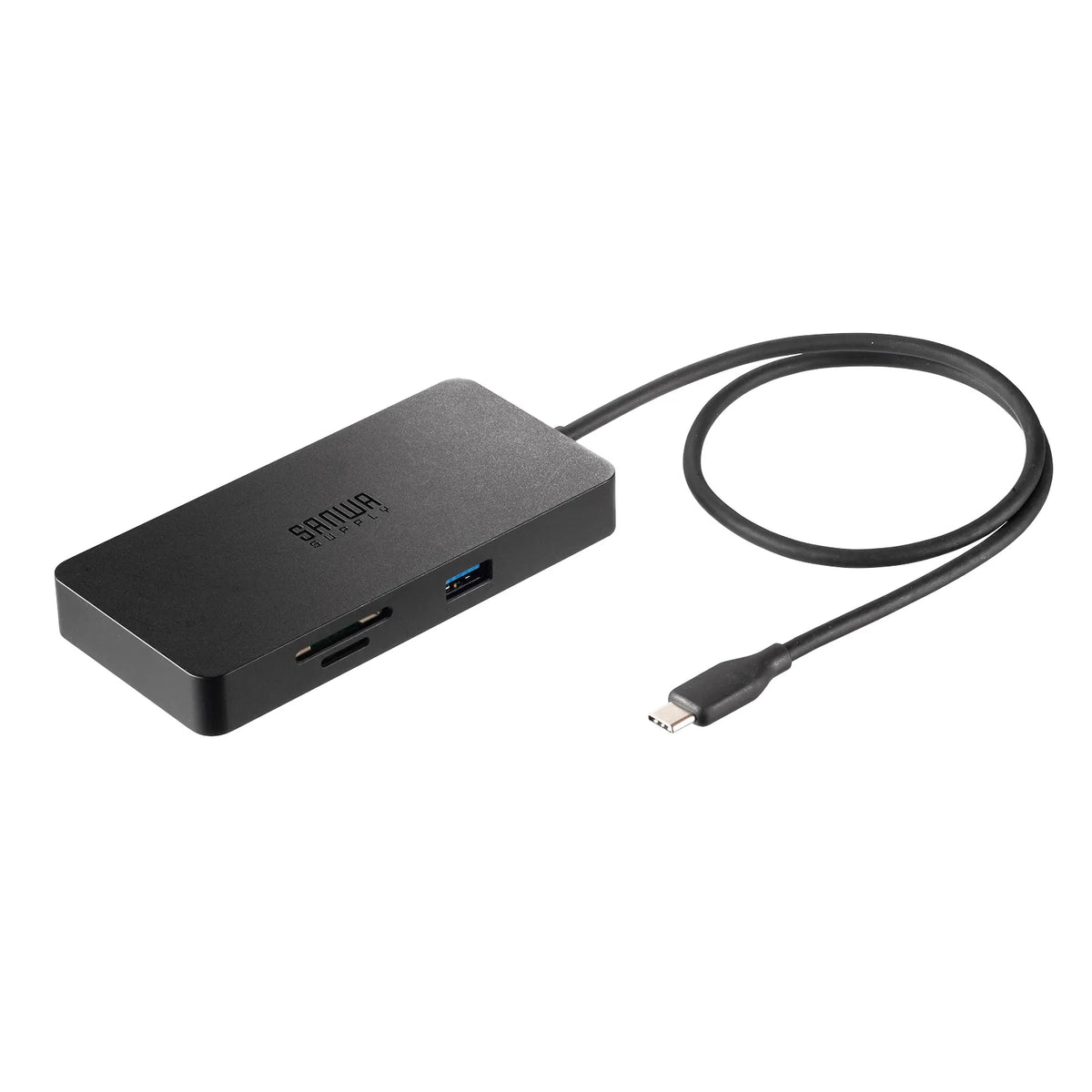

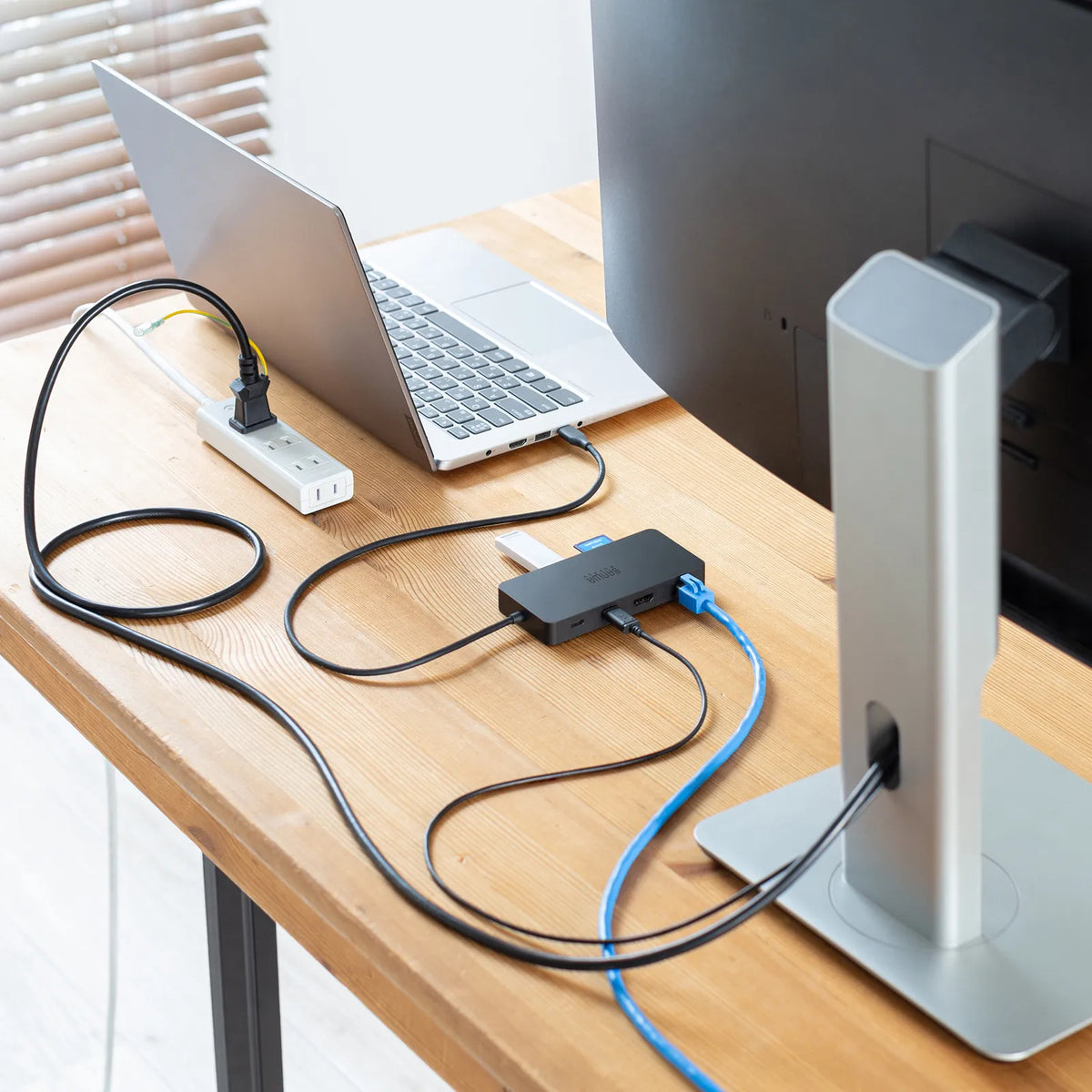

●Comes with a long cable of approximately 50cm for easy handling.



＜Limitations＞
*This product must be connected directly to the Type-C port of your computer. It cannot be used with USB hubs or additional USB ports.
*Although this product supports USB PD (Power Delivery), it is not compatible with all USB Type-C equipped devices (PD compatible).
*While this product is generally plug-and-play compatible for disconnecting and connecting, in rare cases, a timing error in USB recognition may cause it to not display or operate correctly.
Please try unplugging and plugging it in again. This is not a defect or malfunction of this product.
*Even with compatible models and compatible connected devices/environments, it may not operate correctly.
*When connecting USB 2.0/11 standard products, please note that the maximum transfer speed will be that of the slower standard.
*Although this product is a USB Type-C docking station, it cannot be guaranteed to connect to and operate with all USB Type-C devices.
※This product supports the USB 5Gbps (USB 3.2 Gen1) standard, but the transfer speed of USB 5Gbps (USB 3.2 Gen1) (5Gbps) is a standard value.

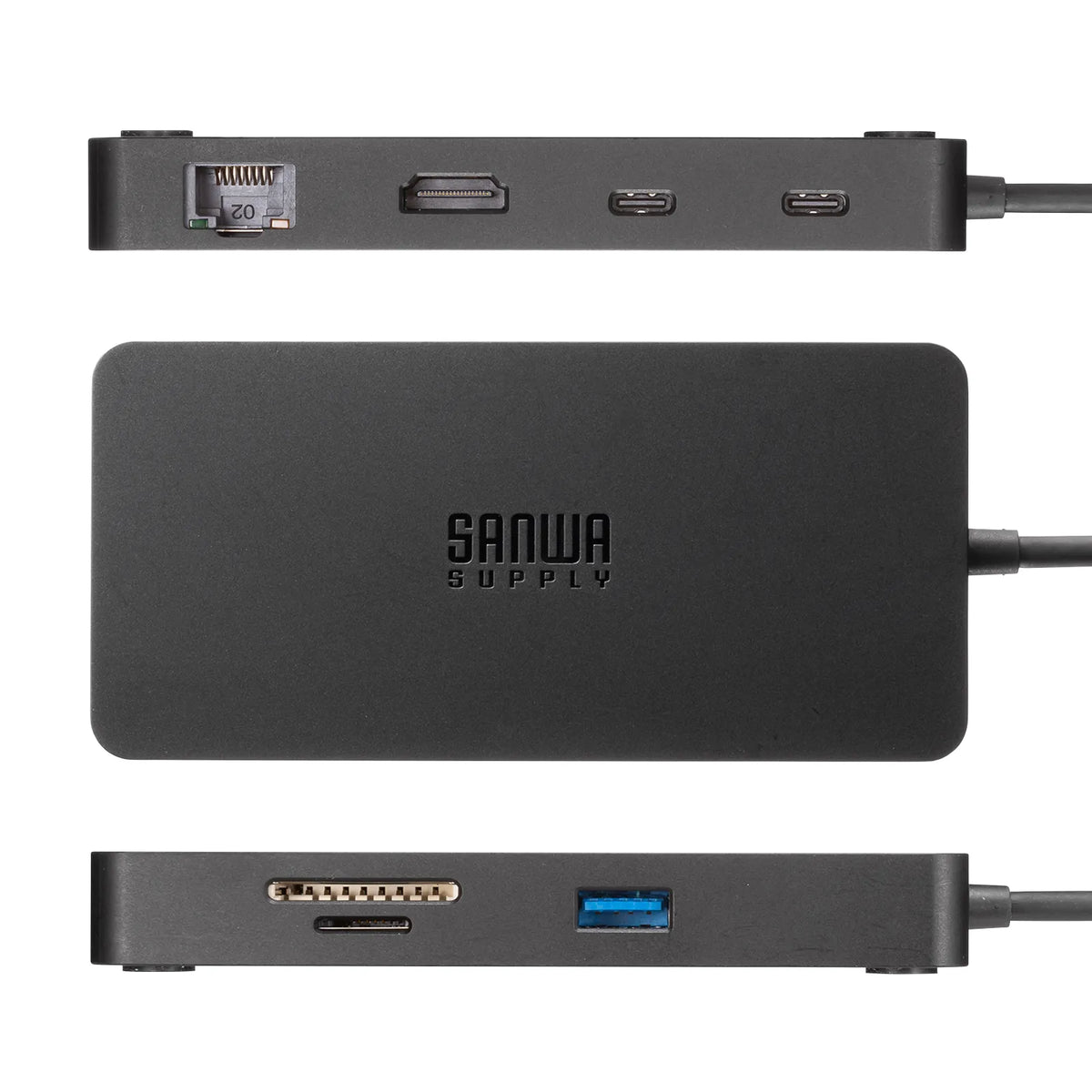

【PC Connection Terminal】
■Connector Shape: USB Type-C
■Supported Standard: USB 5Gbps (USB 3.2 Gen1/3.1 Gen1/3.0) compliant
※USB 5Gbps is the same standard as USB 3.2 Gen1 (USB 3.1 Gen1/USB 3.0), which was renamed by USB-IF (USB Implementers Forum).
■USB PD Maximum Output: Approx. 85W
■Cable Length: Approx. 50cm
■Cable Type: Integrated Cable
【USB Ports】
■Number of Ports: 3 ports
■Maximum Data Transfer Speed ​​(Theoretical Value): 5Gbps
■USB Type-C Female/USB 5Gbps: 2 ports
PD Compatible Port (PD & Data, Type-C Display Compatible)
*1 port only
■USB A Female/USB 5Gbps: 1 port
■Supply Current: Maximum 3000mA
(Total for all ports: when bus-powered)
*If the current consumption of the connected device exceeds the supply current of this product, it may not operate normally with bus power.
【Power Supply】
■Power supply method: Bus power/Self power (when power is connected)
■Power consumption of the main unit: 15W
■USB PD input port: Yes
■Maximum USB PD input: 100W
*Depending on the computer or PD power adapter you are using, a warning may be displayed recommending the use of the power adapter attached to your computer, but this does not affect its use.
【Video Output Ports】

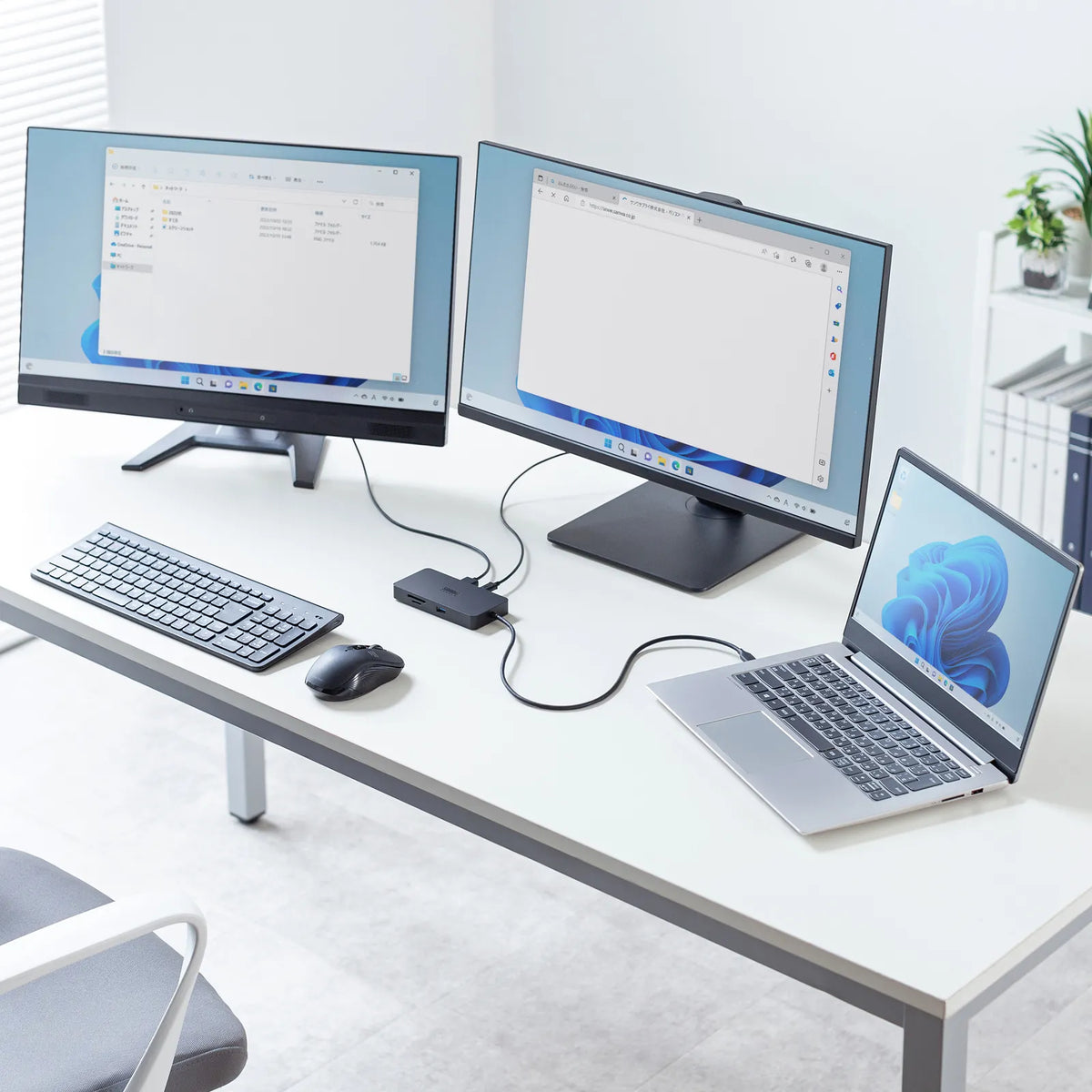

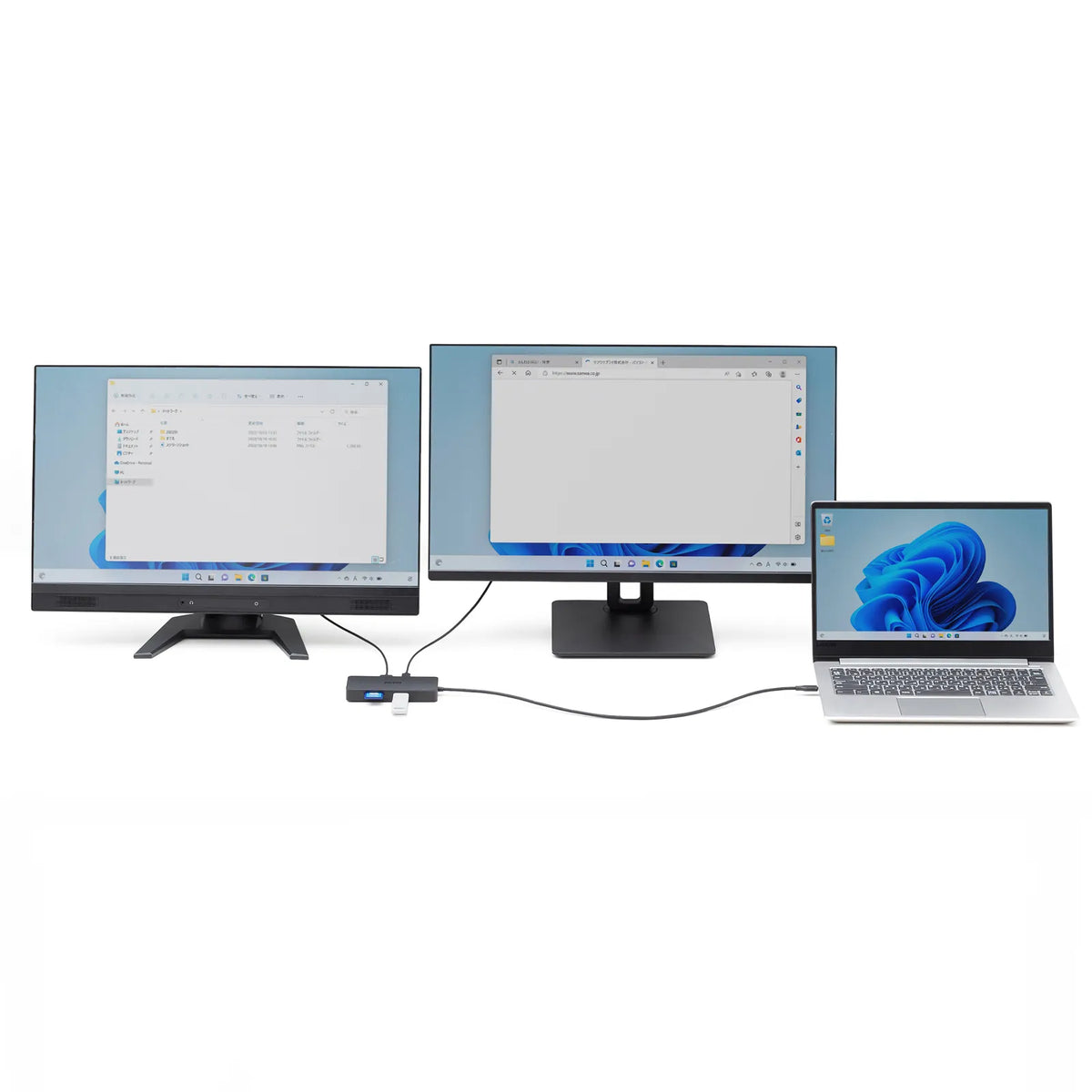

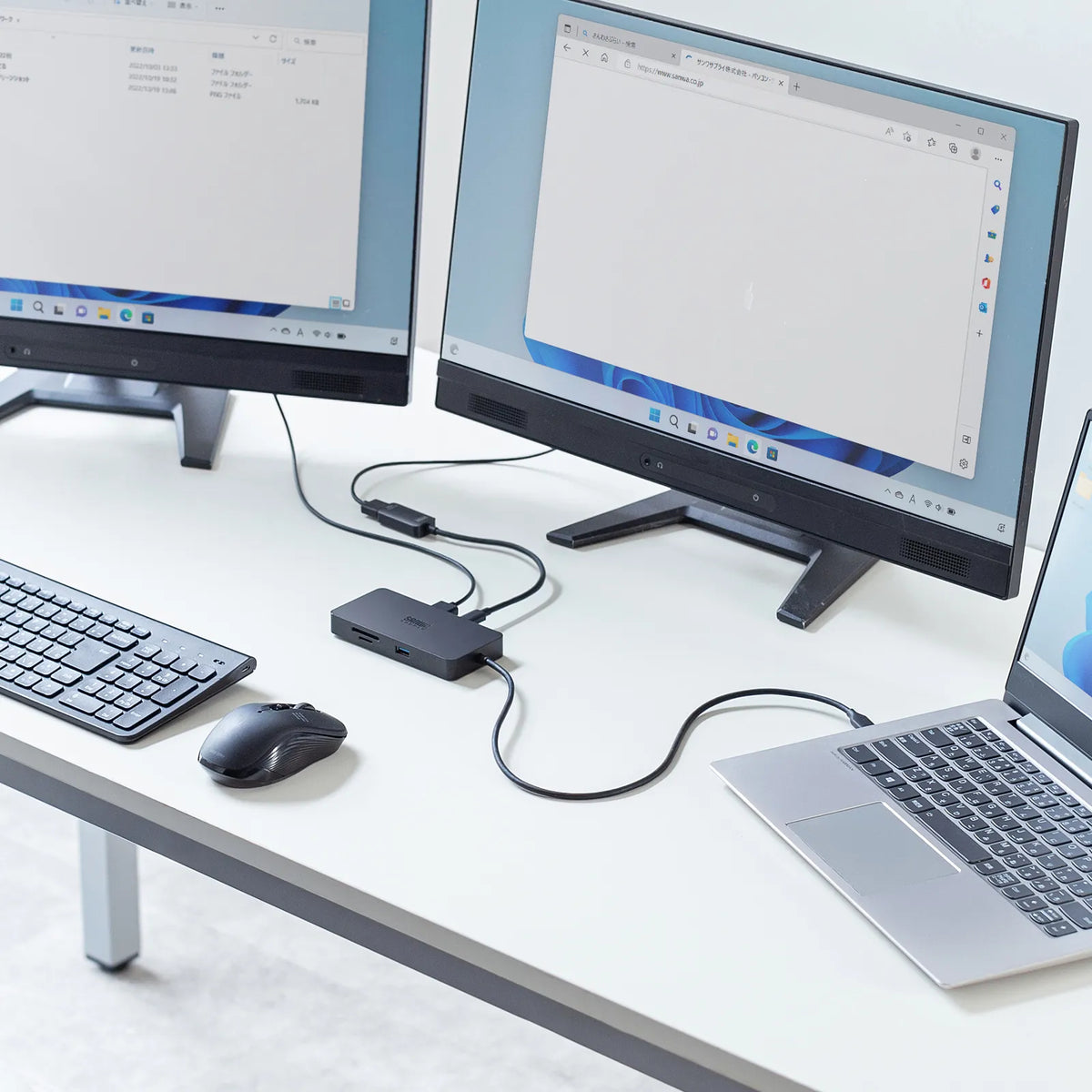

■Number of supported output displays: 2
*One port must be used for a Type-C display.
■Maximum supported resolution: 8K/30Hz
*The supported resolutions listed require that your computer supports DisplayPort Alt Mode (DP1.4 or higher).
*To output at 8K resolution, the display must support 8K resolution, and the content being output must also support 8K resolution.
■Maximum supported resolution/refresh rate: 7680x4320
Maximum 7680x4320 (8K/30Hz)
Maximum 3840x2160 (4K/144Hz・120Hz・60Hz)
■HDR support: Supported
■HDCP: 2.3, 2.2, 2, 1.4
■HDMI: 1 port
■USB Type-C: 1 port
【LAN port】
■Port shape: RJ-45 port (Auto MDI/MDI-X), Auto-Negotiation supported
*While Wake On LAN functionality is supported, compatibility varies depending on the PC model, so operation is not guaranteed.
*Depending on the connected device, you may need to turn off Wi-Fi to use a wired network.
■Supported standards: IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T)
■Transmission speed (theoretical value): 1000Mbps, 100Mbps, 10Mbps
■Access method: CSMA/CD
【Card Reader】
■Slots: SD memory card, microSD card
*Cannot be used simultaneously with all other cards.
*Copyright protection functions of various media are not supported.
*Operation is not guaranteed with all memory cards.
■Supported Media Standards: SDXC, SDHC, SD, microSDXC, microSDHC, microSD
■Maximum Supported Media (SD Card): 2000GB
■Maximum Supported Media (microSD Card): 2000GB
【Common Specifications】
■Supported OS Windows: 11, 10
■Supported OS Mac: macOS (Sequoia) 15, macOS (Sonoma) 14, macOS (Ventura) 13, macOS (Monterey) 12, macOS (BigSur) 11
■Supported OS ChromeOS: ChromeOS
■Supported Devices: Windows-based (DOS/V) PCs, Apple Mac series, Chrome OS-based PCs
*Devices with a USB port (Type-C female) and whose operation is guaranteed by the PC manufacturer.
*To operate in a USB 5Gbps (USB 3.2 Gen1) environment, the PC itself must have a USB 5Gbps (USB 3.2 Gen1) port.
*Only Type-C ports that support video output are supported. (DisplayPort Alt
