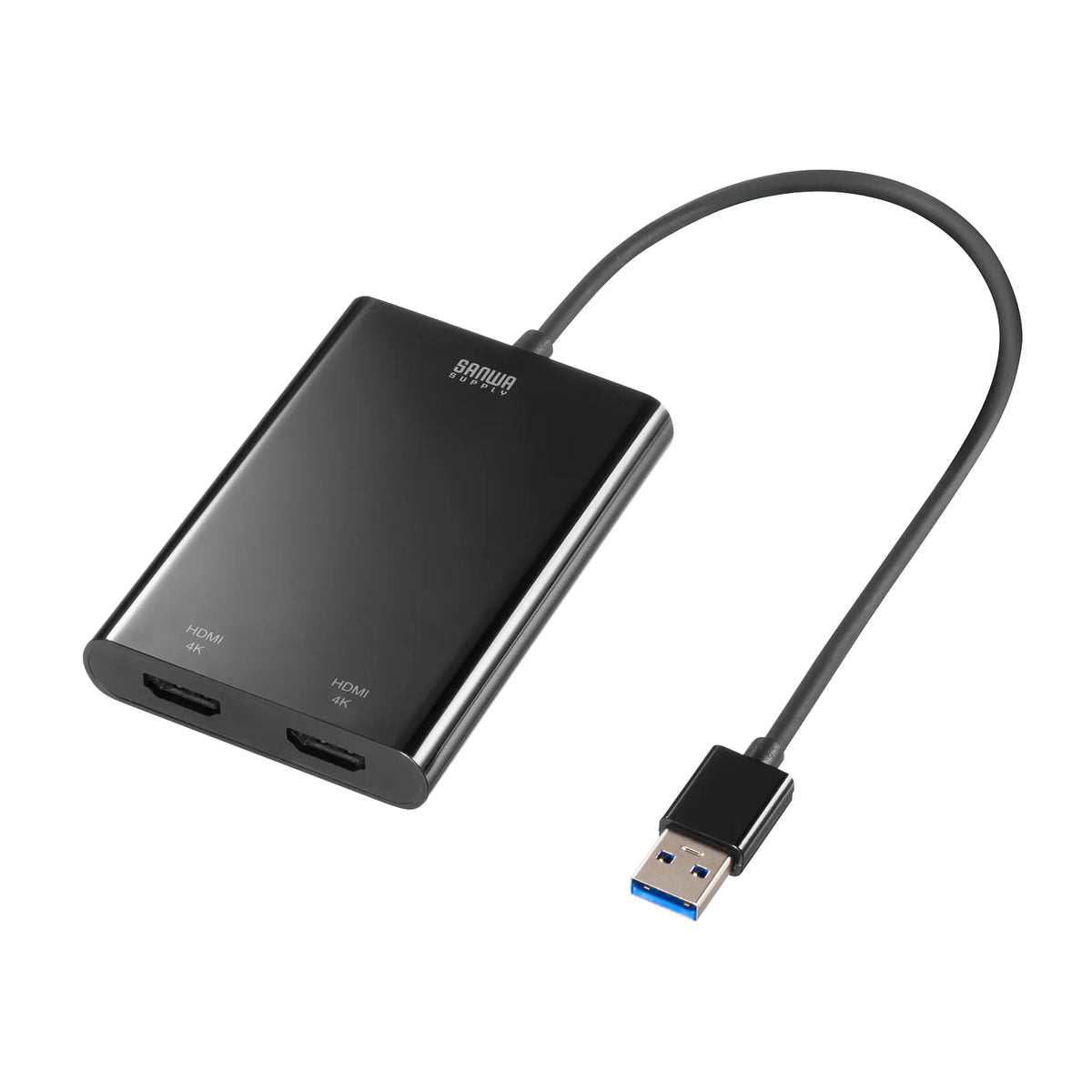

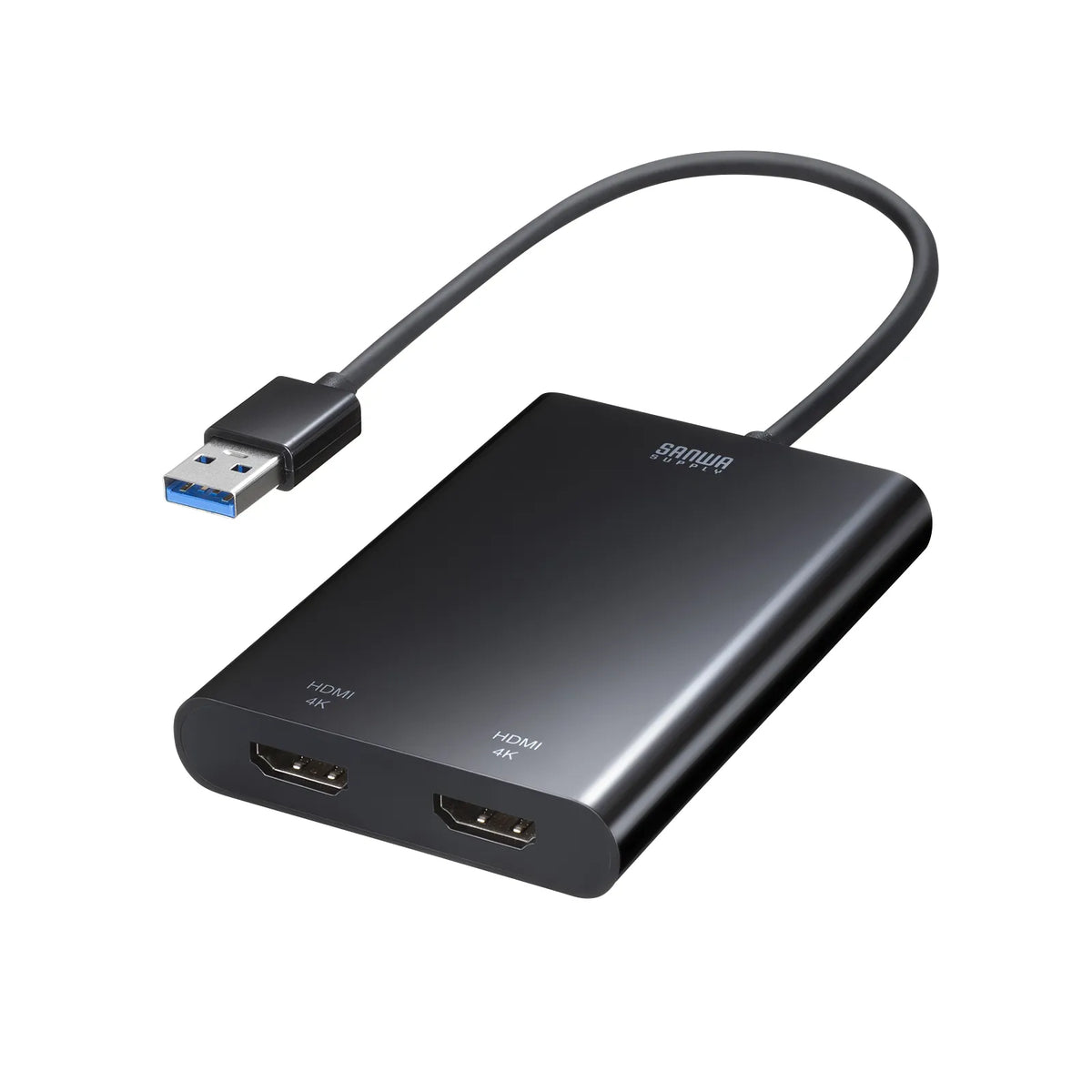

USB-HDMI Display Adapter (4K x 2-screen output) USB-CVU3HD6

[A USB A to HDMI x2 port display adapter that allows simultaneous 4K resolution video output to two monitors from a USB port.]

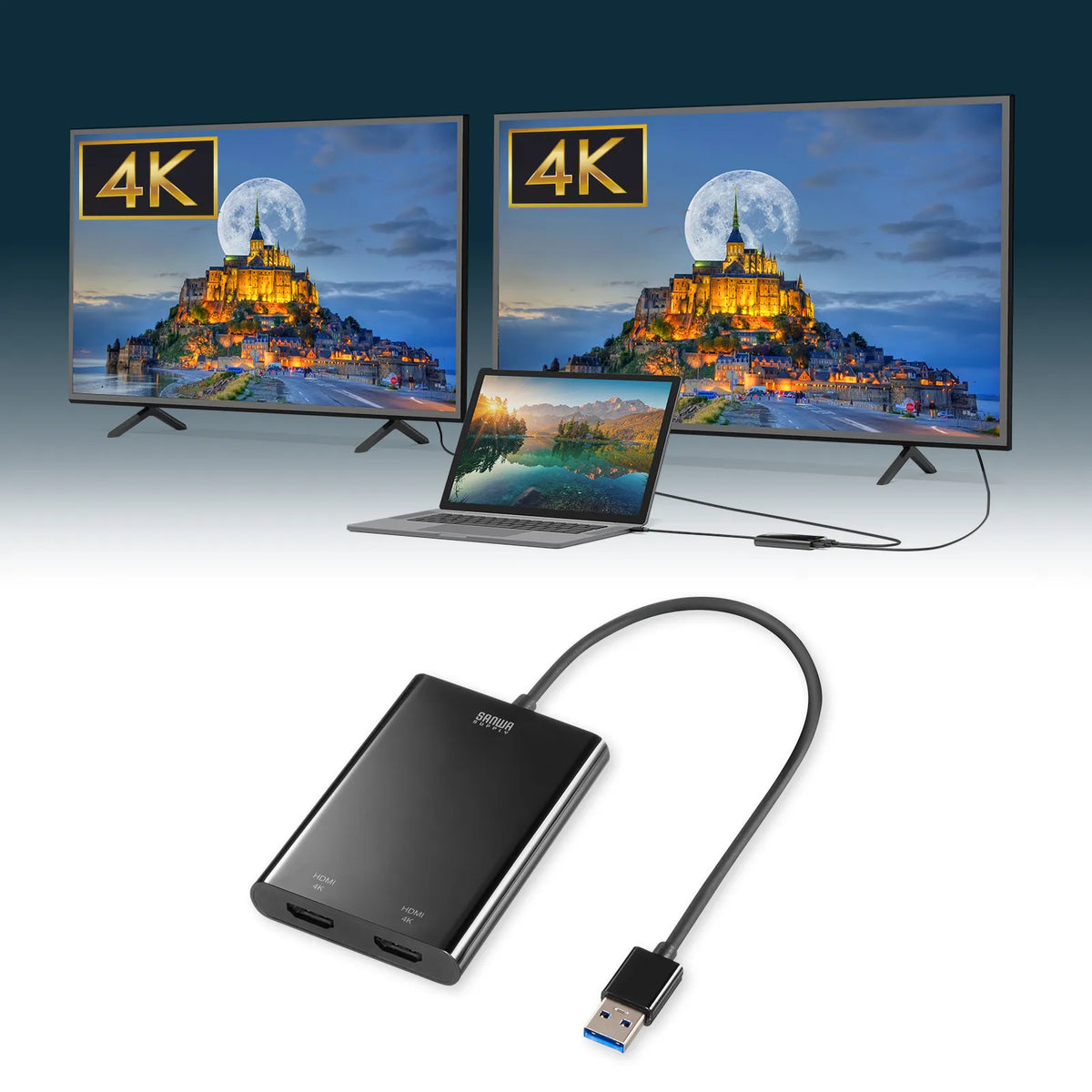

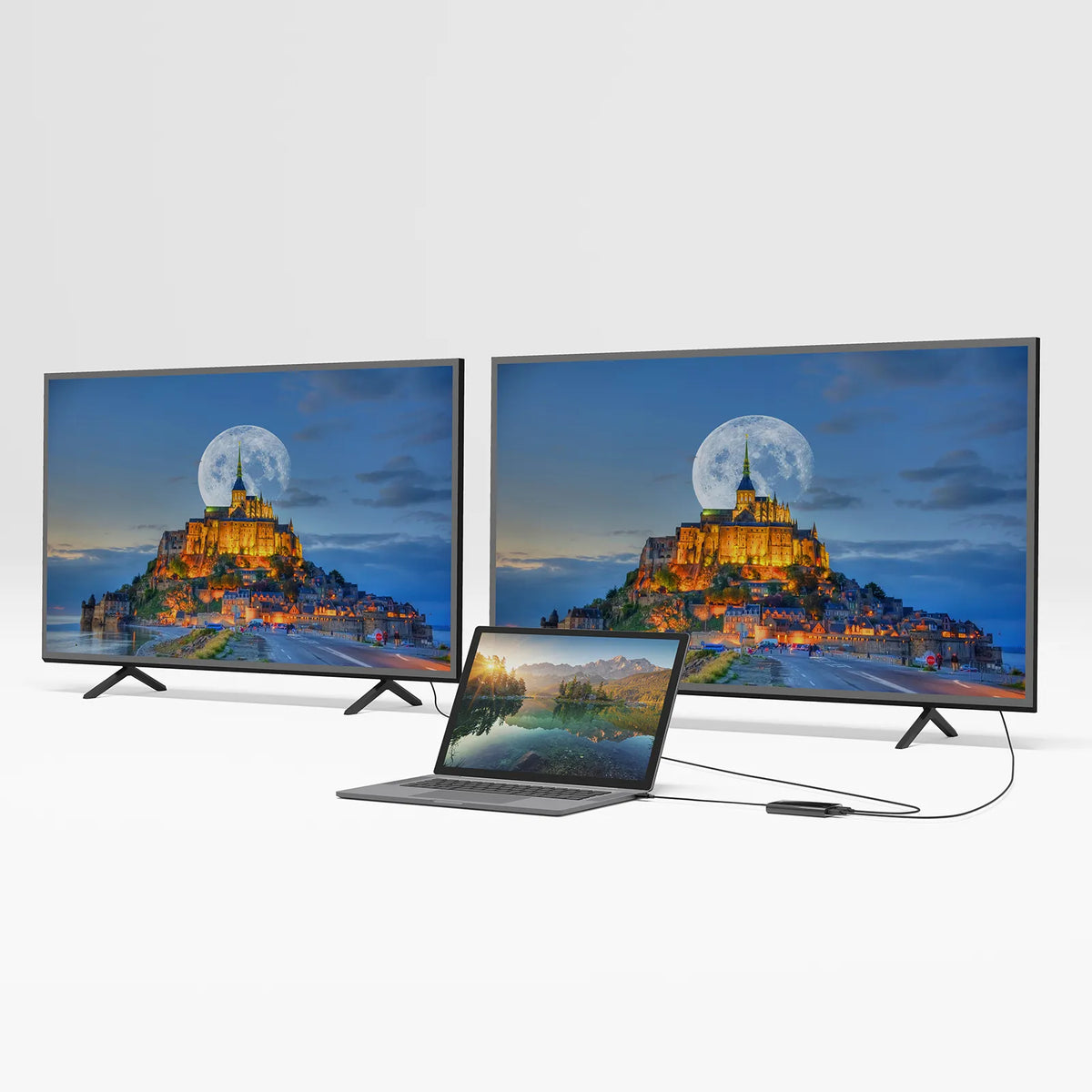

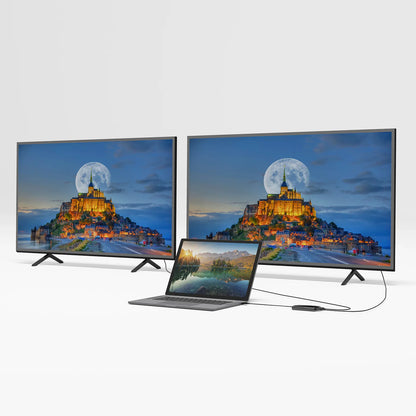

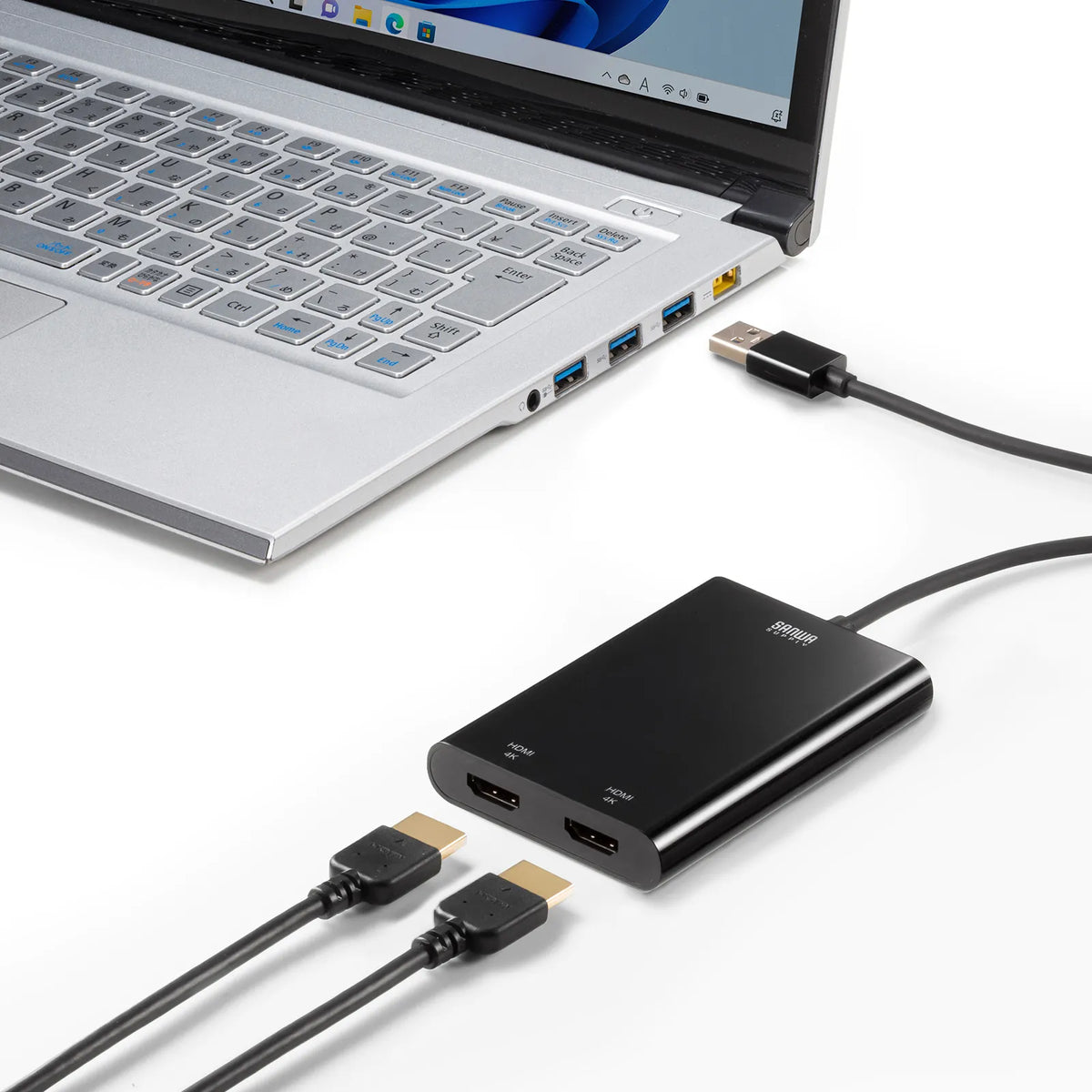

●Converts a USB A port to two HDMI video output ports, allowing video output to up to two monitors from your computer's USB port.
●Supports a maximum resolution of 4K (3840x2160/60Hz) in both single-screen and dual-screen output modes, allowing you to output high-definition 4K resolution directly to large-screen 4K TVs and projectors.

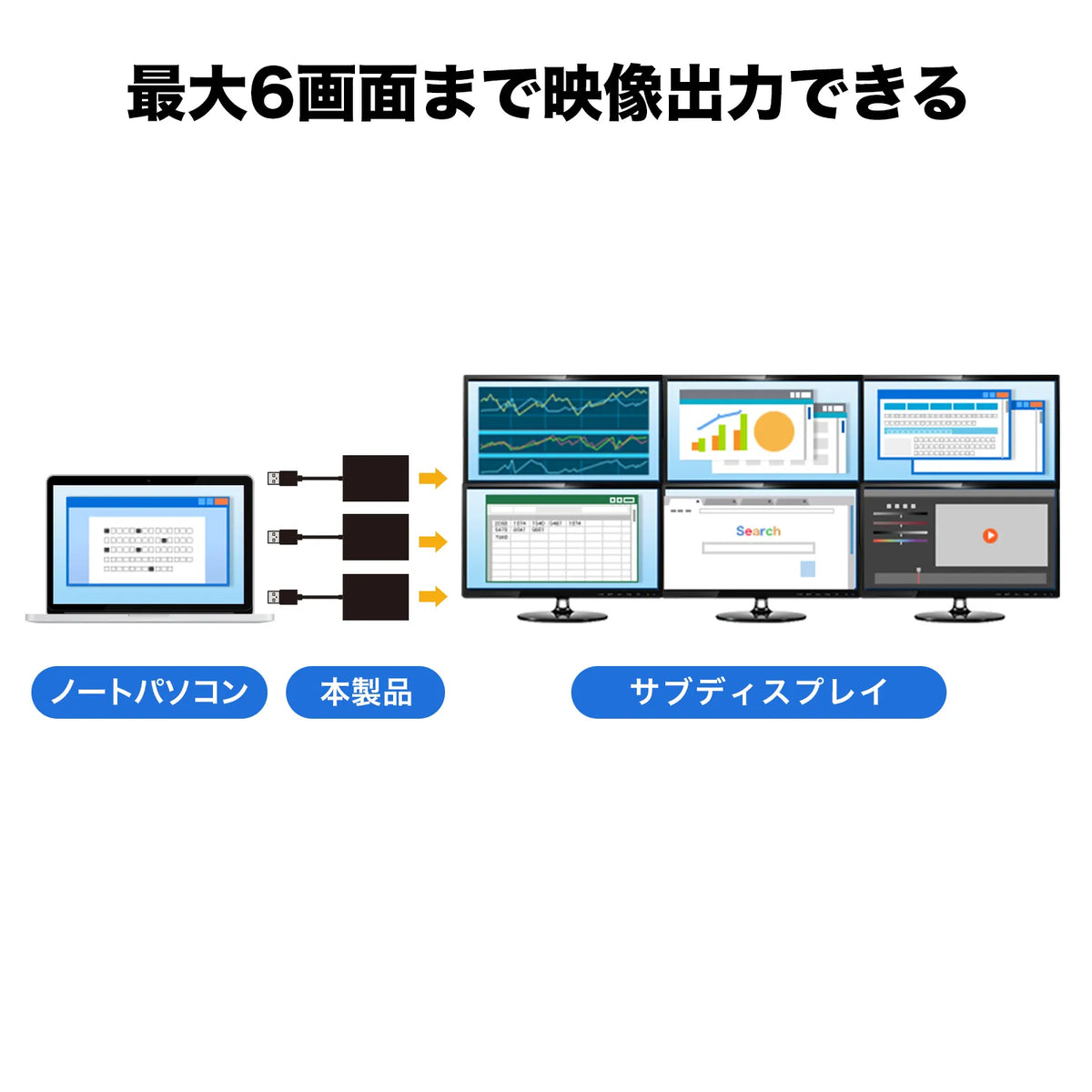

●Up to 6 screens can be output from one computer. (Up to 4 screens for Mac)

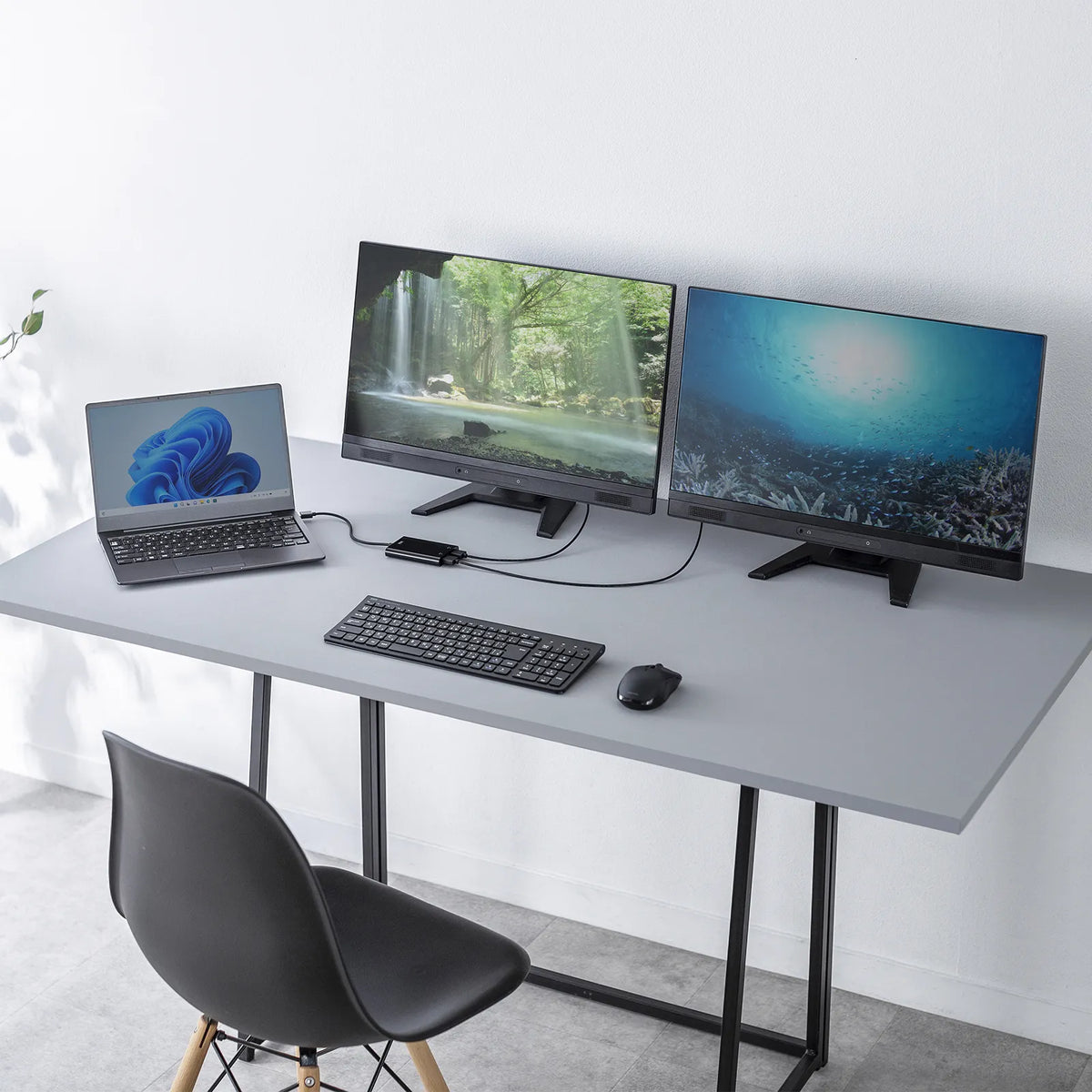

By using multiple of these products, you can create a multi-display setup with up to 7 screens, including your laptop screen.
*Limited to Full HD resolution or lower.
●Easy to use; simply install the driver.

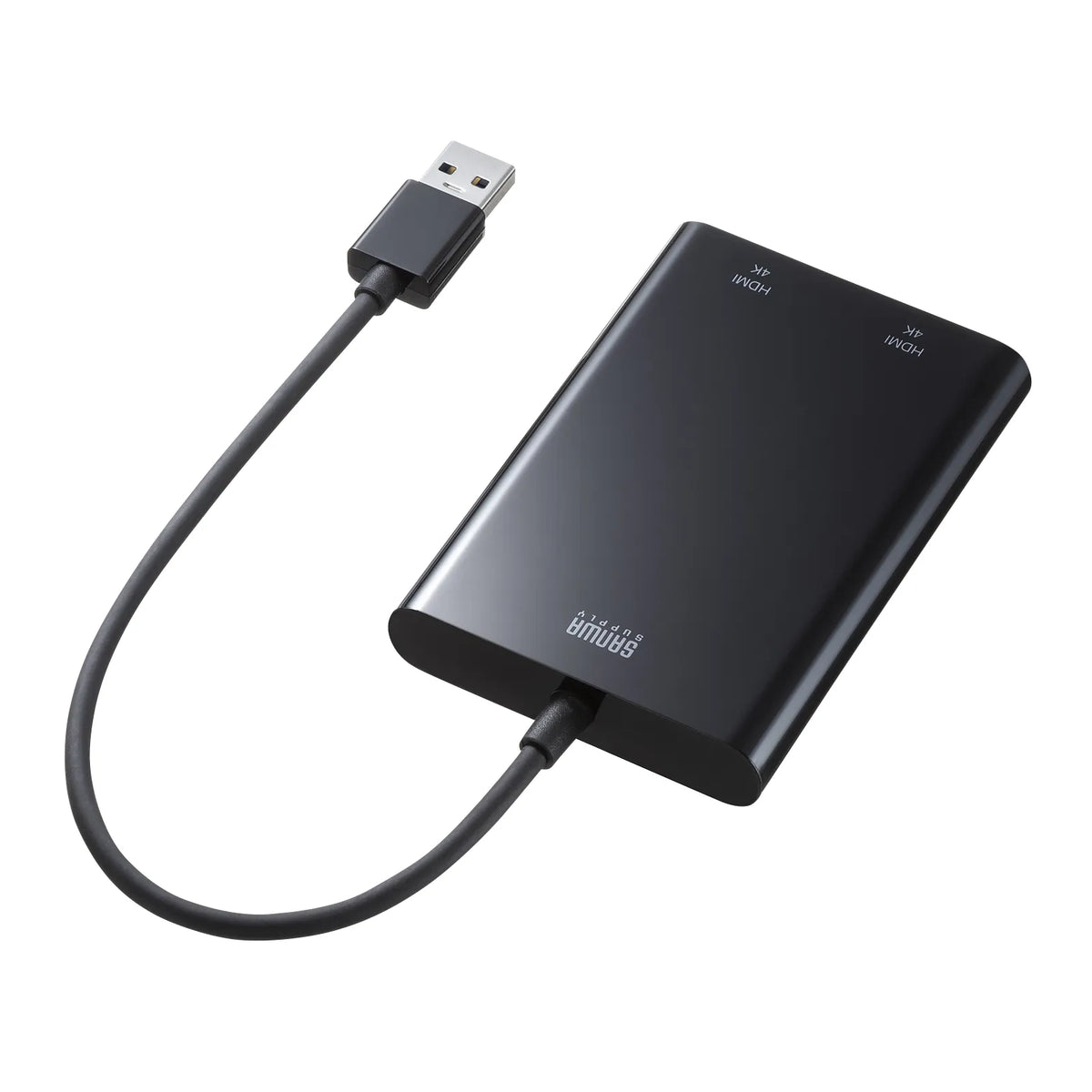

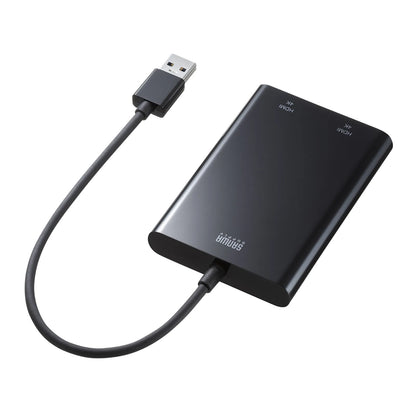

●Integrated cable design eliminates the need to prepare a separate USB cable.


【USB Hub】
■Interface Standard: Compliant with USB Specification Ver3.2 Gen1 (USB3.1/3.0) (Backward compatible with USB Ver2.0/1.1)
■Communication Speed: 5Gbps, 480Mbps, 12Mbps, 1.5Mbps
■Connector Shape (PC Connection Side): USB Type-A
■Connector Shape (Upstream): USB3.2 Gen1 (3.1/3.0) A Connector Male
■Power Supply: Bus Power
■Conversion Destination Connector: HDMI

【Video Output Port】

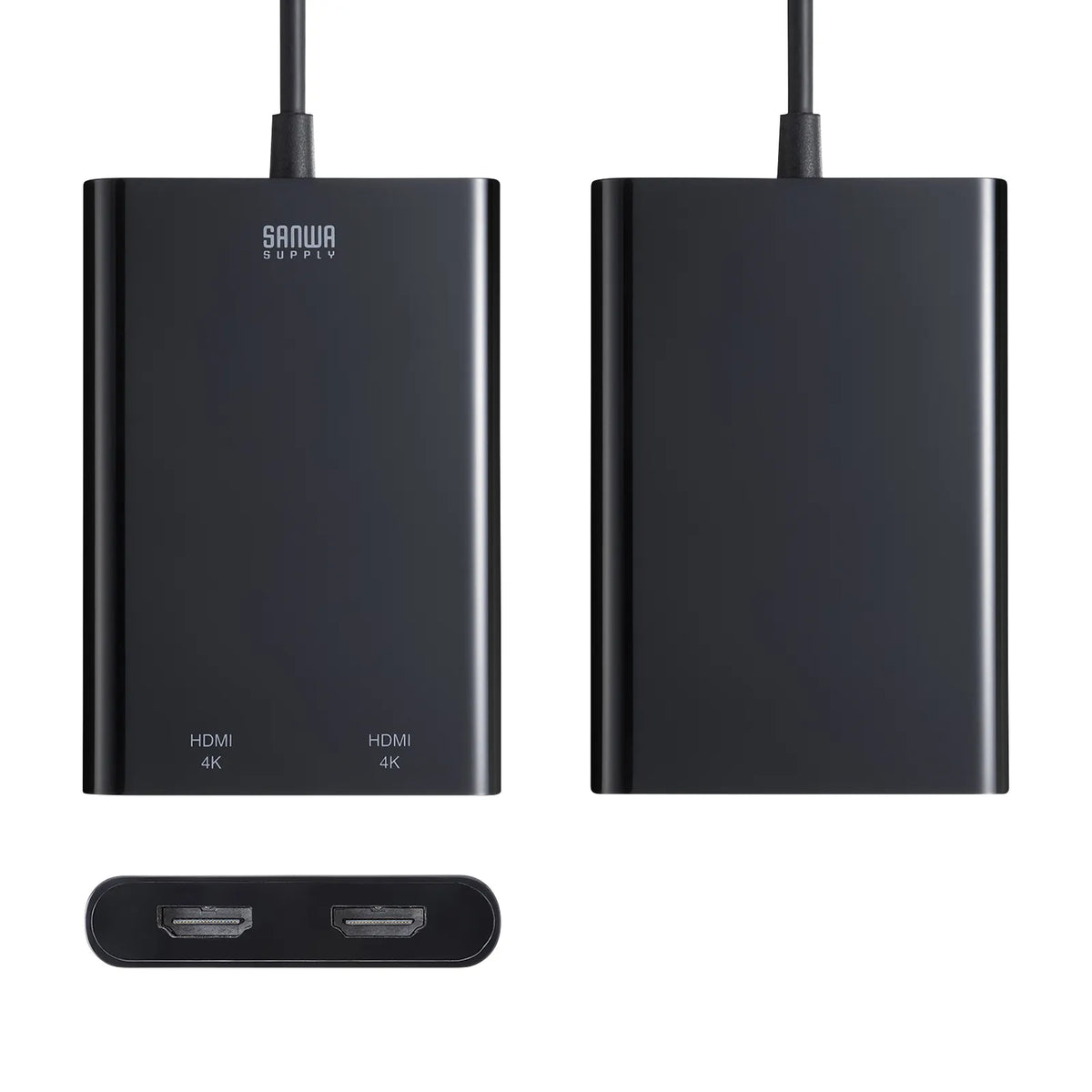

■Port Shape: HDMI Type A (19pin) Female x2
■Supported Resolution:
Maximum 3840x2160 (4K/60Hz)

Maximum Resolution when 2 Displays are Connected
HDMI 1: 3840x2160 (60Hz)
HDMI 2: 3840x2160 (60Hz)
■Maximum supported resolution: 4K/60Hz
■Dual display output: Supported
■Maximum number of connectable devices: 6
*Up to 6 screens can be output by using multiple devices. (Up to 4 screens for Mac)

【Common specifications】
■Supported OS Windows: 11, 10, 8.1
■Supported OS mac: macOS (Sonoma) 14, macOS (Ventura) 13, macOS (Monterey) 12, macOS (BigSur) 11, macOS 10.12 to 10.15
■Supported models: Windows-based (DOS/V) PCs, Apple Mac series
*Required specifications for the PC's CPU, memory, and graphics card vary depending on the operating environment.

4K resolution (display only)
CPU: Intel Core i3 2GHz or higher
Memory: 4GB or more
Graphics: Intel HD 4000, ATI Radeon
HD7xxx, NVidia GeForce 5xxM or higher
Connection: USB3.1(3.0)/2.0

4K resolution (video playback)
CPU: Intel SkyLake i3 or Intel Core i7 2GHz or higher
Memory: 8GB or more
Graphics: Intel HD 4000, ATI Radeon HD
8650, NVidia GeForce 7xxM or higher
Connection: USB3.1(3.0)

1080p resolution (display only)
CPU: Intel Core 2Duo 1.4GHz or higher
Memory: 2GB or more
Graphics: No requirement
Connection: USB3.1(3.0)/2.0

1080p resolution (video playback)
CPU: Intel Core 2Duo 2.4GHz or higher
Memory: 2GB or more
Graphics: Intel HD 3000, ATI Radeon
HD3xxx, NVidia GeForce 9xx or higher
Connection: USB3.1(3.0)/2.0

*Models with a USB port and whose operation is guaranteed by the PC manufacturer.
*A USB3.1(3.0) port is required on the PC to operate in a USB3.1(3.0) environment.
*Some PCs and USB devices may not be compatible.
■AC adapter: None
■Maximum current consumption: 700mA
■Operating temperature: 0 to 40 degrees Celsius
■Storage temperature: -10 to 60 degrees Celsius
■Operating humidity: 5 to 80%
Non-condensing
■Storage humidity: 5 to 80%
Non-condensing
■Set contents: Main unit, instruction manual
■Cable length: Approx. 0.2m

【Other specifications】
【Limitations】
■This product must be connected directly to the USB port of the computer. It cannot be used with USB hubs or additional USB ports.
■This product cannot play or output copyrighted video (such as Blu-ray movies).
■DirectX, OpenGL, and other APIs are not supported.
■For 4K resolution output, the display must support 4K resolution and the content being output must also support 4K resolution.

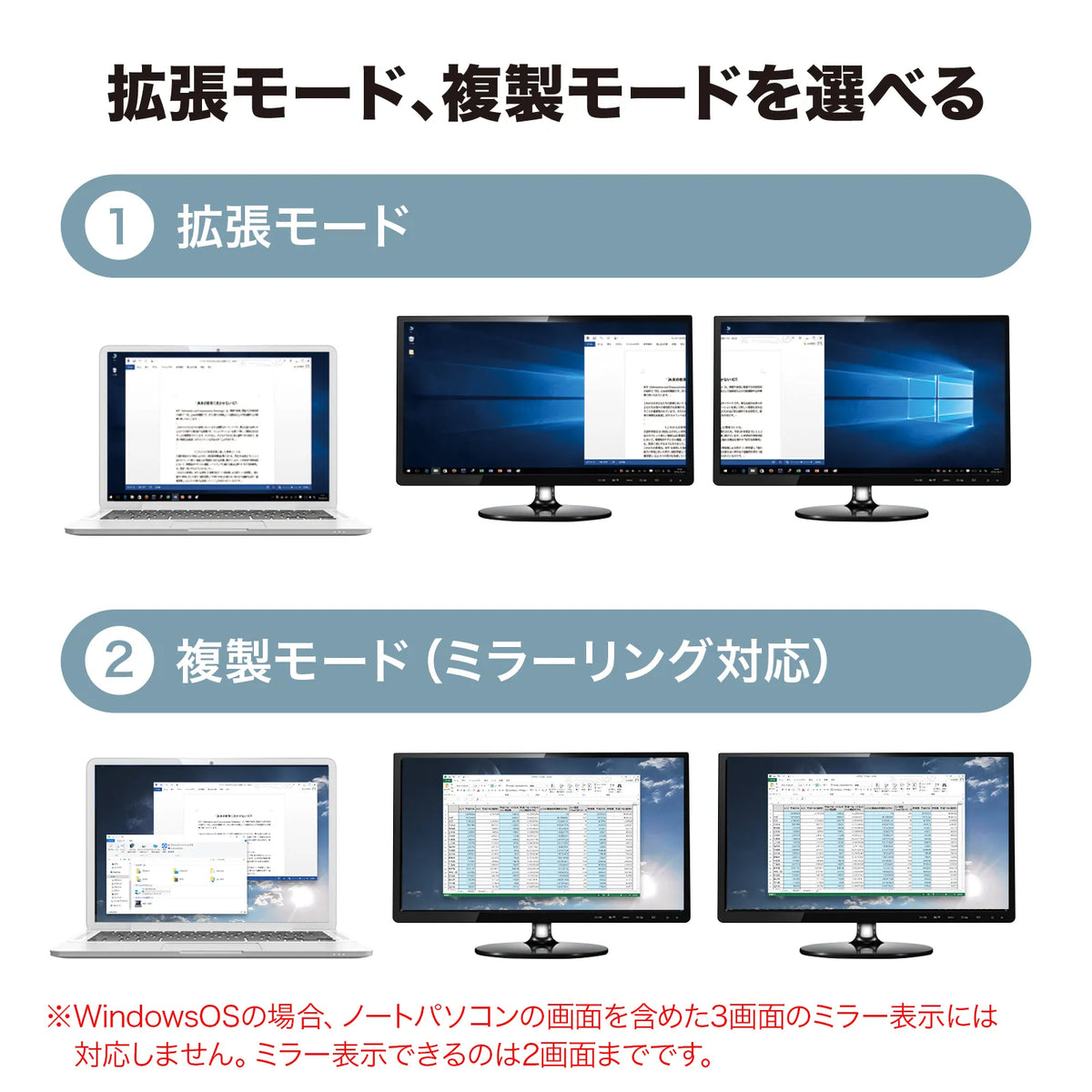

■Video playback in clone mode (mirror mode) is not supported.
■Regarding the removal and connection of this product, it is basically plug-and-play compatible, but in rare cases, due to a timing error in USB recognition, it may not display or operate correctly. Please try unplugging and plugging it back in. This is not a defect or malfunction of this product.
■This product is to be used when Windows OS/macOS is running. It will not work during system startup or on the BIOS screen. (It will not display.)
■This product converts and outputs video signals from the USB port and is greatly affected by the performance of the computer.
Please be sure to use it with a computer environment that is at or above the compatible model.
It is not recommended for games or video playback that switch screens at high speed, as this may cause frame drops on the screen.
■Even with compatible models and compatible connected devices/environments, it may not function correctly.
