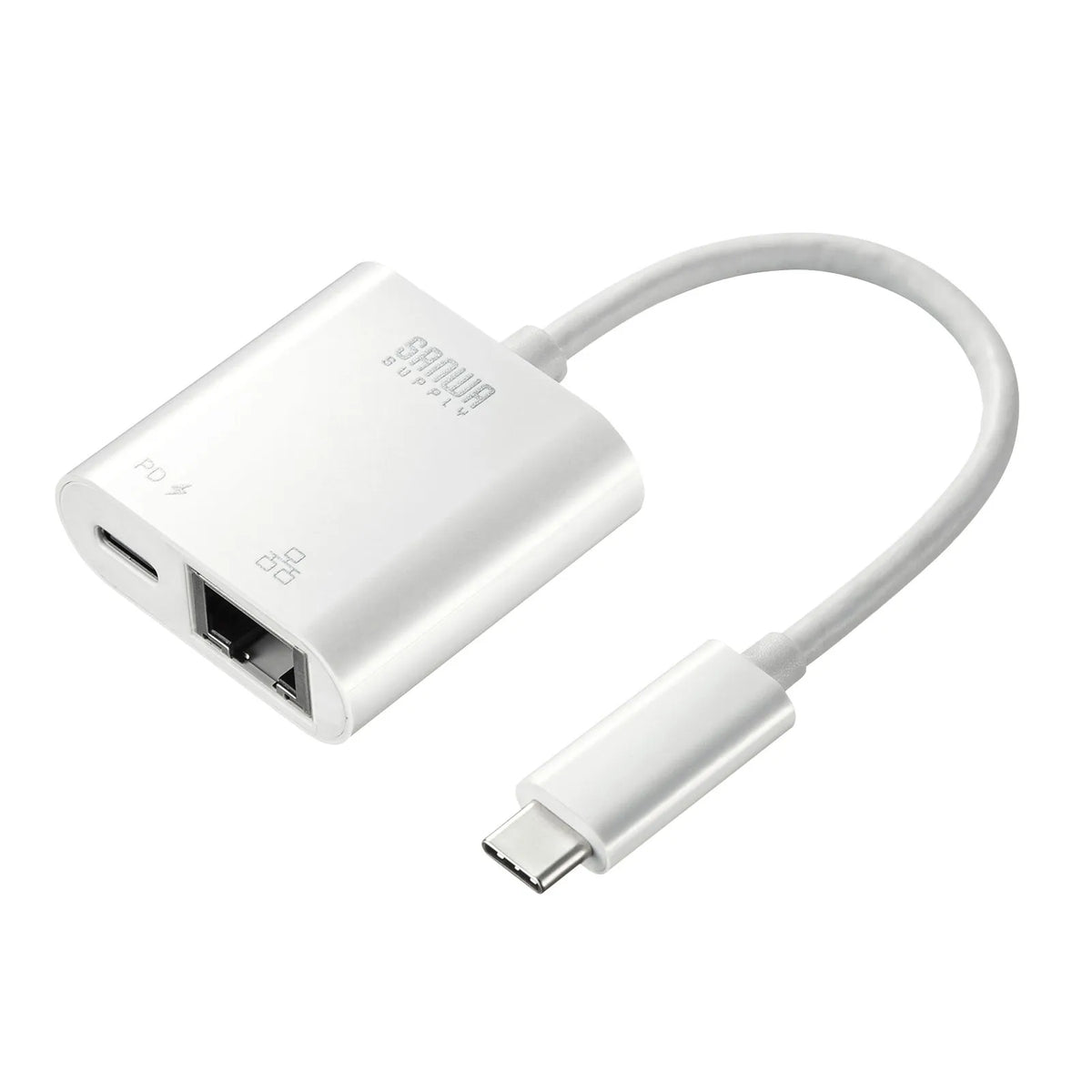

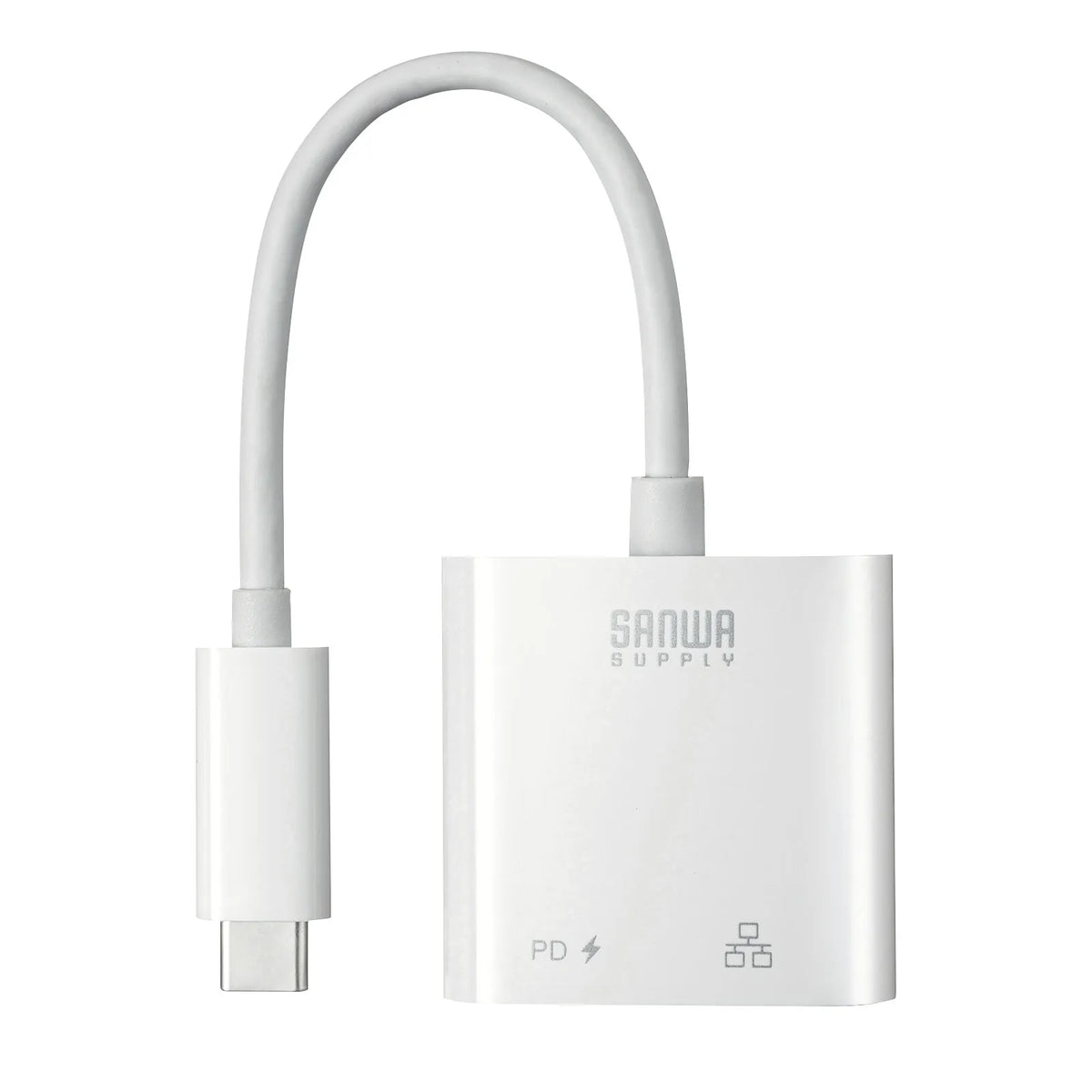

USB 3.2 Type-C to LAN Conversion Adapter (PD Compatible, Black) USB-CVLAN7W

[USB 3.2 Type-C to LAN adapter that converts a USB Type-C port to a Gigabit LAN port. PD power supply compatible, enabling high-speed network communication while charging your computer.]

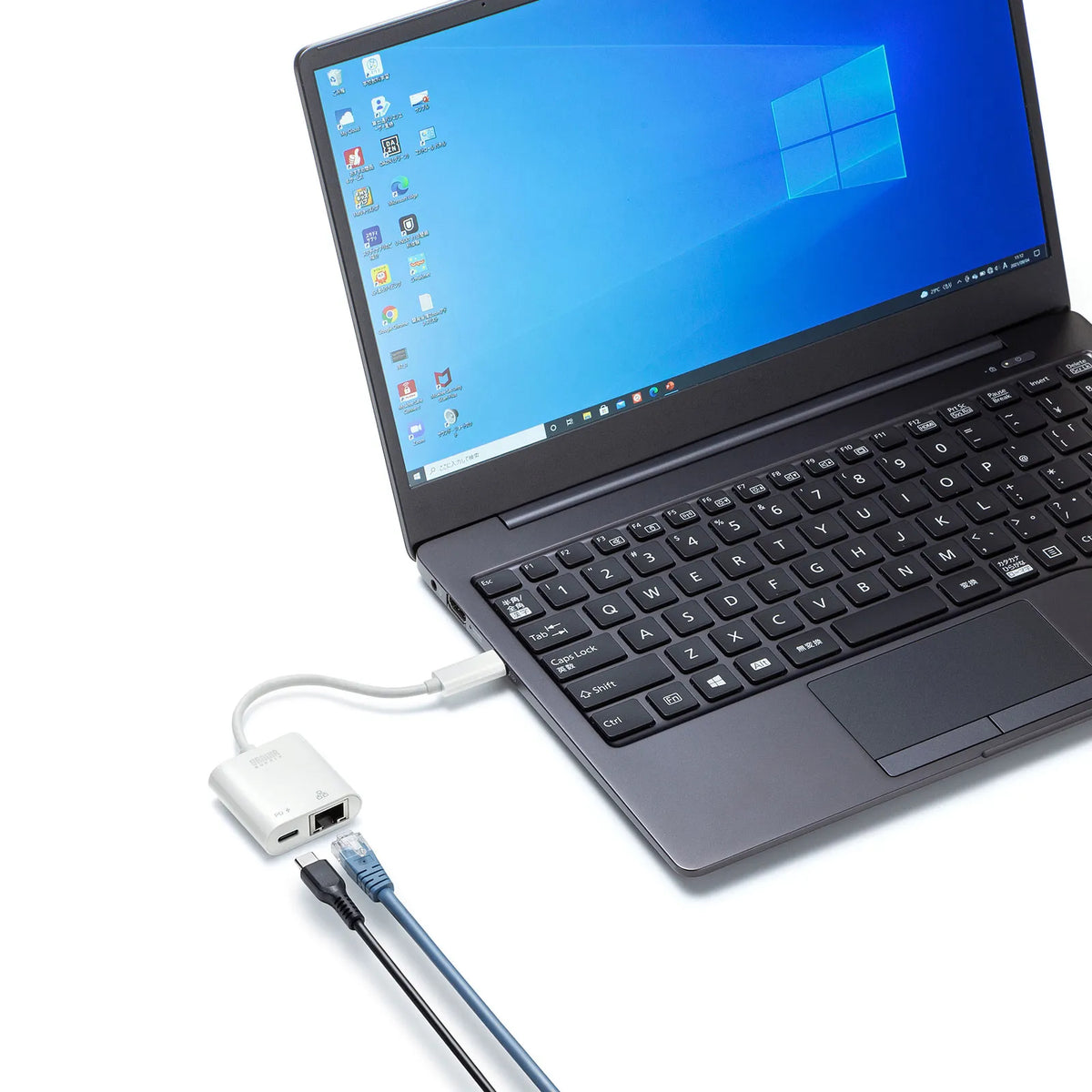

●This adapter converts a USB Type-C port to a LAN port (RJ-45 connector).
●Supports USB 5Gbps and Gigabit (1000BASE-T) communication. High-speed network communication is possible even for computers without a wired LAN port.

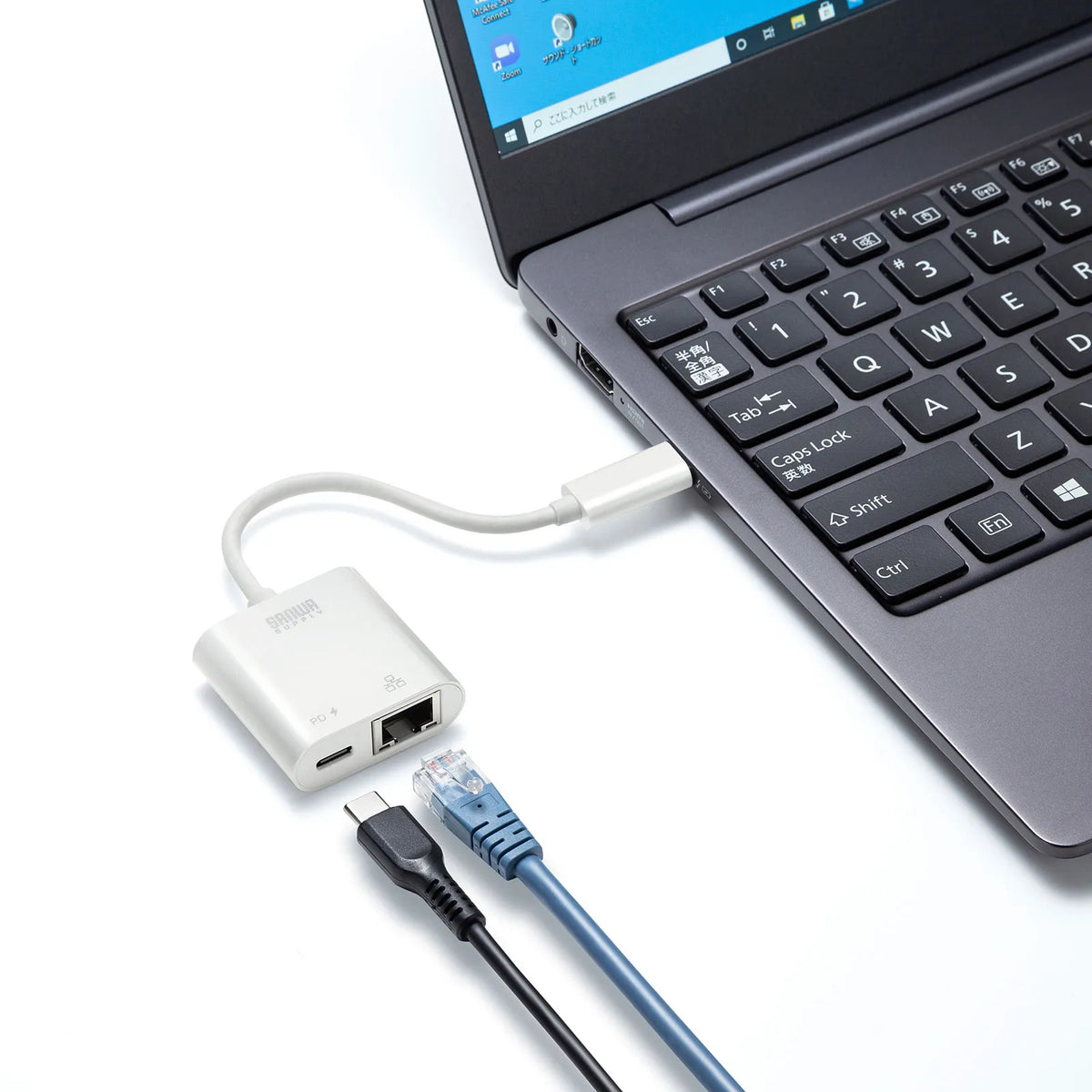

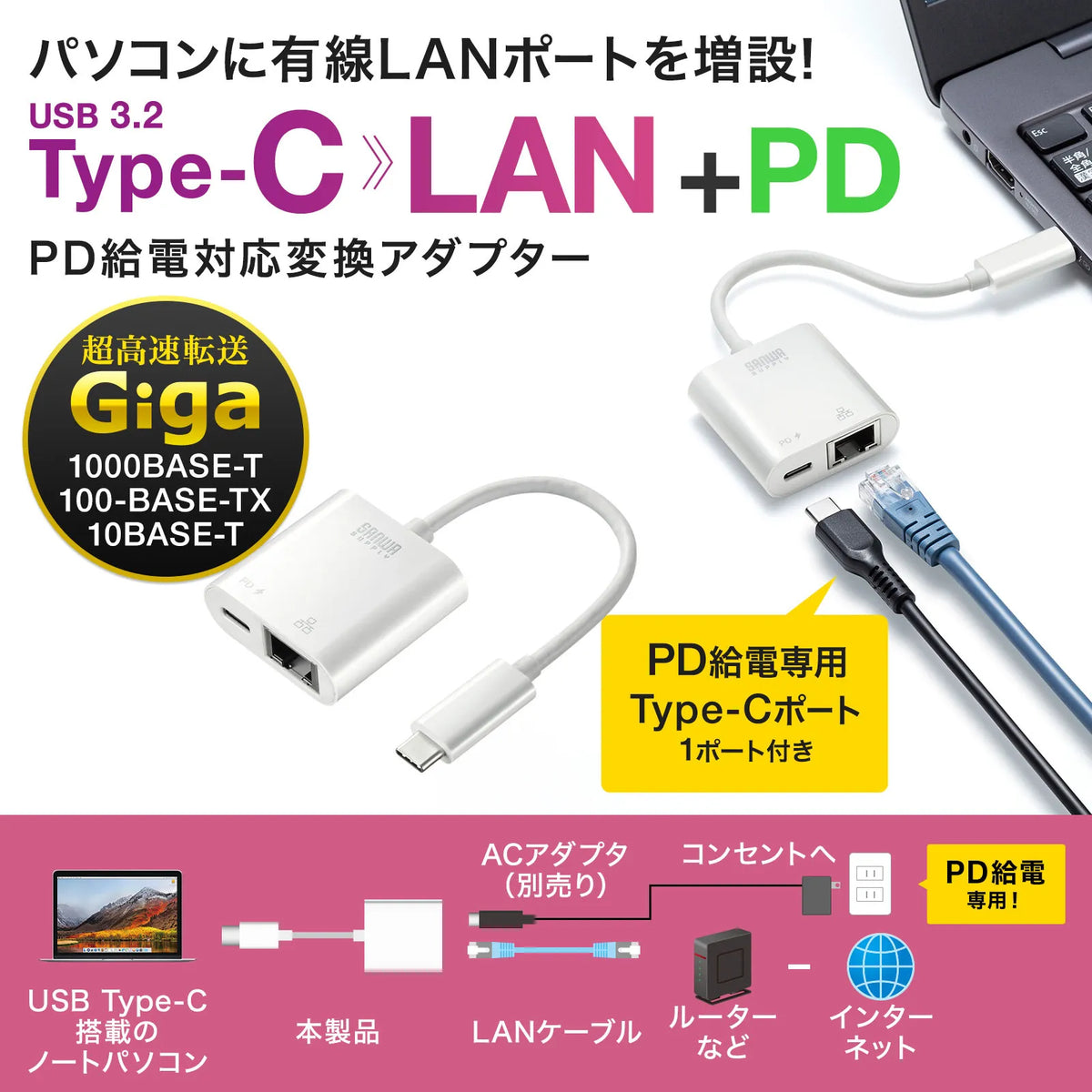

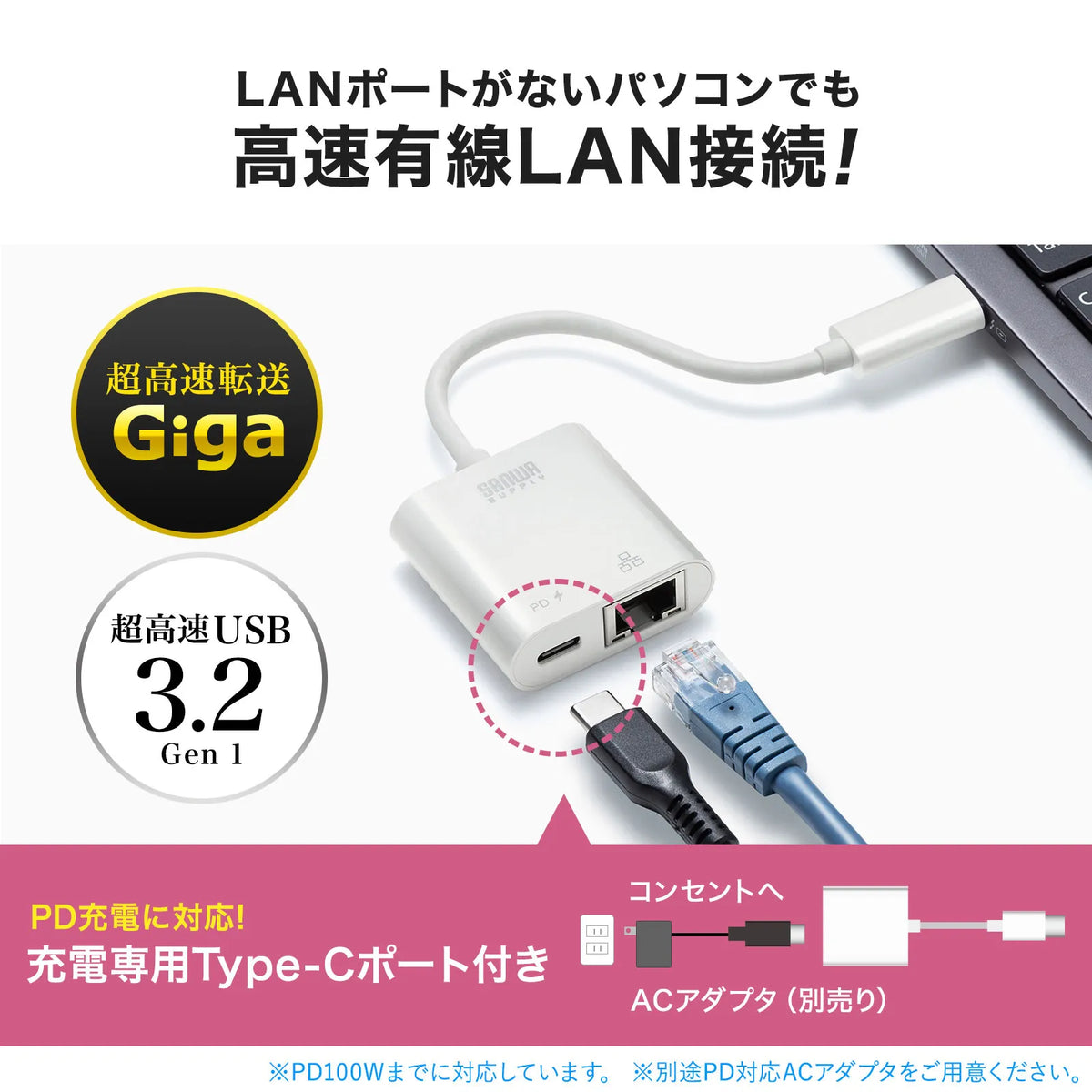

●By connecting a PD power supply compatible adapter (such as the PD adapter included with your computer) to the PD USB Type-C port, you can charge your computer via this product.
●Auto-Negotiation compatible, so it automatically connects in the appropriate communication mode even if it's not a Gigabit network.

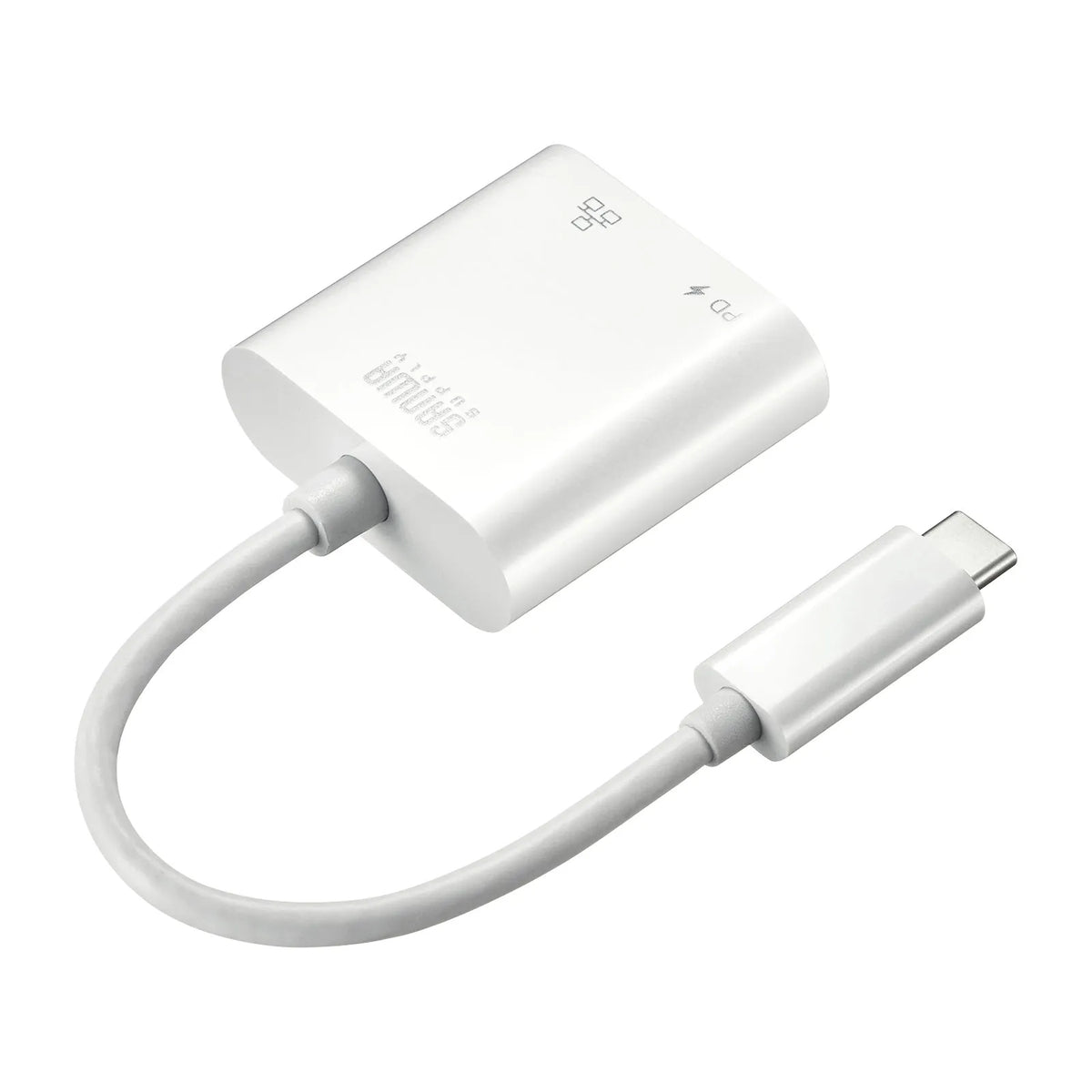

●Convenient cable-integrated type for easy portability and handling.

※Operation is not guaranteed when connected via a USB hub. Please connect directly to your computer's USB port.
※Even with compatible models, connected devices, and environments, it may not function properly.
*While it supports Wake On LAN functionality, compatibility varies depending on the PC model, so we cannot guarantee operation.
*It may stop working properly after an OS update. Please check the software download page on our website for details.
*A PD-compatible adapter is not included. Please prepare one separately.
*Nintendo Switch is a trademark or registered trademark of Nintendo.

＜USB Hub＞
■Supported Standards: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant
■Connector Shape (PC connection side): USB Type-C
■Connector Shape (Upstream): USB 5Gbps Type-C connector male
■Connector Shape (Downstream): USB 5Gbps Type-C connector female x1 (PD3.0, charging only)
■Power Supply: Bus power
■PD Compatible: Yes
*Up to PD100W
*Please prepare a separate PD compatible adapter

＜LAN Port＞
■Standards: IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX Fast Ethernet), IEEE802.3ab (1000BASE-T)
■Transmission speed (theoretical value): 1000Mbps, 100Mbps, 10Mbps
■Communication mode: Full duplex/Half duplex
■Access method: CSMA/CD
■Supported protocols: IPv4, IPv6

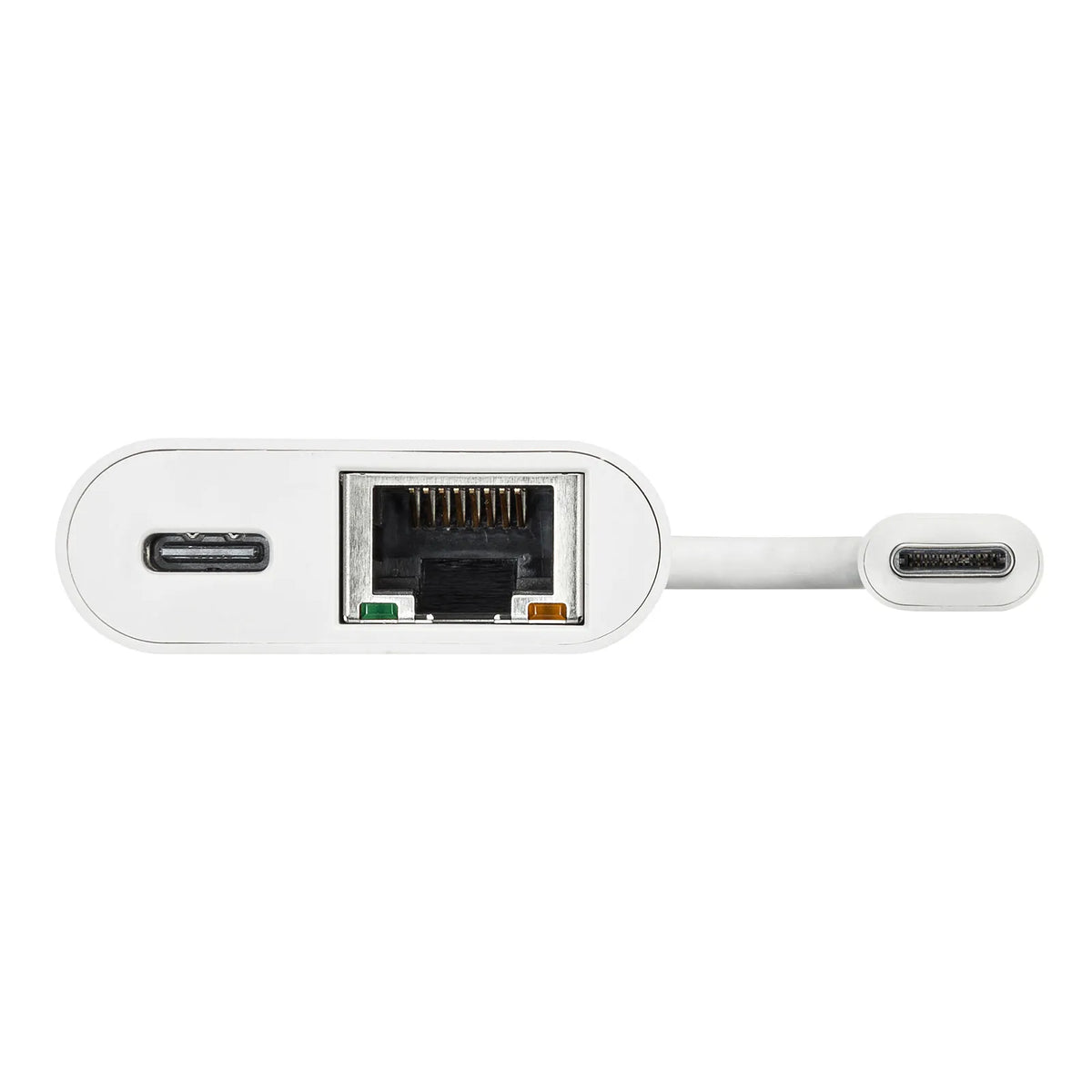

■Port shape: RJ-45 port (Auto MDI/MDI-X), Auto-Negotiation compatible
■Power supply voltage: 5V

＜Common specifications＞
■Color: White
■AC adapter: None
■Power consumption: 2W (maximum)
■Current consumption: 200mA (maximum)
■Operating temperature: 0 to 45 degrees
■Storage temperature: -10 degrees to 70 degrees
■Operating humidity: 0 to 80% (non-condensing)
■Storage humidity: 0 to Up to 80% (non-condensing)

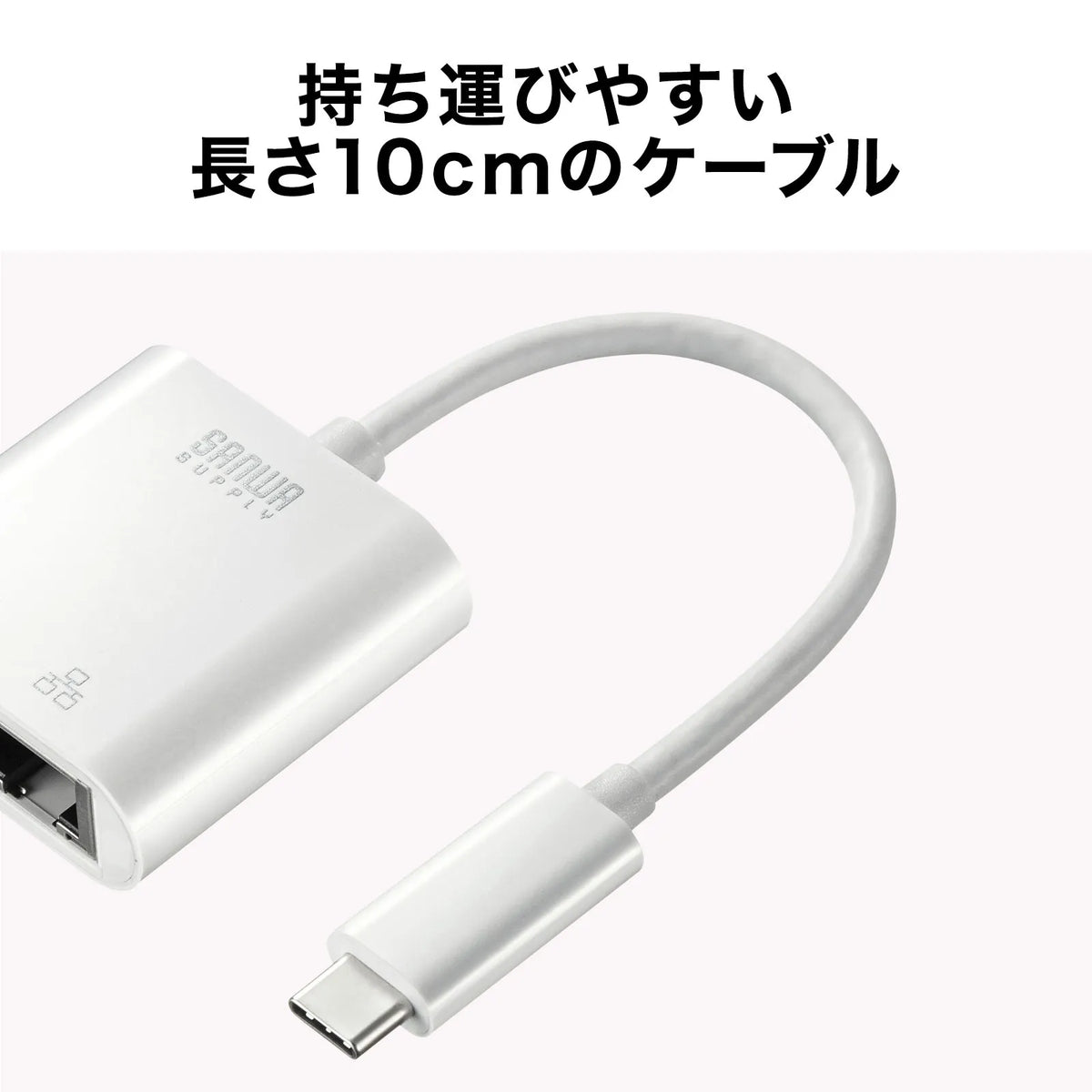

■Cable length: approx. 10cm
■Size: W41xD41xH15mm
■Weight: approx. 25g
