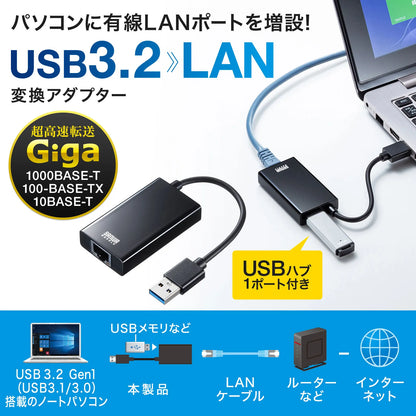

USB 3.2 to LAN Conversion Adapter (with USB Hub Port, Black) USB-CVLAN3BKN

[USB 3.2-to-LAN adapter that converts a USB 3.2 port to a Gigabit LAN port. Includes one USB hub port.]

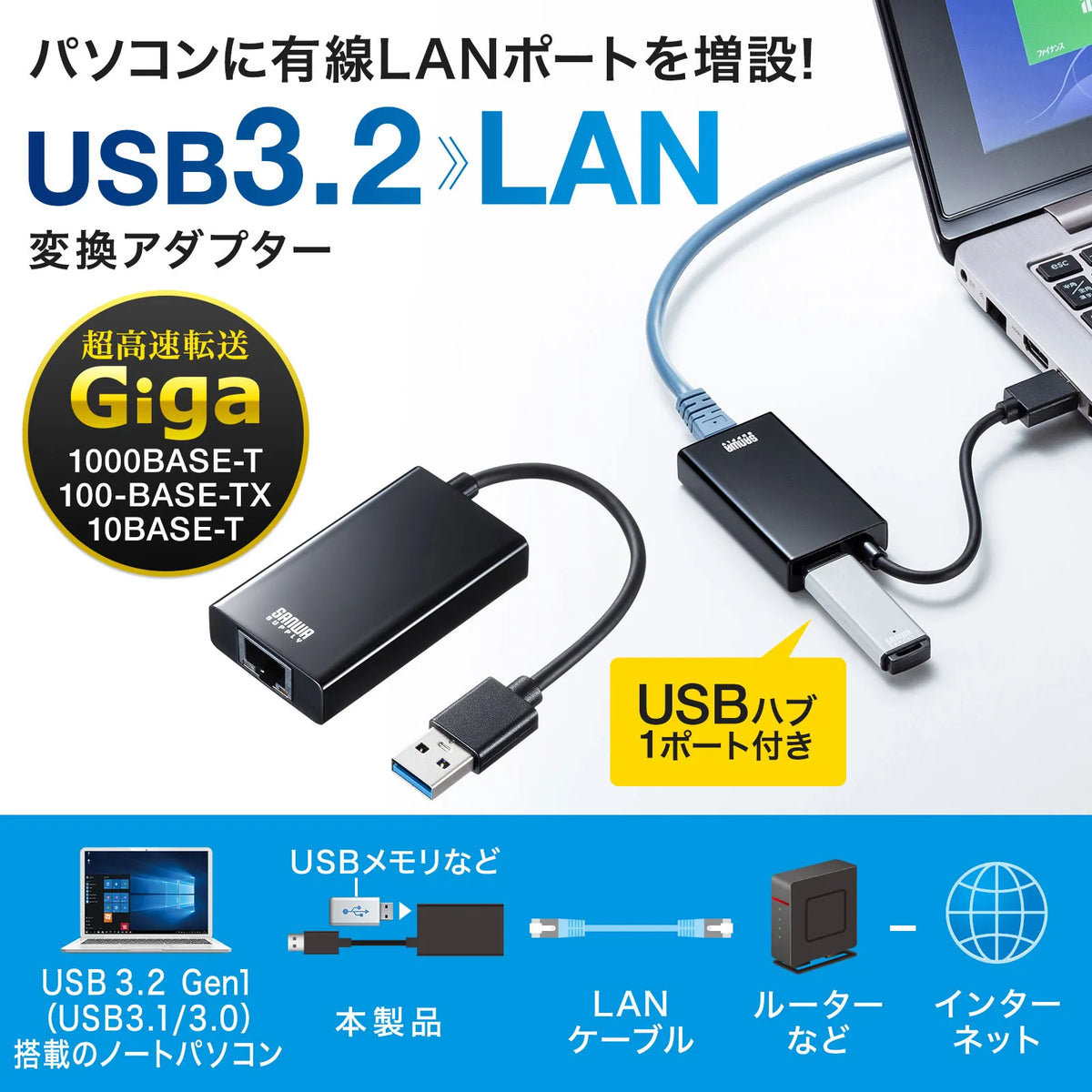

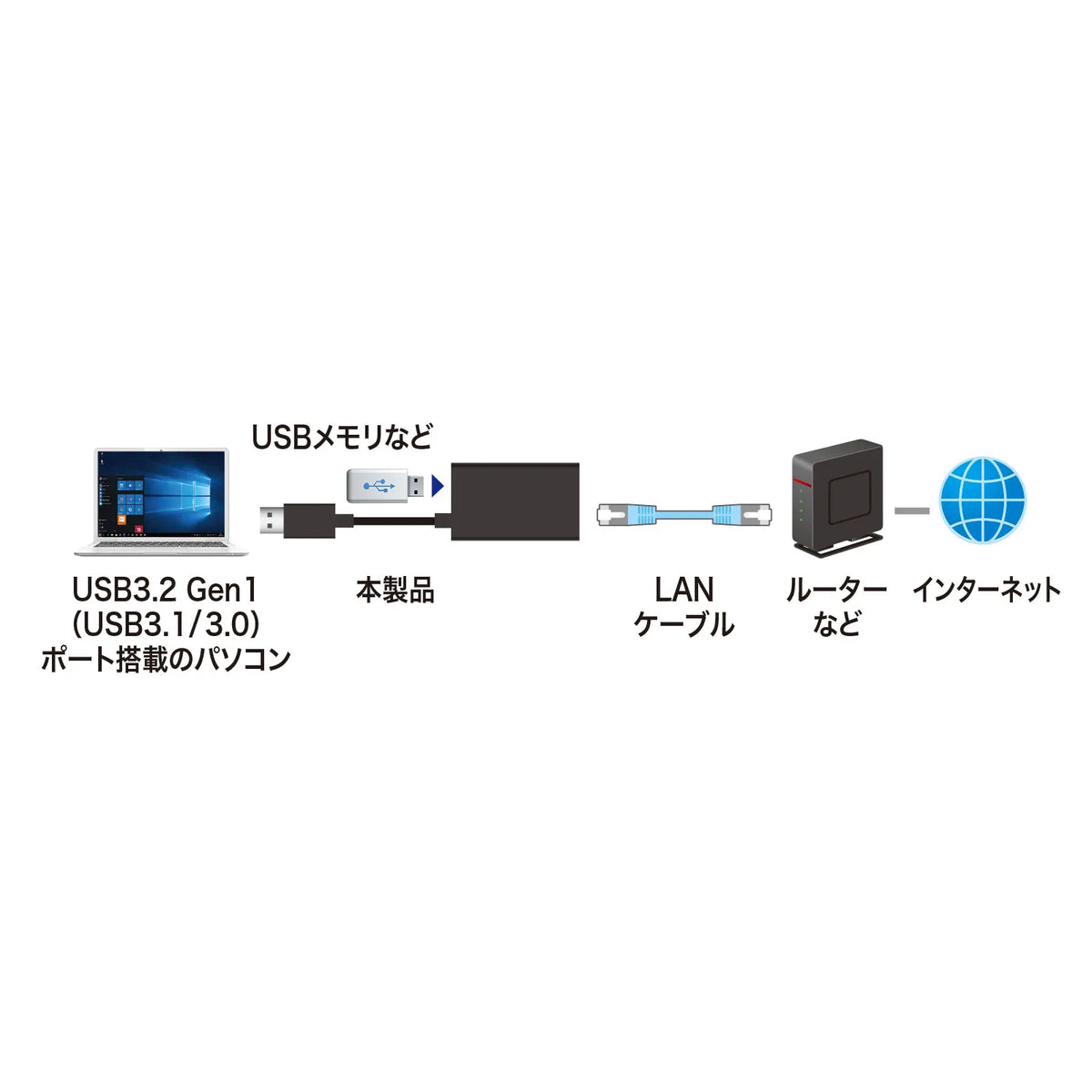

●This adapter converts a USB 5Gbps port to a LAN port (RJ-45 connector).
●Supports USB 5Gbps and Gigabit (1000BASE-T) communication. High-speed network communication is possible even for computers that do not have a wired LAN port.

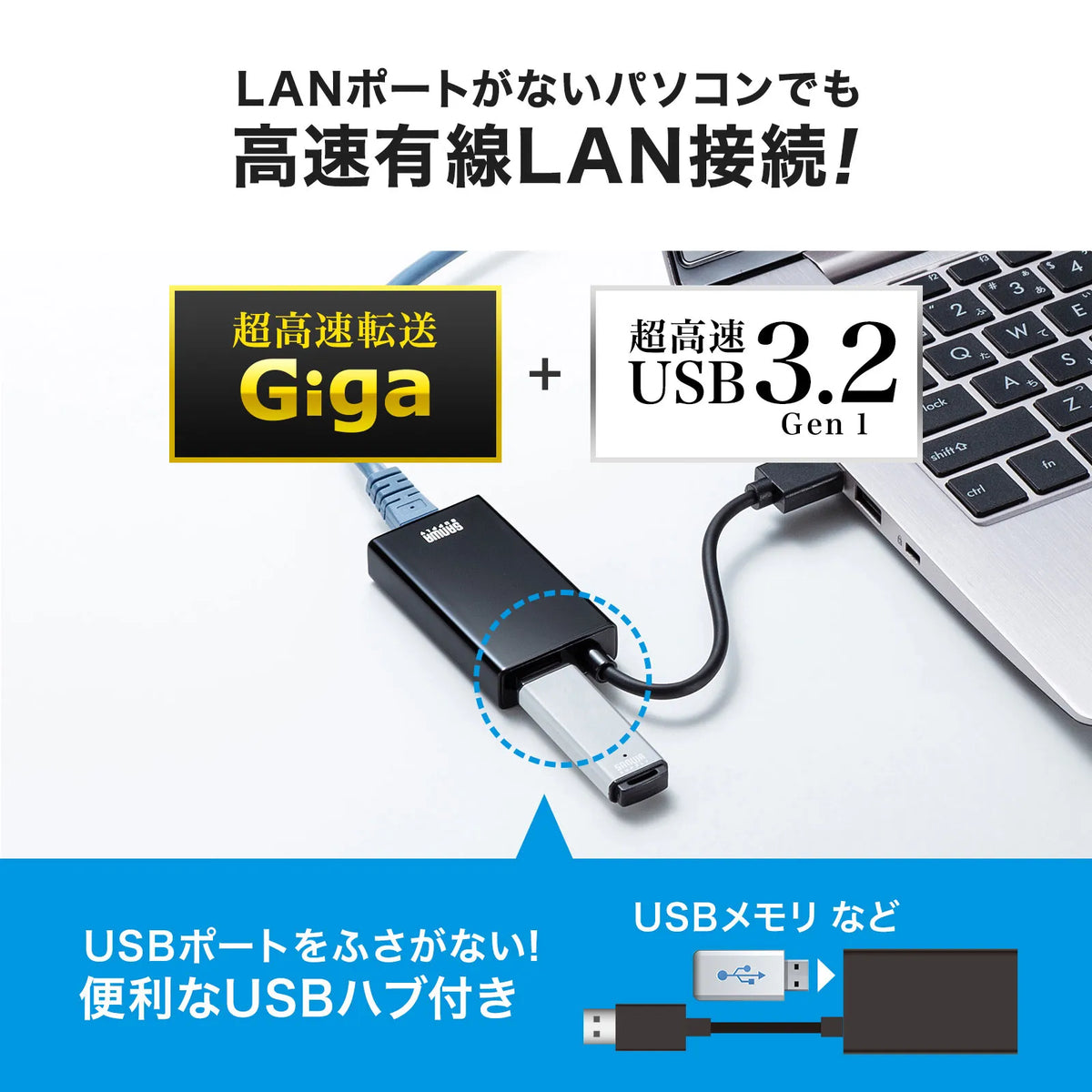

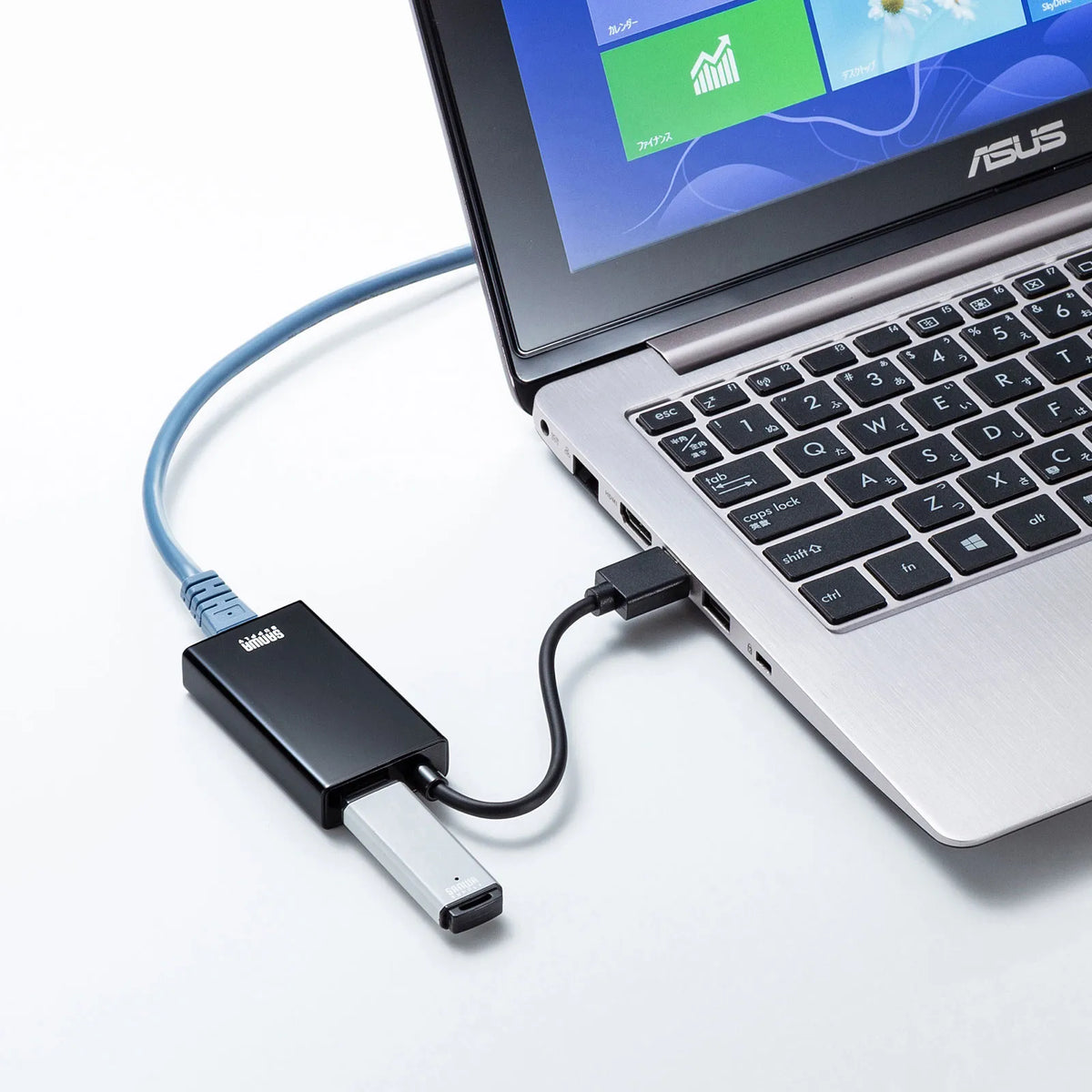

●Includes one USB hub port for connecting various USB devices.
●Supports Auto-Negotiation, so it automatically connects in the appropriate communication mode even if it is not a Gigabit network.
●Cable integrated type for easy portability and handling.


※Operation is not guaranteed when connected via a USB hub. Please use by connecting directly to the USB port of your computer.
※Even with compatible models, compatible connected devices, and environments, it may not function properly.
※It supports the Wake On LAN function, but compatibility varies depending on the computer model, so operation is not guaranteed.
※It may stop functioning properly after an OS update. For details, please check the software download page on the Sanwa Supply website.
*Nintendo Switch is a trademark or registered trademark of Nintendo.
*USB 5Gbps is the same standard as USB 3.1/3.0, but it has been renamed by USB-IF (USB Implementers Forum).

■Color: Black
■Supported standards:
USB port/USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant
LAN port/IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T)
■Access method: CSMA/CD
■Connector: USB 5Gbps A connector male x1 (upstream)

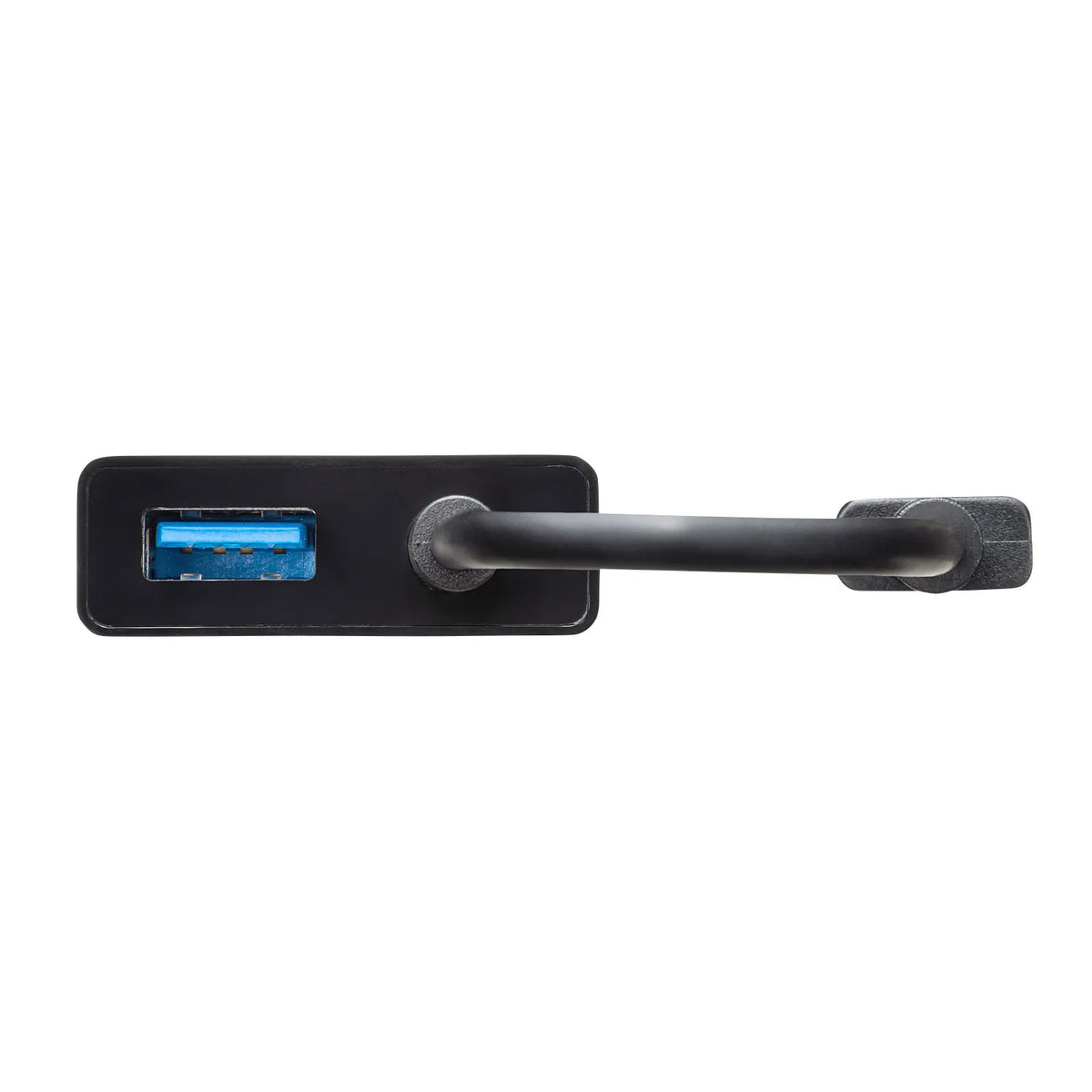

USB 5Gbps A connector female x1 (downstream)

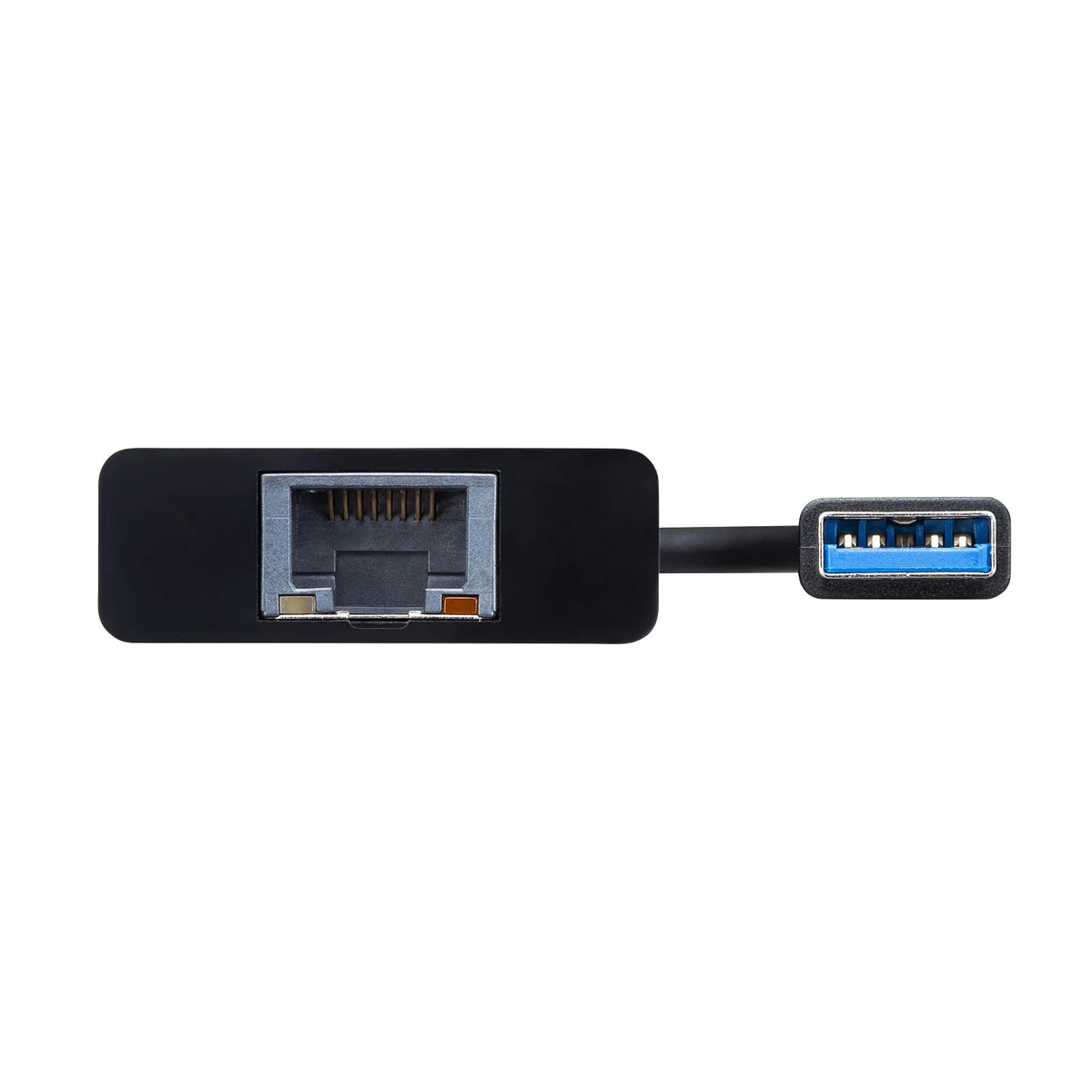

RJ-45 (Auto MDI/MDI-X) x1 port
Auto-Negotiation supported
■Power supply: Bus power
■Power supply voltage: 5V
■Current consumption: Maximum 380mA
■Power consumption: 2.5W
■USB hub port supply current: Maximum 520mA (when 900mA is supplied from the PC)
■Communication speed: 5Gbps/480Mbps/12Mbps/1.5Mbps (theoretical value)
■PD support: Not supported
■Conversion connector: R J-45
■Standards: IEEE802.3 (10BASE-T)
IEEE802.3u (100BASE-TX)
IEEE802.3ab (1000BASE-T)

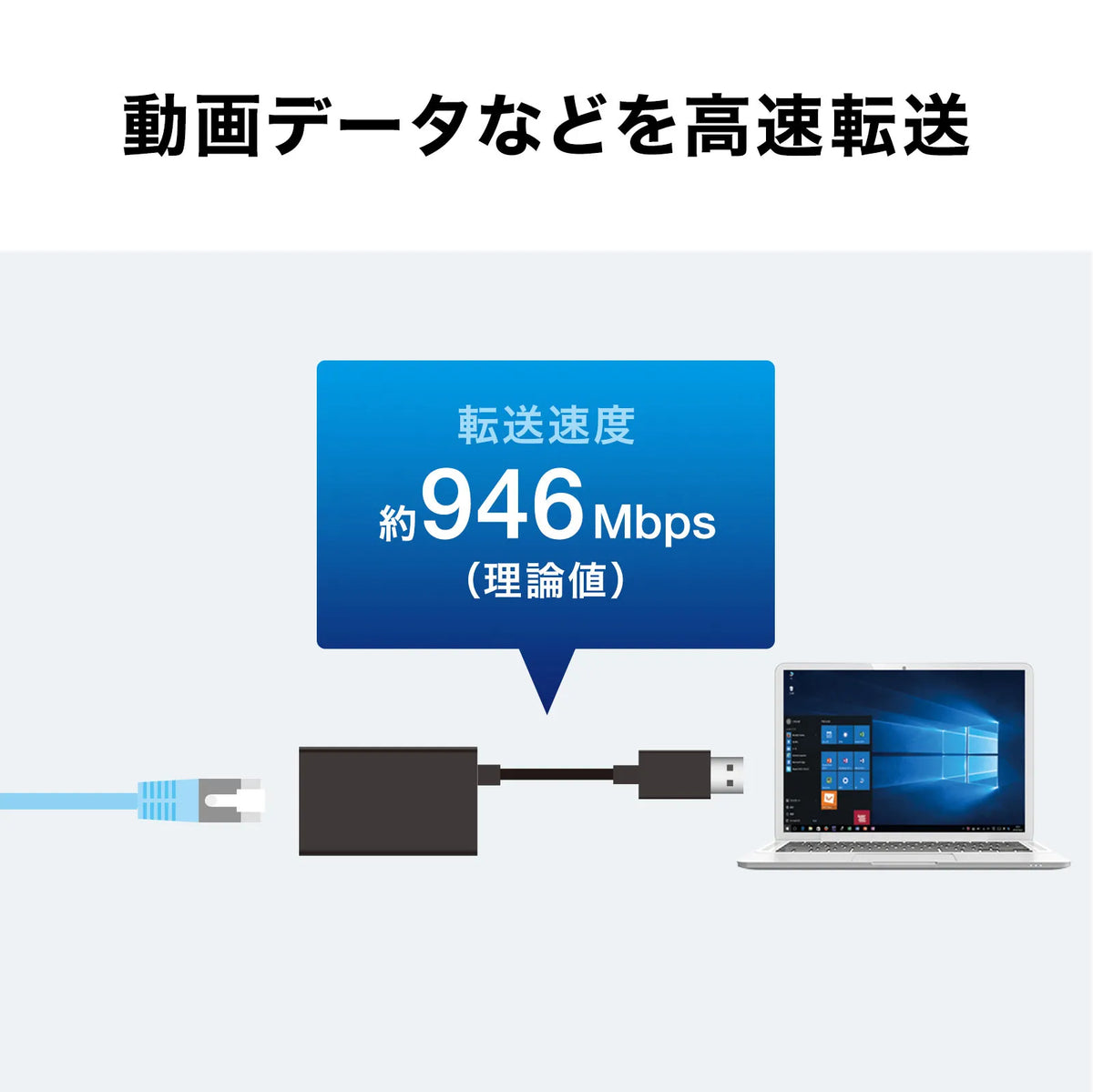

■Transmission speed: 1000Mbps/100Mbps/10Mbps (theoretical value)
■Communication mode: Full duplex/Half duplex
■Supported protocols: IPv4, IPv6
■Port shape: RJ-45 port (Auto MDI/MDI-X), Auto-Negotiation compatible
■Size: W62 x D38.5 x H13.5mm (excluding cable)
■Weight: 33g (including cable)

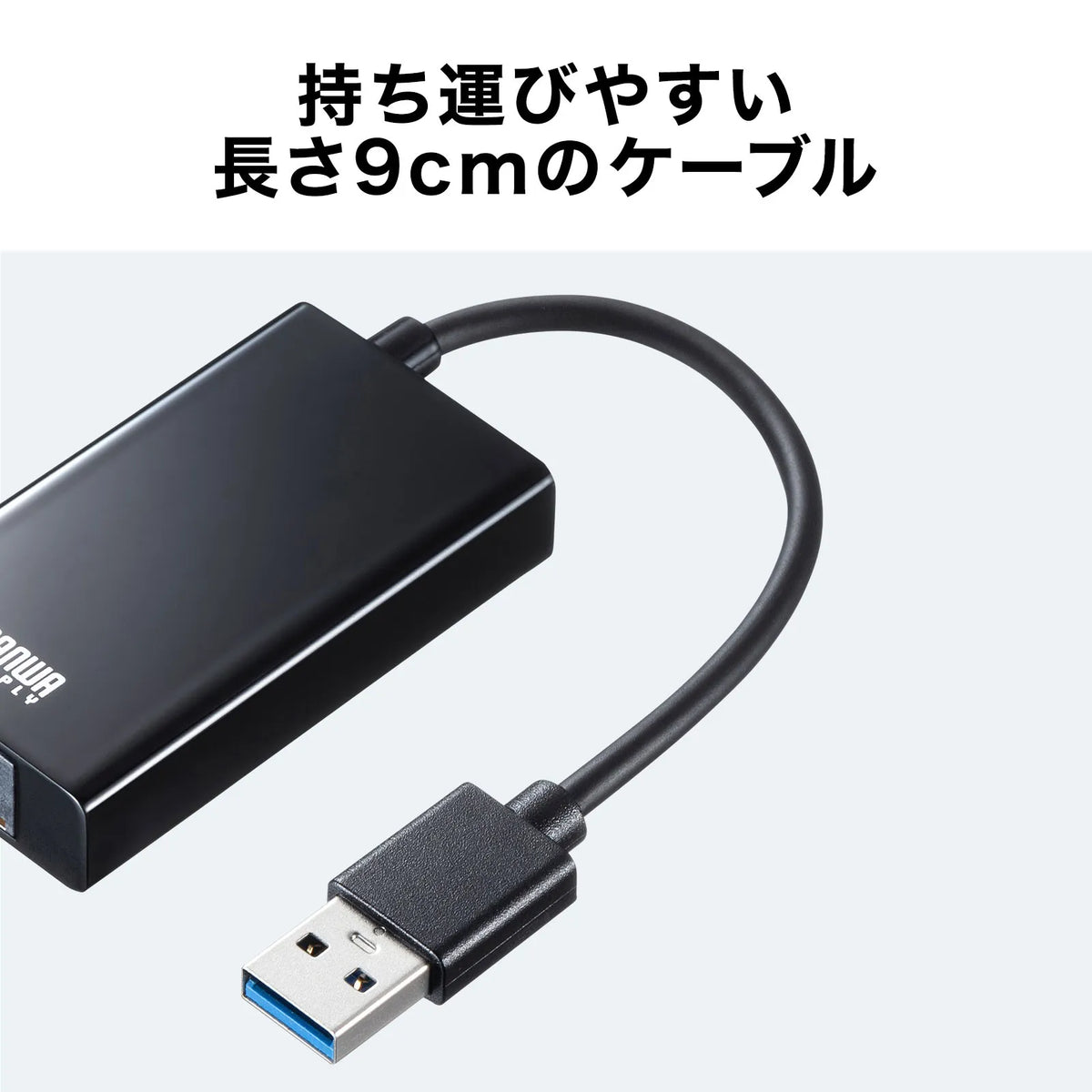

■Cable length: Approx. 9cm (excluding connector)
■Environmental conditions: Operating temperature/0 to 40 degrees
Storage temperature/-20 to 60 degrees
Operating and storage humidity/0 to 80% (non-condensing)
■Accessories: Instruction manual
