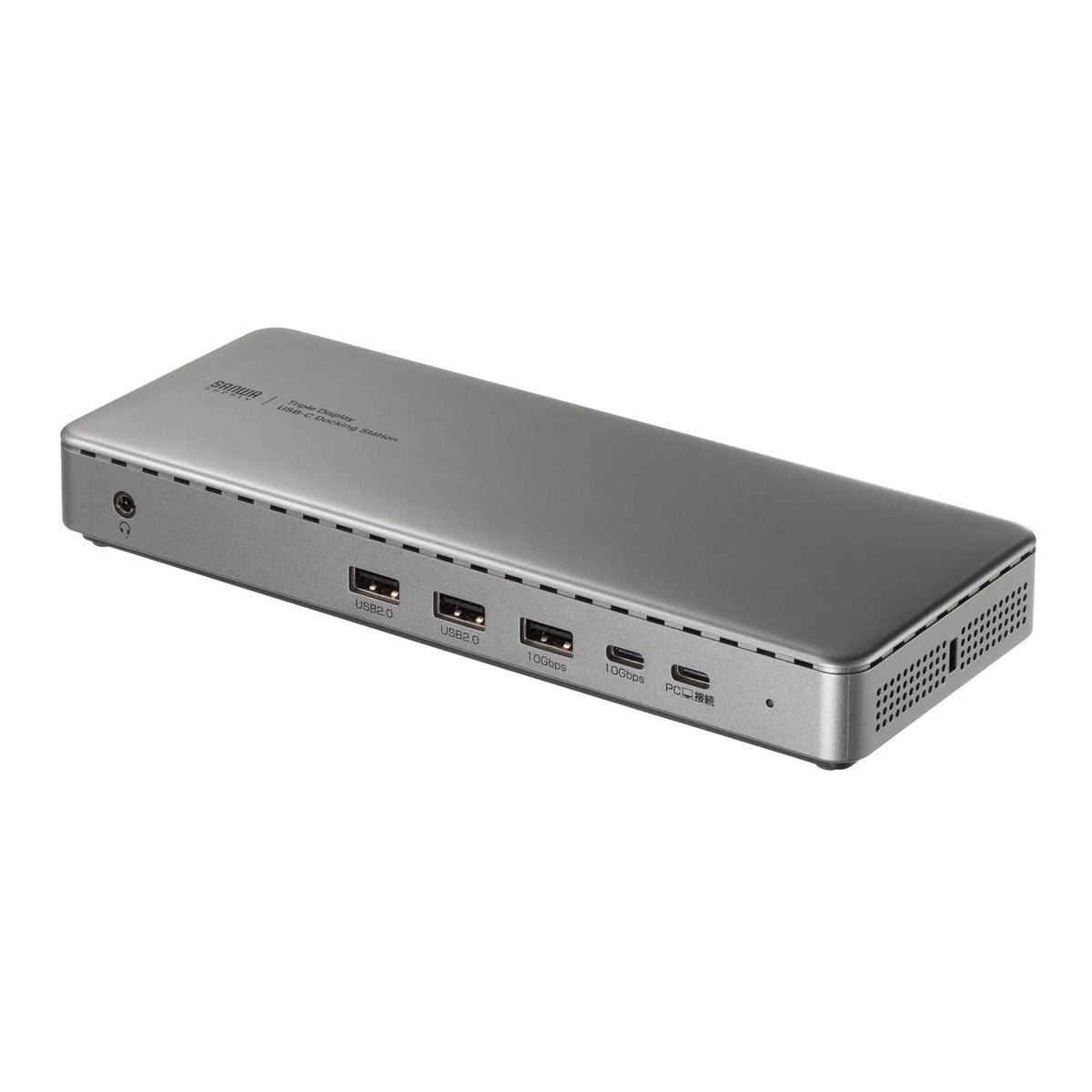

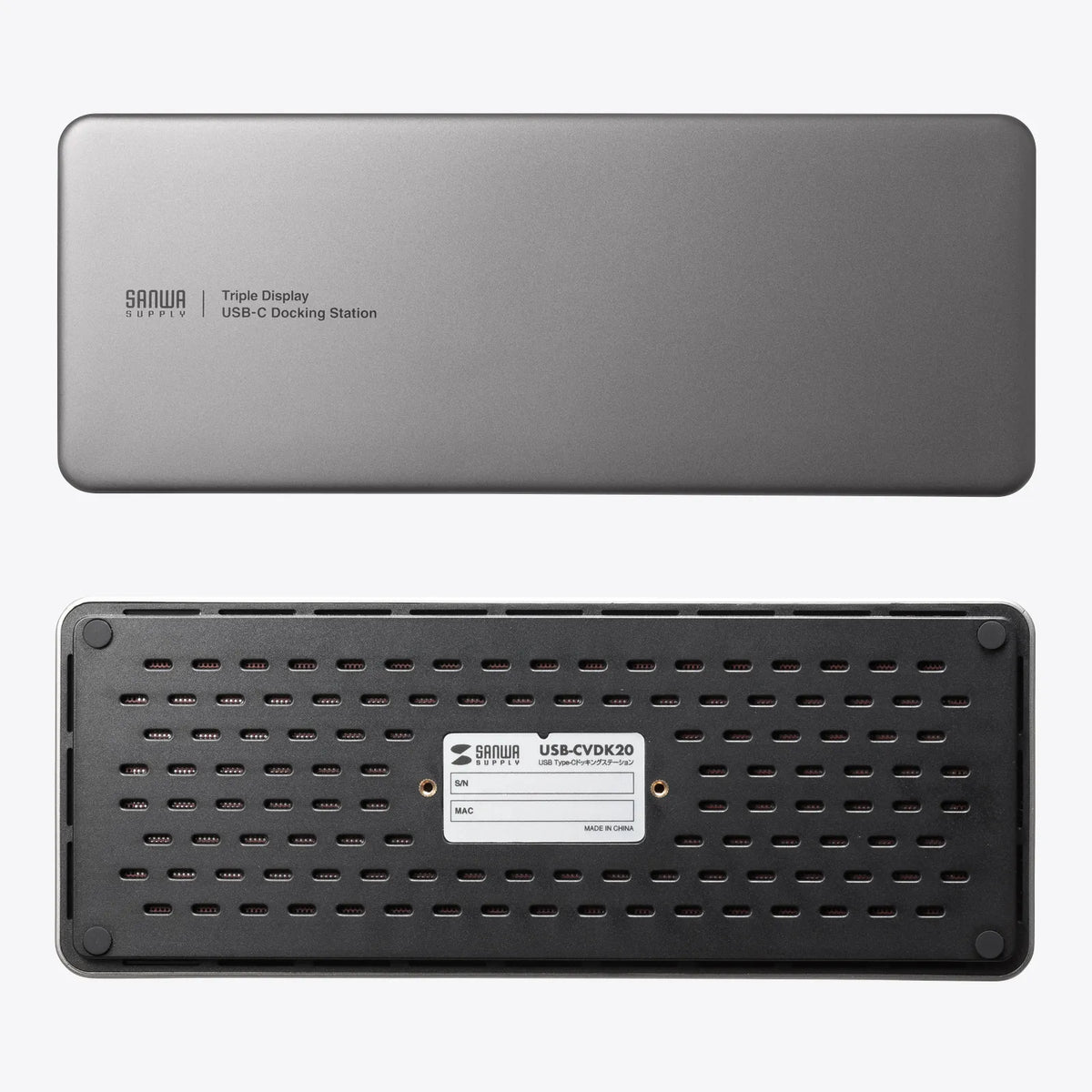

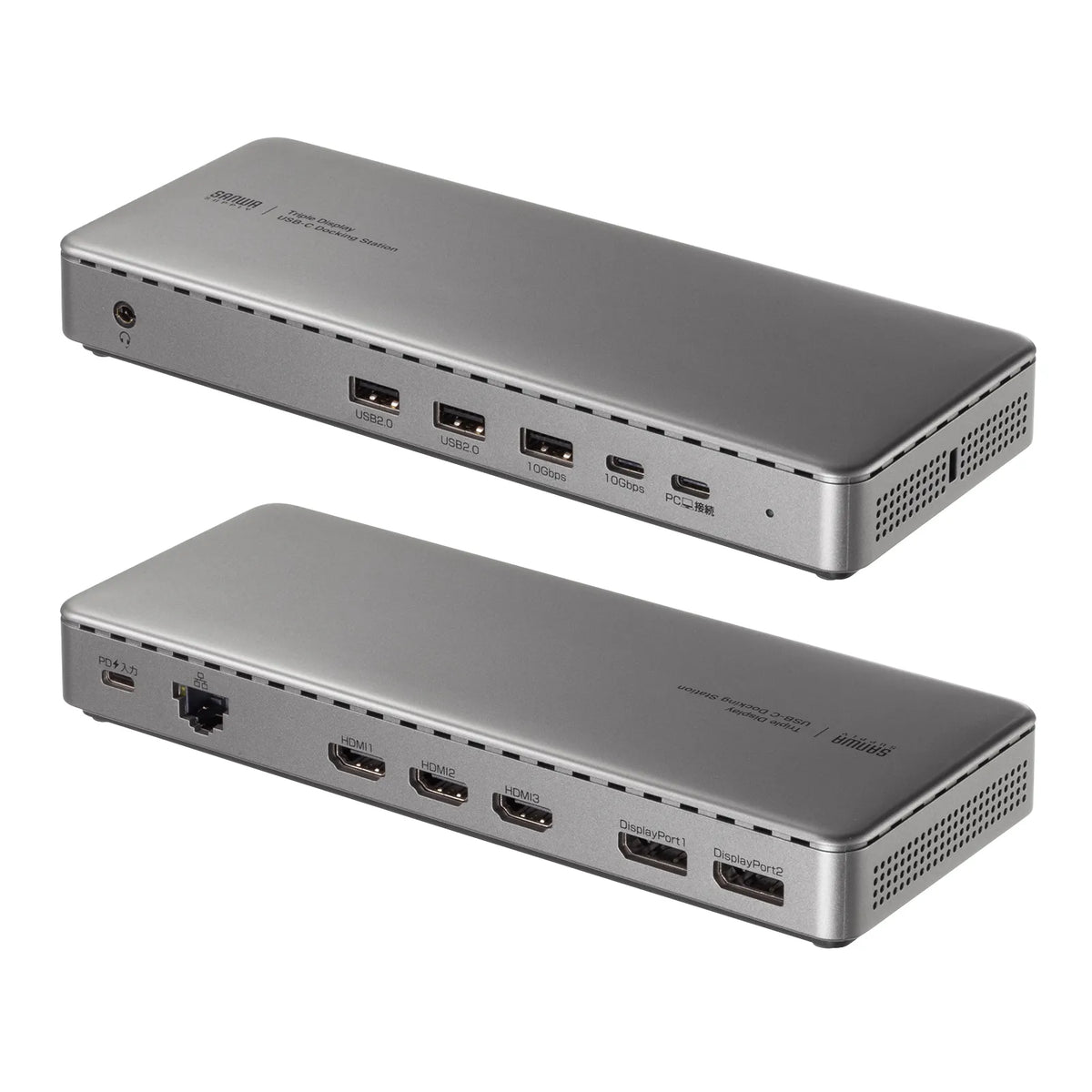

Docking station (HDMI/DisplayPort x 4K x 3 screen output compatible) USB-CVDK20

[A docking station that allows you to output smooth 4K/60Hz video to three displays with just one USB Type-C cable connection.]

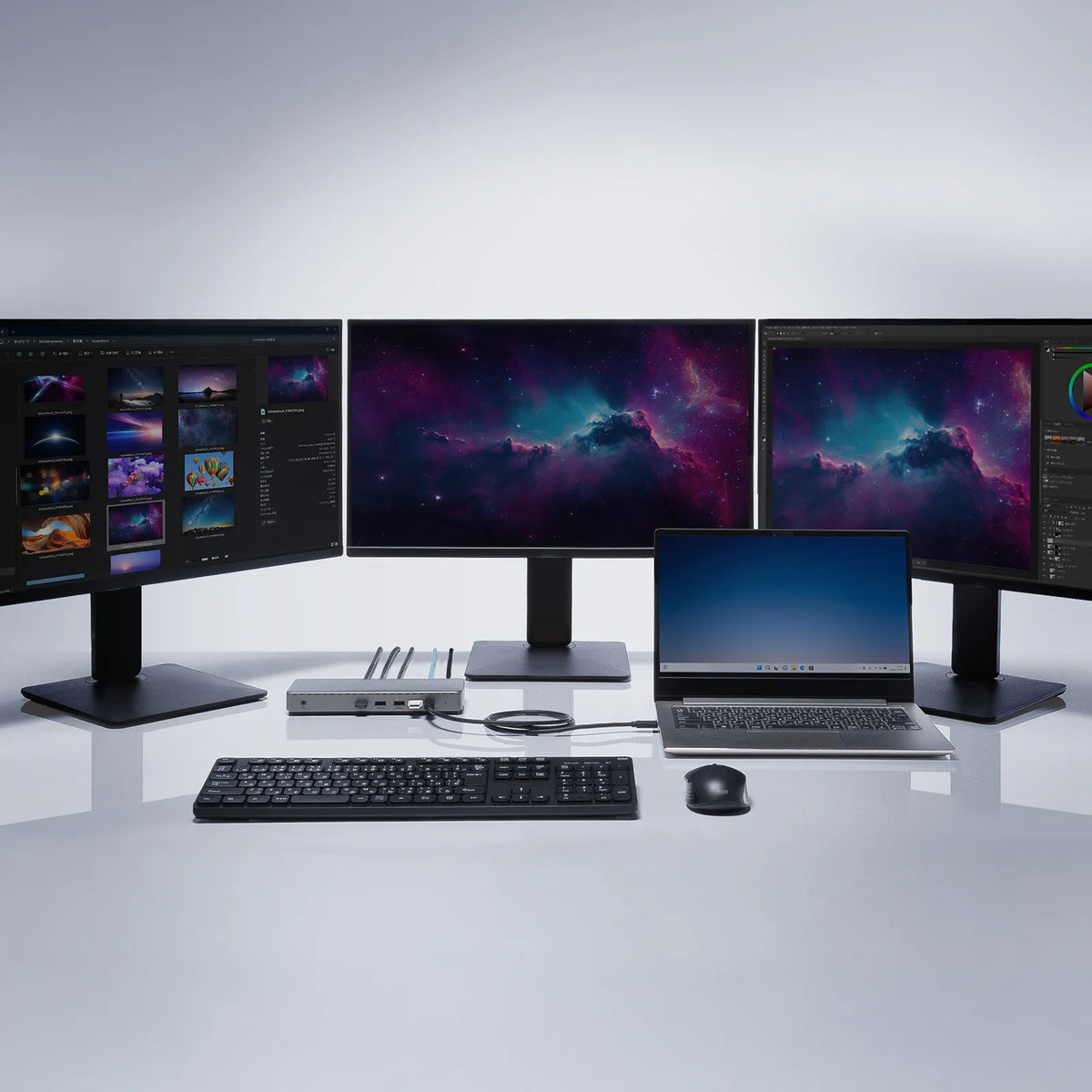

●This high-performance docking station can output smooth 4K resolution and 60Hz video to up to three screens simultaneously.

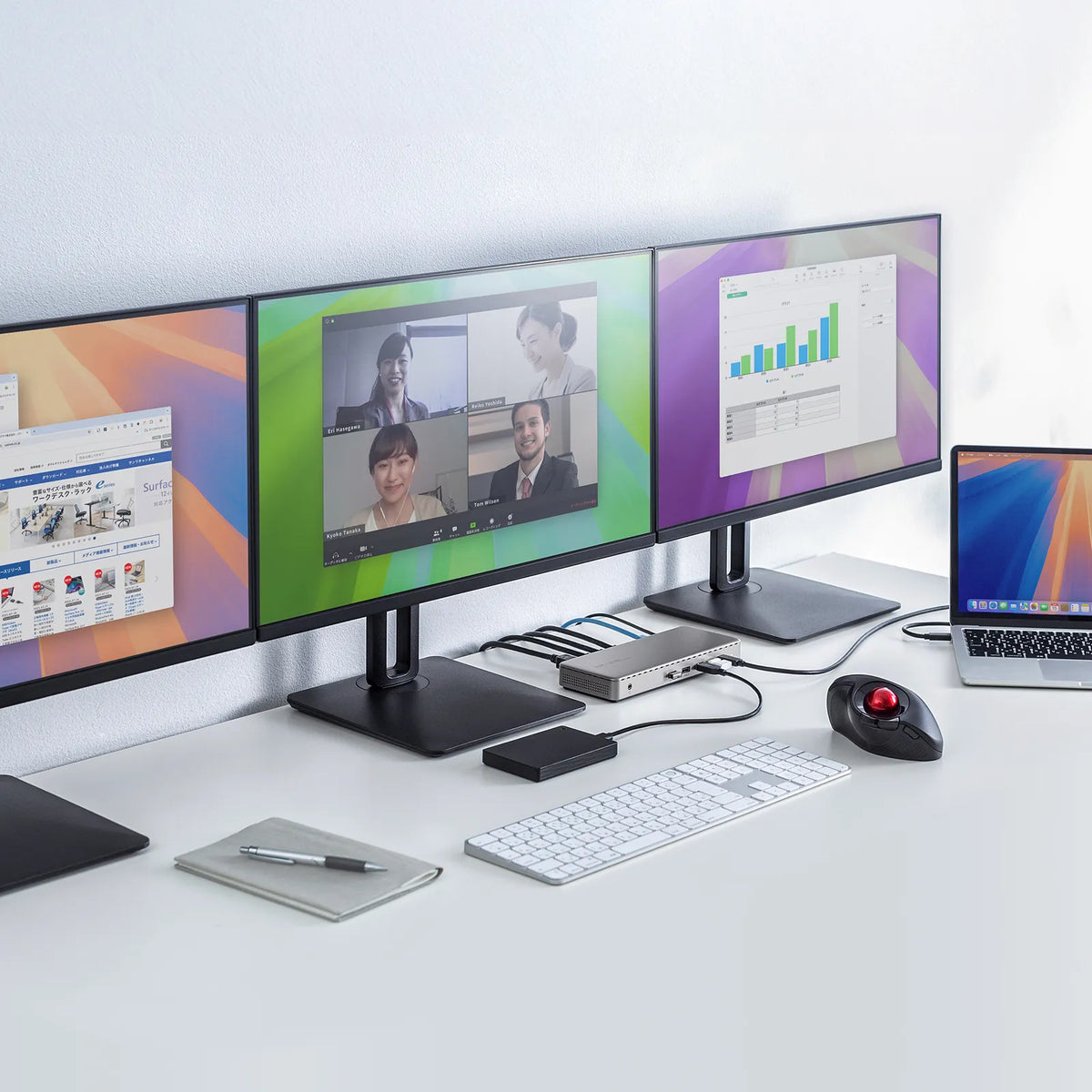

●Even Macs equipped with M-series chips can extend display to two or more screens, greatly expanding your workspace.

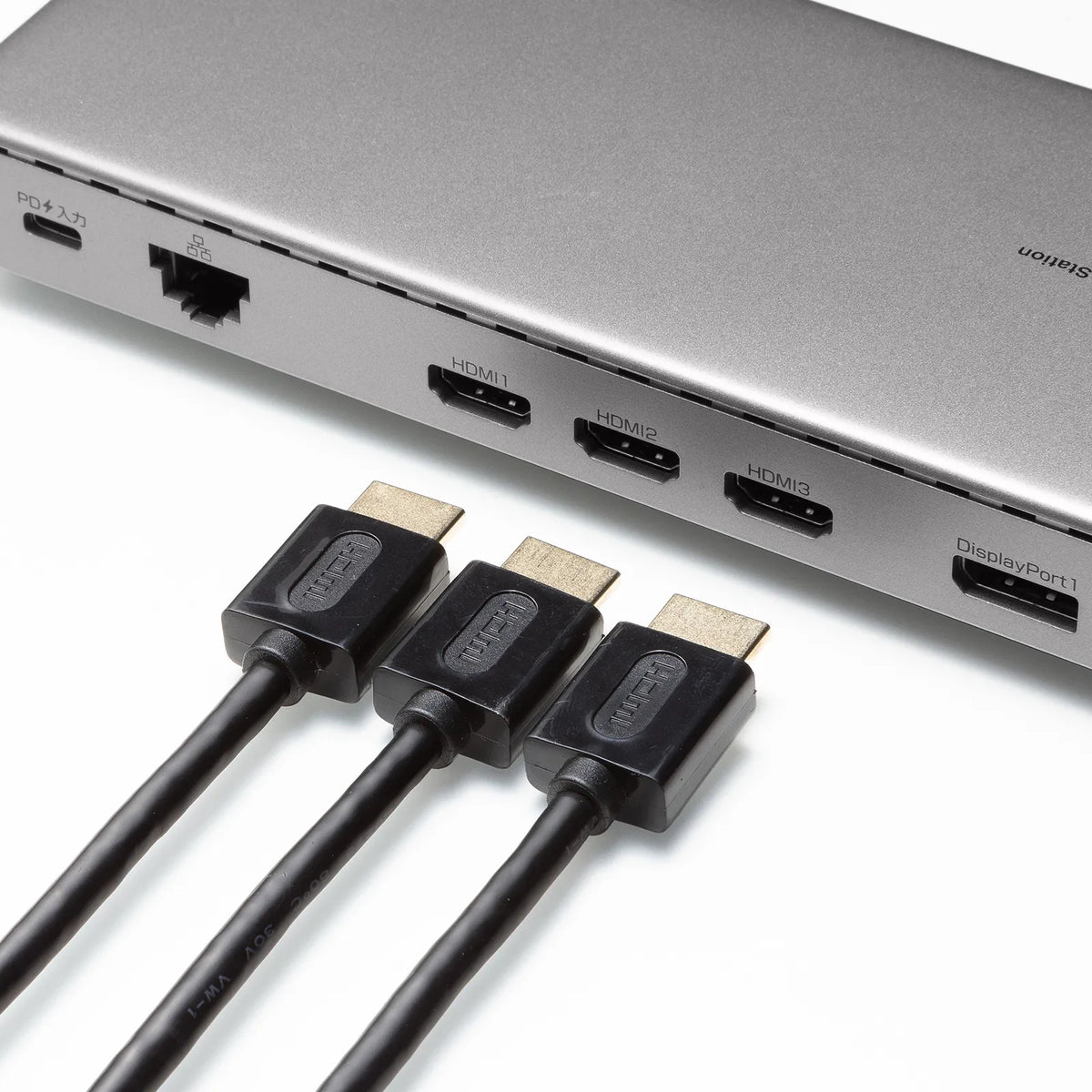

●Since all three monitors can be connected via HDMI, you can easily set it up with your existing HDMI cables.
●Equipped with USB C and USB A hub ports that support high-speed data transfer up to 10Gbps, allowing for smooth transfer of large files.
●The main unit is equipped with a security slot (3x7mm) for complete theft prevention.
●By connecting a USB PD compatible AC charger to this product, you can stably supply power to the laptop connected to this product, ensuring peace of mind even during long work sessions.

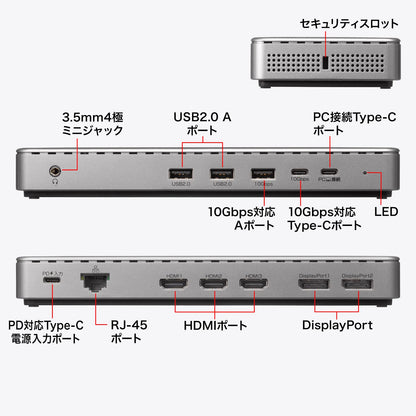

【PC Connection Terminal】
■Connector Shape: USB Type-C
■Supported Standards: USB 10Gbps (USB3.2 Gen2/USB3.1 Gen2) compliant
*USB 10Gbps is the same standard as USB3.2 Gen2 (USB3.1 Gen2), which was renamed by USB-IF (USB Implementers Forum).
■Maximum USB PD output: 85W

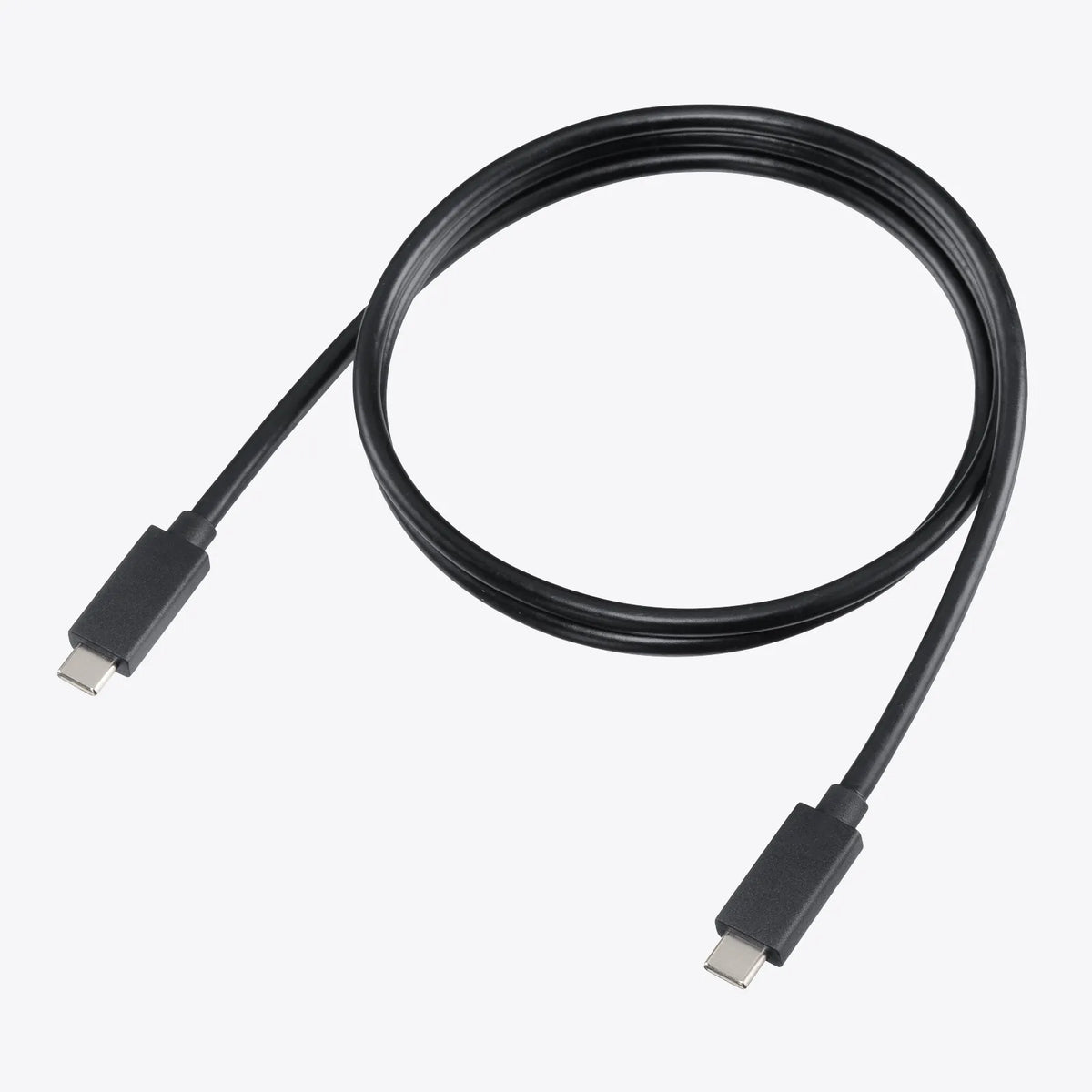

■Cable length: Approx. 100cm
■Cable type: Detachable cable

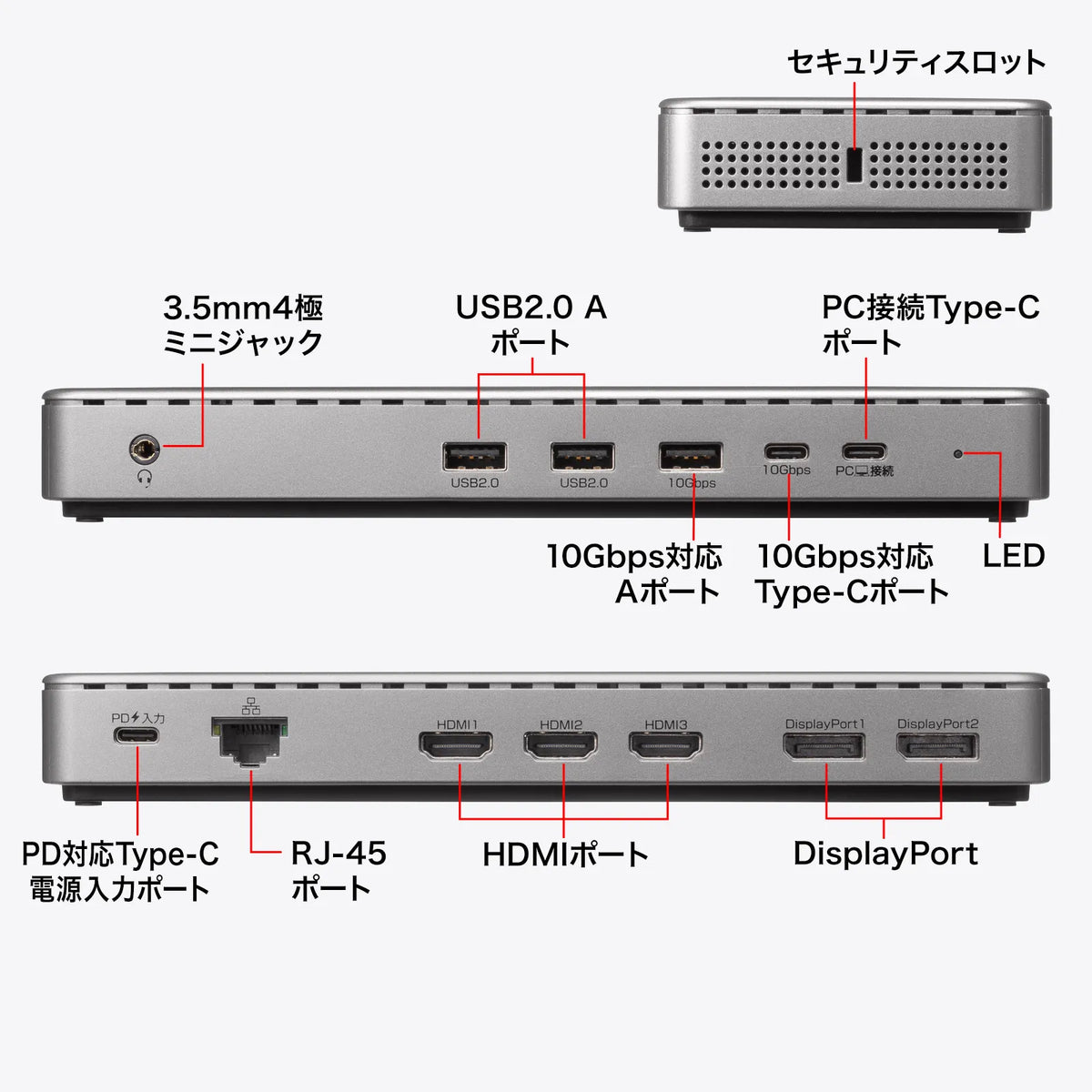

【USB Ports】
■Number of ports: 4 ports
■Maximum data transfer speed (theoretical value): 10Gbps
■USB Type-C female/USB 10Gbps: 1 port
■USB A female/USB 10Gbps: 1 port
■USB A female/USB 2.0: 2 ports
■Supply current: USB Type-C connector (10Gbps): Maximum 900mA
USB A connector (10Gbps): Maximum 900mA
USB A connector (USB2.0): Maximum 500mA per port
【Power Supply】
■Power supply method: Bus power/Self power (when power is connected)
■Main unit power consumption: 15W
■USB PD input port: Yes
■USB PD Maximum Input: 100W
【Video Output Ports】
■Number of Supported Output Displays: 3
■Maximum Supported Resolution: 4K/60Hz
■Maximum Supported Resolution/Refresh Rate: When 1 Display is Connected
HDMI Port: 3840x2160 (4K/60Hz)
DisplayPort Port: 3840x2160 (4K/60Hz)
When 2 Displays are Connected: 3840x2160 (4K/60Hz) x 2
When 3 Displays are Connected: 3840x2160 (4K/60Hz) x 3
■HDMI: 3 Ports
■DisplayPort: 2 Ports
【LAN Port】
■Port Shape: RJ-45 Port (Auto MDI/MDI-X), Auto-Negotiation compatible
■Supported standards: IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T)
■Transmission speed (theoretical value): 1000Mbps, 100Mbps, 10Mbps
■Access method: CSMA/CD
■Supported protocols: IPv4, IPv6
【Audio terminal】

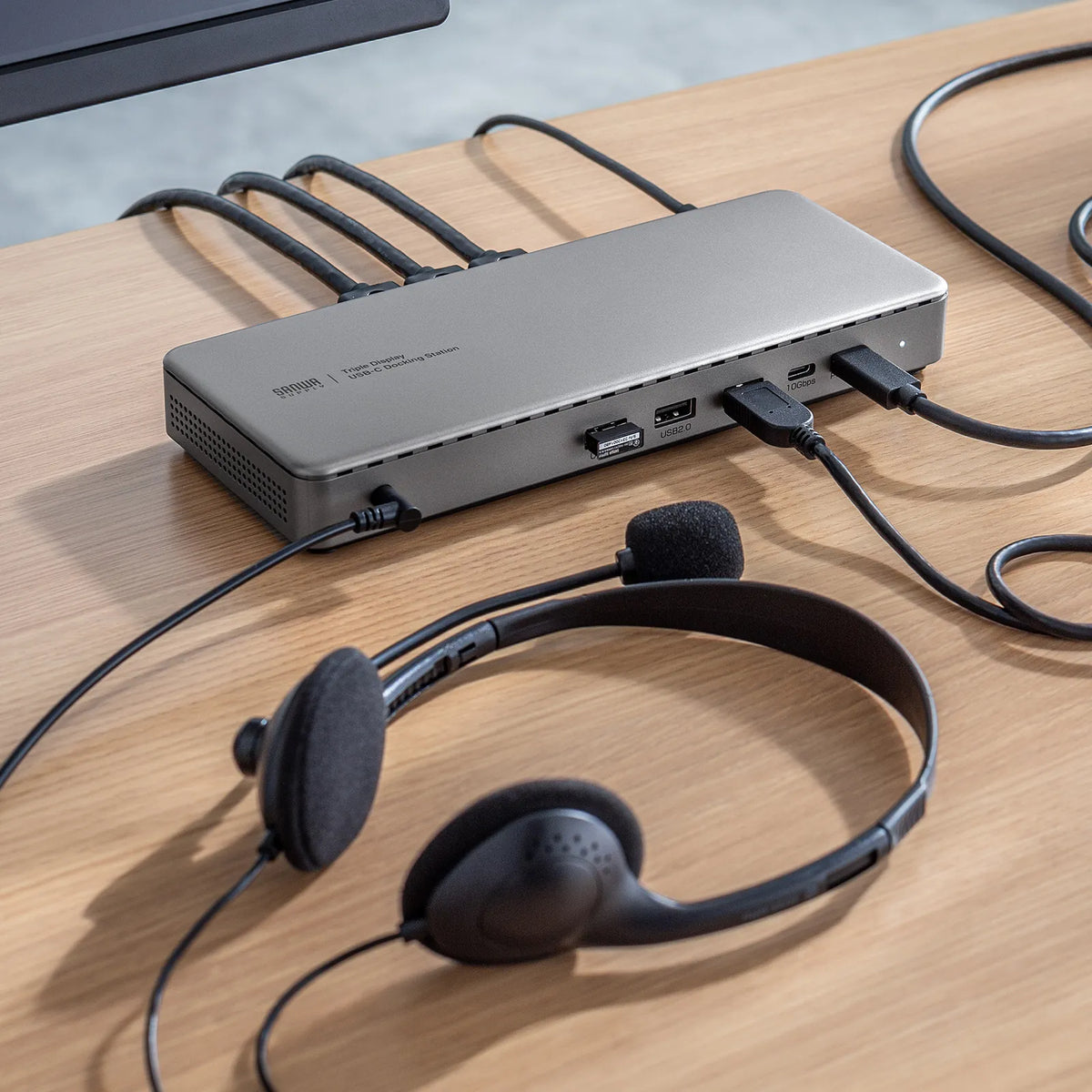

■Jack shape: 3.5mm 4-pole mini jack (microphone/headphone terminal combined) x1
【Common specifications】
■Supported OS Windows: 11, 10
■Supported OS mac: macOS (Sequoia) 15, macOS (Sonoma) 14, macOS (Ventura) 13
■Operating temperature: 0 to 40 degrees
■Operating humidity: 5% to 90%
*No condensation
■Set contents: Main unit, USB Type-C cable, instruction manual (warranty)
■Driver: Required
■AC adapter: Not included
【Common】

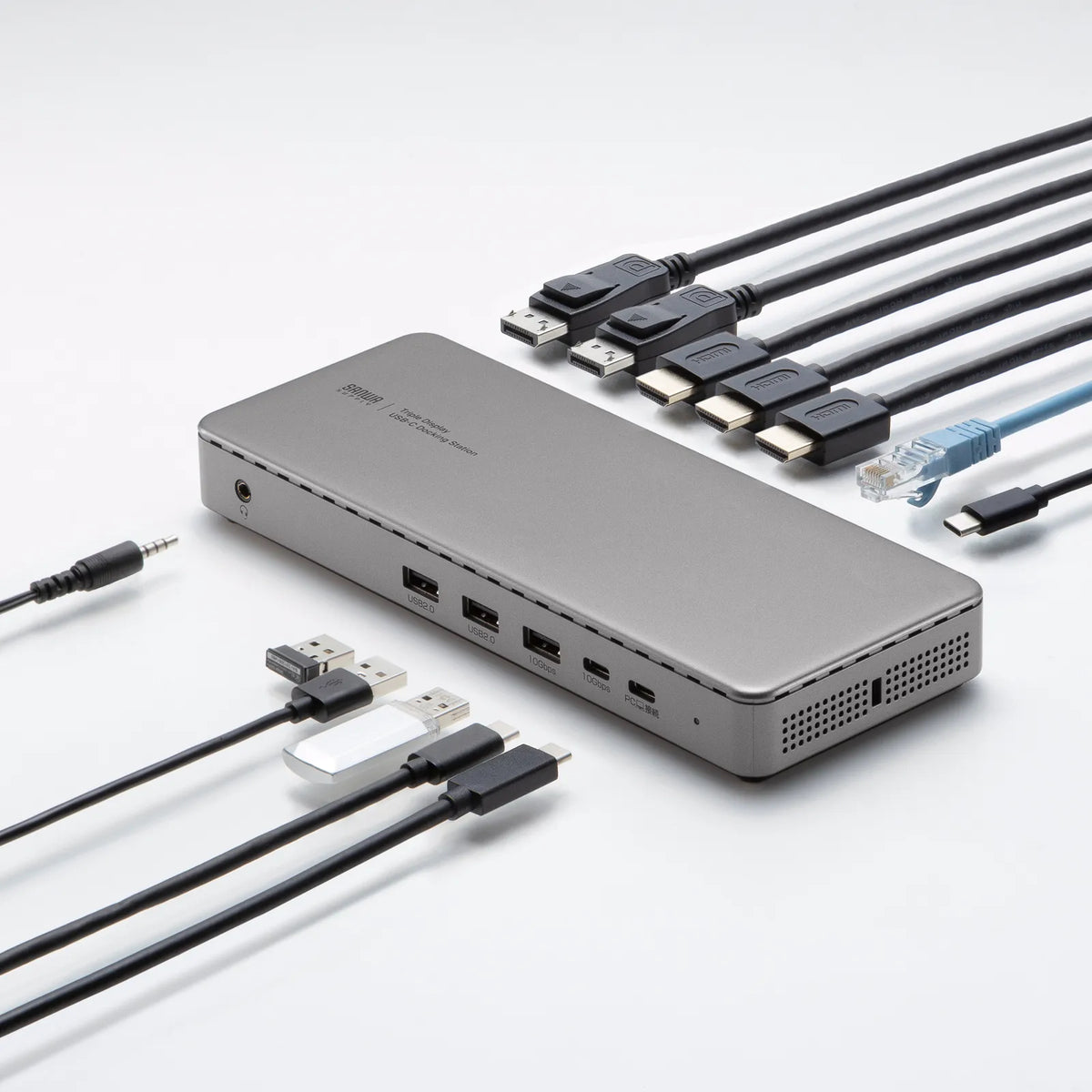

■Total number of ports: 10in1
