USB Type-C Docking Station (HDMI/VGA Dual Monitor Output Compatible) USB-CVDK19

[A compact docking station that supports up to 4K resolution and features HDMI and VGA video output terminals for dual-screen video output.]

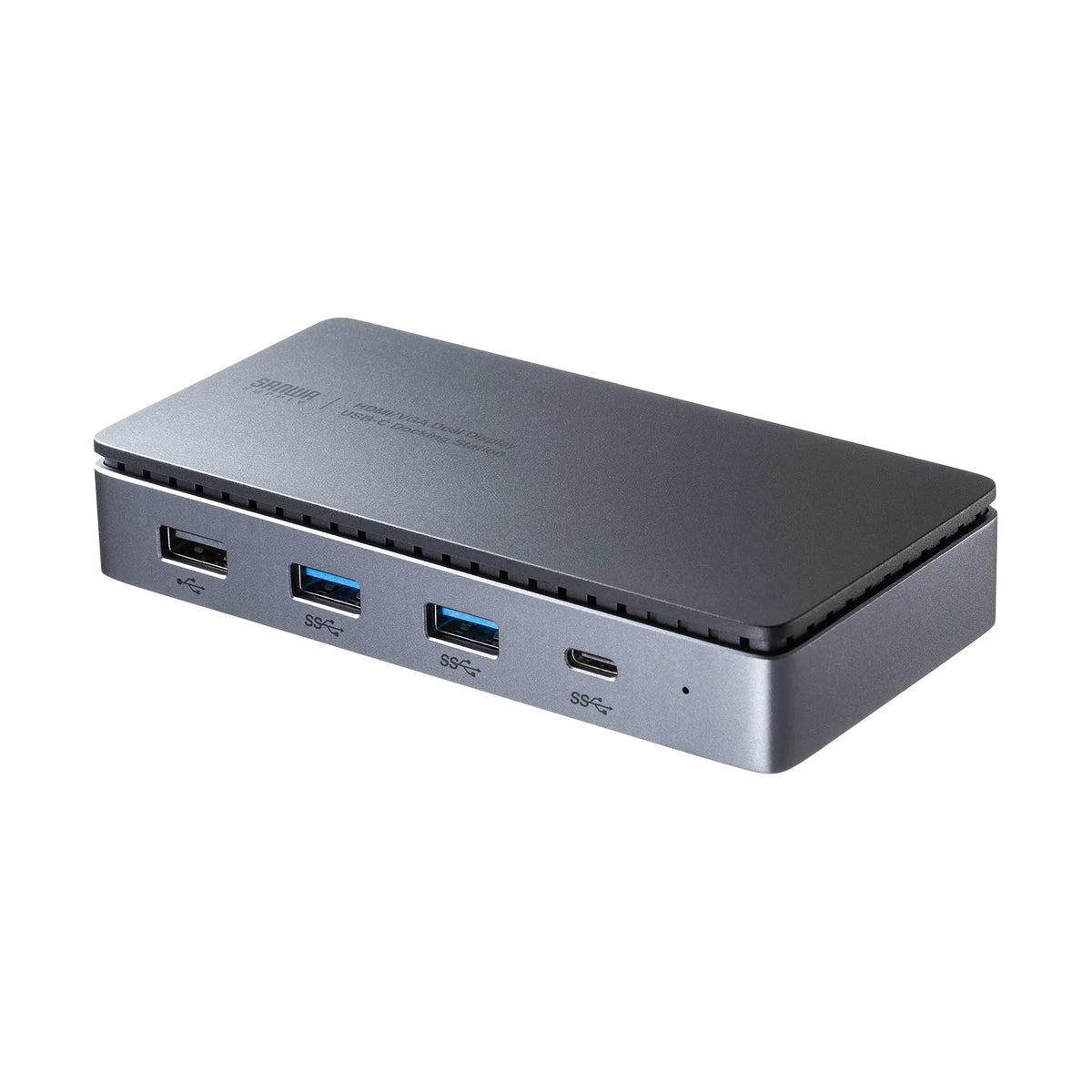

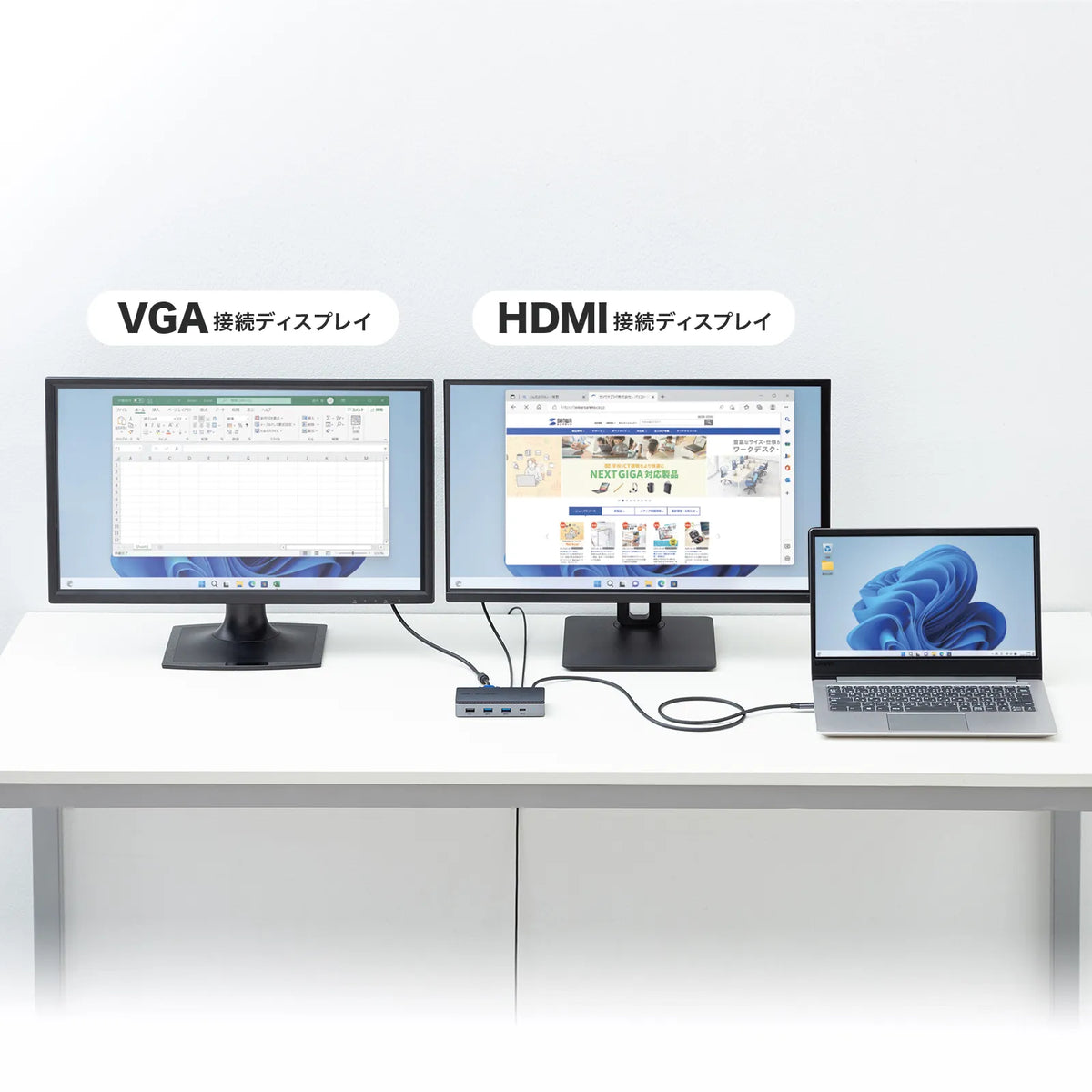

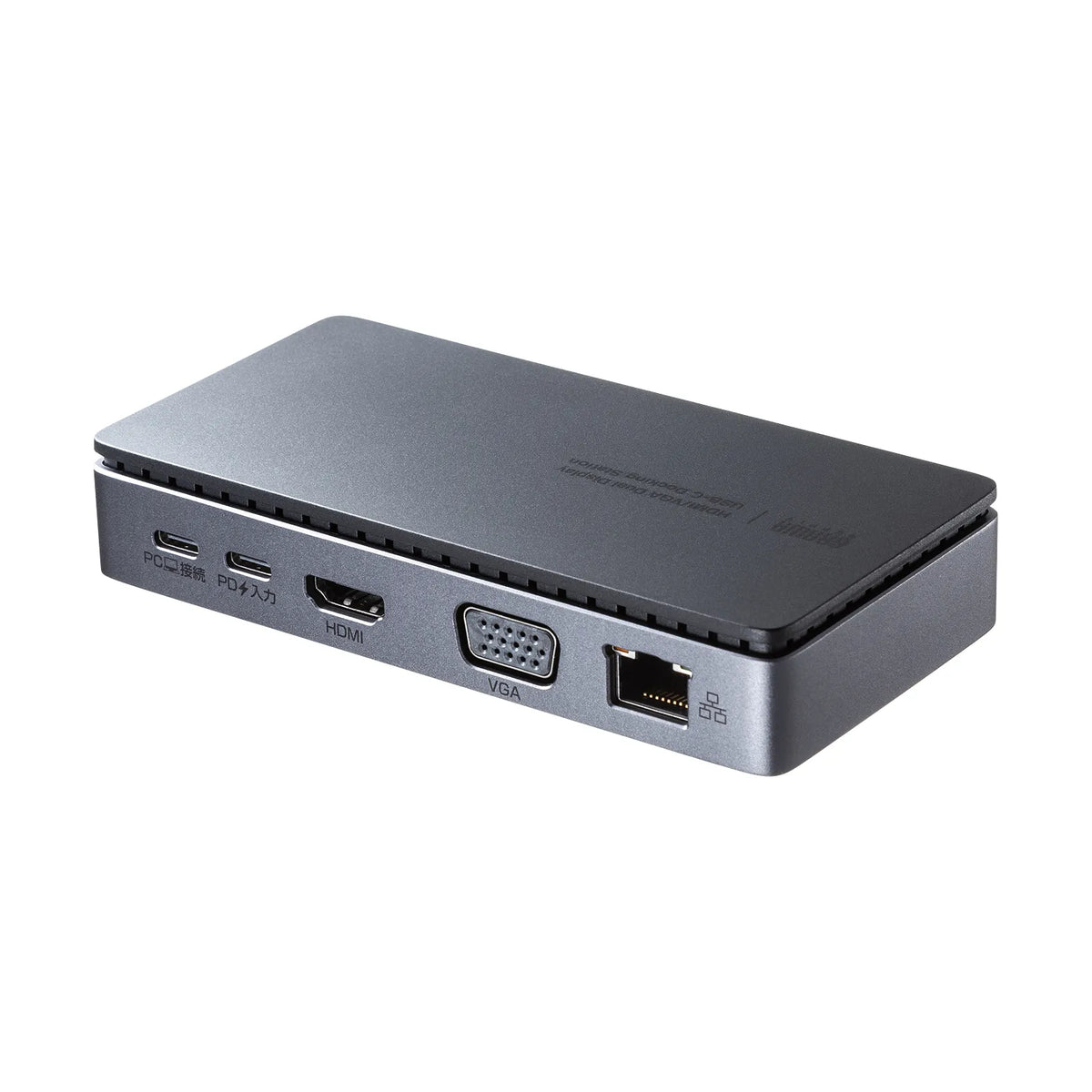

●A compact USB Type-C docking station equipped with HDMI and VGA video output terminals that allows you to output video to up to two displays with a single USB Type-C cable.
●Equipped with a VGA video terminal, it also supports video output to monitors without HDMI terminals.
●When outputting to one display using HDMI, it supports a maximum resolution of 4K (3840x2160).
*When two displays are connected, the maximum resolution supported is HDMI: 4K (3840x2160) + VGA: Full HD (1920x1080).

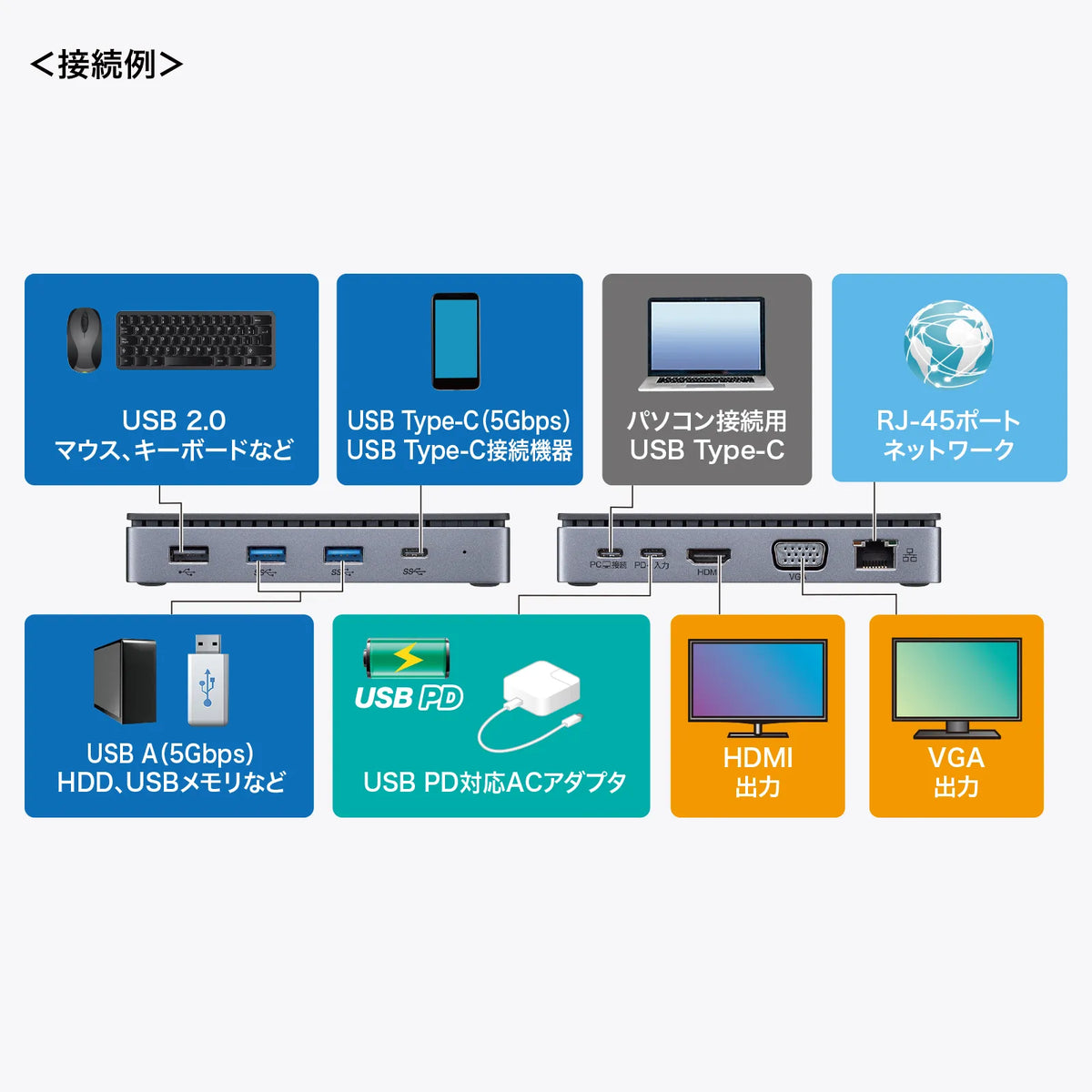

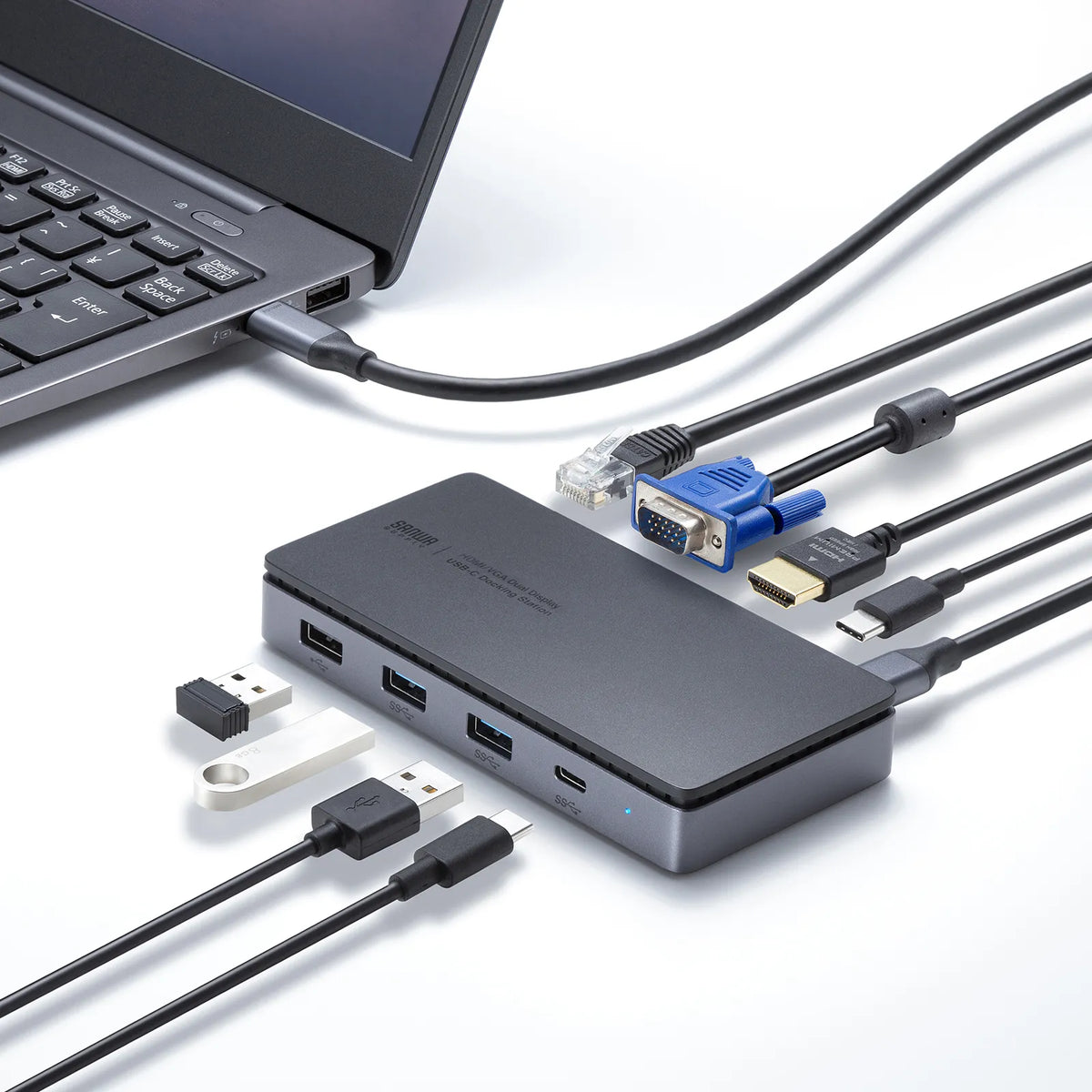

●In addition to video output, it also supports expansion connections for various USB devices and wired LAN.
●Supports input up to 20V/5A (100W) of the USB Power Delivery (USB PD) standard, and by connecting a separate AC adapter that supports the USB PD standard, this product can output video and transmit data while simultaneously supplying power to a connected laptop.

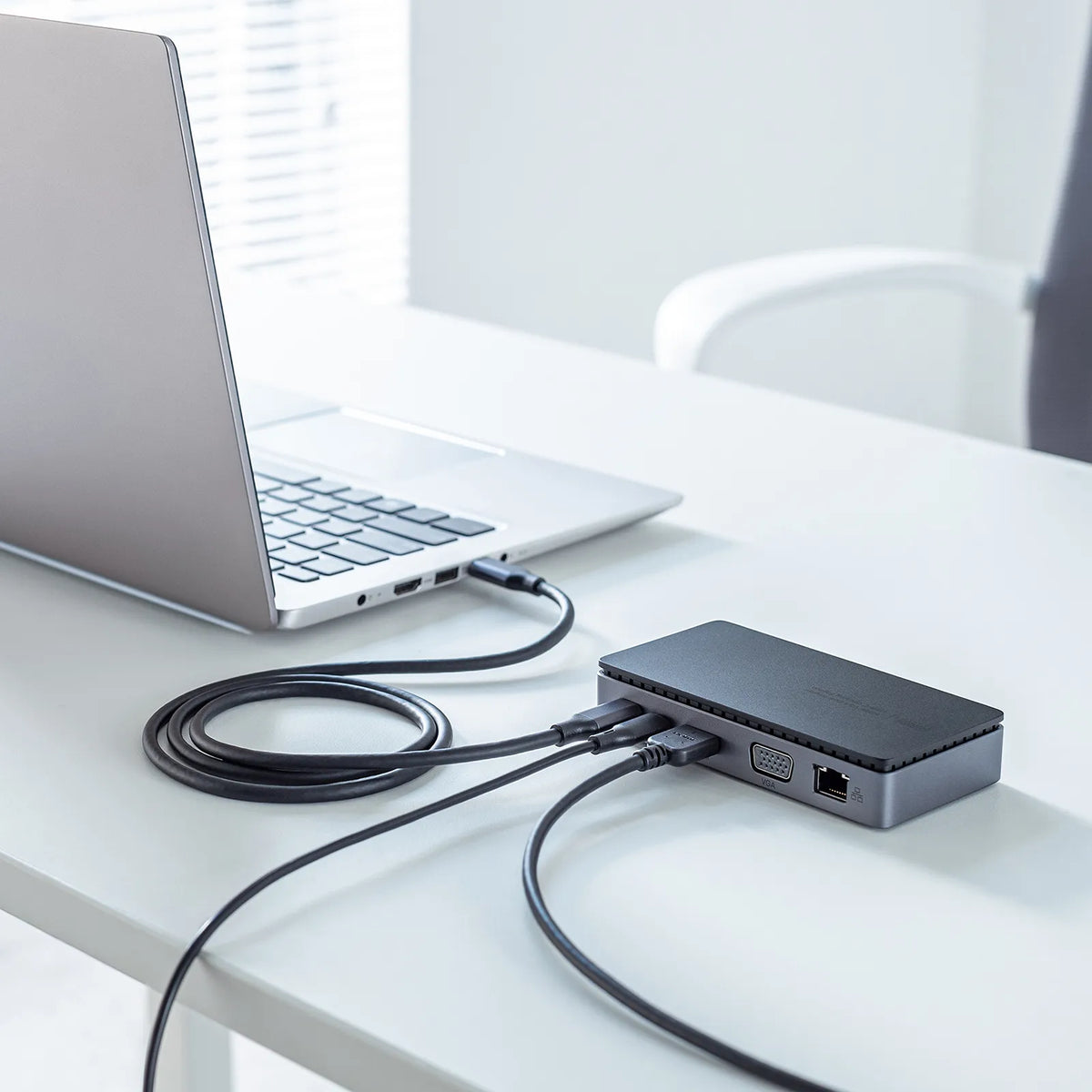

●At home or in the office, you can comfortably operate with a large screen display and USB devices with just one Type-C cable connection, and when you are out or going to a meeting, you can quickly carry it with you by simply unplugging one Type-C cable.
●Supports DisplayPort Alternate Mode for adding a display via USB Type-C connection, so it can be used easily without installing any software.
●Supports Gigabit Ethernet (1000BASE-T), so it is compatible with Gigabit network environments and can connect to a wired LAN with just one USB Type-C cable.

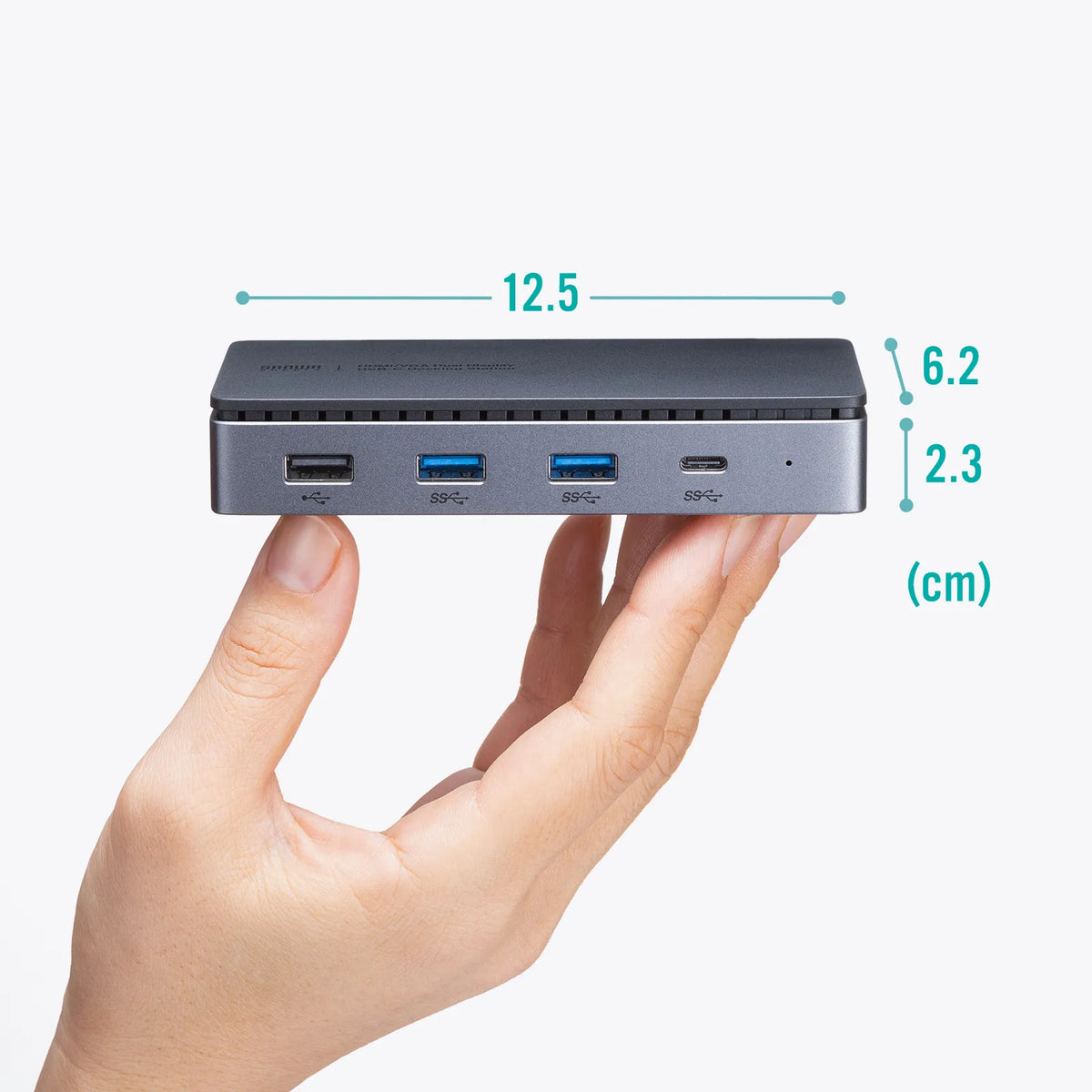

●Its compact size does not take up much space and can be installed on a desk in a space-saving manner.

※Can be used with computers equipped with a USB Type-C port and that support DisplayPort Alternate Mode (DP1.4 or higher).
※Operation is not guaranteed with all devices.

【PC Connection Terminal】
■Connector Shape: USB Type-C
■Supported Standards: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant
※USB 5Gbps is the same standard as USB3.2 Gen1 (USB3.1 Gen1/USB3.0), which was renamed by USB-IF (USB Implementers Forum).
■Maximum USB PD output: 85W
■Cable length: 100cm
■Cable type: Detachable cable

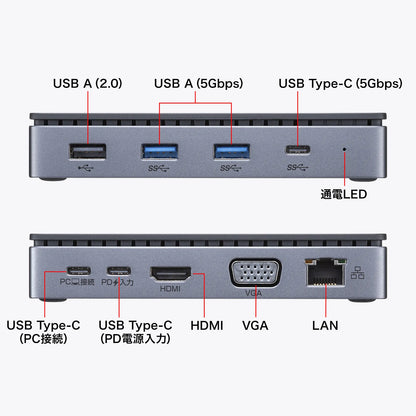

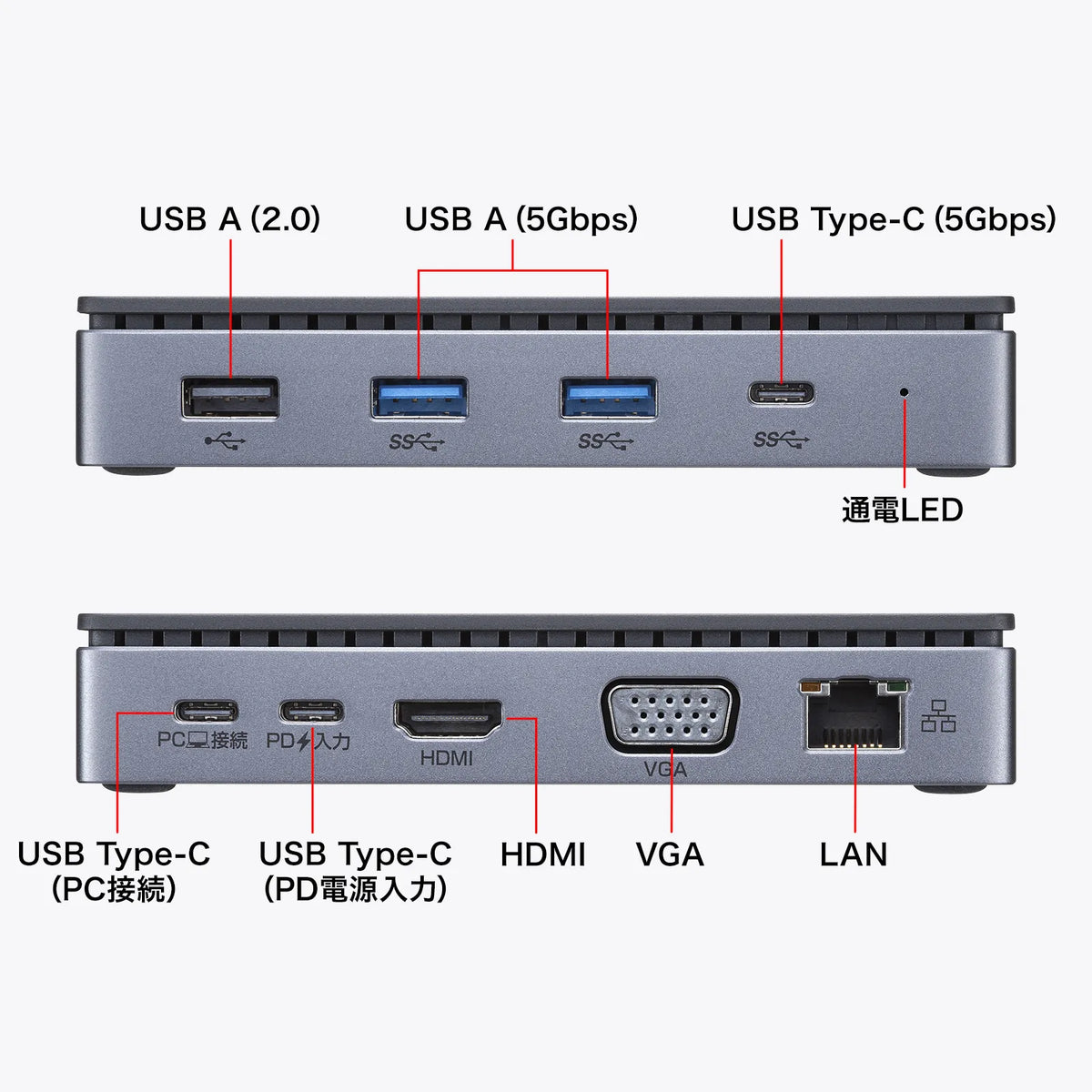

【USB Ports】
■Number of ports: 4 ports
■Maximum data transfer speed (theoretical value): 5Gbps
■USB Type-C female/USB 5Gbps: 1 port
■USB A female/USB 5Gbps: 2 ports
■USB A female/USB 2.0: 1 port
■Supply current: USB Type-C connector: Maximum 900mA
USB A connector (5Gbps): Maximum 900mA per port
USB A connector (USB2.0): Maximum 500mA
【Power Supply】
■Power supply method: Bus power/Self power (when power is connected)
■Main unit power consumption: 15W
■USB PD input port: Yes
■USB PD Maximum Input: 100W
【Video Output Ports】
■Number of Supported Output Displays: 2
■Maximum Supported Resolution: 4K/60Hz
■Maximum Supported Resolution/Refresh Rate: When 1 Display is Connected
HDMI Port: 3840-2160 (4K/60Hz)
VGA Port: 1920-1080 (Full HD/60Hz)

When 2 Displays are Connected
HDMI Port: 3840-2160 (4K/30Hz) + VGA Port: 1920-1080 (Full HD/60Hz)
*The supported resolutions listed require your computer to support DisplayPort Alt Mode (DP1.4 or higher).
■HDMI: 1 port
■VGA: 1 port
【LAN Port】
■Port Shape: RJ-45 port (Auto MDI/MDI-X), Auto-Negotiation compatible
*While Wake On LAN functionality is supported, compatibility varies depending on the PC model, so operation is not guaranteed.

*Depending on the connected device, Wi-Fi may need to be turned OFF to use the wired network.
■Supported Standards: IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T)
■Transmission Speed ​​(Theoretical Value): 1000Mbps, 100Mbps, 10Mbps
*Regarding communication speed, 1000BASE-T is supported only when connected via USB 5Gbps (USB 3.2 Gen1).
■Access Method: CSMA/CD
■Supported Protocols: IPv4, IPv6
【Common Specifications】
■Supported OS Windows: 11, 10
■Supported OS Mac: macOS (Sequoia) 15, macOS (Sonoma) 14, macOS (Ventura) 13, macOS (Monterey) 12, macOS (BigSur) 11, macOS 10.15
■Compatible Models: Windows-based (DOS/V) PCs and Apple Mac series that support DisplayPort Alt mode (DP1.4 or higher)
■Operating Temperature: 5 to 40 degrees Celsius
■Operating Humidity: 10% to 85%
*No condensation
■Set Contents: Main unit, USB Type-C cable, Instruction manual (warranty)
■Driver: Not required
■AC Adapter: Not included

【Other Specifications】
【Limitations】
■This product requires the USB 3.2 port of the PC. Please connect directly to a Type-C port. It cannot be used with USB hubs or additional USB ports.
■For 4K resolution output, the display must support 4K resolution and the content being output must also support 4K resolution.
■This product supports USB PD (Power Delivery), but it does not support all USB 3.2 Type-C equipped devices (PD compatible).
■While this product is basically plug-and-play, in rare cases, a timing error in USB recognition may cause it to not display or function correctly.
Please try unplugging and plugging it back in. This is not a defect or malfunction of this product.
■This product is intended for use with Windows OS/MacOS running. System startup
