Docking station (HDMI x2 screen output, no LAN port) USB-CVDK17

[A docking station that supports resolutions up to 4K and can output video to up to two screens via two HDMI ports. LAN port not included.]

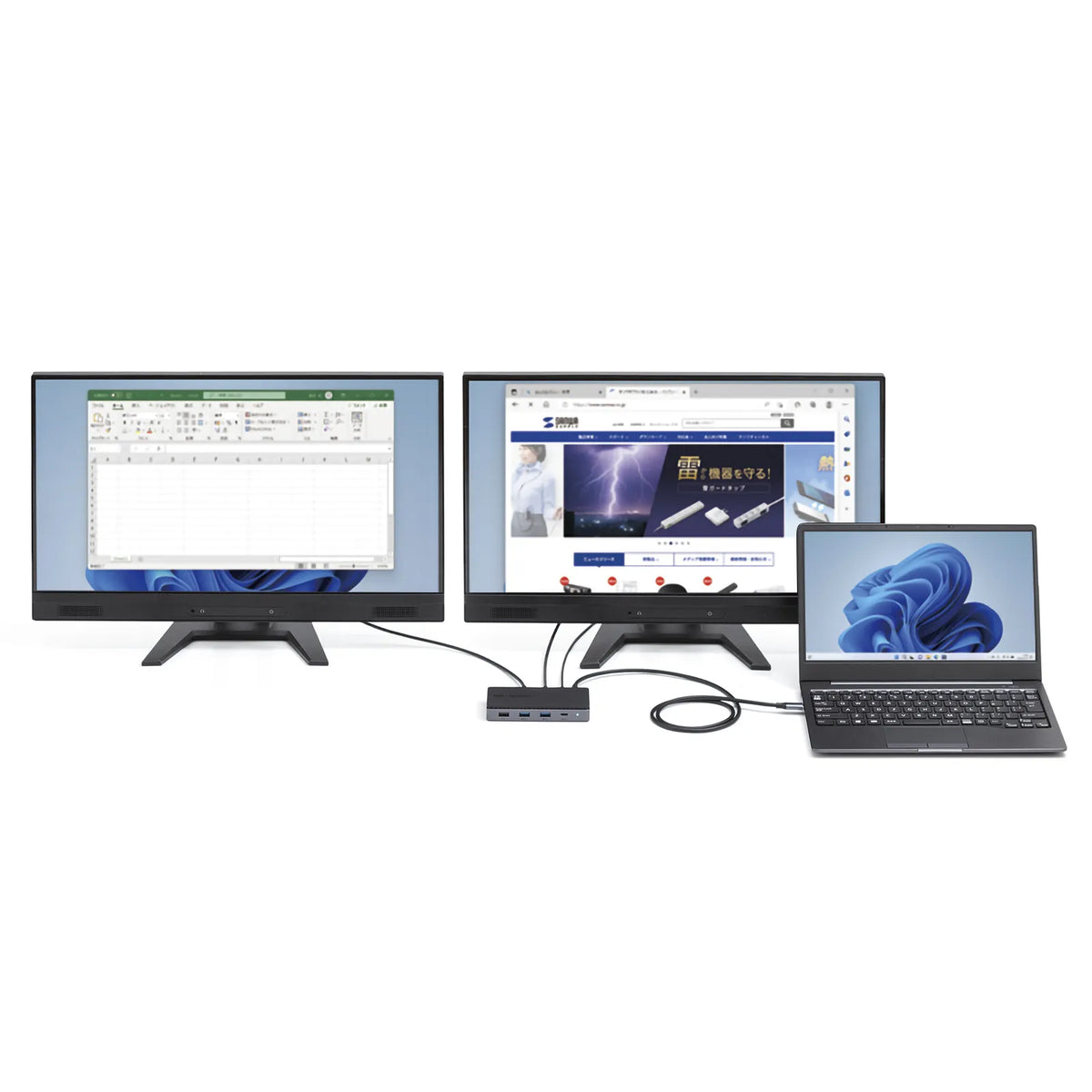

●A compact USB Type-C docking station equipped with two HDMI video output ports that can output video to up to two displays with a single USB Type-C cable.
●When outputting to one display using HDMI, it supports a maximum resolution of 4K (3840x2160).
*When two displays are connected, the maximum resolution supported is 4K (3840x2160) + Full HD (1920x1080).

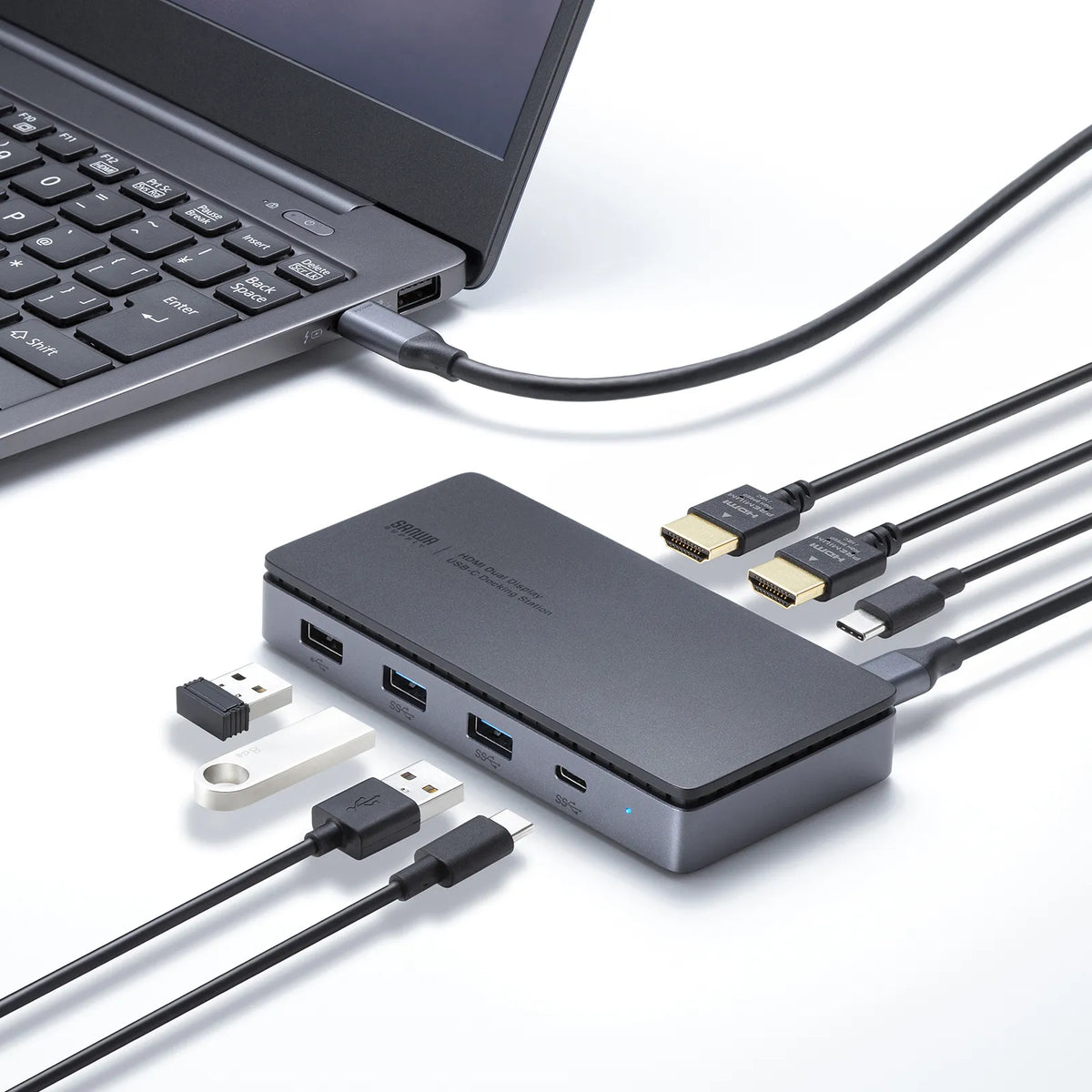

●In addition to video output, it is equipped with a hub port with USB A and USB Type-C ports for connecting various USB devices.
●Supports input up to 20V/5A (100W) of the USB Power Delivery (USB PD) standard, and by connecting a separate AC adapter that supports the USB PD standard, this product can output video and communicate data while simultaneously supplying power to a connected laptop.

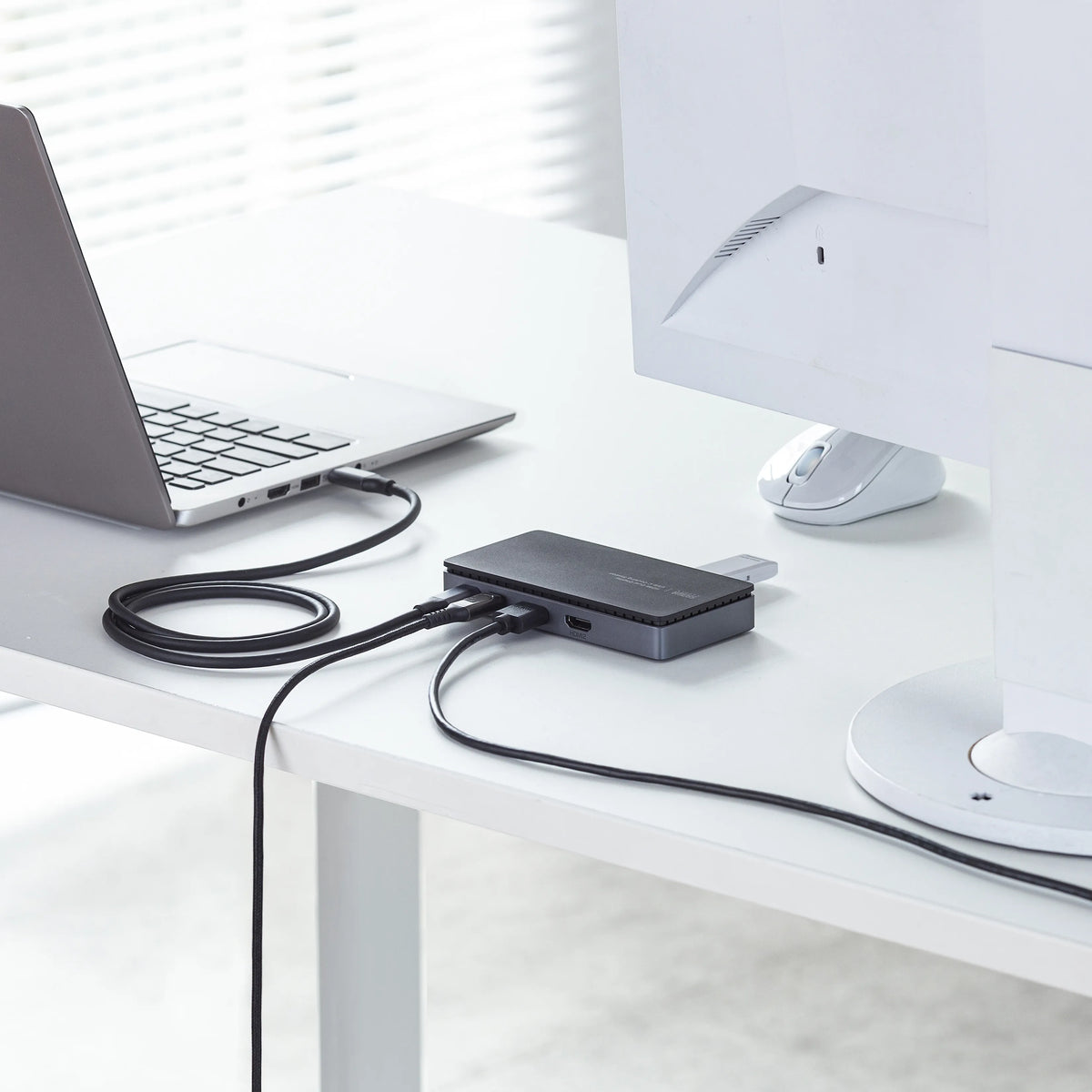

●At home or in the office, you can comfortably operate a large screen display and USB devices with just one Type-C cable connection, and when you're out or on the go for a meeting, you can quickly take it with you by simply unplugging the Type-C cable.
●Supports DisplayPort Alternate Mode for adding a display via USB Type-C connection, so it can be used easily without installing any software.
●Since it does not have a LAN port, it is ideal for use with laptops that do not have a LAN port or in offices where a wireless LAN environment has been established.
●Its compact size does not take up much space and can be installed on a desk in a space-saving manner.

*Can be used with computers that have a USB Type-C port and support DisplayPort Alternate Mode (DP1.4 or higher).
*Operation is not guaranteed with all devices.

＜PC Connection Terminal＞
■Connector Shape: USB Type-C
■Supported Standards: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant
*USB 5Gbps is the same standard as USB3.2 Gen1 (USB3.1 Gen1/USB3.0), which was renamed by USB-IF (USB Implementers Forum).
■Maximum USB PD output: 85W

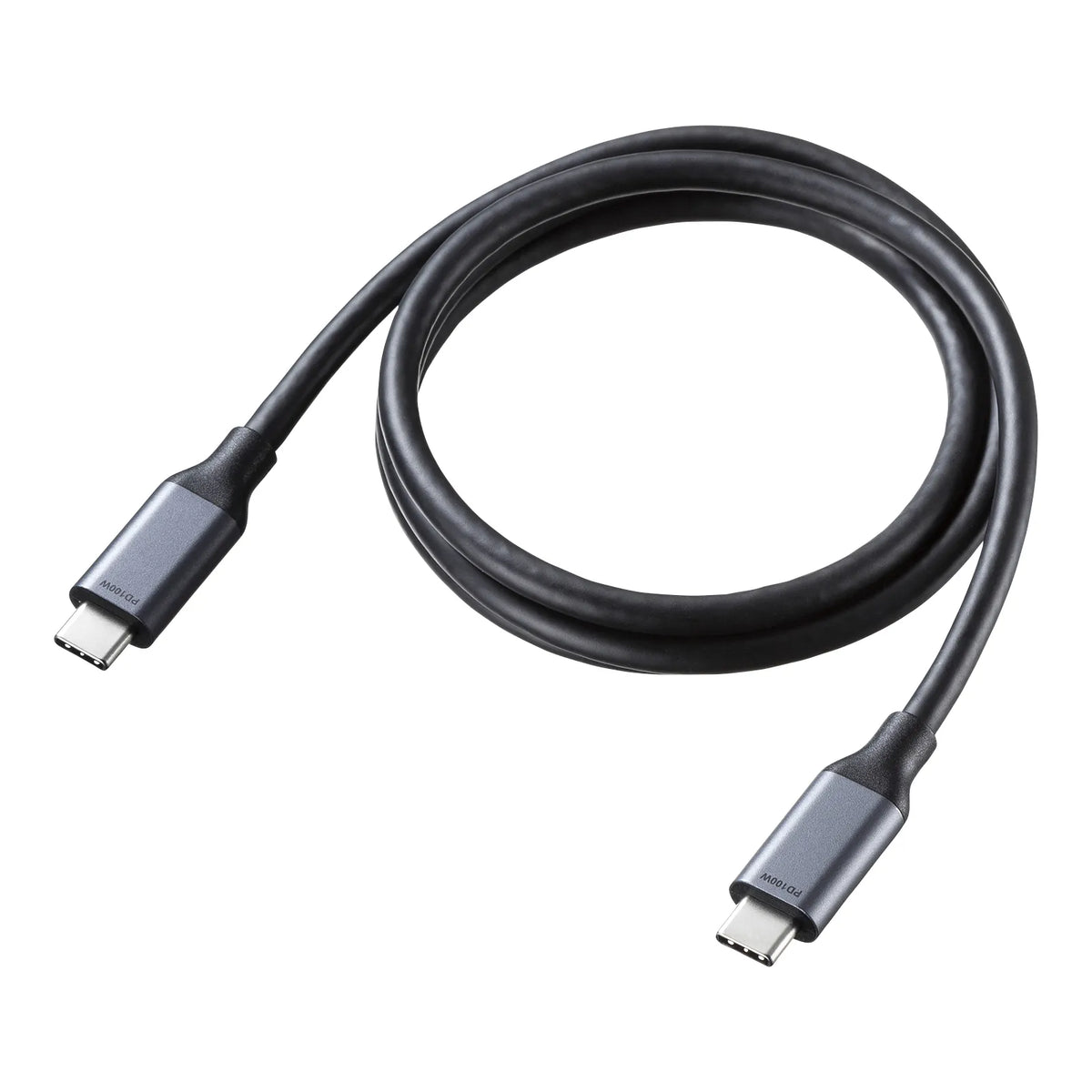

■Cable length: 1m
■Cable type: Detachable cable

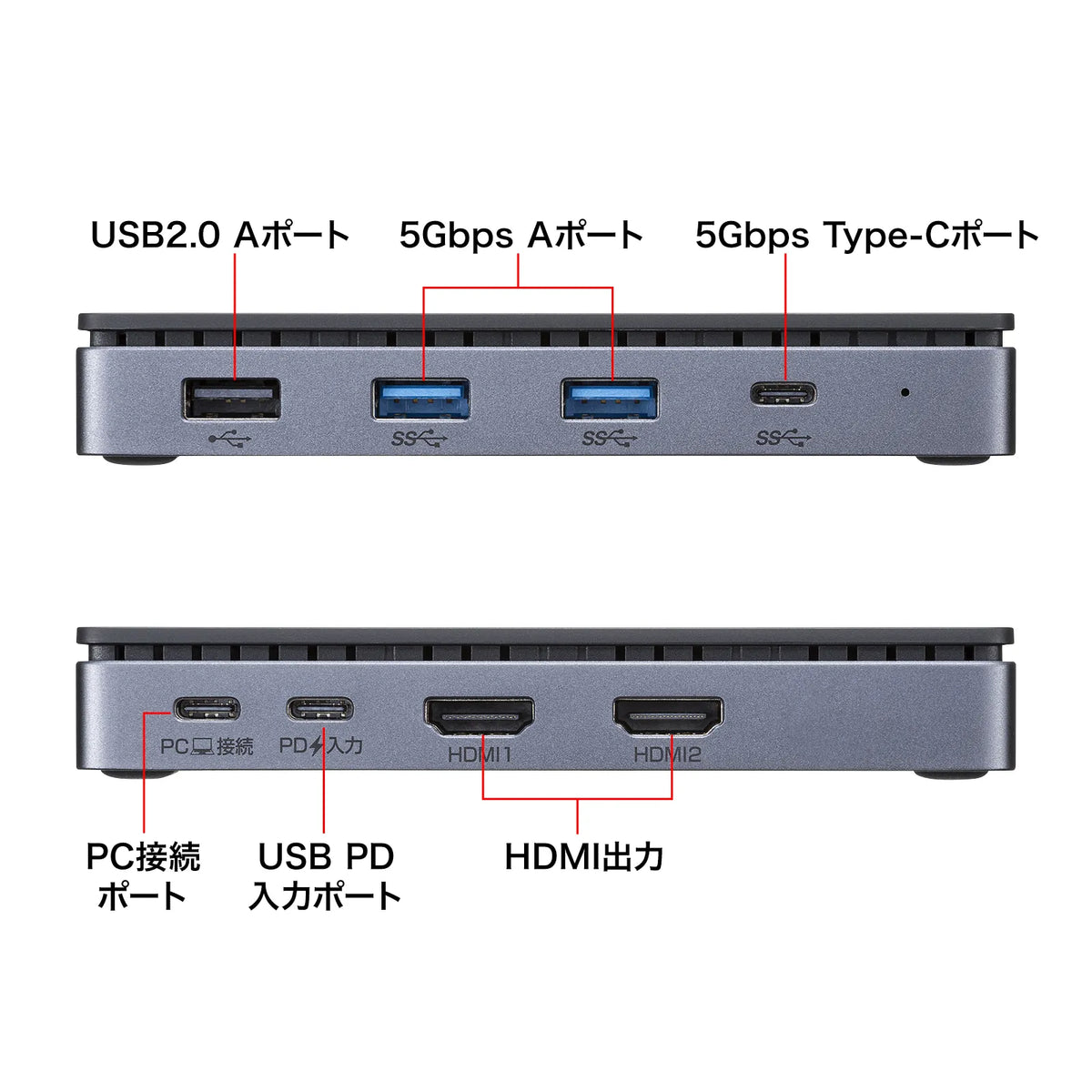

＜USB Ports＞

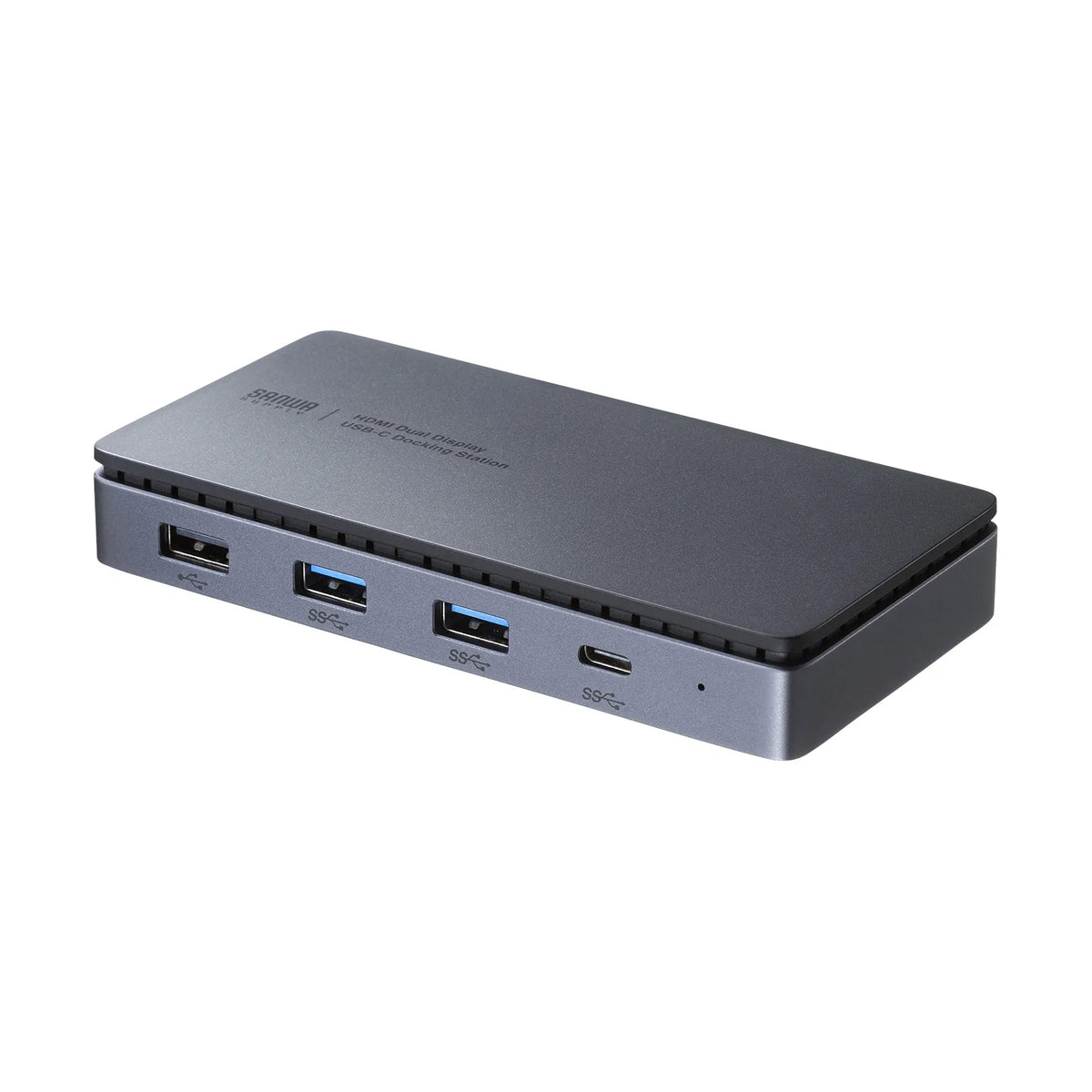

■Number of ports: 4 ports
■Maximum data transfer speed (theoretical value): 5Gbps
■USB Type-C female/USB 5Gbps: 1 port
■USB A female/USB 5Gbps: 2 ports
■USB A female/USB 2.0: 1 port
■Supply current: USB Type-C connector/maximum 900mA
USB A connector (5Gbps)/maximum 900mA per port
USB A connector (USB2.0)/maximum 500mA

＜Power Supply＞
■Power supply method: Bus power/Self power (when power is connected)
■Main unit power consumption: 15W
■USB PD input port: Yes
■USB PD Maximum Input: 100W

＜Video Output Port＞
■Number of Supported Output Displays: 2
■Maximum Supported Resolution: 4K/60Hz
■Maximum Supported Resolution/Refresh Rate: When 1 display is connected/3840x2160 (4K/60Hz)
When 2 displays are connected/3840x2160 (4K/30Hz) + 1920x1080 (Full HD/60Hz)
*The supported resolutions listed require your computer to support DisplayPort Alt Mode (DP1.4 or higher).

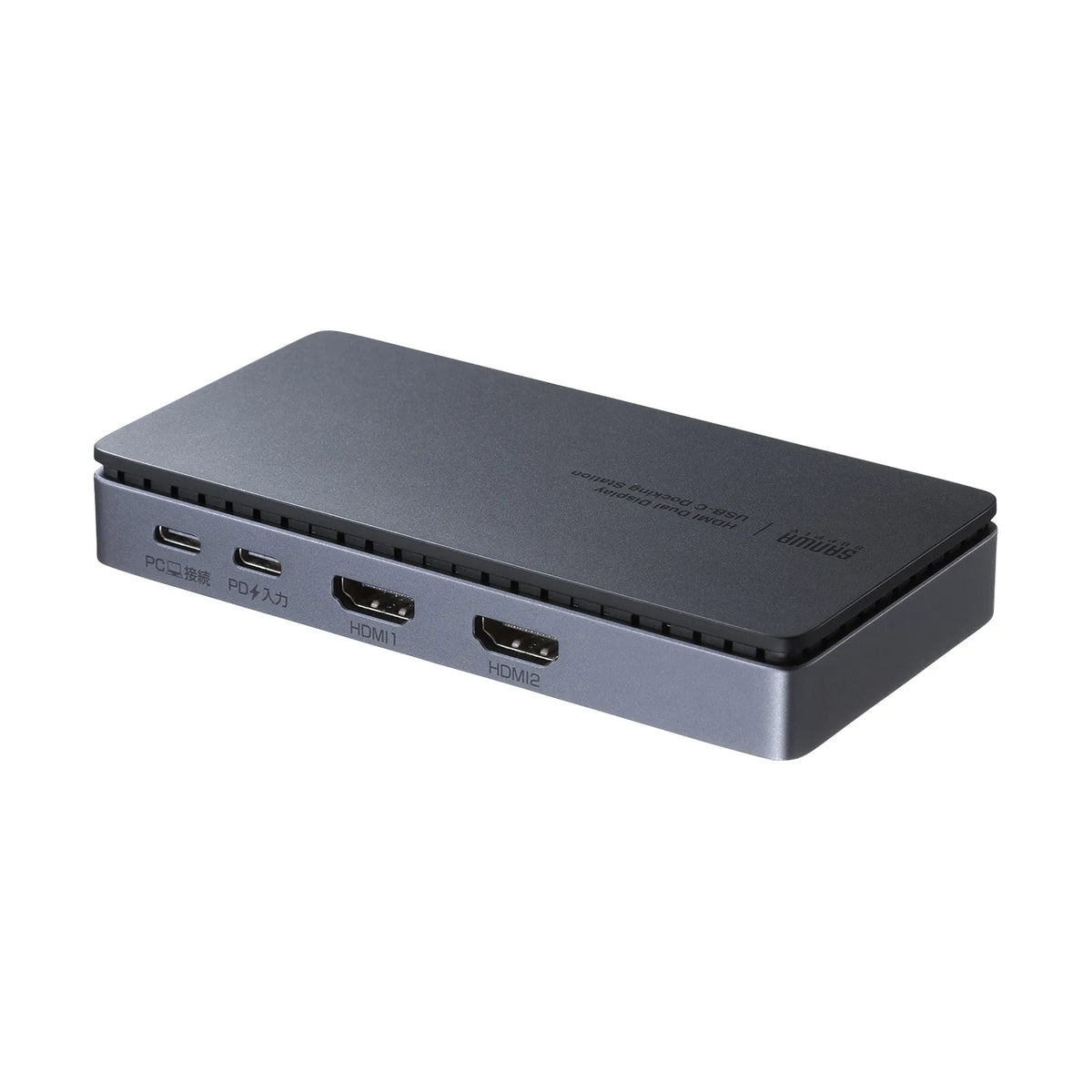

■HDMI: 2 ports

＜Common Specifications＞
■Operating Temperature: 5 to 40 degrees Celsius
Humidity: 10% to 85% (non-condensing)
■Driver: Not required
■Total Number of Ports: 7

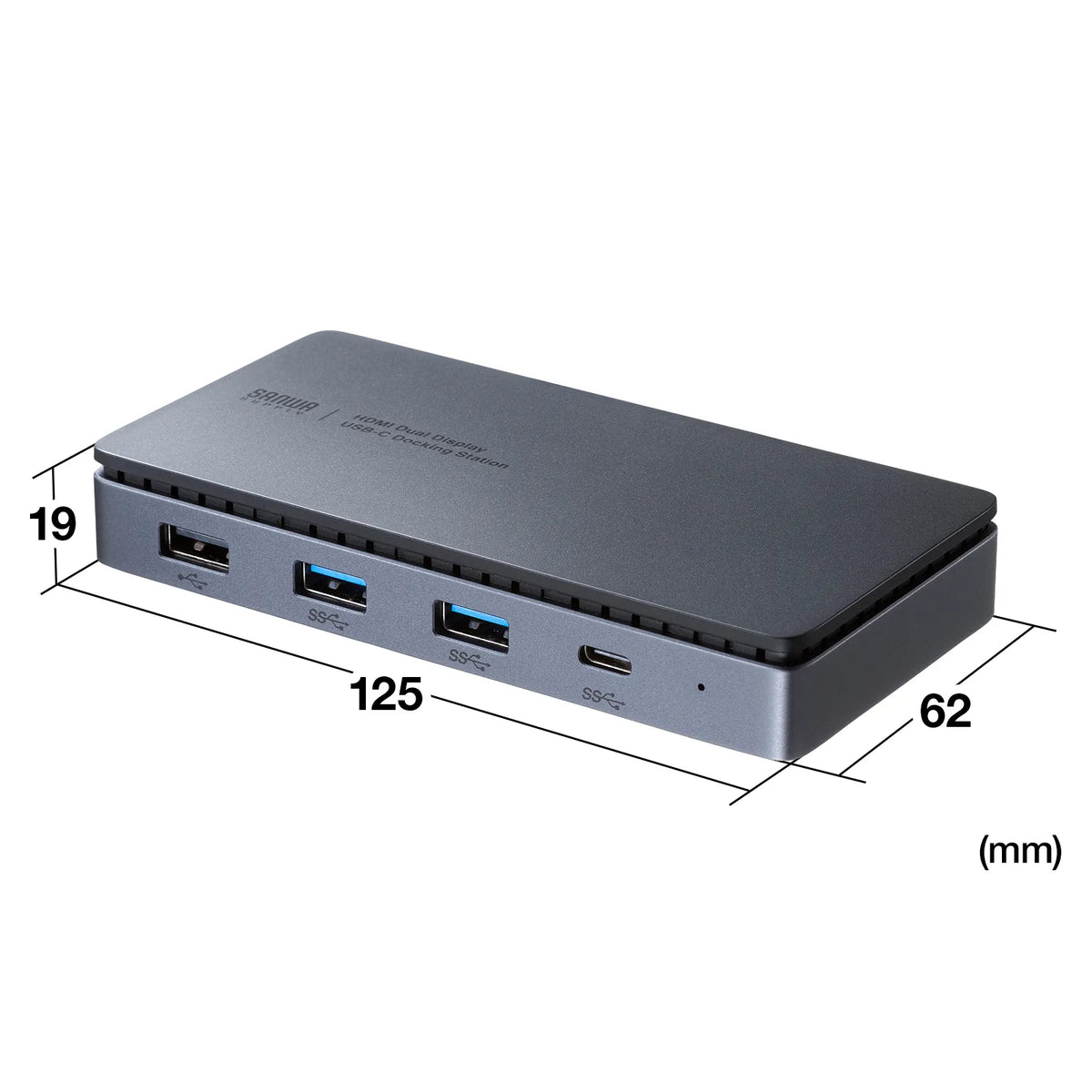

■Size: W125 x D62 x H19 mm
■Weight: Approx. 112g
■Set Contents: Main unit, USB Type-C cable, Instruction manual (warranty)
≪Limitations≫
*This product must be connected directly to the USB 5Gbps Type-C port of the computer. It cannot be used with USB hubs or additional USB ports.
*For 4K resolution output, the display must support 4K resolution and the content being output must also support 4K resolution.
*This product supports USB PD (Power Delivery), but it does not support all USB 5Gbps Type-C equipped devices (PD compatible).
*While this product is generally plug-and-play compatible, in rare cases, it may not display or function correctly due to a timing error in USB recognition. Please try unplugging and plugging it back in. This is not a defect or malfunction of the product.
*This product is intended for use with Windows OS/Mac OS running. It will not work (will not display) during system startup or the BIOS screen.
*Even with compatible models, connected devices, and environments, it may not function correctly.
