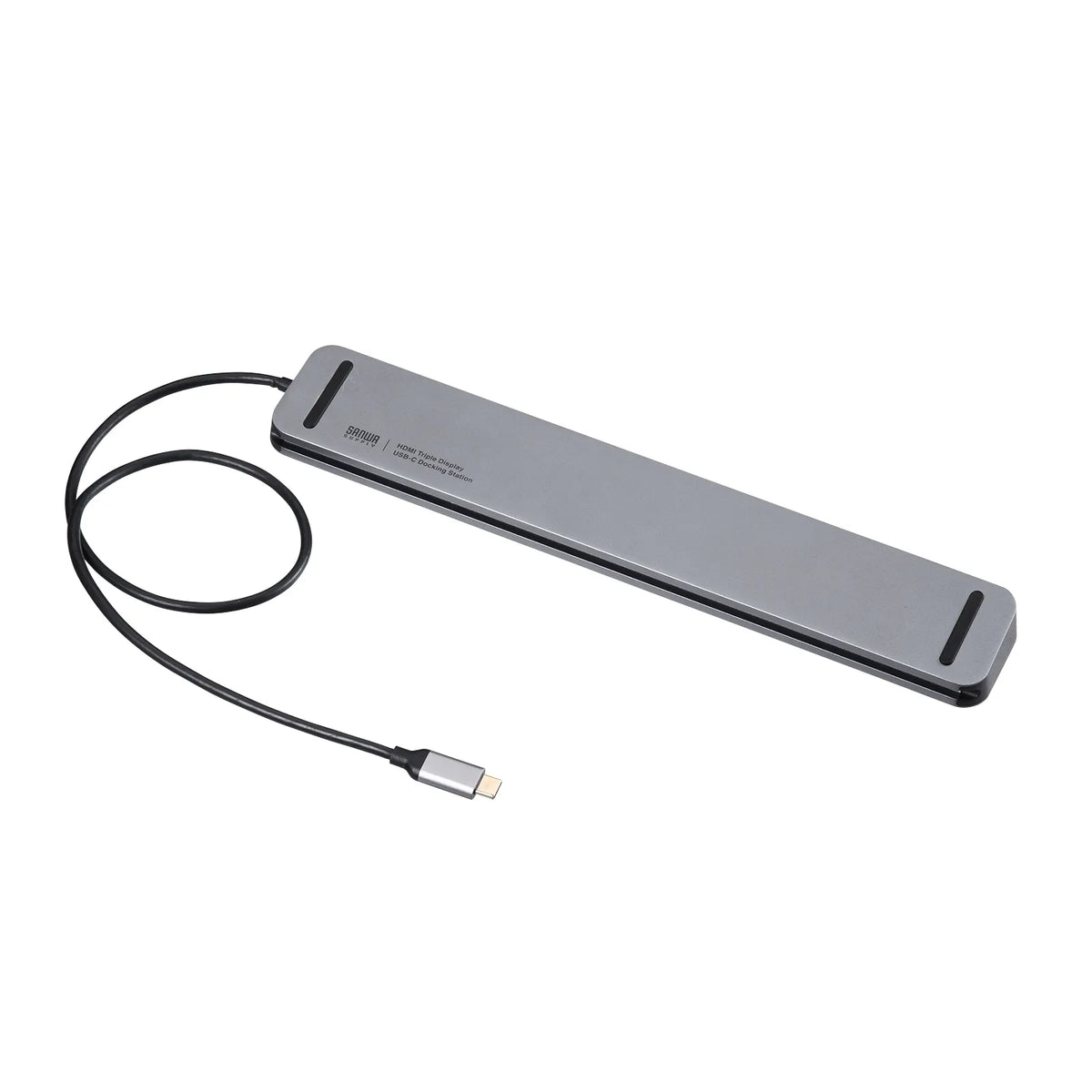

USB Type-C Docking Station (Supports 3 x HDMI Outputs) USB-CVDK13

[A docking station that supports video output to up to 3 displays with a single USB Type-C cable connection and can be placed under your laptop.]

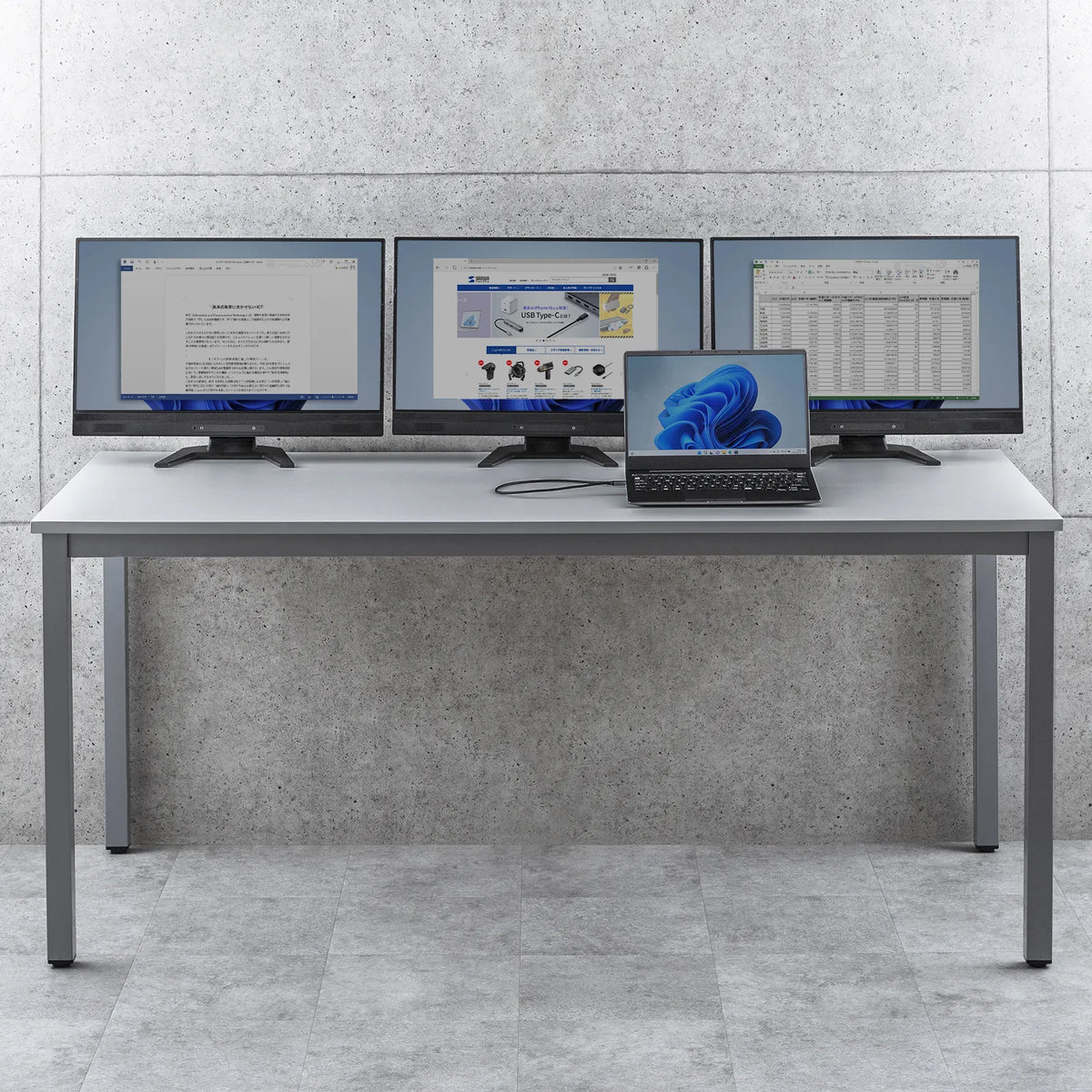

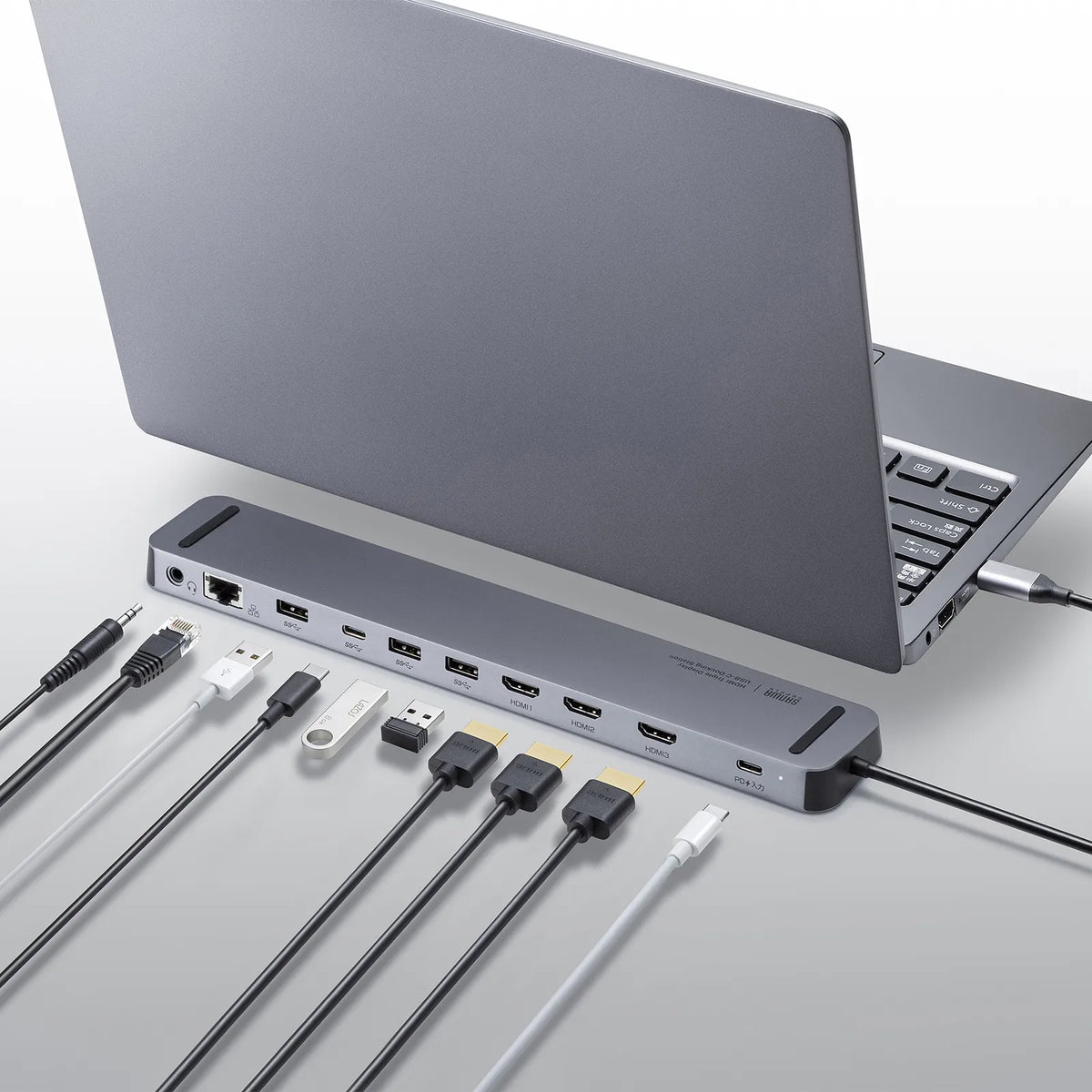

●This USB Type-C docking station is equipped with 3 HDMI video output ports and can output video to up to 3 displays with a single USB Type-C cable.
●In addition to video output, it also supports connections of various USB devices, SD/microSD card readers, wired LAN, and audio.

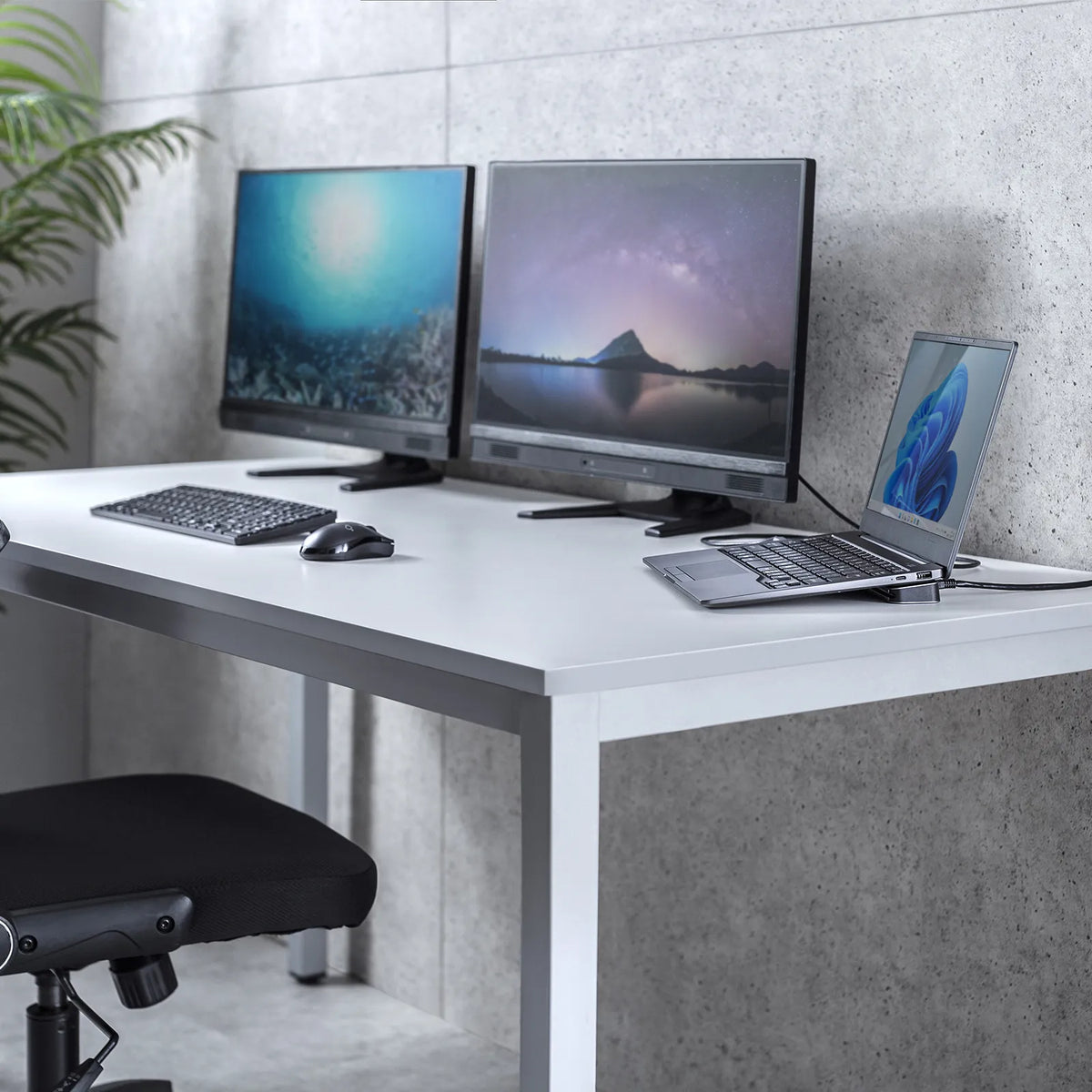

●At home or in the office, you can comfortably operate with a large screen display and USB devices with a single Type-C cable connection, and when you are out or going to a meeting, you can quickly take your PC with you by simply unplugging the Type-C cable.
●It supports input up to 100W (20V/5A) of the USB Power Delivery (USB PD) standard, and by connecting a separate USB PD compatible AC adapter, you can output video and communicate data from this product while simultaneously supplying power to the connected laptop.
●It supports "DisplayPort Alternate Mode" for adding displays via USB Type-C connection, so it can be used easily without installing any software.
●Supports a maximum resolution of 4K (3840x2160) when outputting to a single display. When three displays are connected, the maximum resolution supported is 1920x1080 for each display.
●Equipped with an SD/microSD card reader, allowing you to import photos and videos taken with digital cameras.
●Supports Gigabit Ethernet (1000BASE-T), enabling compatibility with Gigabit network environments and allowing wired LAN connection with a single USB Type-C cable.
●Also allows connection of PC speakers and microphones (3.5mm stereo mini plug), allowing use as USB speakers and USB microphones.

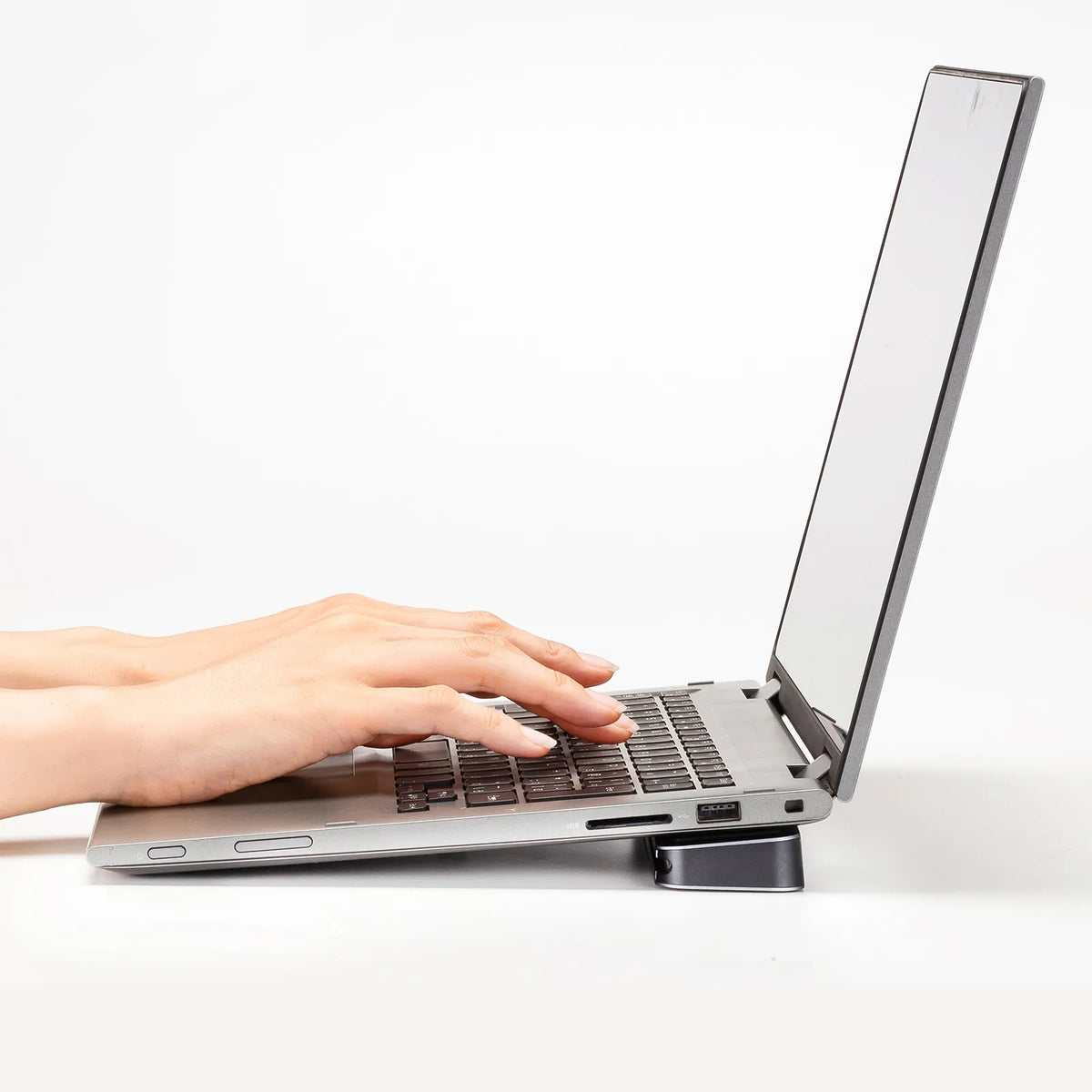

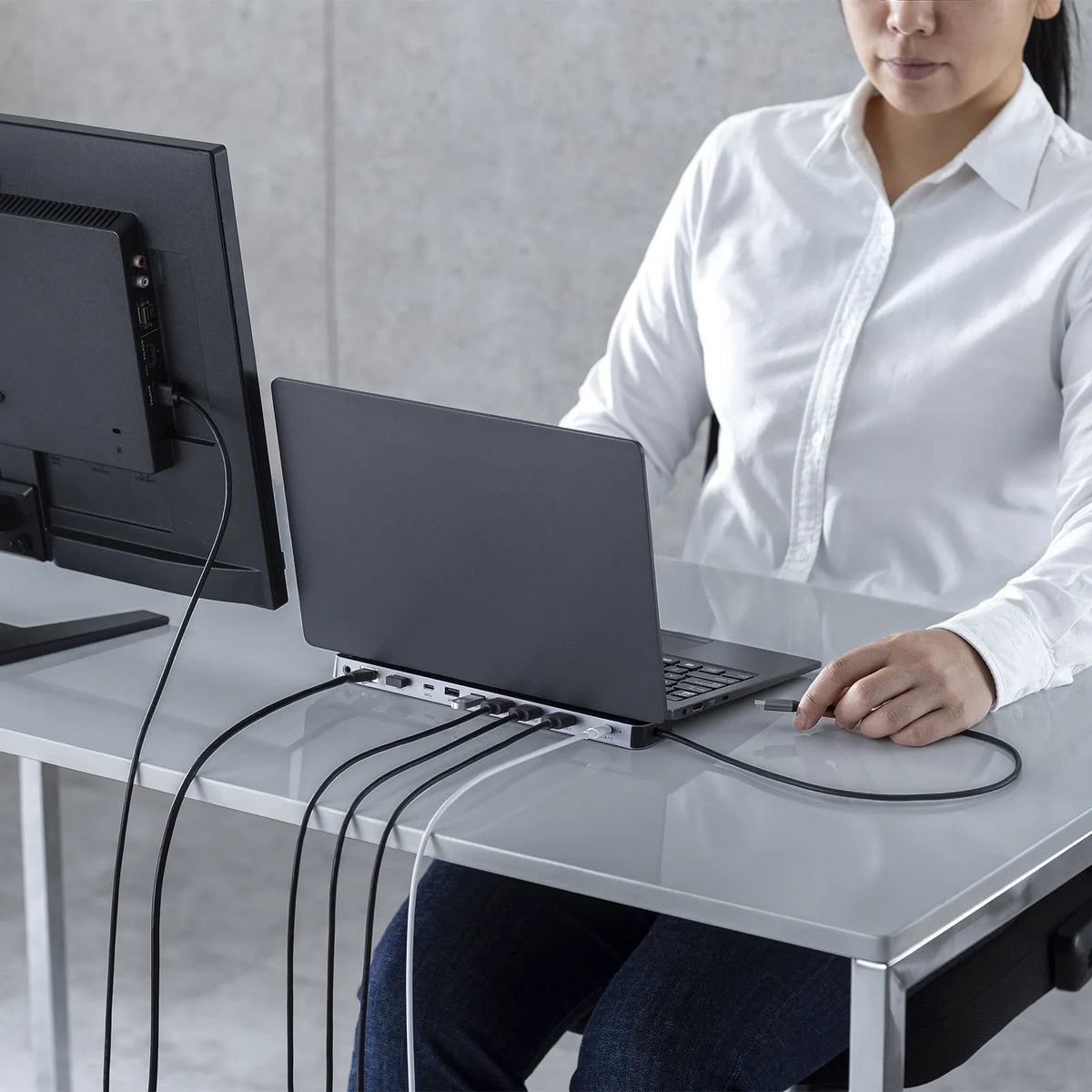

●Can also be used as a laptop stand, enabling comfortable PC input and space-saving installation.

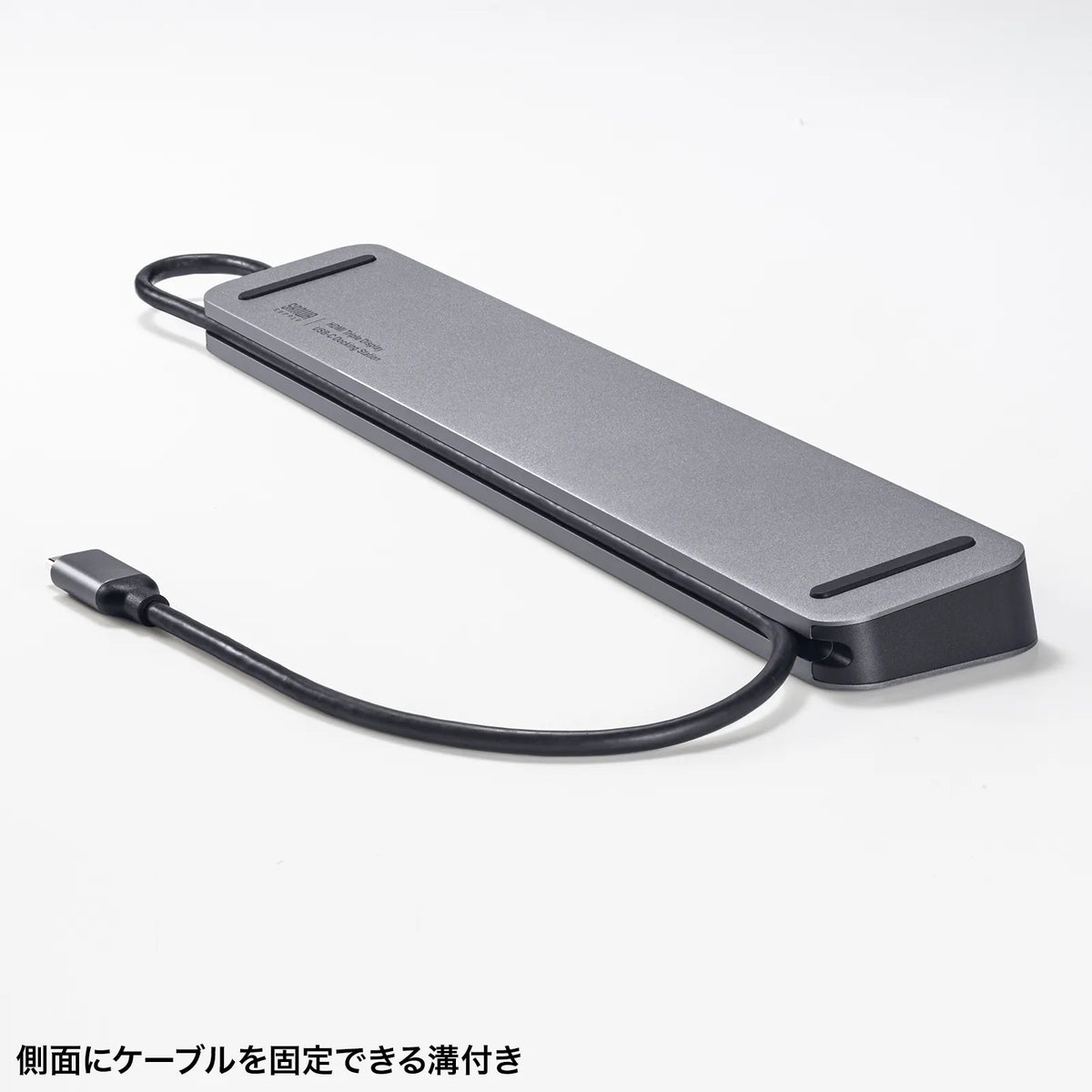

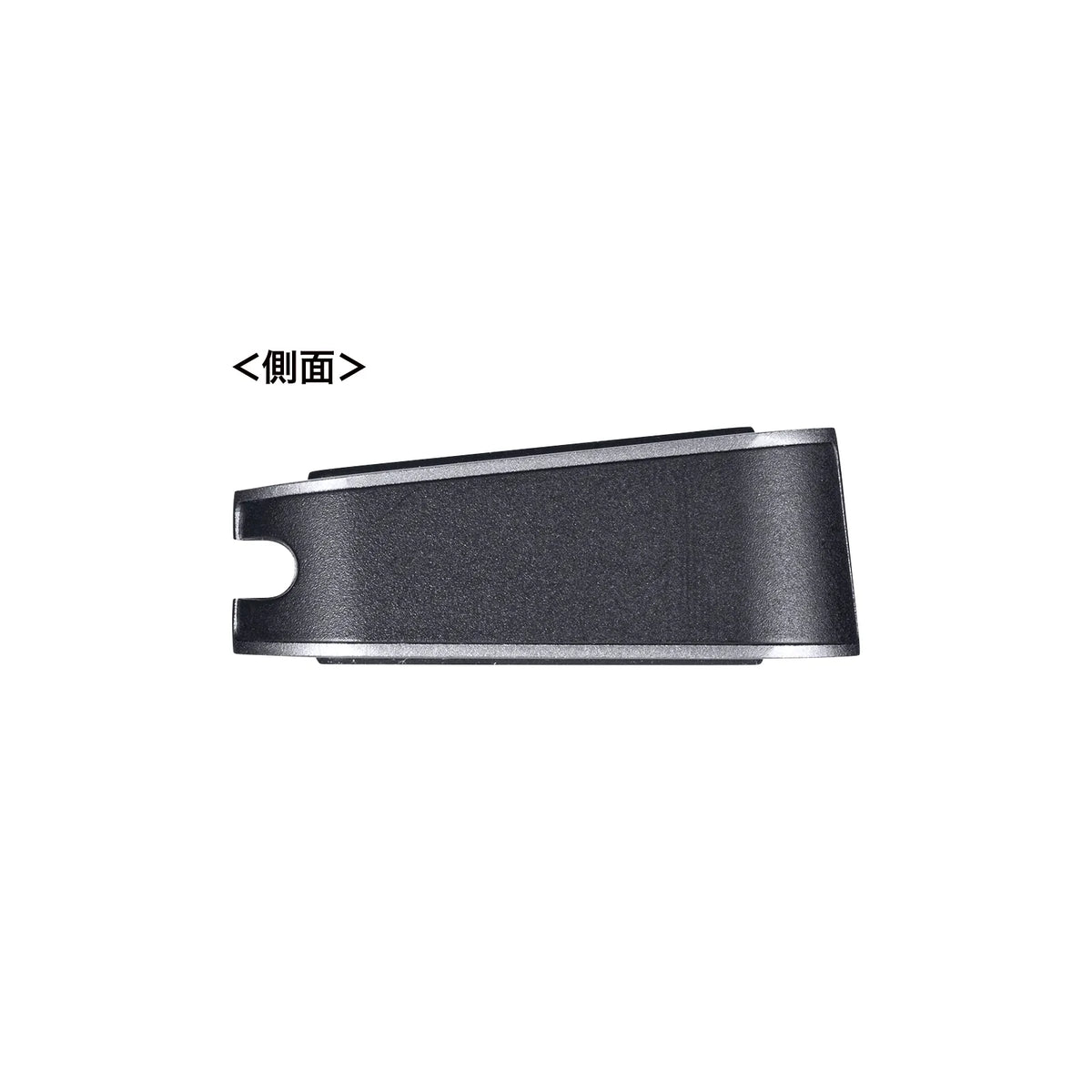

●The side of the unit has grooves for securing cables, allowing for neat cable management when carrying.

*Can be used with computers equipped with a USB Type-C port and supporting DisplayPort Alternate Mode (DP1.4 or higher).
*Operation is not guaranteed with all devices.

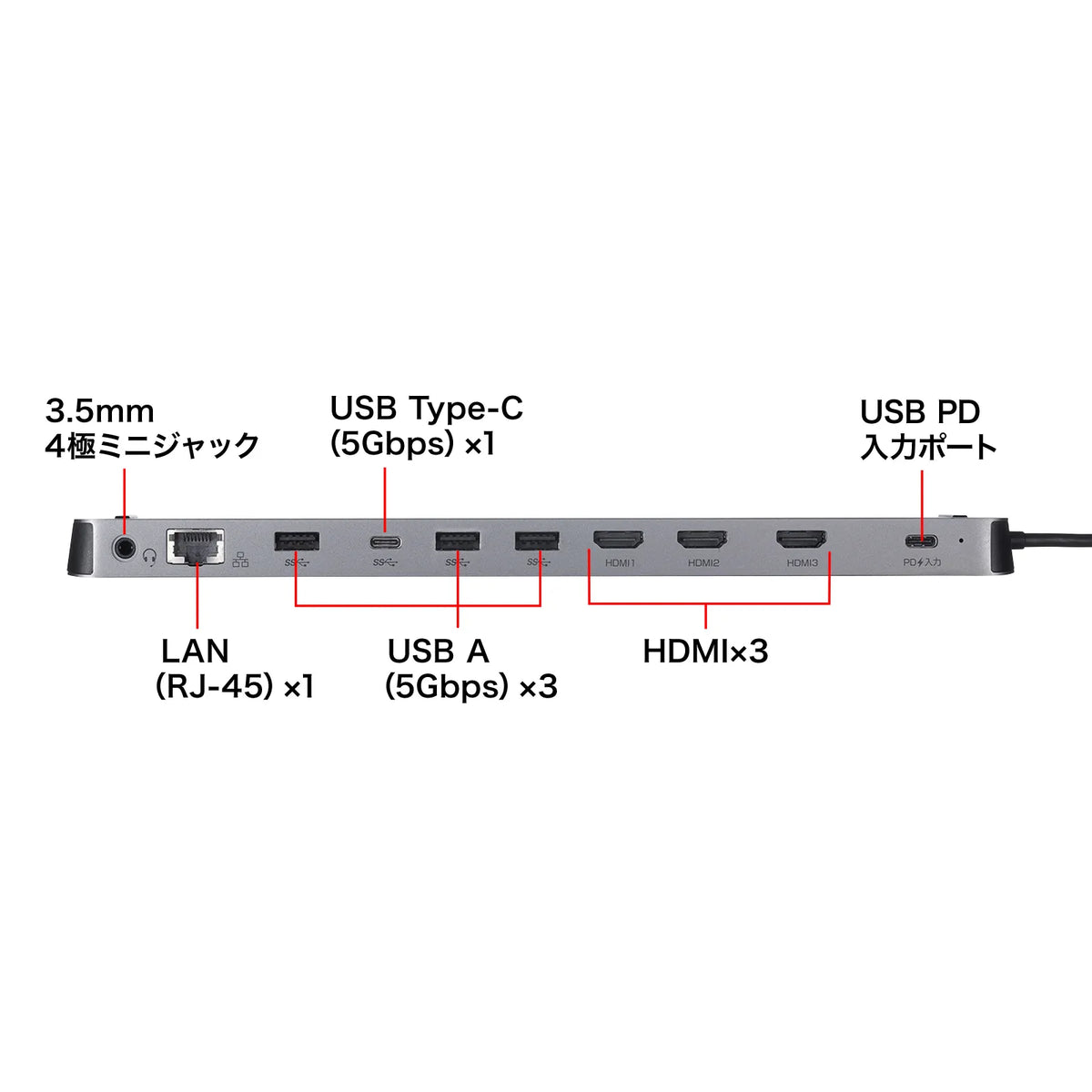

＜PC Connection Terminal＞
■Connector Shape: USB Type-C
■Supported Standards: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant
*USB 5Gbps is the same standard as USB3.2 Gen1 (USB3.1 Gen1/USB3.0), which was renamed by USB-IF (USB Implementers Forum).
■Maximum USB PD output: 85W

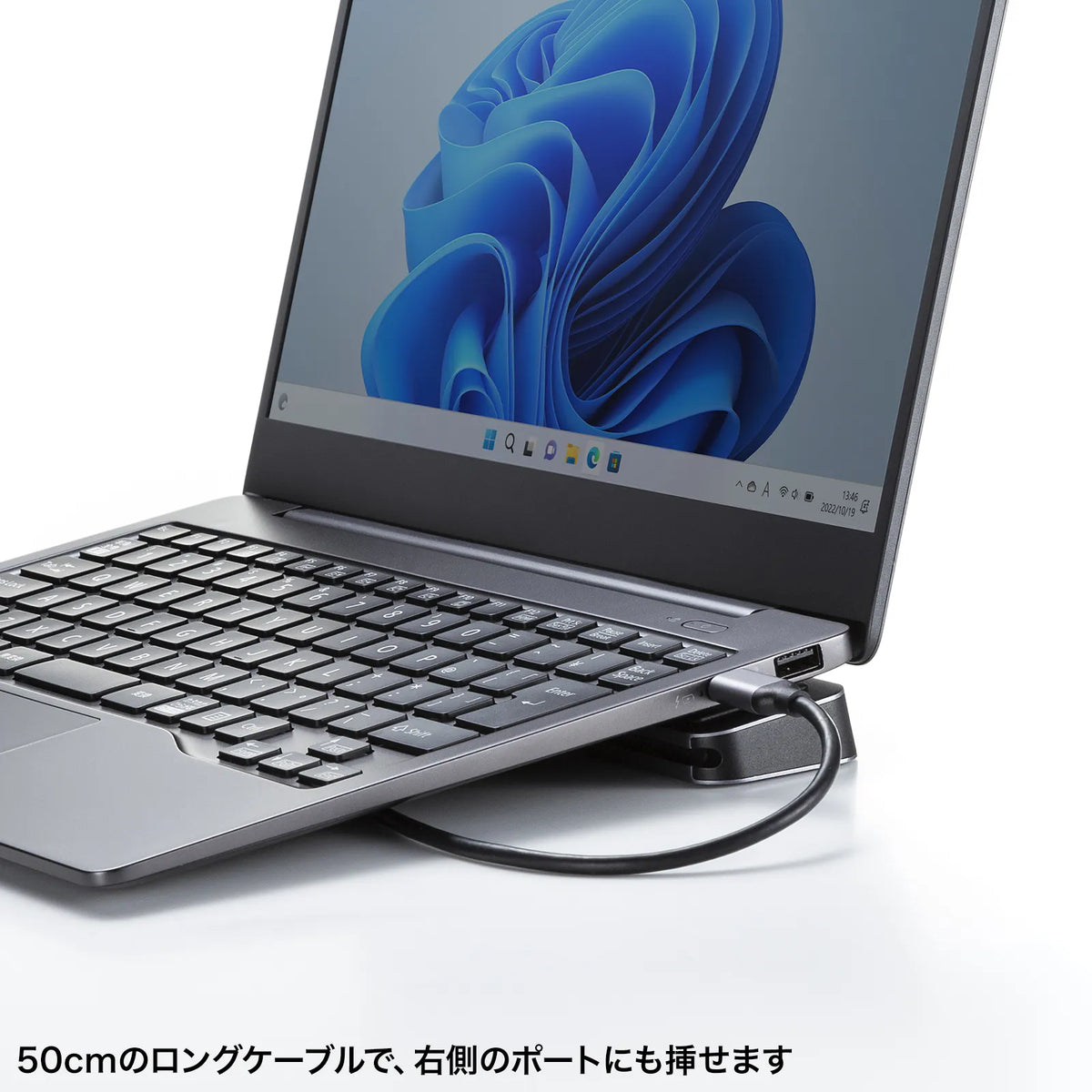

■Cable length: 50cm
■Cable type: Integrated cable

＜USB Ports＞
■Number of ports: 4 ports
■Maximum data transfer speed (theoretical value): 5Gbps
■USB Type-C female/USB 5Gbps: 1 port
■USB A female/USB 5Gbps: 3 ports
■Supply current: USB Type-C connector/maximum 900mA per port
USB A connector/maximum 900mA per port

＜Power Supply＞
■Power supply method: Bus power/Self power (when power is connected)
■Main unit power consumption: 15W
■USB PD input port: Yes
■USB PD Maximum Input: 100W

＜Video Output Ports＞
■Number of Supported Output Displays: 3
■Maximum Supported Resolution: 4K/60Hz
■Maximum Supported Resolution/Refresh Rate: When 1 display is connected/3840x2160 (4K/60Hz)
When 2 displays are connected/3840x2160 (4K/30Hz) x2
When 3 displays are connected/1920x1080 (Full HD/60Hz) x3
*The supported resolutions listed require your computer to support DisplayPort Alt Mode (DP1.4 or higher).
■HDMI: 3 ports

＜LAN Port＞
■Port Shape: RJ-45 port (Auto MDI/MDI-X), Auto-Negotiation compatible
*While it supports Wake On LAN functionality, compatibility varies depending on the computer model, so operation is not guaranteed.
*Depending on the connected device, you may need to turn off Wi-Fi to use a wired network.
■Supported standards: IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T)
■Transmission speed (theoretical value): 1000Mbps, 100Mbps, 10Mbps
*Regarding communication speed, 1000BASE-T is supported only when connected via USB5Gbps (USB3.2 Gen1).
■Access method: CSMA/CD
■Supported protocols: IPv4, IPv6

＜Audio terminal＞
■Jack shape: 3.5mm 4-pole mini jack (microphone/headphone terminal combined) x1

＜Common specifications＞
■Operating conditions: Temperature 0 to 40 degrees
Humidity 5% to 90% (non-condensing)
■Driver: Not required
■Total number of ports: 10
■Size: W270xD45xH18mm
■Weight: Approx. 240g
■Set contents: Main unit, instruction manual (warranty)
≪Limitations≫
*This product must be connected directly to the USB3.2 Type-C port of the PC. It cannot be used with USB hubs or additional USB ports.
*For 4K resolution output, the display must support 4K resolution and the content being output must also support 4K resolution.
*This product supports USB PD (Power Delivery), but it is not compatible with all USB 3.2 Type-C equipped devices (PD compatible).
*While this product is generally plug-and-play, in rare cases it may not display or function correctly due to a timing error in USB recognition. Please try unplugging and plugging it back in. This is not a defect or malfunction of this product.
*This product is intended for use with Windows OS/MacOS running. It will not work during system startup or on the BIOS screen. (It will not be displayed.)
*Even with compatible models and compatible connected devices/environments, it may not function correctly.
