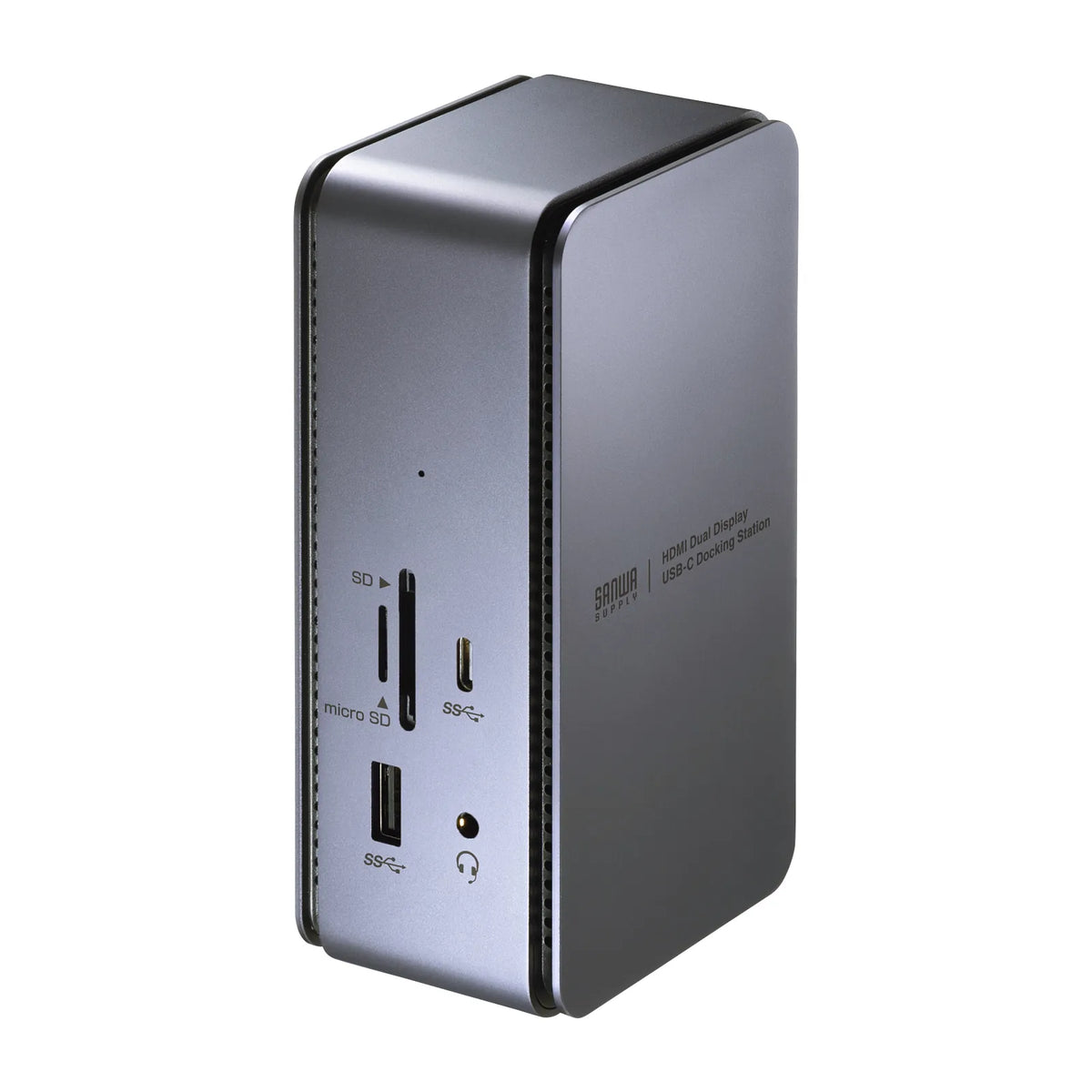

USB Type-C Docking Station (Supports HDMI x 2 Display Output) USB-CVDK12

[A docking station equipped with two HDMI video output ports, supporting 4K x 2 screen video output. Supports USB PD (Power Delivery) power supply.]

●This USB Type-C docking station is equipped with two HDMI video output ports, allowing you to output 4K resolution video to up to two displays with a single USB Type-C cable.

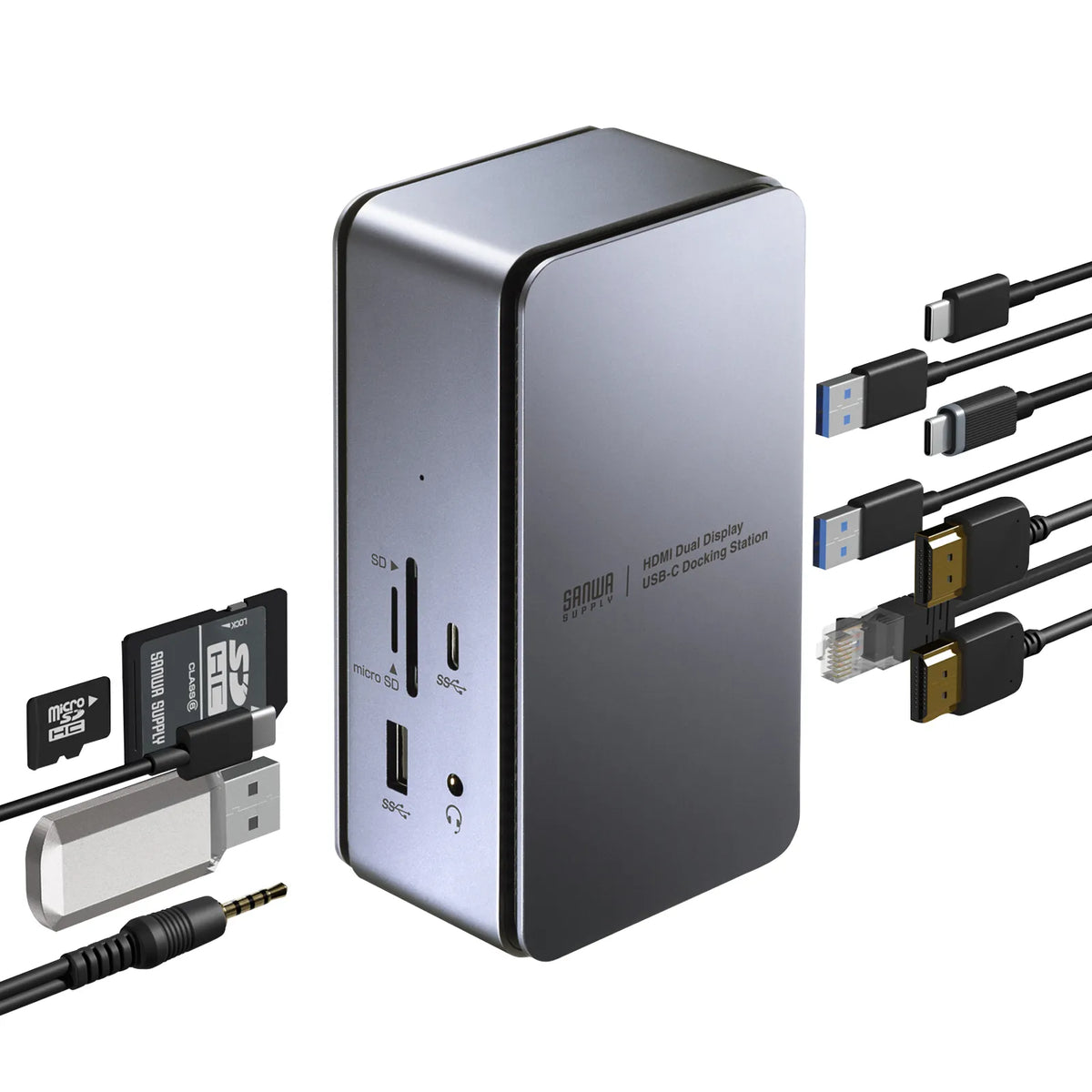

●In addition to video output, it also supports expansion connections for various USB devices, wired LAN, and audio.
●Equipped with an SD/microSD card reader, you can import photos and videos taken with a digital camera, etc.

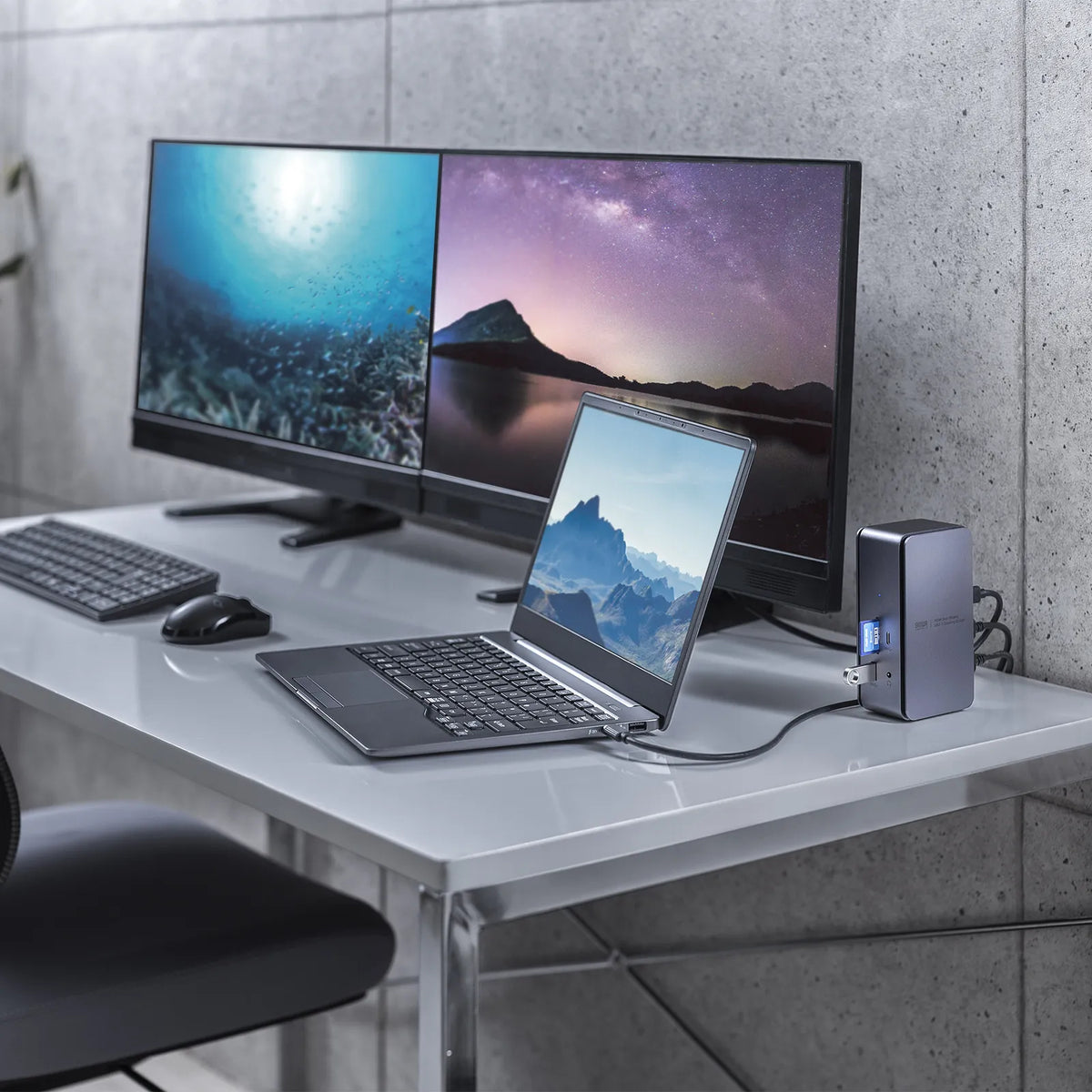

●At home or in the office, you can comfortably operate with a large screen display and USB devices with a single Type-C cable connection, and when you are out or going to a meeting, you can quickly carry it with you by simply unplugging the Type-C cable.
●Supports input up to a maximum of 20V/5A (100W) of the USB Power Delivery (USB PD) standard, and by connecting a separate AC adapter that supports the USB PD standard, you can output video and communicate data from this product while simultaneously supplying power to the connected laptop.
●Supports DisplayPort Alternate Mode for adding a display via USB Type-C connection, making it easy to use without software installation.
●Supports Gigabit Ethernet (1000BASE-T), so it is compatible with Gigabit network environments and allows for wired LAN connection with just one USB Type-C cable.

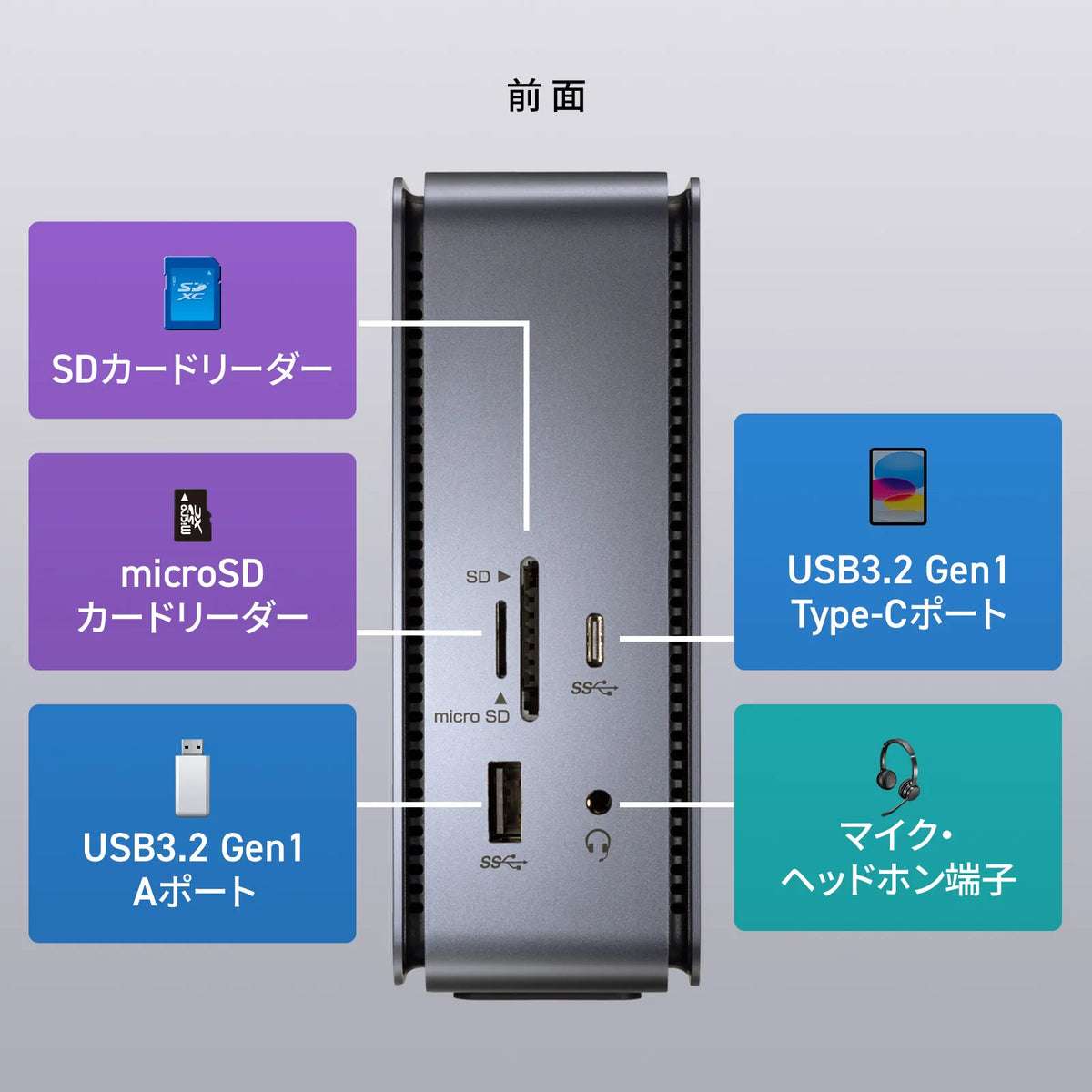

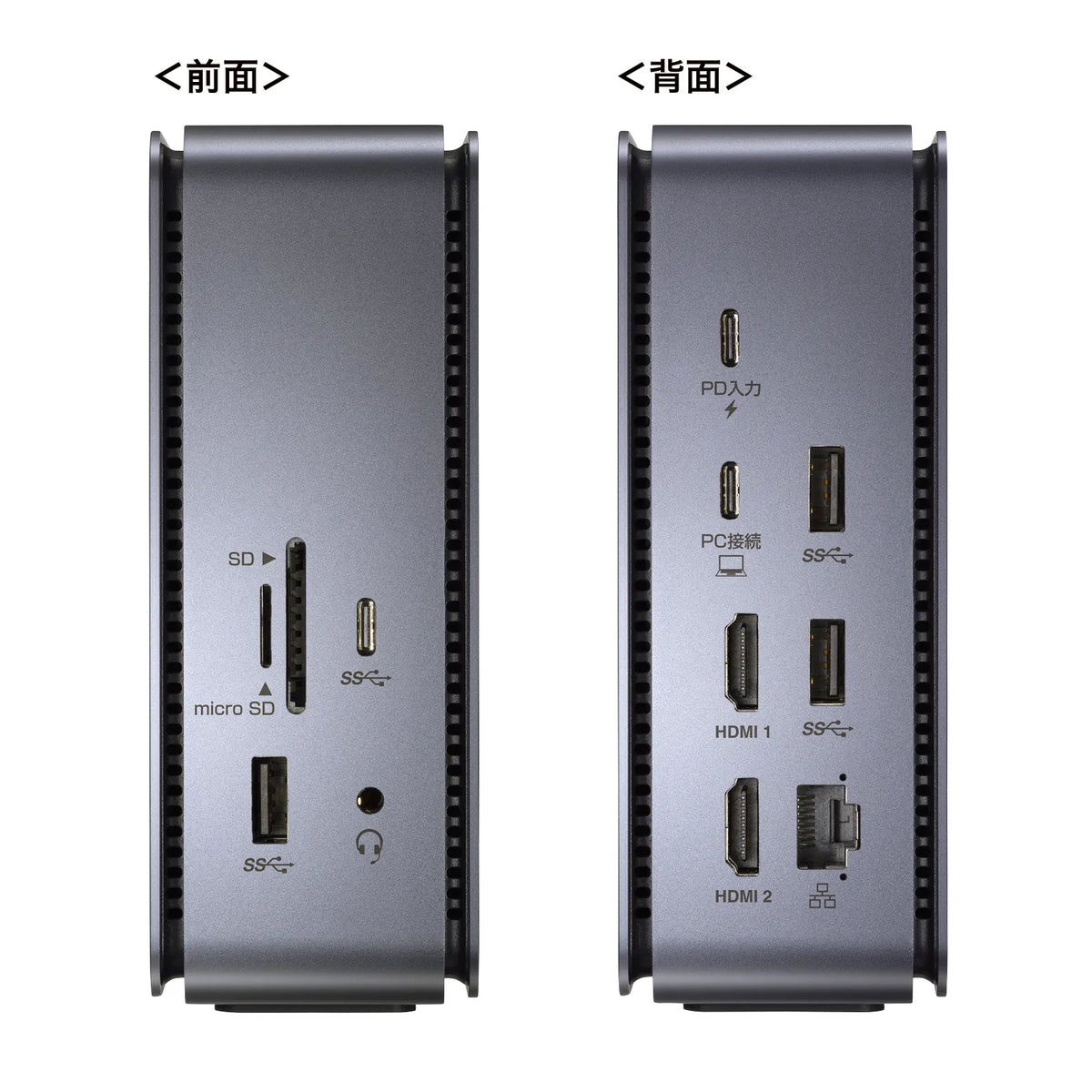

●The front panel features a USB hub port (USB A x1, USB Type-C x1), an SD/microSD card reader, and a 3.5mm stereo mini jack, making it convenient for devices that are frequently plugged in and unplugged.

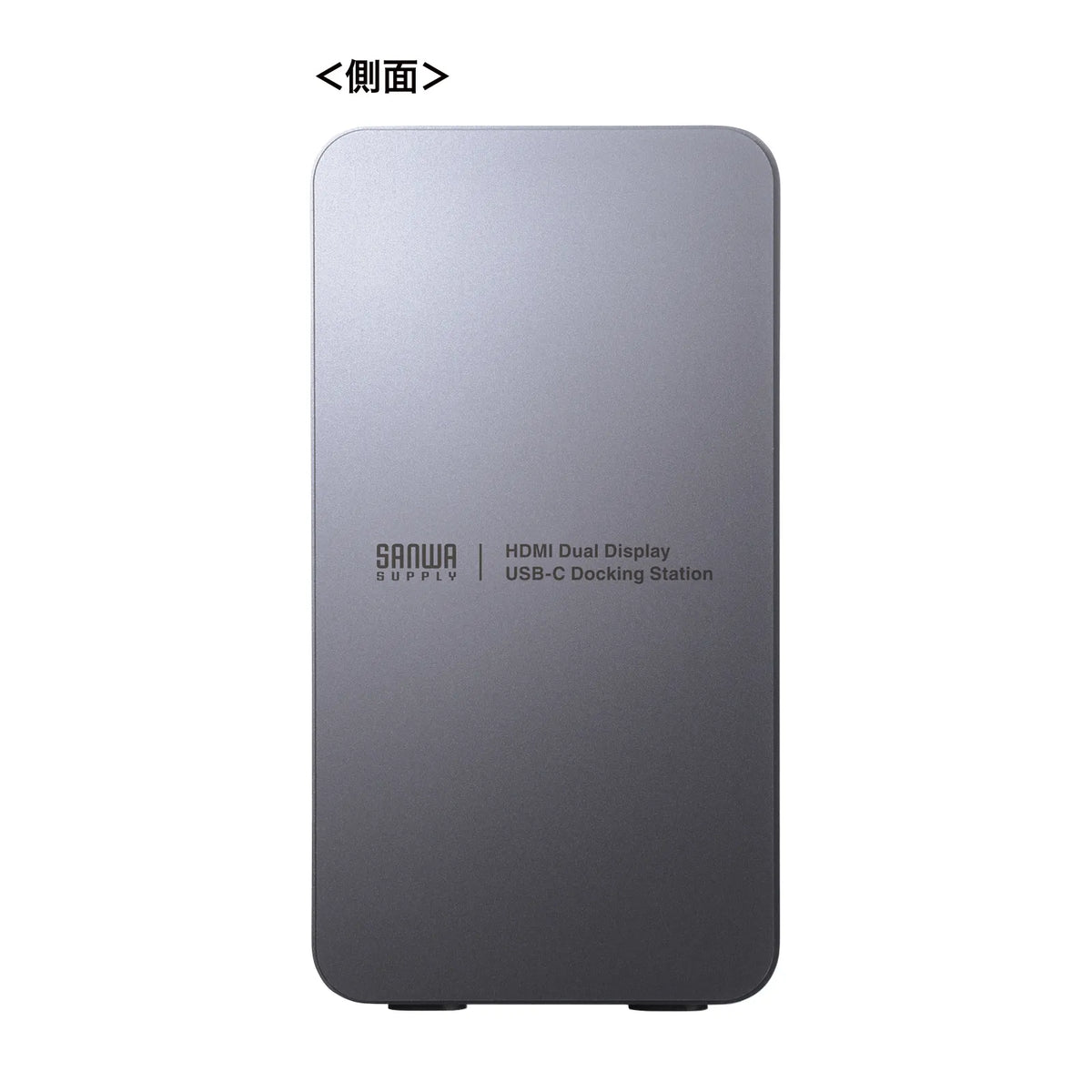

●Compact size and stylish aluminum case.
●Can be used in a vertical position, saving space on your desk.

*Can be used with computers equipped with a USB Type-C port and compatible with DisplayPort Alternate Mode (DP1.4 or higher).
*Operation is not guaranteed with all devices.

＜PC Connection Terminal＞
■Connector Shape: USB Type-C
■Supported Standards: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant
*USB 5Gbps is the same standard as USB3.2 Gen1 (USB3.1 Gen1/USB3.0), which was renamed by USB-IF (USB Implementers Forum).
■Maximum USB PD output: 85W

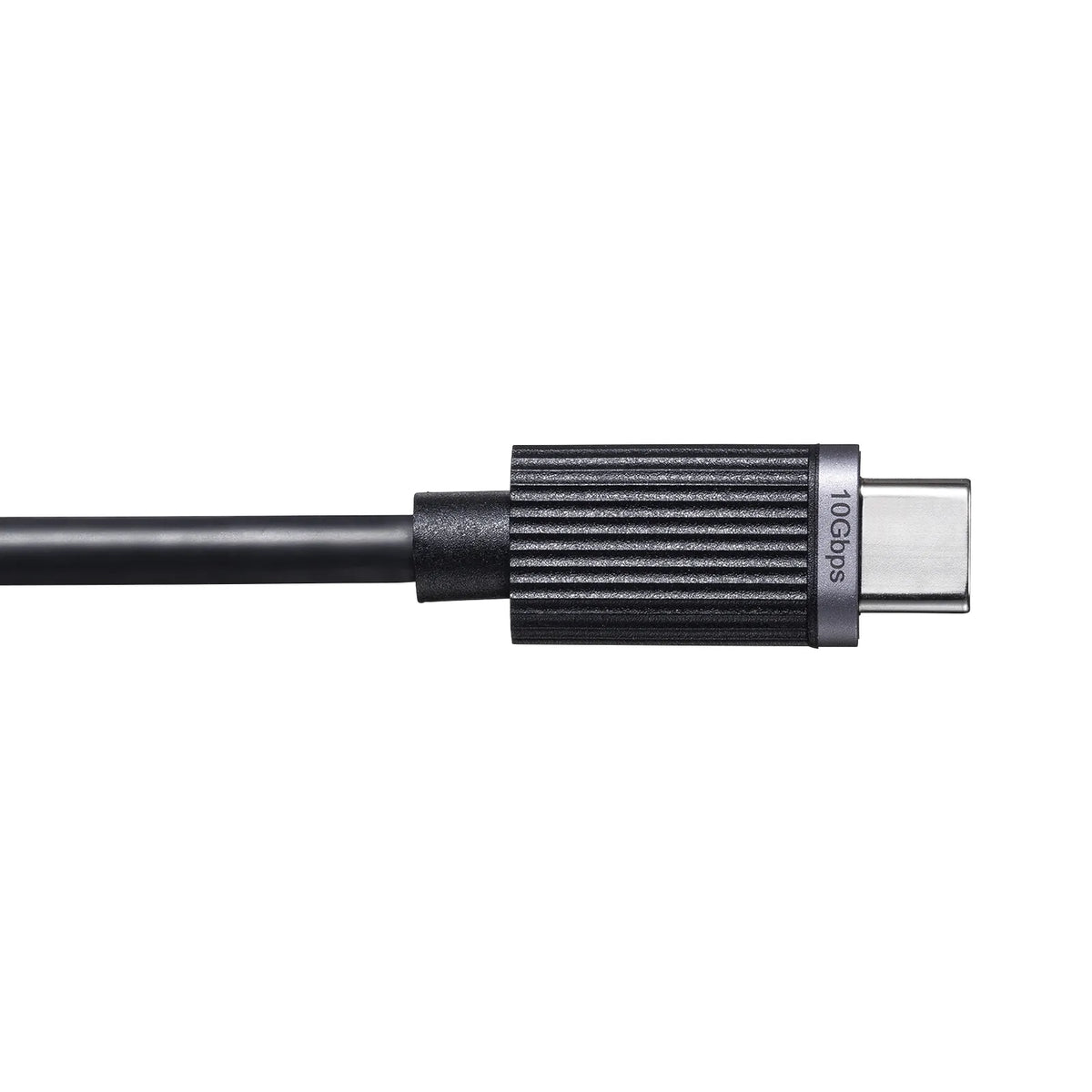

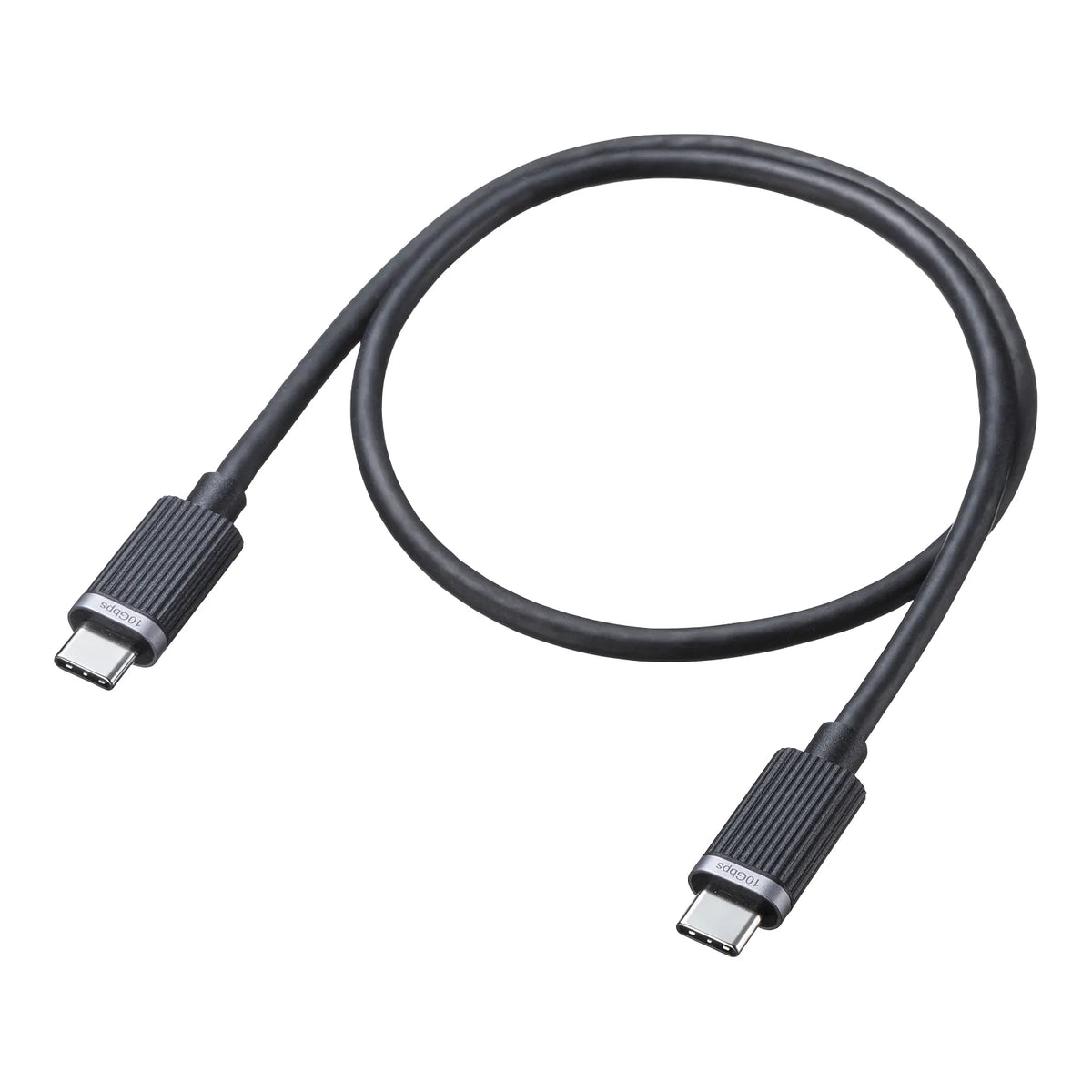

■Cable length: 50cm
■Cable type: Detachable cable

＜USB Ports＞
■Number of ports: 4 ports
■Maximum data transfer speed (theoretical value): 5Gbps
■USB Type-C female/USB 5Gbps: 1 port
■USB A female/USB 5Gbps: 3 ports
■Supply current: USB Type-C connector/Maximum 900mA per port
USB A connector/Maximum 900mA per port, 2000mA total for all 3 ports

＜Power Supply＞
■Power supply method: Bus power/Self power (when power is connected)
■Power consumption of the main unit: 15W
■USB PD input port: Yes
■USB PD Maximum Input: 100W

＜Video Output Ports＞
■Number of Supported Output Displays: 2
■Maximum Supported Resolution: 4K/60Hz
■Maximum Supported Resolution/Refresh Rate: When 1 display is connected/3840x2160 (4K/60Hz)
When 2 displays are connected/3840x2160 (4K/30Hz) x 2
*The supported resolutions listed require your computer to support DisplayPort Alt Mode (DP1.4 or higher).

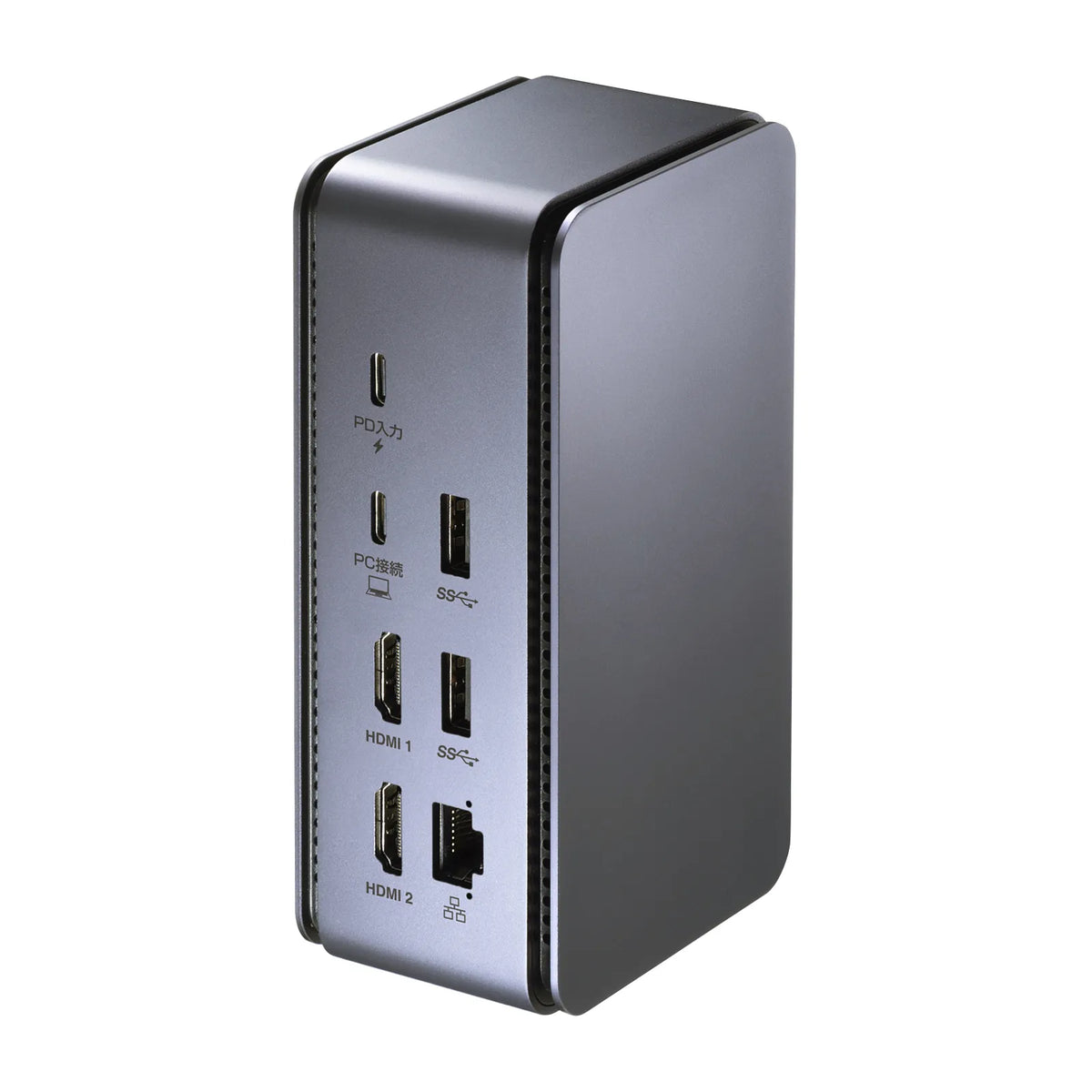

■HDMI: 2 ports

＜LAN Port＞
■Port Shape: RJ-45 port (Auto MDI/MDI-X), Auto-Negotiation compatible
*While it supports Wake On LAN functionality, compatibility varies depending on the computer model, so operation is not guaranteed.
*Depending on the connected device, you may need to turn off Wi-Fi to use a wired network.
■Supported standards: IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T)
■Transmission speed (theoretical value): 1000Mbps, 100Mbps, 10Mbps
*Regarding communication speed, 1000BASE-T is supported only when connected via USB 5Gbps (USB3.2 Gen1).
■Access method: CSMA/CD
■Supported protocols: IPv4, IPv6

＜Audio terminal＞
■Jack shape: 3.5mm 4-pole mini jack (combined microphone/headphone terminal) x1

＜Card reader＞
■Slot: microSD card, SD memory card
*Cannot be used simultaneously with all of them.
*Copyright protection functions of various media are not supported.
*Operation is not guaranteed with all memory cards.
■Supported media standards: SDXC, SDHC, SD, microSDXC, microSDHC, microSD
■Maximum supported media: SD card/512GB
microSD card/512GB

＜Common specifications＞
■Operating conditions: Temperature 5 to 40 degrees
Humidity 10% to 85% (non-condensing)
■Driver: Not required
■Total number of ports: 11
■Size: W48 x D70 x H130 mm
■Weight: Approx. 310g
■Set contents: Main unit, USB Type-C cable, instruction manual and warranty
≪Limitations≫
*This product must be connected directly to the USB 3.2 Type-C port of the computer. It cannot be used with USB hubs or additional USB ports.
*For 4K resolution output, the display must support 4K resolution and the content to be output must also support 4K resolution.
*This product supports USB PD (Power Delivery), but it is not compatible with all USB 3.2 Type-C equipped devices (PD compatible).
*While this product is generally plug-and-play, in rare cases, it may not display or function correctly due to a timing error in USB recognition. Please try unplugging and plugging it back in. This is not a defect or malfunction of this product.
*This product is intended for use with Windows OS/macOS. It will not work (will not display) during system startup or in the BIOS screen.
*
