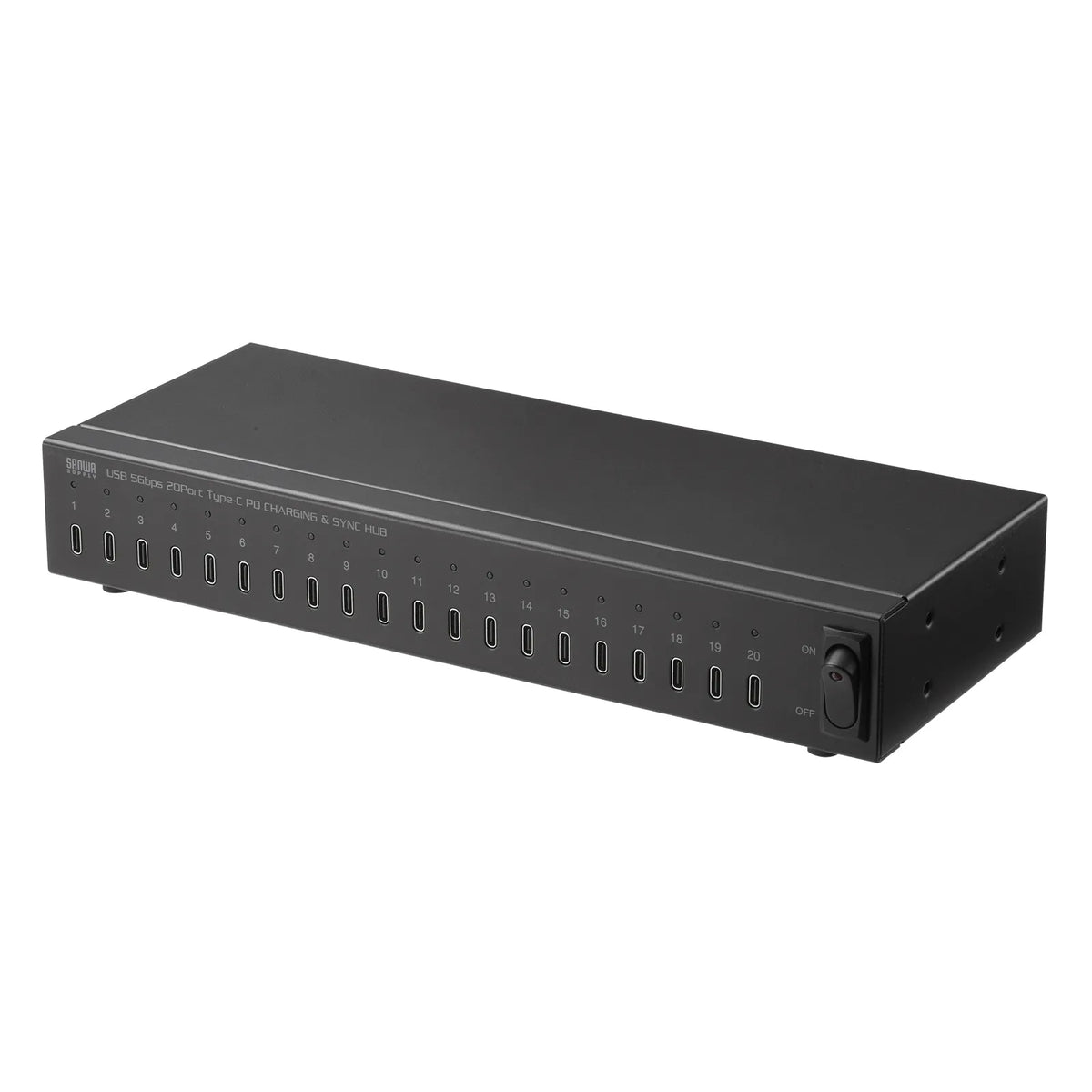

USB 5Gbps Type-C 20-Port Hub USB-5TCPS20N

[USB 5Gbps Type-C 20-Port Hub that can charge and sync up to 20 iPad Pros or tablets simultaneously]

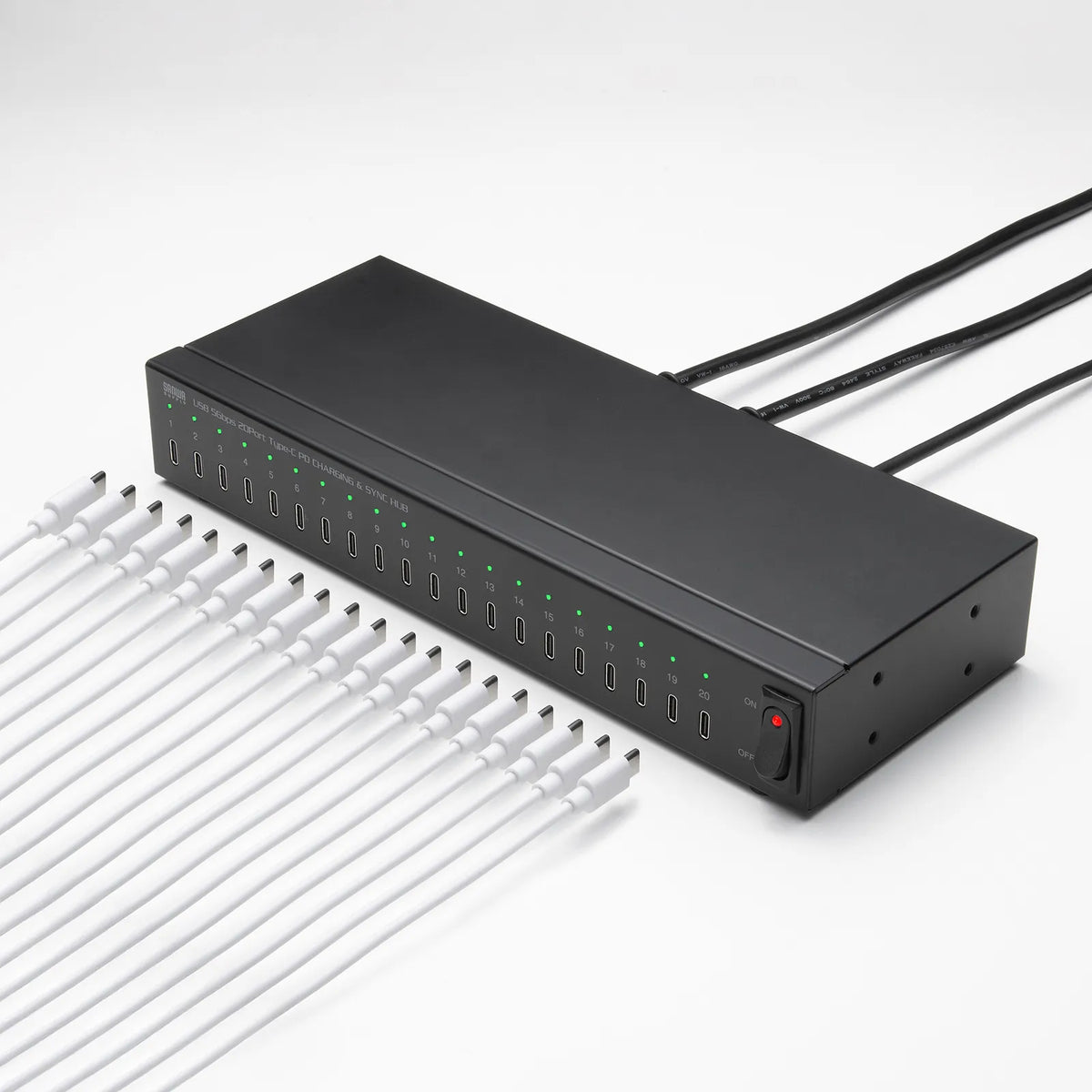

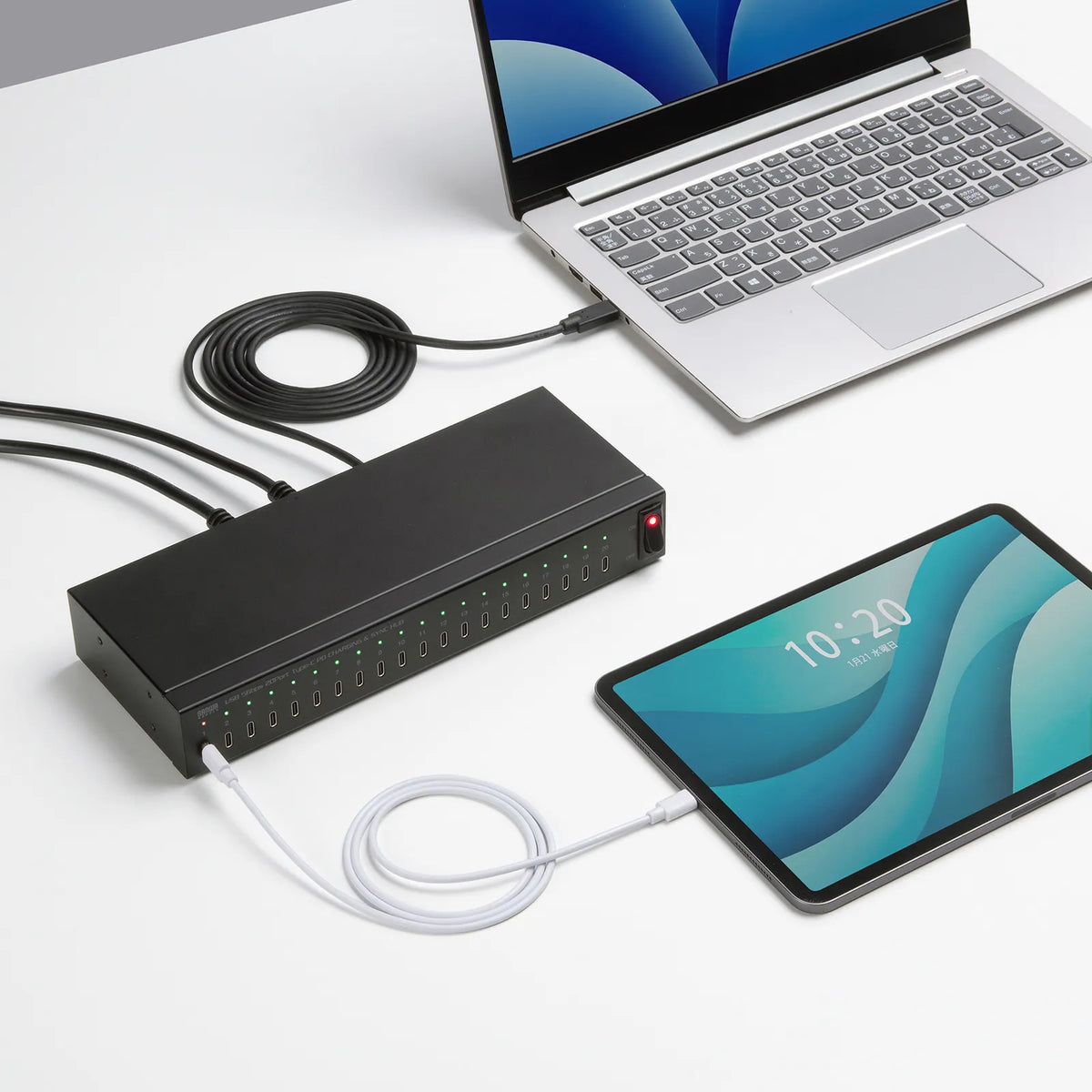

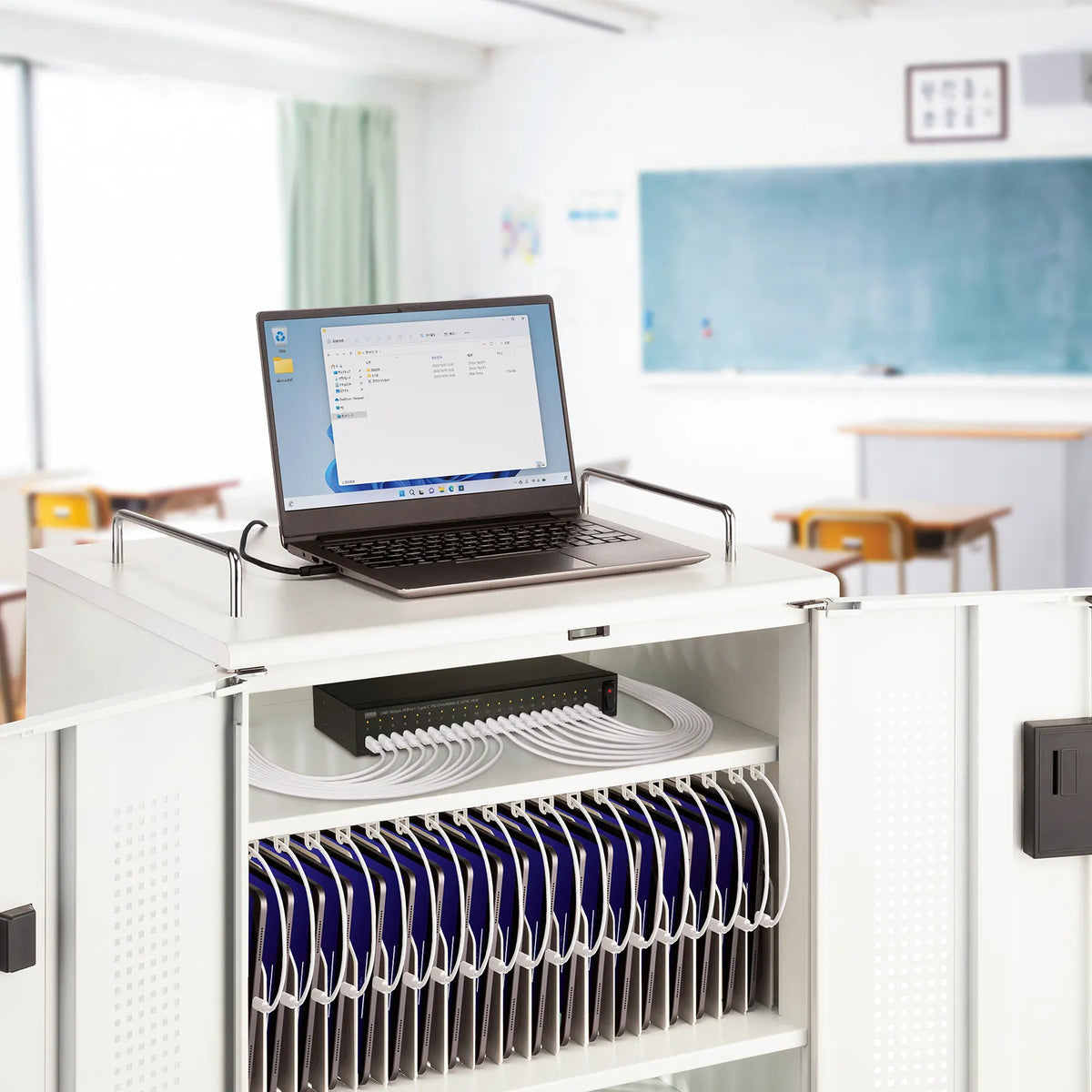

●Can sync and charge up to 20 iPads or tablets simultaneously.

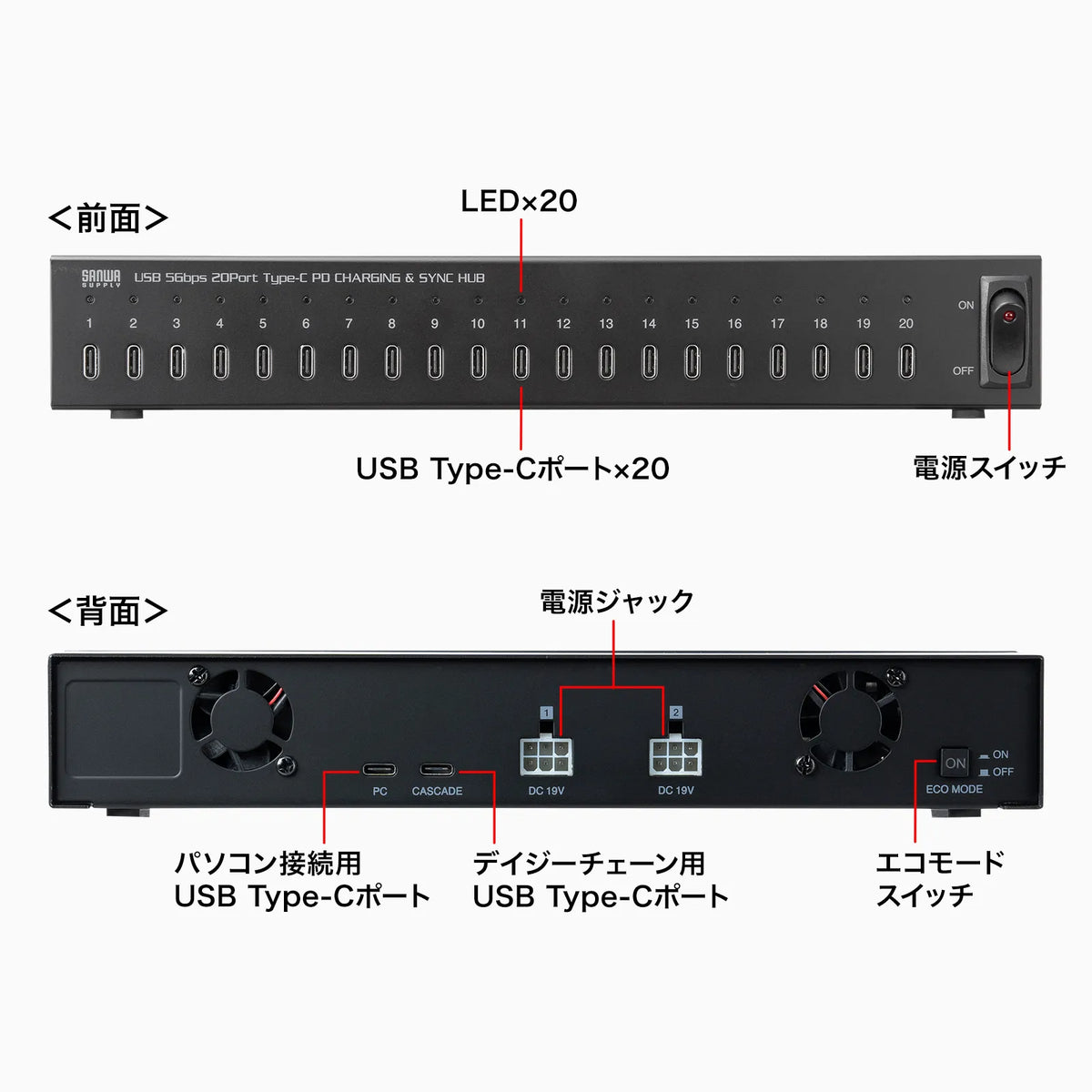

●Equipped with a dedicated daisy-chain port on the back, allowing connection of up to 2 devices.
(Up to 40 devices can be connected.)

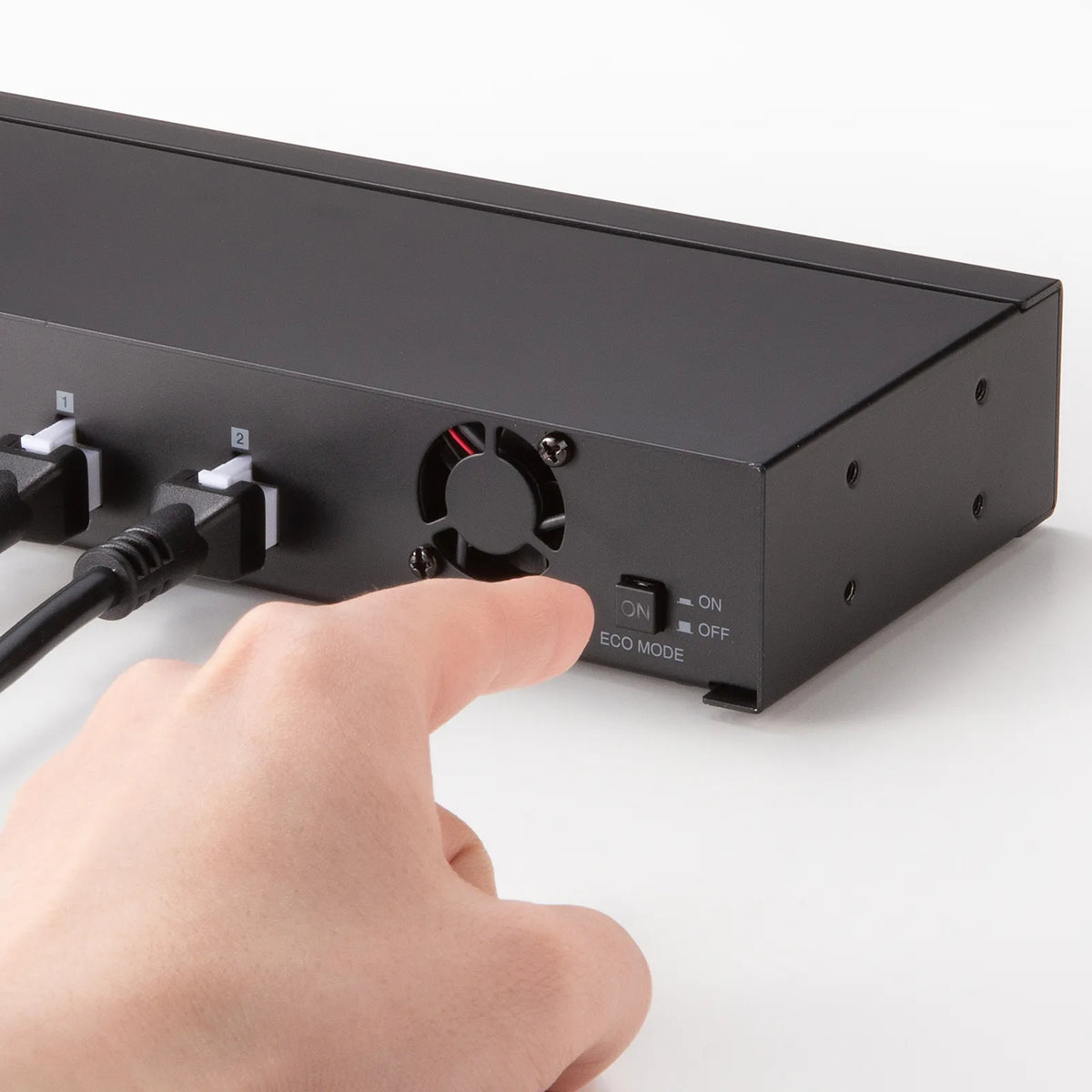

●Pressing the eco mode switch turns off the power when charging is complete, reducing the burden on iPads and tablets.

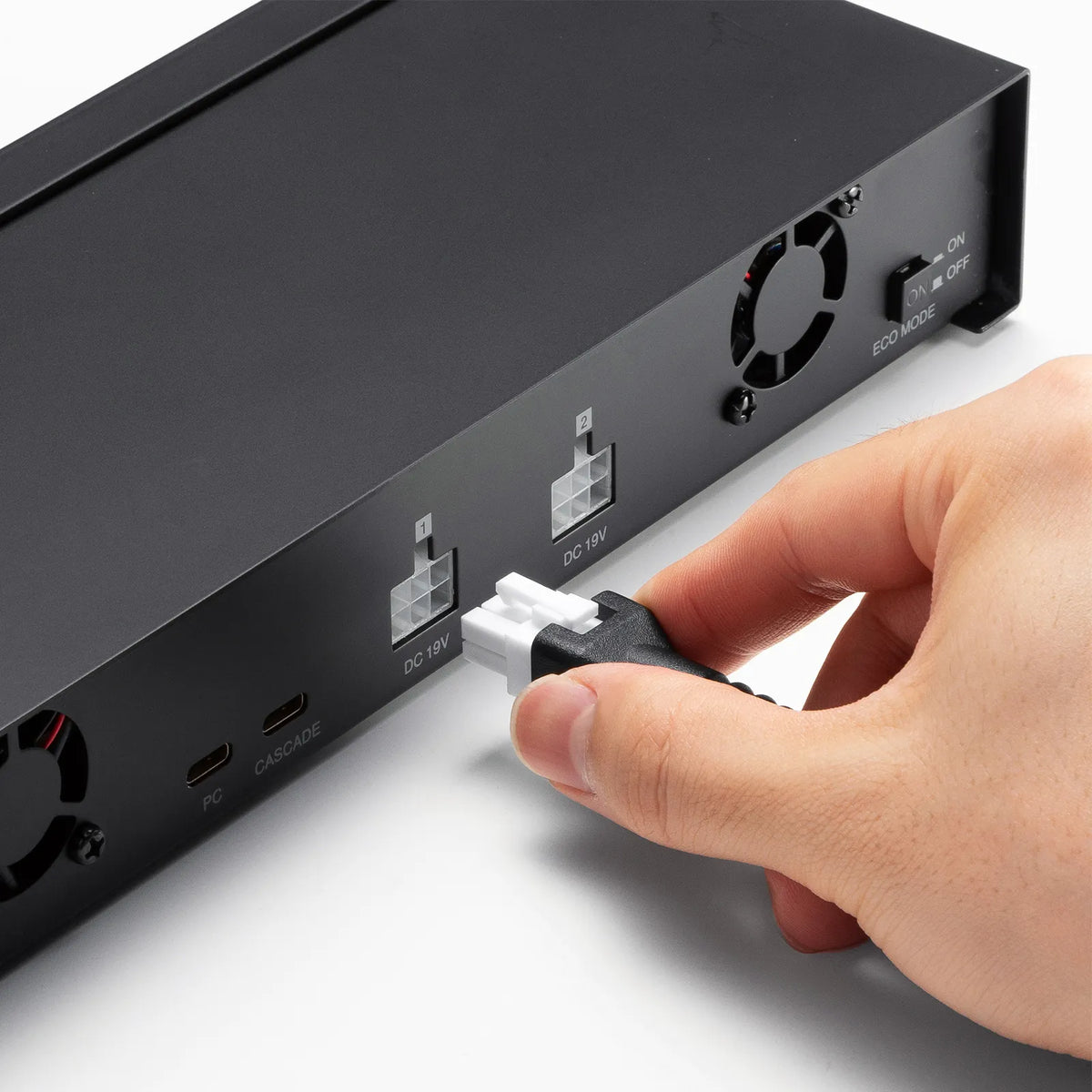

●The AC adapter has a locking mechanism to prevent accidental disconnection.

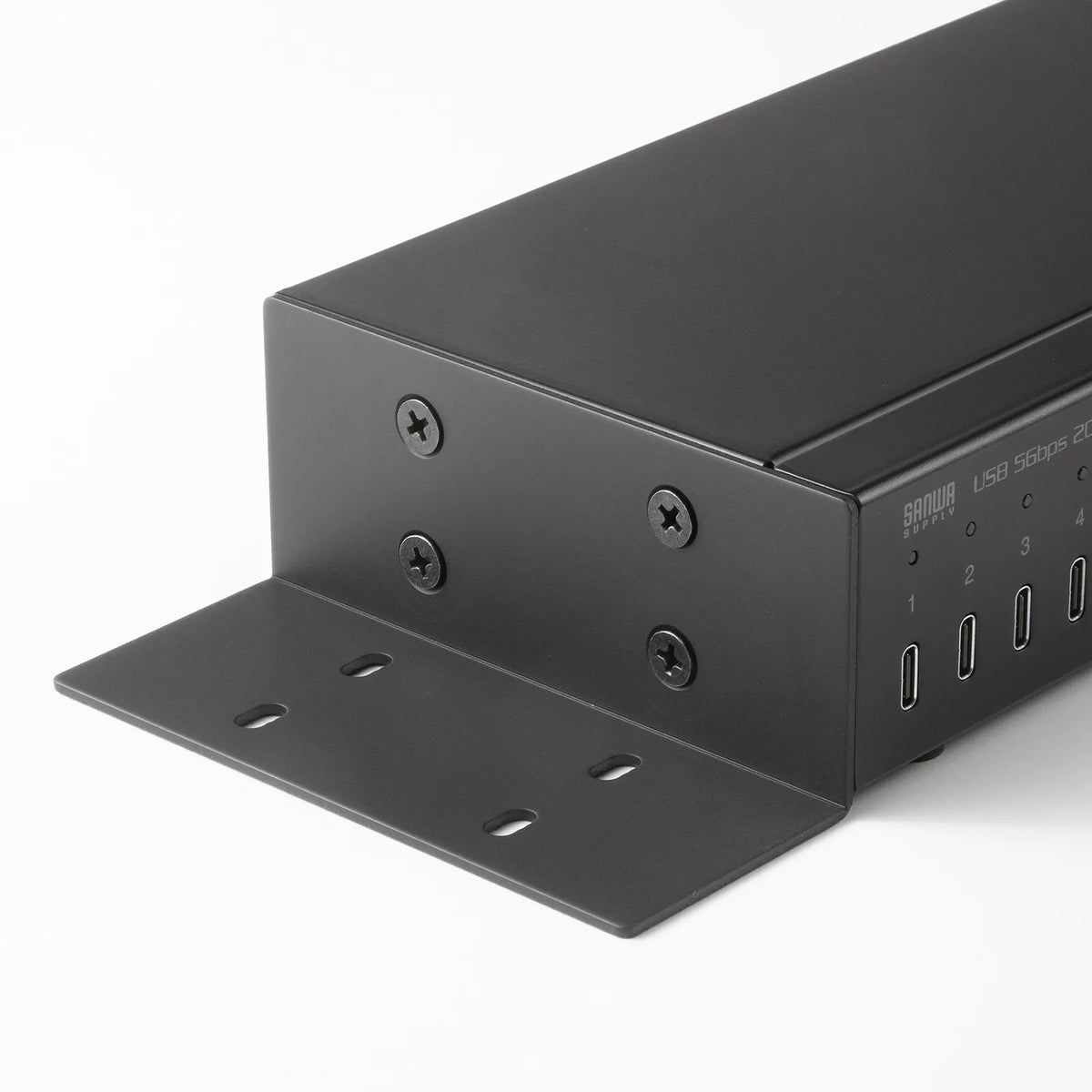

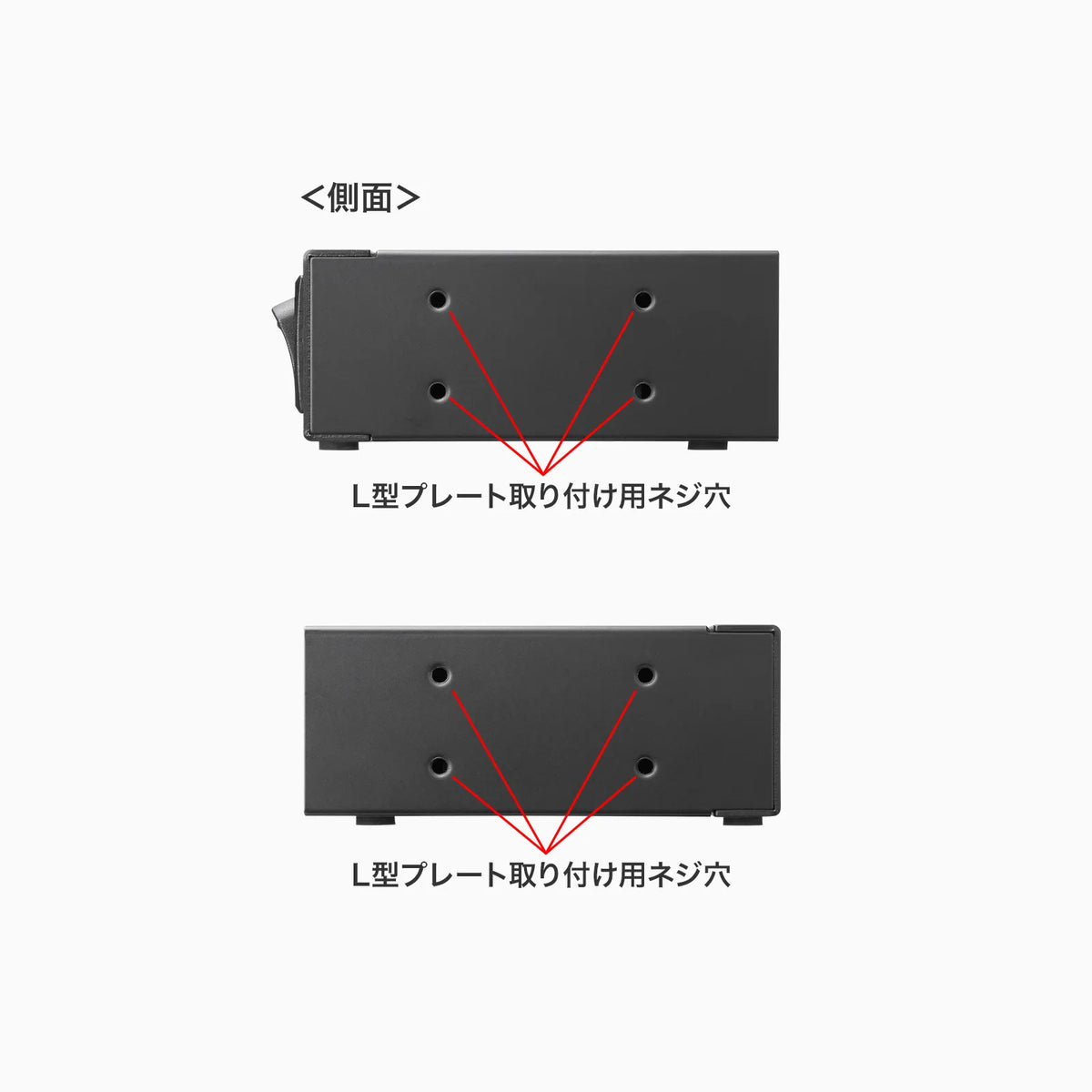

●Can be mounted on cabinets or racks using the included L-shaped bracket and screws.
●This is a 20-port USB Type-C hub that supports USB 5Gbps.
●Supports the PD standard and can output up to 27W per port.
*Depending on the type of connected device and connection environment, 27W output may not be possible.
*If the connected device is not Type-C or does not support PD, the maximum output will be 1.5A.
●Supports the USB 5Gbps (3.2 Gen1) standard.

【About iPad, iPhone, and iPod Touch】
iPad, iPhone, and iPod Touch can synchronize (communicate) with multiple devices simultaneously.
To use this function,
・For Windows, "iTunes" is required.
・For Mac, "iTunes" or "Apple Configurator" is required.

【About Android and Windows Tablet Smartphones】
The usage method for Android and Windows tablets and smartphones varies depending on the model.
Please check the instruction manual of your device before use.

【Please check before purchasing】
*This product is a USB hub, but we cannot guarantee connection and operation with all USB devices.
*This product only supports self-powered operation. Please note that it will not work in bus-powered mode.
*Charging methods vary depending on the connected device.

【PC Connection Terminal】
■Connector Shape: USB Type-C
■Supported Standards: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant
*USB 5Gbps is the same standard as USB3.2/3.1/3.0, but the name has been changed by USB-IF (USB Implementers Forum).
■Cable Length: Approx. 180cm
■Cable Type: Detachable cable
【USB Ports】
■Number of Ports: 20 ports
■Maximum Data Transfer Speed ​​(Theoretical Value): 5Gbps
■USB Type-C Female/USB 5Gbps: 20 ports
*Power Supply: Maximum 27W (per port)
*For non-PD compatible devices, the maximum is 2.4A (1.5A when connected to a PC).
■Supply current:
Maximum 27W
(per port: self-powered)
*Depending on the type of connected device and connection environment, 27W output may not be possible.
*If the connected device is not Type-C or does not support PD, the maximum output will be 1.5A.
【Power Supply】
■Power Supply Method: Self-powered
【Common Specifications】
■AC Adapter: Included
DC19V 15.75A (300W)
■Supported OS Windows: 11, 10
■Supported OS Mac: macOS (Tahoe) 26, macOS (Sequoia) 15, macOS (Sonoma) 14, macOS (Ventura) 13, macOS (Monterey) 12, macOS (BigSur) 11
■Supported Models: Windows-based (DOS/V) PCs, Apple Mac series
*Models with a USB port (Type-C female) and whose operation is guaranteed by the PC manufacturer.
■Operating temperature: 0 to 40 degrees
0 to 40 degrees
■Operating humidity: 0% to 80%
*No condensation

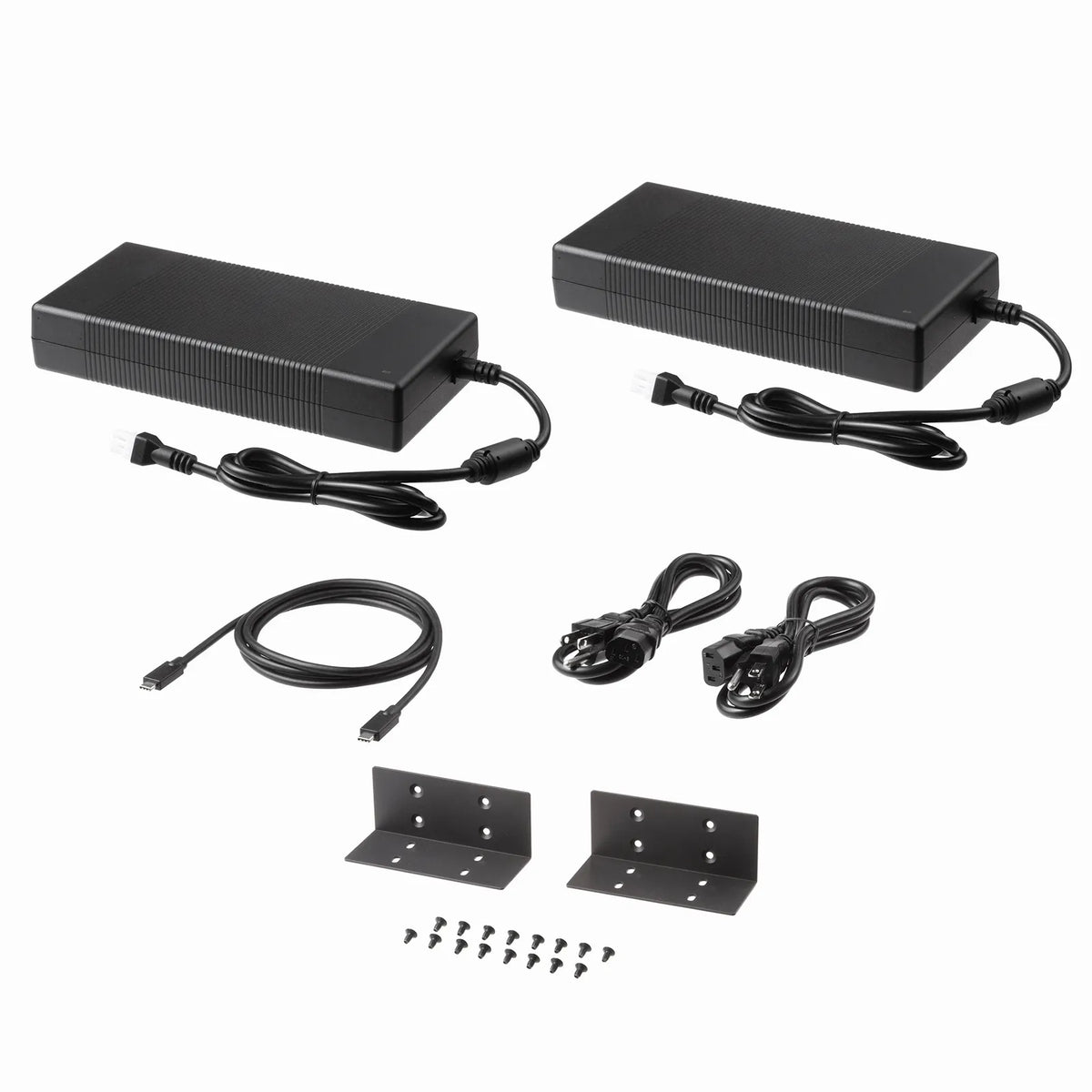

■Set contents: Instruction manual, AC adapter (DC19V・15.75A) x2, power cable x2, L-shaped plate x2, USB 5Gbps cable (C-C cable), 16 fixing screws
■Storage temperature: 0 to 60 degrees
0 to 40 degrees

【Other specifications】
Included screw size: M4
AC adapter power cable length: approx. 1m
AC adapter cable length: approx. 1.2m
