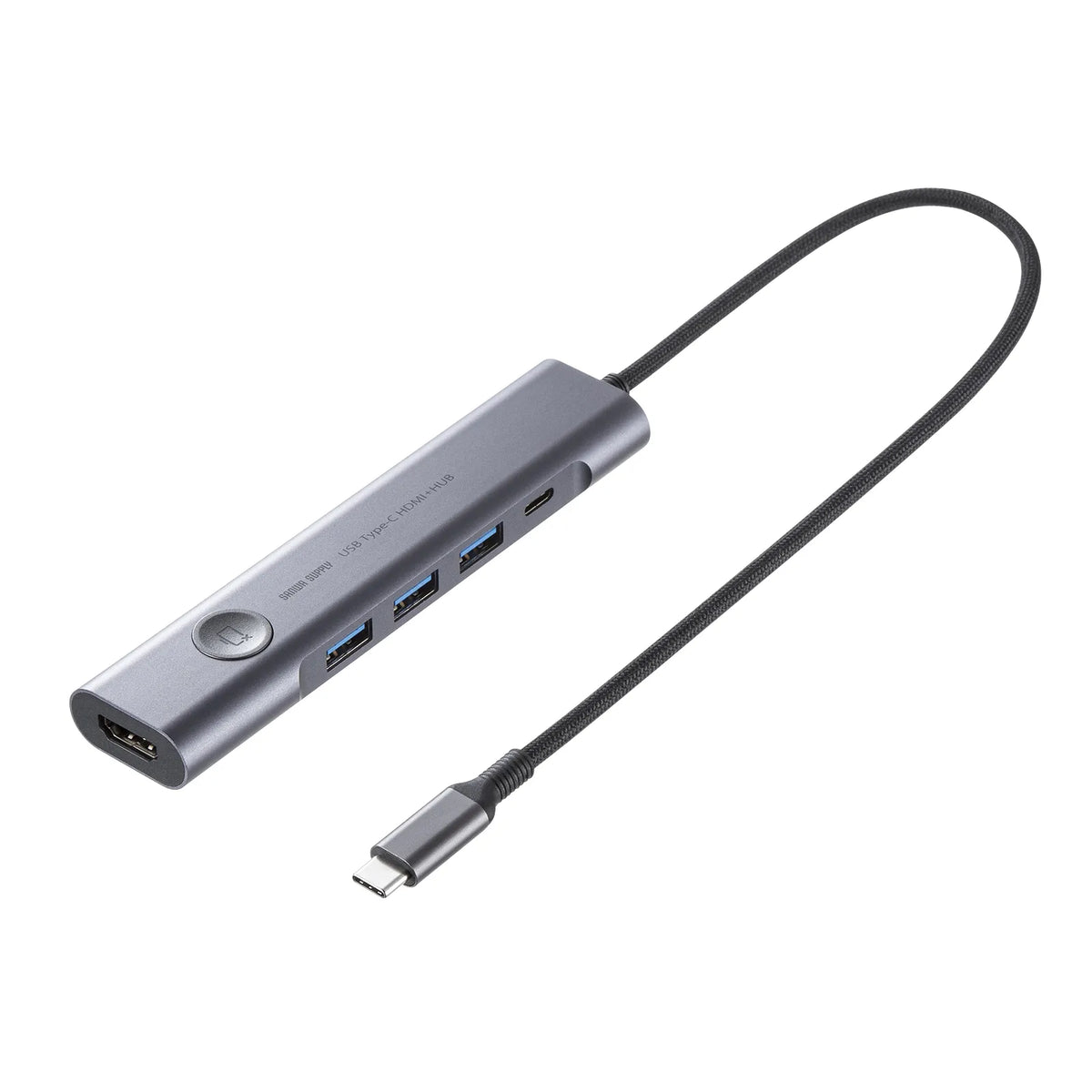

USB Type-C Hub with HDMI Port USB-5TCHP18GM

[USB TYPE-C hub with HDMI port. Includes HDMI ON/OFF switch]

●A convenient USB hub with an HDMI ON/OFF switch.

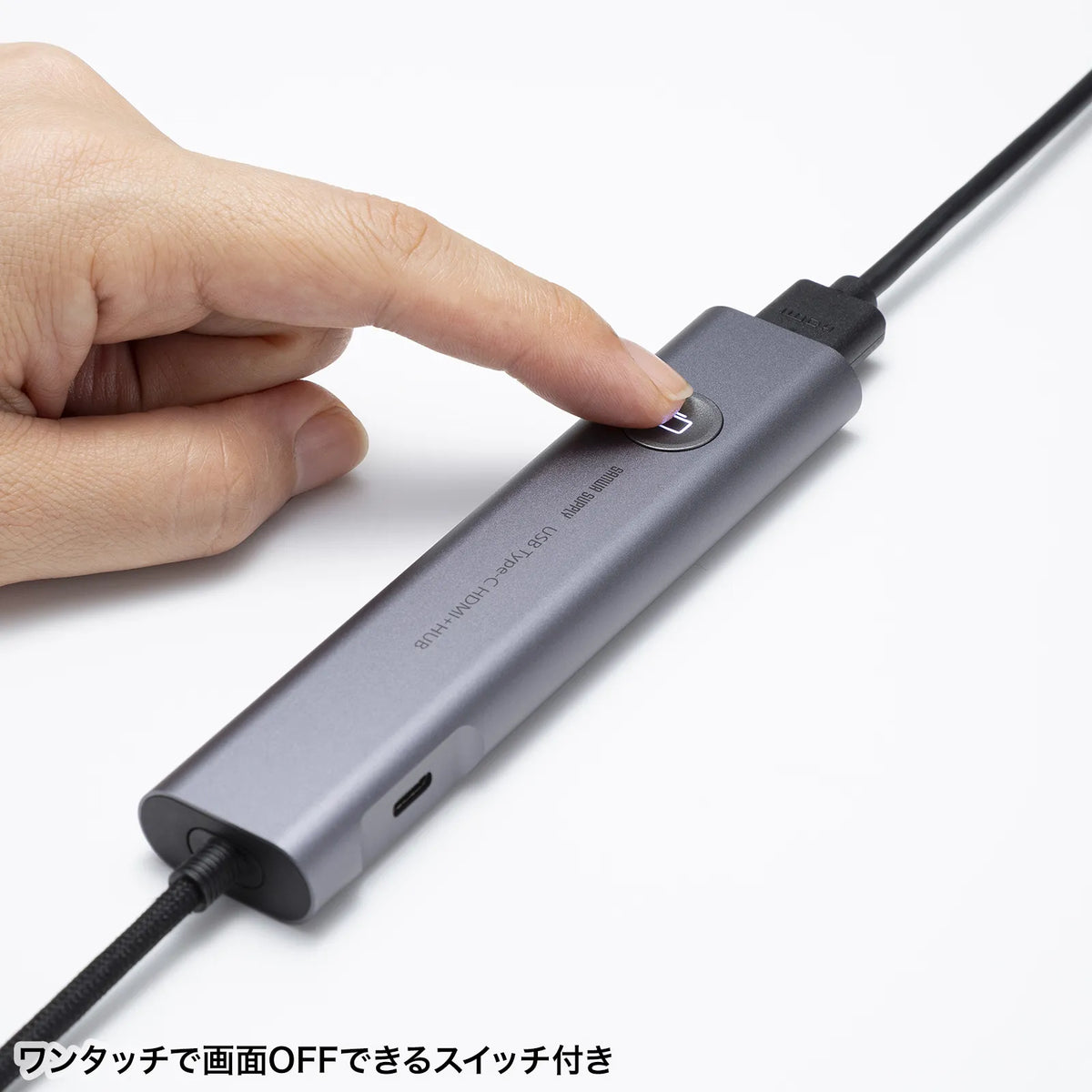

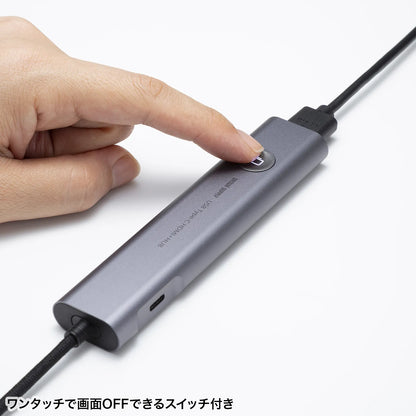

●Turn the connected display ON/OFF with a single button.
●Ideal for ZOOM meetings during customer service.

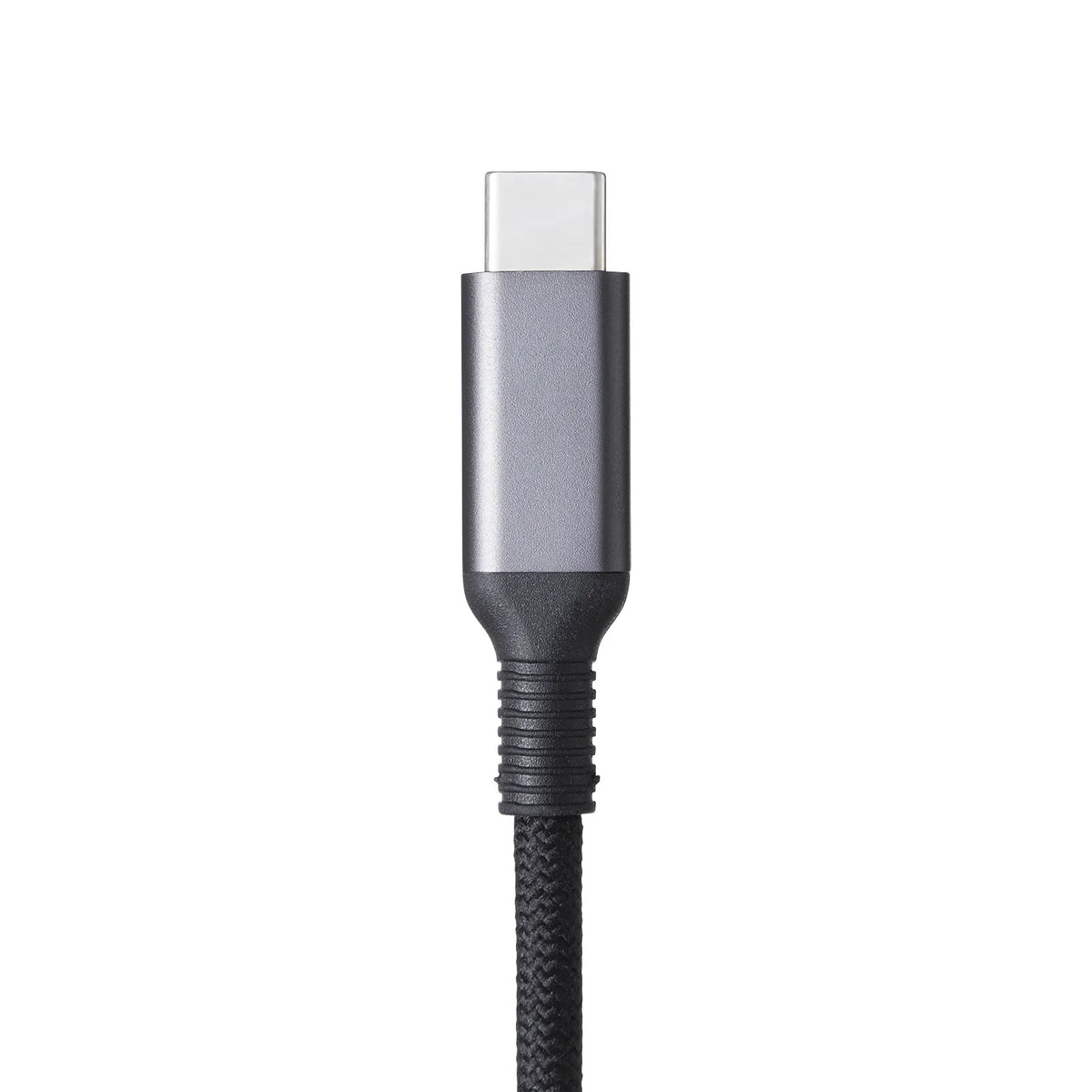

●Strong mesh cable type that resists breakage!

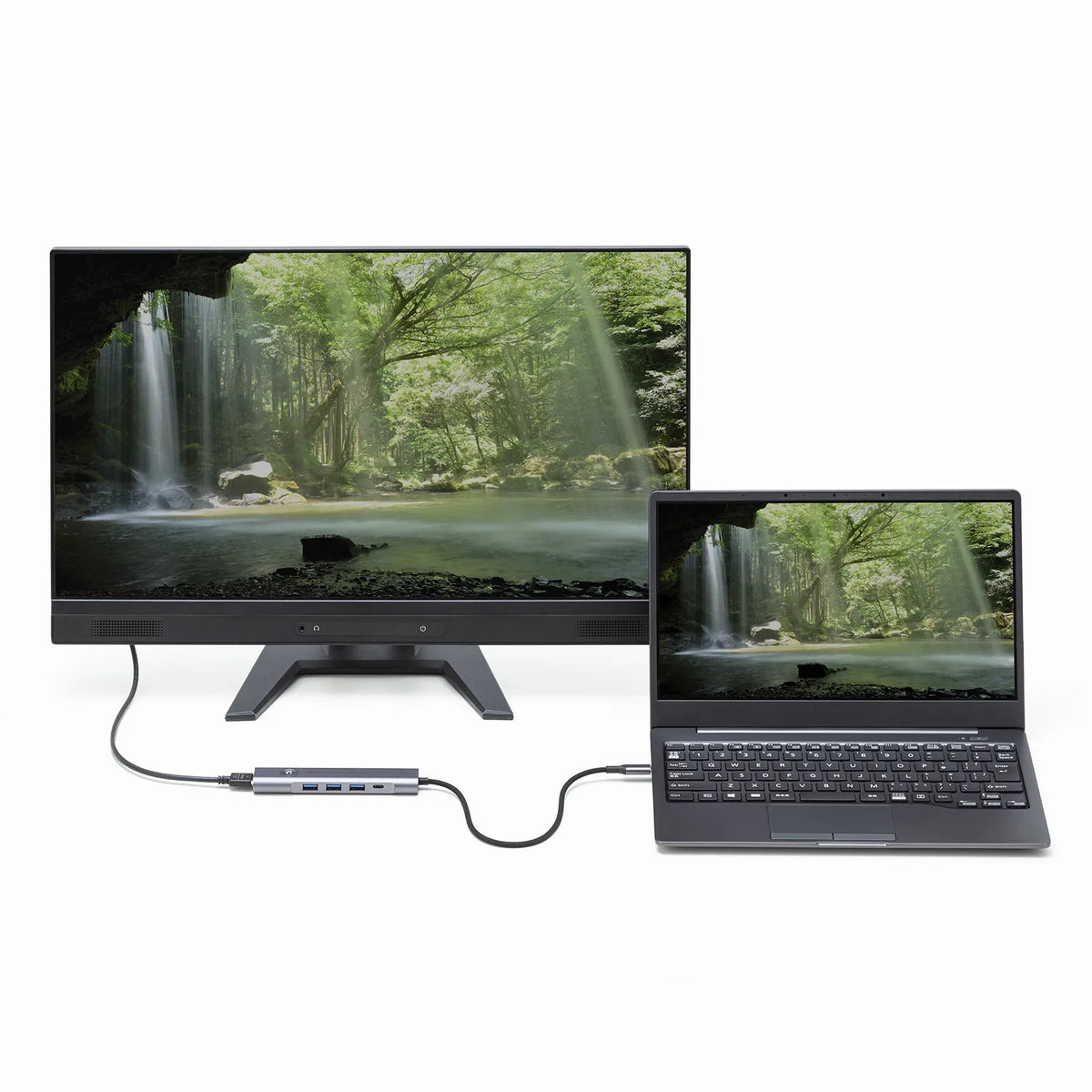

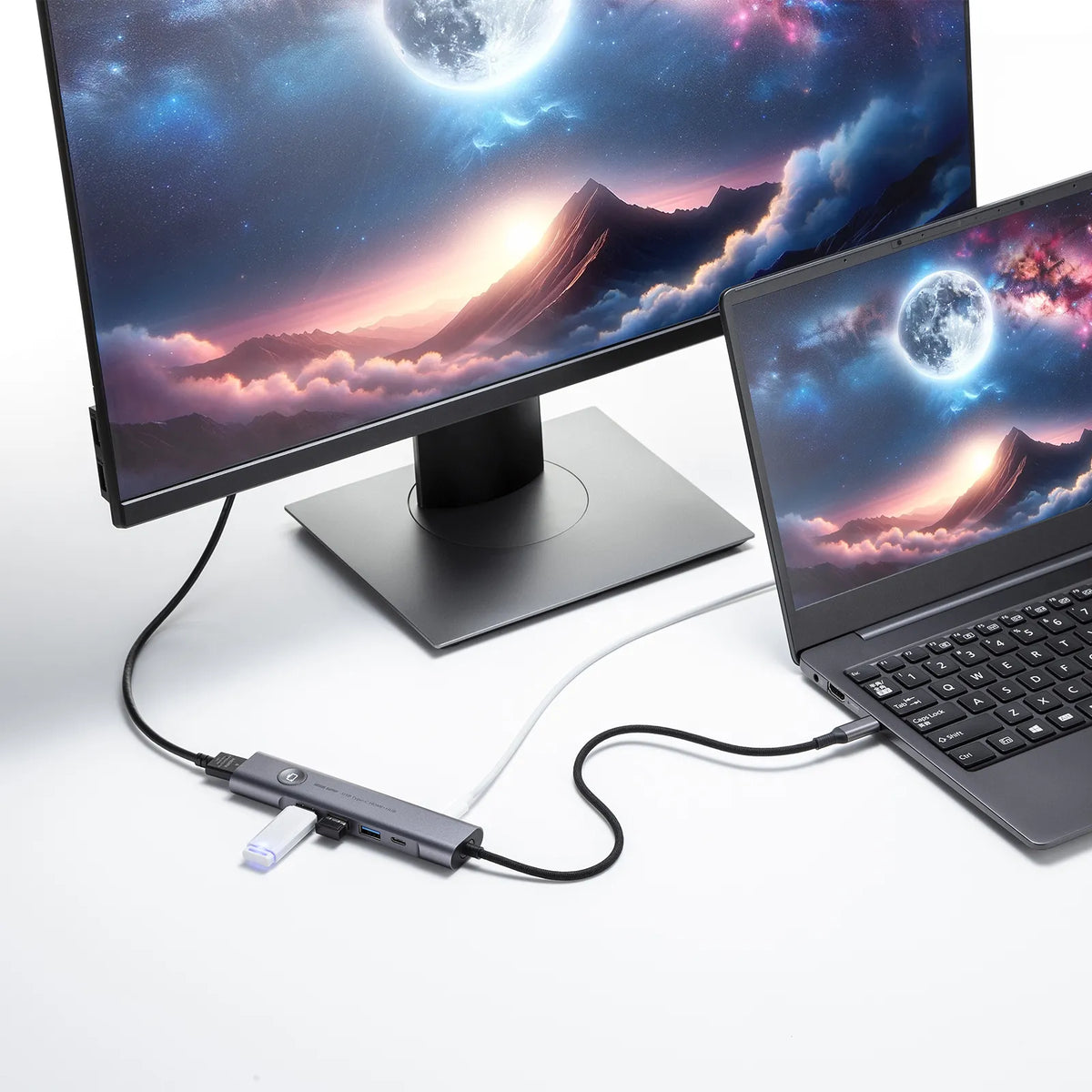

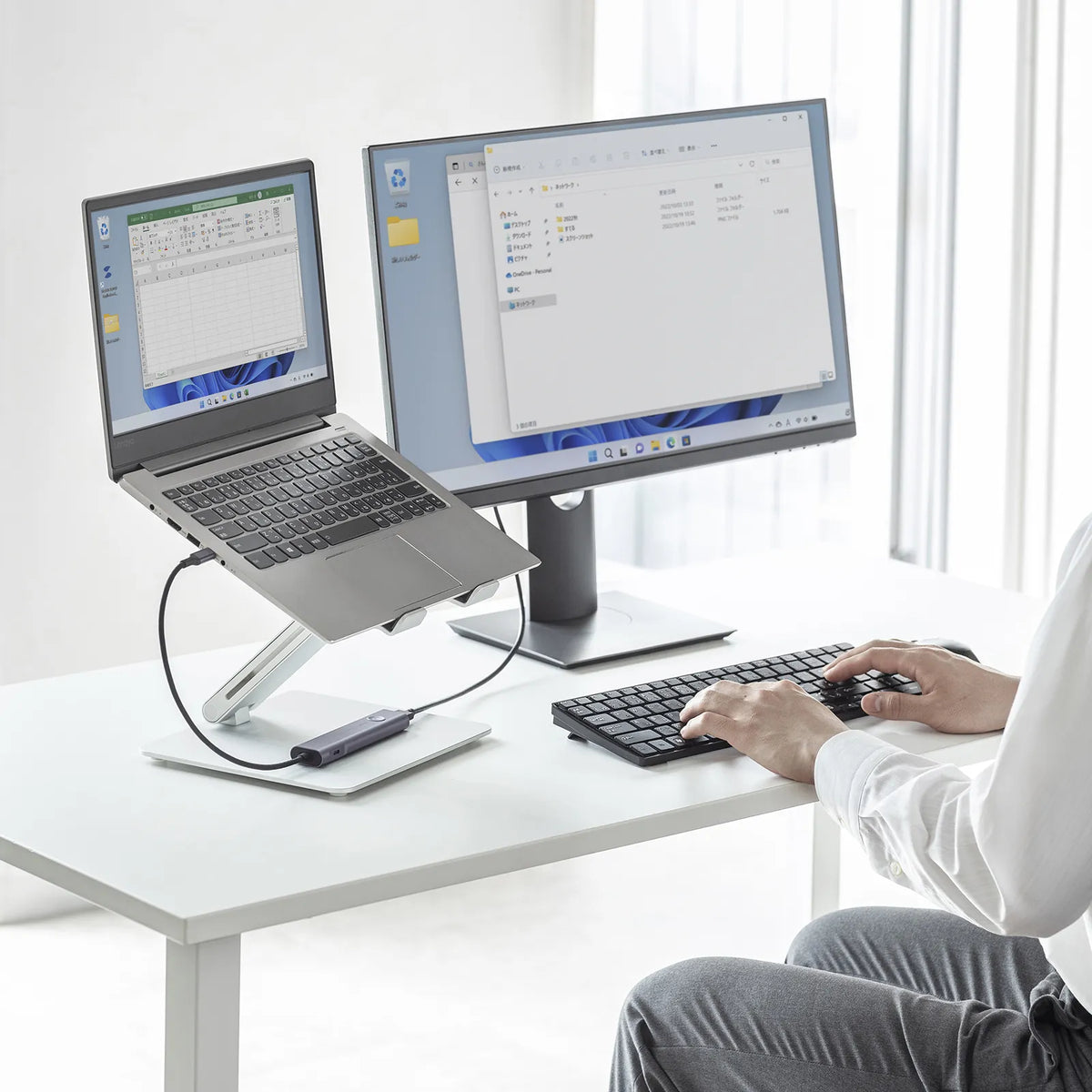

●Supports HDMI output 4K/60Hz, allowing you to easily create a multi-display environment (mirror mode/extended mode) without installing any software.

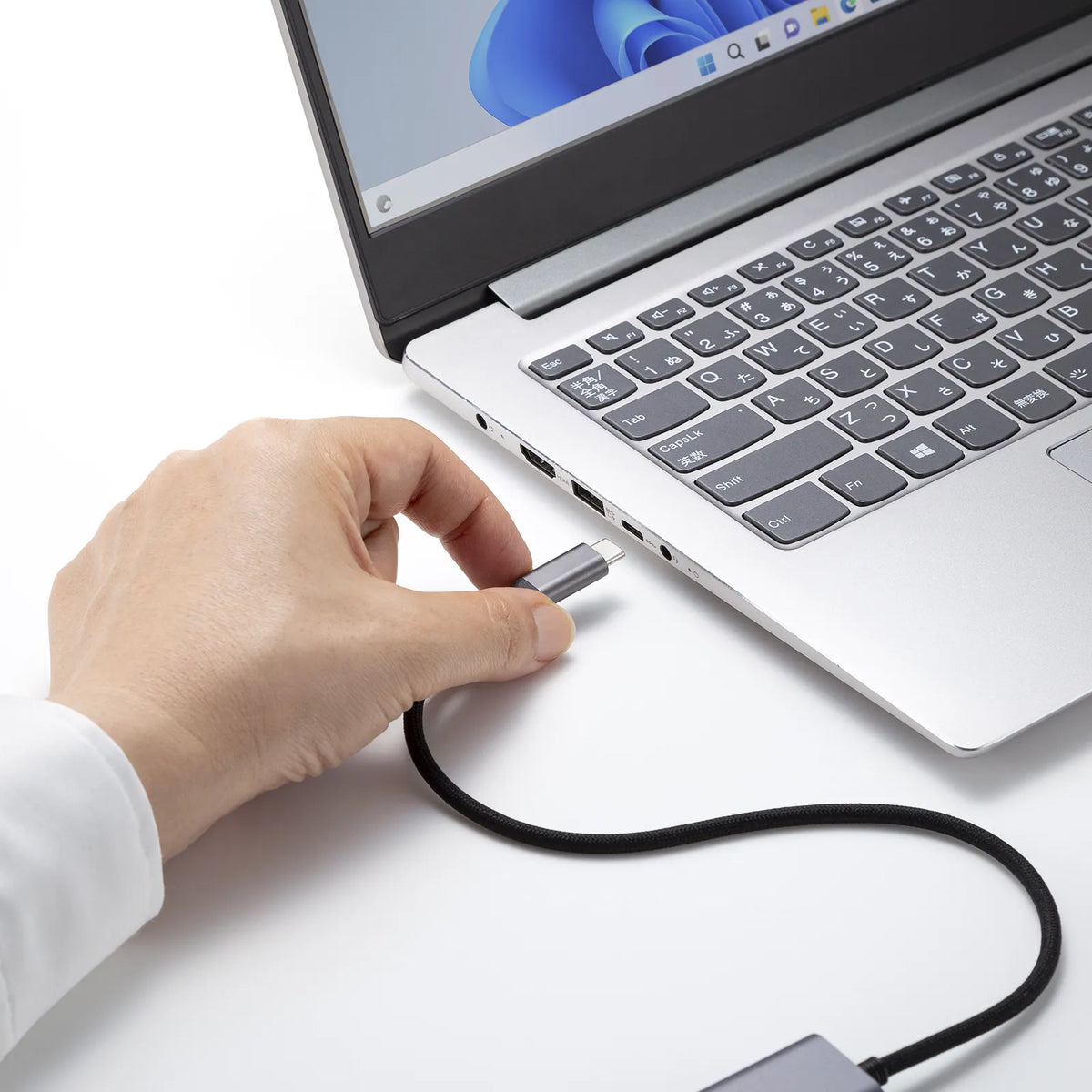

●Uses a USB Type-C connector, so it can be used with computers equipped with a Type-C port.
●No drivers required, just connect and use it immediately.

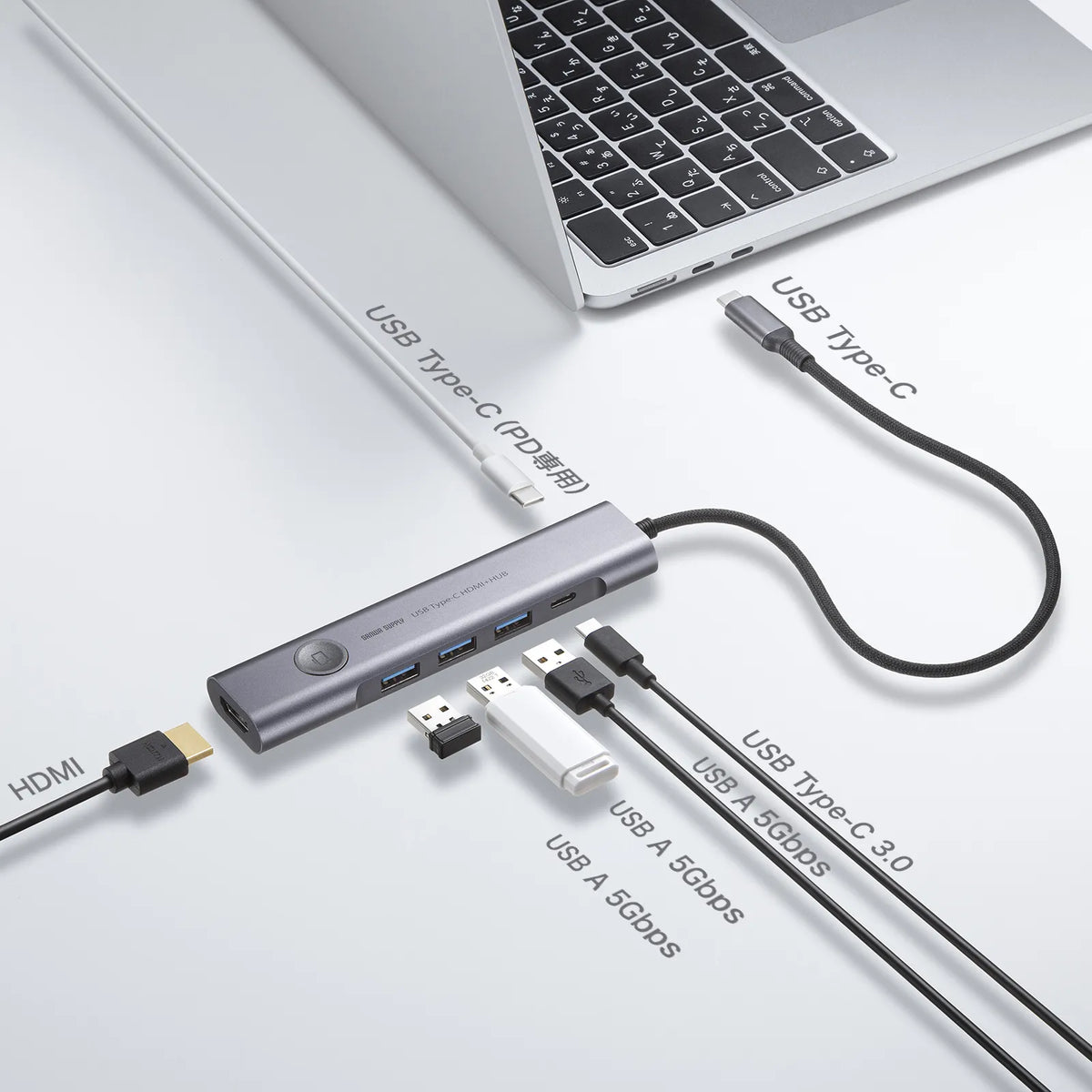

●Equipped with USB 5Gbps (3.2 Gen1) USB A x 3 ports and Type-C x 1 port for connecting peripherals.
●Supports USB PD, allowing you to use USB devices while charging.
*PD 100W compatible



【PC connection terminal】
■Connector shape: USB Type-C
■Supported standards: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant
*USB 5Gbps is the same standard as USB3.2 Gen1 (USB3.1 Gen1/USB3.0), which was renamed by USB-IF (USB Implementers Forum).
■Maximum USB PD output: Approx. 90W
■Cable length: Approx. 30cm
■Cable type: Integrated cable

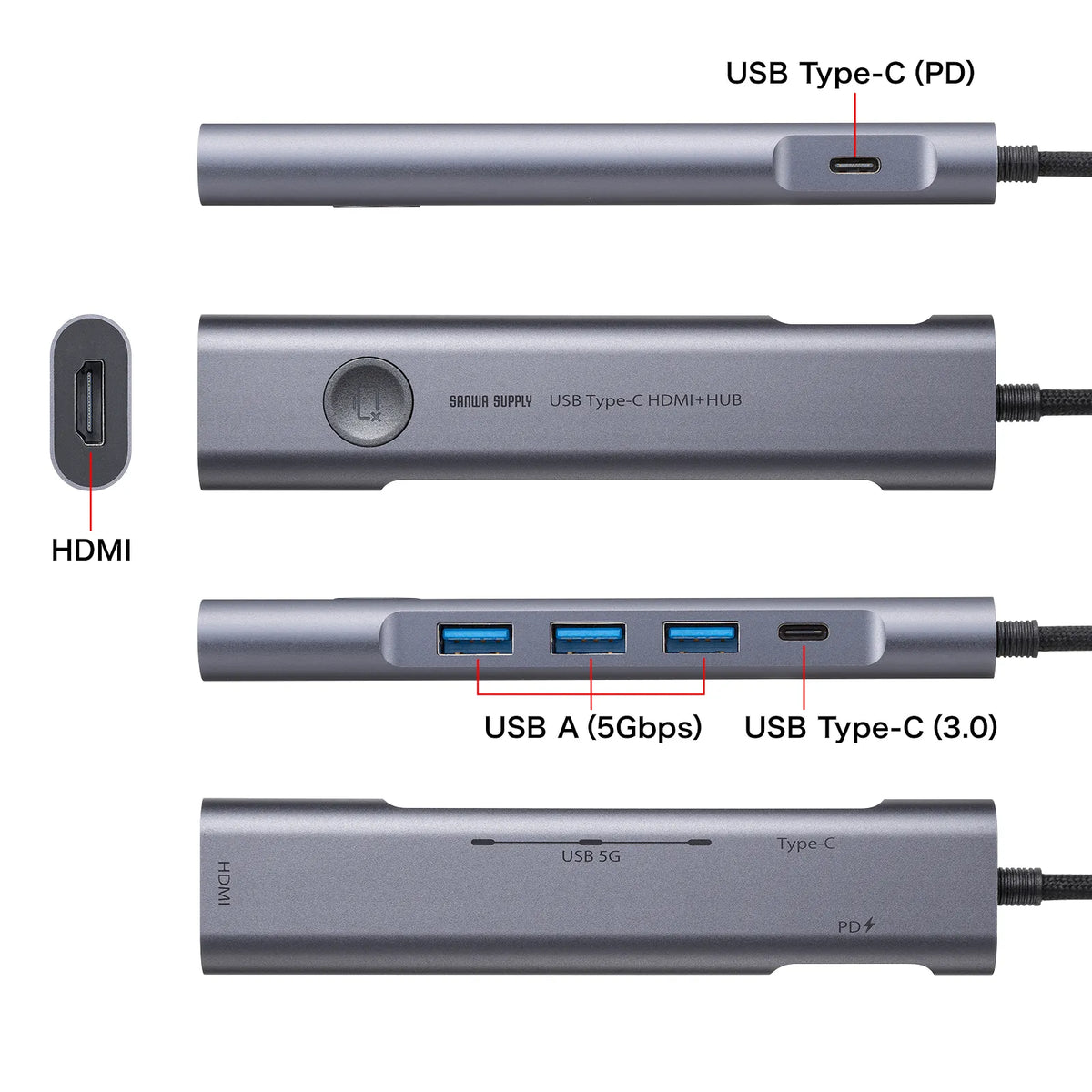

【USB Ports】
■Number of ports: 4 ports
■Maximum data transfer speed (theoretical value): 5Gbps
■USB Type-C female/USB 5Gbps: 1 port
■USB A female/USB 5Gbps: 3 ports
■Supply current: Maximum 1500mA
(Total for all ports: when bus-powered)
*If the current consumption of the connected device exceeds the supply current of this product, it may not operate normally with bus power.

【Power Supply】
■Power supply method: Bus power/Self-powered (when power is connected)
■Main unit power consumption: Approx. 10W
■USB PD input port: Yes
■Maximum USB PD input: Maximum 100W
*Depending on the computer or PD power adapter you are using, a warning may be displayed recommending the use of the power adapter attached to your computer, but this does not affect its use.

【Video Output Port】
■Number of Supported Output Displays: 1
■Maximum Supported Resolution: 4K/60Hz
*The supported resolutions listed require your computer to support DisplayPort Alt Mode (DP1.4 or higher).

*For 4K resolution output, the display must support 4K resolution, and the content being output must also support 4K resolution.


■Maximum supported resolution/refresh rate: 3840x2160
■HDCP: 2, 1.4
■HDMI: 1 port

【Common specifications】
■Supported OS Windows: 11, 10
■Supported OS mac: macOS (Sonoma) 14, macOS (Ventura) 13, macOS (Monterey) 12, macOS (BigSur) 11
■Supported OS Android: Android 14
■Supported OS iOS: iOS 17
■Supported OS iPadOS: iPadOS 14 to 17
■Supported OS ChromeOS: ChromeOS
■Supported devices: Windows-based (DOS/V) PCs, Apple Mac series, Chrome OS PCs, iPads, iPhones, Android tablets, smartphones
*Models with a USB port (Type-C female) and whose operation is guaranteed by the PC manufacturer.
*To operate in a USB 5Gbps (USB 3.2 Gen1) environment, your computer must have a USB 5Gbps (USB 3.2 Gen1) port.
*Not compatible with USB Type-C connected monitors.
*Only compatible with Type-C ports that support video output. (DisplayPort Alt Mode)
*Some computers and USB devices may not be compatible.
*Cables, TVs, and displays compatible with each resolution are required.
