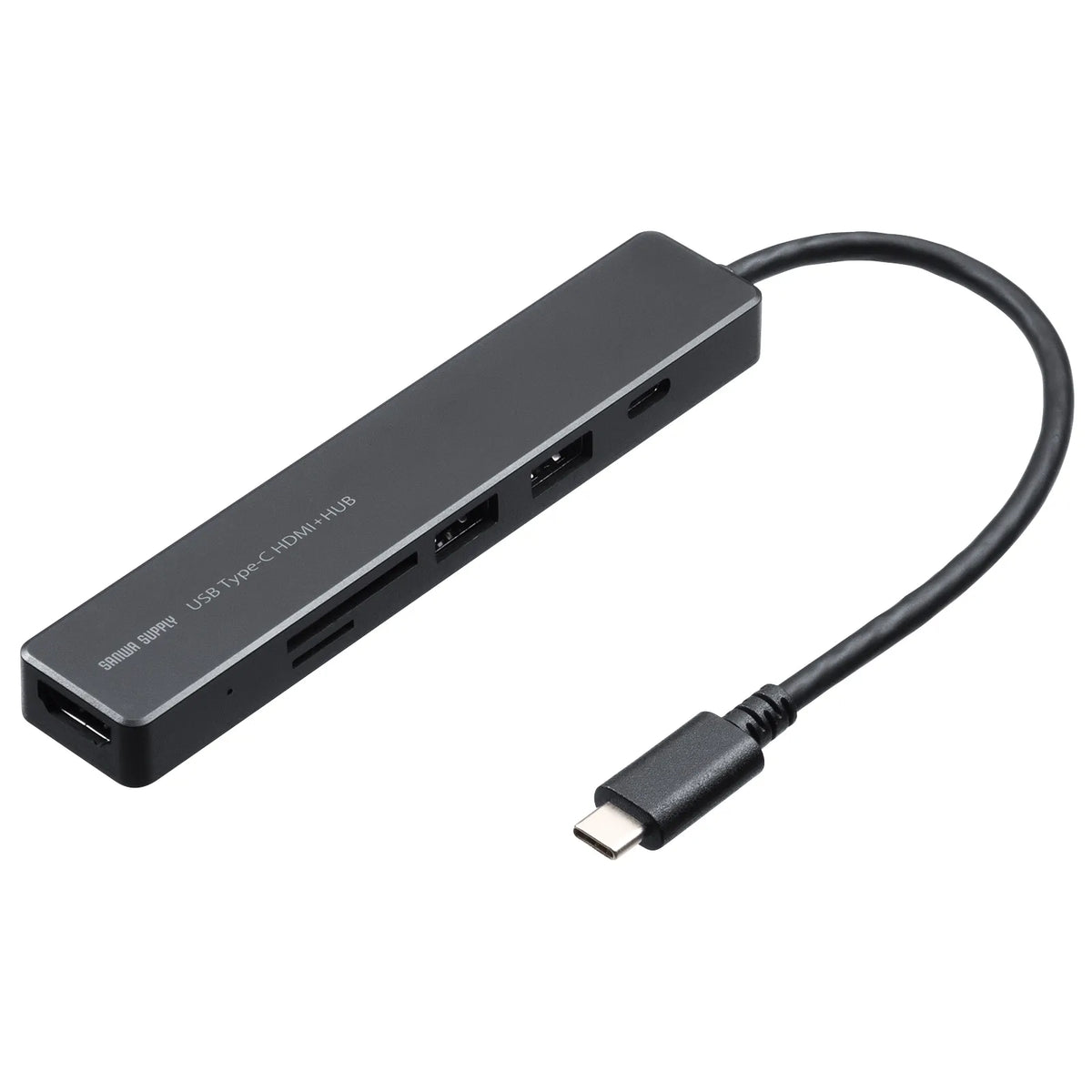

USB Type-C docking hub with HDMI port USB-5TCHC26BK

[USB TYPE-C Hub with HDMI Port and SD/microSD Card Slot]

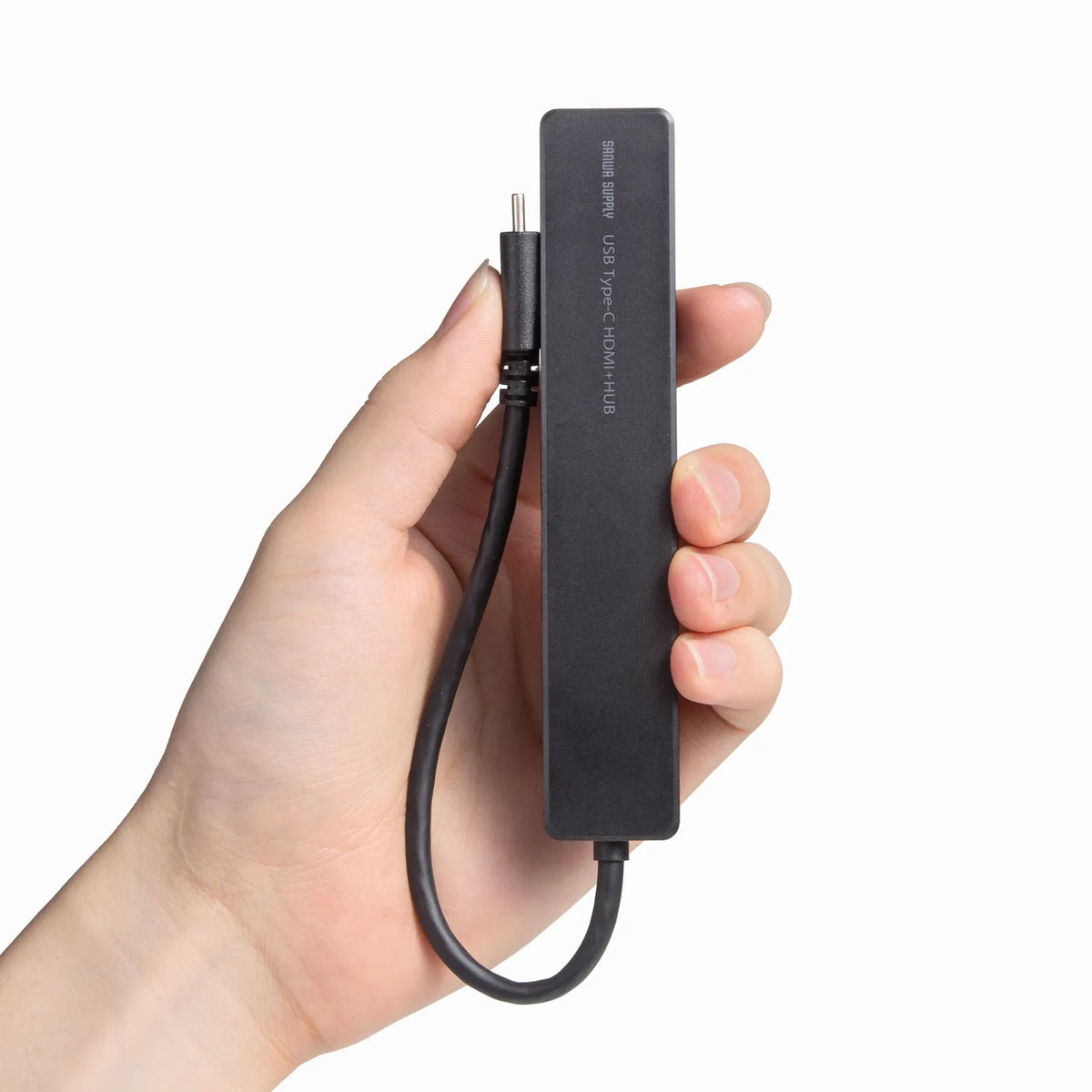

●A slim USB Type-C hub with an HDMI output port.

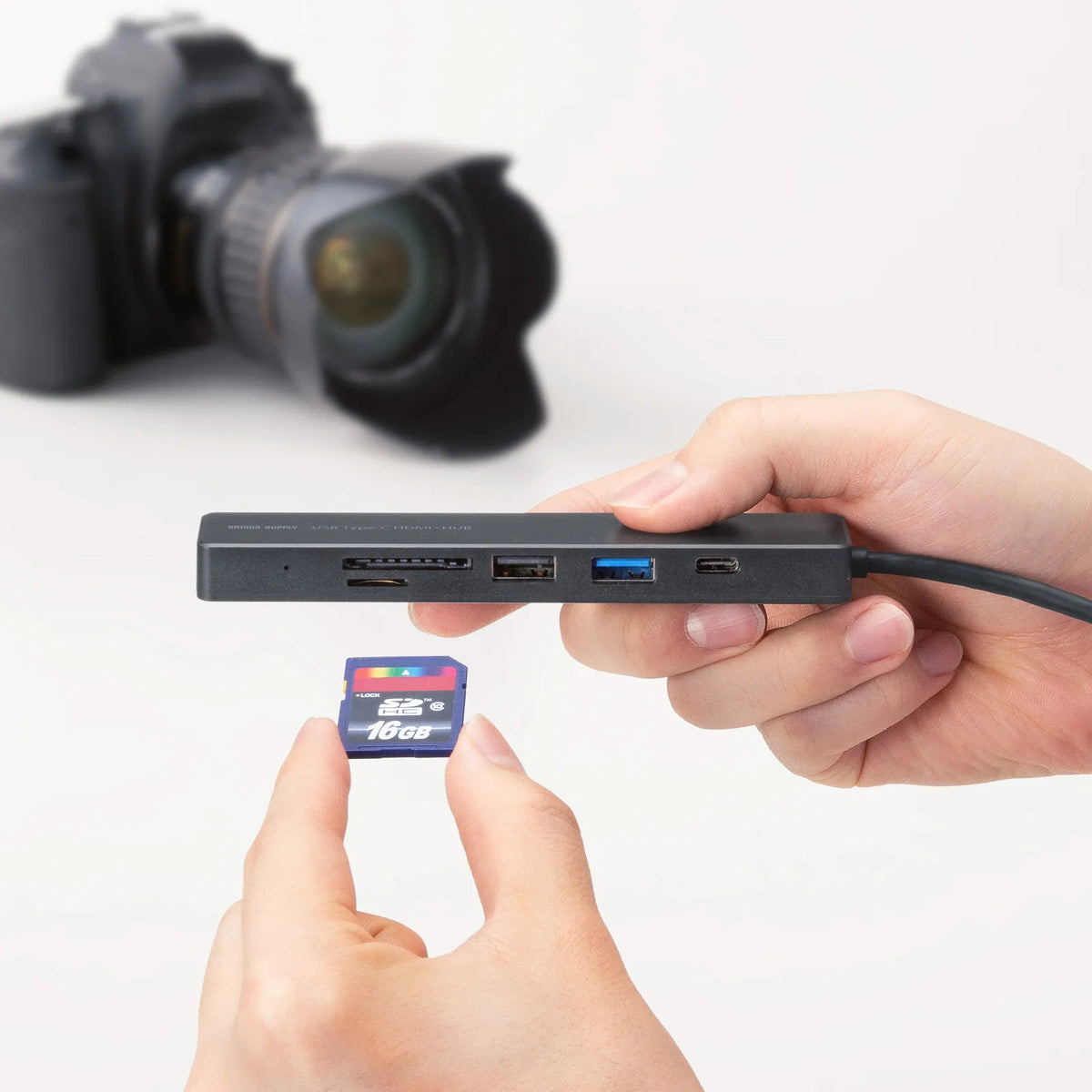

●Equipped with an SD/microSD slot for reading and writing memory cards.

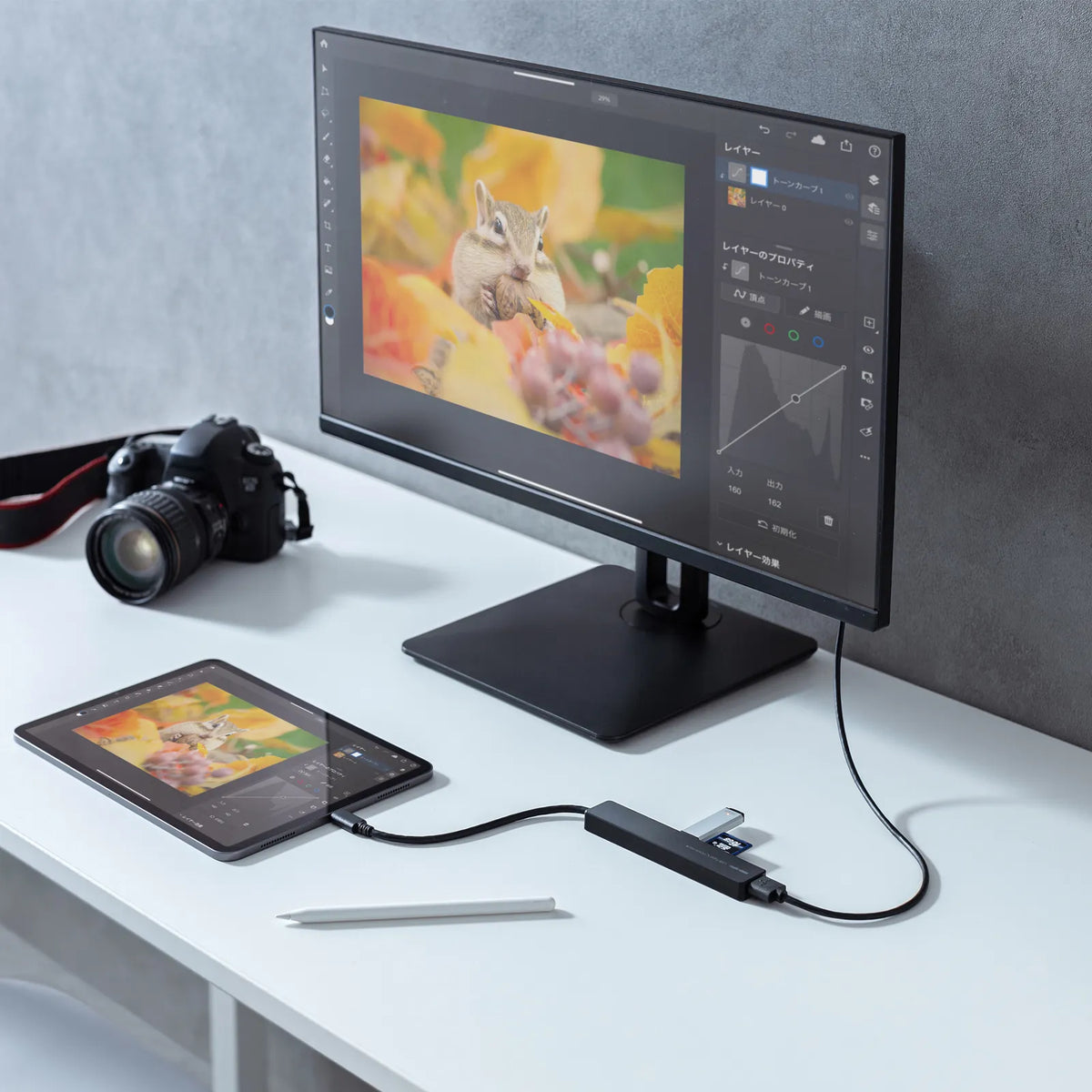

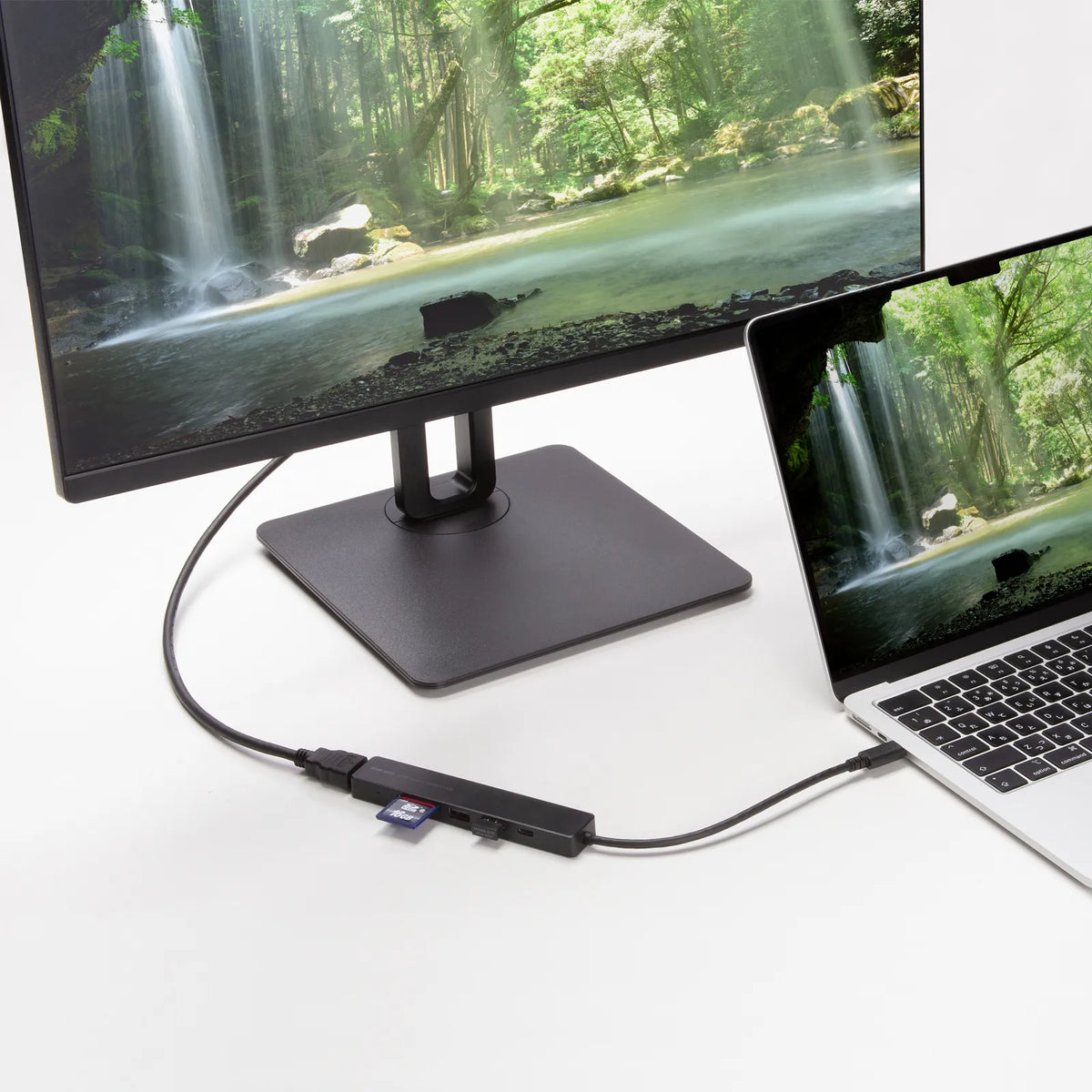

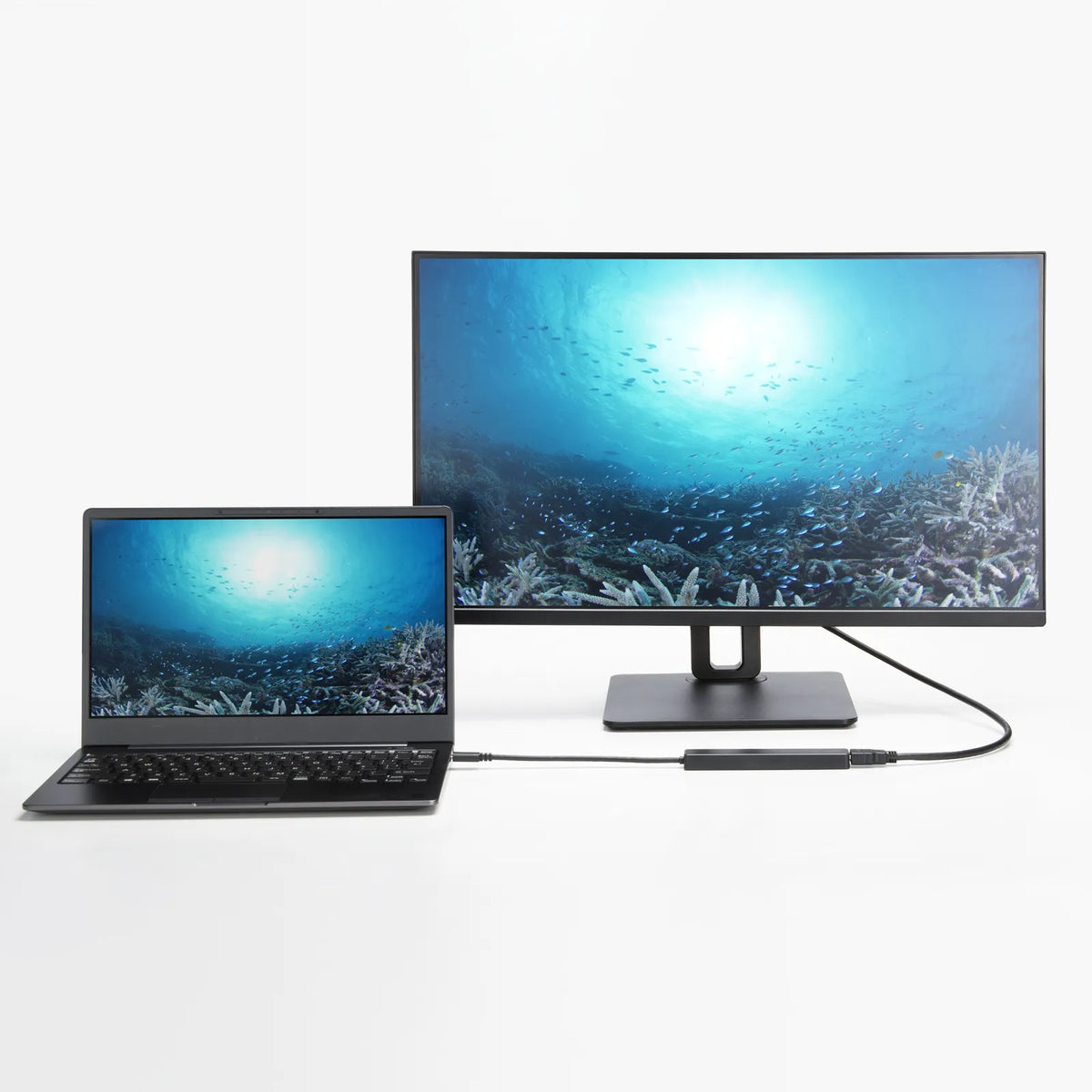

●Supports 4K/30Hz HDMI output, allowing you to easily create a multi-display environment (mirror mode/extended mode) without installing any software.

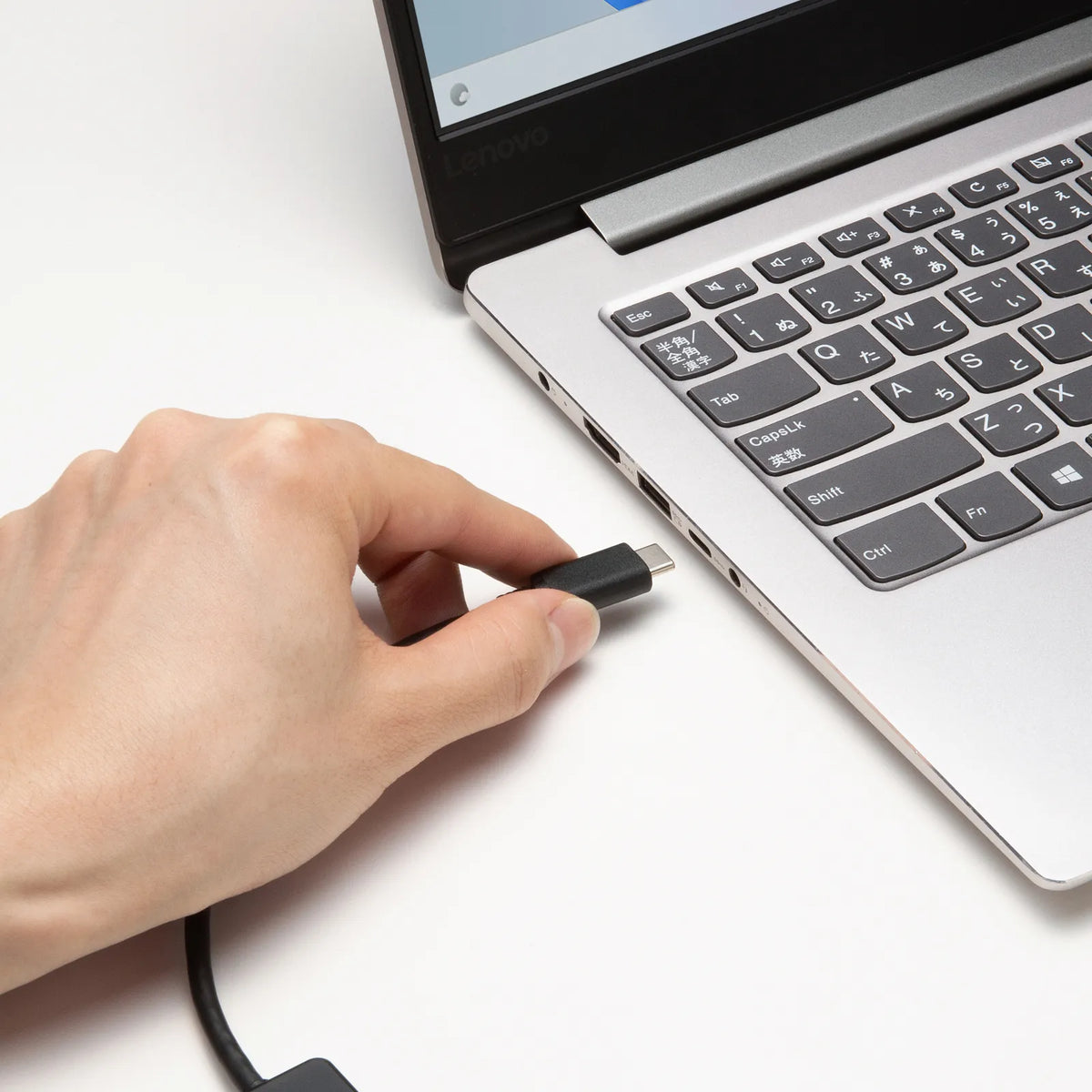

●Uses a USB Type-C connector, so it can be used with computers equipped with a Type-C port.

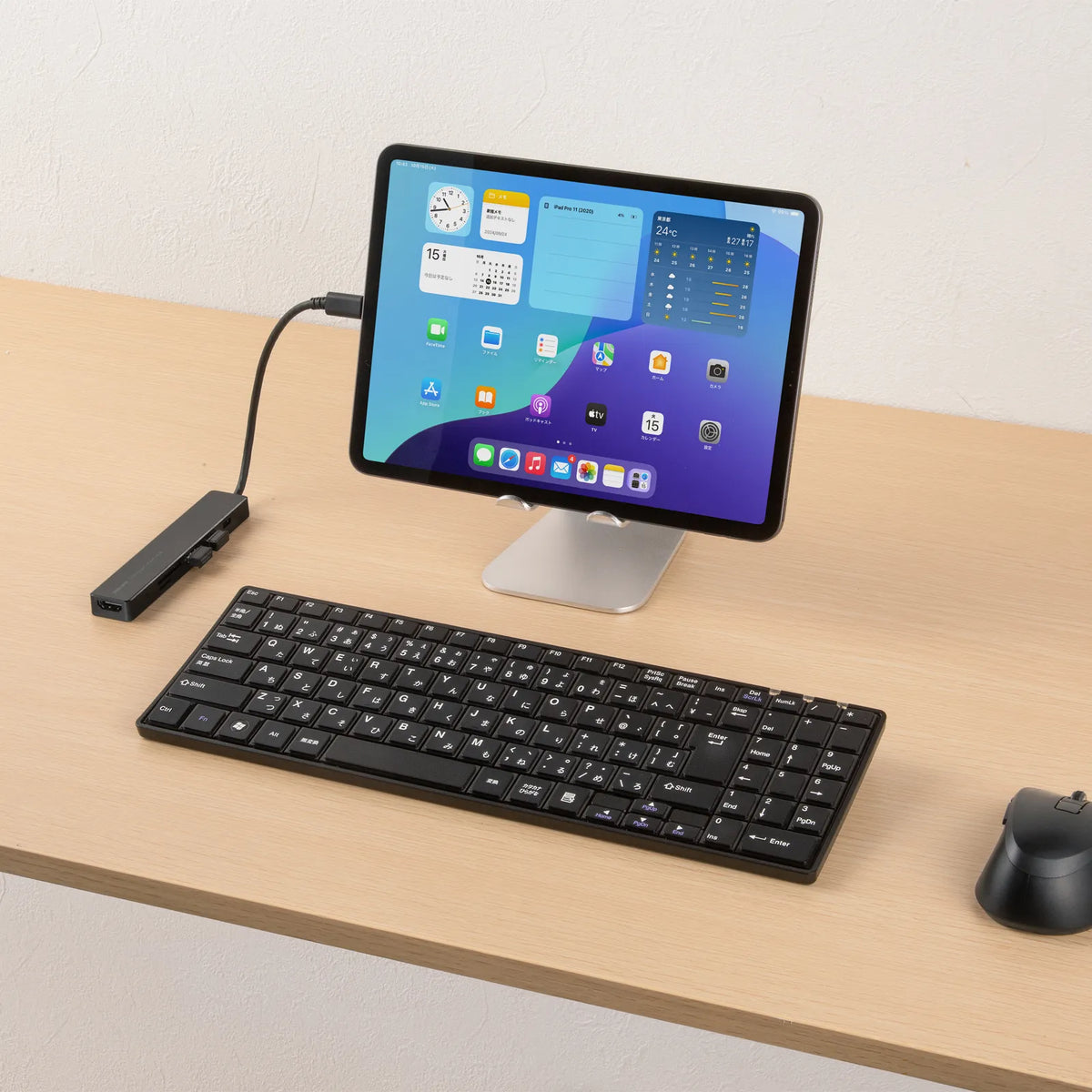

●Equipped with a USB 2.0 port that is less susceptible to noise from USB 5Gbps ports and is suitable for connecting input devices.


＜Limitations＞
※This product must be connected directly to the Type-C port of the computer. It cannot be used with USB hubs or additional USB ports.
※While this product is basically plug-and-play compatible, in rare cases, it may not display or function correctly due to a timing error in USB recognition. Please try plugging and unplugging it again. This is not a defect or malfunction of this product.
※This product is intended for use with Windows OS and Mac OS. It does not operate (display) during system startup or on the BIOS screen.
*Even with compatible models and compatible connected devices/environments, it may not function properly.
*When connecting USB 2.0/1.1 standard products, please note that the maximum transfer speed will be that of the slower standard.
*Connection and operation cannot be guaranteed for all USB Type-C devices.
*Although this product supports the USB 5Gbps (3.2 Gen1) standard, the transfer speed of USB 5Gbps (3.2 Gen1) is the standard value (5Gbps).

【PC connection terminal】
■Connector shape: USB Type-C
■Supported standard: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant
*USB 5Gbps is the same standard as USB 3.2/3.1/3.0, but the name has been changed by USB-IF (USB Implementers Forum).
■Cable length: Approx. 15cm
■Cable type: Integrated cable

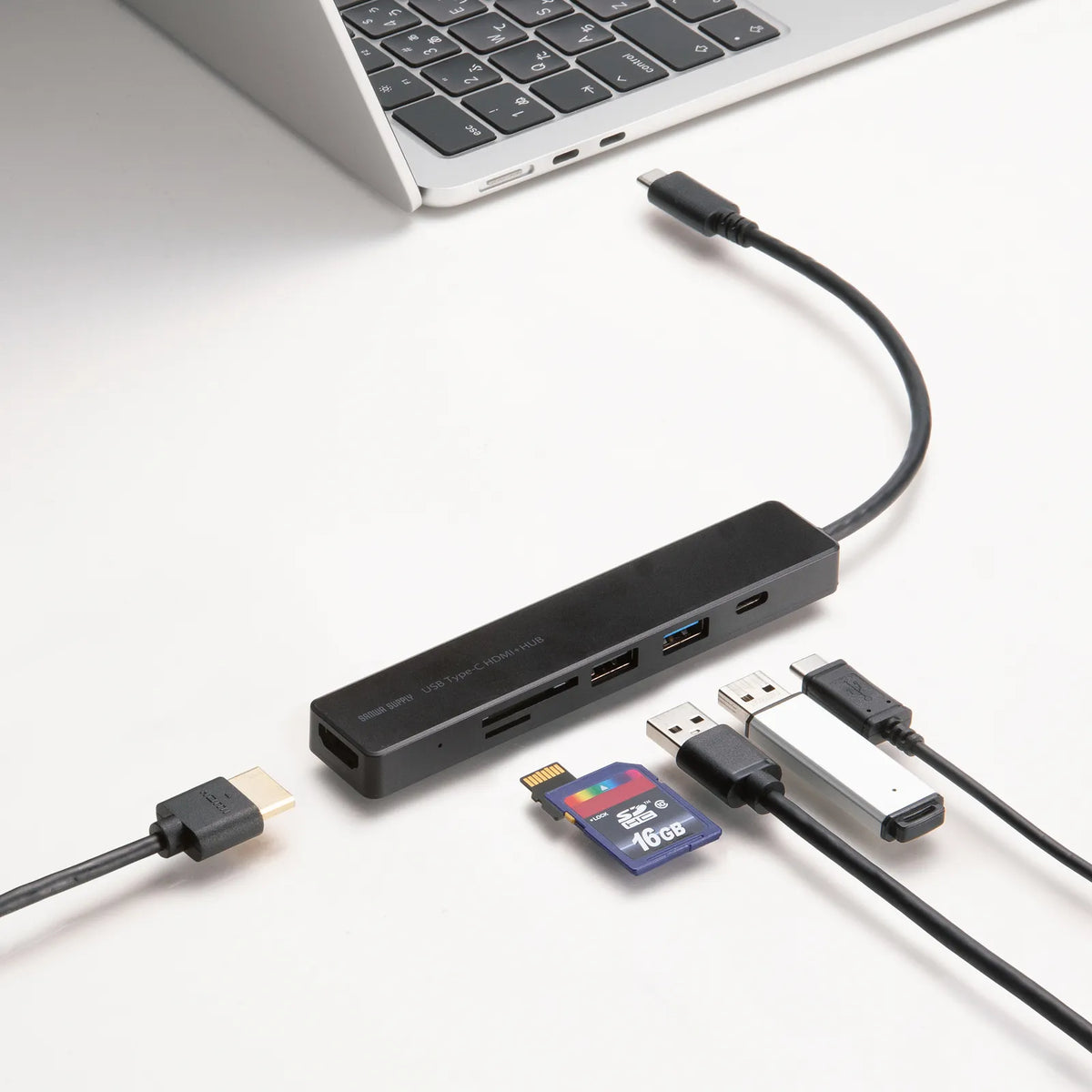

【USB Ports】
■Number of ports: 3 ports
■Maximum data transfer speed (theoretical value): 5Gbps
■USB Type-C female/USB 2.0: 1 port
■USB A female/USB 5Gbps: 1 port
■USB A female/USB 2.0: 1 port
■Supply current: Maximum 3000mA
(Total for all ports)
*If the current consumption of the connected device exceeds the supply current of this product, it may not operate normally with bus power.
【Power Supply】
■Power supply method: Bus power
【Video Output Ports】
■Number of supported output displays: 1
■Maximum supported resolution: 4K/30Hz
■Maximum supported resolution/refresh rate: 3840x2160
*The supported resolutions listed require your computer to support DisplayPort Alt Mode (DP1.4 or higher).
■HDCP: 1.4
■HDMI: 1 port
【Card Reader】
■Slot: SD memory card, microSD card
■Supported media standards: SDXC, SDHC, SD, microSDXC, microSDHC, microSD
■Maximum supported media (SD card): 2000GB
■Maximum supported media (microSD card): 2000GB
【Common Specifications】
■Supported OS Windows: 11, 10
■Supported OS mac: macOS (Sequoia) 15, macOS (Sonoma) 14, macOS (Ventura) 13, macOS (Monterey) 12, macOS (BigSur) 11
■Supported OS Android: Android 14・15
■Supported OS iOS: iOS 17・18
■Supported OS iPadOS: iPadOS 17・18
■Supported OS ChromeOS: ChromeOS
■Compatible Devices: Windows-based (DOS/V) PCs, Apple Mac series, Chrome OS PCs, Android smartphones and tablets, iPad series, iPhone series
*Models with a USB port (Type-C female) and whose operation is guaranteed by the PC manufacturer.
*To operate in a USB 5Gbps (USB3.2 Gen1) environment, the PC must have a USB 5Gbps (USB3.2 Gen1) port.
*Only Type-C ports that support video output are supported. (DisplayPort Alt Mode)
*Monitors with USB Type-C connections are not supported.
*Some PCs and USB devices may not be compatible.
