SANWA SUPPLY
USB Type-C Hub USB-3TCH8BK
USB Type-C Hub USB-3TCH8BK
GTIN（JAN）：4969887780077
SKU：USB-3TCH8BK
Regular price
¥4,211 JPY
Regular price
Sale price
¥4,211 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[USB Hub for Connecting USB 3.0 Devices with USB Type C Connector]

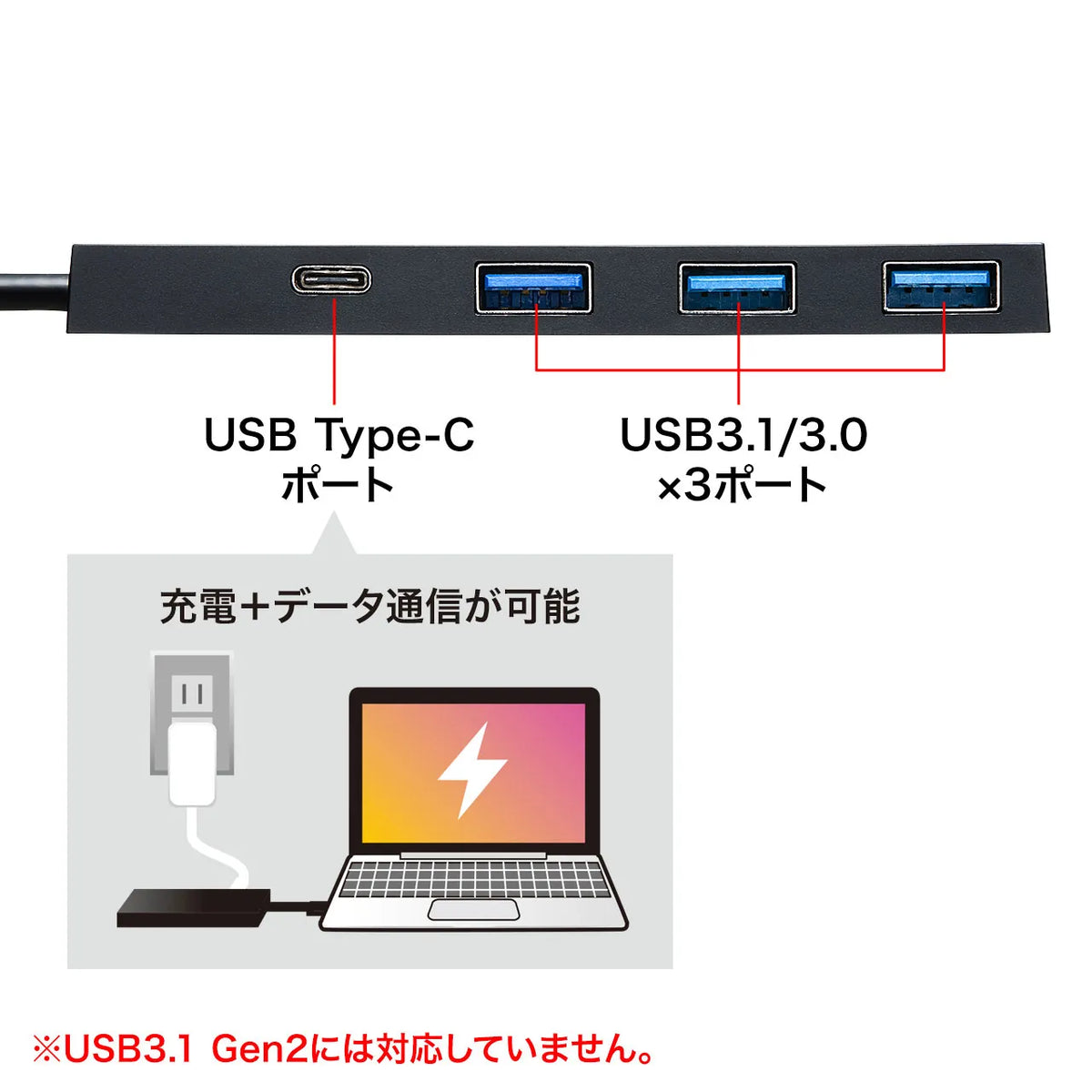

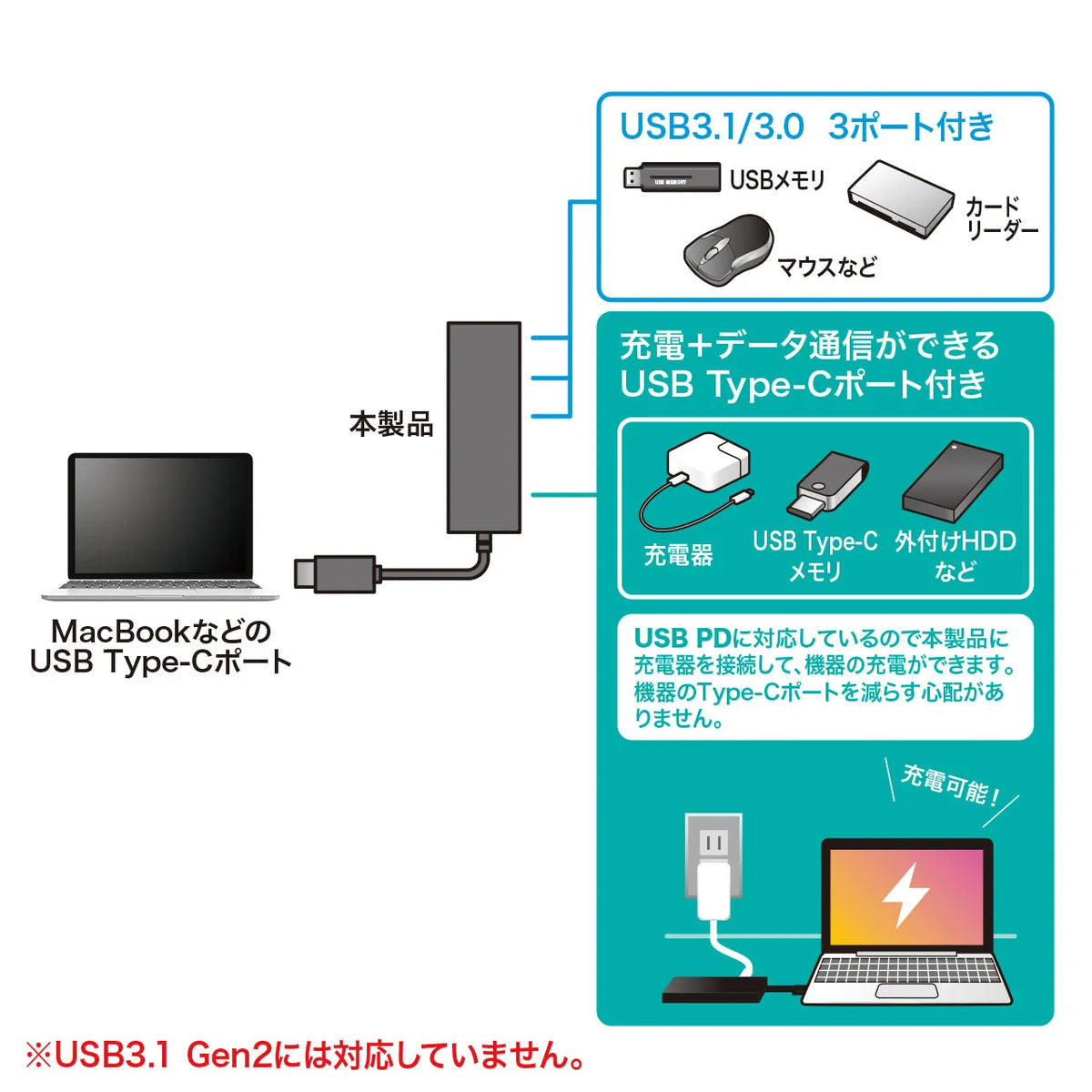

●Equipped with a Type-C connector, it can be used with computers equipped with a Type-C port.
●With 3 USB A ports and a Type-C port, both USB Type-C devices can be connected.
*Not compatible with USB Type-C monitors.
●Supports a transfer speed of USB 5Gbps [theoretical value].
●Compact and easy to carry.
●The cable is directly attached, so there is no need to worry about losing the cable.
●Supports USB PD (60W), and can charge the computer connected using the USB Type-C port.
*The computer must be PD compatible.
●Type-C port that supports both PD and data transfer.
＜Please check before purchasing＞
*The maximum transfer speed of this product is USB 5Gbps [theoretical value].
*Although this product supports USB 5Gbps, it does not guarantee a transfer speed of USB 5Gbps (theoretical value).
*USB 5Gbps is the same standard as USB 3.2 Gen1/USB 3.1 Gen1/USB 3.0, which was renamed by USB-IF (USB Implementers Forum).
*While this product's USB A port can connect to USB 2.0/1.1 devices, the transfer speed will be limited to USB 2.0/1.1 speeds.
*Although this product is a USB hub, it cannot guarantee connection and operation with all USB devices.
*It does not support USB Type-C monitors.
*It does not support USB 10Gbps.
＜PC Connection Terminal＞
■Connector Shape: USB Type-C
■Supported Standard: USB 5Gbps (USB 3.2 Gen1/3.1 Gen1/3.0) compliant
*USB 5Gbps is the same standard as USB 3.2/3.1/3.0, which was renamed by USB-IF (USB Implementers Forum).
■Maximum USB PD output: Approx. 90W
■Cable length: Approx. 15cm
■Cable type: Integrated cable
＜USB Port＞
■Number of ports: 4 ports
■Maximum data transfer speed (theoretical value): 5Gbps
■USB Type-C female/USB 5Gbps: 1 port
PD compatible port (PD & data compatible)
*Not compatible with monitors connected via USB Type-C.
＜Power＞
■Power supply method: Bus power/Self power (when power is connected)
*When using the PD compatible AC adapter included with the computer, or a PD compatible AC adapter, it can also be used as self power.
*If the output from the USB PD compatible AC adapter is insufficient, some computers may not enter charging mode. In that case, please try changing to a USB PD compatible AC adapter with a higher output.
*USB PD compatible adapter is not included. Please prepare one separately.
*A USB PD compatible computer is required.
■Power consumption: 10W
■USB PD input port: Yes
■Maximum USB PD input: 100W
＜Common specifications＞
■Driver: Not required
■Product size: W110 x D33 x H10.5mm
■Weight: 42g
●Equipped with a Type-C connector, it can be used with computers equipped with a Type-C port.
●With 3 USB A ports and a Type-C port, both USB Type-C devices can be connected.
*Not compatible with USB Type-C monitors.
●Supports a transfer speed of USB 5Gbps [theoretical value].
●Compact and easy to carry.
●The cable is directly attached, so there is no need to worry about losing the cable.
●Supports USB PD (60W), and can charge the computer connected using the USB Type-C port.
*The computer must be PD compatible.
●Type-C port that supports both PD and data transfer.
＜Please check before purchasing＞
*The maximum transfer speed of this product is USB 5Gbps [theoretical value].
*Although this product supports USB 5Gbps, it does not guarantee a transfer speed of USB 5Gbps (theoretical value).
*USB 5Gbps is the same standard as USB 3.2 Gen1/USB 3.1 Gen1/USB 3.0, which was renamed by USB-IF (USB Implementers Forum).
*While this product's USB A port can connect to USB 2.0/1.1 devices, the transfer speed will be limited to USB 2.0/1.1 speeds.
*Although this product is a USB hub, it cannot guarantee connection and operation with all USB devices.
*It does not support USB Type-C monitors.
*It does not support USB 10Gbps.
＜PC Connection Terminal＞
■Connector Shape: USB Type-C
■Supported Standard: USB 5Gbps (USB 3.2 Gen1/3.1 Gen1/3.0) compliant
*USB 5Gbps is the same standard as USB 3.2/3.1/3.0, which was renamed by USB-IF (USB Implementers Forum).
■Maximum USB PD output: Approx. 90W
■Cable length: Approx. 15cm
■Cable type: Integrated cable
＜USB Port＞
■Number of ports: 4 ports
■Maximum data transfer speed (theoretical value): 5Gbps
■USB Type-C female/USB 5Gbps: 1 port
PD compatible port (PD & data compatible)
*Not compatible with monitors connected via USB Type-C.
＜Power＞
■Power supply method: Bus power/Self power (when power is connected)
*When using the PD compatible AC adapter included with the computer, or a PD compatible AC adapter, it can also be used as self power.
*If the output from the USB PD compatible AC adapter is insufficient, some computers may not enter charging mode. In that case, please try changing to a USB PD compatible AC adapter with a higher output.
*USB PD compatible adapter is not included. Please prepare one separately.
*A USB PD compatible computer is required.
■Power consumption: 10W
■USB PD input port: Yes
■Maximum USB PD input: 100W
＜Common specifications＞
■Driver: Not required
■Product size: W110 x D33 x H10.5mm
■Weight: 42g
