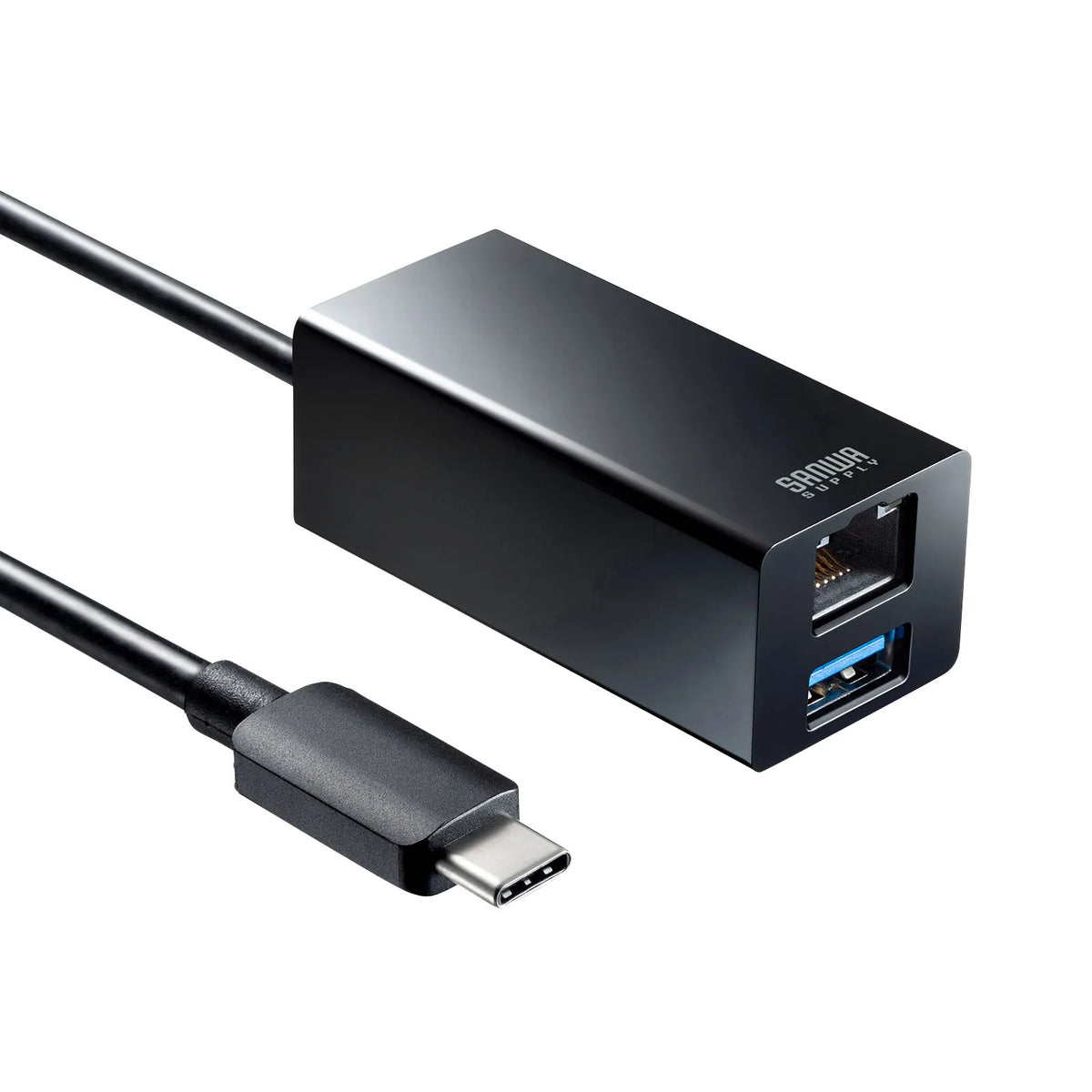

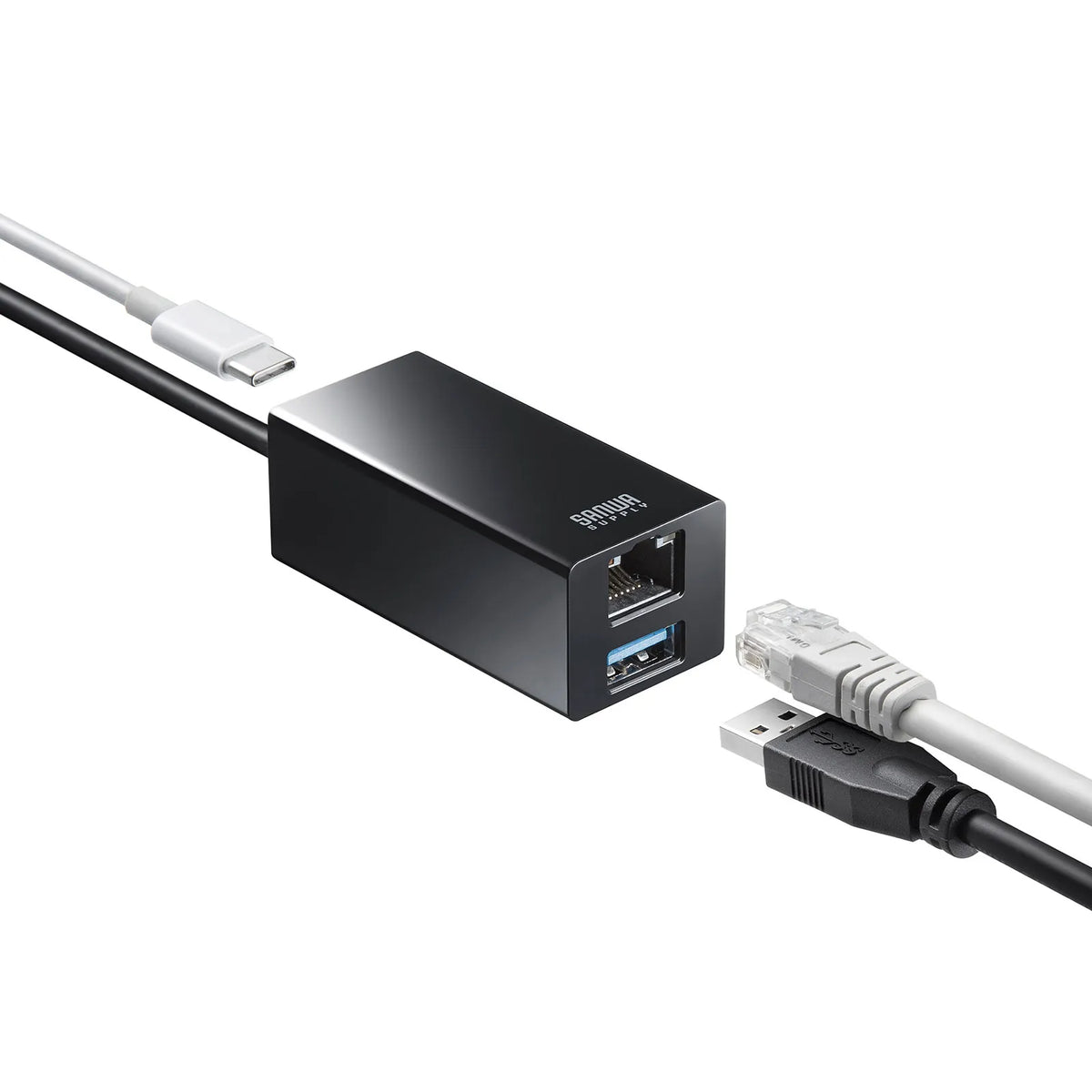

Gigabit LAN Adapter with USB Type-C Hub USB-3TCH33BK

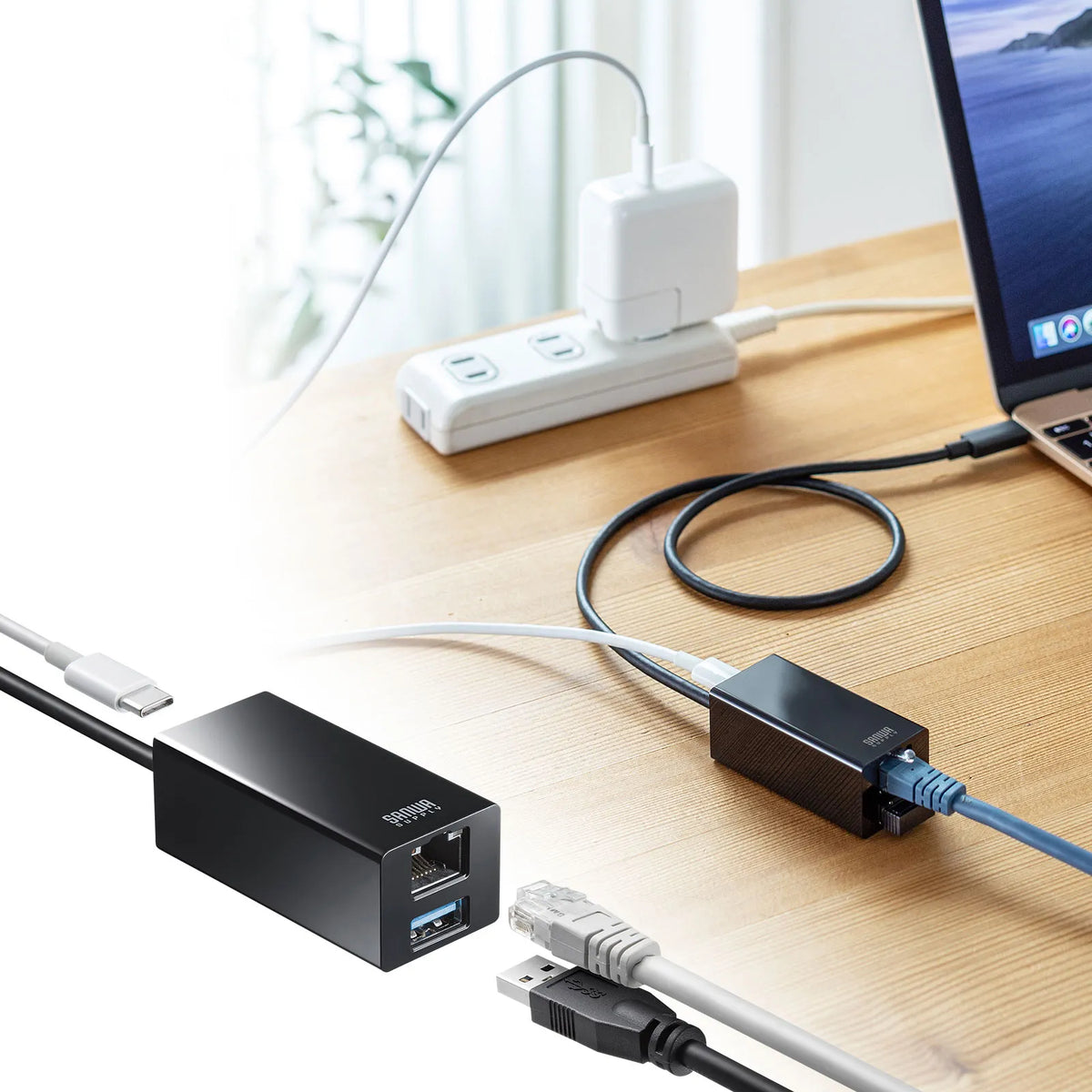

[USB hub with a function to convert a Type-C port that can be used like a cable into a LAN port]

●Built-in adapter that converts a USB Type-C port into a LAN port.
●Ideal for when you want to connect to LAN via a wired connection as it converts USB Type-C to a LAN port.
●Supports Gigabit LAN.
●Has 2 ports on the hub: 1 x USB 5Gbps A port and 1 x Type-C port.
●Supports USB 5Gbps SuperSpeed ​​mode (5Gbps) [standard value].
●Supports "USB Power Delivery (USB PD)" via USB Type-C, allowing power to be supplied to the connected computer via this product.
*PD3.0 (100W 20V 5A)
*Requires a PD-compatible computer.
*Although this product is a USB hub, it does not guarantee connection and operation with all USB devices.
*Not compatible with USB Type-C monitors.

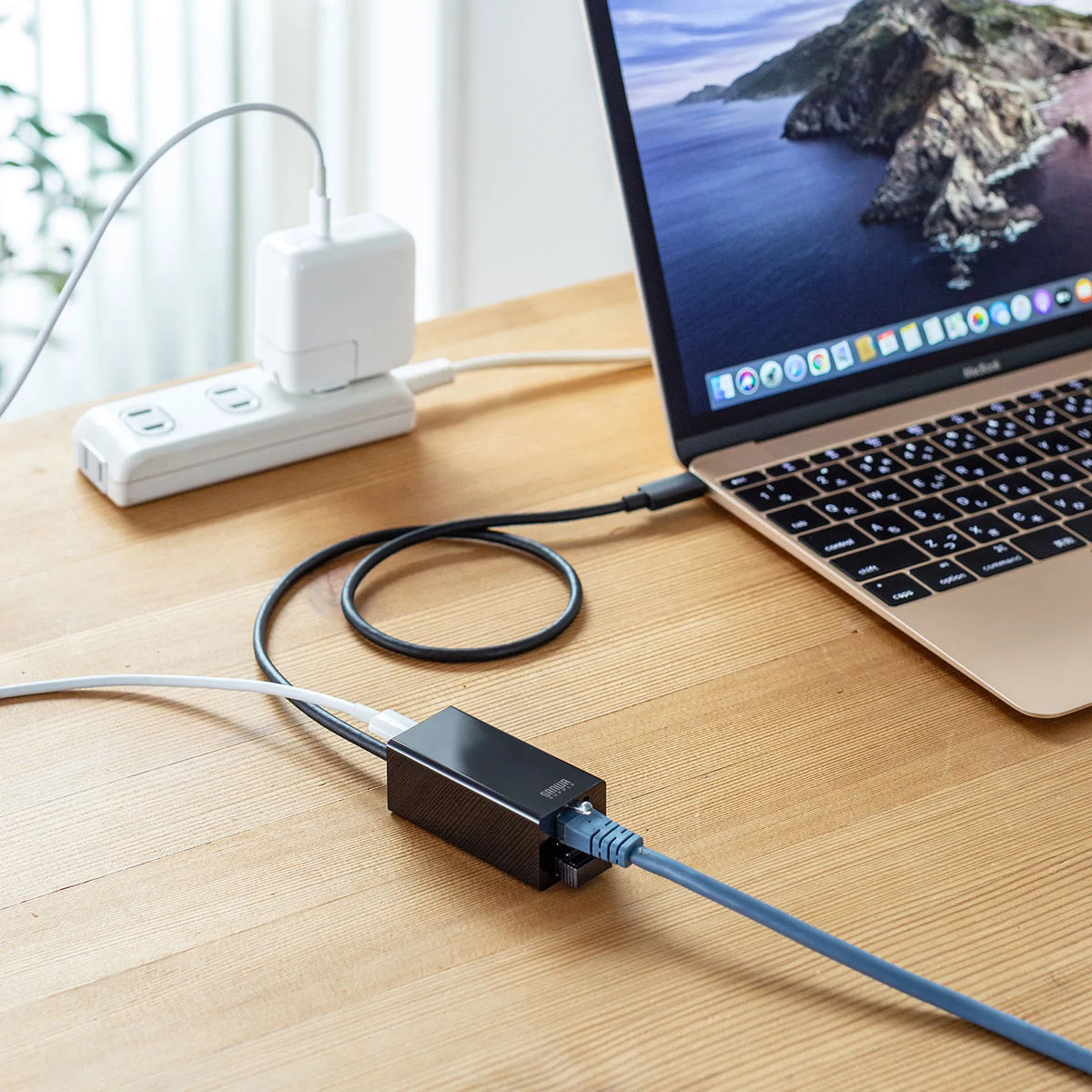

*Can also be used as a self-powered device using the PD-compatible AC adapter included with the computer.
≪Please check before purchasing≫
*While it supports Wake On LAN functionality, compatibility varies depending on the PC model, so we cannot guarantee operation.

＜PC connection terminal＞
■Connector shape: USB Type-C
■Supported standard: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant
*USB 5Gbps is the same standard as USB3.2/3.1/3.0, but the name has been changed by USB-IF (USB Implementers Forum).
■Maximum USB PD output: Approximately 92W
■Cable length: Approximately 50cm
■Cable type: Integrated cable

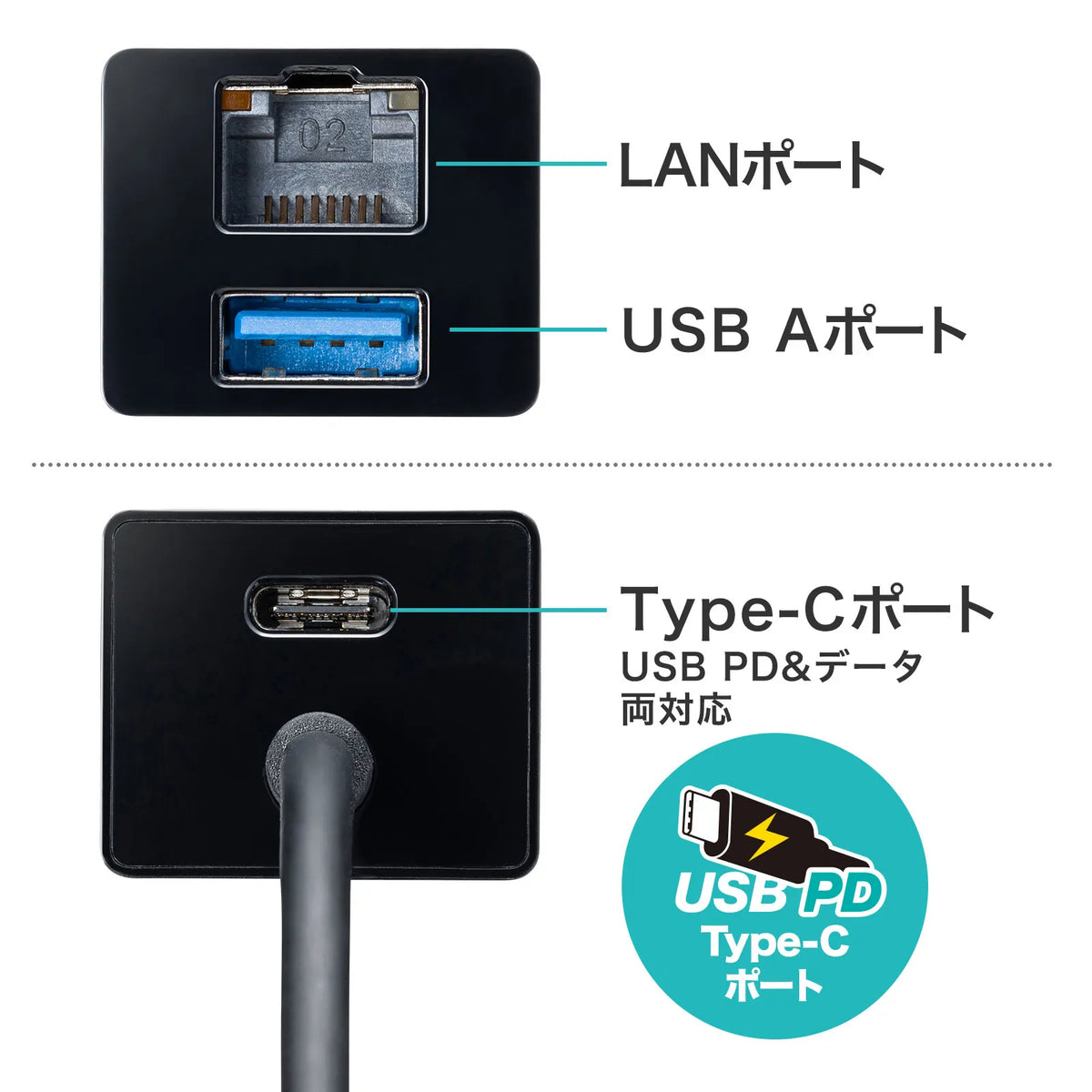

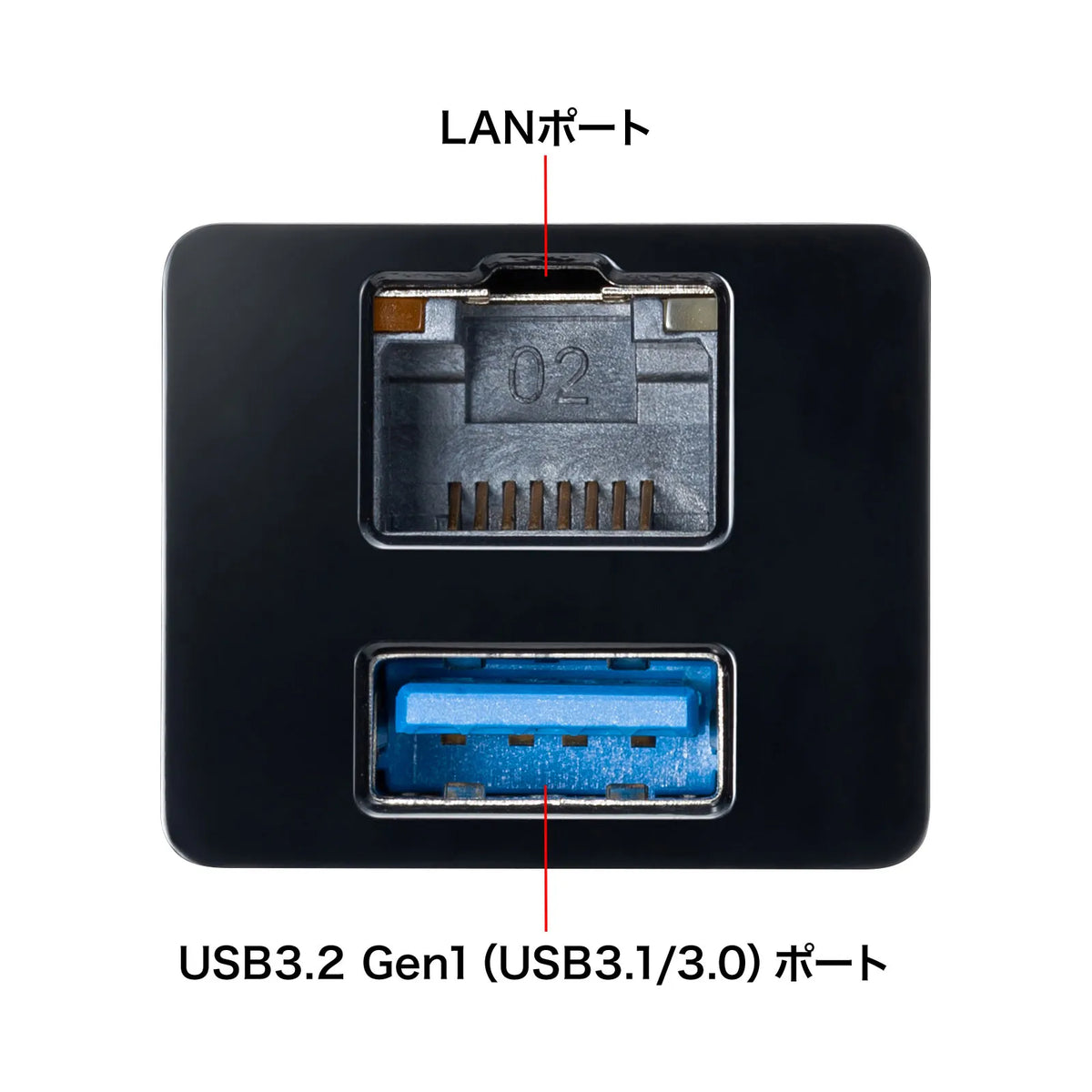

＜USB port＞
■Number of ports: 2 ports
■Maximum data transfer speed (theoretical value): 5Gbps
■USB Type-C female/USB 5Gbps: 1 port
PD compatible port (PD & data compatible)
*Not compatible with USB Type-C connected monitors.

＜Power Supply＞
■Power supply method: Bus power/Self power (when power is connected)
*When using the PD-compatible AC adapter included with the PC, or a PD-compatible AC adapter, it can also be used as self-powered.
*If the output from the USB PD-compatible AC adapter is insufficient, some PCs may not enter charging mode. In that case, please try changing to a USB PD-compatible AC adapter with a higher output.
*USB PD-compatible adapters are not included. Please prepare them separately.
*A USB PD-compatible PC is required.
■Supply current: Maximum 830mA (total for all ports/when bus-powered)
*If the current consumption of the connected device exceeds the supply current of this product, it may not operate properly with bus power.
■Power consumption: Approx. 8W

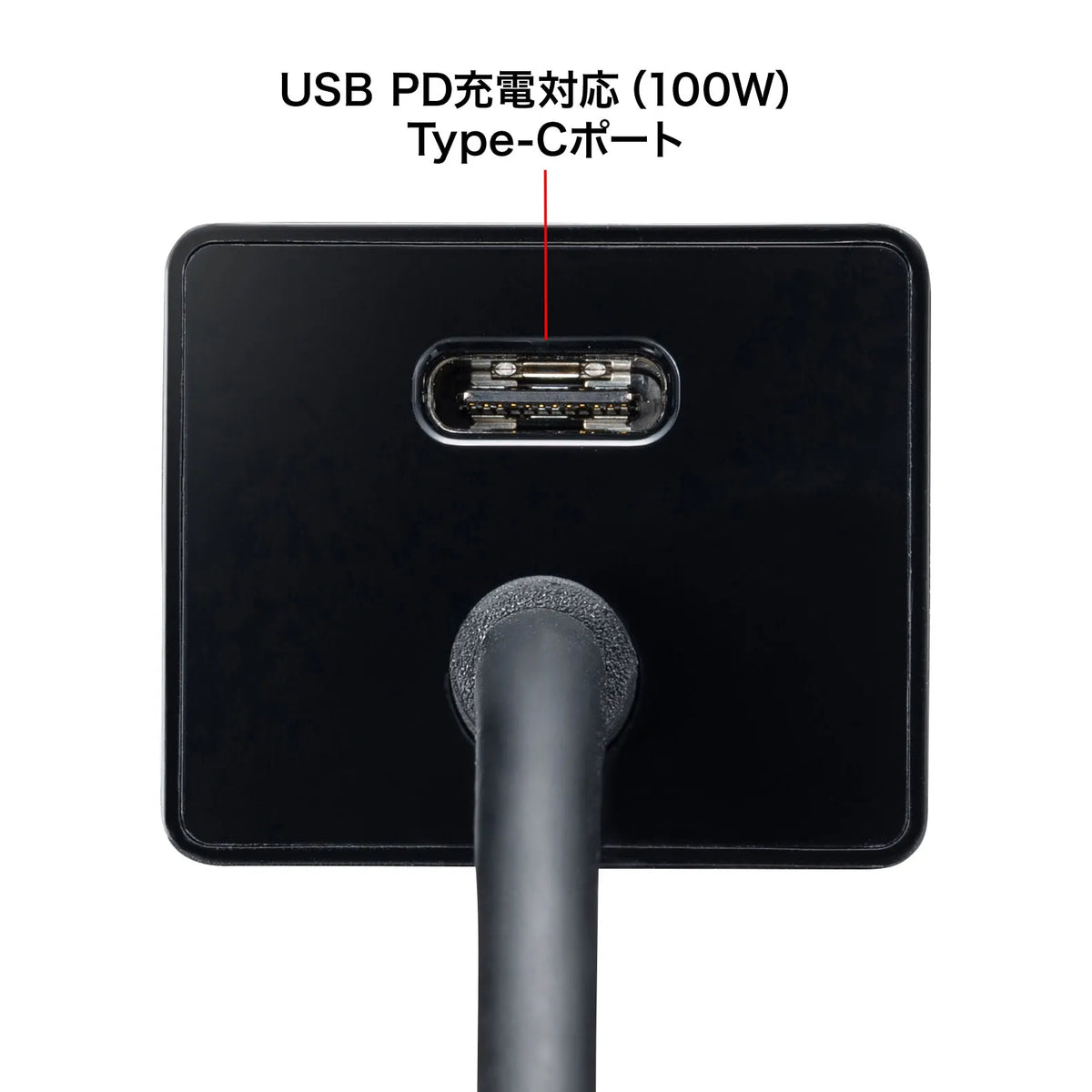

■USB PD input port: Yes
■Maximum USB PD input: 100W

＜LAN port＞
■Port shape: RJ-45 port (Auto MDI/MDI-X), Auto-Negotiation compatible
■Supported standards: IEEE 802.3 (10BASE-T Ethernet), IEEE 802.3u (100BASE-TX Fast Ethernet), IEEE 802.3ab (1000BASE-T)
*Regarding communication speed, 1000BASE-T is supported only when connected via USB3.2 Gen1 (USB3.1/3.0).
■Communication Mode: Full Duplex/Half Duplex
■Access Method: CSMA/CD
■Power Supply Voltage: 5V

＜Common Specifications＞

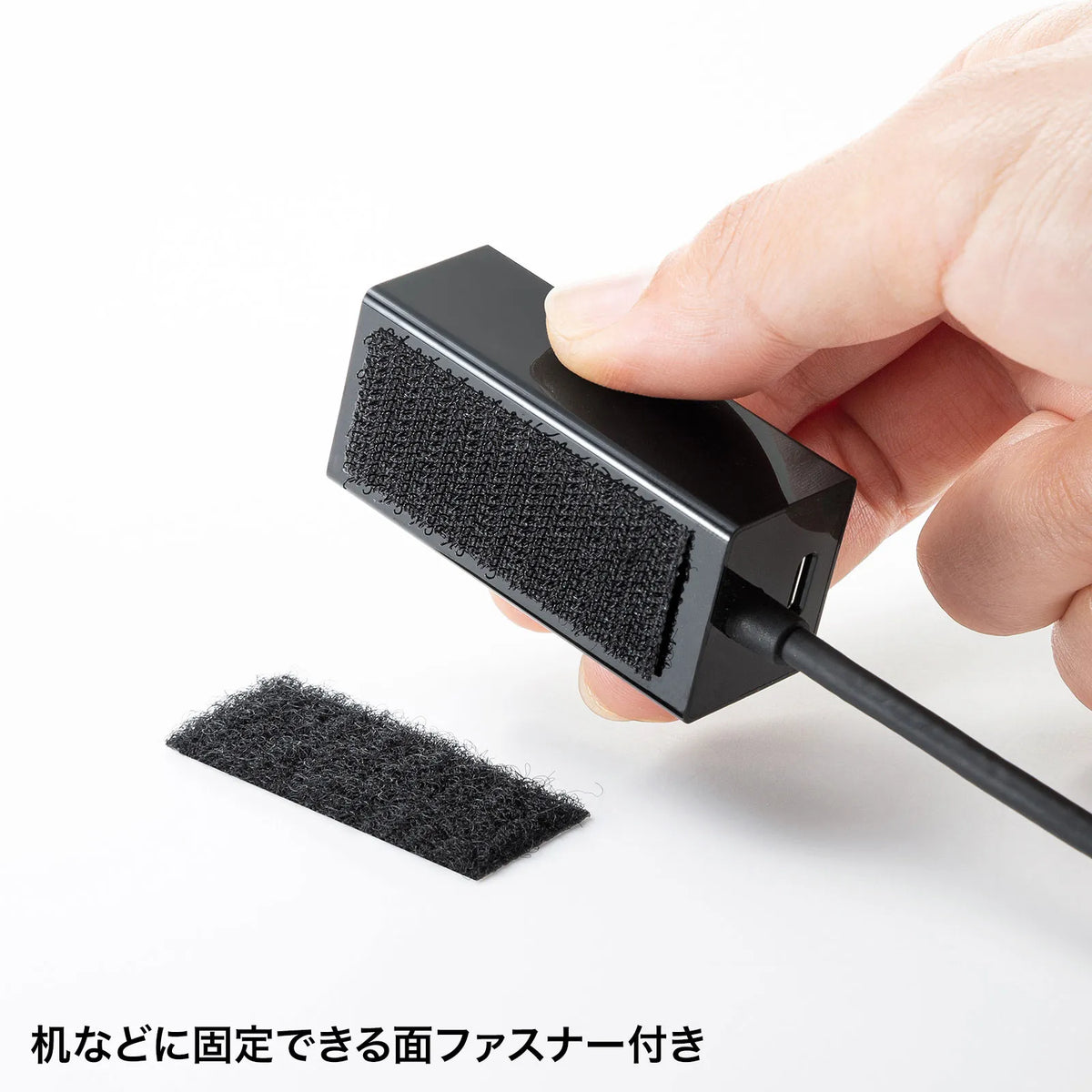

■Set Contents: Instruction Manual, Velcro
■Driver: Not Required
■Product Size: W28 x D59.7 x H23.5mm
■Product Weight: Approx. 39g
