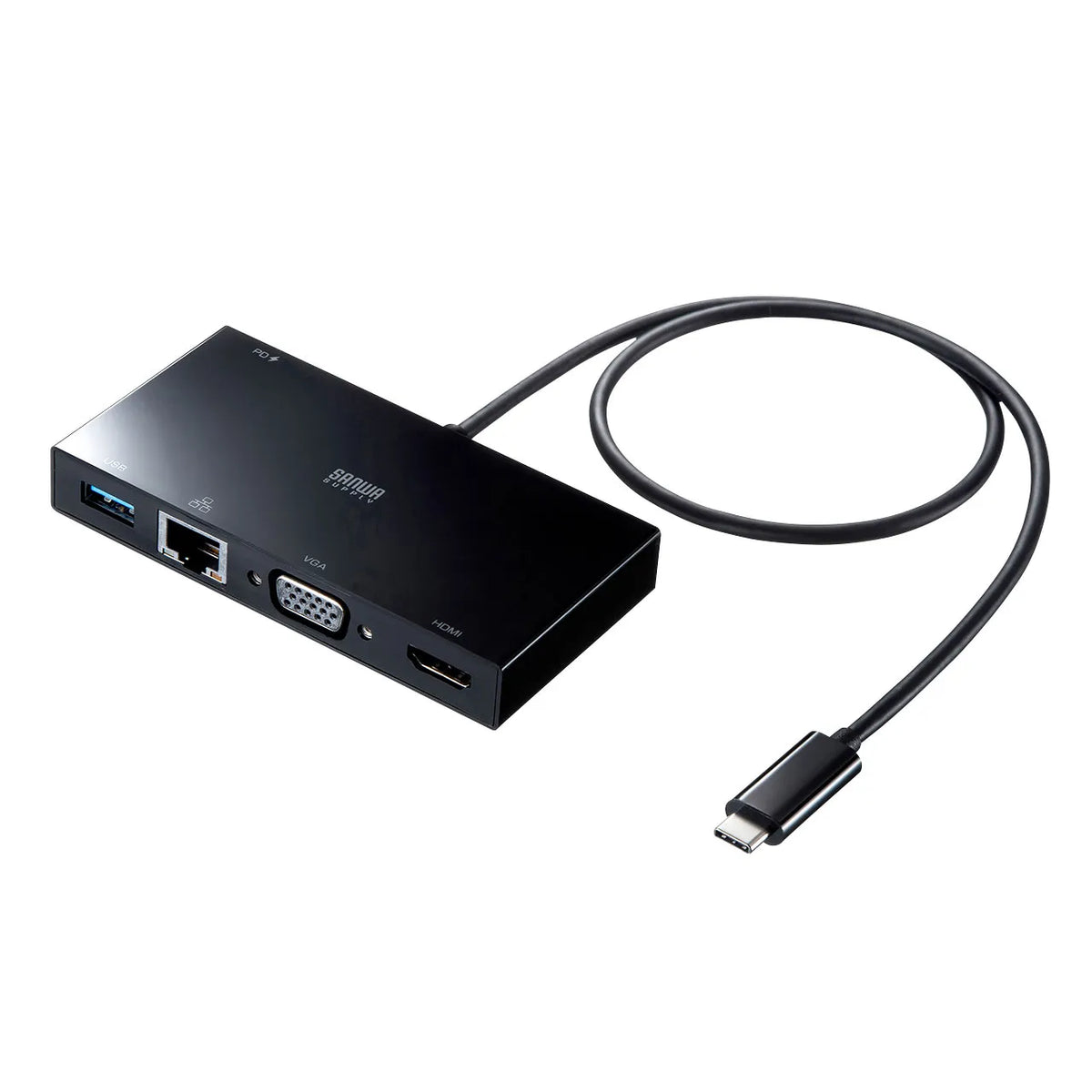

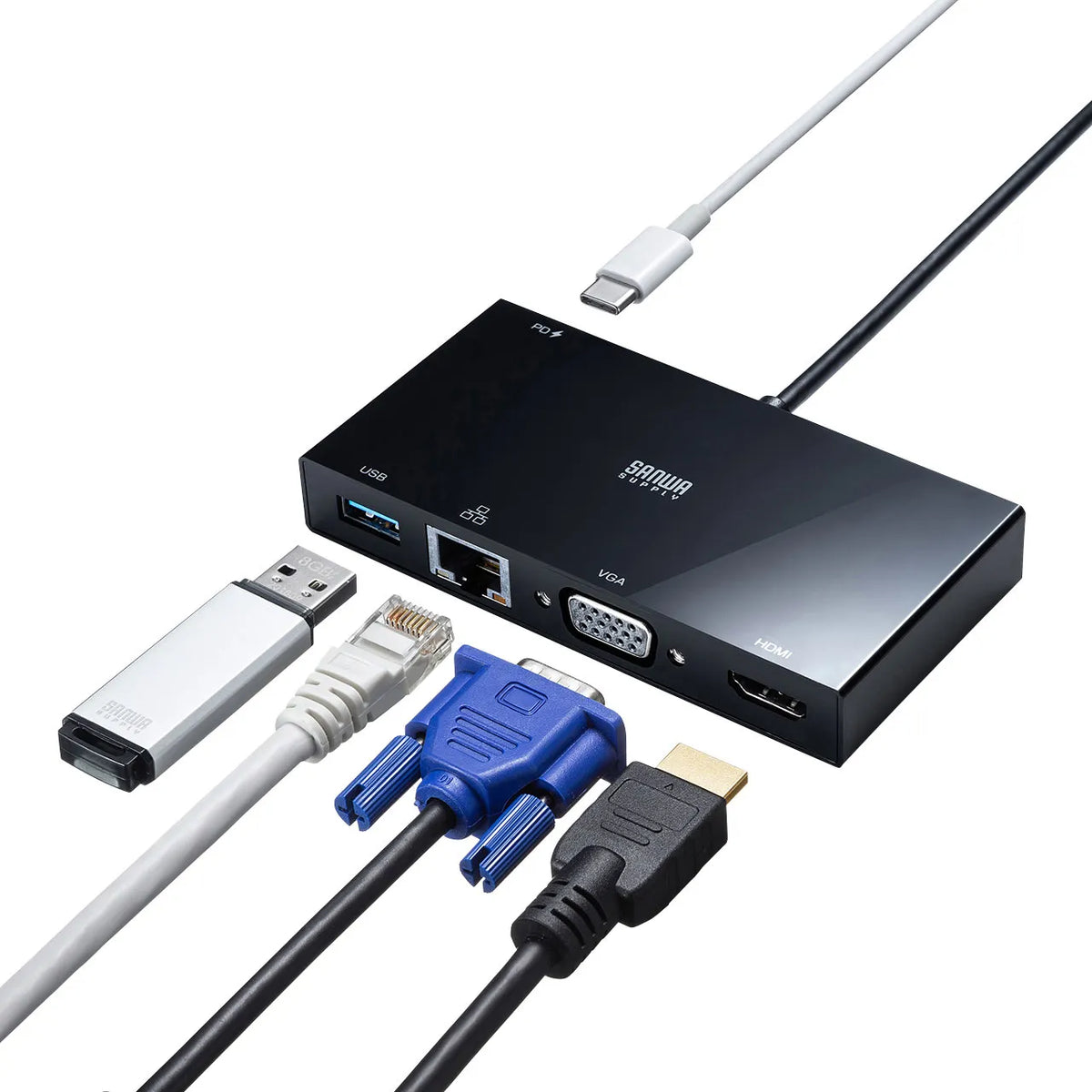

USB Type-C Mobile Docking Station USB-3TCH30BK

[Mobile docking station ideal for teleworking and shared offices]

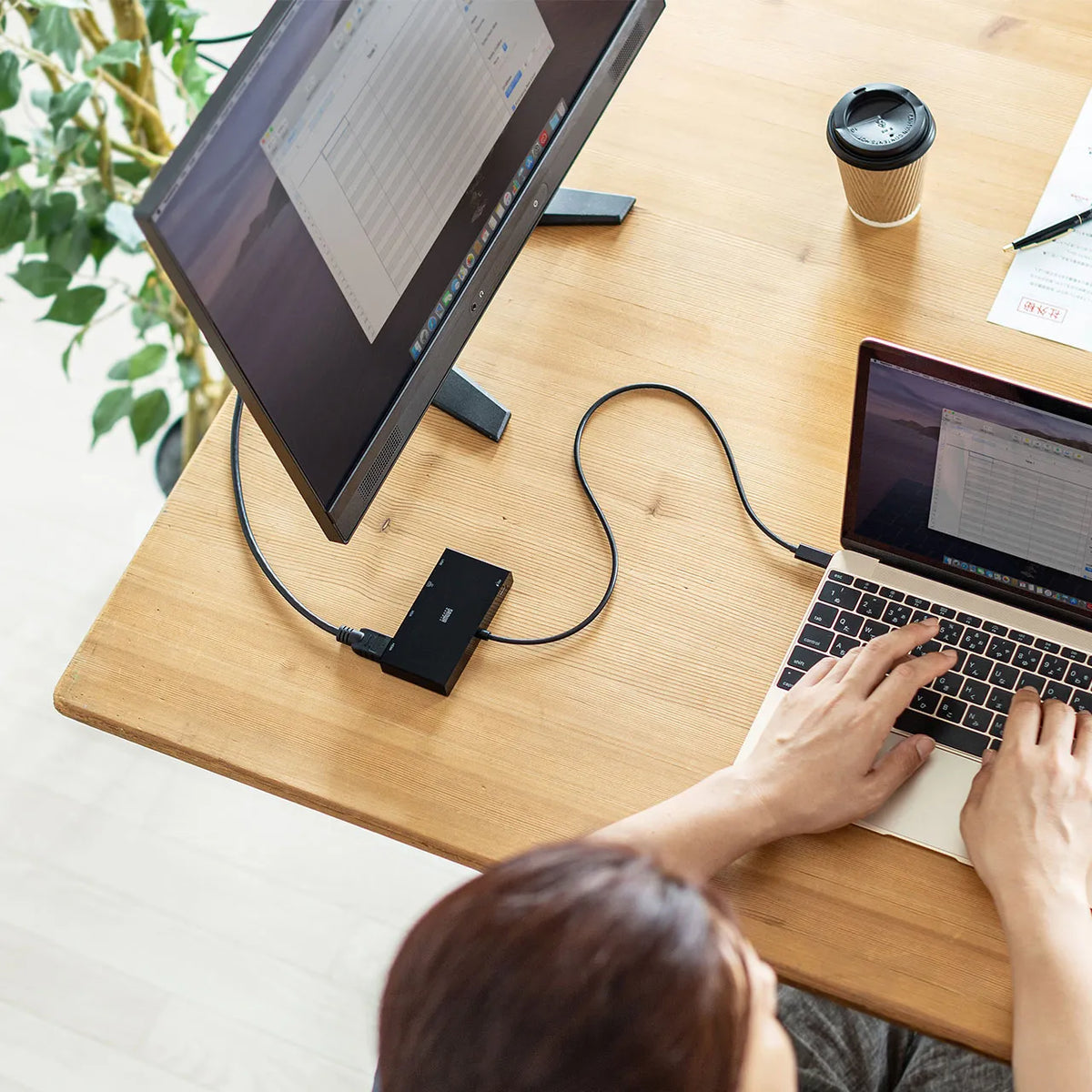

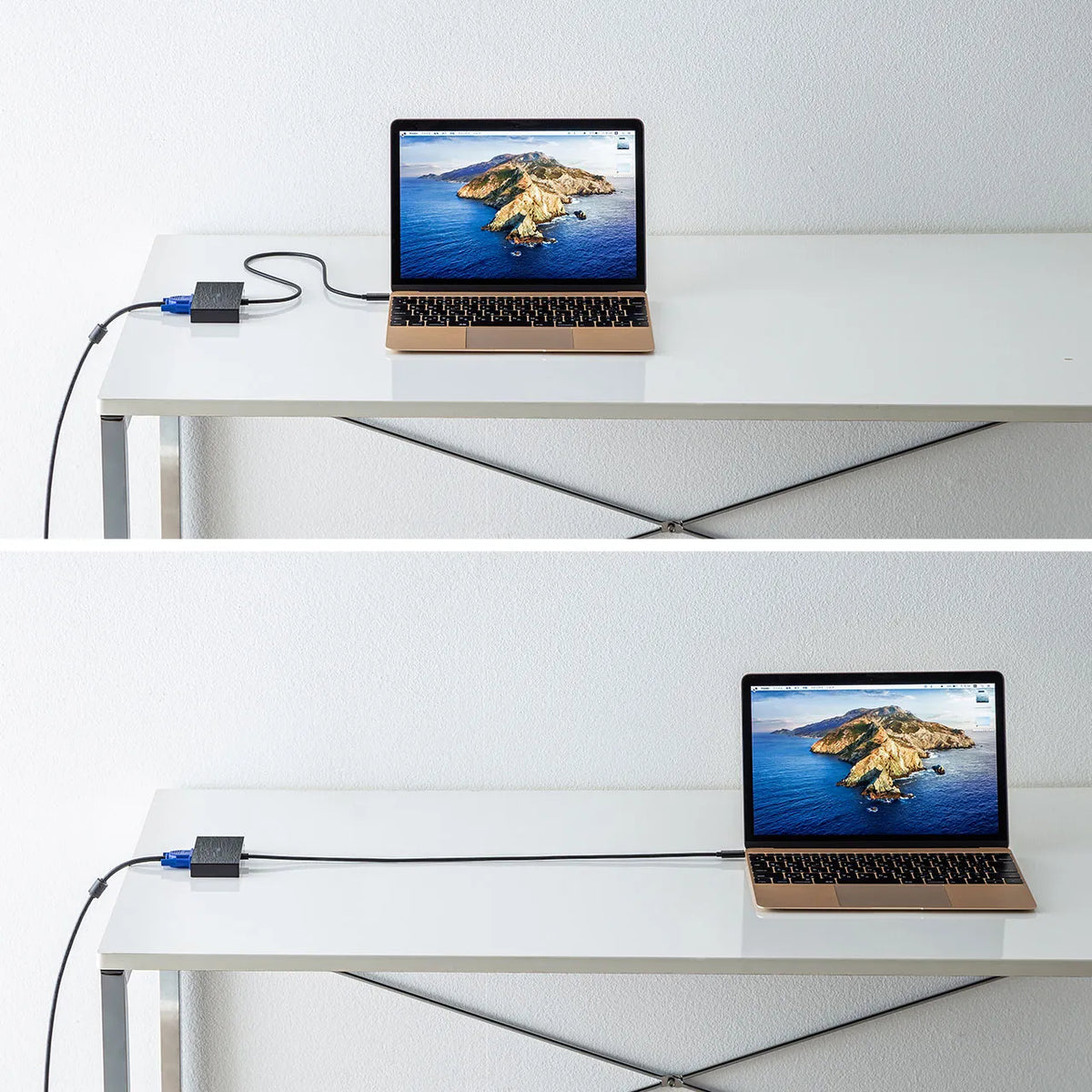

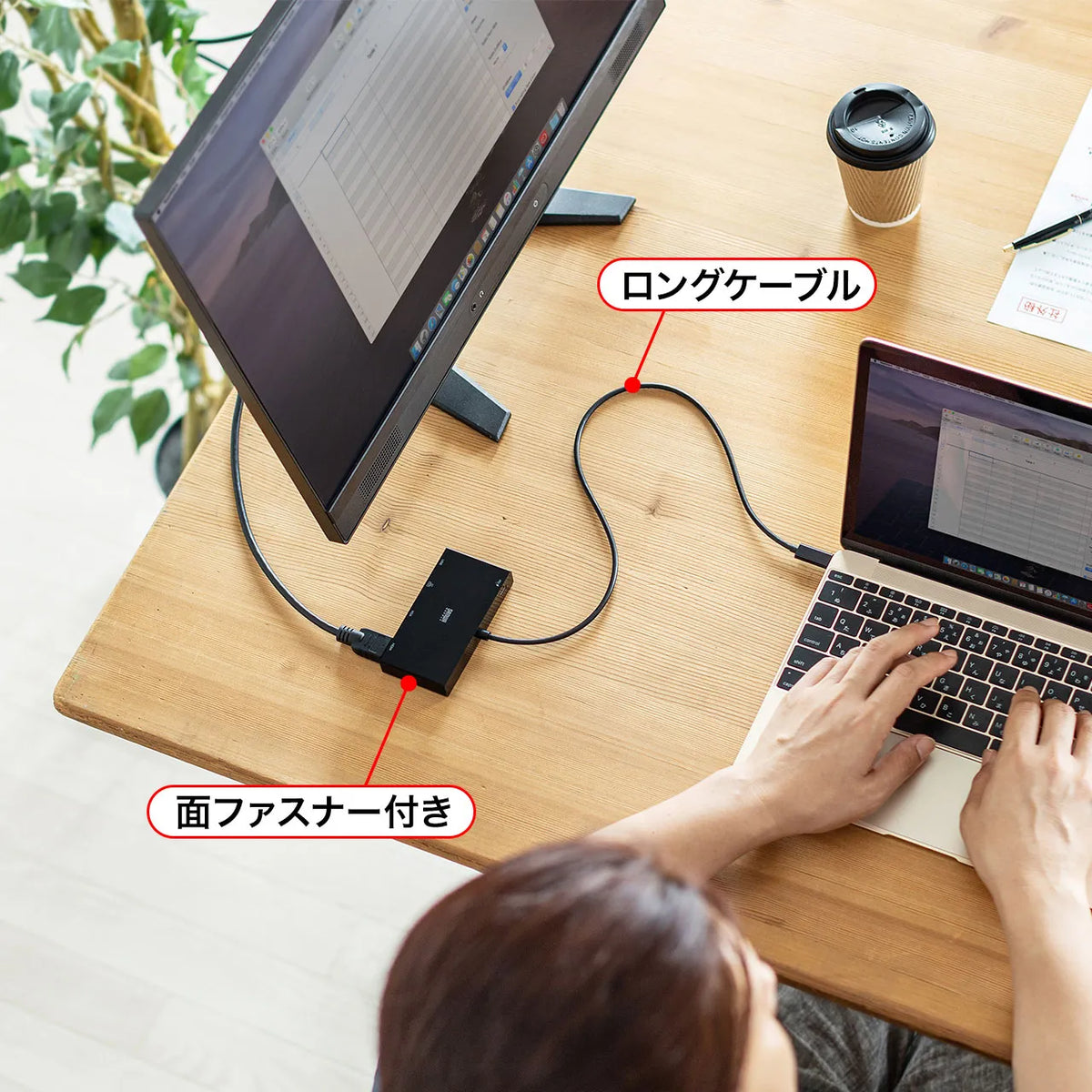

●The cable is 50cm long, allowing for ample wiring even if display cables are short.

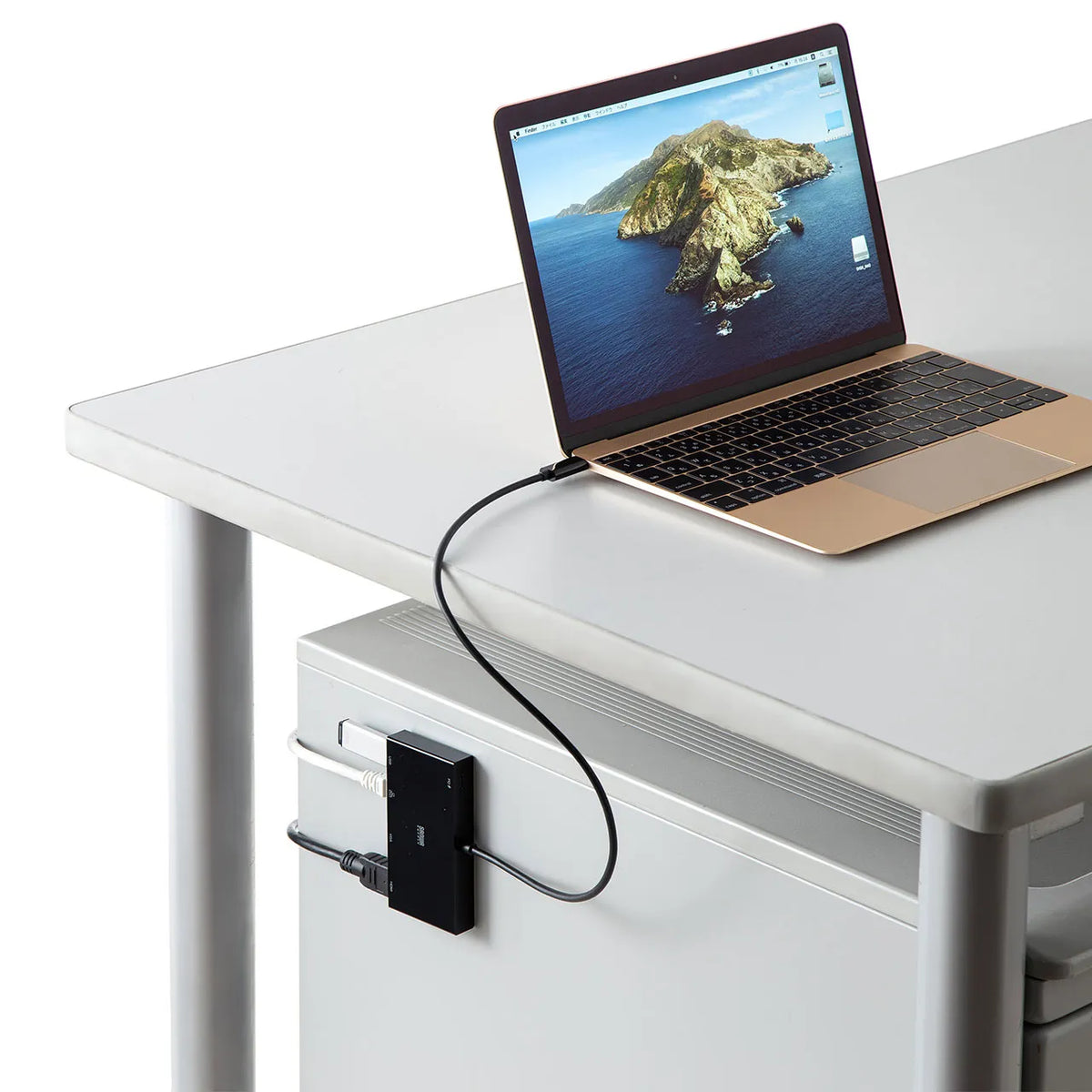

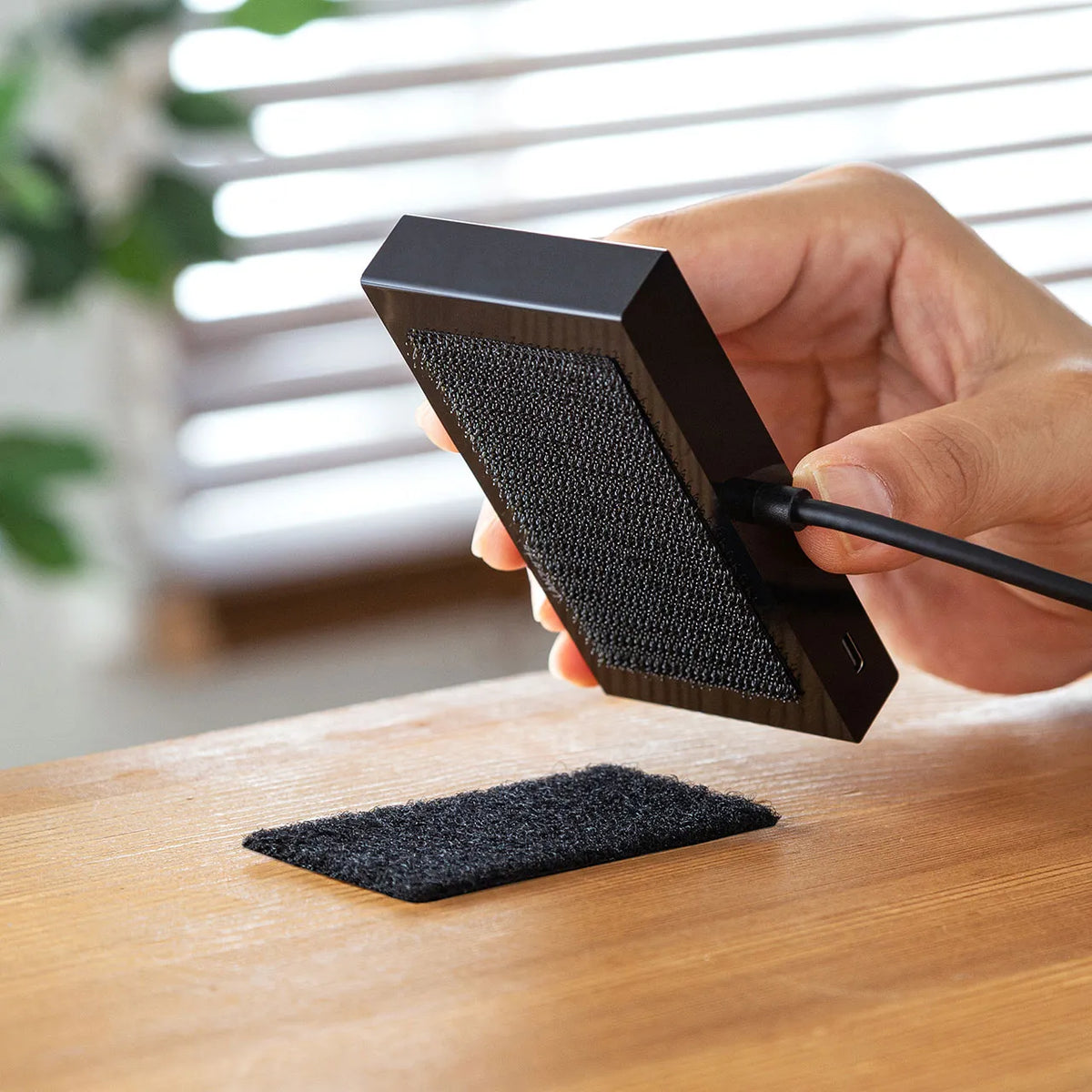

●It comes with a hook-and-loop fastener, allowing it to be fixed to a desk or other surface, preventing the unit from floating due to cable tension.
●Equipped with a Type-C connector, it can be used with computers equipped with a Type-C port.
●It has a built-in adapter that converts a USB Type-C port to a LAN port.
●Since it converts USB to a LAN port, it is ideal when you want to connect to a LAN via a wired connection.
●Supports Gigabit LAN.

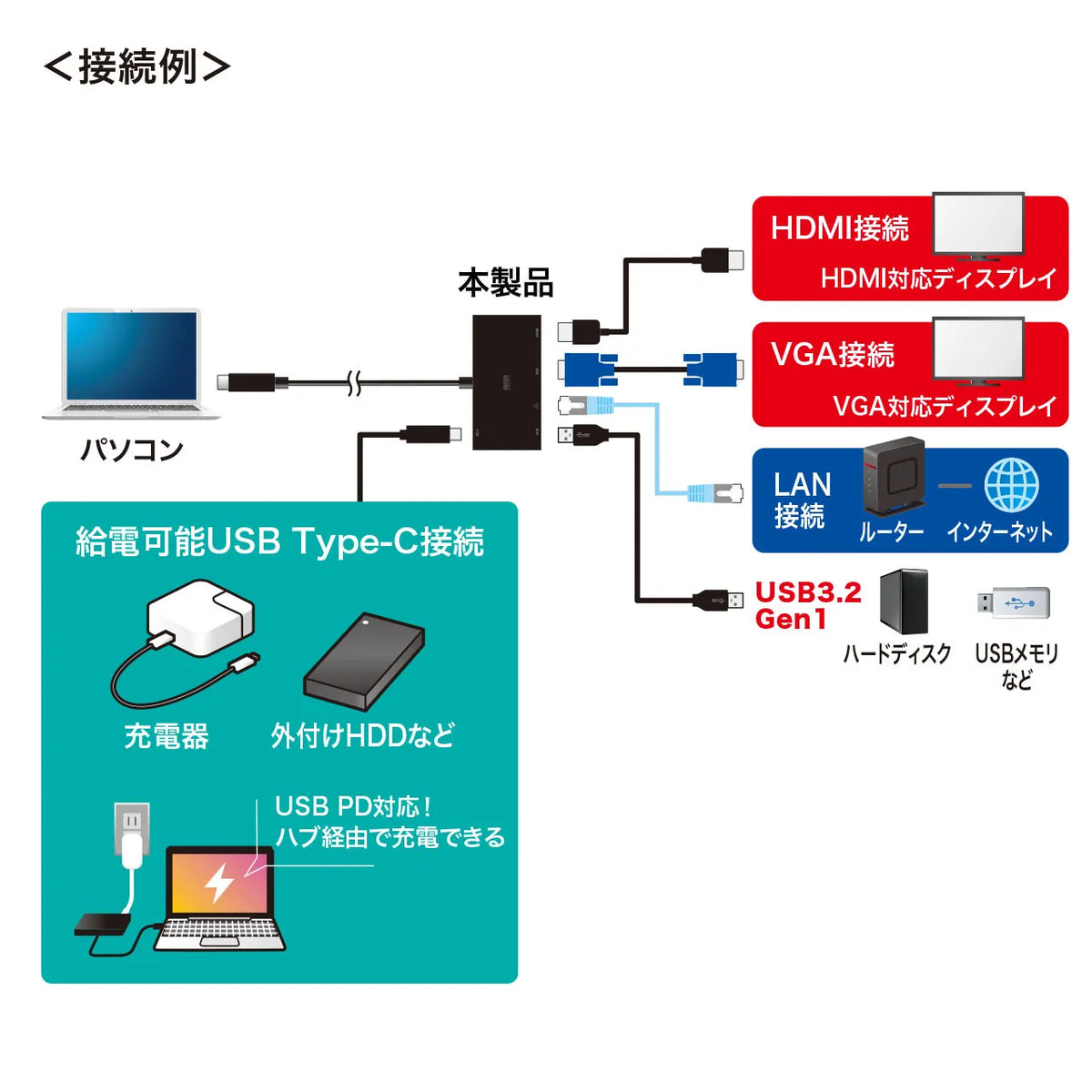

●Supports DisplayPort Alternate Mode for adding HDMI displays via USB Type-C connection, allowing you to easily create a multi-display environment (mirror mode/extended mode) without installing any software.
●Equipped with a VGA port, it can also output to VGA-compatible monitors.
●Supports SuperSpeed ​​mode (5Gbps) (theoretical value).

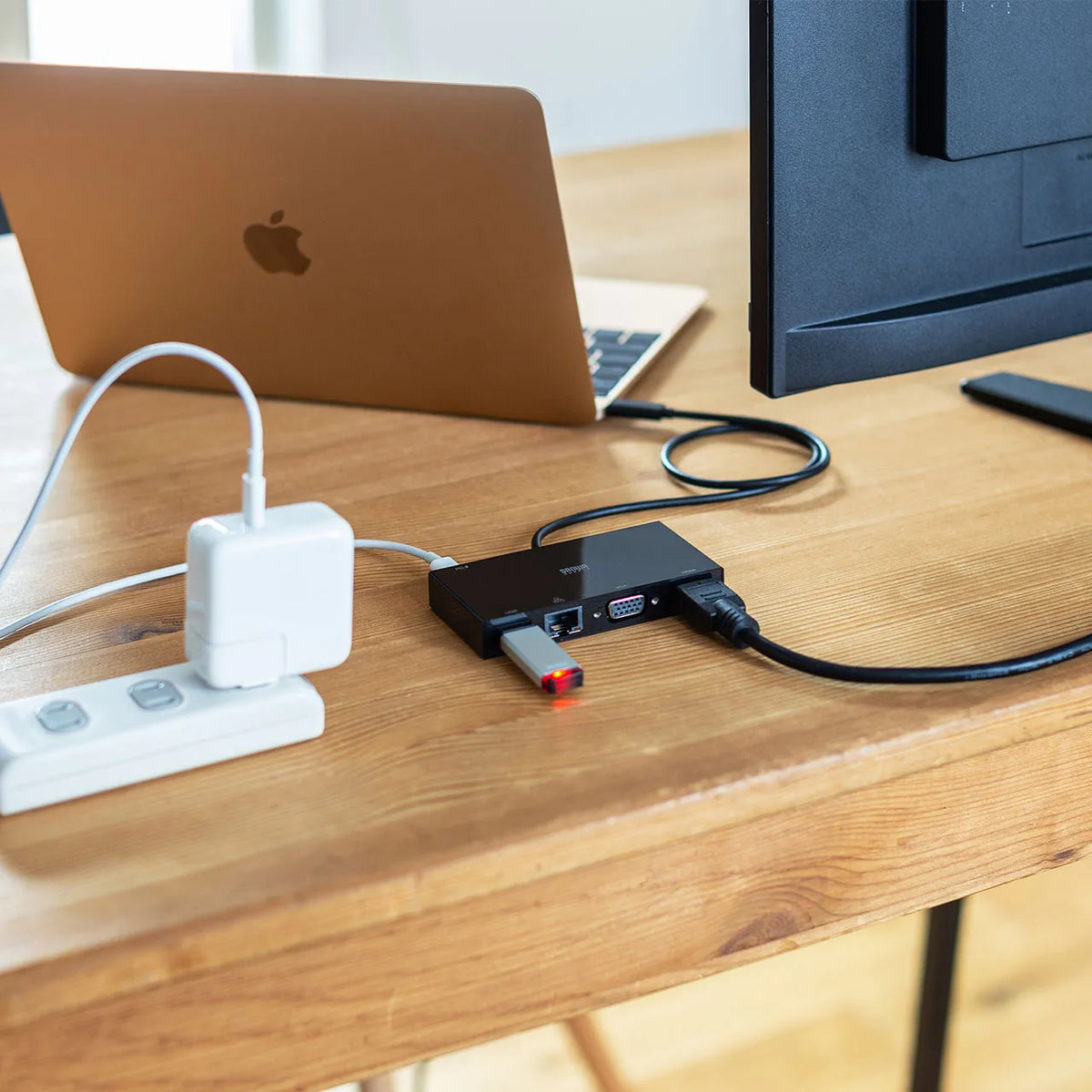

●Supports USB Power Delivery (USB PD) via USB Type-C, allowing power to be supplied to the connected computer via this product.
*Requires a PD-compatible PC.
*An AC adapter is required separately.
●Type-C port that supports both PD and data transfer.
≪Please check before purchasing≫
*The maximum transfer speed of this product is USB 5Gbps [theoretical value].
*Although this product supports USB 5Gbps, it does not guarantee a transfer speed of USB 5Gbps (theoretical value).
*Although this product is a USB hub, it does not guarantee connection and operation with all USB devices.
*Does not support USB Type-C connected monitors.
*Does not support Nintendo Switch™.
*Supports Wake On LAN function, but compatibility varies depending on the PC model, so operation is not guaranteed.

＜PC Connection Terminal＞
■Connector Shape: USB Type-C
■Supported Standards: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant
*USB 5Gbps is the same standard as USB3.2 Gen1 (USB3.1 Gen1/USB3.0), which was renamed by USB-IF (USB Implementers Forum).
■Cable Length: Approx. 50cm
■Cable Type: Integrated Cable

＜USB Ports＞
■Number of Ports: 2 ports
■Maximum Data Transfer Speed ​​(Theoretical Value): 5Gbps
■Supply Current: Maximum 1500mA
(Total for all ports/bus powered)
*If the current consumption of the connected device exceeds the supply current of this product, it may not operate normally with bus power.

＜Power Supply＞
■Power supply method: Bus power/Self power (when power is connected)
■Power consumption of the main unit: 8W
■USB PD input port: Yes
■Maximum USB PD input: 100W
*Depending on the PC or PD power adapter you are using, a warning may be displayed recommending the use of the power adapter attached to your PC, but this does not affect the operation.

＜Video Output Port＞
■Number of supported output displays: 1
■Supported resolutions:
HDMI/Maximum 3840x2160 (4K/30Hz)
VGA/Maximum 1920x1200 (60Hz)
*The supported resolutions listed require that your PC supports DisplayPort Alt Mode (DP1.4 or higher).
*For 4K resolution output, the display must support 4K resolution, and the content being output must also support 4K resolution.
*HDCP1.4 compatible.
■Maximum supported resolution/refresh rate: 3840x2160
■HDMI: 1 port
■VGA: 1 port

＜LAN port＞
■Port shape: RJ-45 port (Auto MDI/MDI-X), Auto-Negotiation supported
*While Wake On LAN functionality is supported, compatibility varies depending on the PC model, so operation is not guaranteed.
*Depending on the connected device, Wi-Fi may need to be turned OFF to use a wired network.
■Supported standards: IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T)
■Transmission speed (theoretical value): 1000Mbps, 100Mbps, 10Mbps
*Regarding communication speed, 1000BASE-T is supported only when connected via USB5Gbps (USB3.2 Gen1).
■Access method: CSMA/CD

＜Common specifications＞
■Driver: Not required
■Total number of ports: 5
■Size: Approx. W103 x D52 x H15 mm
■Weight: Approx. 75 g

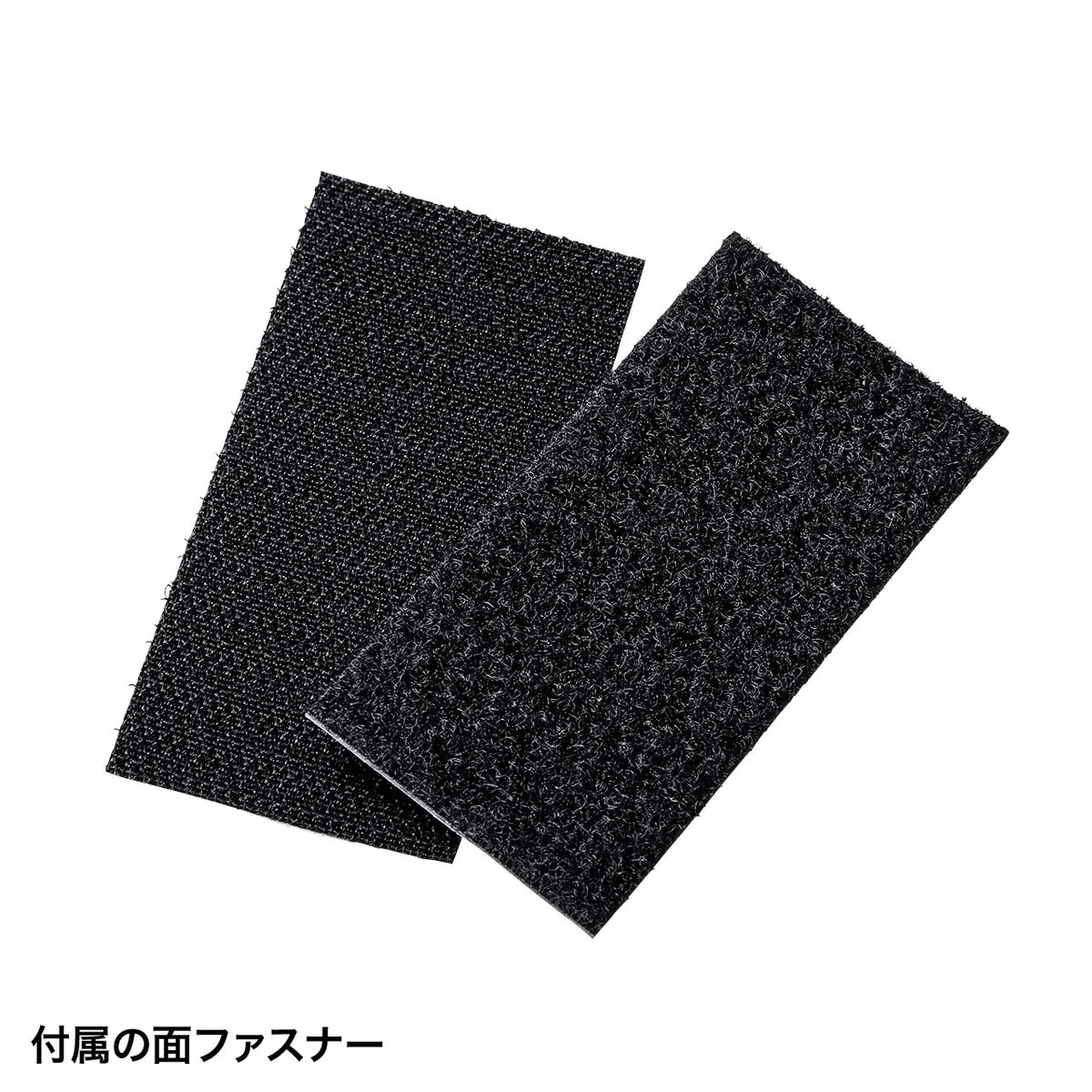

■Set contents: Instruction manual, hook and loop fastener
