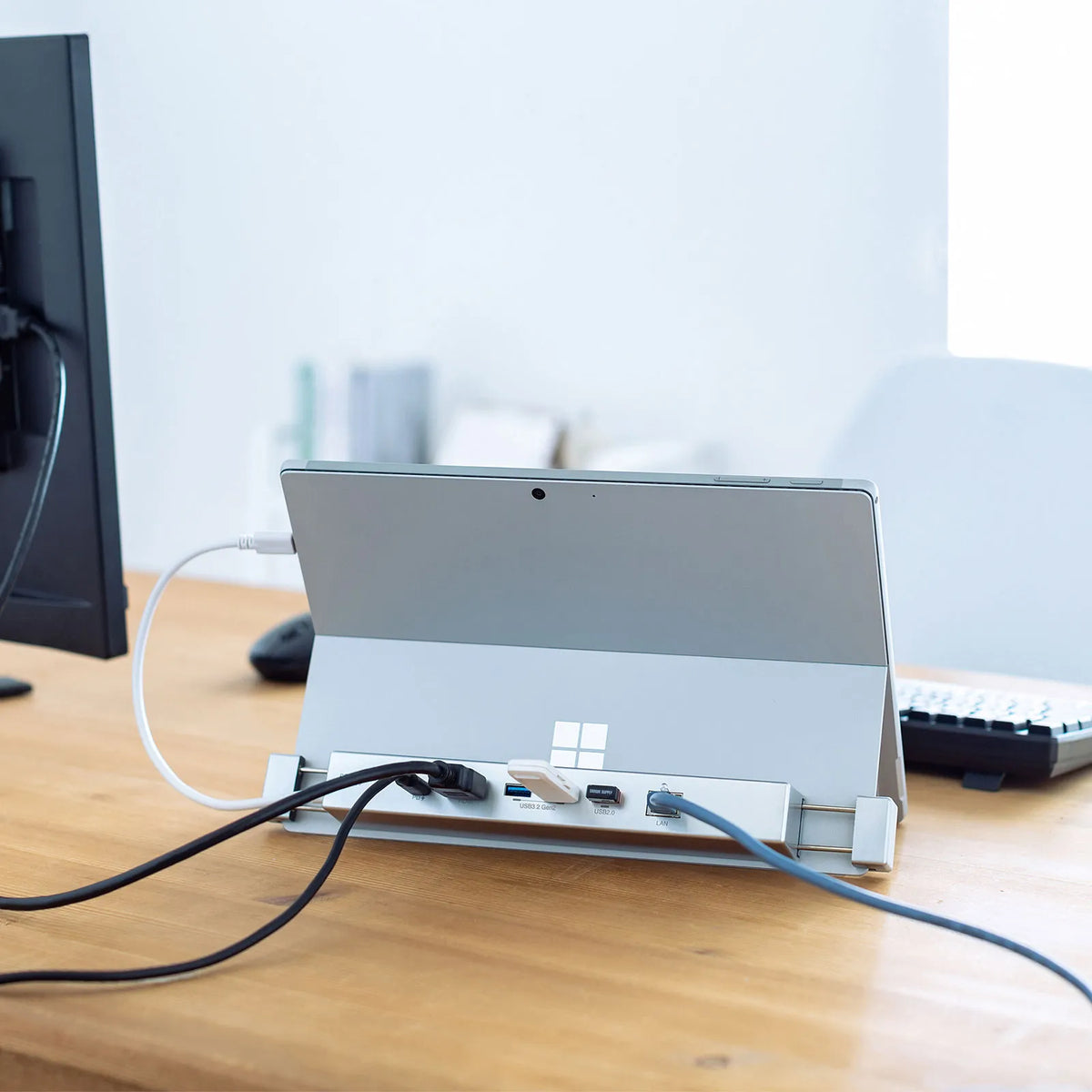

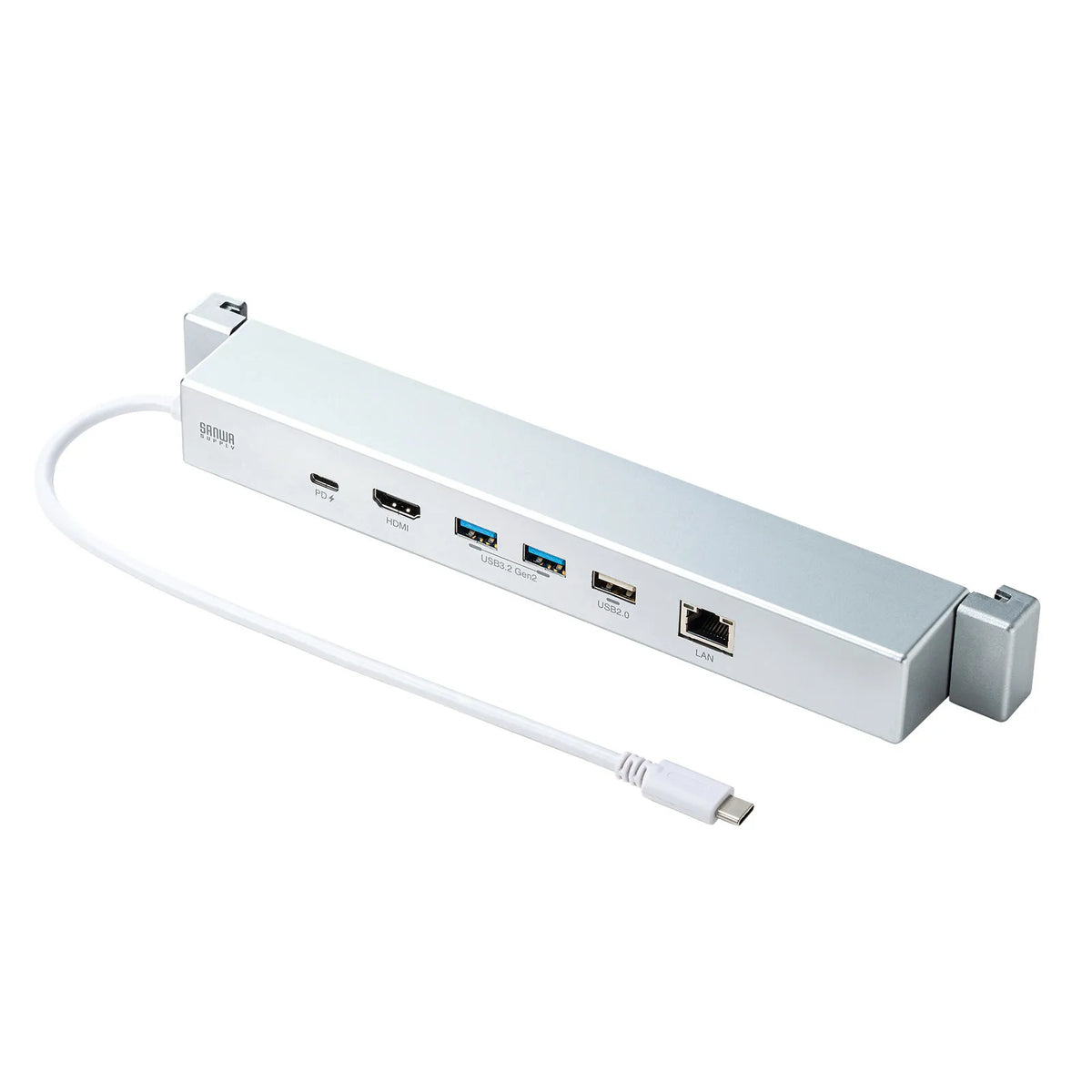

Surface docking station USB-3HSS6S

[Surface-dedicated USB 3.2 Gen2 hub with HDMI and LAN ports]

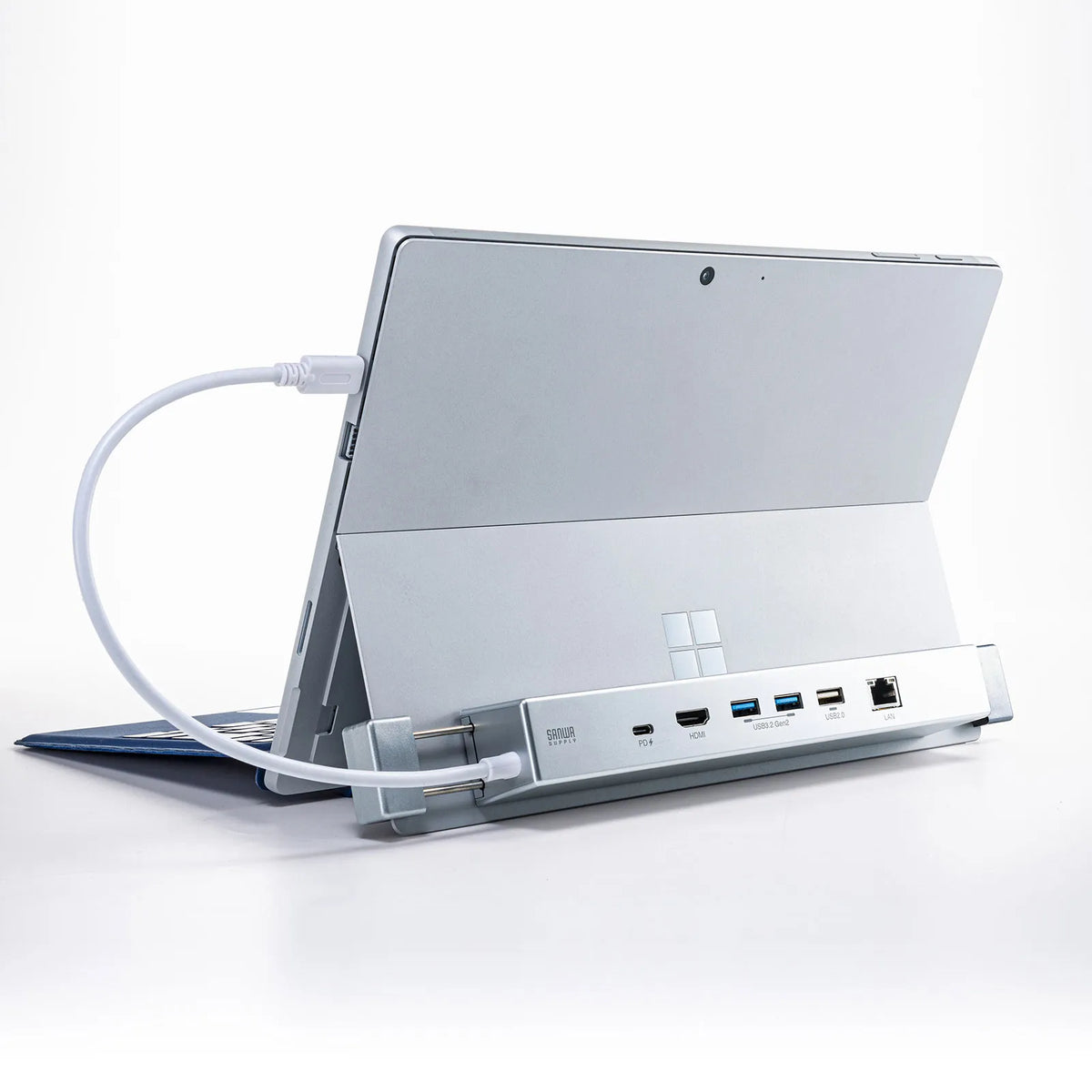

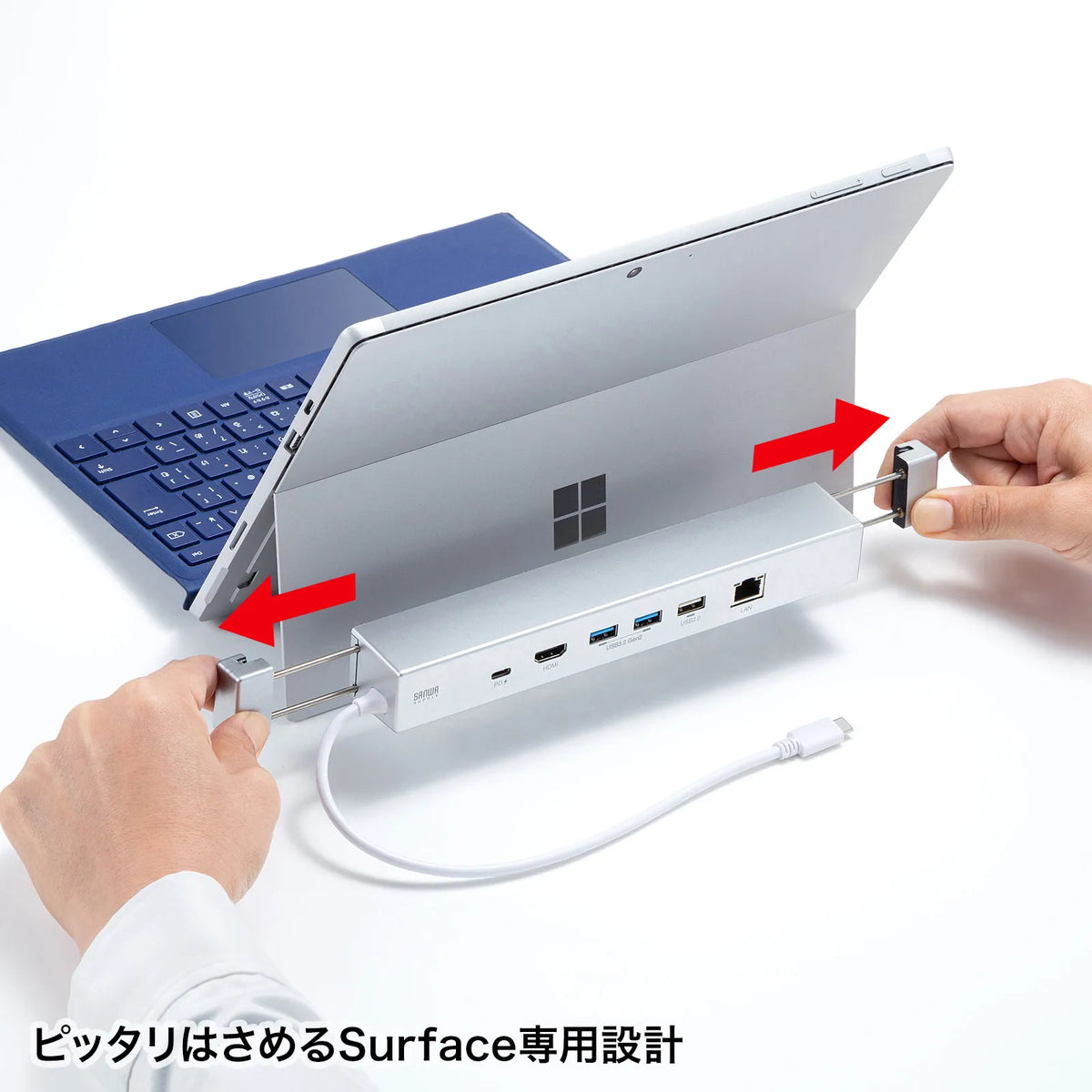

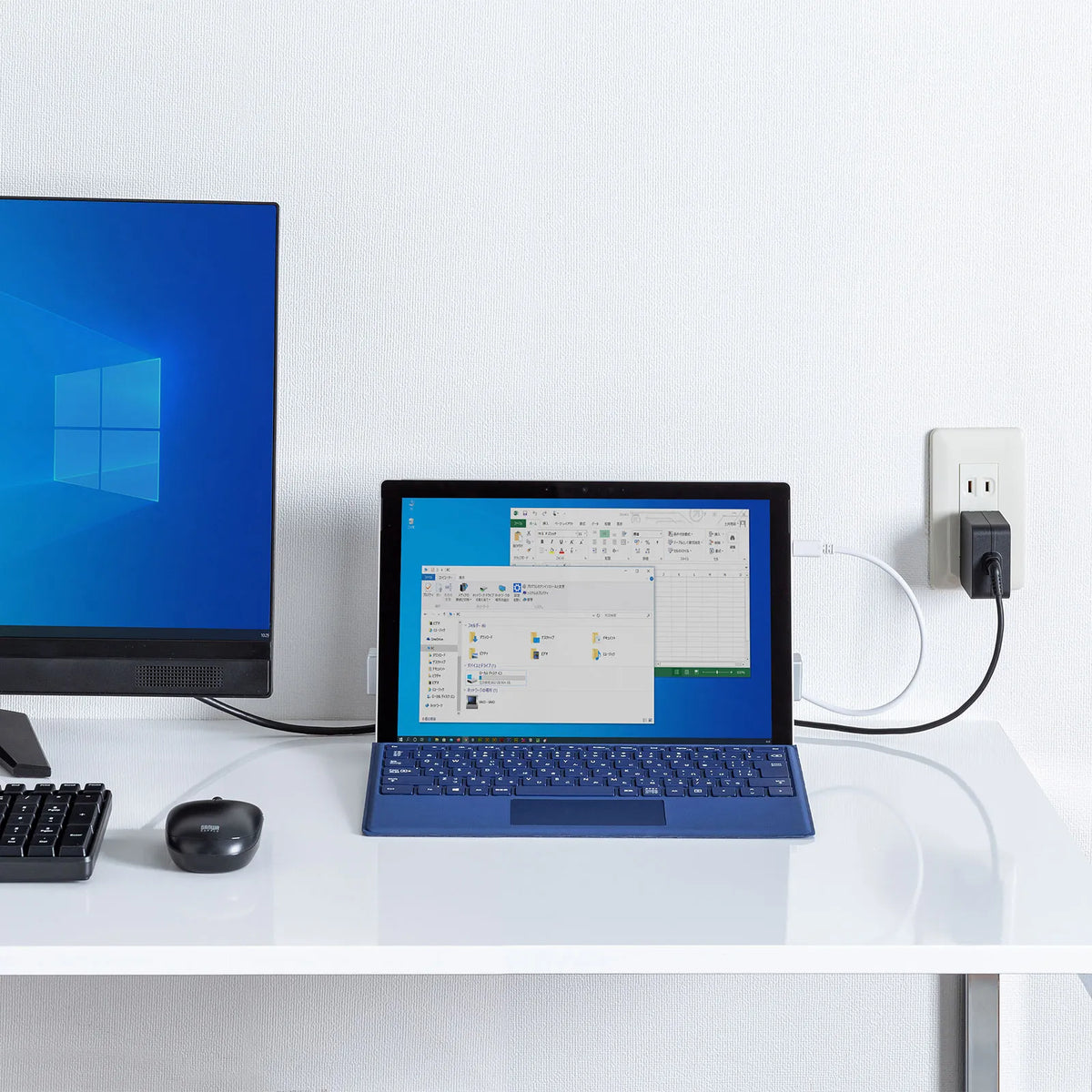

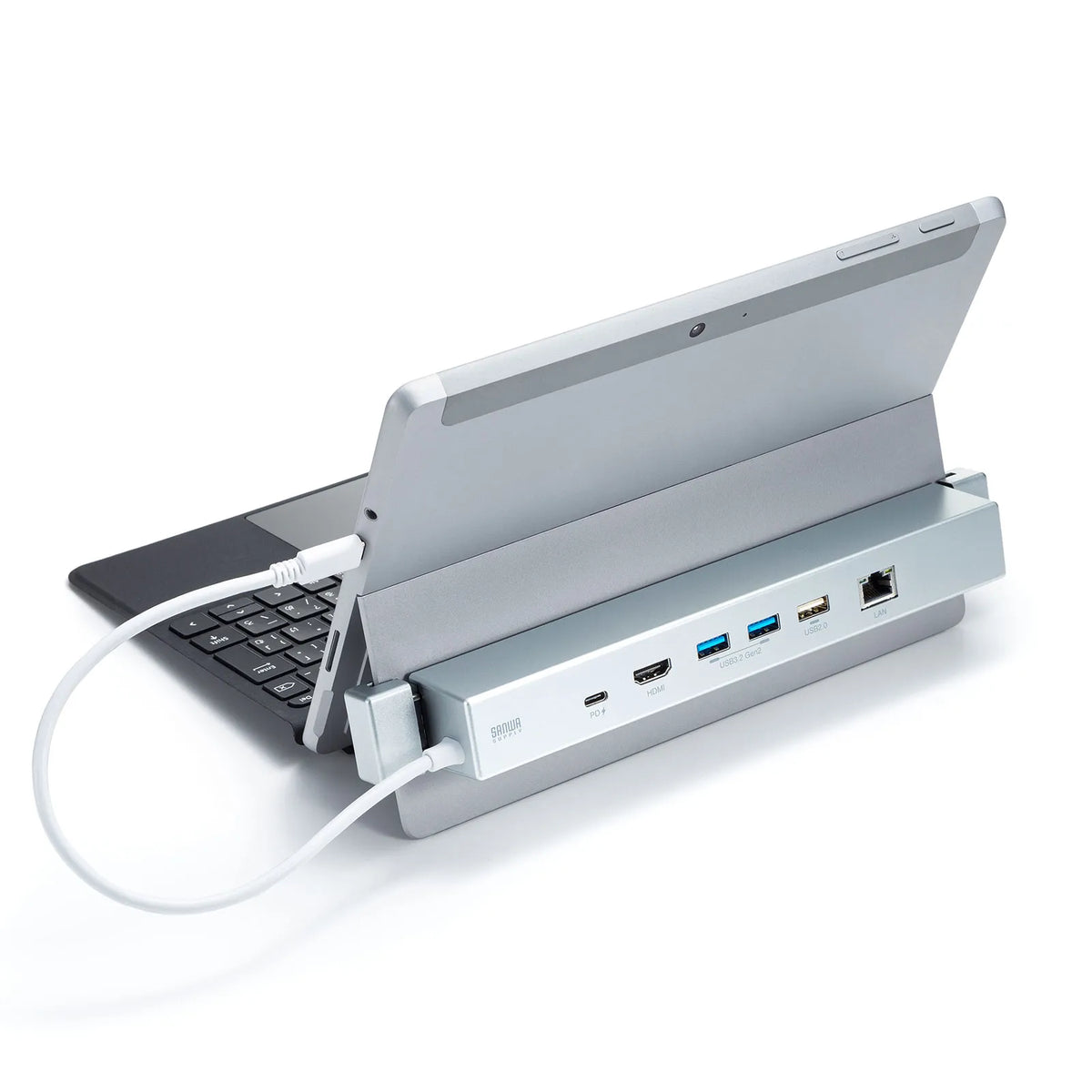

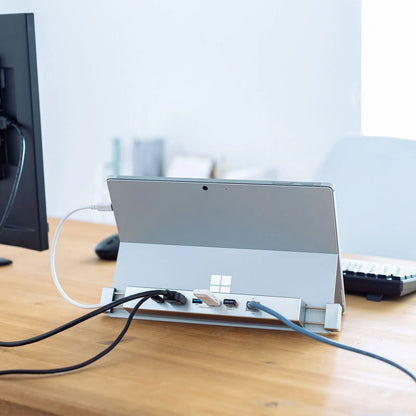

●A USB hub that fits perfectly into Surface devices equipped with Type-C.

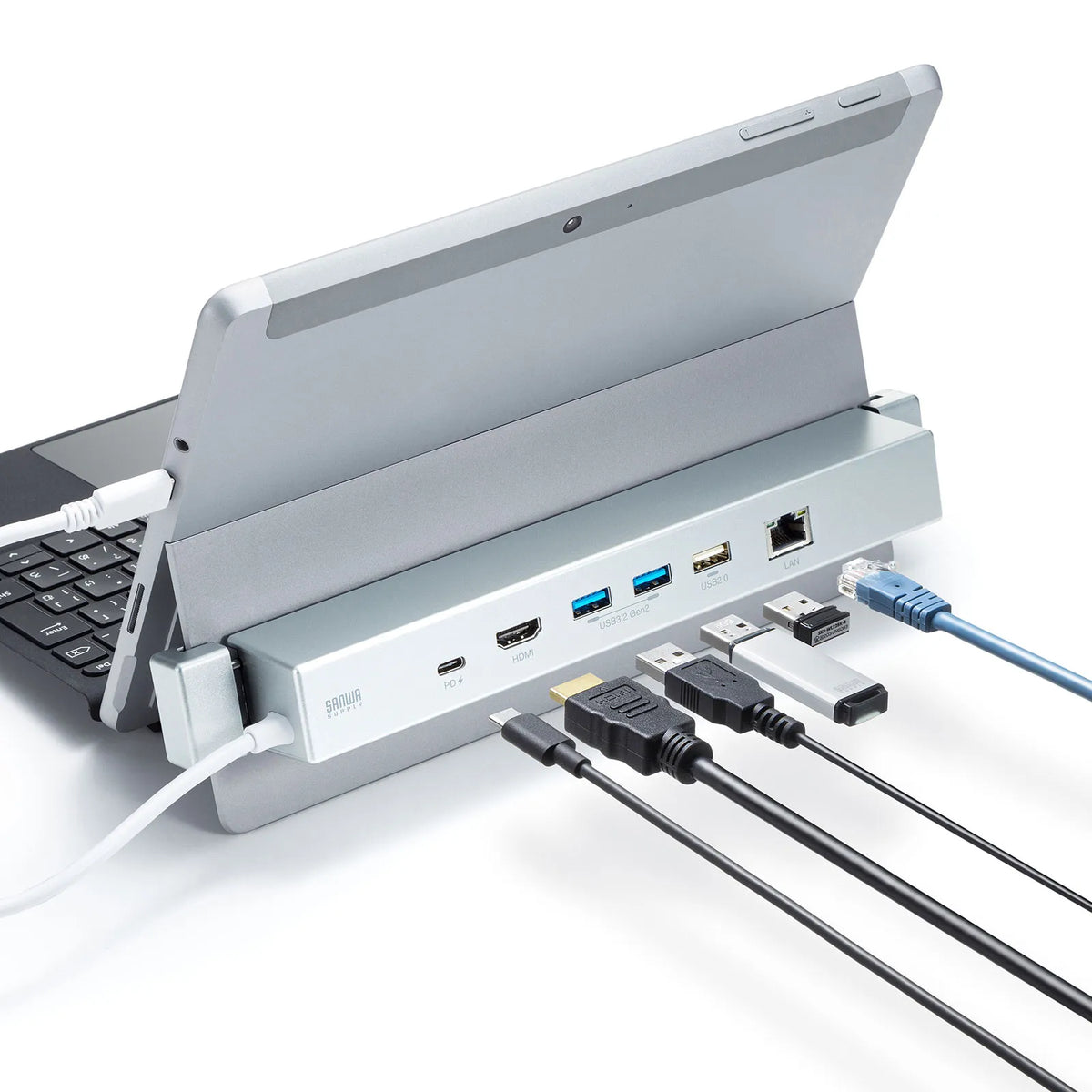

●Equipped with an HDMI port for connecting to an external display.
●Also equipped with a LAN port, allowing you to use LAN even on computers without a LAN port.
●Equipped with a USB 10Gbps port for connecting USB devices such as HDDs.
●Includes a USB 2.0 port suitable for connecting keyboards and mice.

＜Please check before purchasing＞
※When connecting USB 2.0/1.1 standard products, please note that the maximum transfer speed will be that of the slower standard.
※Although this product is a USB hub, it does not guarantee connection and operation with all USB devices.
※Although this product supports the USB 10Gbps standard, the USB 10Gbps transfer speed is a standard value.
※USB scanners, multifunction printers with scanners, and USB devices that are sensitive to USB device recognition may not function properly via the USB hub.
*It can also be used as a self-powered device using the PD-compatible AC adapter included with the PC.


■Connector Shape: USB Type-C
■Supported Standards: USB 10Gbps (USB3.2 Gen2/USB3.1 Gen2) compliant
*USB 10Gbps is the same standard as USB3.2 Gen2 (USB3.1 Gen2), which was renamed by USB-IF (USB Implementers Forum).
■Maximum USB PD output: 95W
■Cable length: Approx. 42cm
From the stock arriving at the end of September 2024
■Cable type: Integrated cable

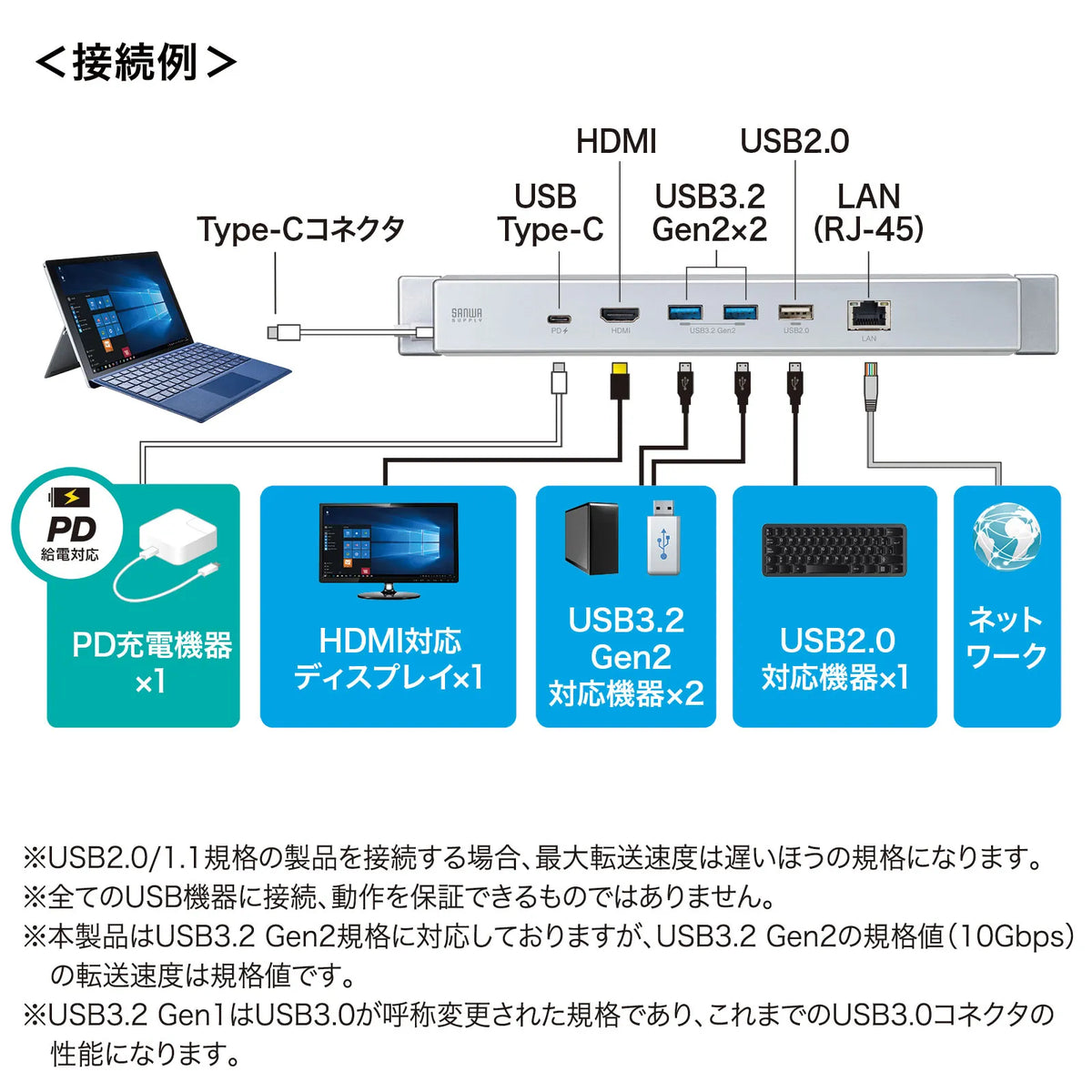

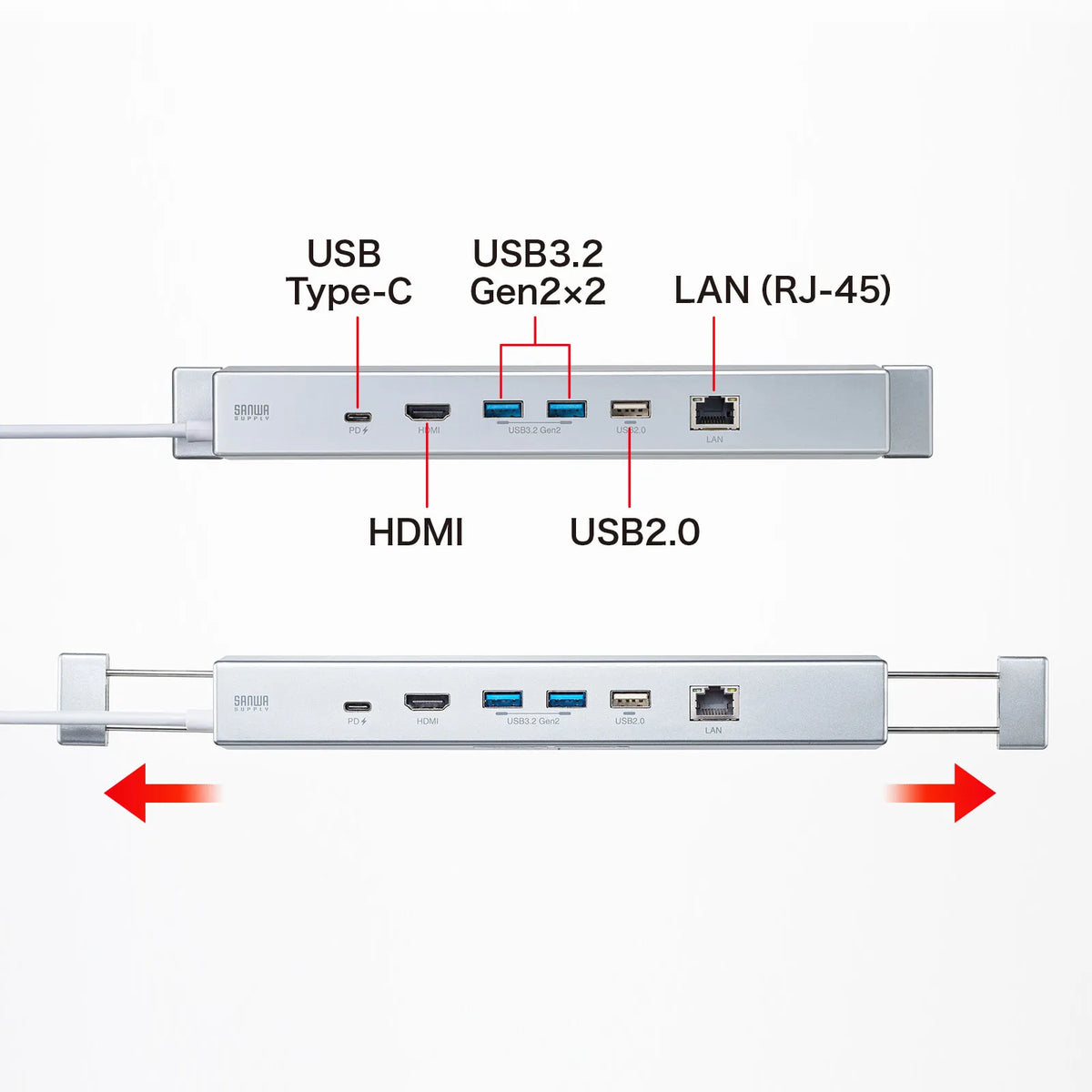

＜USB Port＞
■Number of ports: 4 ports
■Maximum data transfer speed (theoretical value): 10Gbps
■USB Type-C female/USB 10Gbps: 1 port
■USB A female/USB 10Gbps: 2 ports
■USB A female/USB 2.0: 1 port

＜Power＞
■Power supply method: Bus power/Self power (when power is connected)
■Power consumption of the main unit: 5W
■USB PD input port: Yes
■Supported input power (USB PD): Maximum 100W
*Depending on the computer or PD power adapter you are using, a warning may be displayed recommending the use of the power adapter attached to your computer, but this does not affect its use.

＜Video Output Port＞
■Number of Supported Output Displays: 1
■Maximum Supported Resolution: 4K/30Hz
*The listed supported resolutions require your computer to support DisplayPort Alt Mode (DP1.4 or higher).
*For 4K resolution output, the display must support 4K resolution, and the content being output must also support 4K resolution.
■Maximum Supported Resolution/Refresh Rate: 3840x2160
■HDMI: 1 port

＜LAN Port＞
■Port Shape: RJ-45 port (Auto MDI/MDI-X), Auto-Negotiation compatible
*While Wake On LAN functionality is supported, compatibility varies depending on the computer model, so operation is not guaranteed.
*Depending on the connected device, you may need to turn off Wi-Fi to use a wired network.
■Supported Standards: IEEE 802.3 (10BASE-T)
IEEE 802.3u (100BASE-TX)
IEEE 802.3ab (1000BASE-T)
■Transmission Speed ​​(Theoretical Value): 1000Mbps, 100Mbps, 10Mbps
*Regarding communication speed, 1000BASE-T is supported only when connected via USB3.2 Gen1 (USB3.1/3.0).
■Access Method: CSMA/CD

＜Common Specifications＞
■Total Number of Ports: 6
■Size: Approx. W256 x D33 x H32mm
■Weight: Approx. 160g
■Driver: Not required
■AC Adapter: Not included
■Set Contents: Main unit, instruction manual
