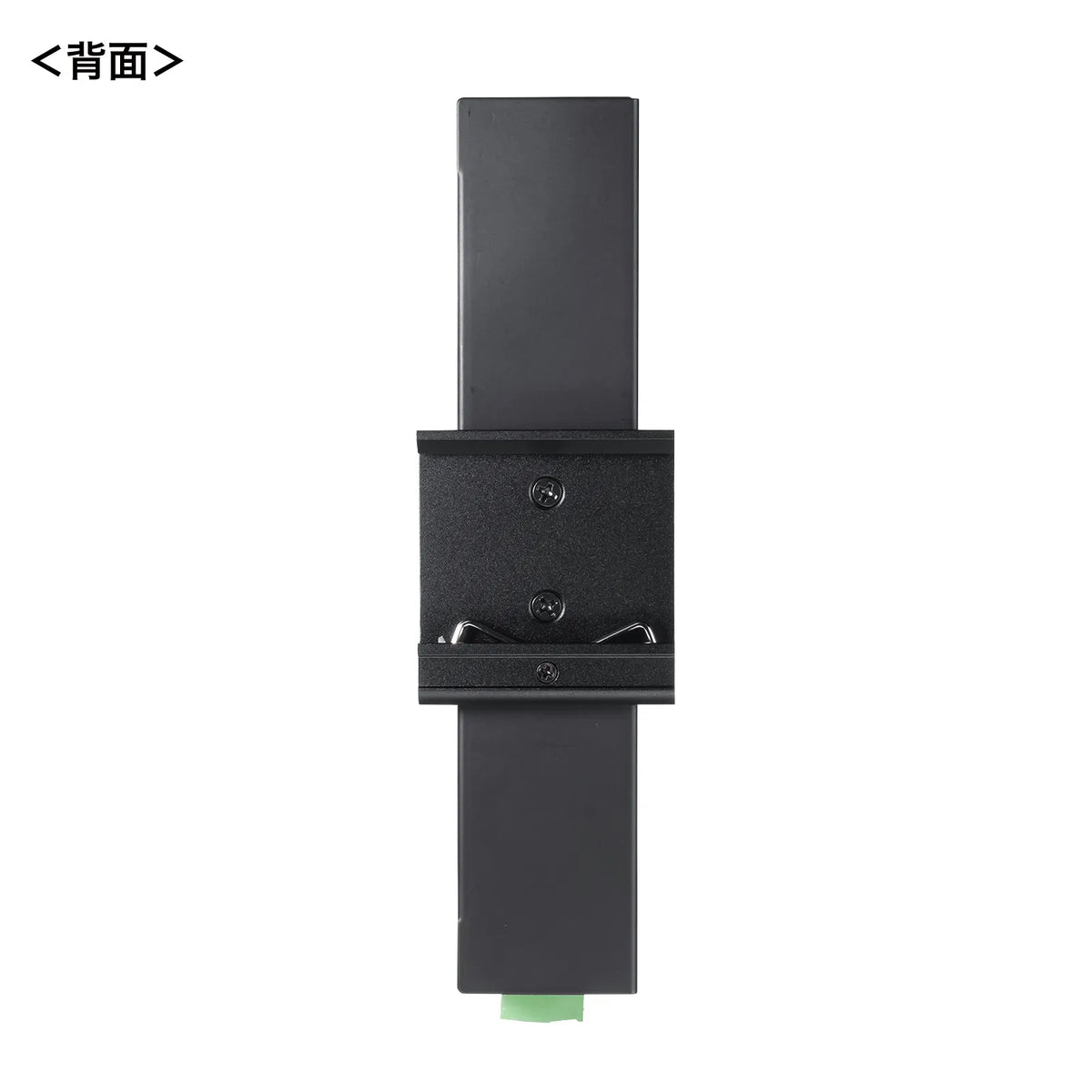

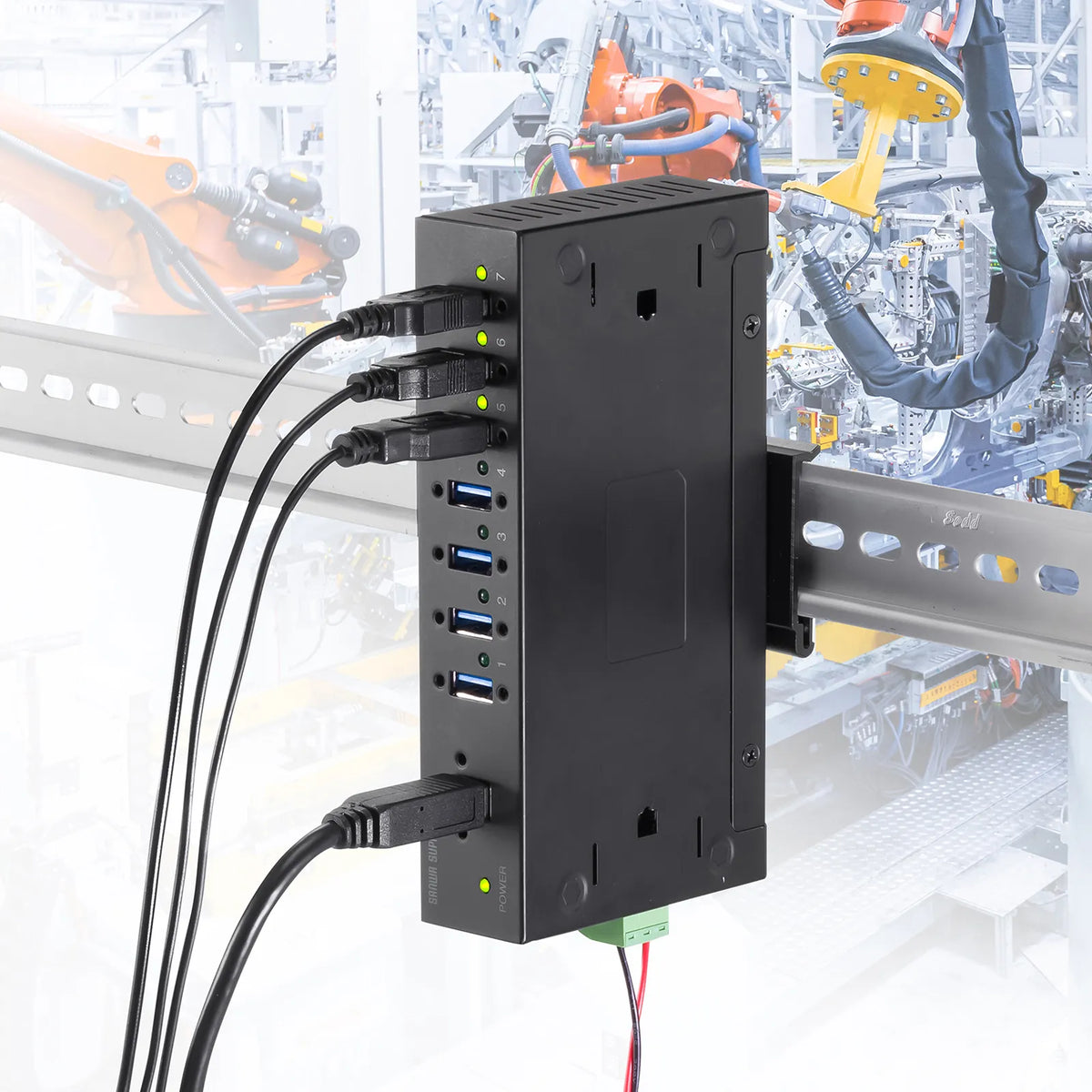

[Durable specifications with USB-IF certification. Industrial USB hub compatible with DIN rail mounting.]

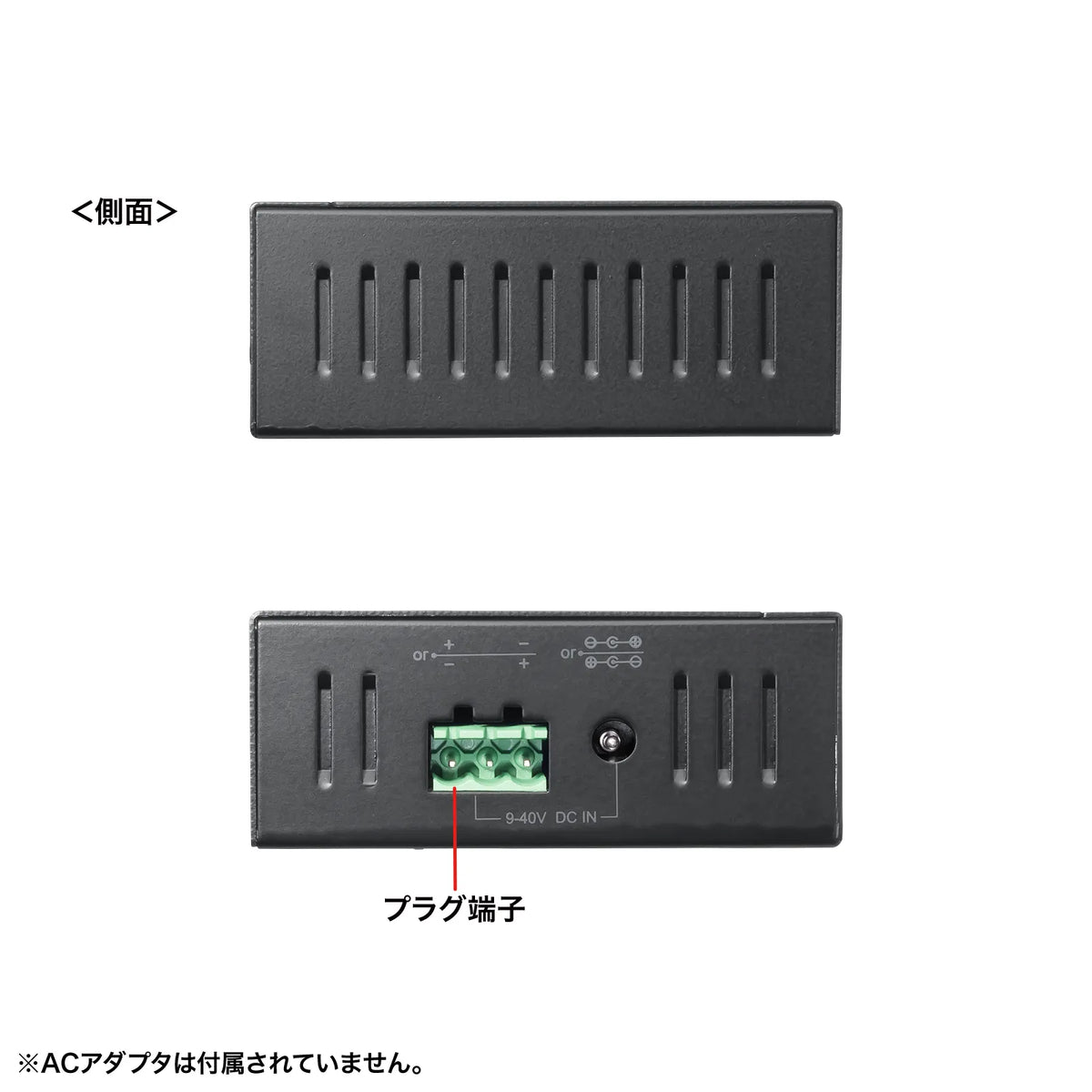

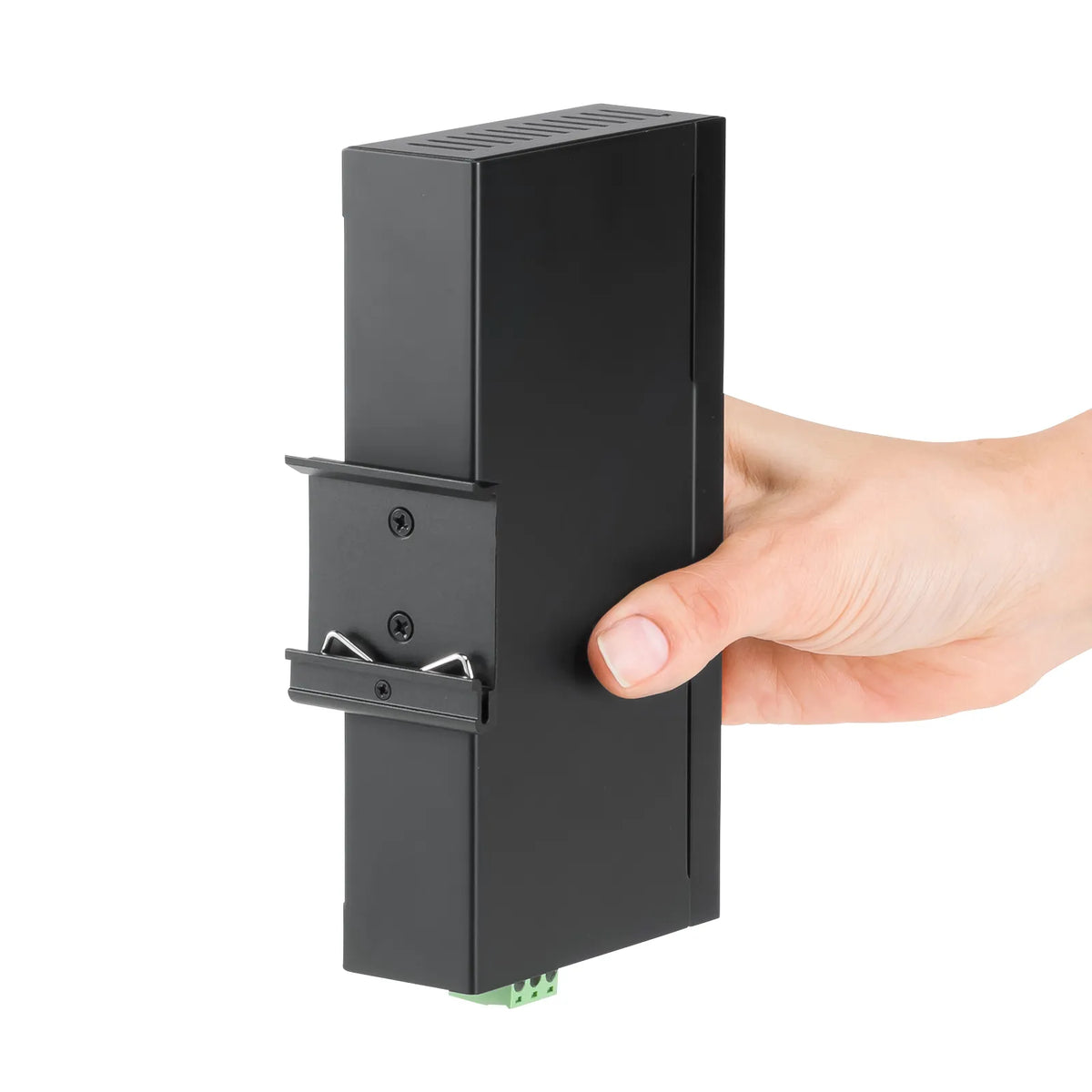

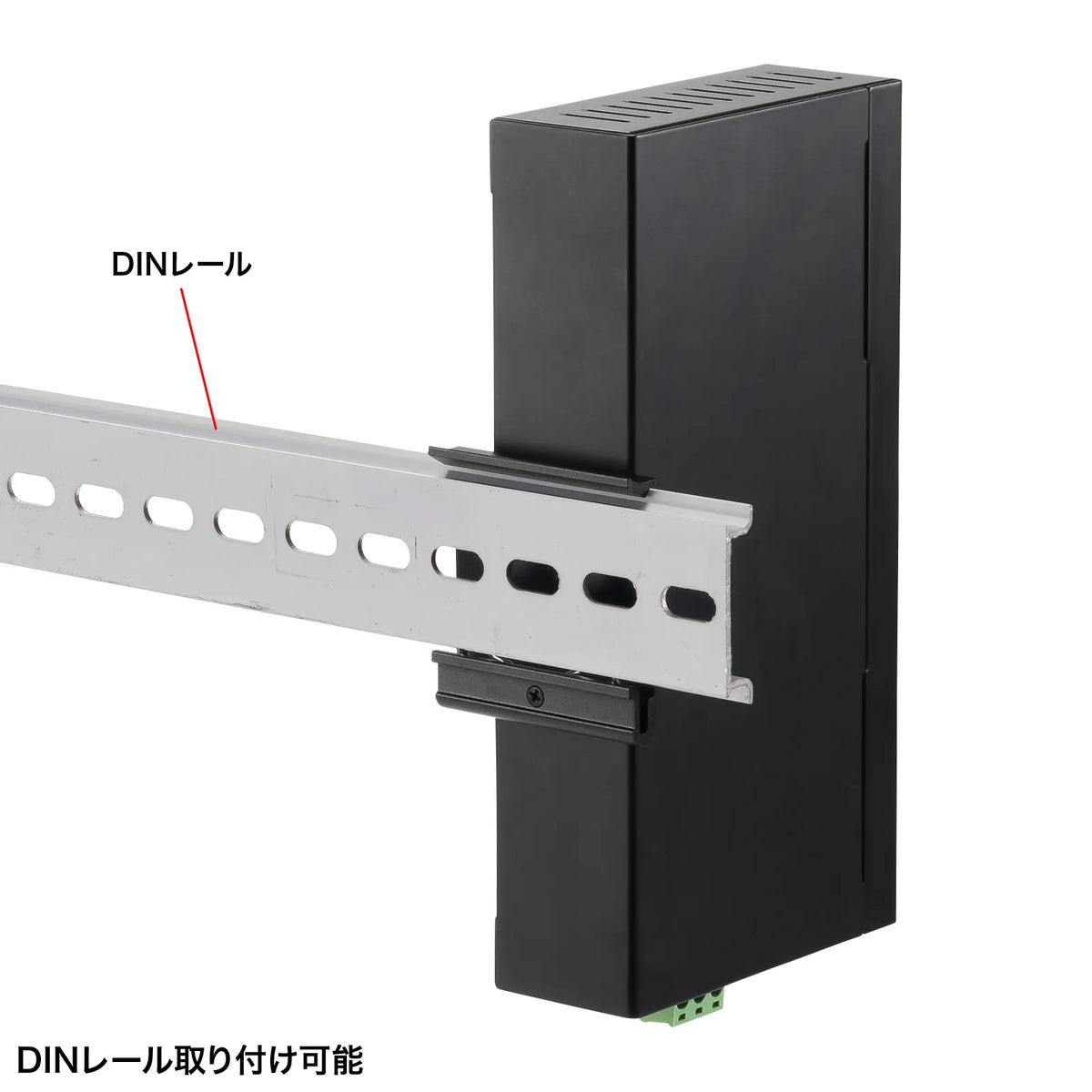

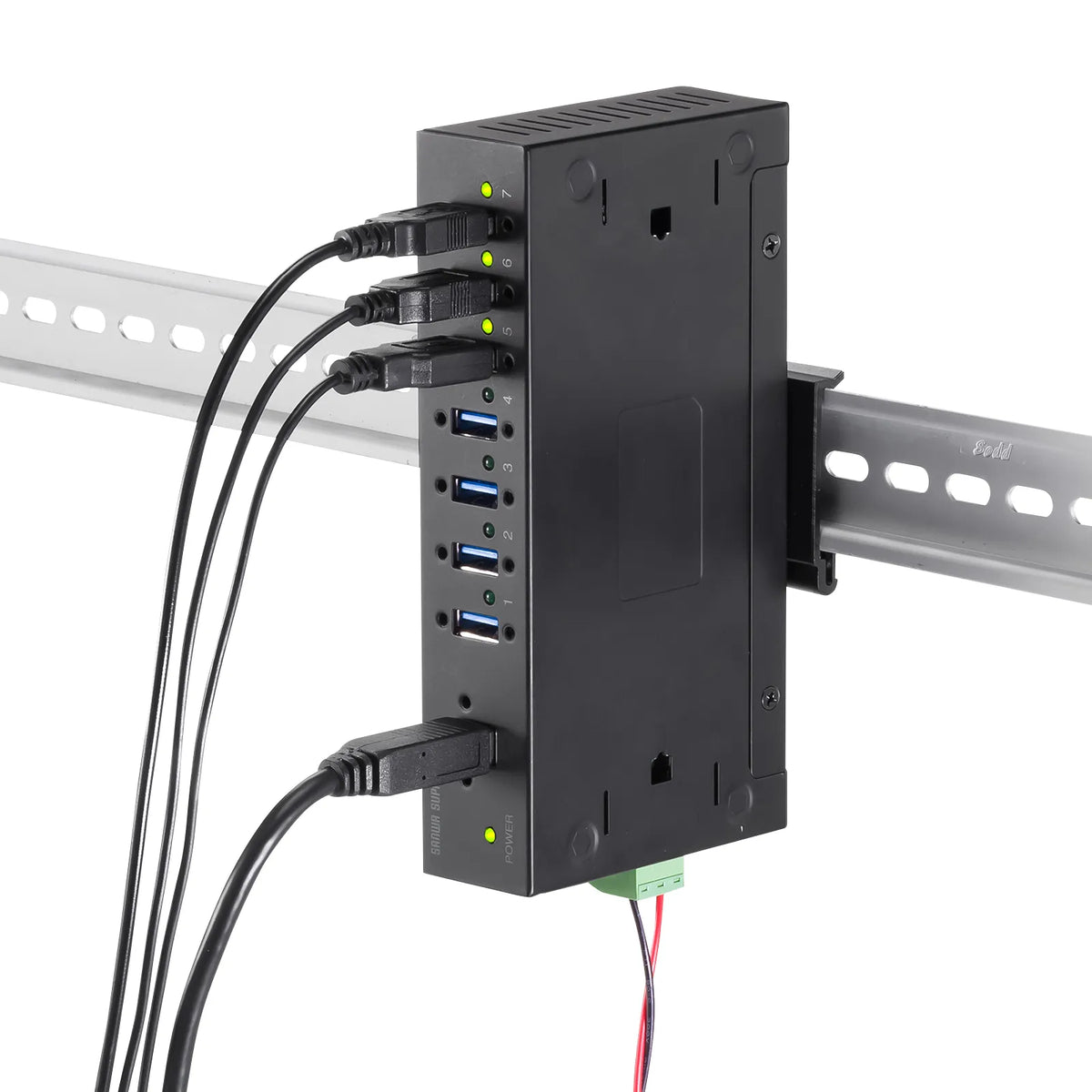

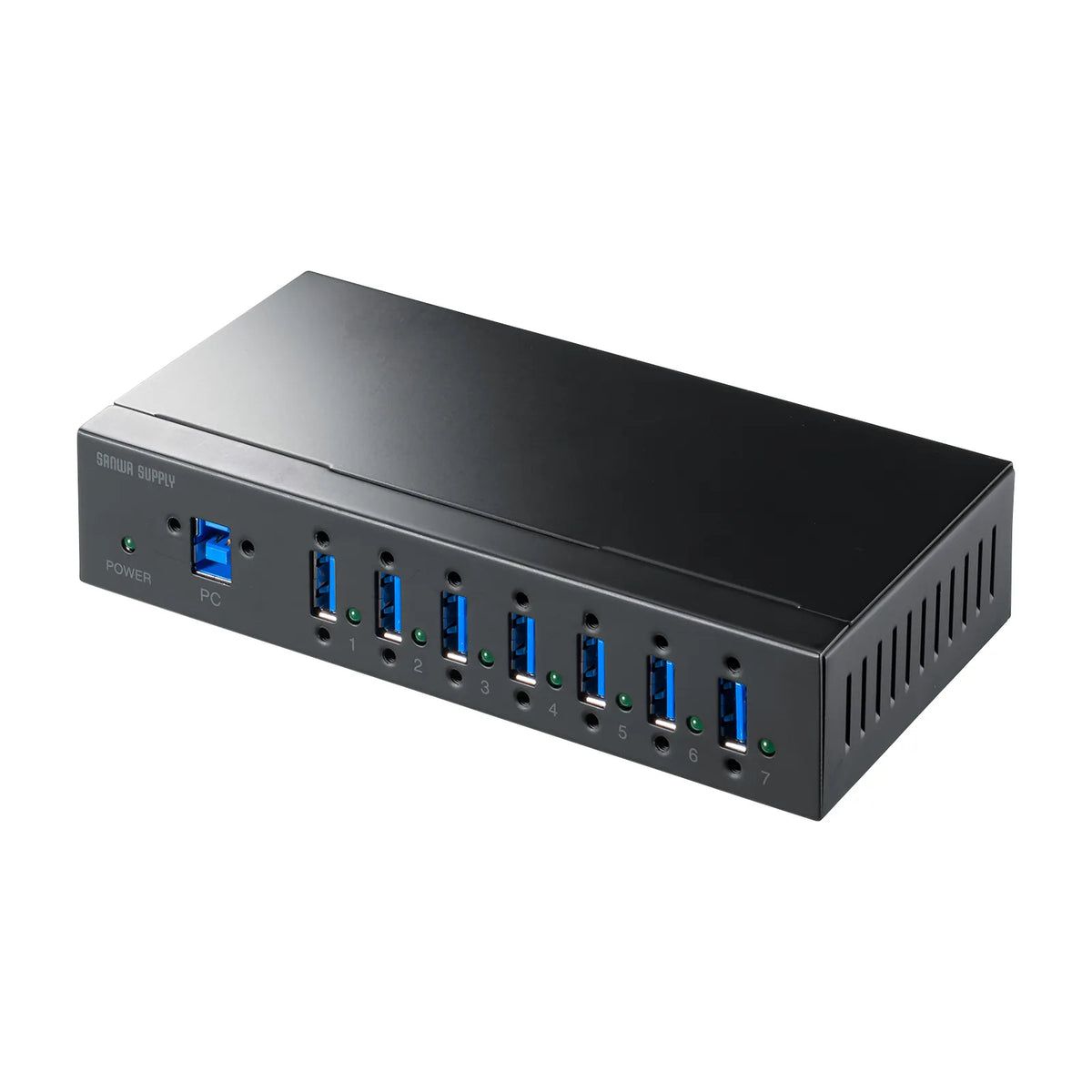

●This is a 7-port USB hub with USB 5Gbps (USB3.2 Gen1/3.1/3.0) that is compatible with DIN rail mounting. ●It has obtained USB-IF certification. ●It supports a wide range of power supplies from 9V to 40V. ●ESD protection function (20K) ●EMC EN 55032/55035 ●Convenient wiring with a long cable of approximately 1m. ●Comes with a reliable 2-year warranty.
[Please check before purchasing] *When connecting products of the USB2.0/1.1 standard, please note that the maximum transfer speed will be that of the slower standard. *Although this product is a USB hub, it does not guarantee connection and operation with all USB devices. *This product supports the USB 5Gbps (USB 3.2 Gen1/3.1/USB 3.0) standard, but does not guarantee a transfer speed of 5Gbps, which is the standard value of USB 5Gbps.

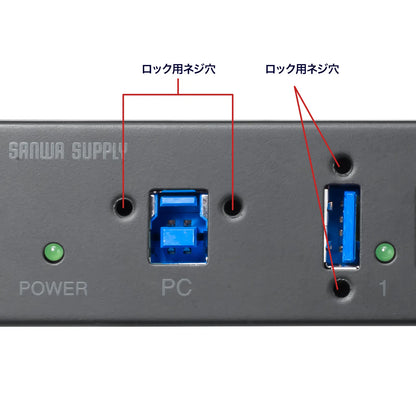

＜PC Connection Terminal＞ ■Connector Shape: USB A ※The connector shape on the main unit is USB B. ■Supported standards: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant ■Cable length: Approx. 1m ■Cable type: Separable type

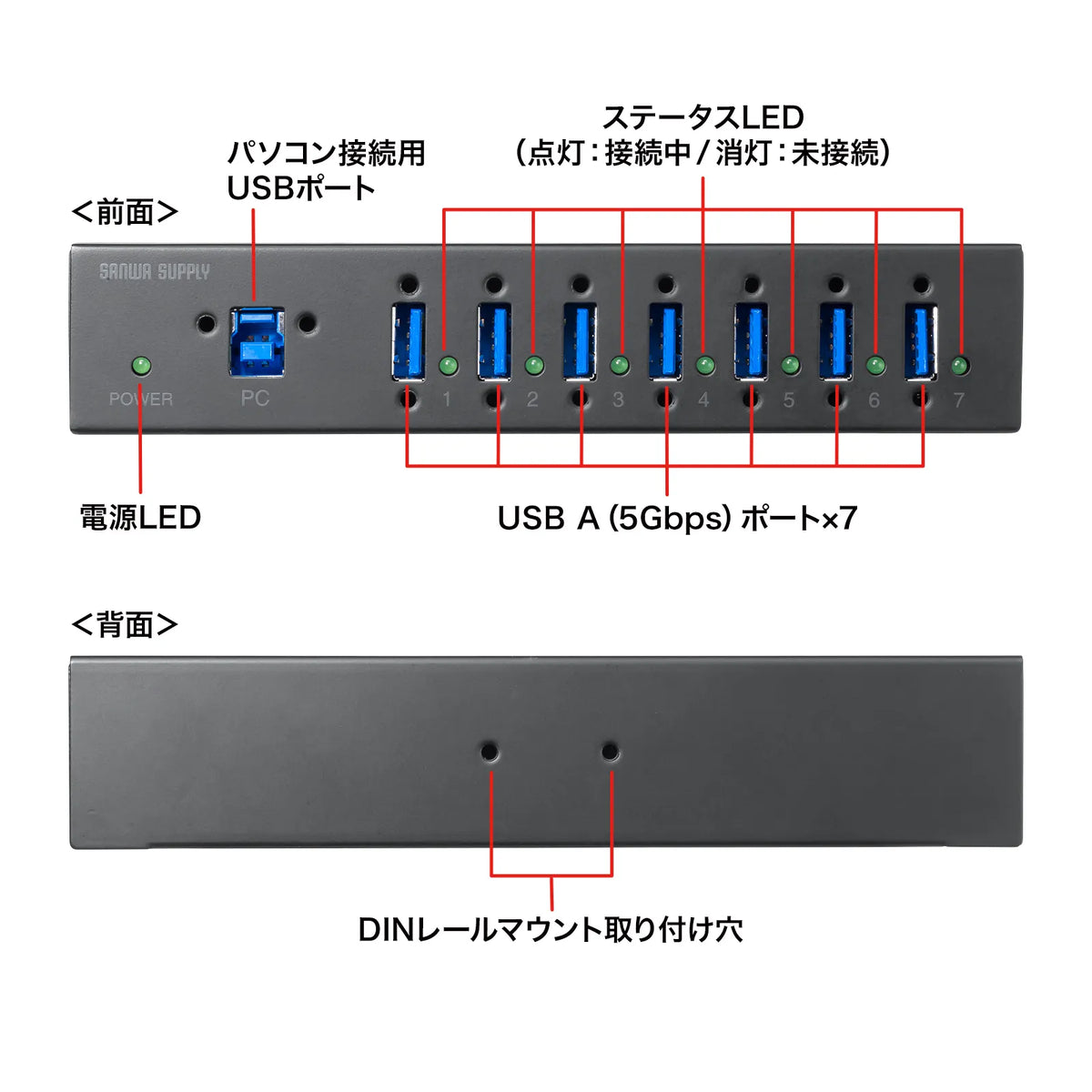

＜USB Ports＞ ■Number of ports: 7 ports ■Maximum data transfer speed (theoretical value): 5Gbps ■USB A female/USB 5Gbps (ports): 7 ports ■Supply current: Maximum 6300mA (Total for all ports/Self-powered) *Per port USB A port/Maximum 900mA *Maximum supply current is when using the dedicated AC adapter USB-AC2 (sold separately)
＜Power Supply＞ ■Power supply method: Self-powered *AC adapter is not included.

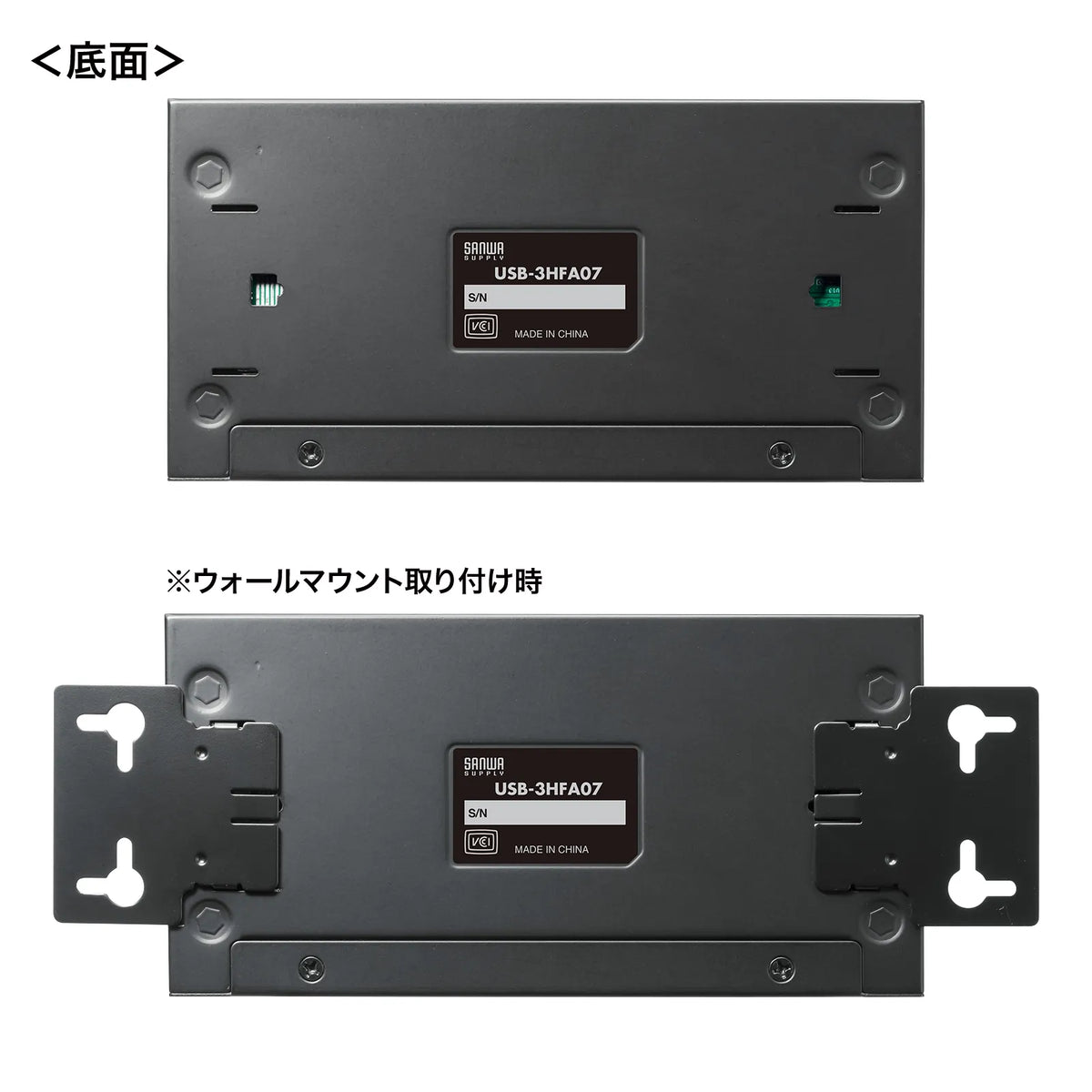

＜Common Specifications＞ ■Environmental Conditions: Operating: Temperature 0 to 60 degrees Celsius, Humidity 10% to 90% (non-condensing) Storage: Temperature -10 to 70 degrees Celsius, Humidity 10% to 90% (non-condensing) ■Size: Approx. W158 x D80 x H32 mm ■Weight: Approx. 389 g ■Set Contents: Main unit, USB cable, DIN rail mount, screws x2, wall mount, plug terminal block ■Driver: Not required ■Compatible AC Adapter: USB-AC2 (sold separately) ■MTBF: 958,000 hours
