SANWA SUPPLY

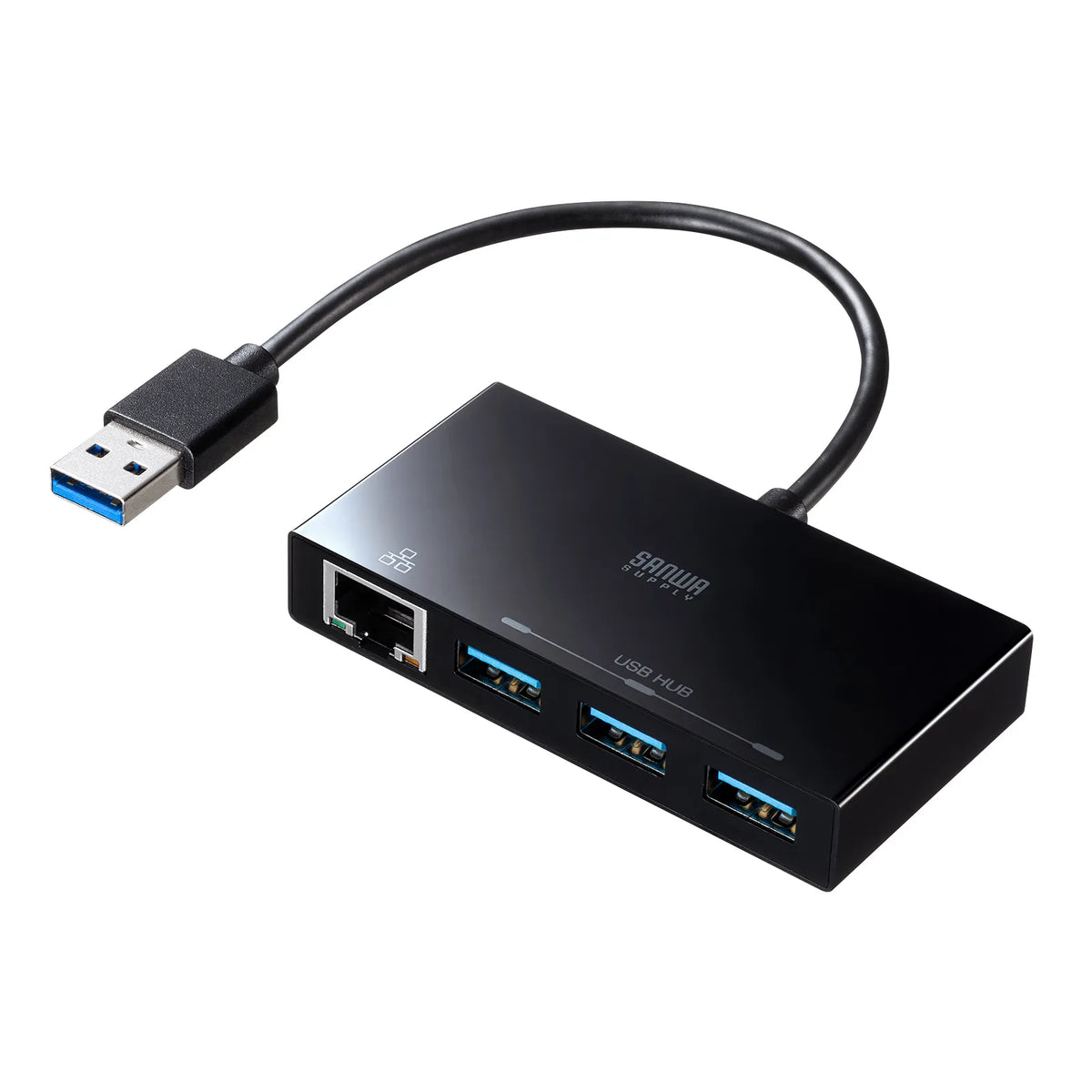

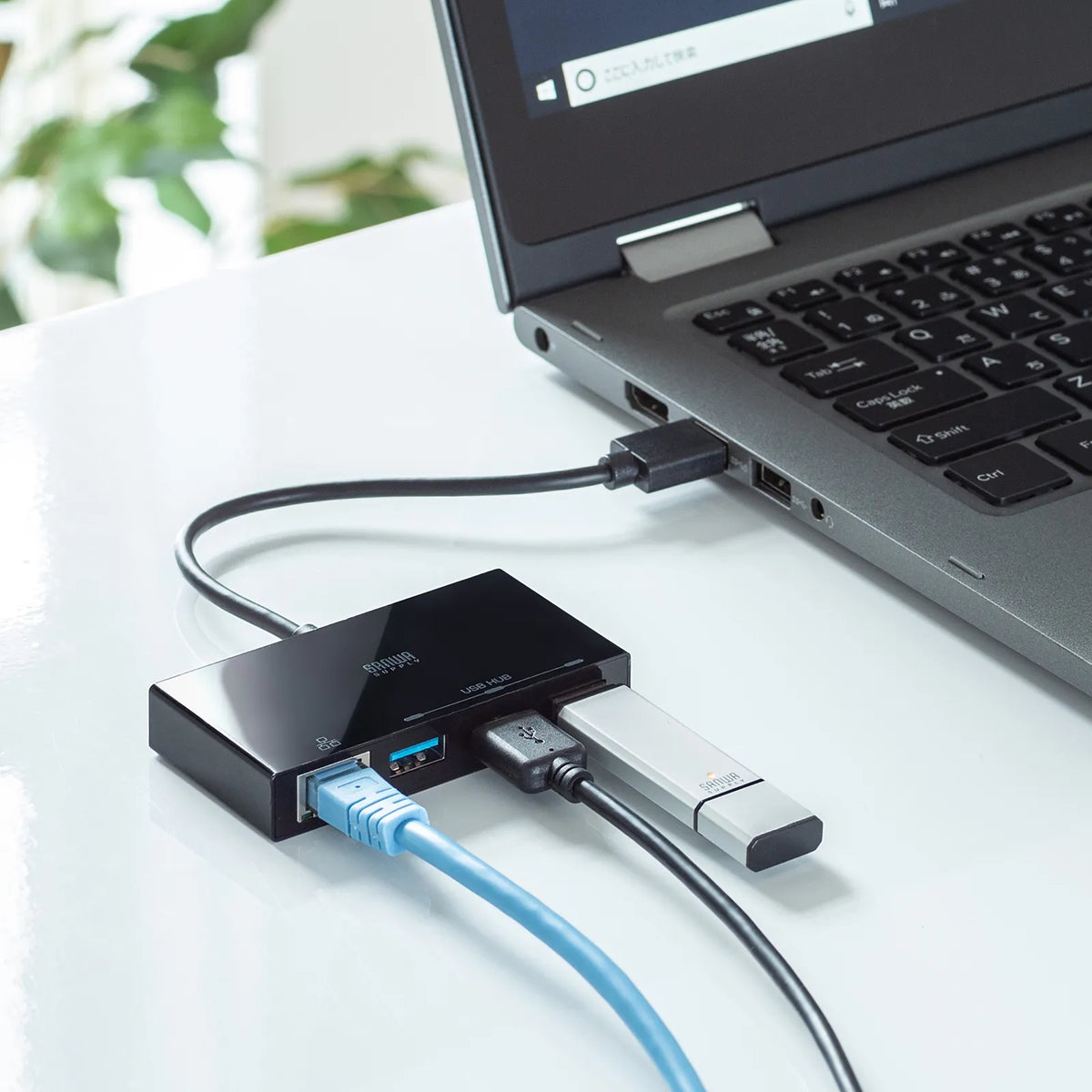

USB 3.2 Gen1 Hub with Gigabit LAN Adapter USB-3H322BKN
USB 3.2 Gen1 Hub with Gigabit LAN Adapter USB-3H322BKN
GTIN（JAN）：4969887782668
SKU：USB-3H322BKN
Regular price
¥4,501 JPY
Regular price
Sale price
¥4,501 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)

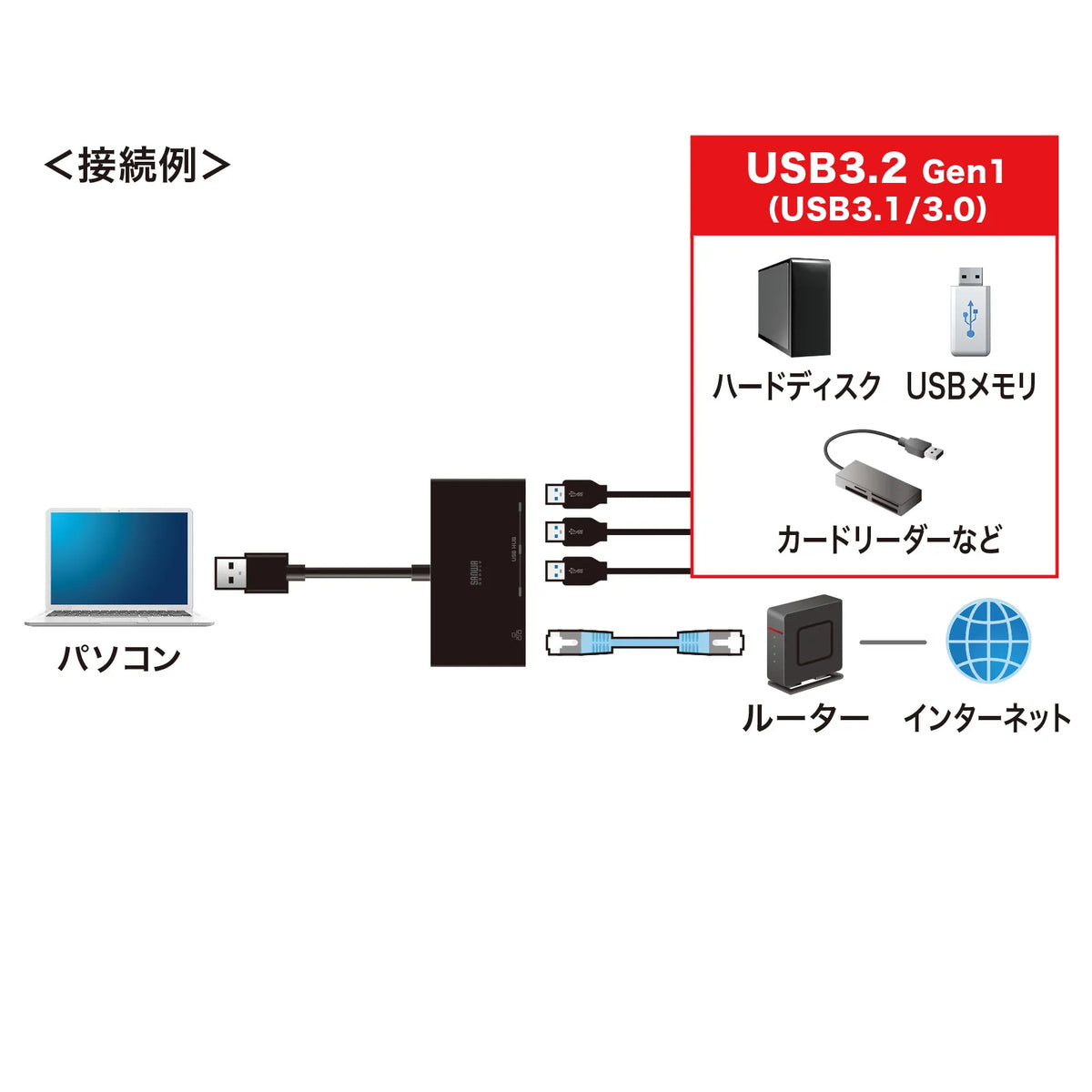

[Portable 3-port USB 3.2 Gen1 hub with built-in LAN adapter function to convert USB port to LAN port]
●Built-in adapter to convert USB port to LAN port.
●Ideal for when you want to connect to LAN via wired connection as it converts USB to LAN port.
●Supports Gigabit LAN.
●Comes with 3 USB 5Gbps hub A connector ports.

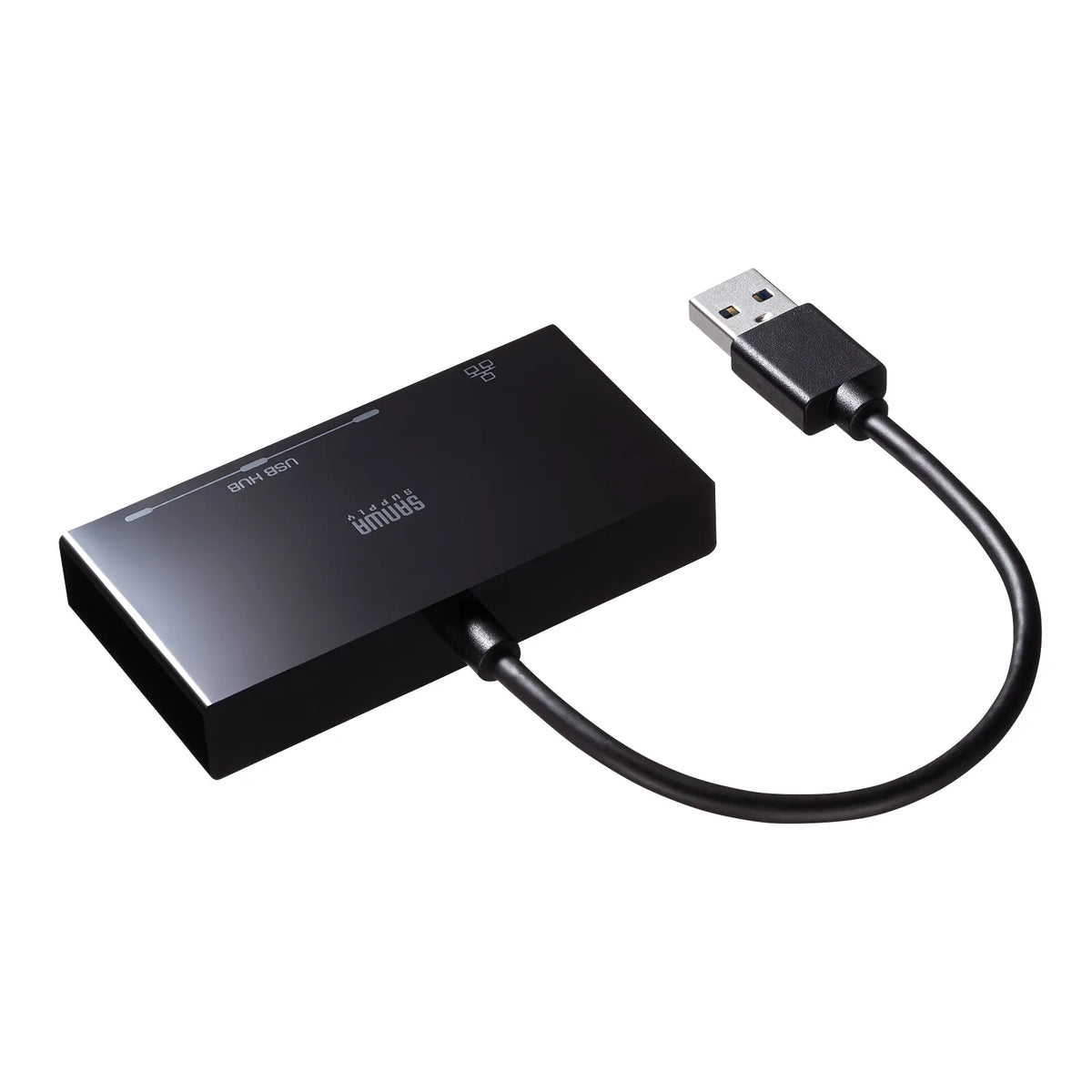

●Since the cable is directly attached, there is no need to worry about losing the cable.
●Supports SuperSpeed mode (5Gbps) [standard value].
●Compatible with USB 2.0/1.1 standards, so it can be used with computers equipped with conventional USB 2.0 ports.

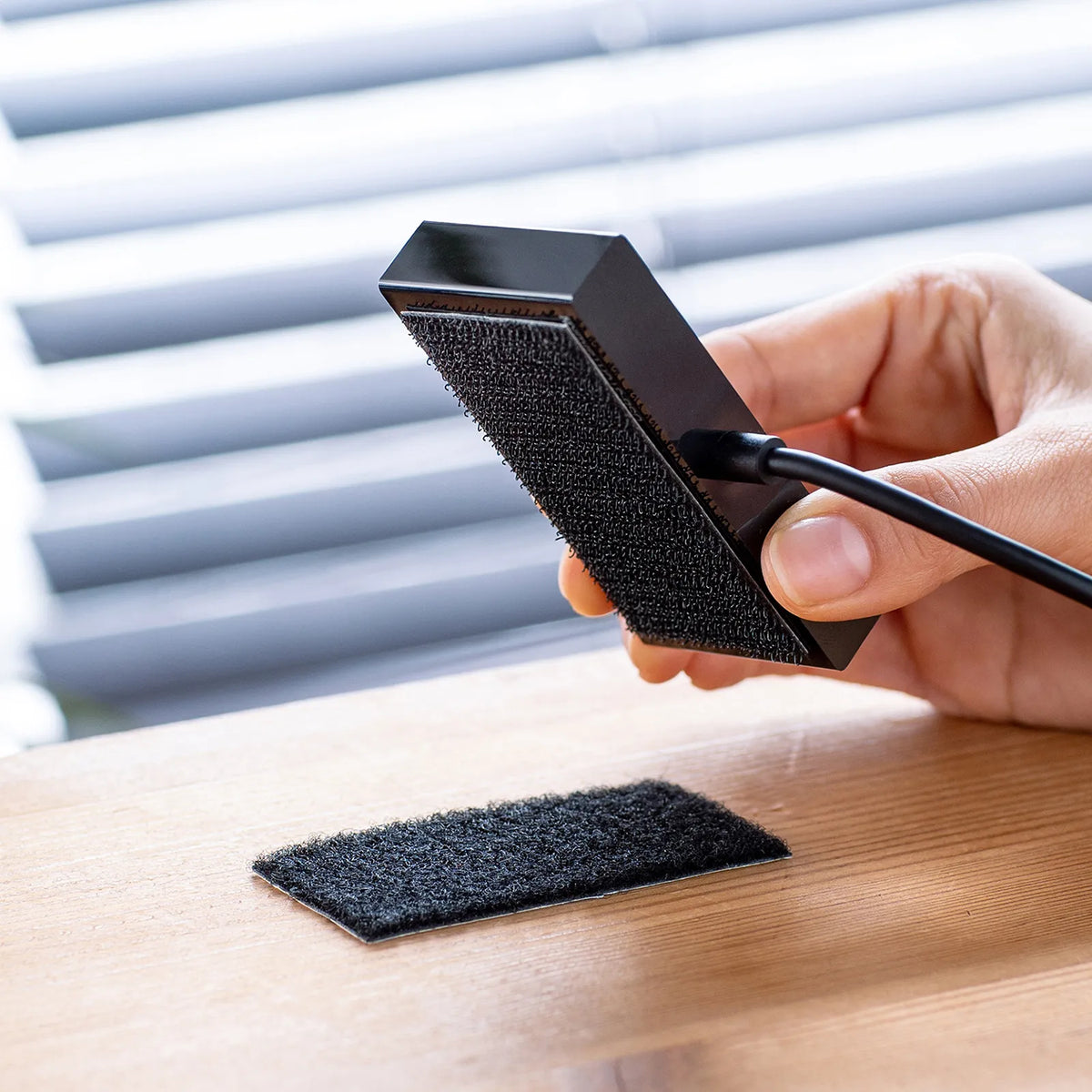

●Comes with hook-and-loop fastener so it can be fixed to a desk or other surface, preventing the unit from floating due to cable tension.
≪Please check before purchasing≫
※While it supports the Wake On LAN function, compatibility varies depending on the computer model, so we do not guarantee operation.
＜PC Connection Terminal＞

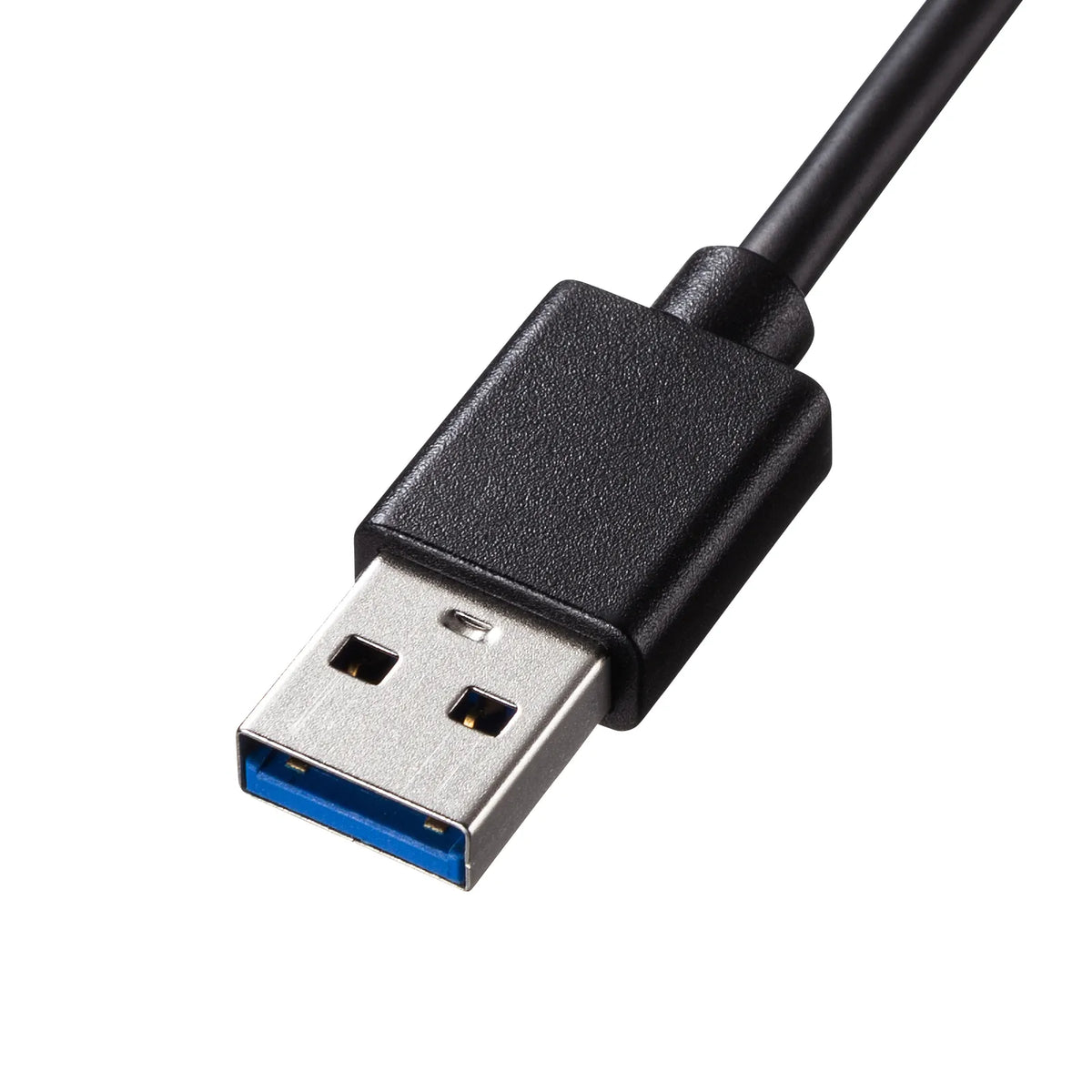

■Connector Shape: USB A
■Supported Standards: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant
*USB5Gbps is the same standard as USB3.2/3.1/3.0, but the name has been changed by USB-IF (USB Implementers Forum).
■Cable Type: Integrated Cable
＜USB Ports＞
■Number of Ports: 3 ports
■Maximum Data Transfer Speed (Theoretical Value): 5Gbps
■USB A Female/USB 5Gbps: 3 ports
＜Power Supply＞
■Power Supply: Bus Power
■Supply Current: Maximum 830mA (Total for all ports)
*If the current consumption of the connected device exceeds the supply current of this product, it may not operate normally with bus power.
＜LAN Port＞
■Supported Standards: IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T)
■Communication Mode: Full Duplex/Half Duplex
■Transmission Speed (Theoretical Value): 1000Mbps, 100Mbps, 10Mbps
■Access Method: CSMA/CD

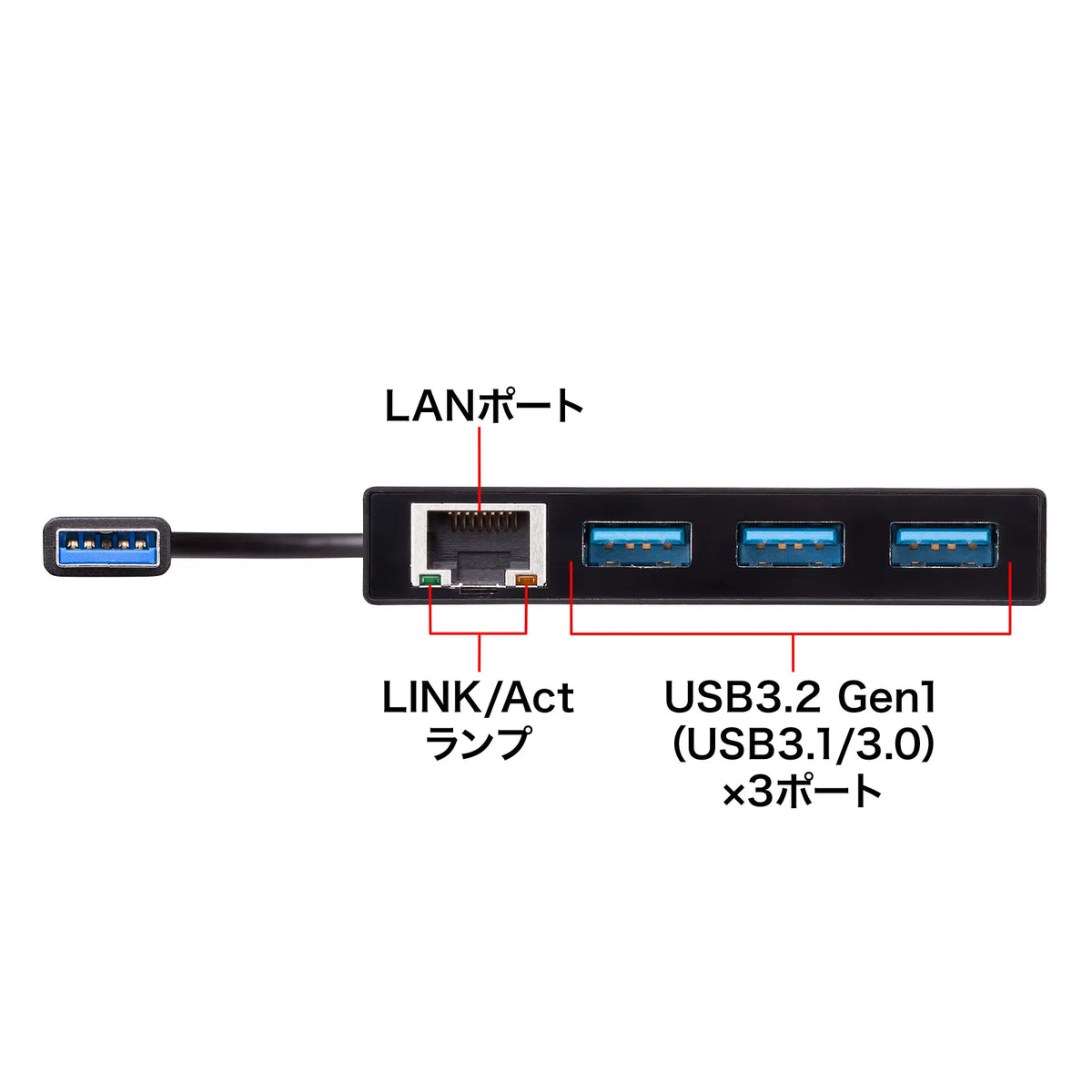

■Port Shape: RJ-45 port (Auto MDI/MDI-X), Auto-Negotiation compatible
■Power Supply Voltage: 5V
＜Common Specifications＞
■Driver: Not required
■Size: Approx. W80 x D40 x H14.5mm
■Weight: Approx. 40g
■Cable Length: 15cm

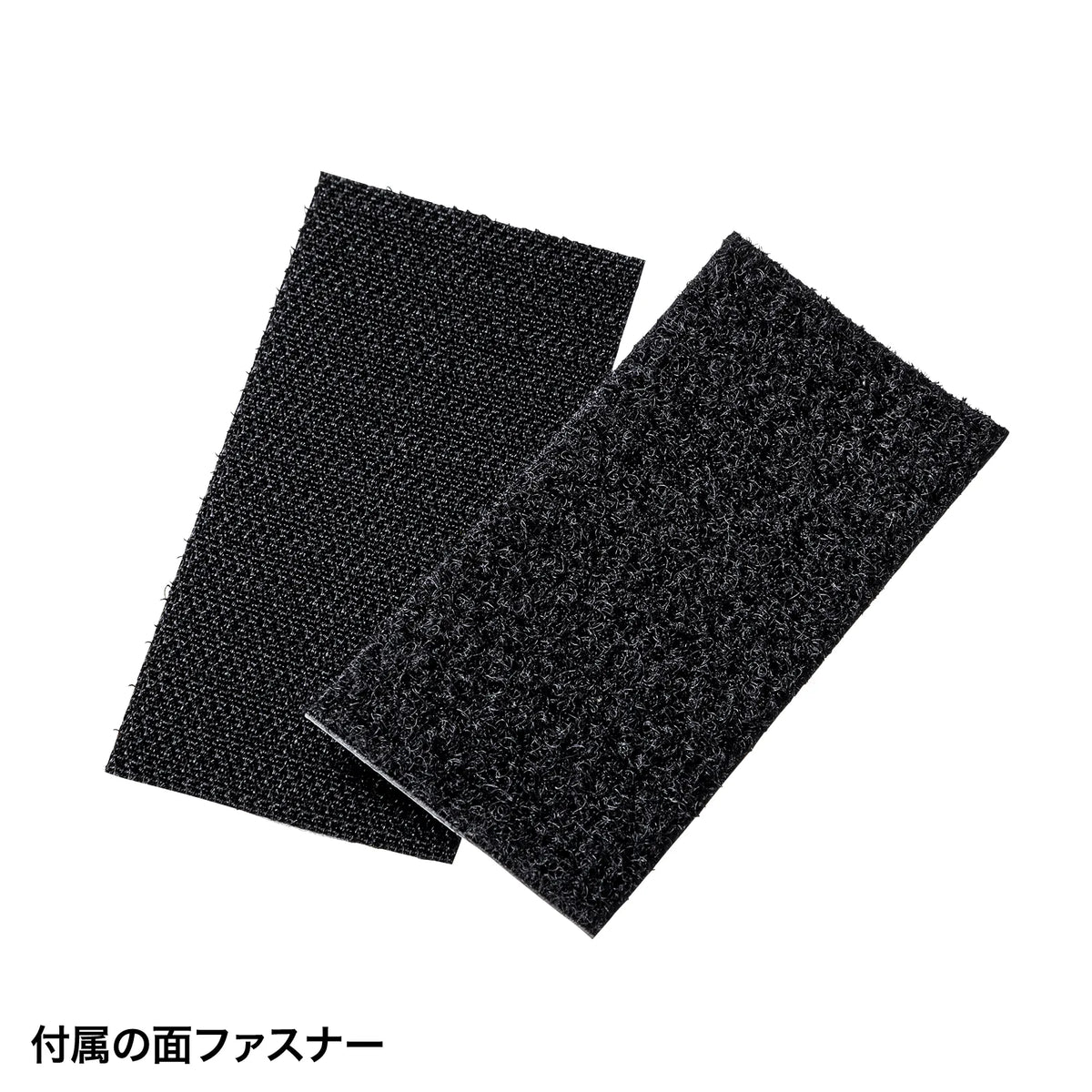

■Set Contents: Instruction manual, hook-and-loop fastener
●Built-in adapter to convert USB port to LAN port.
●Ideal for when you want to connect to LAN via wired connection as it converts USB to LAN port.
●Supports Gigabit LAN.
●Comes with 3 USB 5Gbps hub A connector ports.
●Since the cable is directly attached, there is no need to worry about losing the cable.
●Supports SuperSpeed mode (5Gbps) [standard value].
●Compatible with USB 2.0/1.1 standards, so it can be used with computers equipped with conventional USB 2.0 ports.
●Comes with hook-and-loop fastener so it can be fixed to a desk or other surface, preventing the unit from floating due to cable tension.
≪Please check before purchasing≫
※While it supports the Wake On LAN function, compatibility varies depending on the computer model, so we do not guarantee operation.
＜PC Connection Terminal＞
■Connector Shape: USB A
■Supported Standards: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant
*USB5Gbps is the same standard as USB3.2/3.1/3.0, but the name has been changed by USB-IF (USB Implementers Forum).
■Cable Type: Integrated Cable
＜USB Ports＞
■Number of Ports: 3 ports
■Maximum Data Transfer Speed (Theoretical Value): 5Gbps
■USB A Female/USB 5Gbps: 3 ports
＜Power Supply＞
■Power Supply: Bus Power
■Supply Current: Maximum 830mA (Total for all ports)
*If the current consumption of the connected device exceeds the supply current of this product, it may not operate normally with bus power.
＜LAN Port＞
■Supported Standards: IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T)
■Communication Mode: Full Duplex/Half Duplex
■Transmission Speed (Theoretical Value): 1000Mbps, 100Mbps, 10Mbps
■Access Method: CSMA/CD
■Port Shape: RJ-45 port (Auto MDI/MDI-X), Auto-Negotiation compatible
■Power Supply Voltage: 5V
＜Common Specifications＞
■Driver: Not required
■Size: Approx. W80 x D40 x H14.5mm
■Weight: Approx. 40g
■Cable Length: 15cm
■Set Contents: Instruction manual, hook-and-loop fastener
