SANWA SUPPLY

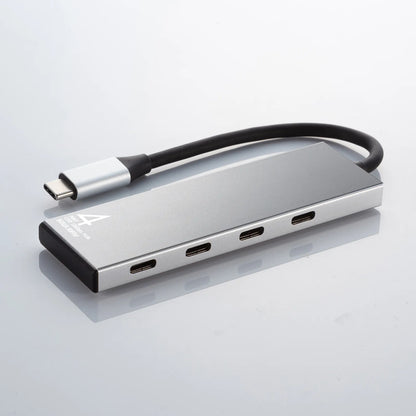

USB 10Gbps Type-C Hub (4 ports) USB-10TCP38SV
USB 10Gbps Type-C Hub (4 ports) USB-10TCP38SV
GTIN（JAN）：4969887784266
SKU：USB-10TCP38SV
Regular price
¥4,501 JPY
Regular price
Sale price
¥4,501 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Slim Aluminum Type. USB Type-C 10Gbps Compatible, Type-C 4 Ports, PD Compatible]

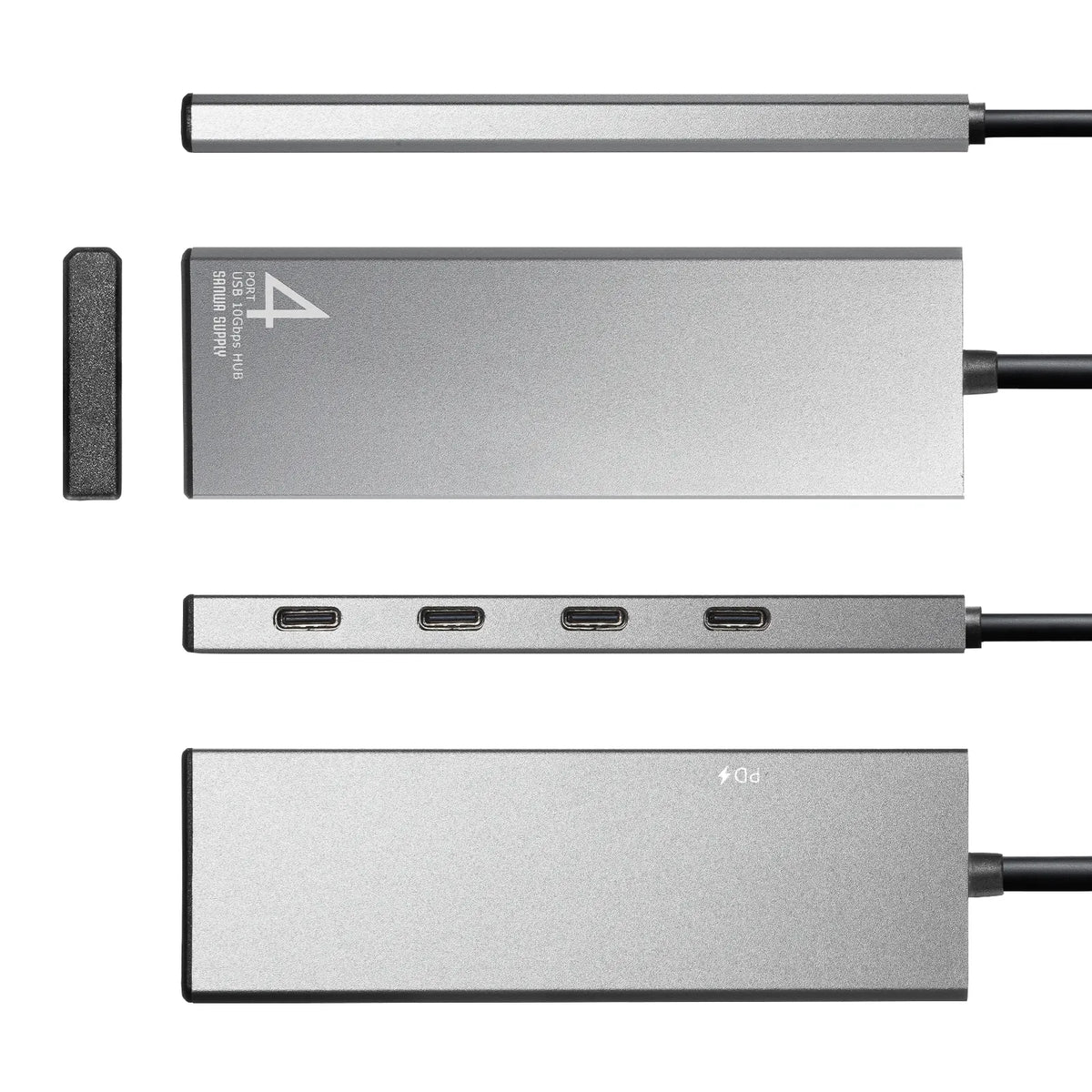

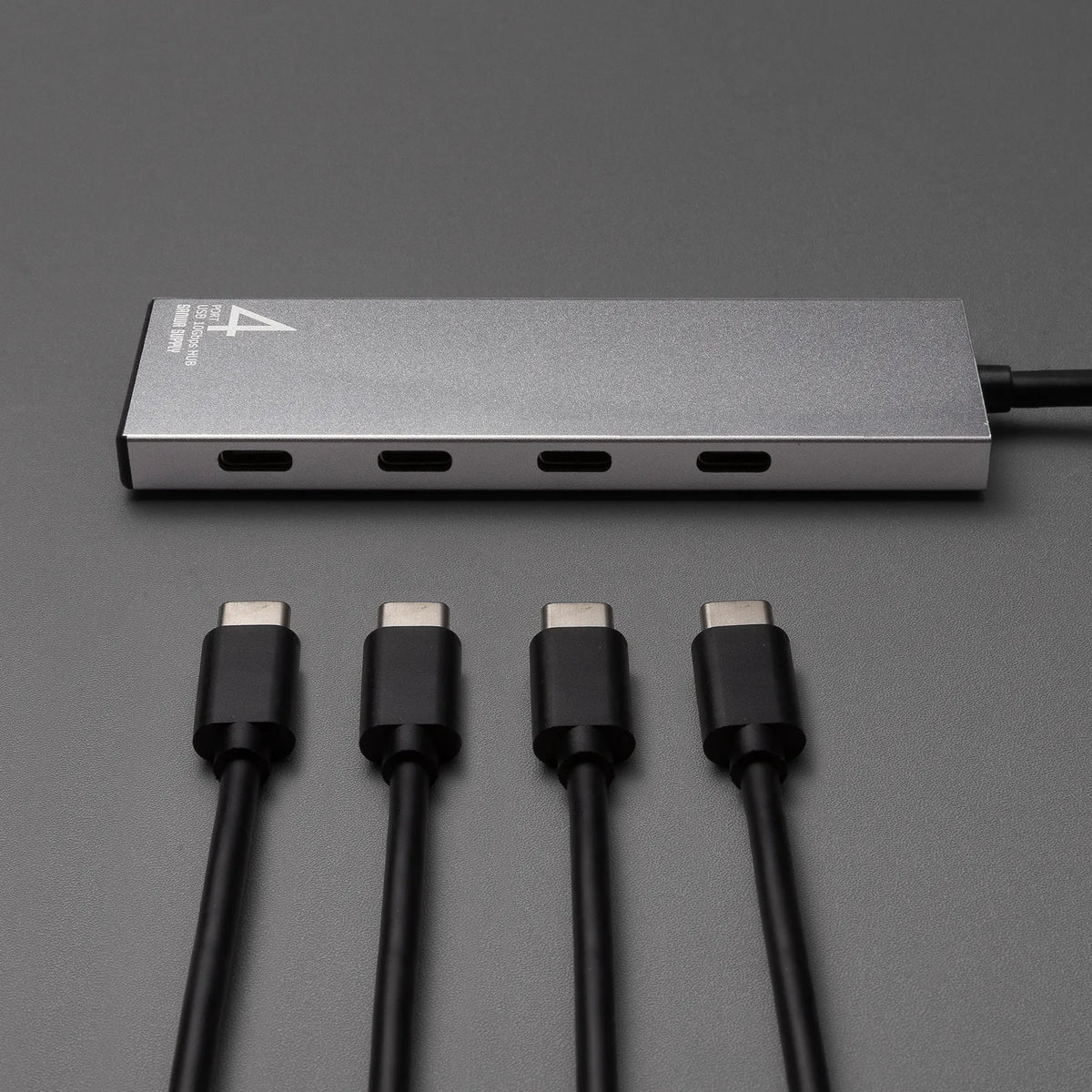

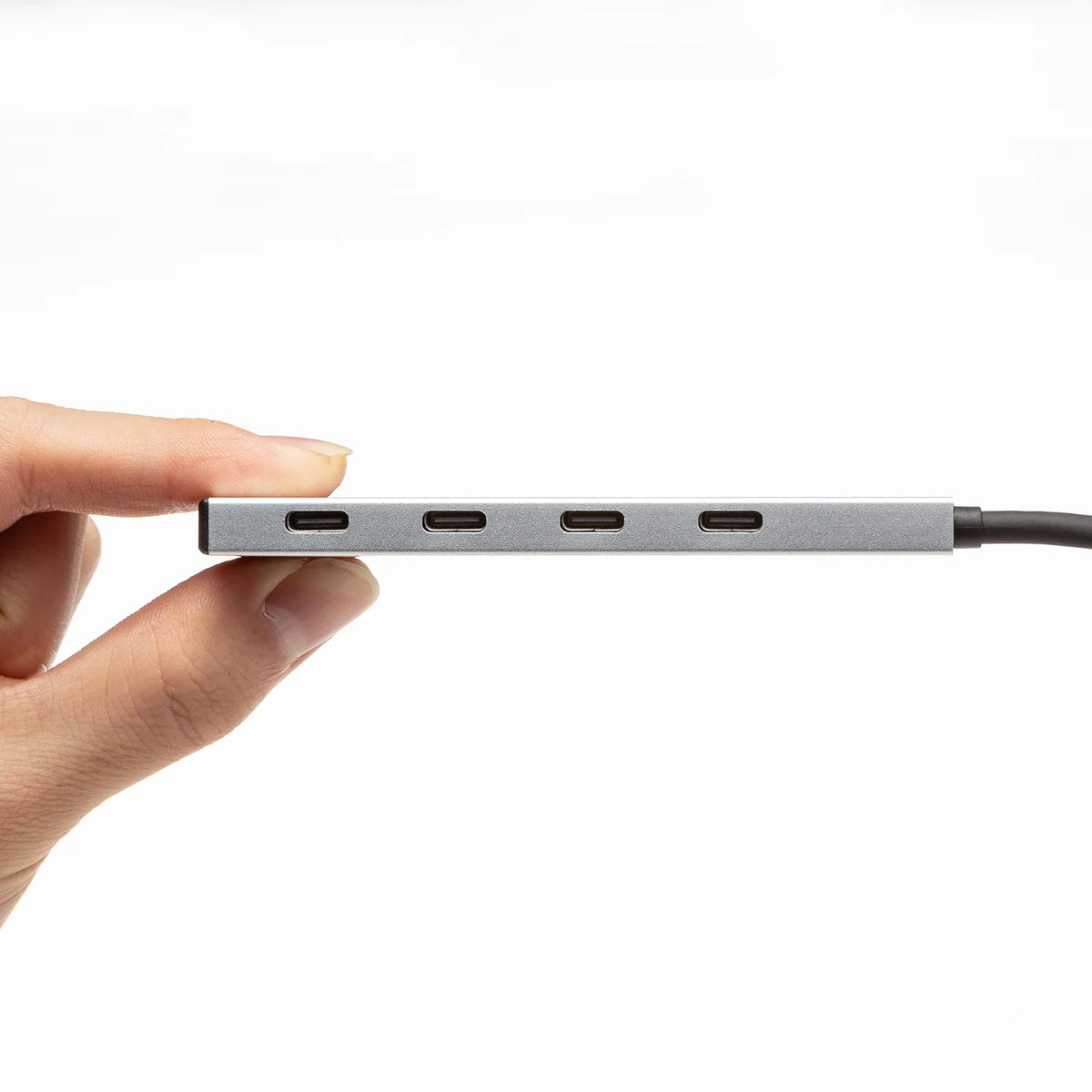

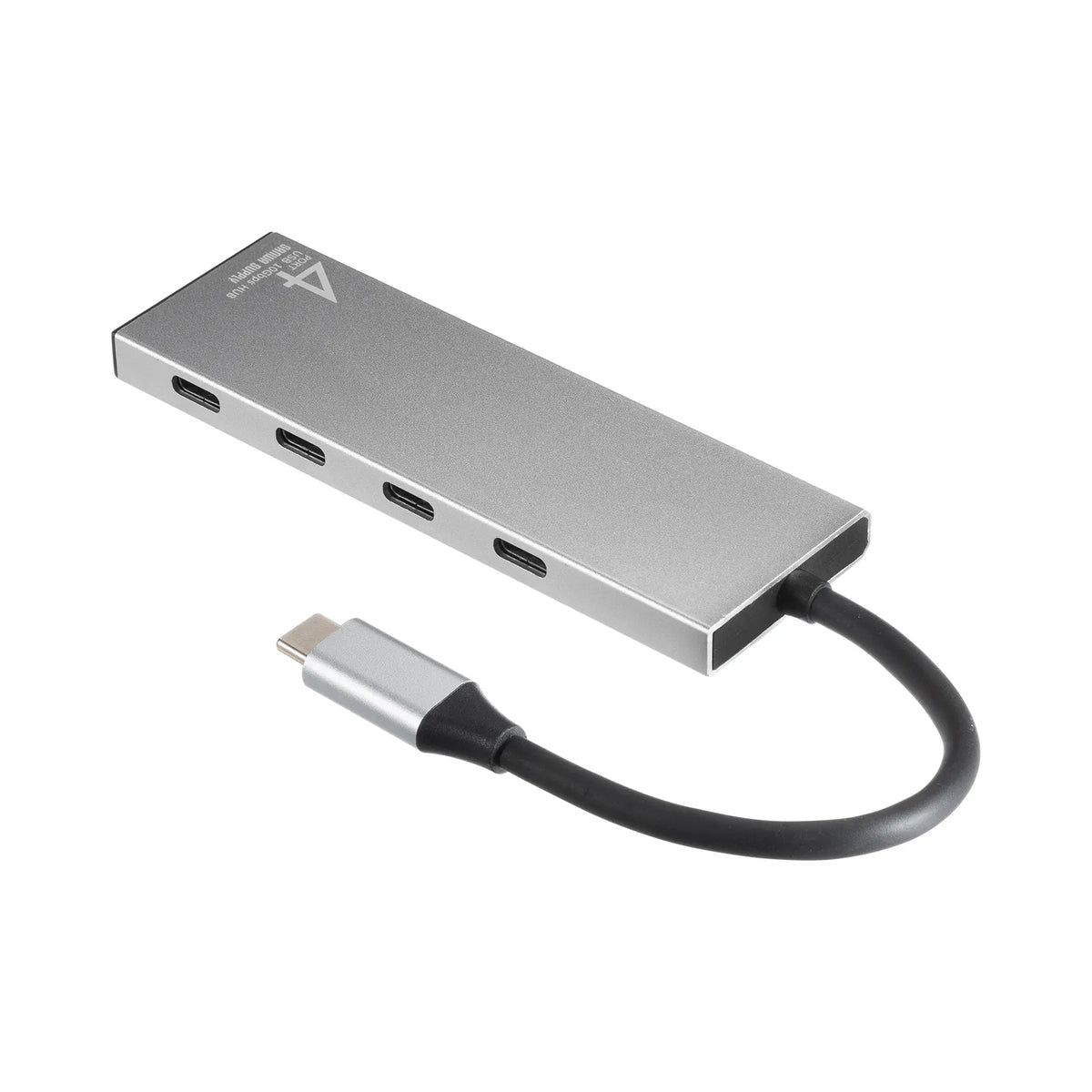

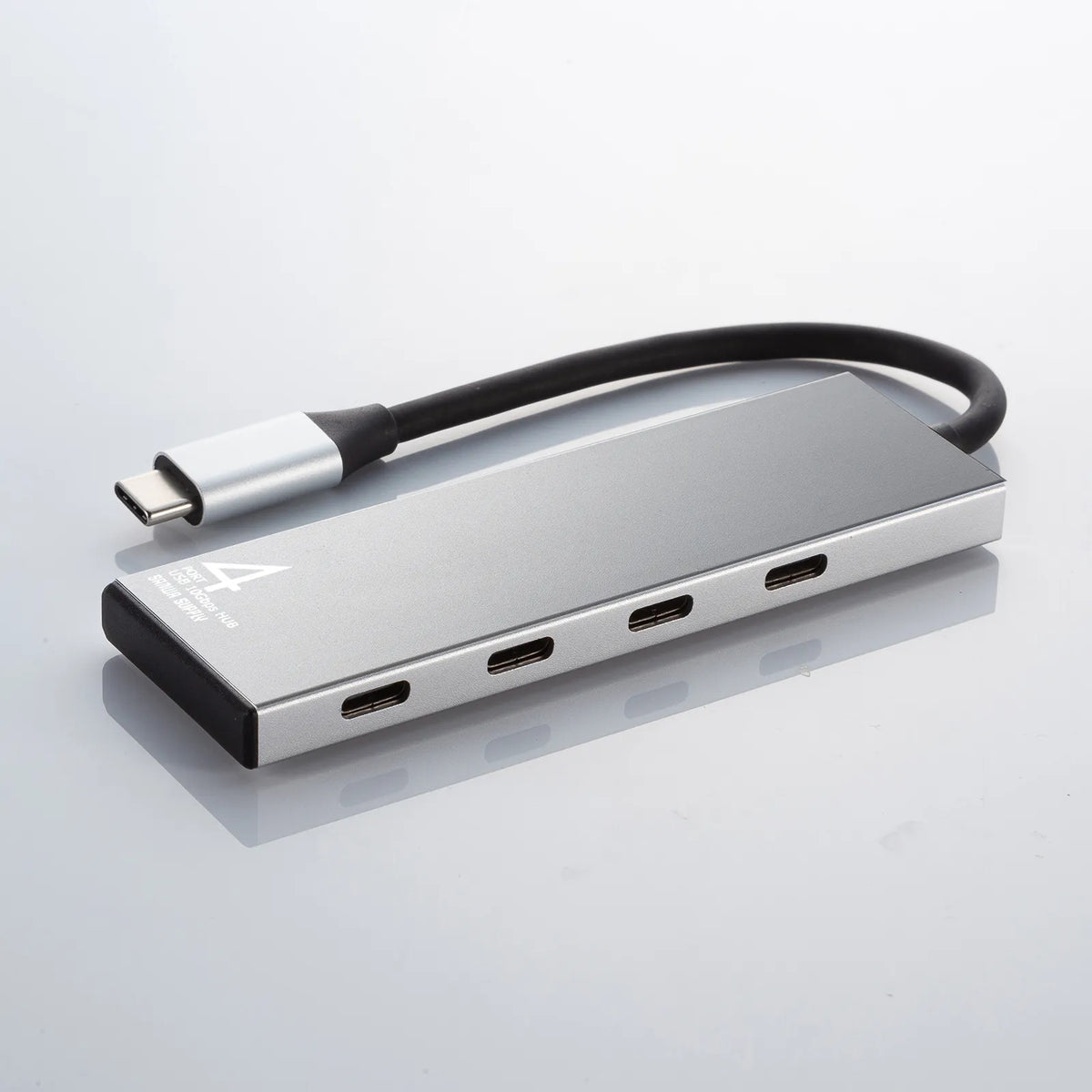

●Slim USB 10Gbps Type-C 4-port hub.

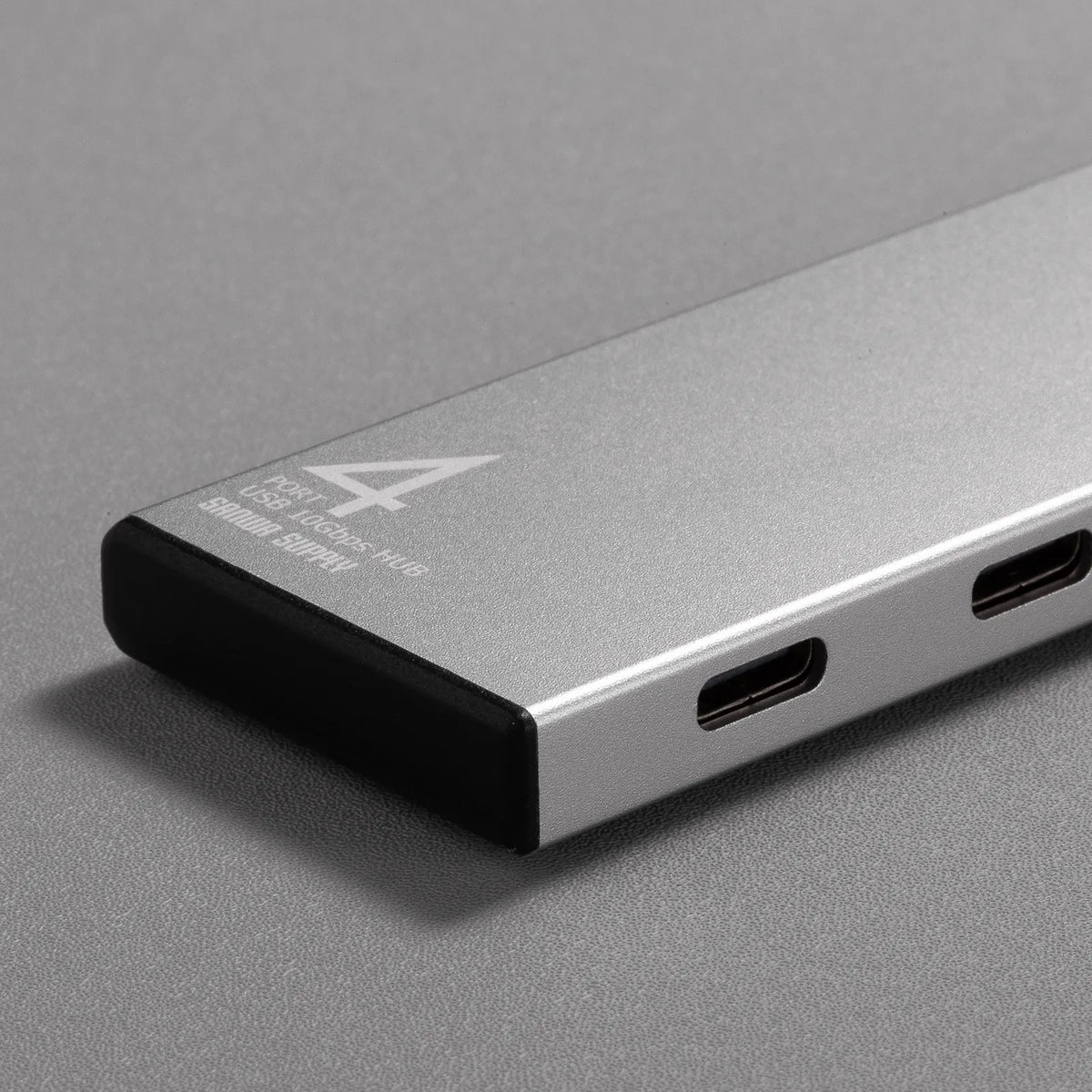

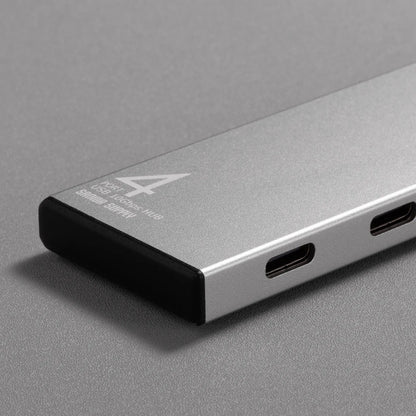

●Aluminum casing with excellent heat dissipation.

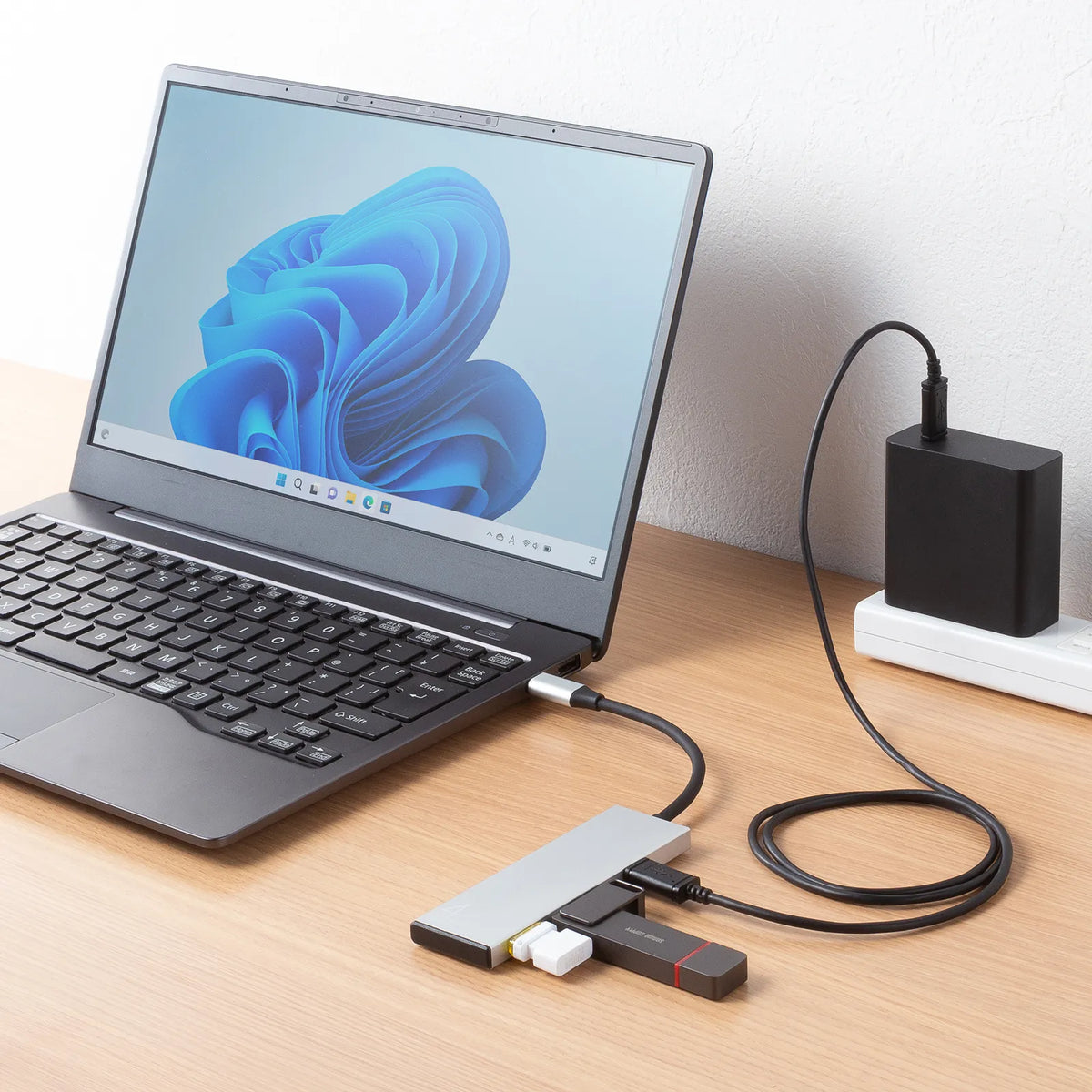

●USB PD compatible port (100W compatible) allows you to charge your laptop with up to 85W charging.
*Requires a PD compatible laptop.
●USB 10Gbps compatible.
●Each port can output a maximum of 1.2A.

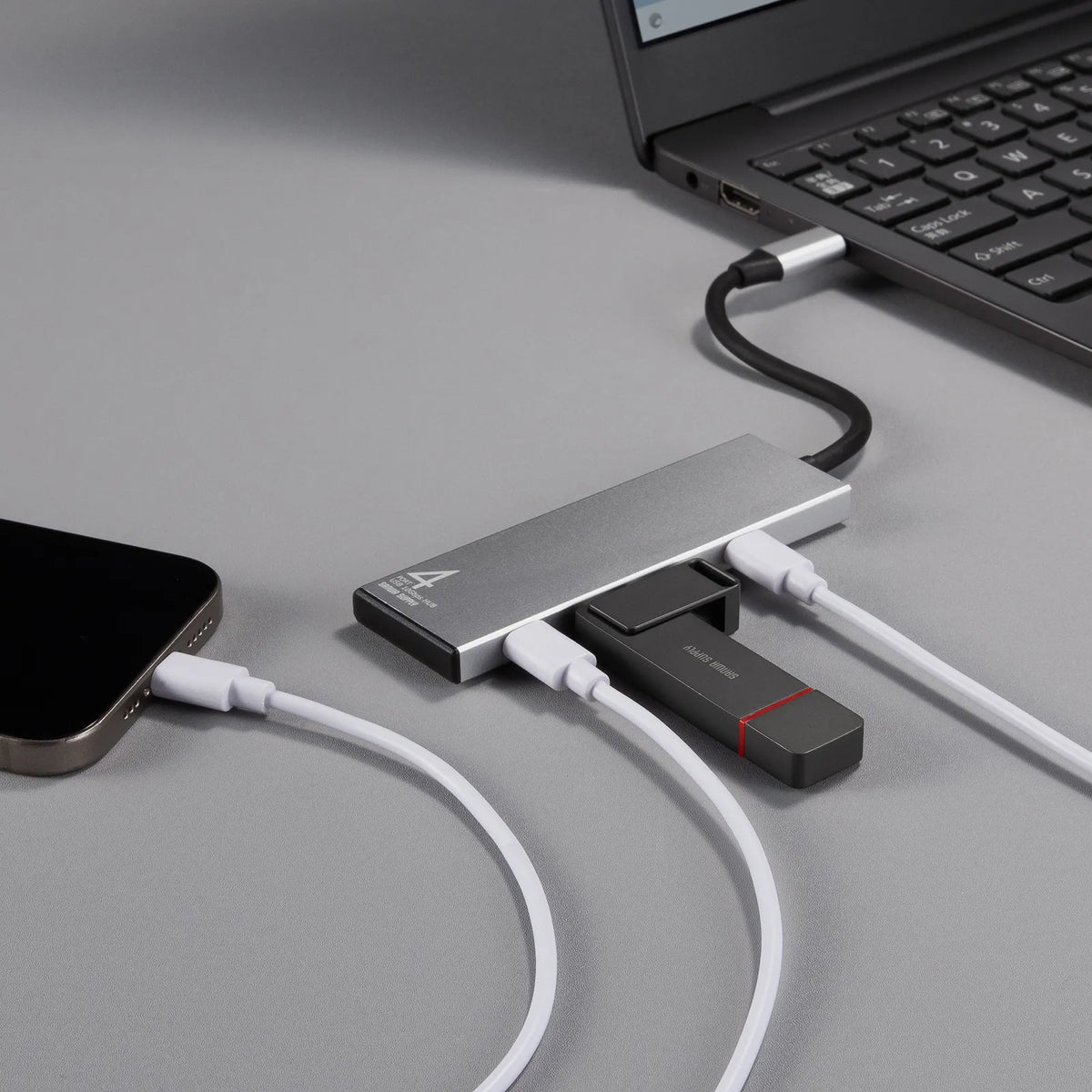

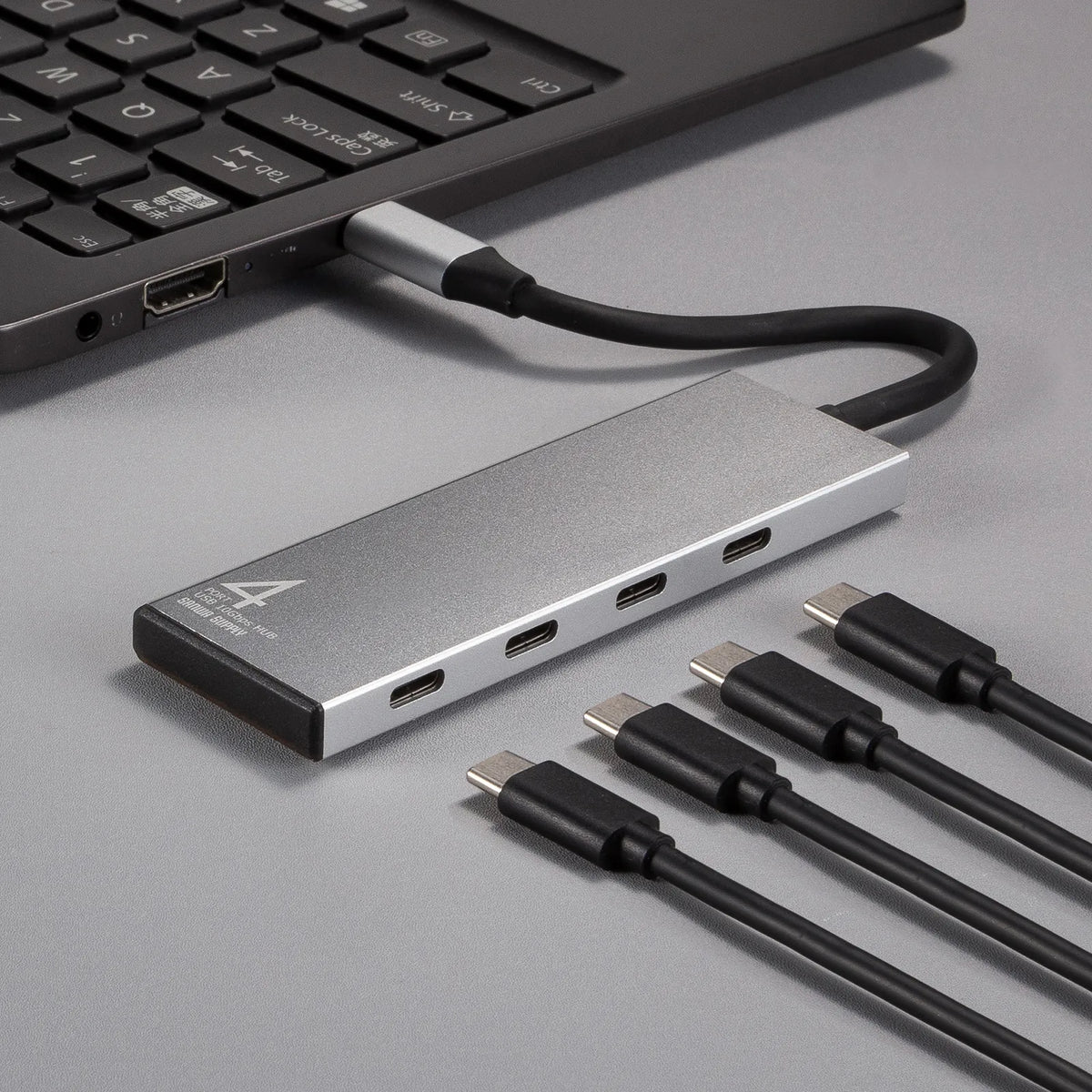

●Uses a USB Type-C connector and can be used with laptops equipped with a Type-C port.

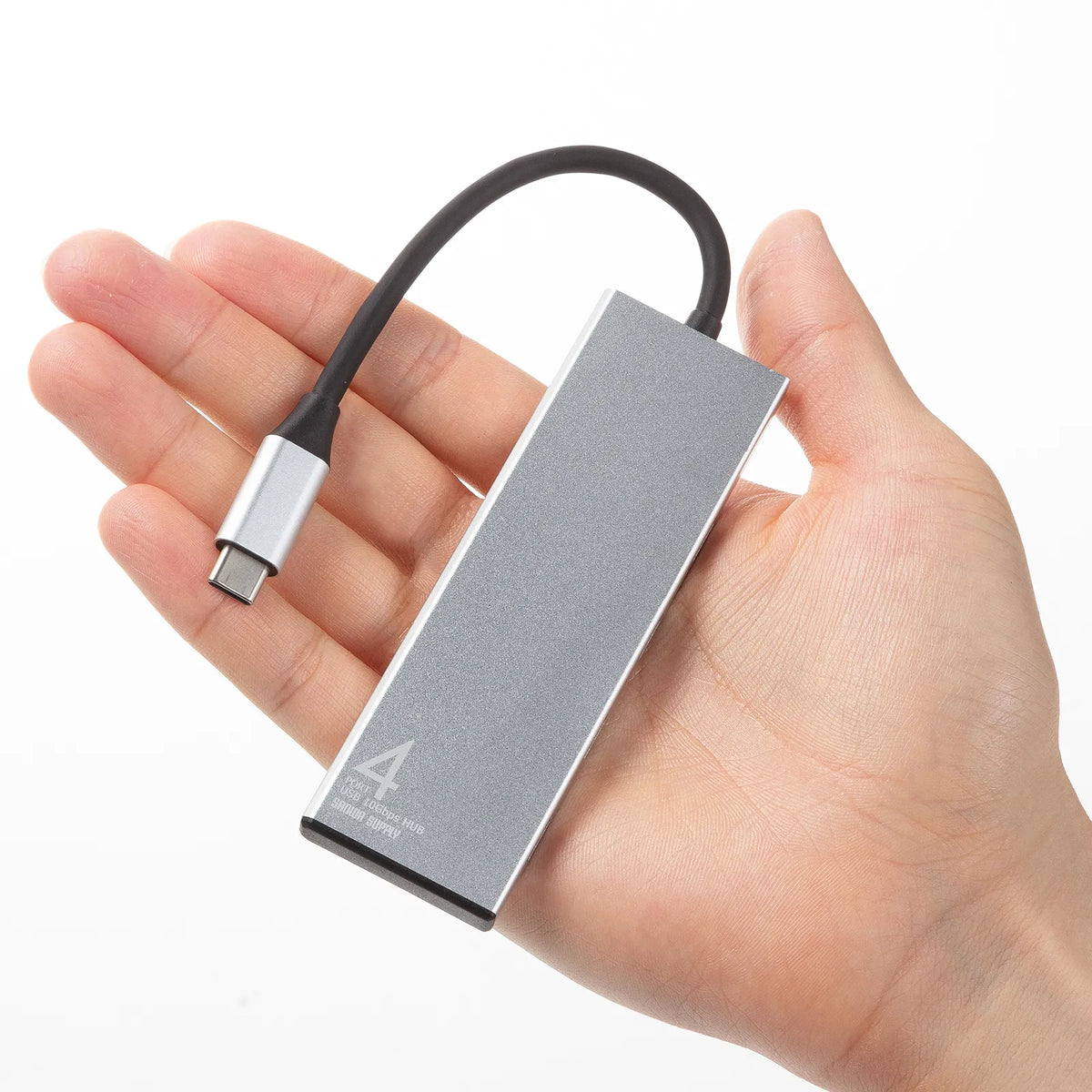

●Compact and convenient size for carrying.
●Cable is directly attached, so there is no need to worry about losing the cable.
【PC Connection Terminal】
■Connector Shape: USB Type-C
■Supported Standards: USB 10Gbps (USB3.2 Gen2/USB3.1 Gen2) compliant
*USB10Gbps is the same standard as USB3.2/3.1, but the name was changed by USB-IF (USB Implementers Forum).
■Cable Length: Approx. 10cm
■Cable Type: Integrated cable
【USB Ports】
■Number of Ports: 4 ports
■Maximum Data Transfer Speed (Theoretical Value): 10Gbps

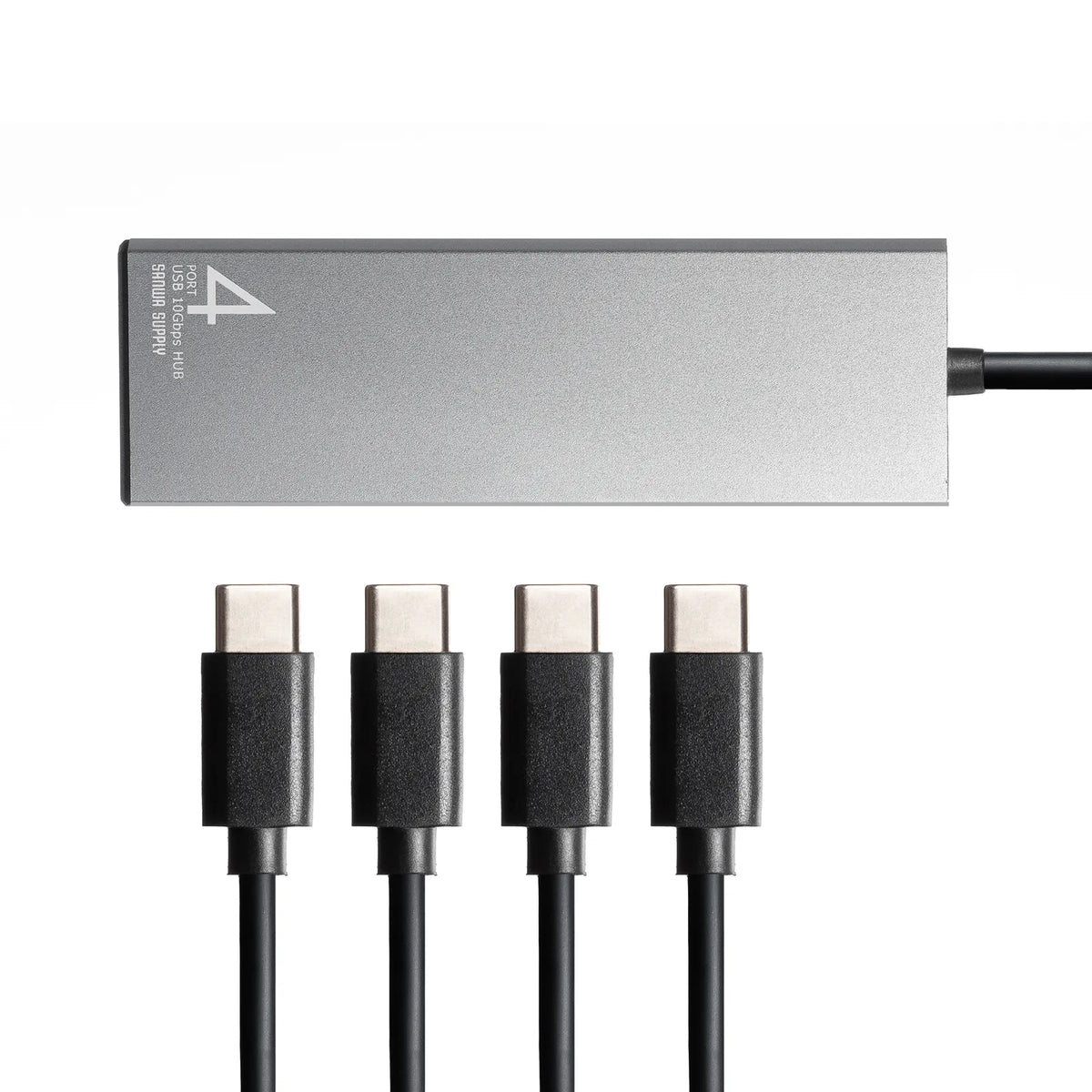

■USB Type-C Female/USB 10Gbps: 4 ports
■Supply Current: Maximum 3000mA
(Total for all ports)
*If the current consumption of the connected device exceeds the supply current of this product, it may not operate normally with bus power.
【Power Supply】
■Power supply method: Bus power/Self power (when power is connected)
■USB PD input port: Yes
■USB PD maximum input: 85W
【PC connection terminal】
■USB PD maximum output: 100W
【Power Supply】
■Main unit power consumption: 15W
【Common specifications】
■Supported OS Windows: 11, 10
■Supported OS mac: macOS (Tahoe) 26, macOS (Sequoia) 15, macOS (Sonoma) 14, macOS (Ventura) 13, macOS (Monterey) 12, macOS (BigSur) 11
■Supported OS Android: Android 15・16
■Supported OS iOS: iOS 17 to 26
■Supported OS iPadOS: iPadOS 17 to 26
■Supported OS ChromeOS: ChromeOS
■Compatible devices: Windows-based (DOS/V) PCs, Apple Mac series, Chrome OS-equipped PCs, iPad
*Models with a USB port (Type-C female) and whose operation is guaranteed by the PC manufacturer.
*To operate in a USB 10Gbps (USB3.2 Gen2) environment, the PC itself must have a USB 10Gbps (USB3.2 Gen2) port.
*Some PCs and USB devices may not be compatible.
*Operation is not guaranteed with all devices.
■Operating temperature: 0 to 40 degrees Celsius
*No condensation
■Operating humidity: 0% to 80%
*No condensation
【Other specifications】
"It is possible to use it by connecting it to the Thunderbolt port of a PC.
However, it will not achieve Thunderbolt speeds. Also, Thunderbolt-only devices cannot be connected."
The PD port also supports data communication.
