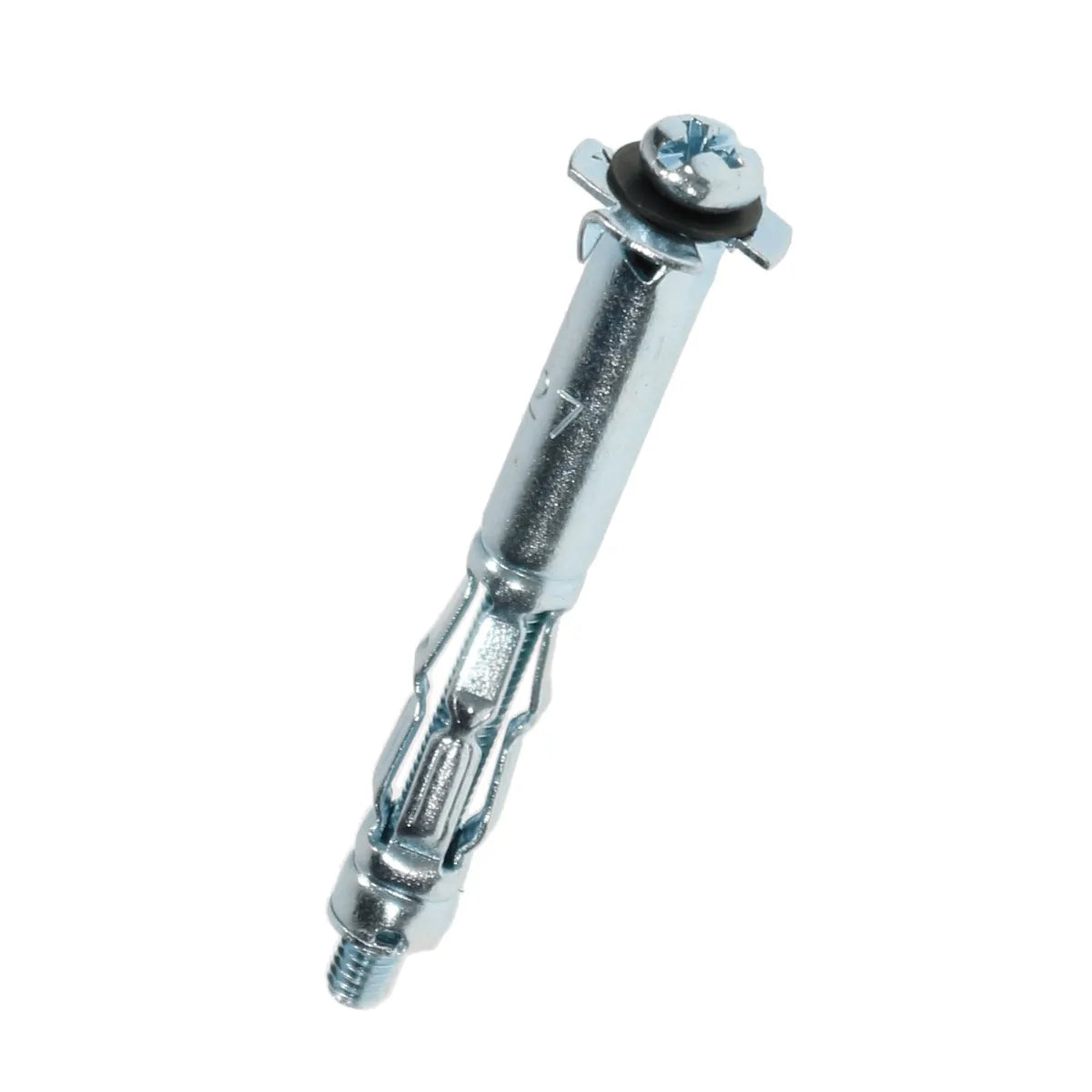

Board anchor TP-A-427N
Board anchor TP-A-427N
GTIN（JAN）：4937897047923
SKU：TP-A-427N
Regular price
¥8,333 JPY
Regular price
Sale price
¥8,333 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Product Features]
The A-427 series of board anchors now includes an "Economical Pack"!
●For gypsum board and hollow structure walls
●For attaching fixtures to any hollow wall surface

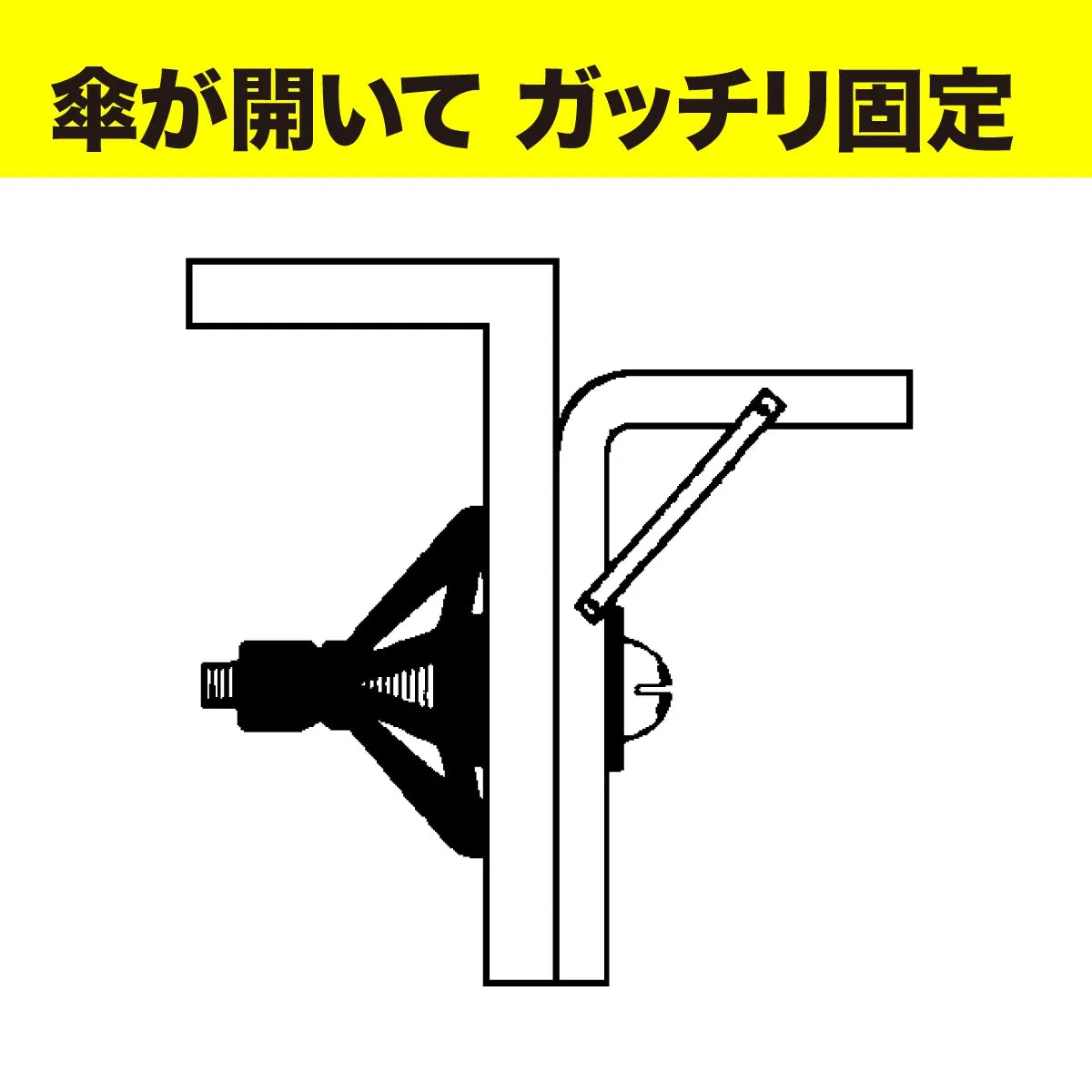

●The umbrella opens up for a firm fixation
●For attaching communication equipment, distribution boards, switchboards, shelf brackets, etc. to plywood walls
●Applicable board thickness: 22-27mm
●Screw diameter: M4
●Drill diameter (pilot hole): φ9.0mm
●Maximum pull-out strength*: 100.0N (10.2kgf) Safety factor N=7 (Material: 12.5mm thick gypsum board x 2)

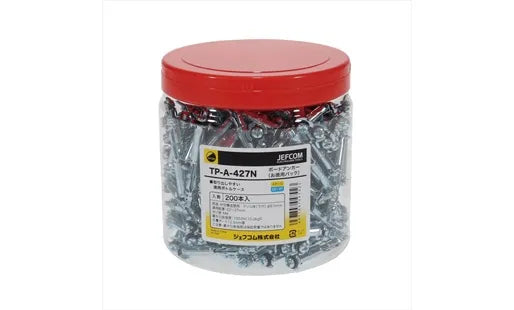

●Type: Economical Pack
●Quantity: 200 pieces
*Maximum pull-out strength may vary depending on the material and installation conditions.
Please note that this is not a guaranteed load capacity.
■ Specifications
・Body size and weight: 120mm x 120mm x 130mm, 2.2kg
・Material
Body: Steel (plated)
・Packaging specifications
Individual packaging: Bottle case, seal
Individual packaging size and weight: W120 x D120 x H130mm, 2.2kg
Inner packaging: Inner box (6 pieces)
Inner packaging size and weight: W260 x D380 x H145mm, 13.5kg, 1 box
・Country of origin: China
The A-427 series of board anchors now includes an "Economical Pack"!
●For gypsum board and hollow structure walls
●For attaching fixtures to any hollow wall surface
●The umbrella opens up for a firm fixation
●For attaching communication equipment, distribution boards, switchboards, shelf brackets, etc. to plywood walls
●Applicable board thickness: 22-27mm
●Screw diameter: M4
●Drill diameter (pilot hole): φ9.0mm
●Maximum pull-out strength*: 100.0N (10.2kgf) Safety factor N=7 (Material: 12.5mm thick gypsum board x 2)
●Type: Economical Pack
●Quantity: 200 pieces
*Maximum pull-out strength may vary depending on the material and installation conditions.
Please note that this is not a guaranteed load capacity.
■ Specifications
・Body size and weight: 120mm x 120mm x 130mm, 2.2kg
・Material
Body: Steel (plated)
・Packaging specifications
Individual packaging: Bottle case, seal
Individual packaging size and weight: W120 x D120 x H130mm, 2.2kg
Inner packaging: Inner box (6 pieces)
Inner packaging size and weight: W260 x D380 x H145mm, 13.5kg, 1 box
・Country of origin: China
