JEFCOM

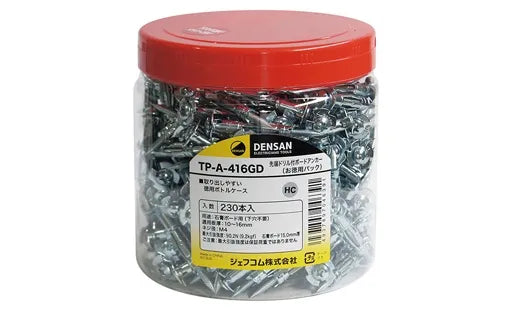

Board anchor with drill bit TP-A-416GD
Board anchor with drill bit TP-A-416GD
GTIN（JAN）：4937897046391
SKU：TP-A-416GD
Regular price
¥10,890 JPY
Regular price
Sale price
¥10,890 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Product Features]

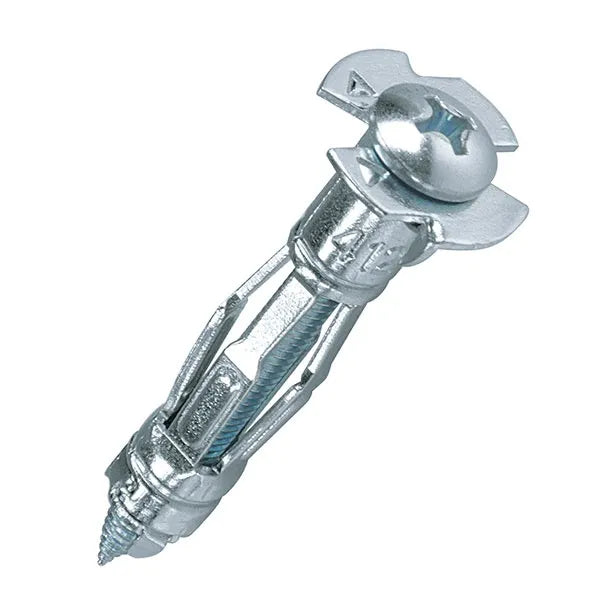

For mounting fixtures to gypsum board walls (hollow walls)! No drilling (pilot holes) required!
●No drilling (pilot holes) required
●Can be used with a screwdriver for everything from drilling holes to anchor fixing
●The drill tip shape and cutting claws allow for direct drilling into the board
●Applications
・Mounting of indoor air conditioner units, communication equipment, distribution boards, switchboards, shelf brackets, etc.
■ Specifications
・Applicable board thickness: 10~16mm
・Screw diameter: M4
・Drill diameter (pilot hole): φ9.0mm
・Material: 15.0mm thick gypsum board
・Maximum pull-out strength (*): 90.2N (9.2kgf)
・Type: Value pack
・Quantity: 230
・Material
Body and screws: Steel
・Packaging specifications
Individual packaging: Bottle case and seal
Individual packaging size and weight: W120×D120×H130mm・2.32kg
Inner packaging: Cardboard box
Inner packaging size and weight: W260×D380×H145mm・14.04kg・1 box
・Country of origin: China
【Notes】
*Please note that we will be changing the specifications sequentially starting with shipments from January 2026.
Please note that we cannot accept requests for specific specifications, including those from our existing stock.
*Changes: The head shape will be changed from "truss head" to "pan head".
For mounting fixtures to gypsum board walls (hollow walls)! No drilling (pilot holes) required!
●No drilling (pilot holes) required
●Can be used with a screwdriver for everything from drilling holes to anchor fixing
●The drill tip shape and cutting claws allow for direct drilling into the board
●Applications
・Mounting of indoor air conditioner units, communication equipment, distribution boards, switchboards, shelf brackets, etc.
■ Specifications
・Applicable board thickness: 10~16mm
・Screw diameter: M4
・Drill diameter (pilot hole): φ9.0mm
・Material: 15.0mm thick gypsum board
・Maximum pull-out strength (*): 90.2N (9.2kgf)
・Type: Value pack
・Quantity: 230
・Material
Body and screws: Steel
・Packaging specifications
Individual packaging: Bottle case and seal
Individual packaging size and weight: W120×D120×H130mm・2.32kg
Inner packaging: Cardboard box
Inner packaging size and weight: W260×D380×H145mm・14.04kg・1 box
・Country of origin: China
【Notes】
*Please note that we will be changing the specifications sequentially starting with shipments from January 2026.
Please note that we cannot accept requests for specific specifications, including those from our existing stock.
*Changes: The head shape will be changed from "truss head" to "pan head".
