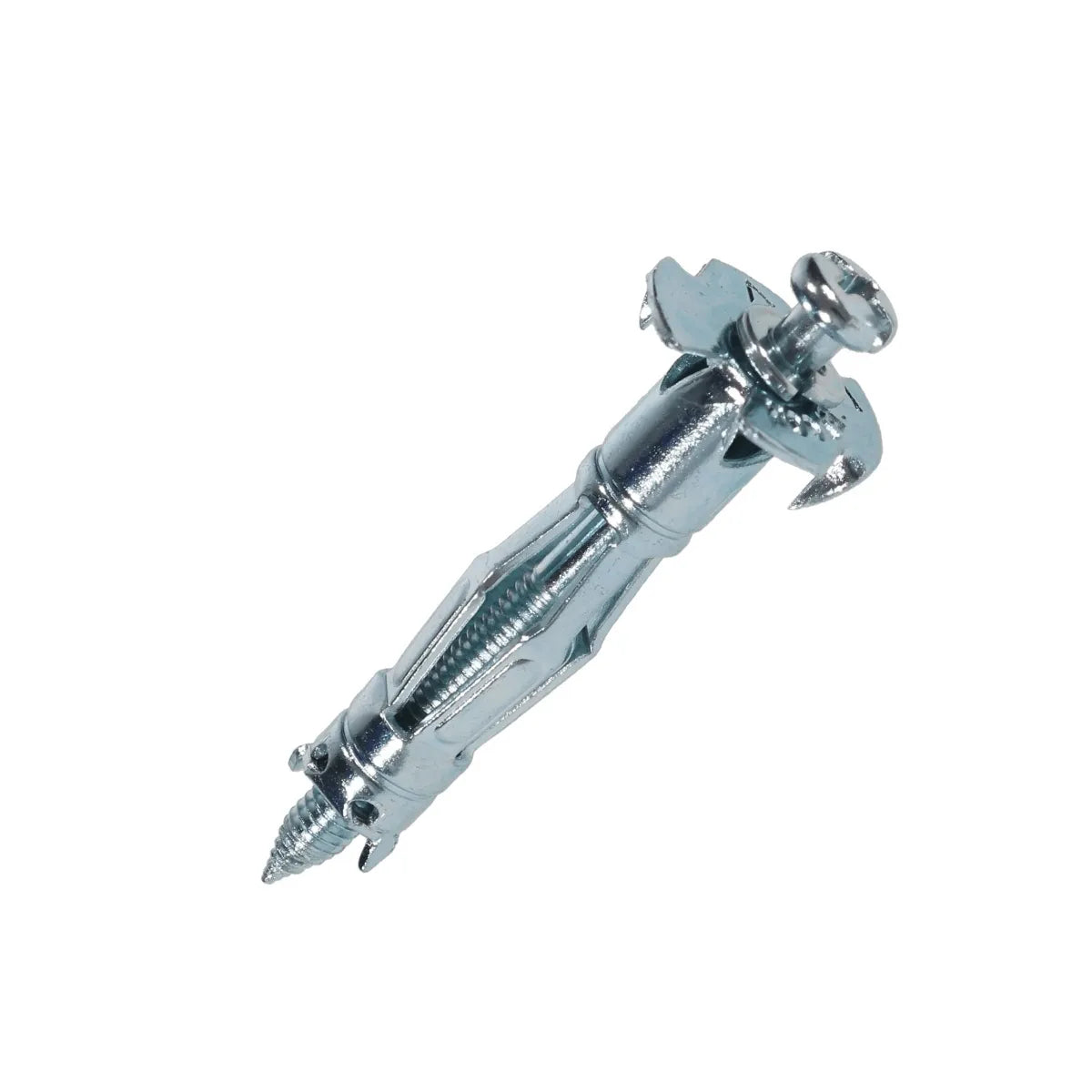

Board anchor with drill bit (partially threaded type) TP-A-412GDM
Board anchor with drill bit (partially threaded type) TP-A-412GDM
GTIN（JAN）：4937897090080
SKU：TP-A-412GDM
Regular price
¥10,890 JPY
Regular price
Sale price
¥10,890 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Product Features]

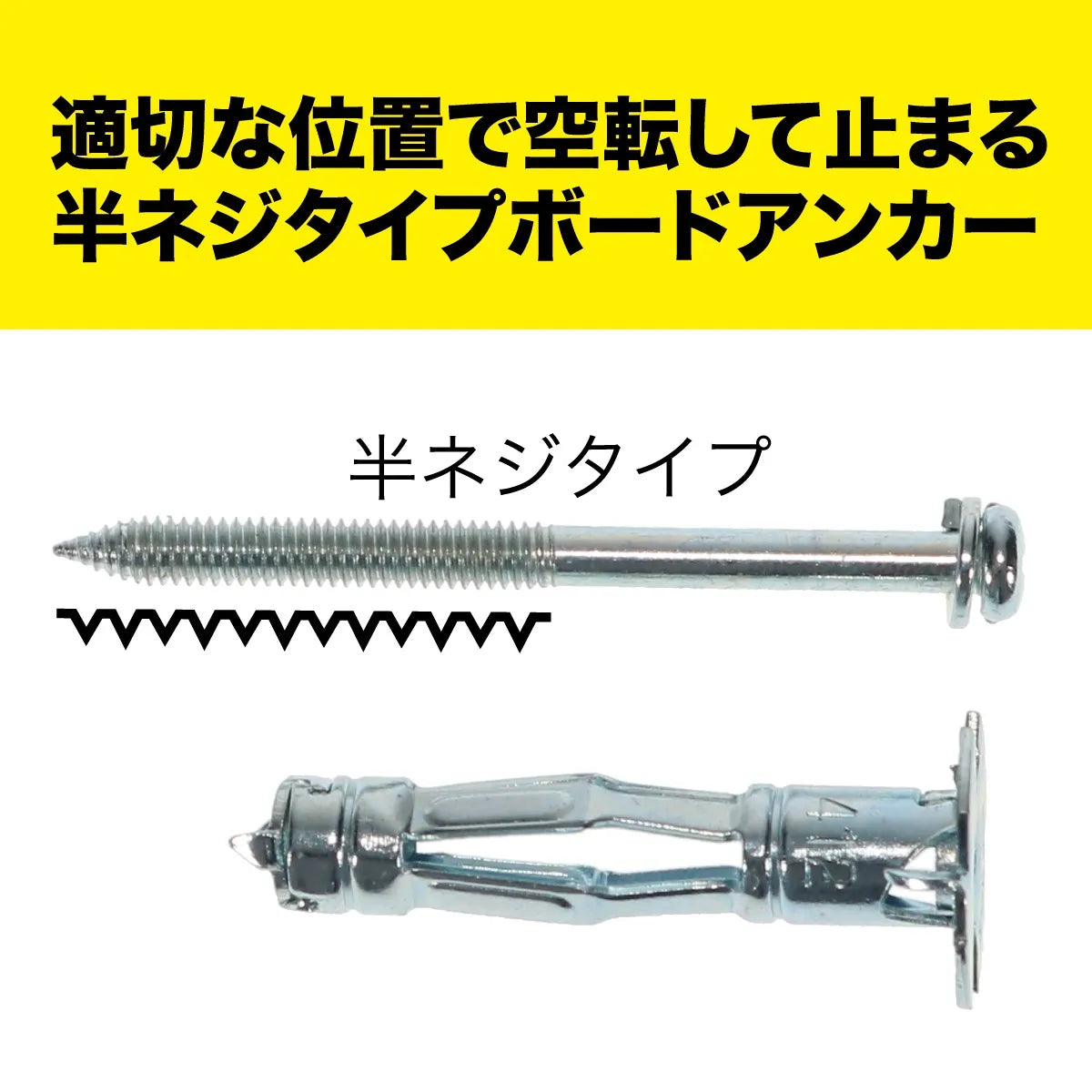

Half-threaded board anchor that spins freely and stops at the appropriate position
●Prevents over-screwing or under-screwing, reducing installation errors
●For attaching fixtures to gypsum board (gypsum board only)
●No pilot hole required for installation (for regular type gypsum board)

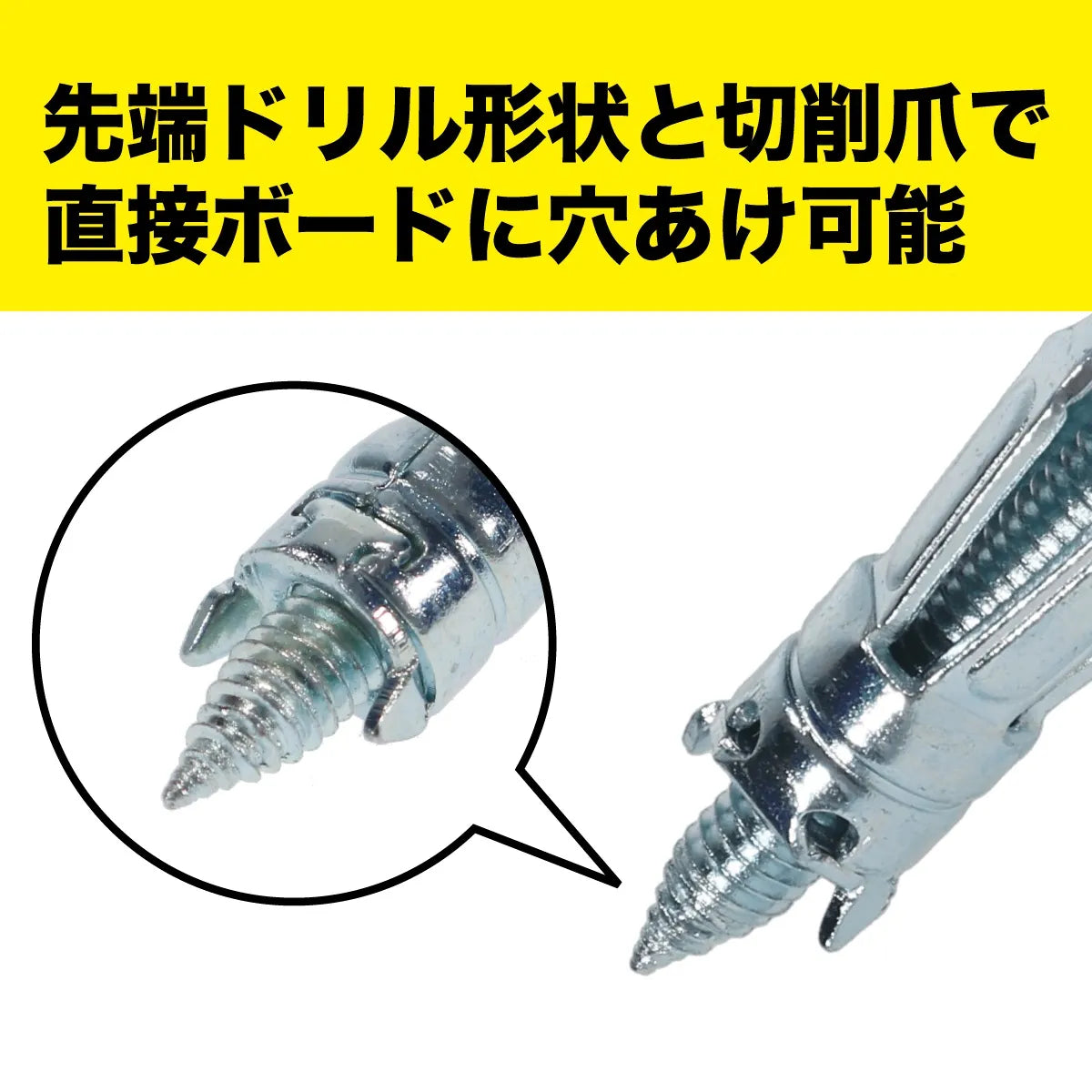

●The tip drill shape and cutting claws allow for direct drilling into the board
●Applications: Installation of air conditioner indoor units, communication equipment, distribution boards, switch boards, shelf brackets, etc.
■ Specifications
・Body size and weight (per unit): 16mm x 16mm x 52mm, 8g
・Applicable board thickness: 11-12.5mm
・Screw diameter: M4
・Material: 12.5mm thick gypsum board
・Maximum pull-out strength (*): 61.8N (6.3kgf)
・Type: Value pack
・Quantity: 240 pieces
*Maximum pull-out strength varies depending on the material and installation conditions.
Please note that this is not a guaranteed load.
*If installed on a board thickness other than the applicable thickness, it may not be installed correctly.
・Material
Body and screws: Steel
・Packaging specifications
Individual packaging: Bottle case and seal
Individual packaging size and weight: W130 x D130 x H135 mm, 2.02 kg
Inner packaging: Inner box (6 pieces) and seal
Inner packaging size and weight: W280 x D410 x H170 mm, 12.62 kg, 1 box
・Country of origin: China
Half-threaded board anchor that spins freely and stops at the appropriate position
●Prevents over-screwing or under-screwing, reducing installation errors
●For attaching fixtures to gypsum board (gypsum board only)
●No pilot hole required for installation (for regular type gypsum board)
●The tip drill shape and cutting claws allow for direct drilling into the board
●Applications: Installation of air conditioner indoor units, communication equipment, distribution boards, switch boards, shelf brackets, etc.
■ Specifications
・Body size and weight (per unit): 16mm x 16mm x 52mm, 8g
・Applicable board thickness: 11-12.5mm
・Screw diameter: M4
・Material: 12.5mm thick gypsum board
・Maximum pull-out strength (*): 61.8N (6.3kgf)
・Type: Value pack
・Quantity: 240 pieces
*Maximum pull-out strength varies depending on the material and installation conditions.
Please note that this is not a guaranteed load.
*If installed on a board thickness other than the applicable thickness, it may not be installed correctly.
・Material
Body and screws: Steel
・Packaging specifications
Individual packaging: Bottle case and seal
Individual packaging size and weight: W130 x D130 x H135 mm, 2.02 kg
Inner packaging: Inner box (6 pieces) and seal
Inner packaging size and weight: W280 x D410 x H170 mm, 12.62 kg, 1 box
・Country of origin: China
