Board anchor with drill bit (partially threaded type) TP-A-409GDM
Board anchor with drill bit (partially threaded type) TP-A-409GDM
GTIN（JAN）：4937897090073
SKU：TP-A-409GDM
Regular price
¥10,890 JPY
Regular price
Sale price
¥10,890 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Product Features]

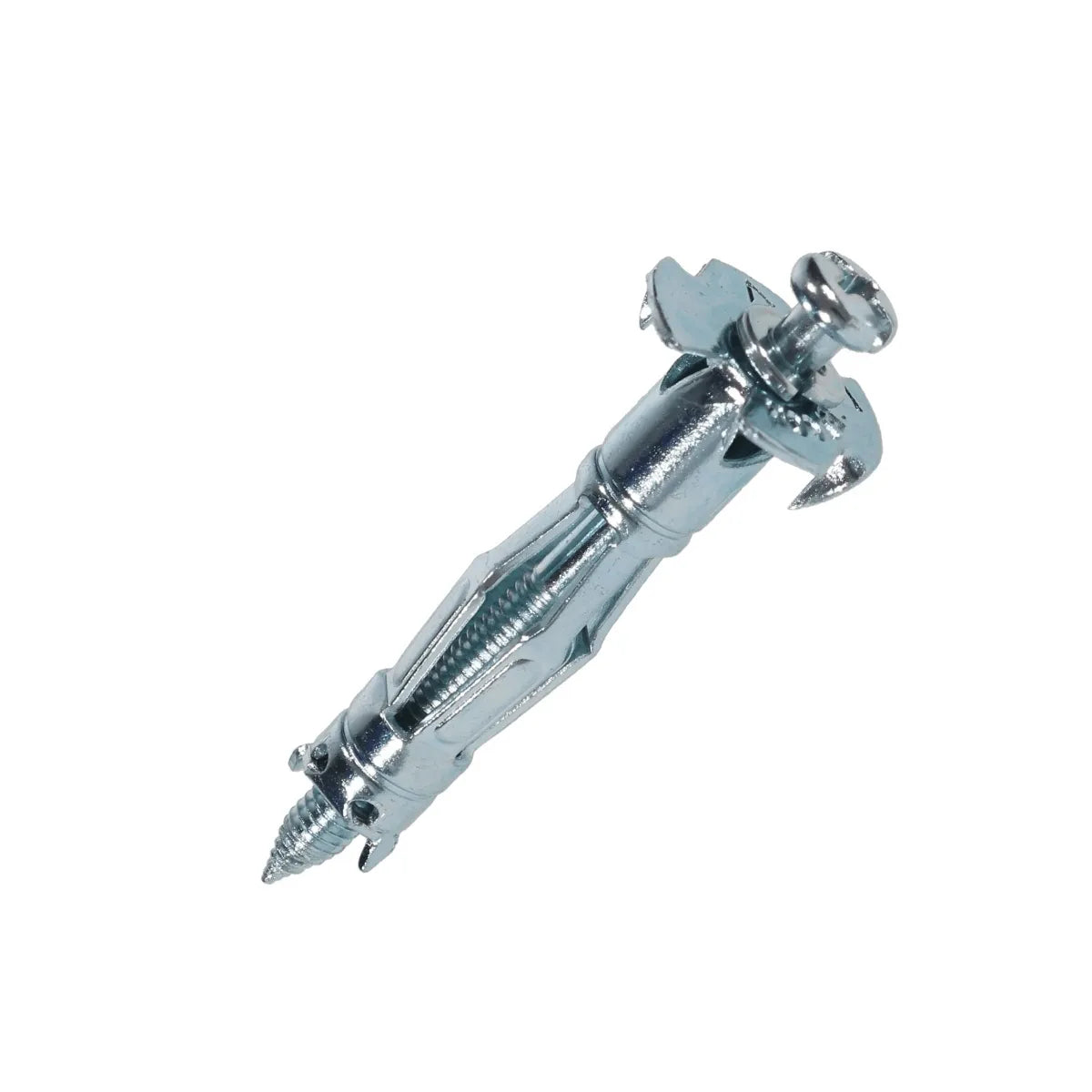

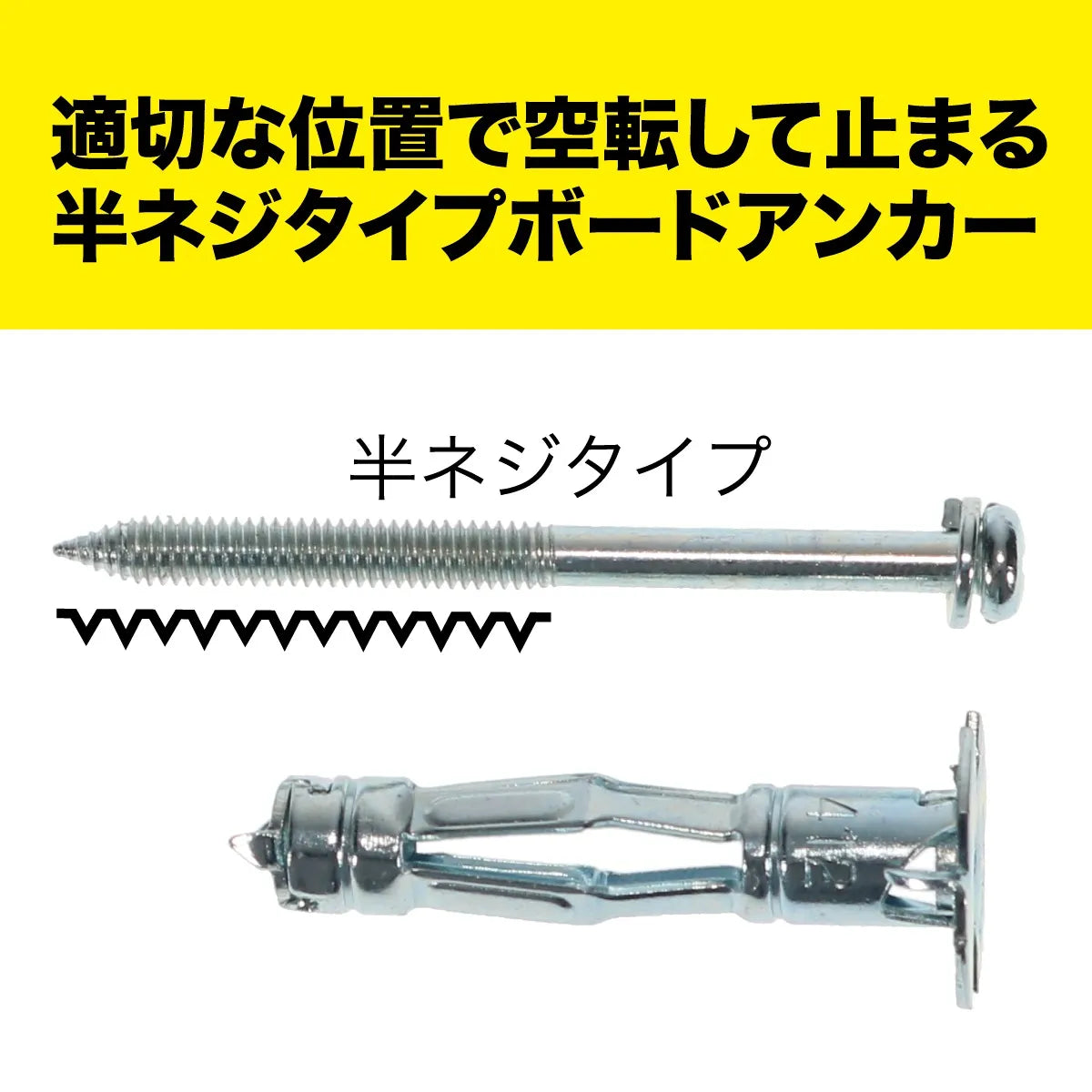

Half-threaded board anchor that spins freely and stops at the appropriate position
●Prevents over-screwing or under-screwing, reducing installation errors
●For attaching fixtures to gypsum board (gypsum board only)
●No pilot hole required for installation (for regular type gypsum board)

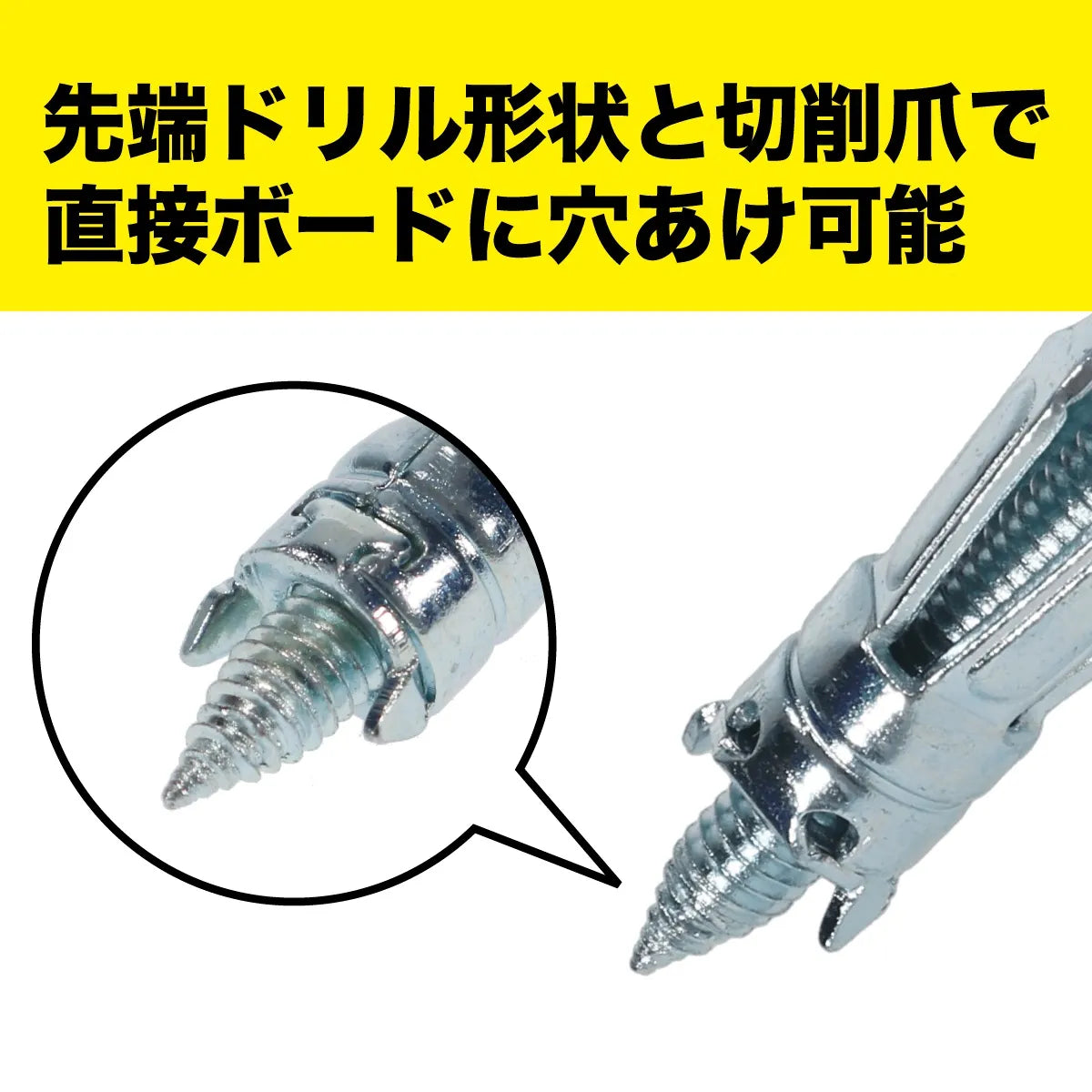

●The tip drill shape and cutting claws allow for direct drilling into the board
●Applications: Installation of indoor air conditioner units, communication equipment, distribution boards, switch boards, shelf brackets, etc.
■ Specifications
・Body size and weight (1 piece): 16mm x 16mm x 50mm・8g
・Applicable board thickness: 8-9.5mm
・Screw diameter: M4
・Material: 9.5mm thick gypsum board
・Maximum pull-out strength (*): 33.3N (3.4kgf)
・Type: Value pack
・Quantity: 250 pieces
*Maximum pull-out strength varies depending on the material and installation conditions.
Please note that this is not a guaranteed load.
*If installed with a plate thickness other than the applicable thickness, it may not be installed correctly.
・Material
Body and screws: Steel
・Packaging specifications
Individual packaging: Bottle case and seal
Individual packaging size and weight: W130×D130×H135mm・1.98kg
Inner packaging: Inner box (6 pieces) and seal
Inner packaging size and weight: W280×D410×H170mm・12.34kg・1 box
・Country of origin: China
Half-threaded board anchor that spins freely and stops at the appropriate position
●Prevents over-screwing or under-screwing, reducing installation errors
●For attaching fixtures to gypsum board (gypsum board only)
●No pilot hole required for installation (for regular type gypsum board)
●The tip drill shape and cutting claws allow for direct drilling into the board
●Applications: Installation of indoor air conditioner units, communication equipment, distribution boards, switch boards, shelf brackets, etc.
■ Specifications
・Body size and weight (1 piece): 16mm x 16mm x 50mm・8g
・Applicable board thickness: 8-9.5mm
・Screw diameter: M4
・Material: 9.5mm thick gypsum board
・Maximum pull-out strength (*): 33.3N (3.4kgf)
・Type: Value pack
・Quantity: 250 pieces
*Maximum pull-out strength varies depending on the material and installation conditions.
Please note that this is not a guaranteed load.
*If installed with a plate thickness other than the applicable thickness, it may not be installed correctly.
・Material
Body and screws: Steel
・Packaging specifications
Individual packaging: Bottle case and seal
Individual packaging size and weight: W130×D130×H135mm・1.98kg
Inner packaging: Inner box (6 pieces) and seal
Inner packaging size and weight: W280×D410×H170mm・12.34kg・1 box
・Country of origin: China
