2.5-inch HDD conversion mount (for 2 drives) TK-HD252
2.5-inch HDD conversion mount (for 2 drives) TK-HD252
GTIN（JAN）：4969887861455
SKU：TK-HD252
Regular price
¥1,045 JPY
Regular price
Sale price
¥1,045 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Allows simultaneous installation of two 2.5-inch SSDs/HDDs in a single 3.5-inch bay]
●This is a mounting bracket for securing 2.5-inch SSDs and hard drives in a 3.5-inch bay.

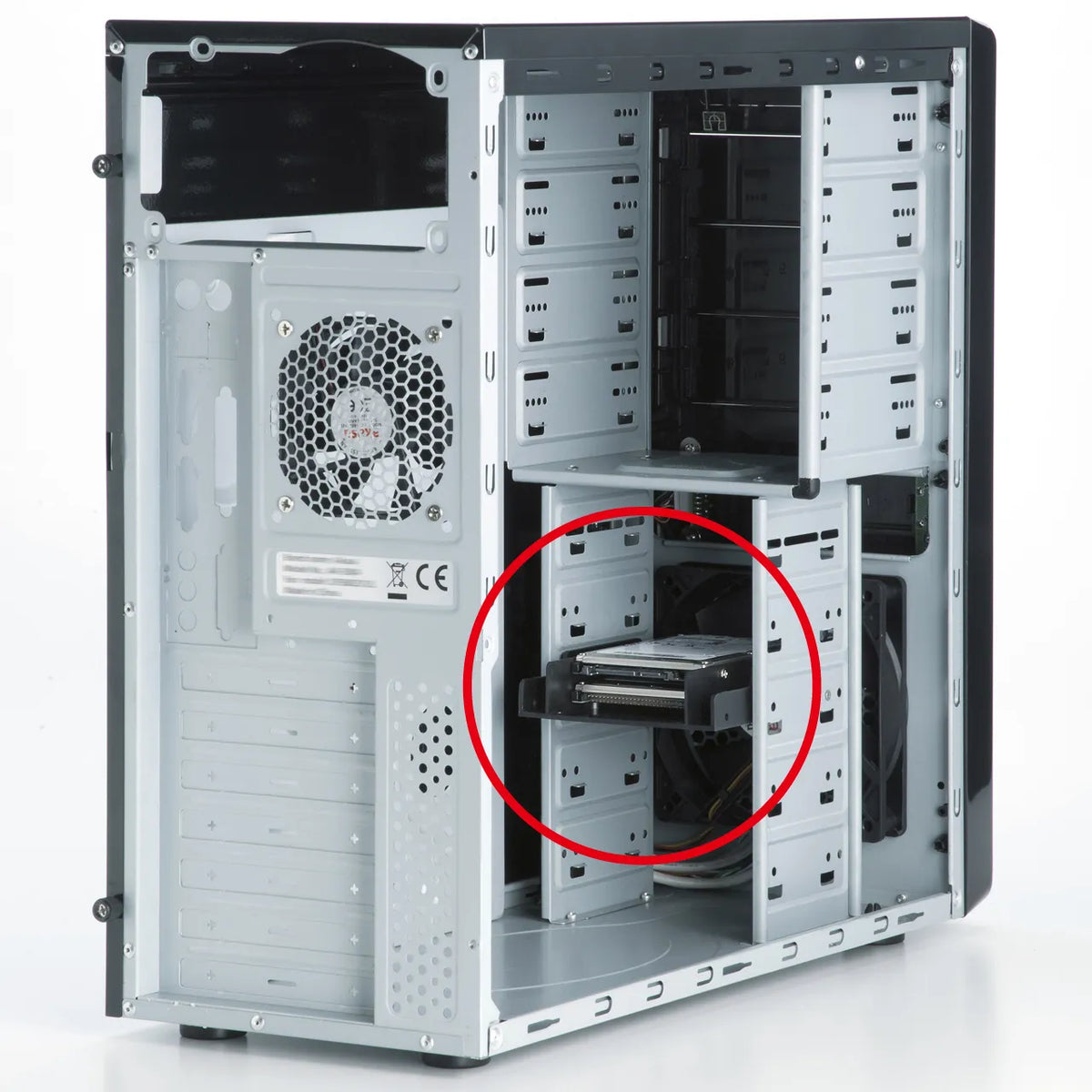

●Allows you to secure a 2.5-inch hard drive to a desktop computer.

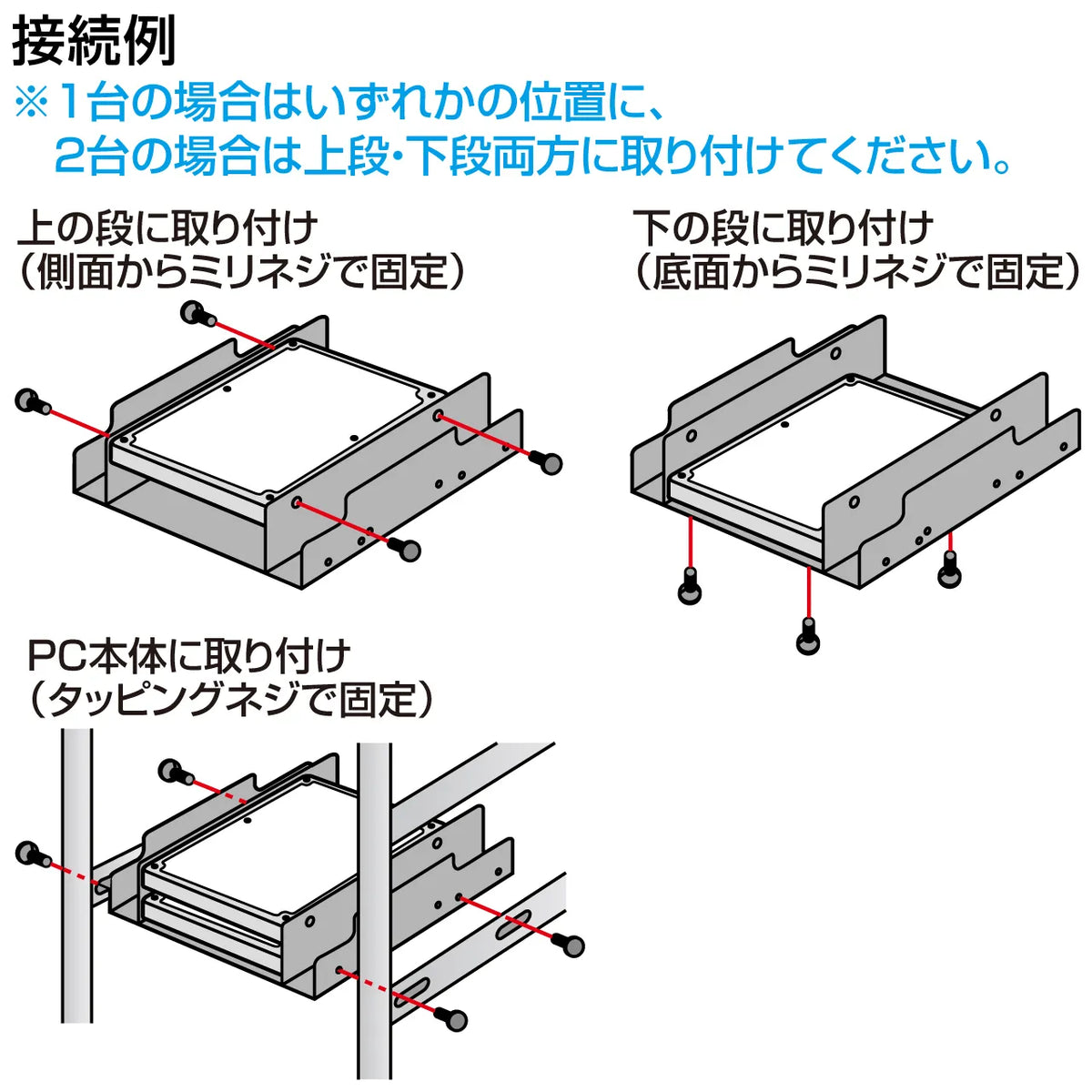

●Allows installation of two 2.5-inch devices with a height of 9.5mm or less in a single 3.5-inch bay.
●As it is an integrated mounting bracket, it is easier to secure than products that require combining multiple parts.
●Supports mounting through bottom holes.
※The screws for bay fixing are self-tapping screws, and the fixing holes are small in diameter. It may not be compatible with cases that use special screws for fixing.
＜Caution＞
※The screw positions for bay fixing are based on the screw hole positions of hard drives and FDDs, but in 3.5-inch bays with few screw holes, only one hole may match.
※2.5-inch devices with old screw positions (screw hole positions used until around 1997) are not supported.
*Devices with a height of 9.5mm or more can be installed in the upper slot, but this may exceed the height of one 3.5-inch bay.
*If you install two HDDs that generate a lot of heat with no space between them, you will need to take sufficient measures to dissipate heat.
*For parallel ATA (IDE) HDD connections, please use TK-AD40/TK-AD40N/TK-KB40NR together.
*Hard disk is not included with this product.
*Sanwa Supply does not guarantee the internal data or hard disk of hard disks installed in this product for any reason whatsoever.
*Depending on the specifications of the case, it may not be possible to install this product. Please check whether the case allows for screw fastening.
■Size: W101×D122×H25mm
■Weight: Approx. 40g
■Compatible drives: 2.5-inch hard disk, 2.5-inch SSD

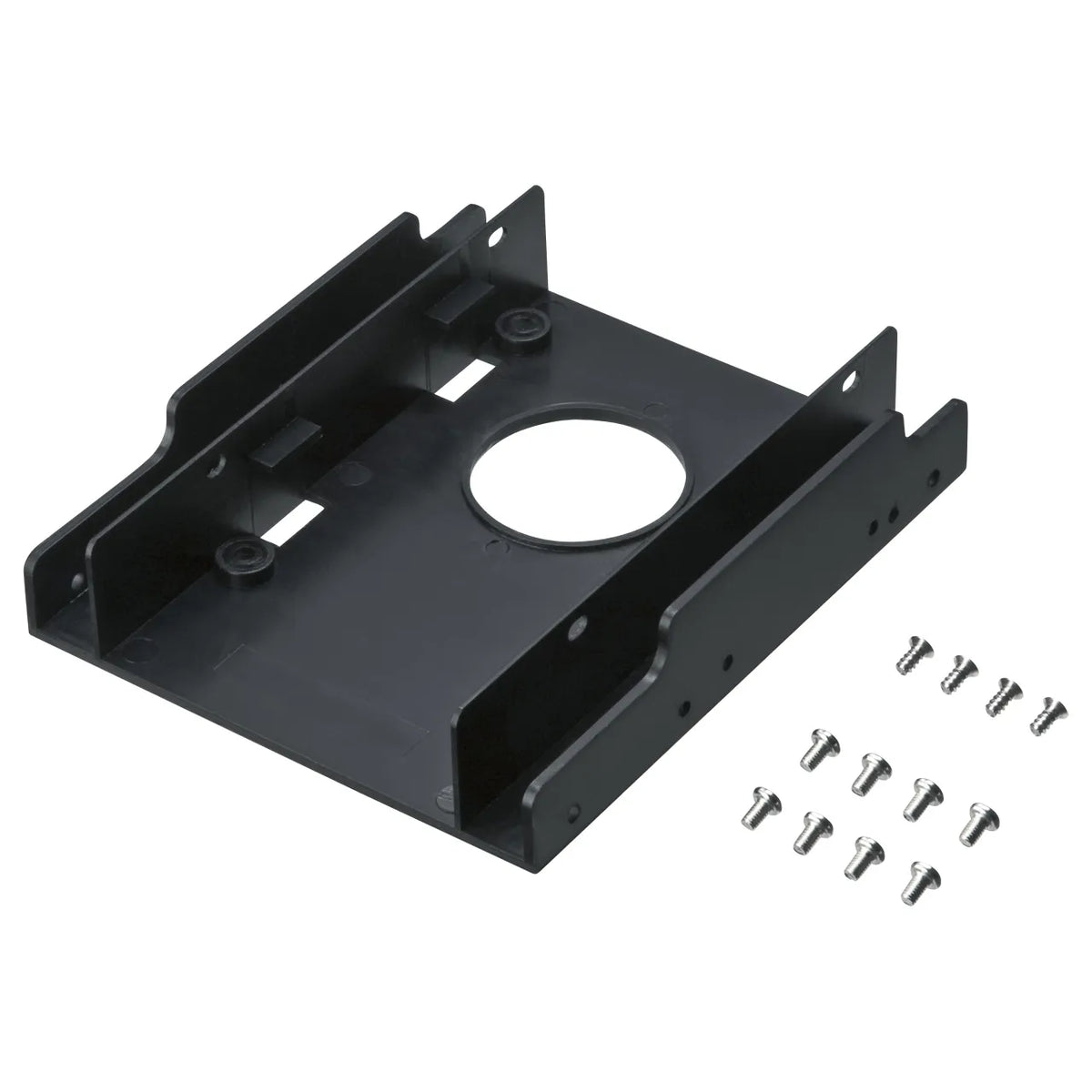

■Accessories: Tapping screws × 4, metric screws × 8
●This is a mounting bracket for securing 2.5-inch SSDs and hard drives in a 3.5-inch bay.
●Allows you to secure a 2.5-inch hard drive to a desktop computer.
●Allows installation of two 2.5-inch devices with a height of 9.5mm or less in a single 3.5-inch bay.
●As it is an integrated mounting bracket, it is easier to secure than products that require combining multiple parts.
●Supports mounting through bottom holes.
※The screws for bay fixing are self-tapping screws, and the fixing holes are small in diameter. It may not be compatible with cases that use special screws for fixing.
＜Caution＞
※The screw positions for bay fixing are based on the screw hole positions of hard drives and FDDs, but in 3.5-inch bays with few screw holes, only one hole may match.
※2.5-inch devices with old screw positions (screw hole positions used until around 1997) are not supported.
*Devices with a height of 9.5mm or more can be installed in the upper slot, but this may exceed the height of one 3.5-inch bay.
*If you install two HDDs that generate a lot of heat with no space between them, you will need to take sufficient measures to dissipate heat.
*For parallel ATA (IDE) HDD connections, please use TK-AD40/TK-AD40N/TK-KB40NR together.
*Hard disk is not included with this product.
*Sanwa Supply does not guarantee the internal data or hard disk of hard disks installed in this product for any reason whatsoever.
*Depending on the specifications of the case, it may not be possible to install this product. Please check whether the case allows for screw fastening.
■Size: W101×D122×H25mm
■Weight: Approx. 40g
■Compatible drives: 2.5-inch hard disk, 2.5-inch SSD
■Accessories: Tapping screws × 4, metric screws × 8
