SANWA SUPPLY

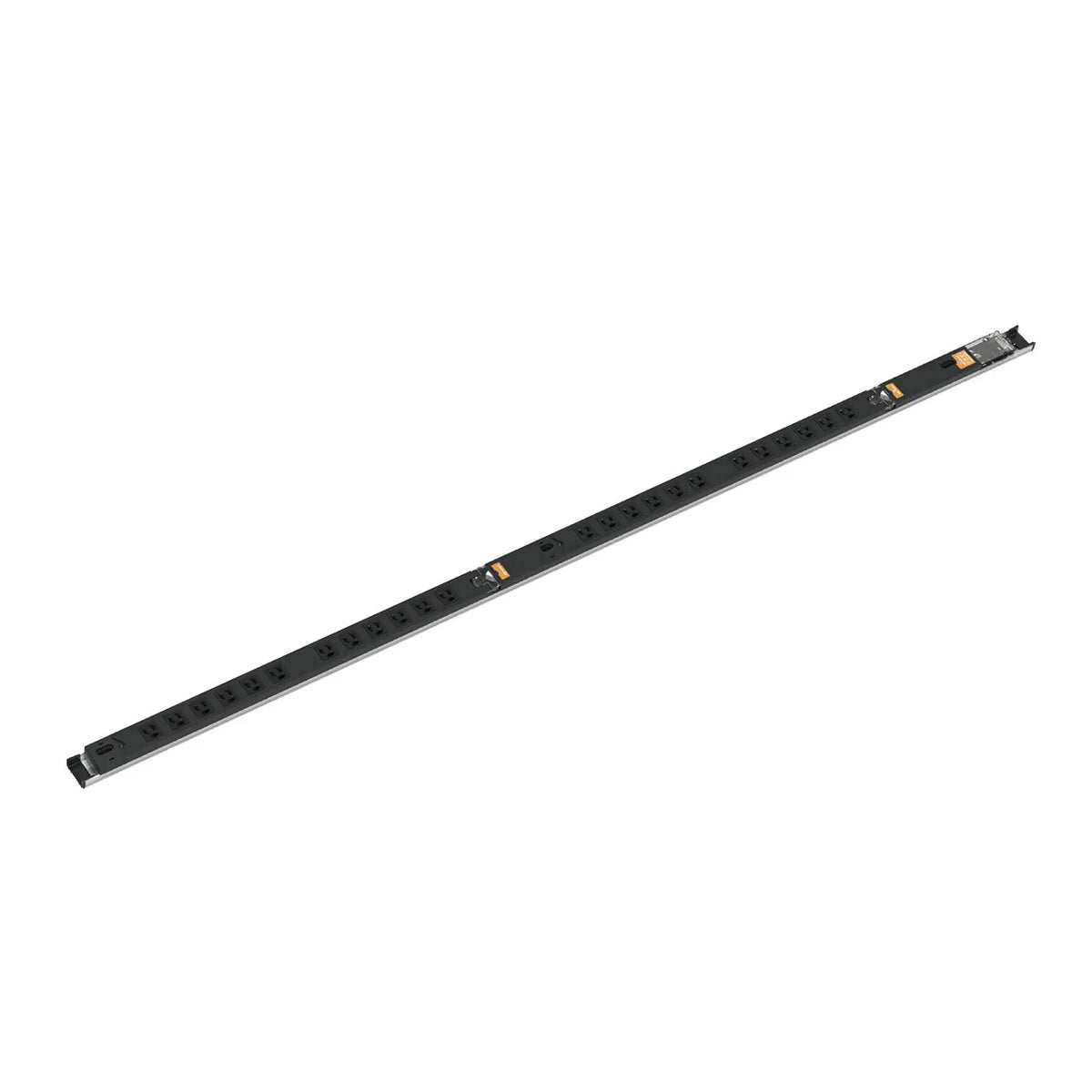

19-inch server rack power outlet (30A) TAP-SVSL3024B20N
19-inch server rack power outlet (30A) TAP-SVSL3024B20N
GTIN（JAN）：4969887825334
SKU：TAP-SVSL3024B20N
Regular price
¥44,858 JPY
Regular price
Sale price
¥44,858 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Slim type power strip for 19-inch server racks with circuit protector]
●Easy installation on 19-inch server racks.
●The power strip body has mounting holes, so it can be directly mounted with screws.
*Mounting screws are not included.
●Can be mounted to a mounting frame with optional L-shaped mounting brackets.
*L-shaped brackets (TAP-SVSET) are sold separately.
●Equipped with a power indicator LED lamp as standard.

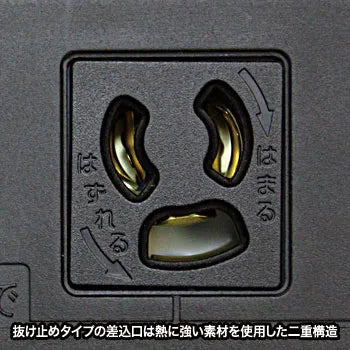

●Uses a locking type outlet to prevent accidental disconnection.
●Power cord (3m) and plug are included as standard.
●Slim type with a width of 46mm without slide rails.

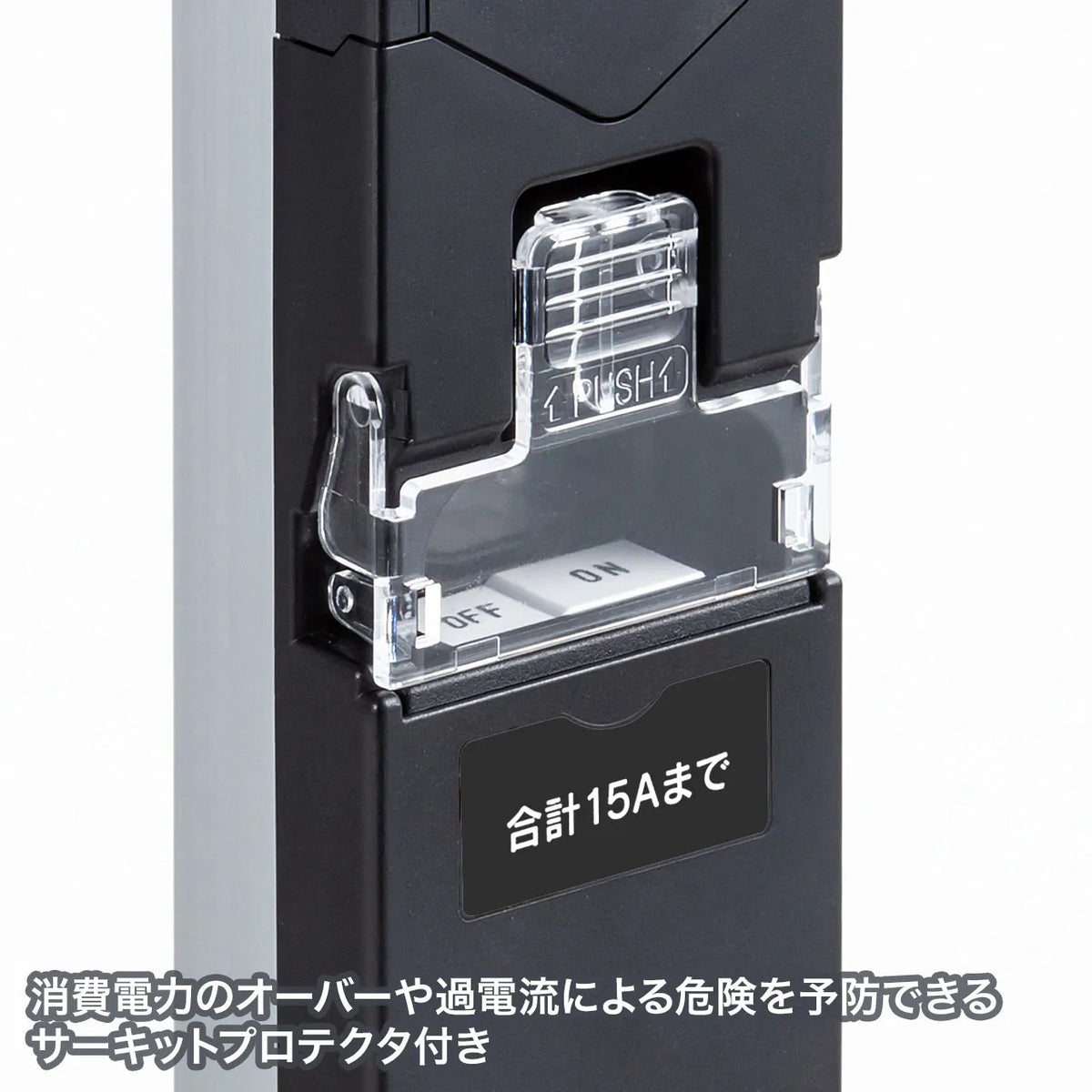

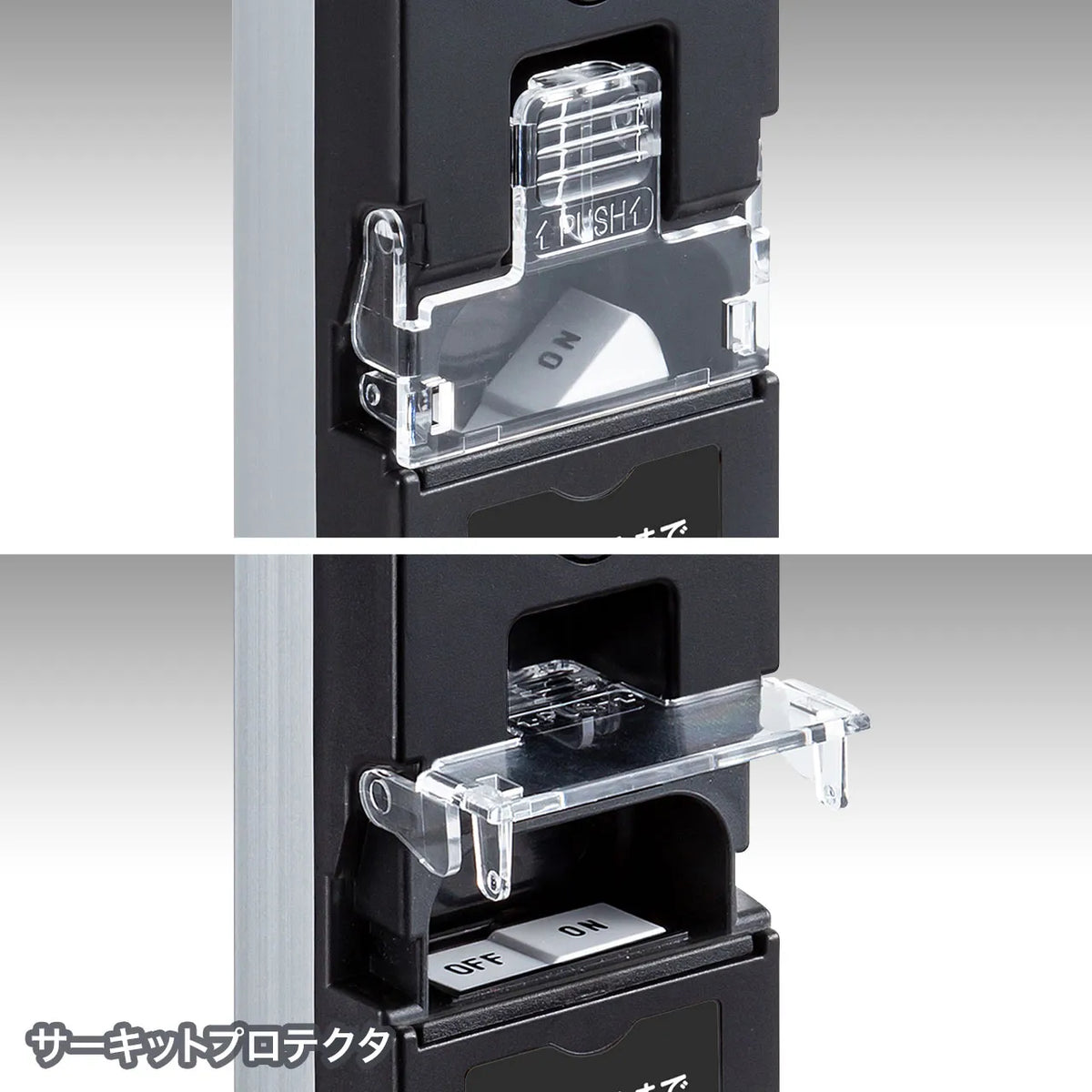

●Equipped with a circuit protector (20A x 2) to prevent danger from overpower consumption or overcurrent.
＜Installation method＞
1.The power strip body has mounting holes, so it can be directly mounted with screws.
*Mounting screws are not included.
2. Can be mounted to a mounting frame with the optional L-shaped mounting bracket.
*L-shaped bracket (TAP-SVSET) is sold separately.
■Rating: 125V・30A

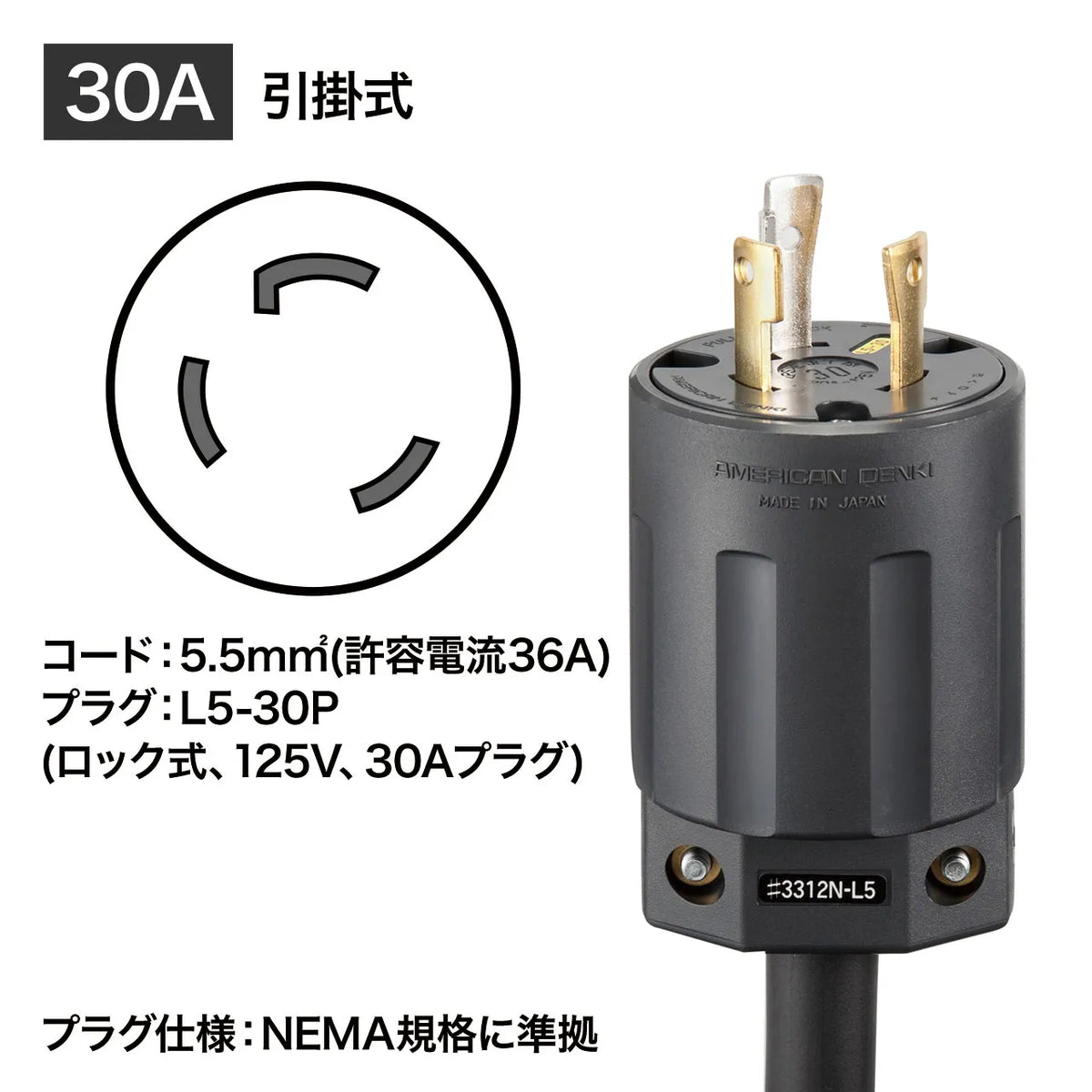

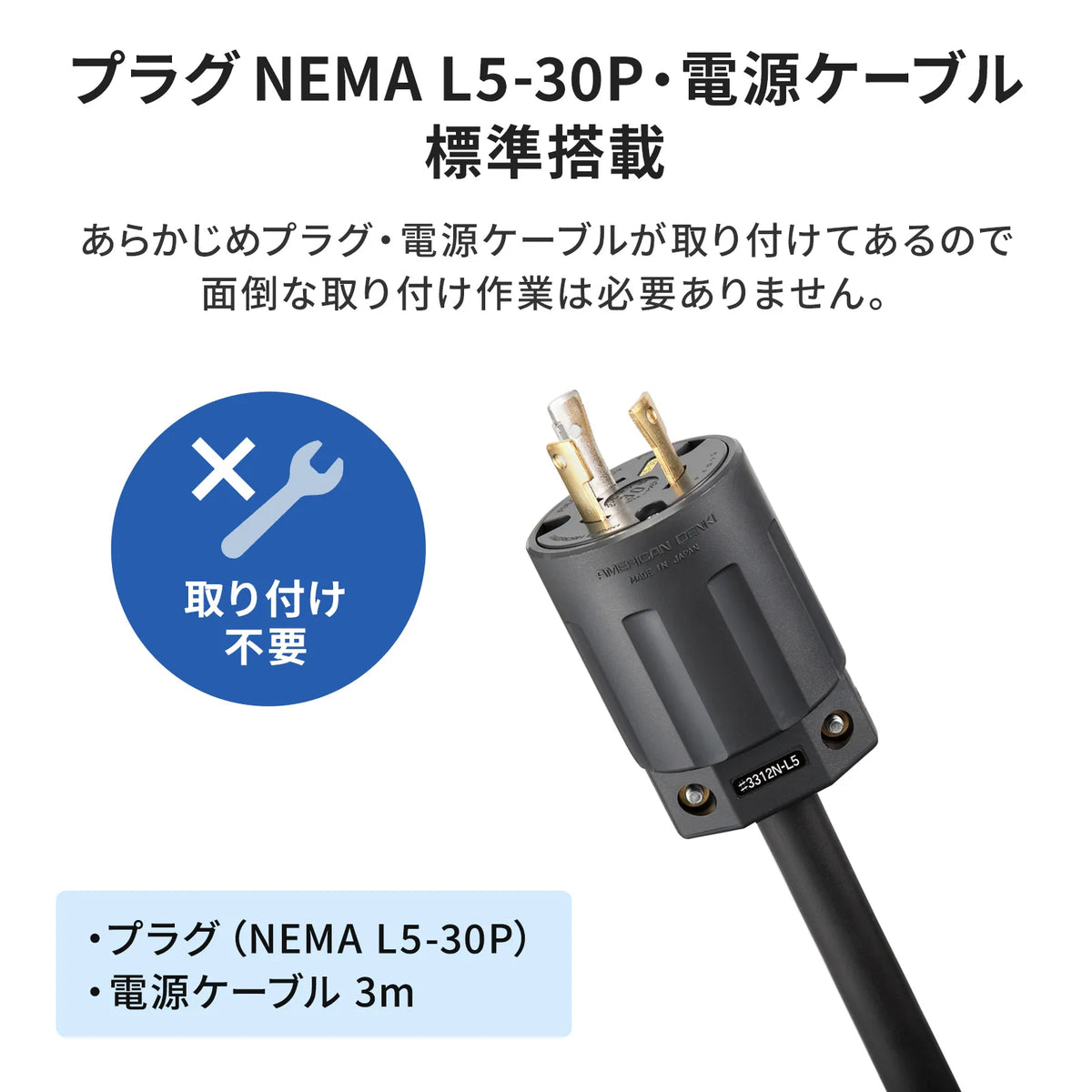

■Plug specifications: Hook type NEMA L5-30P (3P)
■Cable specifications: 5.5 sq (SQ) (Allowable current 36A)
■Power cable length: 3m
■Outlets: 3P locking type, 24 outlets

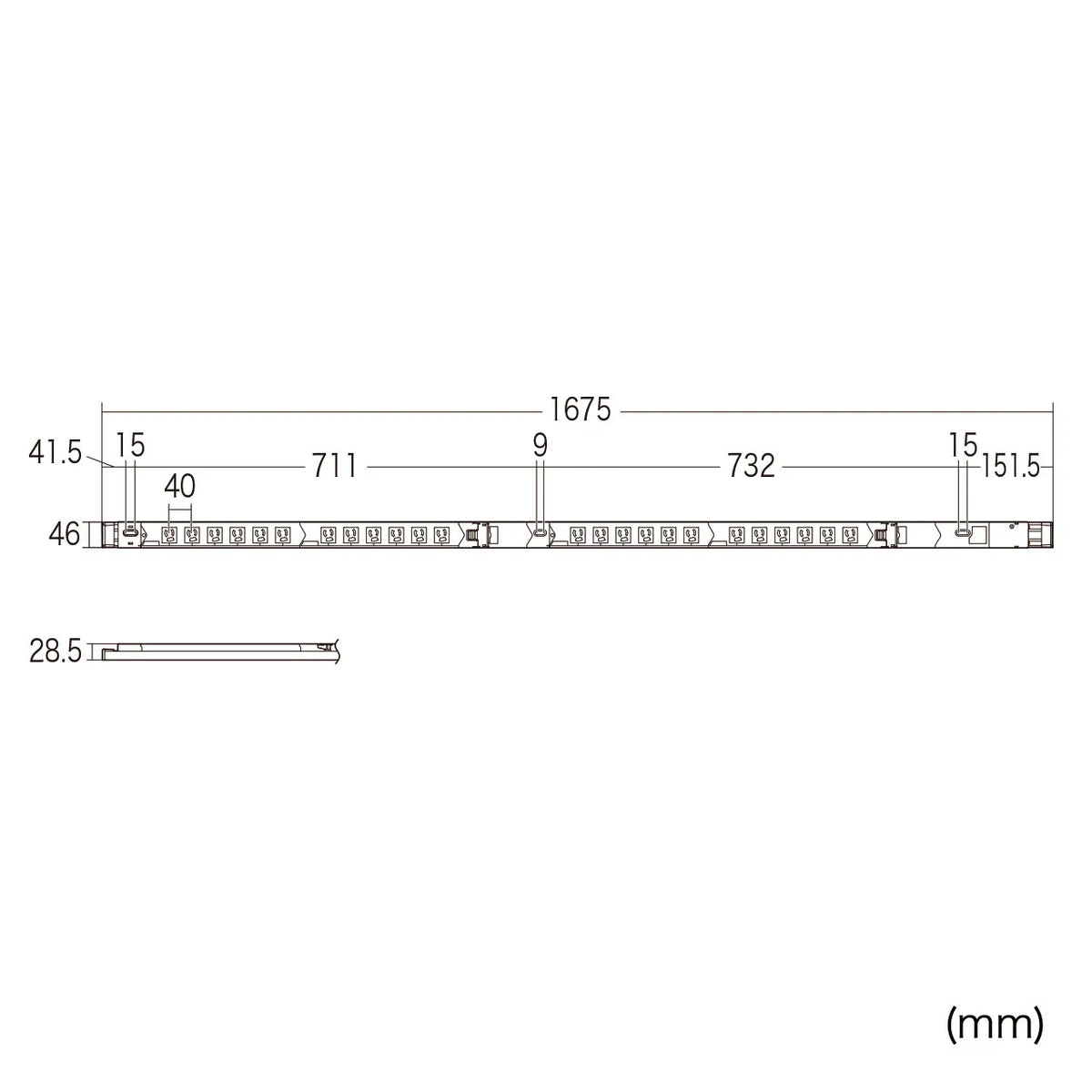

■Size: W1675xD46xH28.5mm
■Weight: Approx. 3.04kg
■Cable type: VCT (3 cores)
■Crimping terminals: Round crimp terminals R5.5-5 (equivalent to JIS C2805)
■Country of manufacture: Japan
■Usage area: Japan only. Cannot be used outside of Japan.
■Certification: Complies with the technical standards of the Electrical Appliances and Materials Safety Act (PSE)
＜Operating Environment Conditions＞
■Ambient Temperature: -5°C to 40°C
*However, the 24-hour average value shall not exceed 35°C
■Ambient Humidity: 85% or less (freezing and condensation are not permitted)
■Altitude: 2000m or less
■Operating Environment: Free from excessive water vapor, oil vapor, smoke, corrosive gases, etc. Also, the environment shall not be subjected to abnormal vibrations or shocks.
●Easy installation on 19-inch server racks.
●The power strip body has mounting holes, so it can be directly mounted with screws.
*Mounting screws are not included.
●Can be mounted to a mounting frame with optional L-shaped mounting brackets.
*L-shaped brackets (TAP-SVSET) are sold separately.
●Equipped with a power indicator LED lamp as standard.
●Uses a locking type outlet to prevent accidental disconnection.
●Power cord (3m) and plug are included as standard.
●Slim type with a width of 46mm without slide rails.
●Equipped with a circuit protector (20A x 2) to prevent danger from overpower consumption or overcurrent.
＜Installation method＞
1.The power strip body has mounting holes, so it can be directly mounted with screws.
*Mounting screws are not included.
2. Can be mounted to a mounting frame with the optional L-shaped mounting bracket.
*L-shaped bracket (TAP-SVSET) is sold separately.
■Rating: 125V・30A
■Plug specifications: Hook type NEMA L5-30P (3P)
■Cable specifications: 5.5 sq (SQ) (Allowable current 36A)
■Power cable length: 3m
■Outlets: 3P locking type, 24 outlets
■Size: W1675xD46xH28.5mm
■Weight: Approx. 3.04kg
■Cable type: VCT (3 cores)
■Crimping terminals: Round crimp terminals R5.5-5 (equivalent to JIS C2805)
■Country of manufacture: Japan
■Usage area: Japan only. Cannot be used outside of Japan.
■Certification: Complies with the technical standards of the Electrical Appliances and Materials Safety Act (PSE)
＜Operating Environment Conditions＞
■Ambient Temperature: -5°C to 40°C
*However, the 24-hour average value shall not exceed 35°C
■Ambient Humidity: 85% or less (freezing and condensation are not permitted)
■Altitude: 2000m or less
■Operating Environment: Free from excessive water vapor, oil vapor, smoke, corrosive gases, etc. Also, the environment shall not be subjected to abnormal vibrations or shocks.
