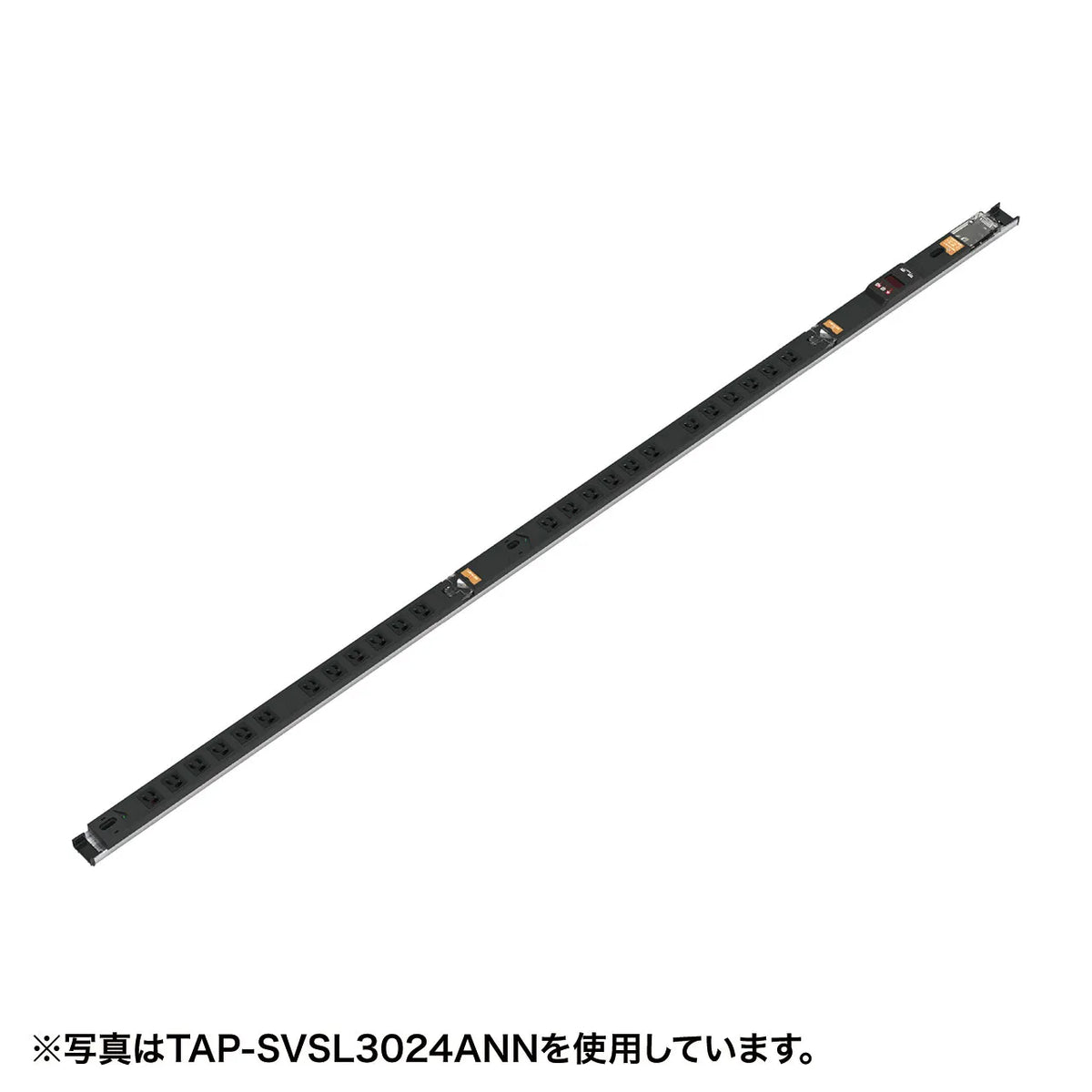

19-inch server rack power outlet (30A) with current display function TAP-SVSL3018ANN
19-inch server rack power outlet (30A) with current display function TAP-SVSL3018ANN
GTIN（JAN）：4969887825372
SKU：TAP-SVSL3018ANN
Regular price
¥63,008 JPY
Regular price
Sale price
¥63,008 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Slim type power outlet for 19-inch server racks]

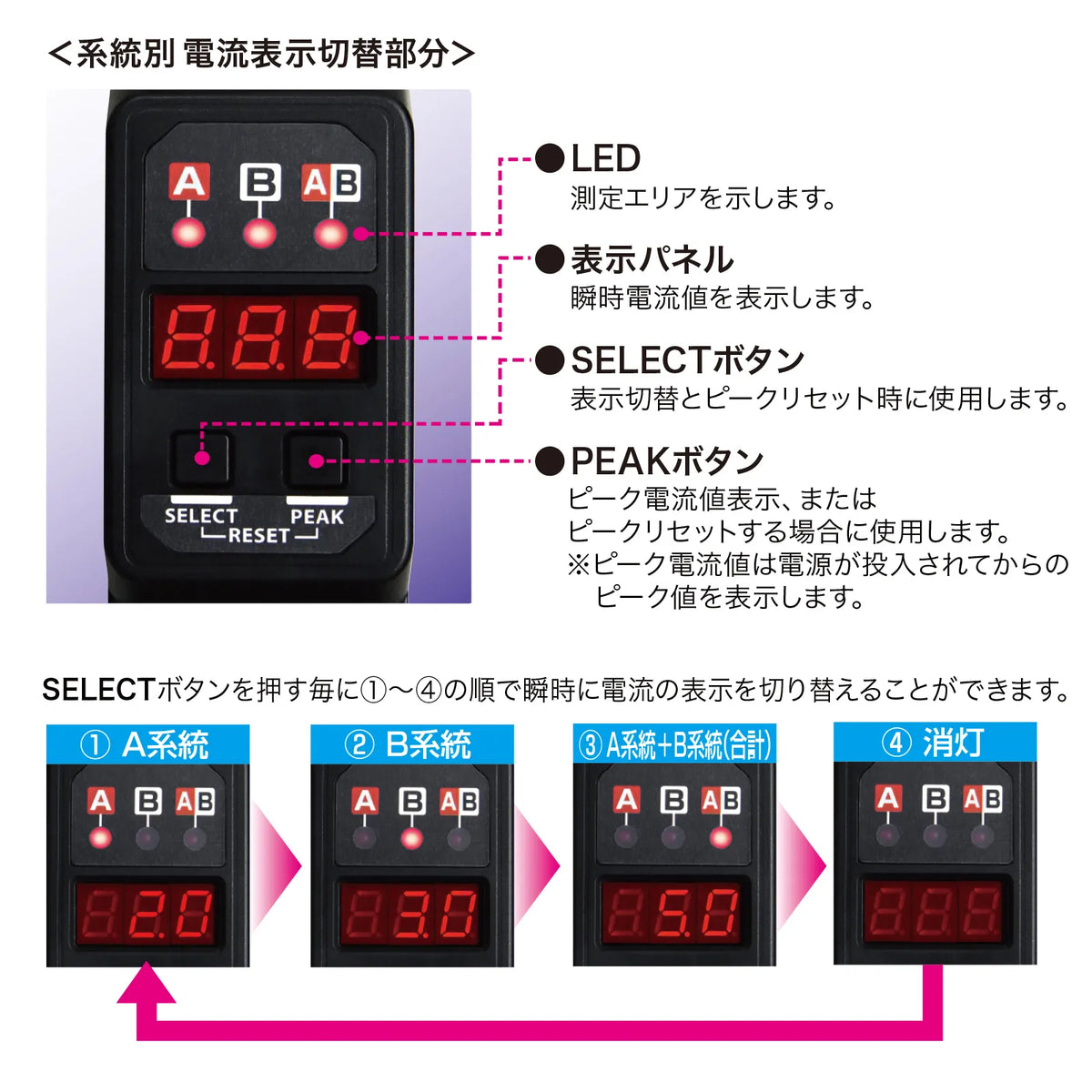

●Equipped with a current display function that shows the usage status of equipment.
The measurement area has three blocks: Block A, Block B, and Block A + B (total value). You can check the instantaneous current value by pressing the select switch. You can display the peak current value by pressing the PEAK button.

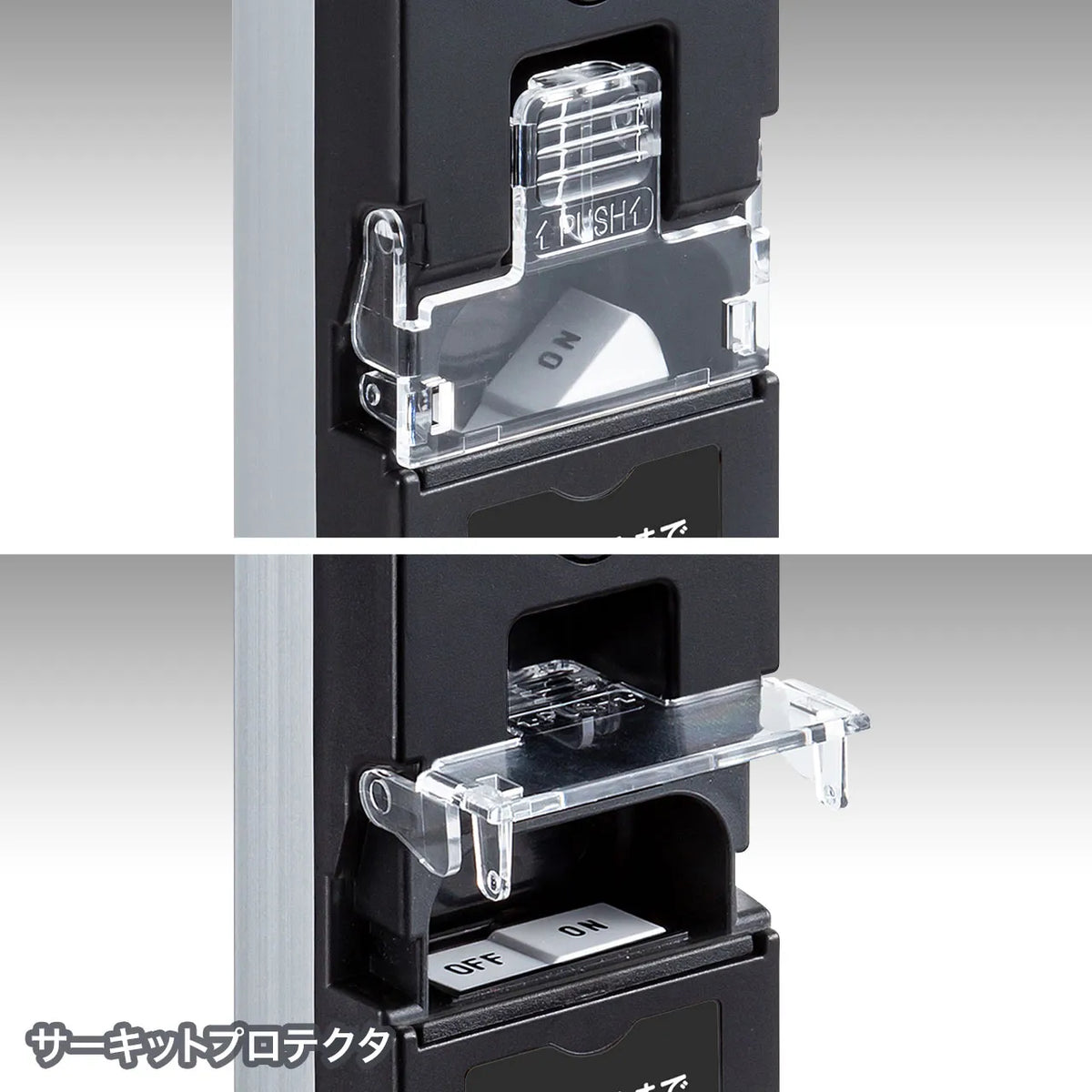

●Equipped with 2 x 20A circuit protectors, the maximum for each circuit is 20A. The total capacity is up to 30A.
●Easy to install in a 19-inch server rack.
●The tap body has mounting holes, so it can be directly mounted with screws.
*Mounting screws are not included.
●Can be mounted to a mounting frame with optional L-shaped mounting brackets.
*L-shaped brackets (TAP-SVSET) are sold separately.
●Equipped with a power indicator LED lamp as standard.

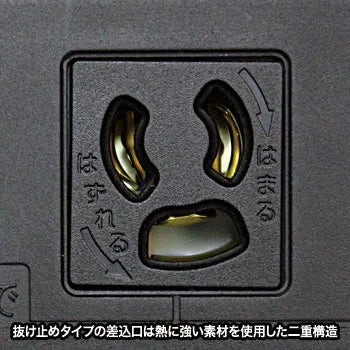

●Uses a locking type outlet to prevent accidental disconnection.
●Double structure using heat-resistant material.
●Features a lightweight and durable aluminum frame.
●The terminal block has a transparent cover that allows you to see the wiring status at a glance.
●It is a slim type with a width of 46mm and no slide rails.

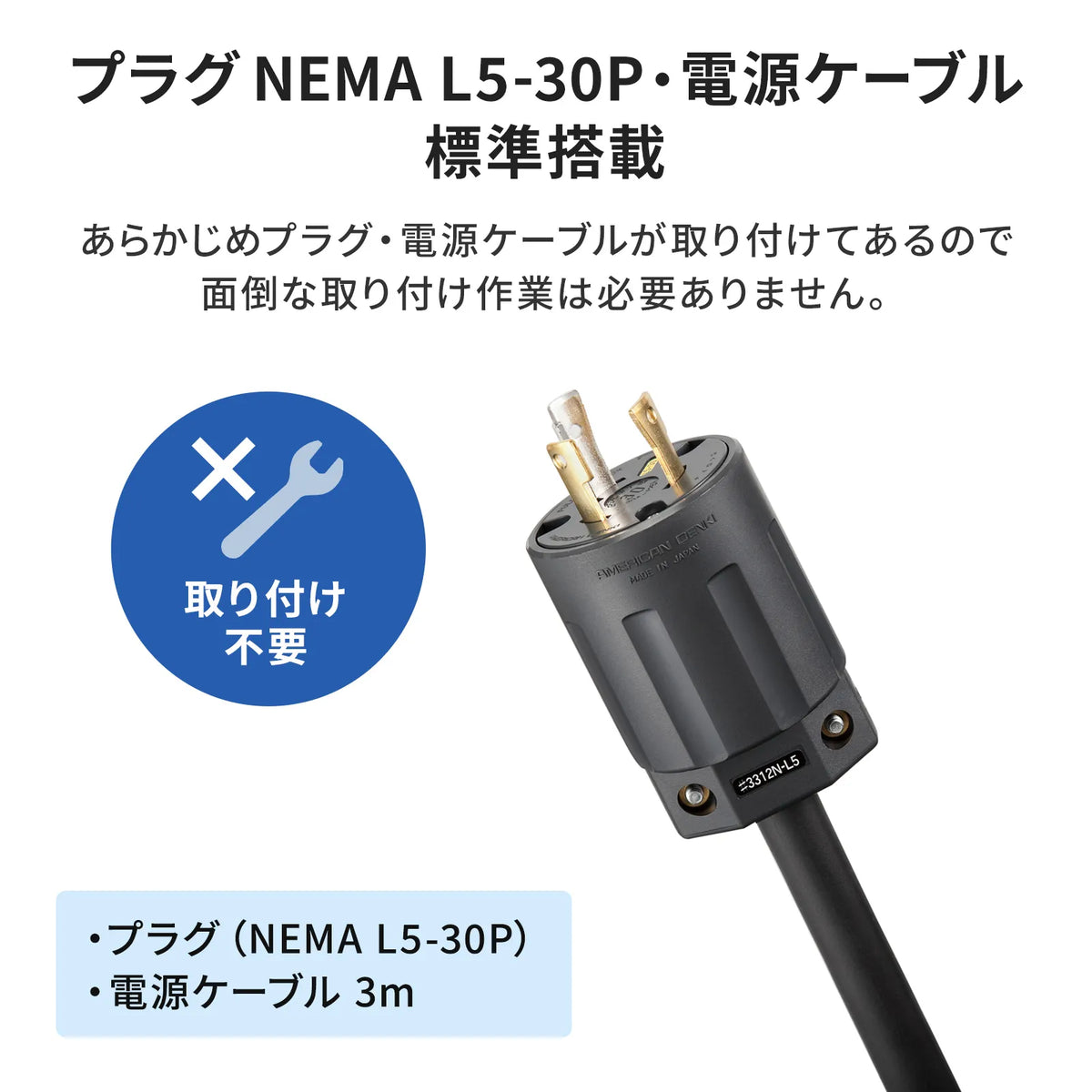

●A power cord (3m) and plug are included as standard.
＜Installation Method＞
1. The tap body has mounting holes, so it can be mounted directly with screws.
*Mounting screws are not included.
*Cannot be mounted with the optional RAC-NUT (cage nut/screw set). The screws that can be used are M4 or M5 with a screw head diameter of 9.5 to 12.5mm, and a length of about 25 to 30mm.
2. It can be mounted to the mounting frame with the optional L-shaped mounting bracket.
*The L-shaped bracket (TAP-SVSET) is sold separately.
*If mounting horizontally to the side of the rack, TAP-SVSET and RAC-NUT (cage nut/screw set) are required.
■Rated capacity: 125V・30A (up to 3000W total)

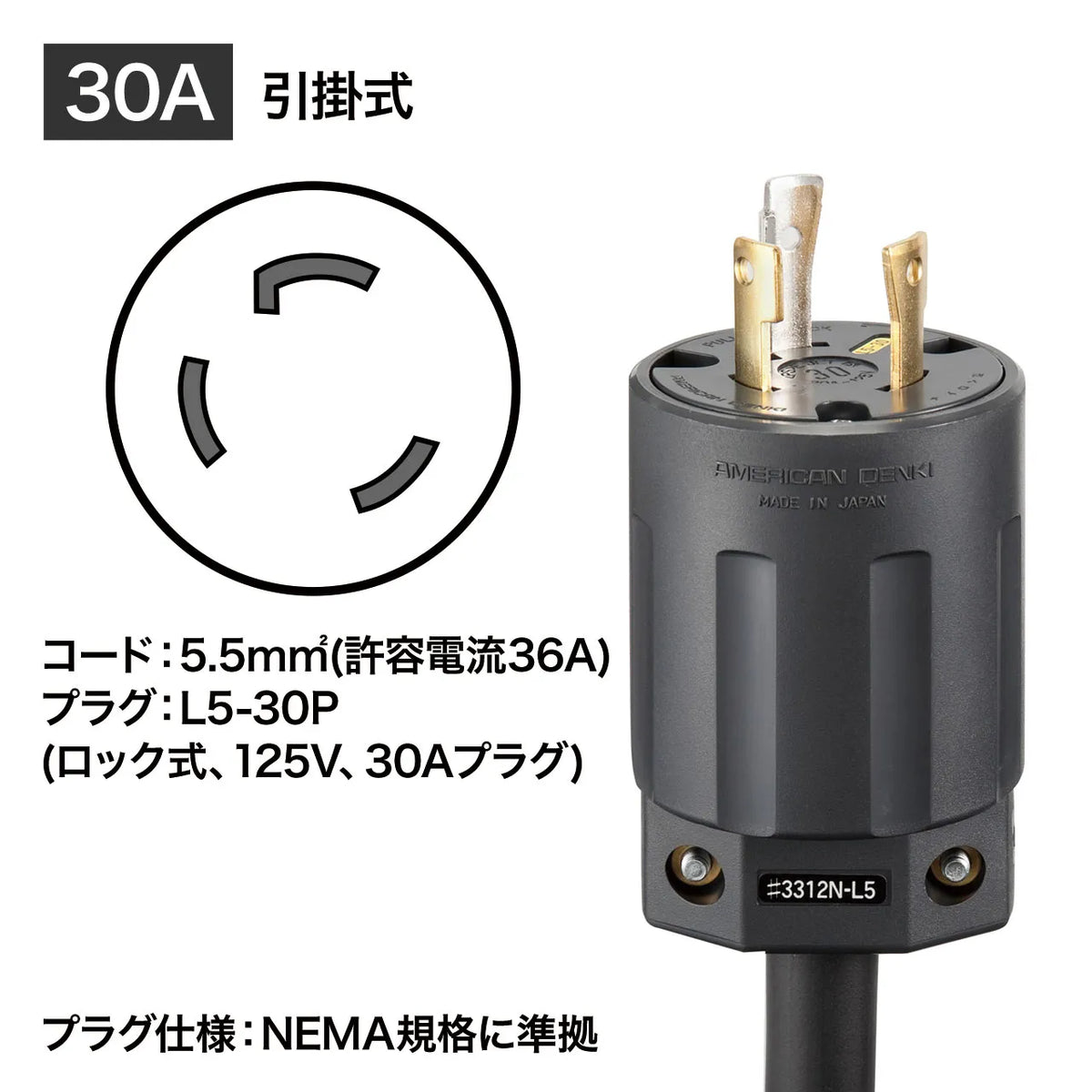

■Plug type: Hook type NEMA L5-30P (3P)
■Cable type: 5.5 sq (SQ) (allowable current 36A)
■Power cable length: 3m
■Outlets: 3P locking type, 18 outlets

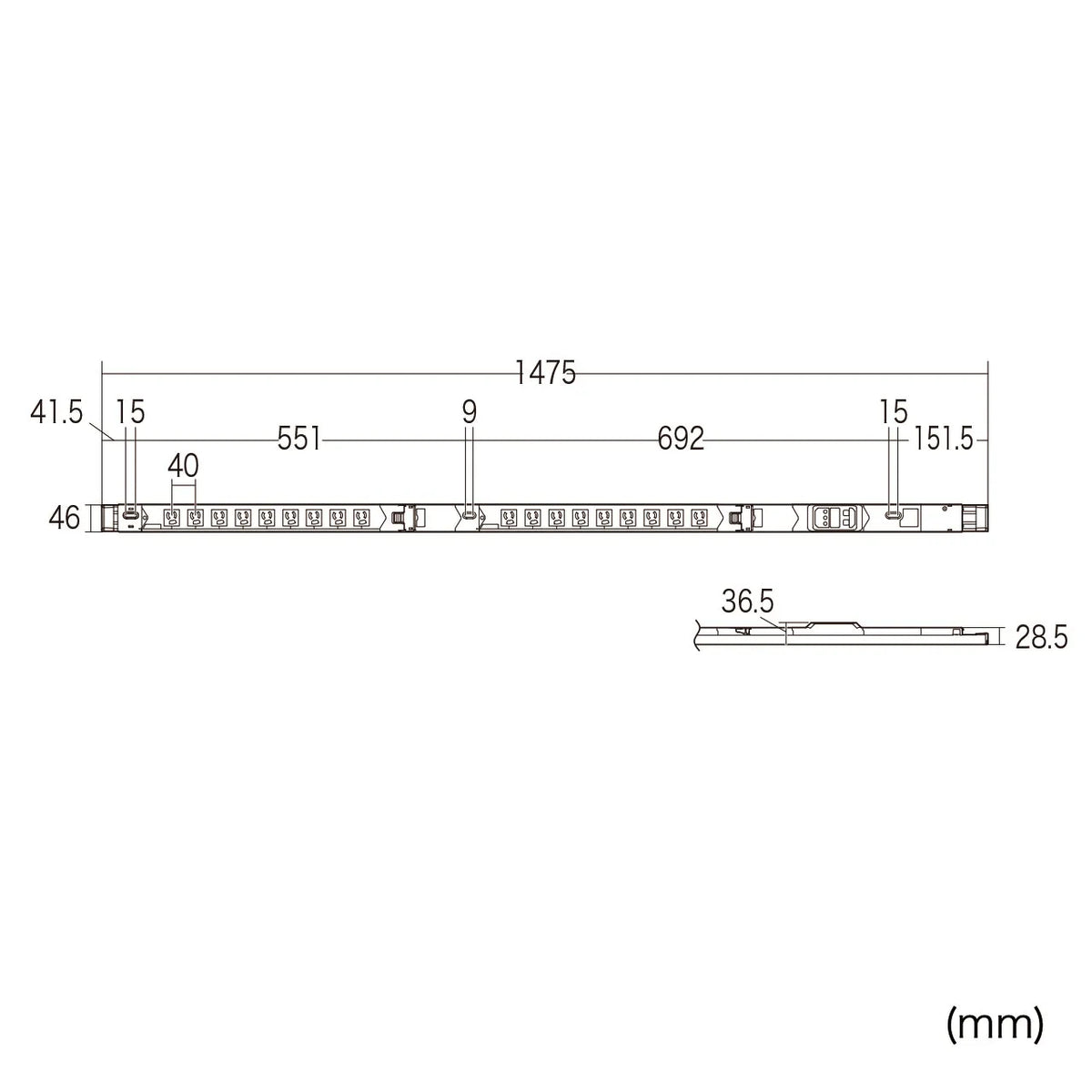

■Size: W1475xD46xH36.5mm
■Cable type: VCTF2.0 (3 cores)
■Crimping terminal: Round crimp terminal R2-5 (equivalent to JIS C2805)
■Country of manufacture: Japan
■Usage area: Japan only. Cannot be used outside of Japan.
■Certification: Complies with the technical standards of the Electrical Appliances and Materials Safety Act (PSE)
＜Operating Environment Conditions＞
■Ambient Temperature: 0 to 40 degrees Celsius, depending on the circuit board specifications
*However, the 24-hour average value shall not exceed 35 degrees Celsius
■Ambient Humidity: 85% or less (freezing and condensation are not permitted)
■Altitude: 2000m or less
■Operating Environment: Free from excessive water vapor, oil vapor, smoke, corrosive gases, etc. Also, the environment shall not be subjected to abnormal vibrations or shocks.
