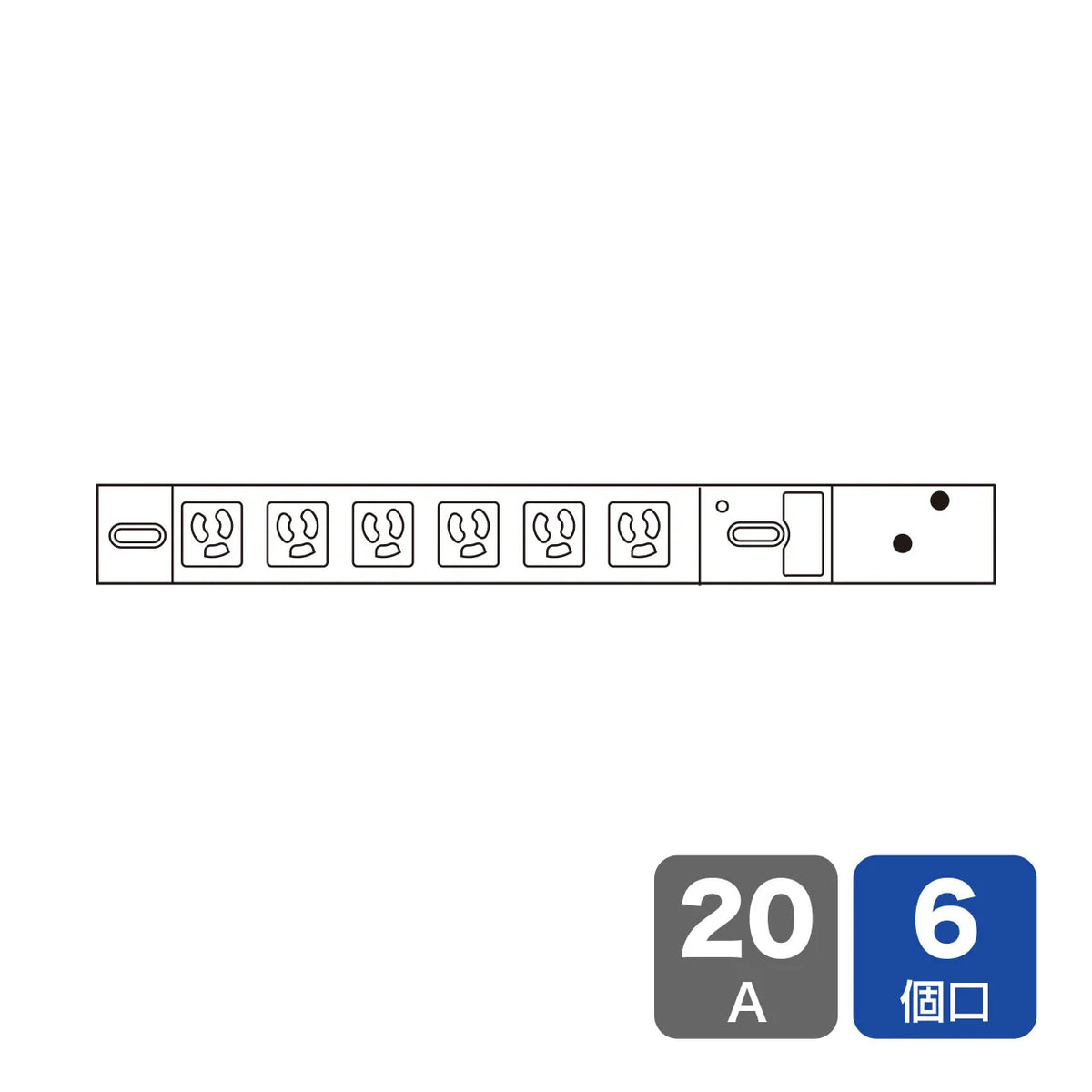

[Slim Power Outlet for 19-inch Server Racks]

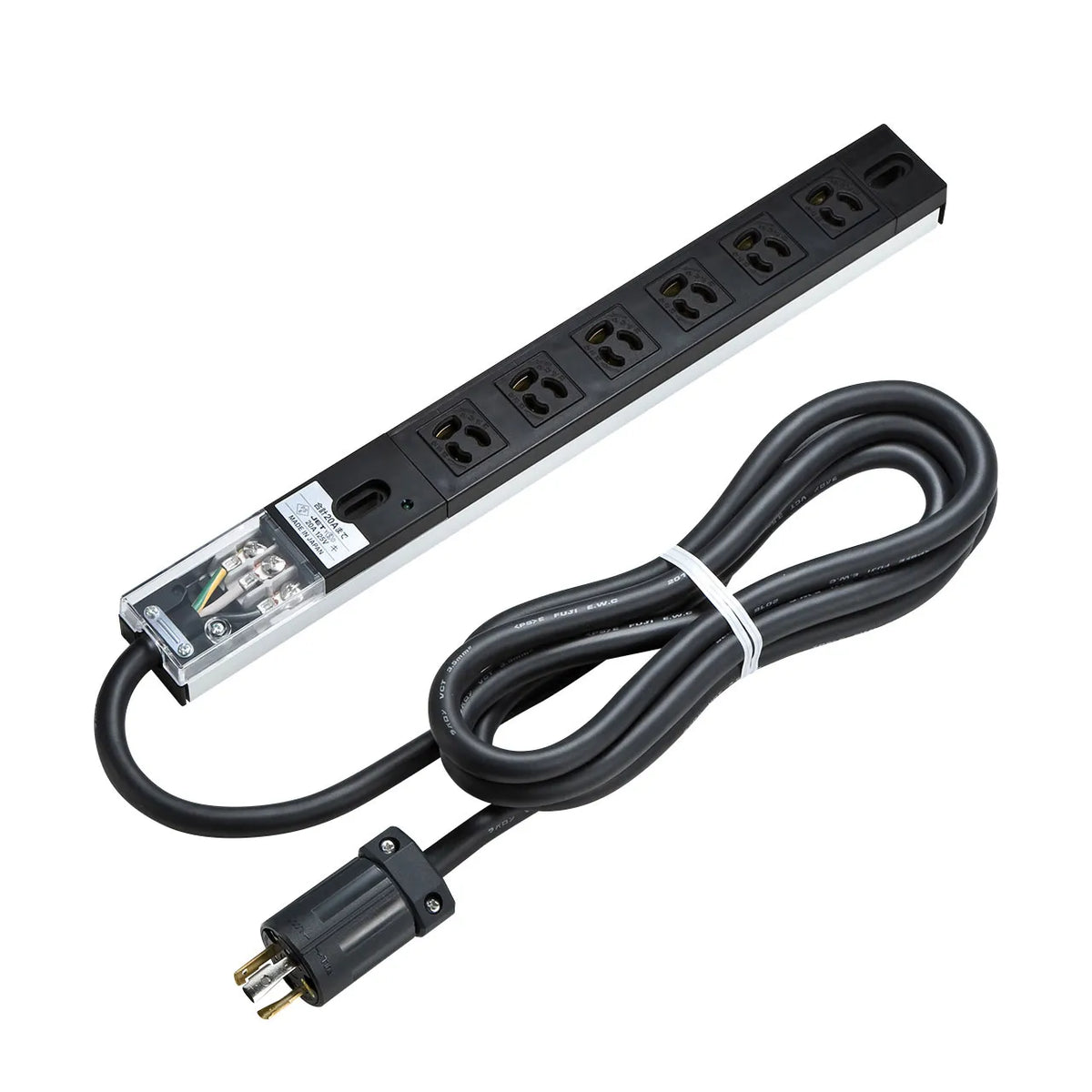

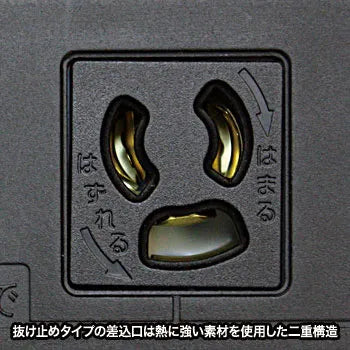

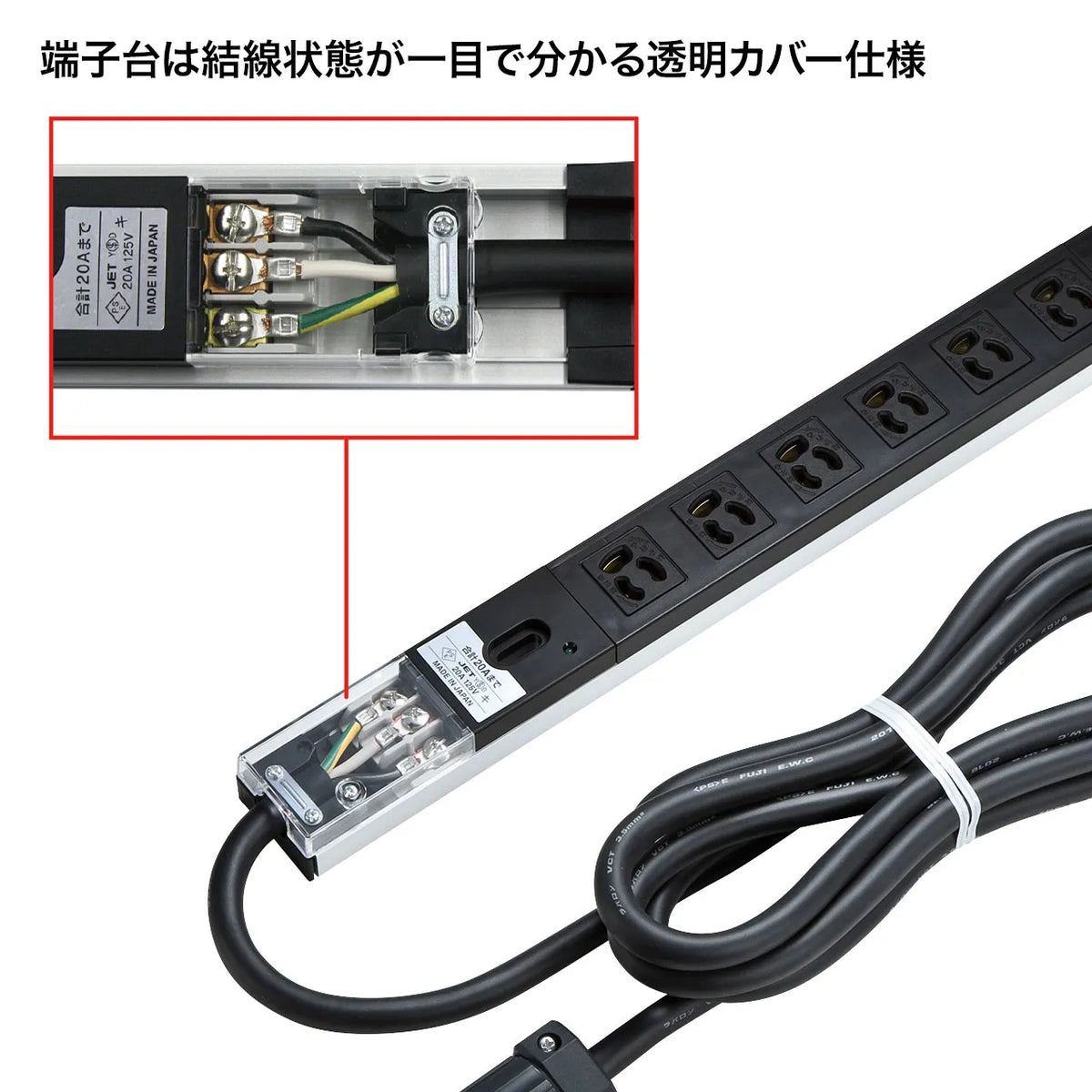

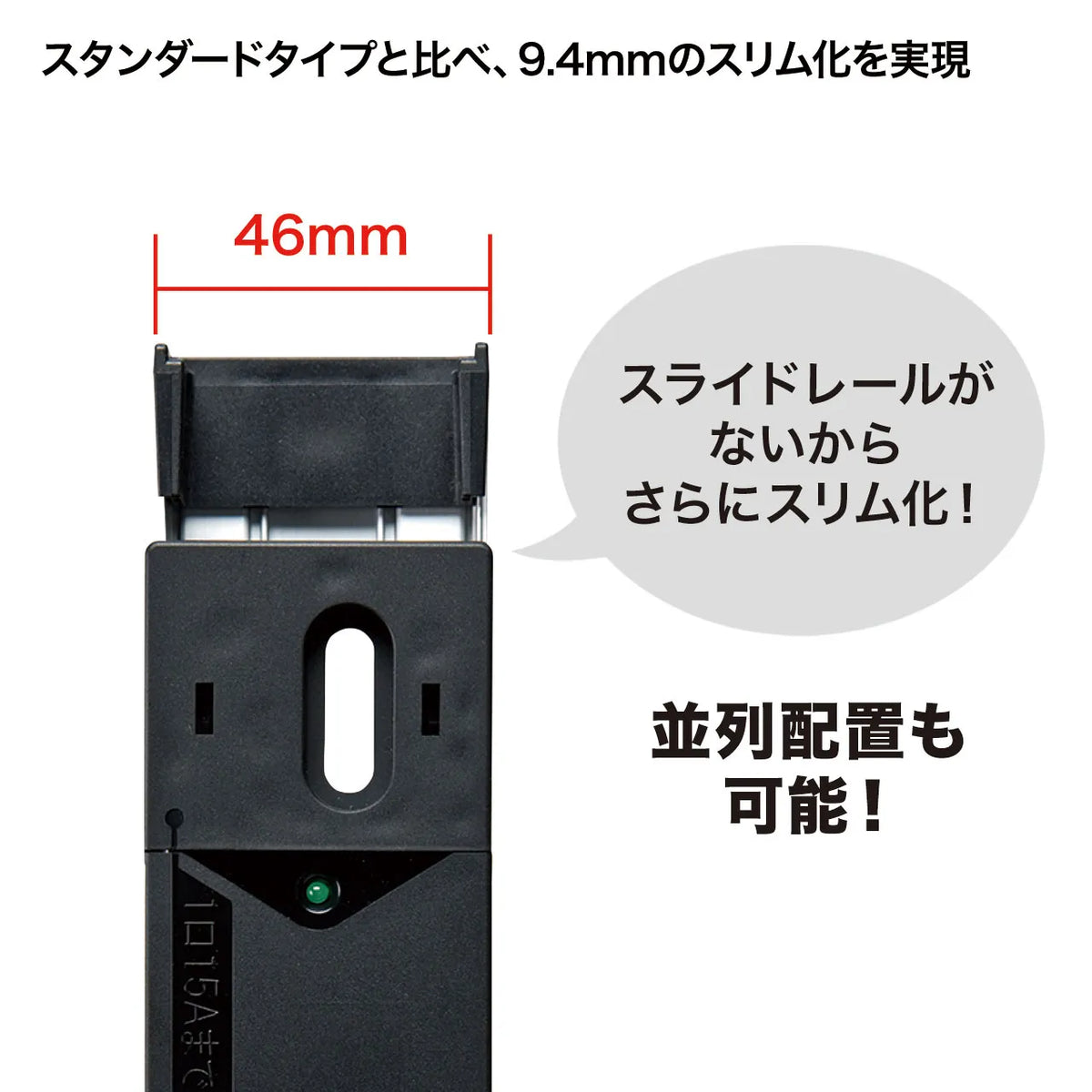

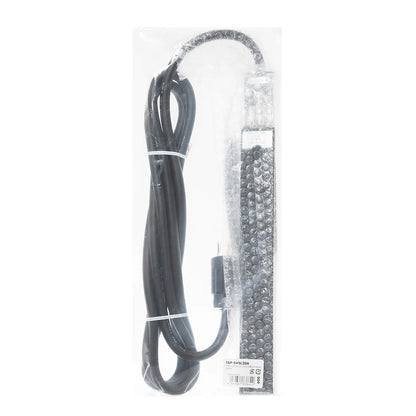

●Easy installation on 19-inch server racks with two mounting methods. ●Equipped with a power indicator LED lamp as standard. ●The outlet is a locking type to prevent accidental disconnection. ●Double structure using heat-resistant material. ●The bottom and sides of the power strip body are made of lightweight and sturdy aluminum. ●The terminal block has a transparent cover that allows you to see the wiring status at a glance. ●A power cable (3m) and plug are included as standard. ●Slim type with a width of 46mm without slide rails.

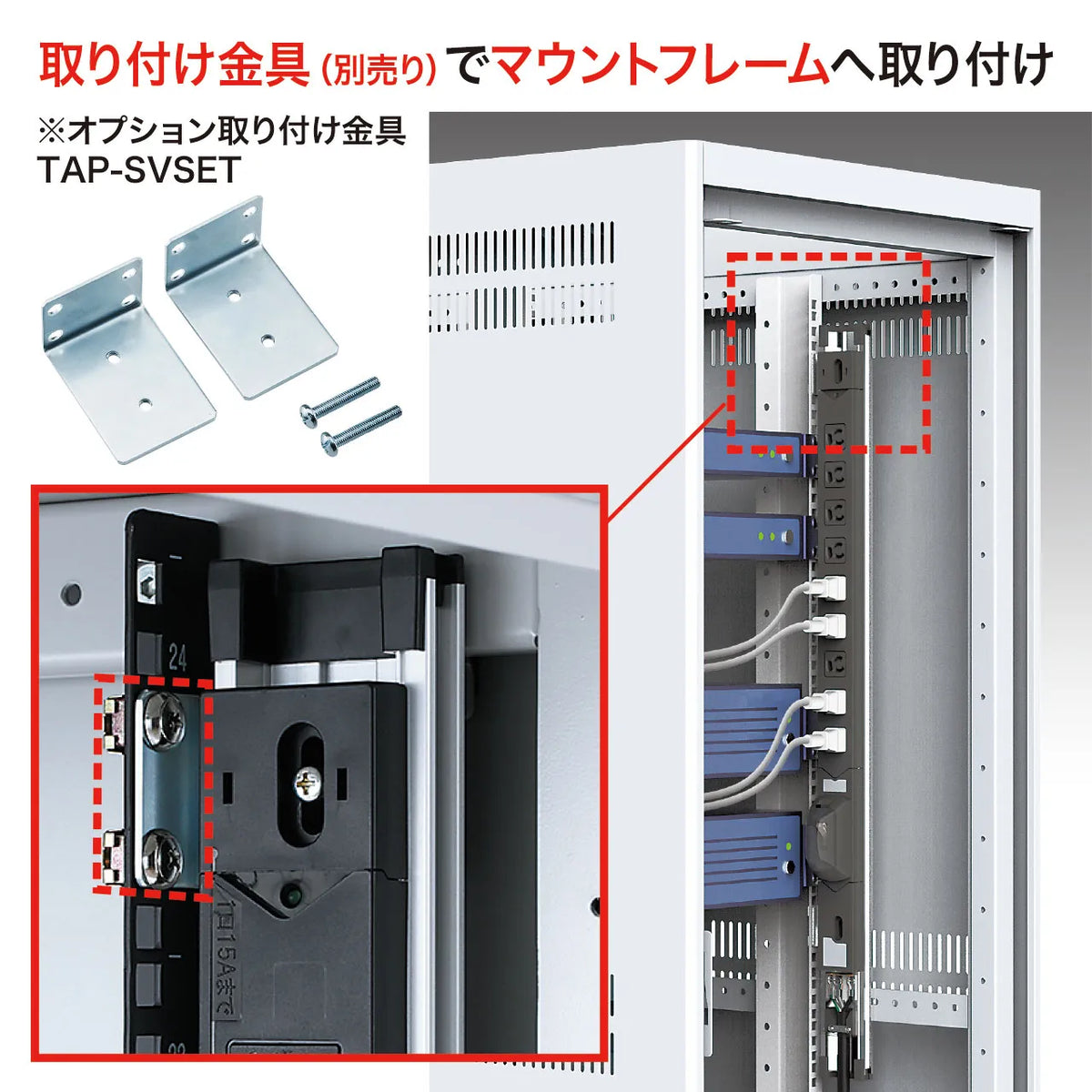

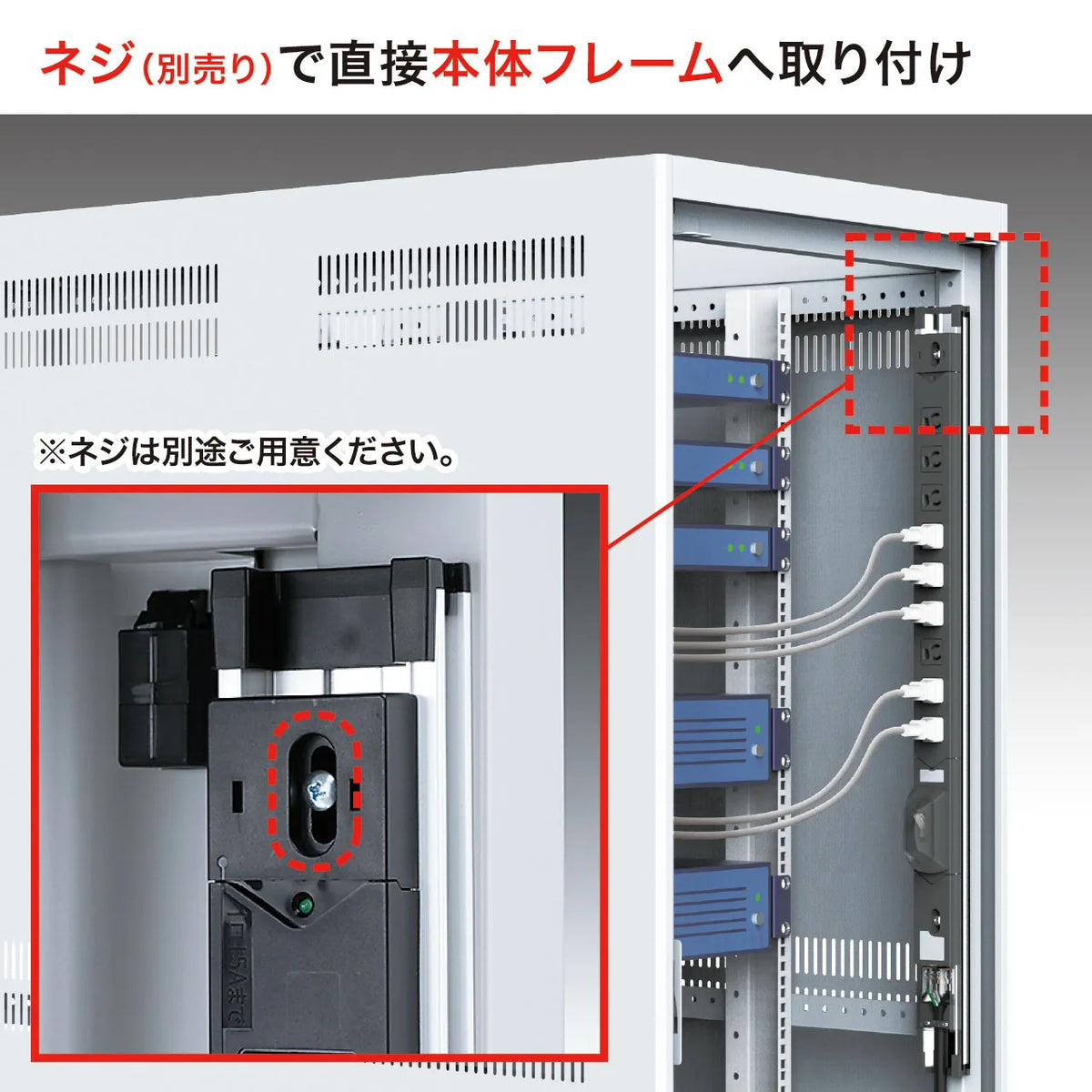

＜Installation Method＞ 1. The power strip body has mounting holes, so it can be directly mounted with screws. *Mounting screws are not included. 2. It can be mounted to the mounting frame with the optional L-shaped mounting bracket. *L-shaped bracket (TAP-SVSET) is sold separately.

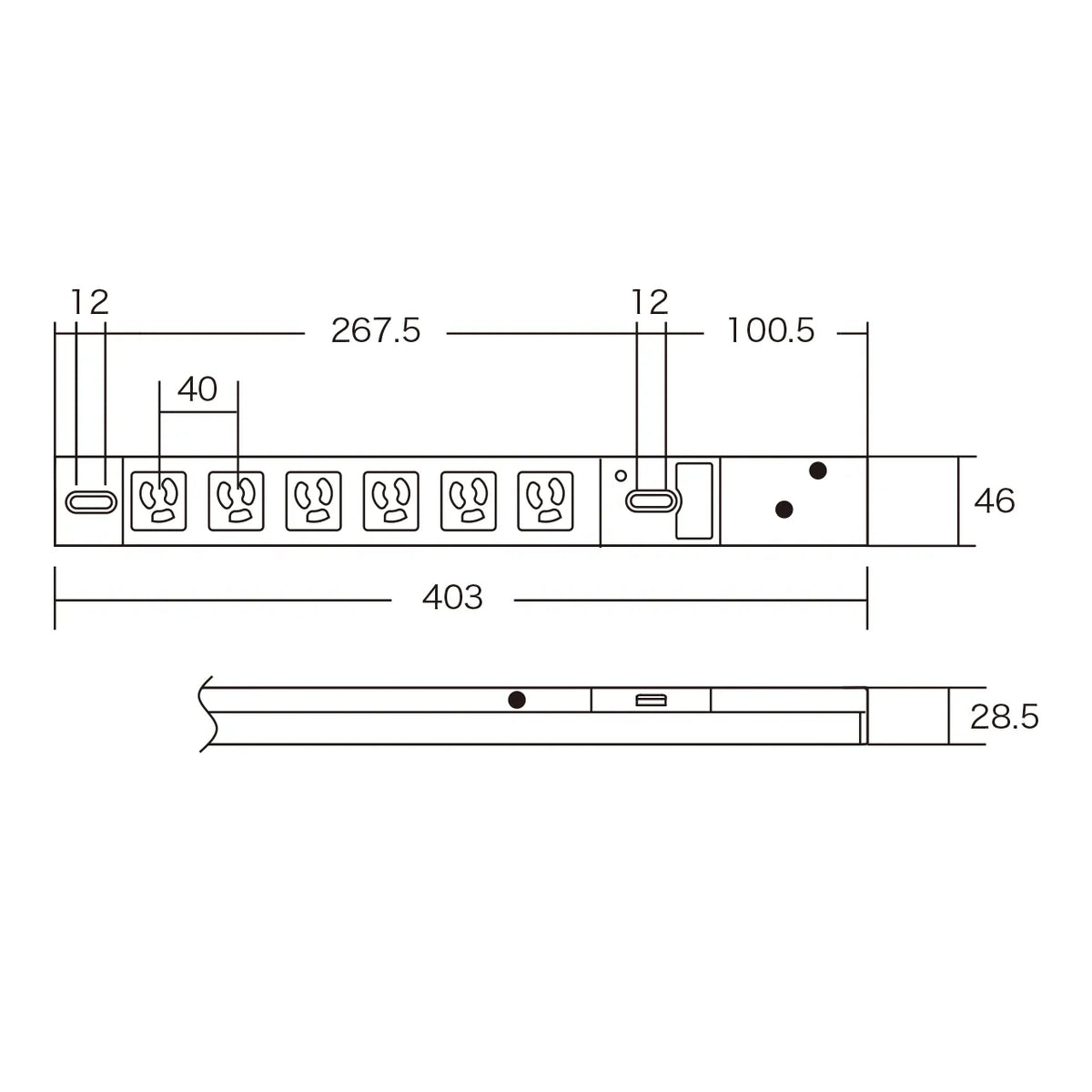

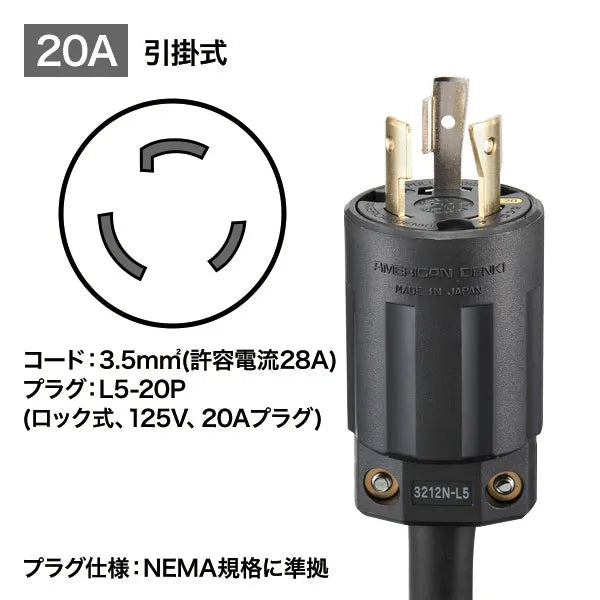

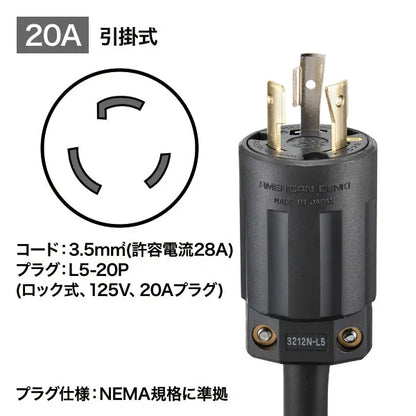

■Rated capacity: 20A・125V (up to 2000W total) ■Plug type: Hook type NEMA L5-20P (3P) ■Cable type: 3.5 sq (SQ) (allowable current 28A) ■Cable length: 3m ■Outlets: 3P locking type, 6 outlets ■Size: W403xD46xH28.5mm ■Cable type: VCT (3 cores) ■Crimping terminal: Round crimp terminal R2-5 (equivalent to JIS C2805) ■Country of manufacture: Japan ■Usage area: Japan only. Cannot be used outside of Japan. ■Certification: Complies with the technical standards of the Electrical Appliances and Materials Safety Act (PSE) ＜Operating Environment Conditions＞ ■Ambient Temperature: -5°C to 40°C (However, the 24-hour average value shall not exceed 35°C) ■Ambient Humidity: 85% or less (No freezing or condensation) ■Altitude: 2000m or less ■Operating Environment: Free from excessive water vapor, oil vapor, smoke, corrosive gases, etc. Also, the environment shall not be subjected to abnormal vibrations or shocks.
