SANWA SUPPLY

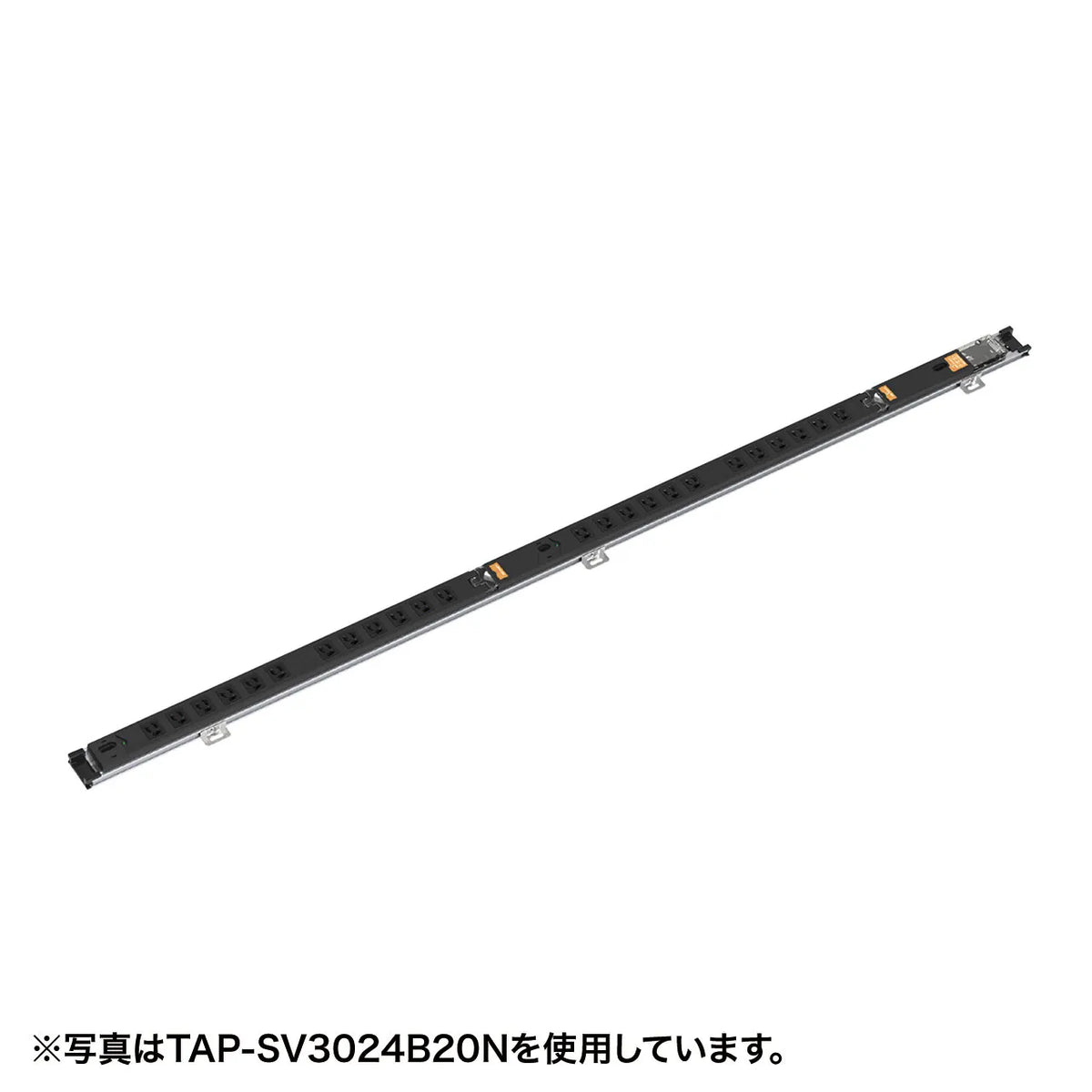

19-inch server rack power outlet (30A) TAP-SV3018B20N
19-inch server rack power outlet (30A) TAP-SV3018B20N
GTIN（JAN）：4969887825181
SKU：TAP-SV3018B20N
Regular price
¥39,050 JPY
Regular price
Sale price
¥39,050 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Easy installation in 19-inch server racks with 3 mounting methods; includes circuit protector]
●Easy installation in 19-inch server racks with 3 mounting methods.
●Equipped with a power indicator LED lamp as standard.
●Uses a locking type outlet to prevent accidental disconnection.
●The bottom and sides of the tap body are made of lightweight and sturdy aluminum.
●The terminal block has a transparent cover that allows you to see the wiring status at a glance.
●Power cord (3m) and plug are included as standard.

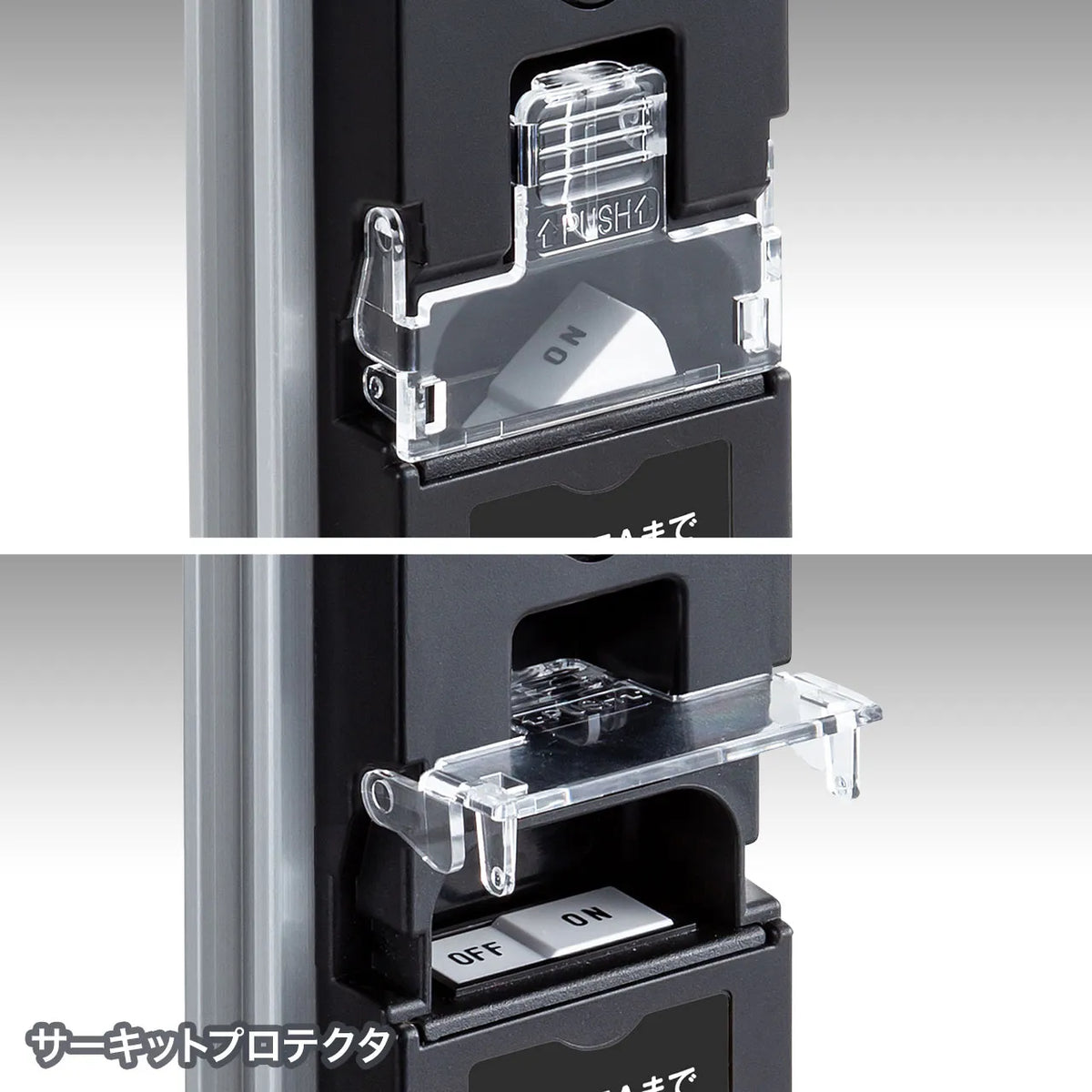

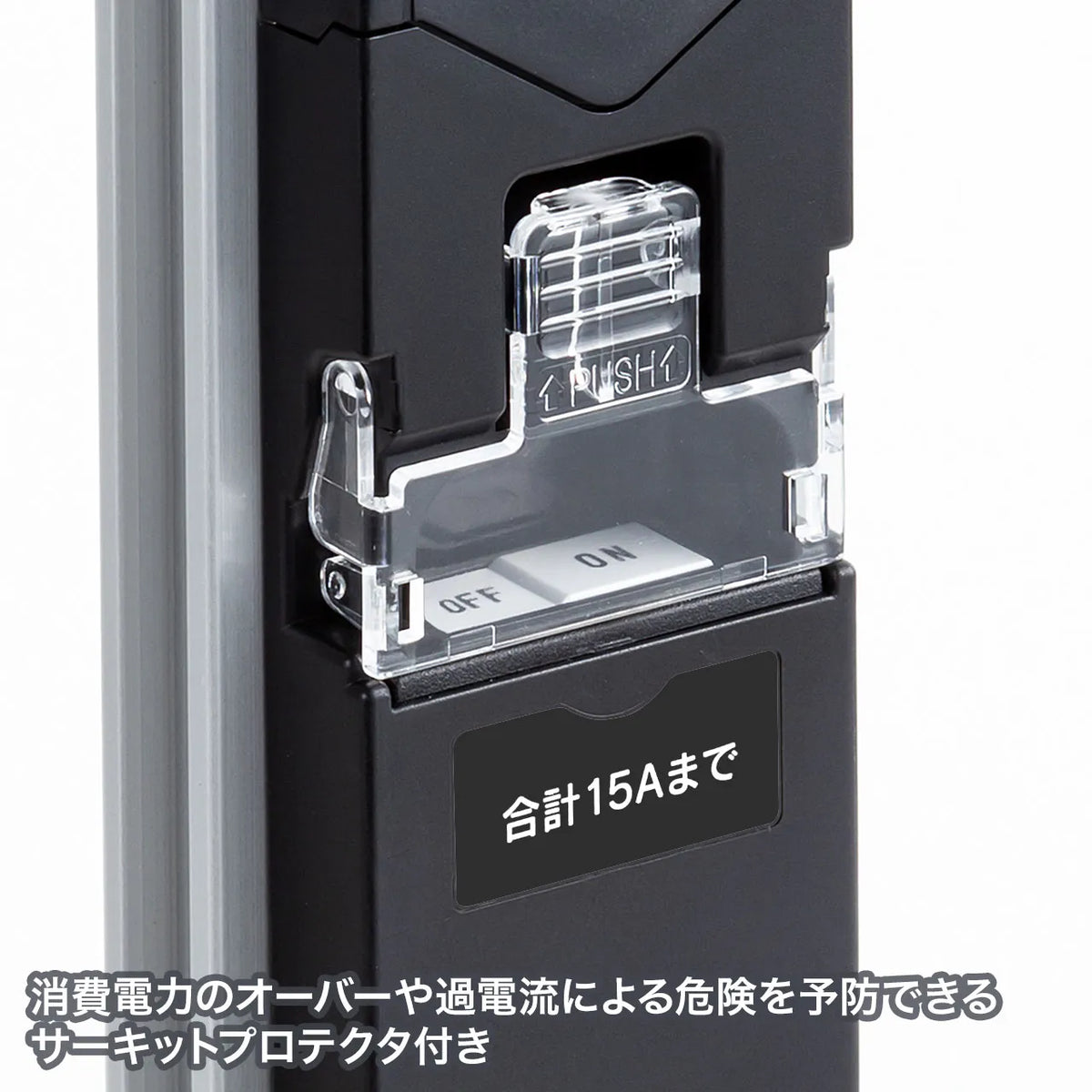

●Equipped with a circuit protector (20A x 2) to prevent danger from overpower consumption or overcurrent.
＜Installation Method＞
1. Can be mounted to the side frame with the included mounting bracket.
2. The tap body has mounting holes, so it can be mounted directly with screws.
*Mounting screws are not included.
3. Can be mounted to the mounting frame with the optional L-shaped mounting bracket.
*L-shaped brackets (TAP-SVSET) are sold separately.
*The only included hardware is the three slide rail brackets for the tap body.
■Rated capacity: 125V・30A (up to 3000W total)

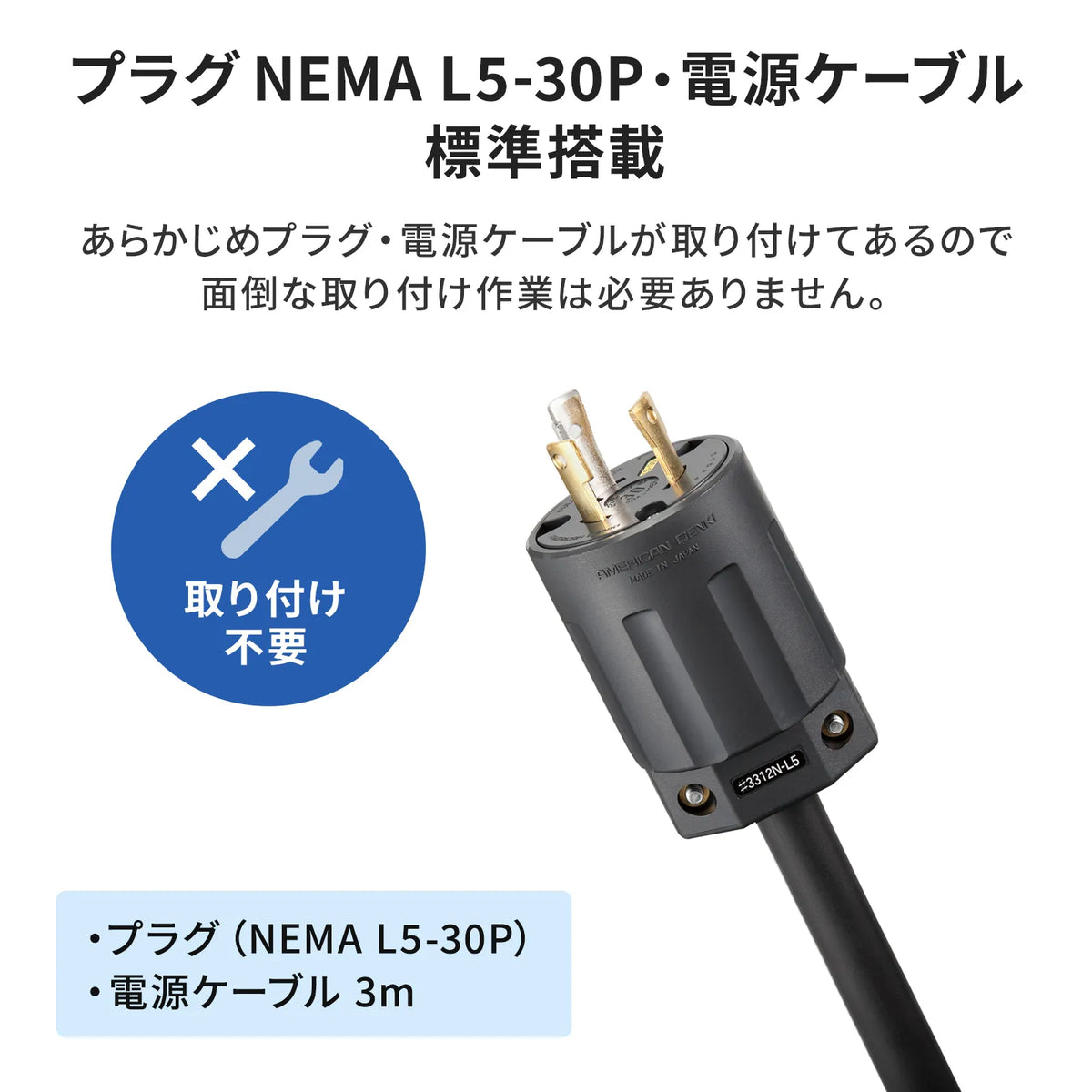

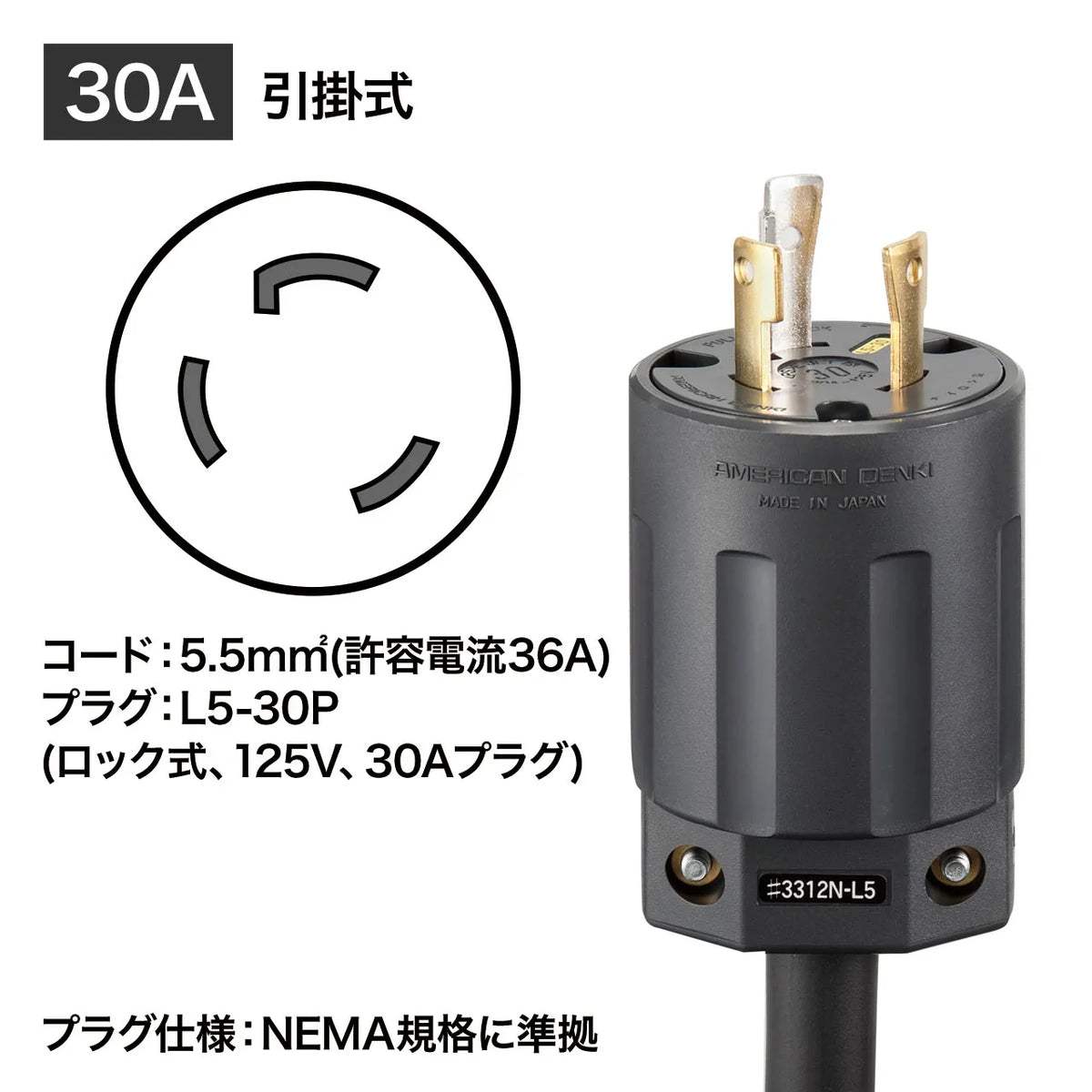

■Plug type: Hook type NEMA L5-30P (3P)
■Cable type: 5.5 sq (SQ) (allowable current 36A)
■Power cable length: 3m
■Outlets: 3P locking type, 18 outlets

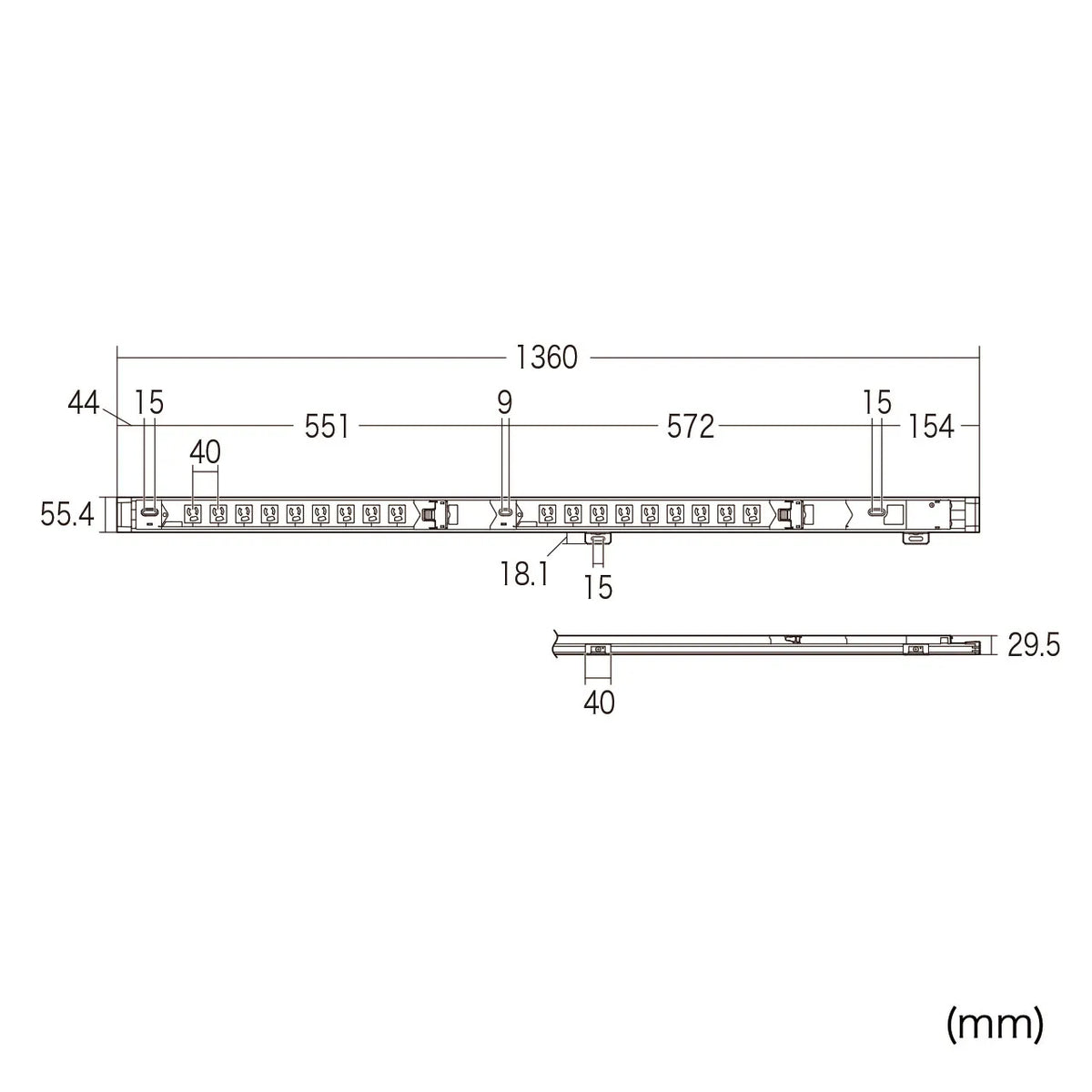

■Size: W1360xD55.4xH29.5mm
■Weight: Approx. 2.97kg
■Cable type: VCTF3.5 (3 cores)
■Crimping terminal: Round crimp terminal R2-5 (equivalent to JIS C2805)
■Accessories: Mounting bracket for main unit slide rail x3
■Country of manufacture: Japan
■Usage area: Japan only. Cannot be used outside of Japan.
■Certification: Complies with the technical standards of the Electrical Appliances and Materials Safety Act (PSE)
＜Operating Environment Conditions＞
■Ambient Temperature: -5°C to 40°C
*However, the 24-hour average value shall not exceed 35°C
■Ambient Humidity: 85% or less (freezing and condensation are not permitted)
■Altitude: 2000m or less
■Operating Environment: Free from excessive water vapor, oil vapor, smoke, corrosive gases, etc. Also, the environment shall not be subjected to abnormal vibrations or shocks.
