[Slim 19-inch Server Rack Outlet, 200V (30A), with Anti-Disconnection Lock]

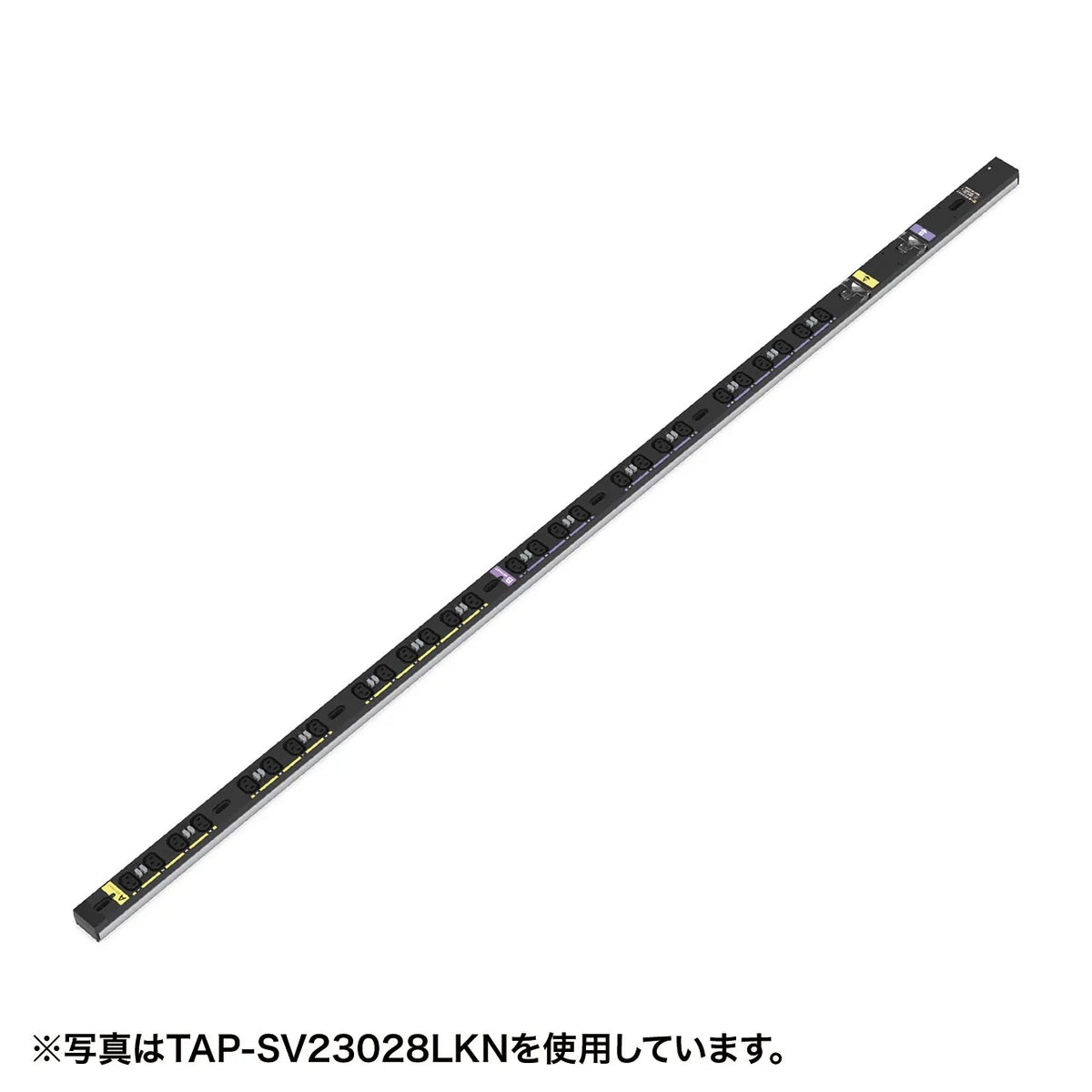

●This 200V outlet is easily installed in 19-inch server racks.

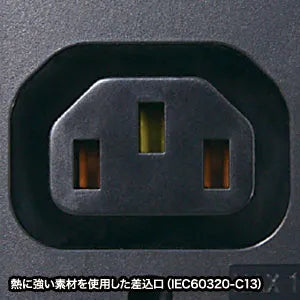

Available in IEC320 C13 connector configurations of 8, 12, 16, 20, 24, and 28 outlets.

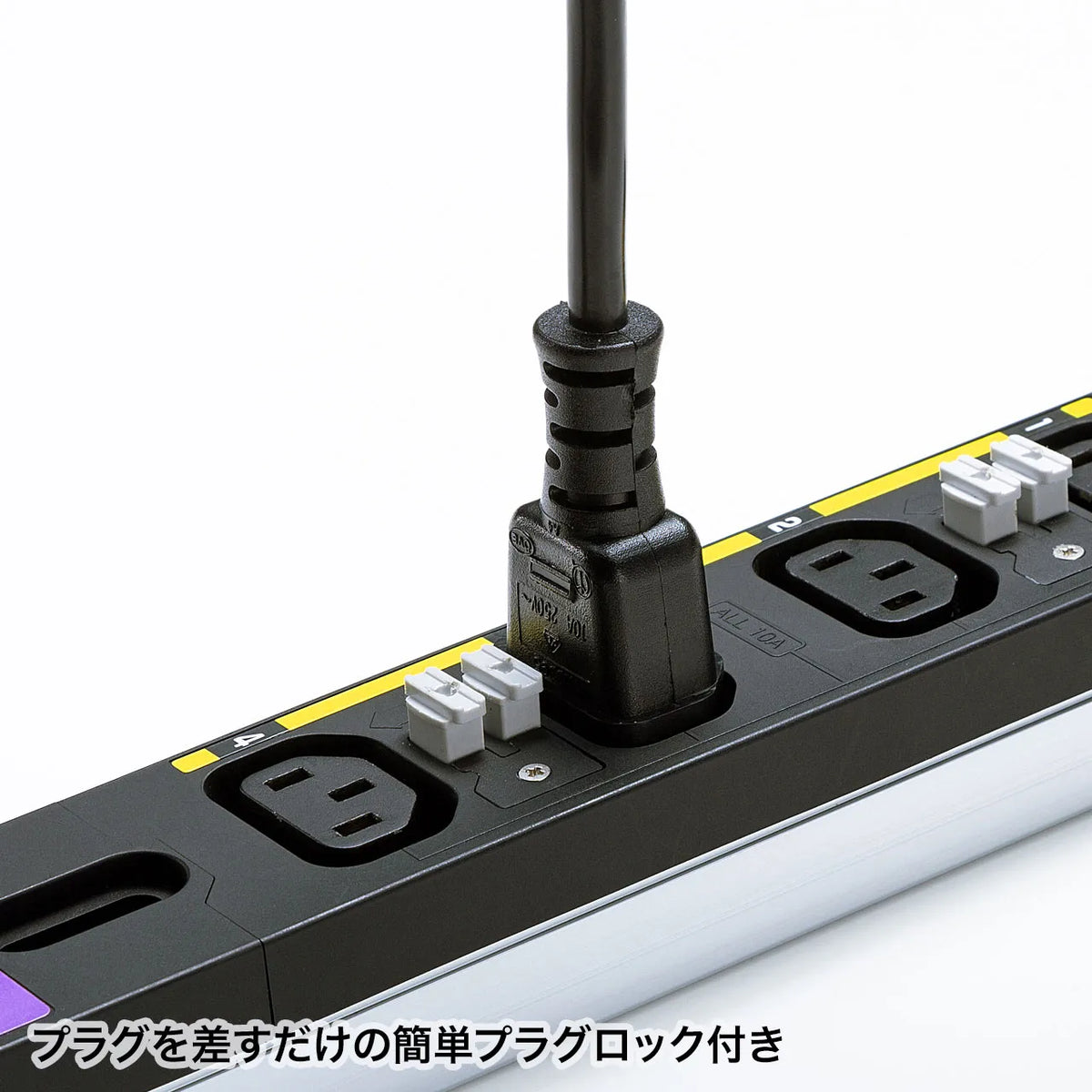

●Equipped with an anti-disconnection lock function, allowing for easy locking simply by inserting the connector.

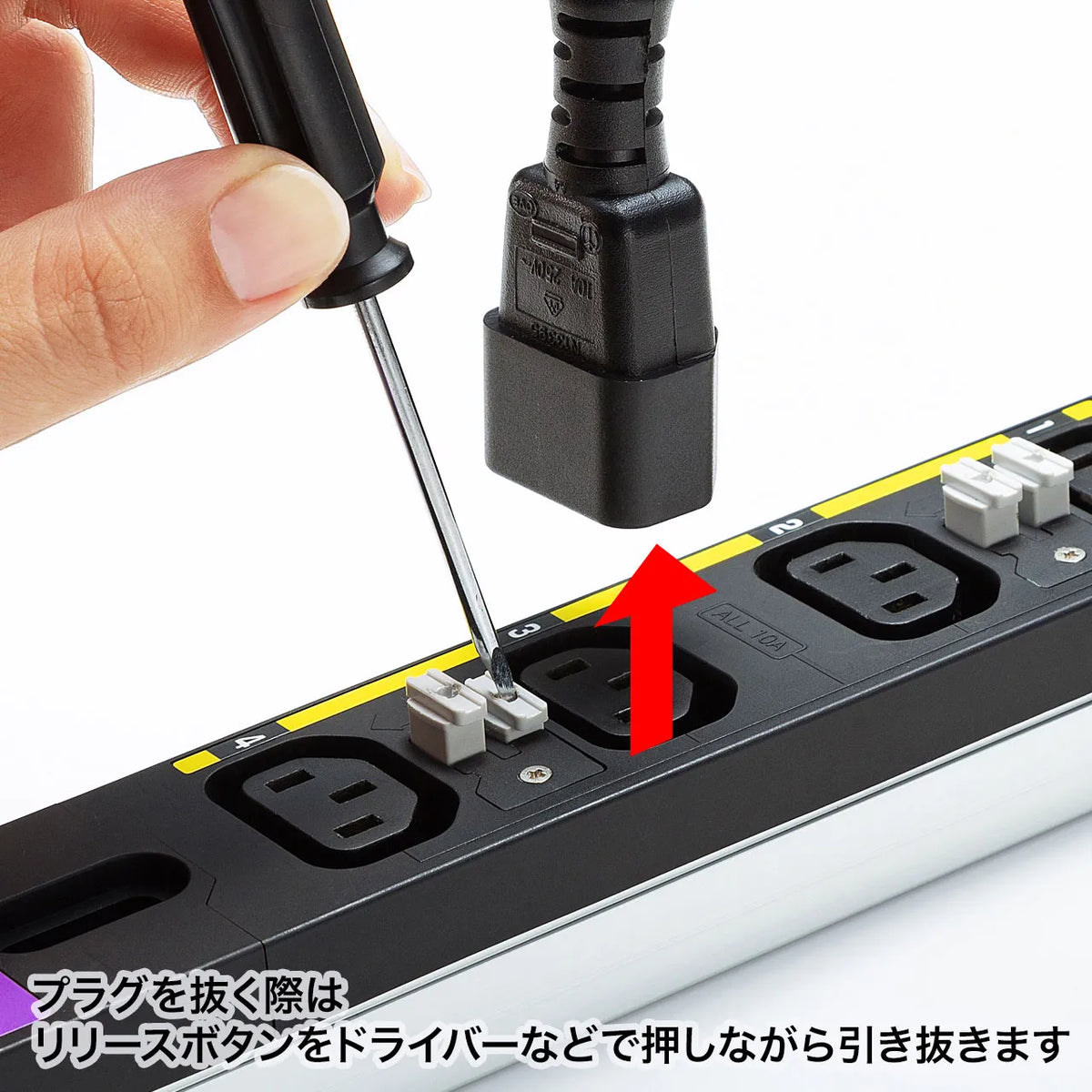

*When disconnecting the connector, press the release button with the tip of a screwdriver or similar tool while pulling it out.

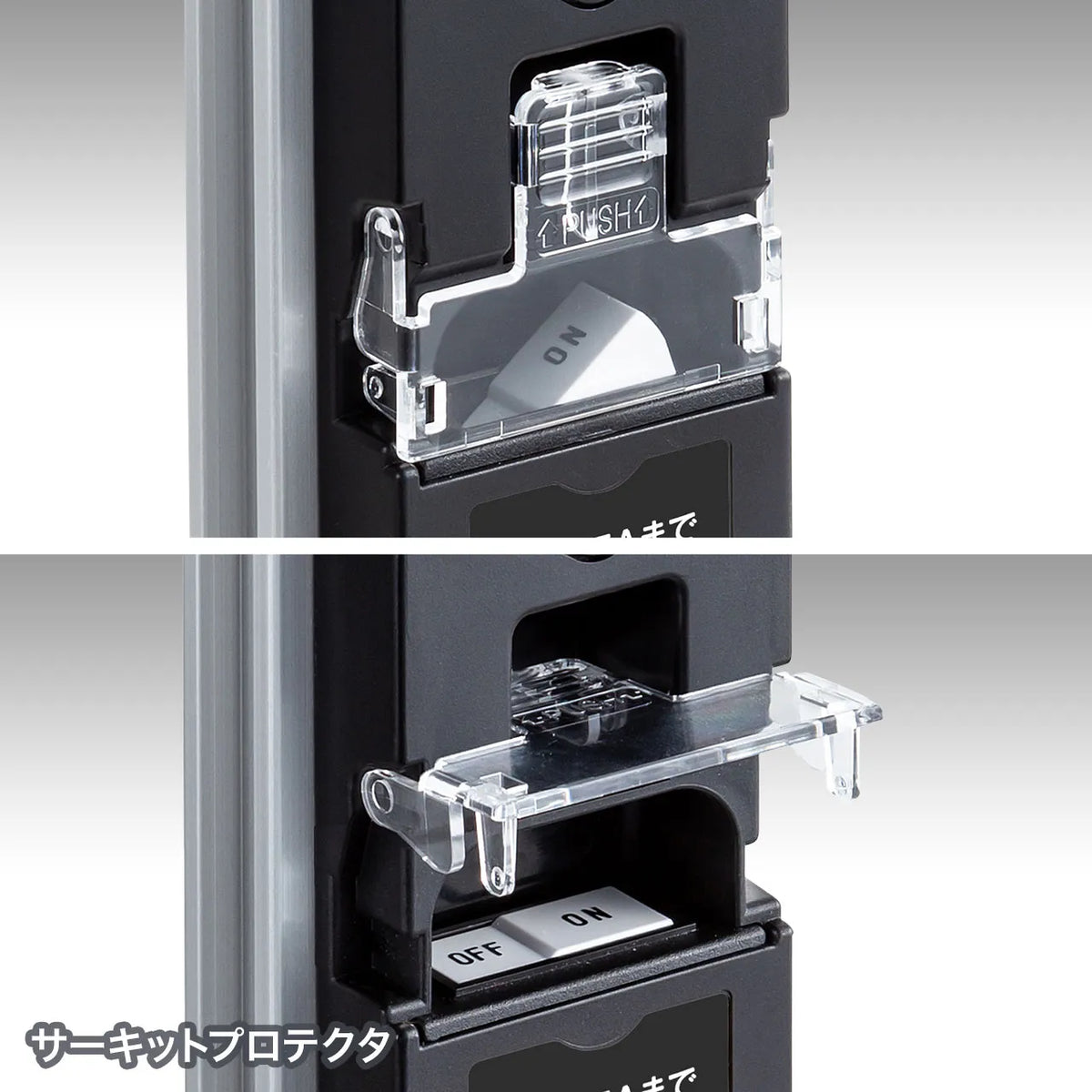

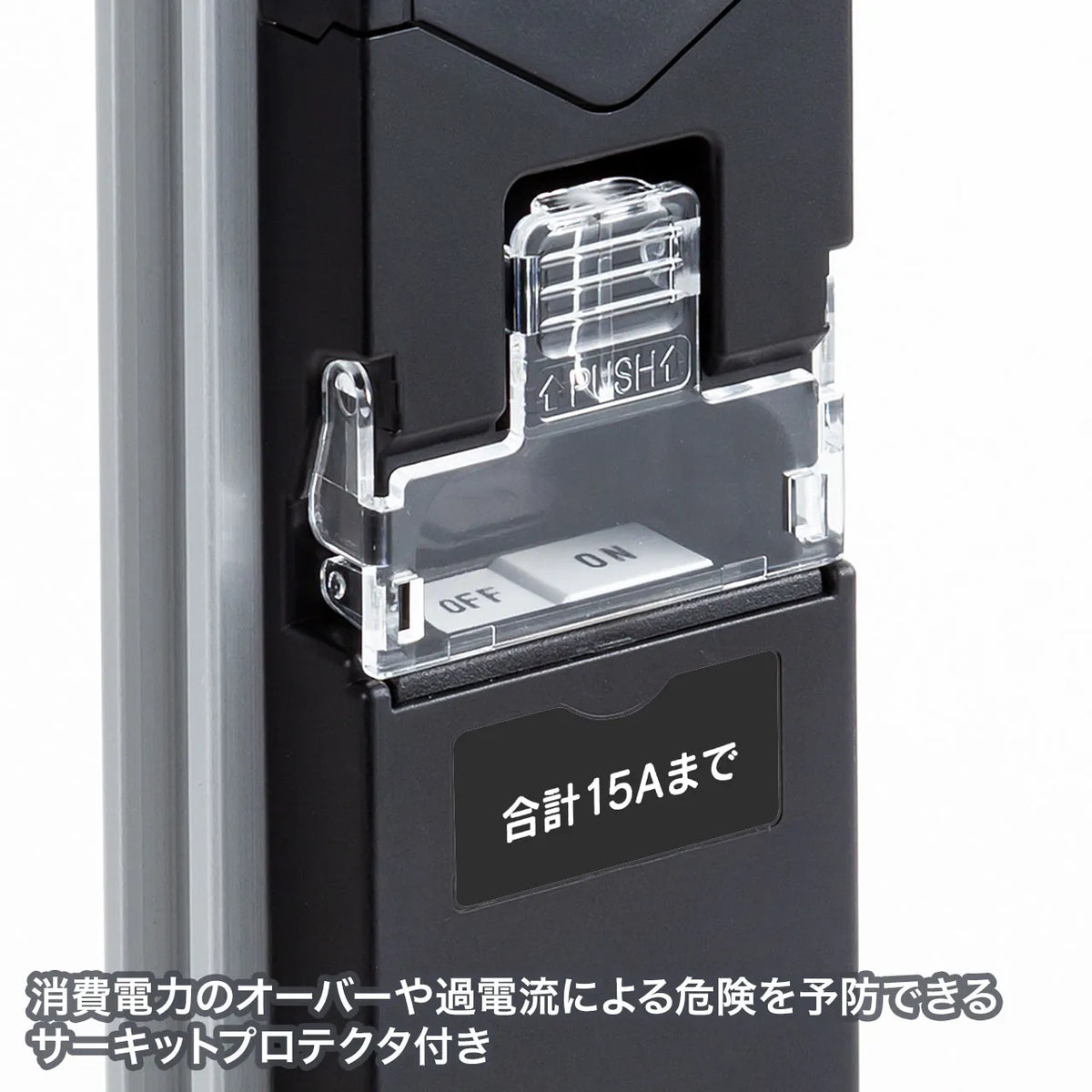

●Includes a circuit protector (up to 30A) to prevent danger from overpower consumption or overcurrent.

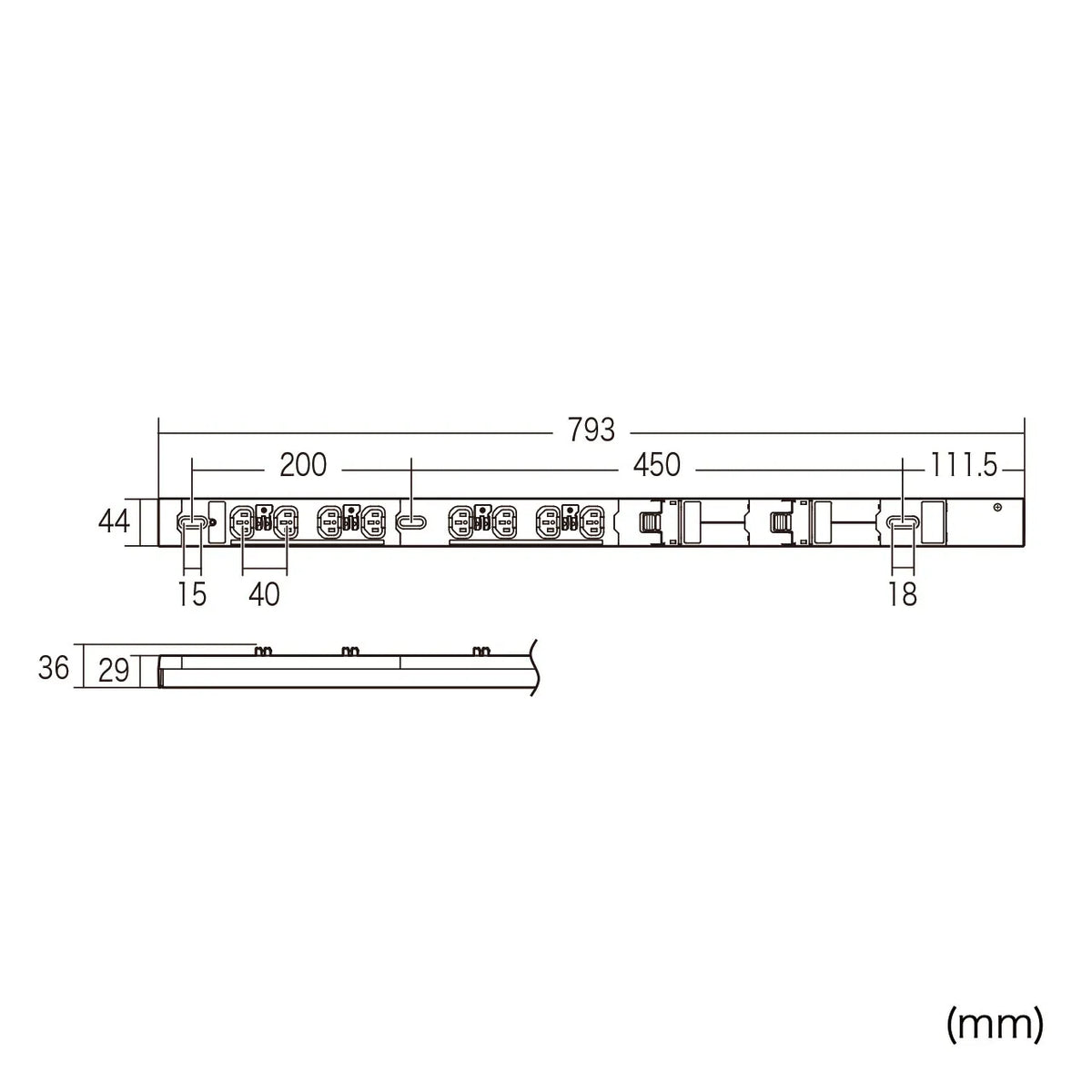

●The unit has mounting holes and can be directly mounted with screws. *Mounting screws are not included.
●Can be mounted to a mounting frame with the optional L-shaped mounting bracket. *L-shaped bracket (TAP-SVSET, list price ¥2000) is sold separately.
●Equipped with a power indicator LED lamp as standard.

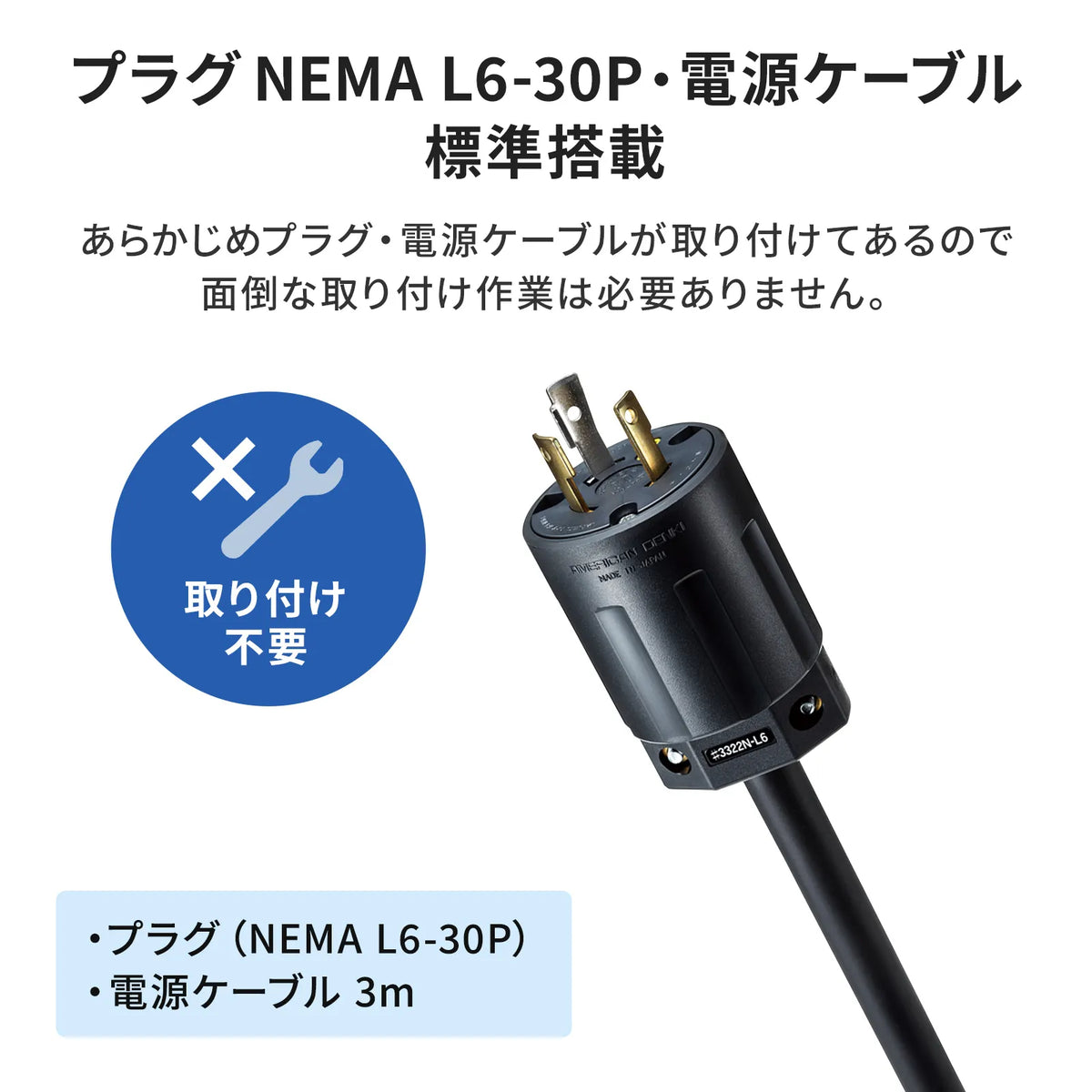

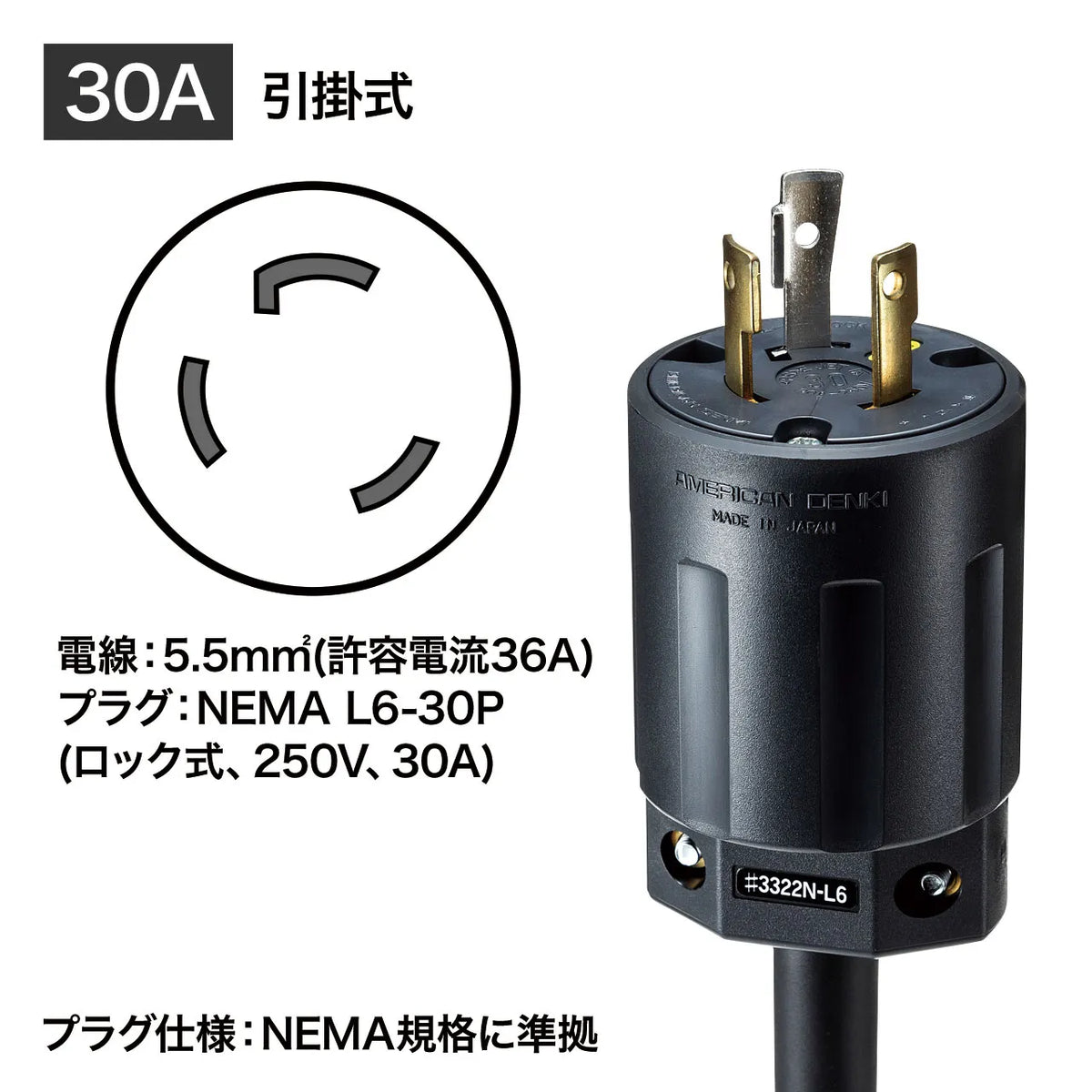

●A power cord (3m) and power plug (NEMA L6-30P) are included as standard.
■Rated capacity: 30A・250V Total up to 3000W ■PSE compliance standard: Yes ■Outlet shape: IEC C13 (with lock plus function) ■Plug shape: Hook type ■Plug specifications: Parallel type ■Insulation cap: None ■Outlet type: IEC C13 (with lock plus function) ■Outlet spacing: 40mm ■Outlet color: Black ■Number of outlets: 8 ■Shutter: None ■Magnet: None ■Power cord length: 3m ■Ground terminal: None ■Circuit breaker: Circuit protector ■Usage area: Japan only. Cannot be used outside of Japan. ＜Operating Environment Conditions＞ ■Ambient Temperature: -5°C to 40°C (However, the 24-hour average must not exceed 35°C) ■Ambient Humidity: 85% or less (No freezing or condensation) ■Altitude: 2000m or less ■Operating Environment: Free from excessive water vapor, oil vapor, smoke, corrosive gases, etc. Also, an environment free from abnormal vibrations and shocks.
