SANWA SUPPLY
19-inch server rack power strip, 200V (30A), with anti-disconnection lock function, TAP-SV23028LKN
19-inch server rack power strip, 200V (30A), with anti-disconnection lock function, TAP-SV23028LKN
GTIN（JAN）：4969887825501
SKU：TAP-SV23028LKN
Regular price
¥79,706 JPY
Regular price
Sale price
¥79,706 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Slim Outlet for 19-inch Server Racks, 200V (30A), with Anti-Disconnection Lock Function]
●This 200V outlet can be easily installed in 19-inch server racks.

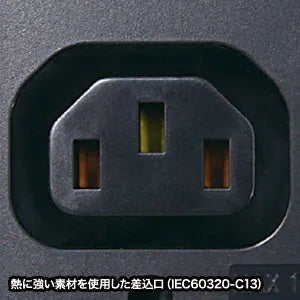

●The outlet uses heat-resistant material. (Shape/IEC60320-C13)

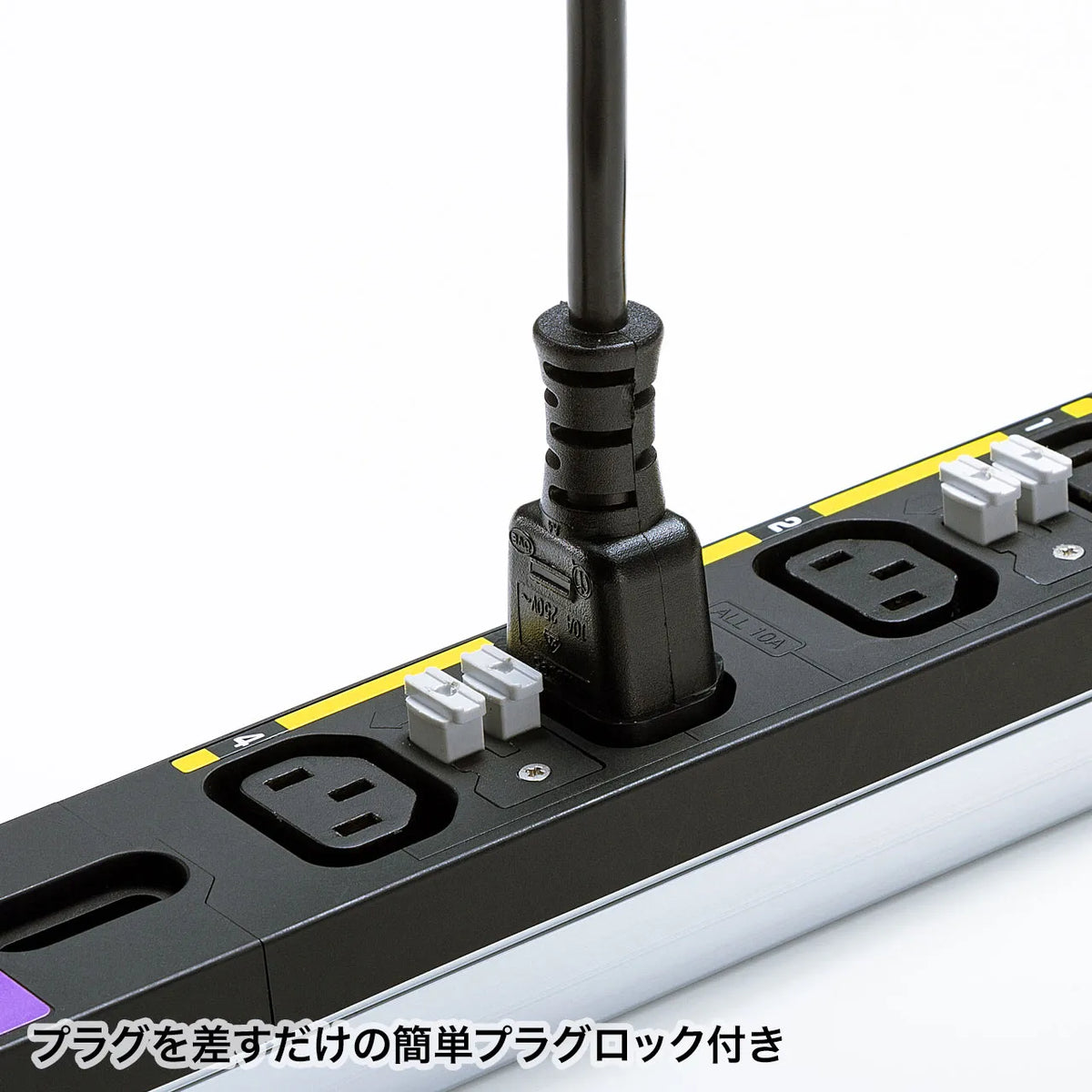

●Equipped with an anti-disconnection lock function, it can be easily locked by simply inserting the connector.

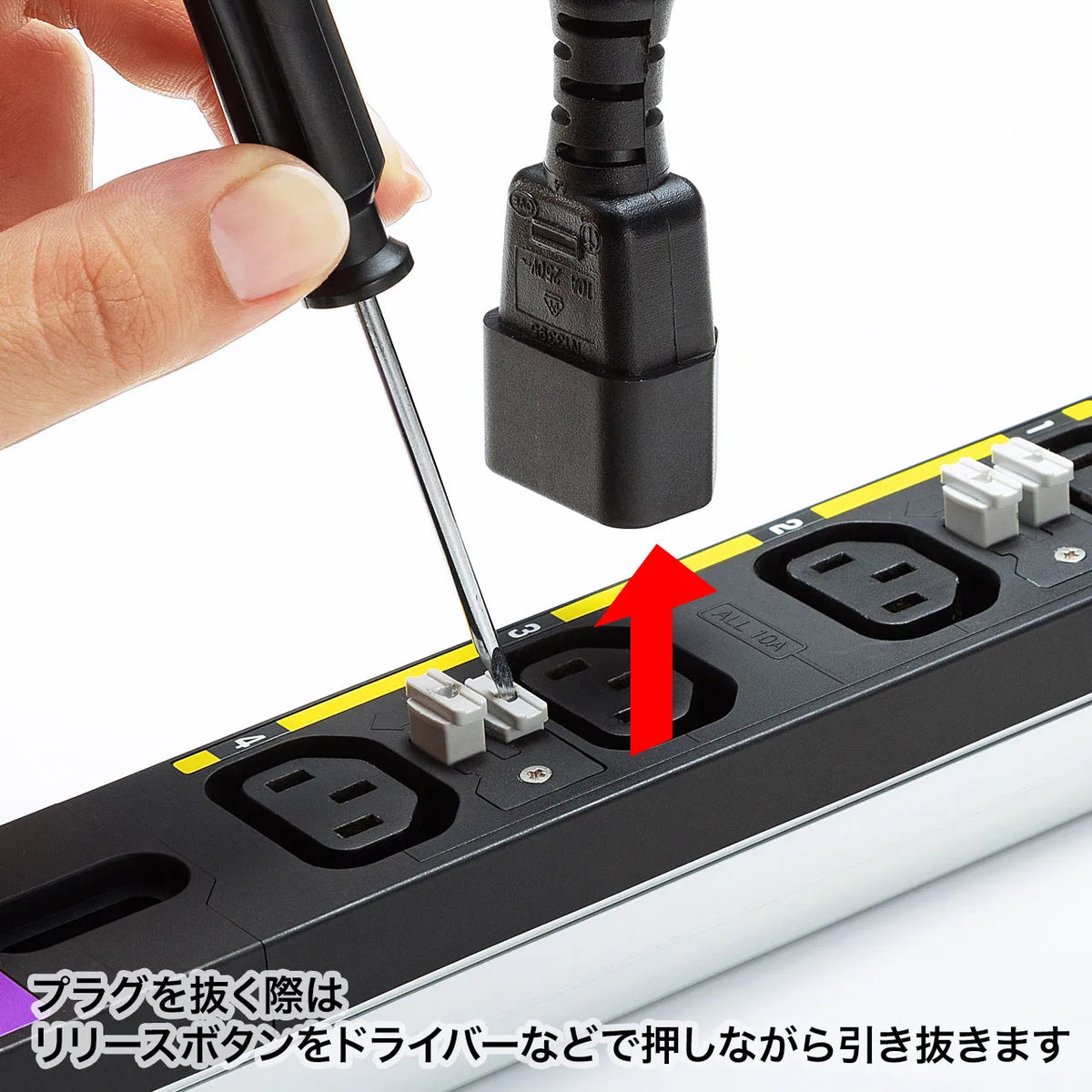

*When removing the connector, press the release button with the tip of a screwdriver or similar tool while pulling it out.

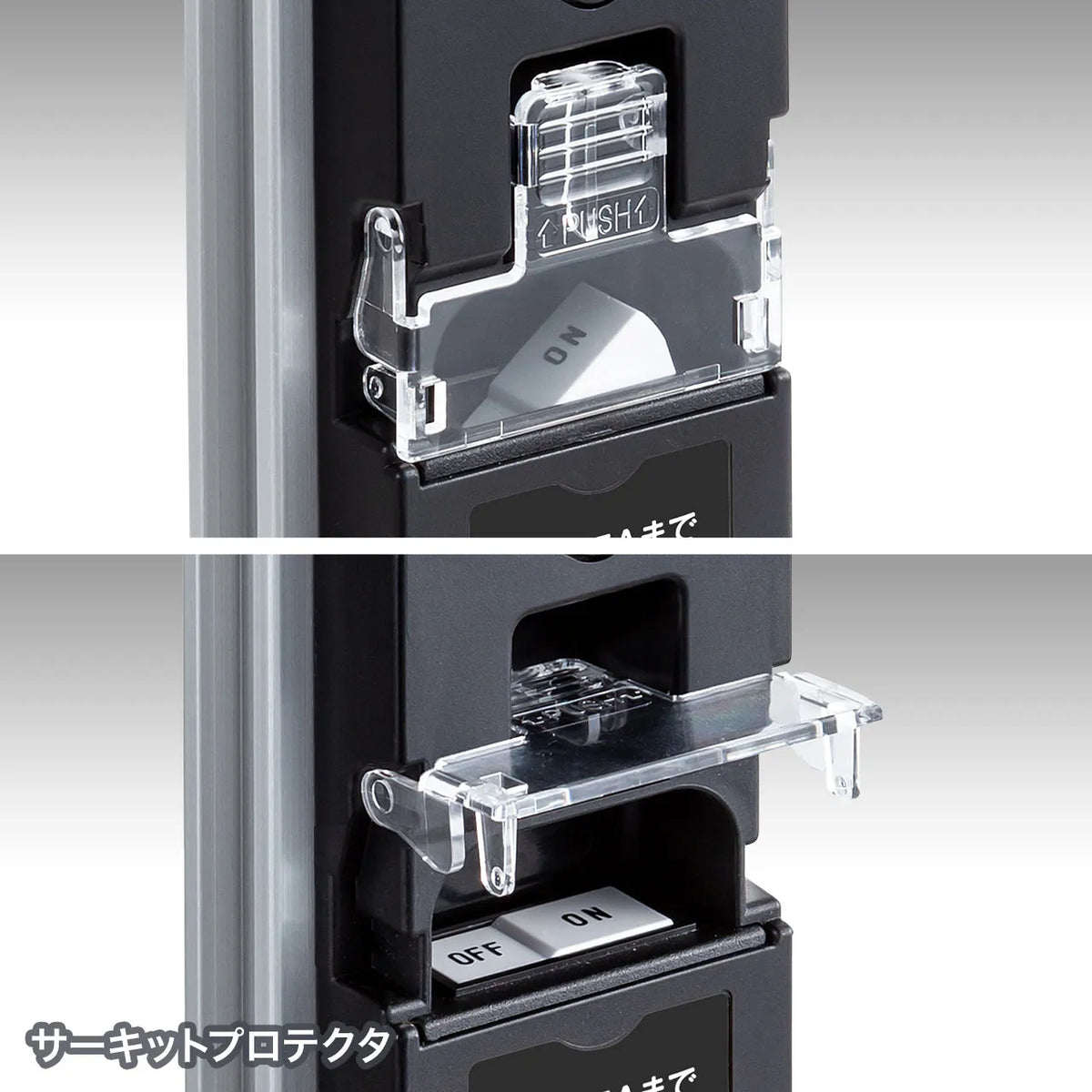

●Equipped with a circuit protector (up to 30A) to prevent danger from overpower consumption or overcurrent.
●The main unit has mounting holes and can be directly mounted with screws.
*Mounting screws are not included.
●Can be mounted to a mounting frame with optional L-shaped mounting brackets.
*L-shaped brackets (TAP-SVSET) are sold separately.
●Uses a lightweight and durable aluminum frame.
●Slim type with a width of 44mm without slide rails.
●Equipped with a power indicator LED lamp as standard.

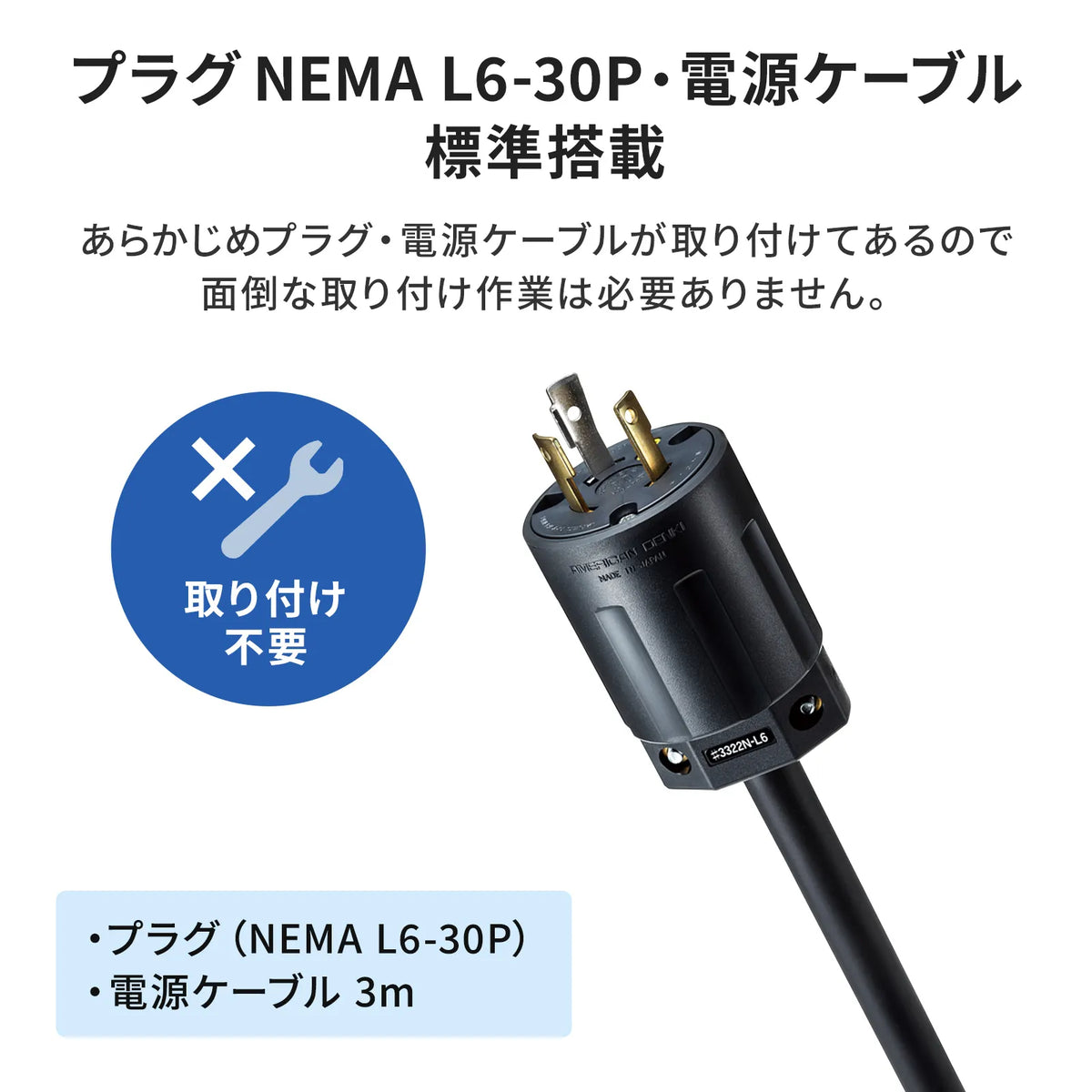

●A power cord (3m) and power plug (NEMA L6-30P) are included as standard.
＜Installation Method＞
1. The tap body has mounting holes, so it can be directly mounted with screws.
*Mounting screws are not included.
*Cannot be mounted with the optional RAC-NUT (cage nut/screw set). The screws that can be used are M4 or M5 with a screw head diameter of 9.5 to 12.5mm, and a length of approximately 25 to 30mm.
2. Can be mounted to the mounting frame with the optional L-shaped mounting bracket.
*The L-shaped bracket (TAP-SVSET) is sold separately.
*If mounting horizontally to the side of the rack, TAP-SVSET and RAC-NUT (cage nut/screw set) are required.
■Rated capacity: 250V・30A, up to 3000W total

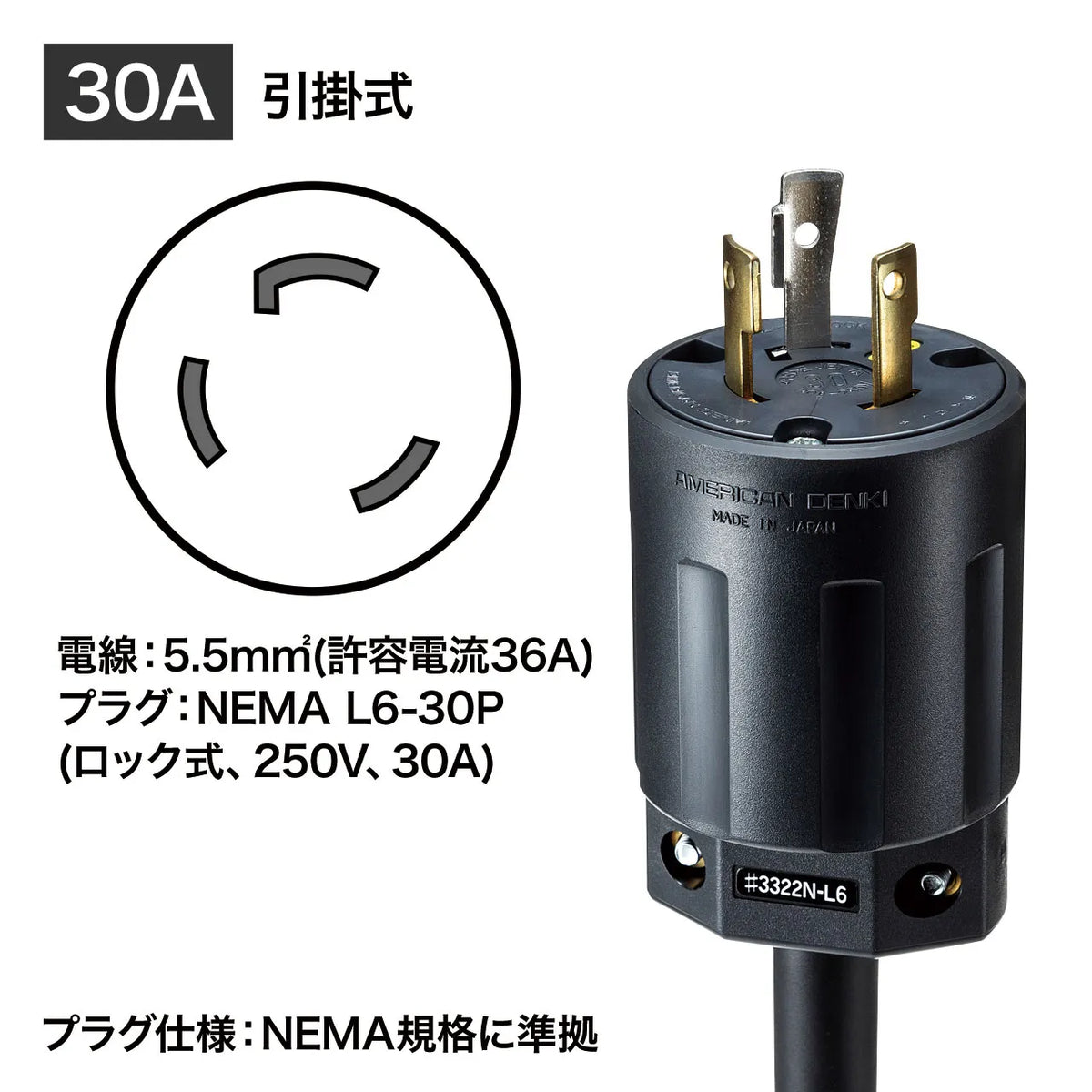

■Plug type: Hook type NEMA L6-30P (3P)
■Power cable length: 3m
■Outlet shape: IEC C13 (with lock plus function)
■Number of outlets: 28

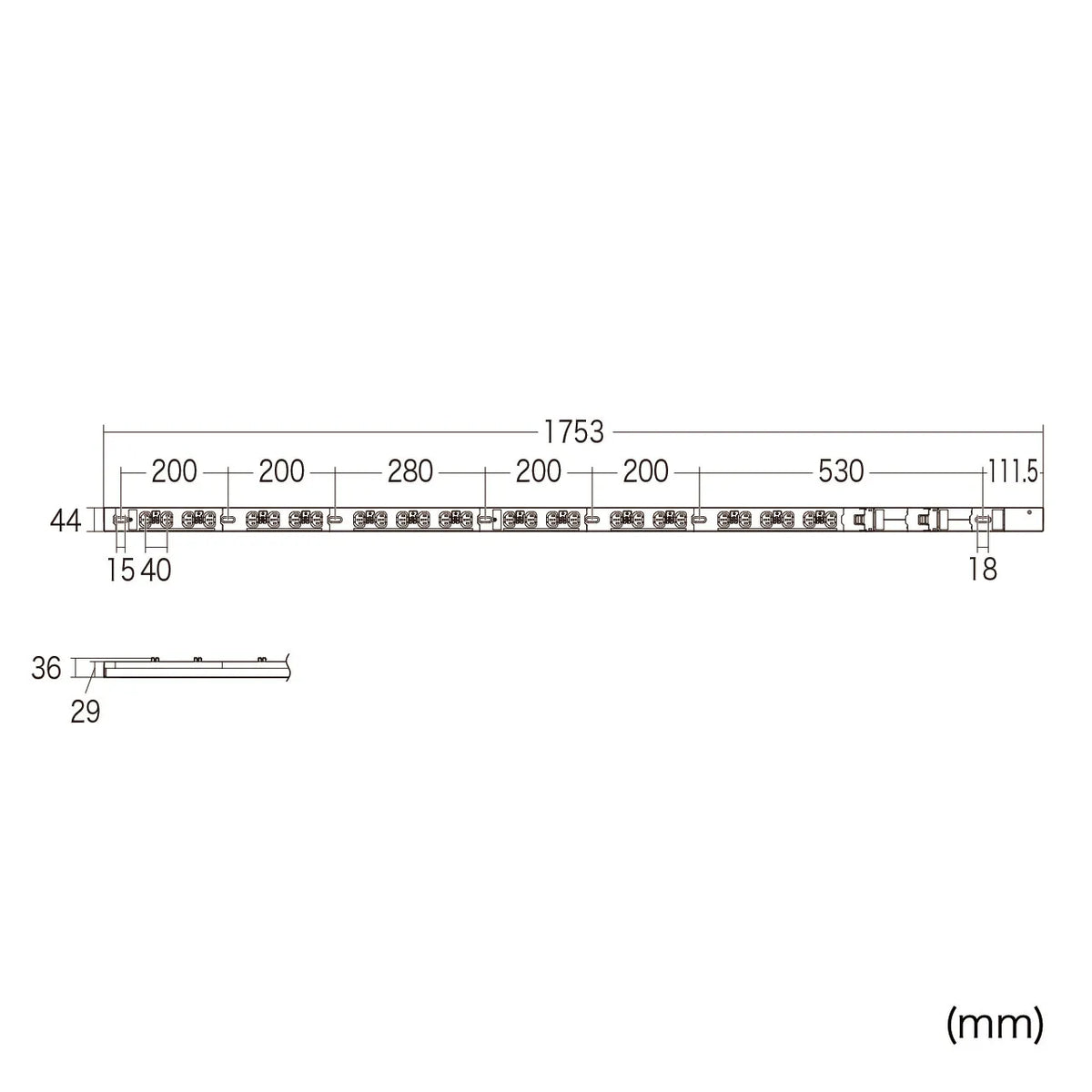

■Size: W1753xD44xH36mm
■Cable type: VCT (3 cores)
■Country of manufacture: Japan
■Usage area: Japan only. Cannot be used outside of Japan.
■Certification: Complies with the technical standards of the Electrical Appliances and Materials Safety Act (PSE)
＜Operating Environment Conditions＞
■Ambient Temperature: -5°C to 40°C
*However, the 24-hour average value shall not exceed 35°C
■Ambient Humidity: 85% or less (freezing and condensation are not permitted)
■Altitude: 2000m or less
■Operating Environment: Free from excessive water vapor, oil vapor, smoke, corrosive gases, etc. Also, the environment shall not be subjected to abnormal vibrations or shocks.
