SANWA SUPPLY

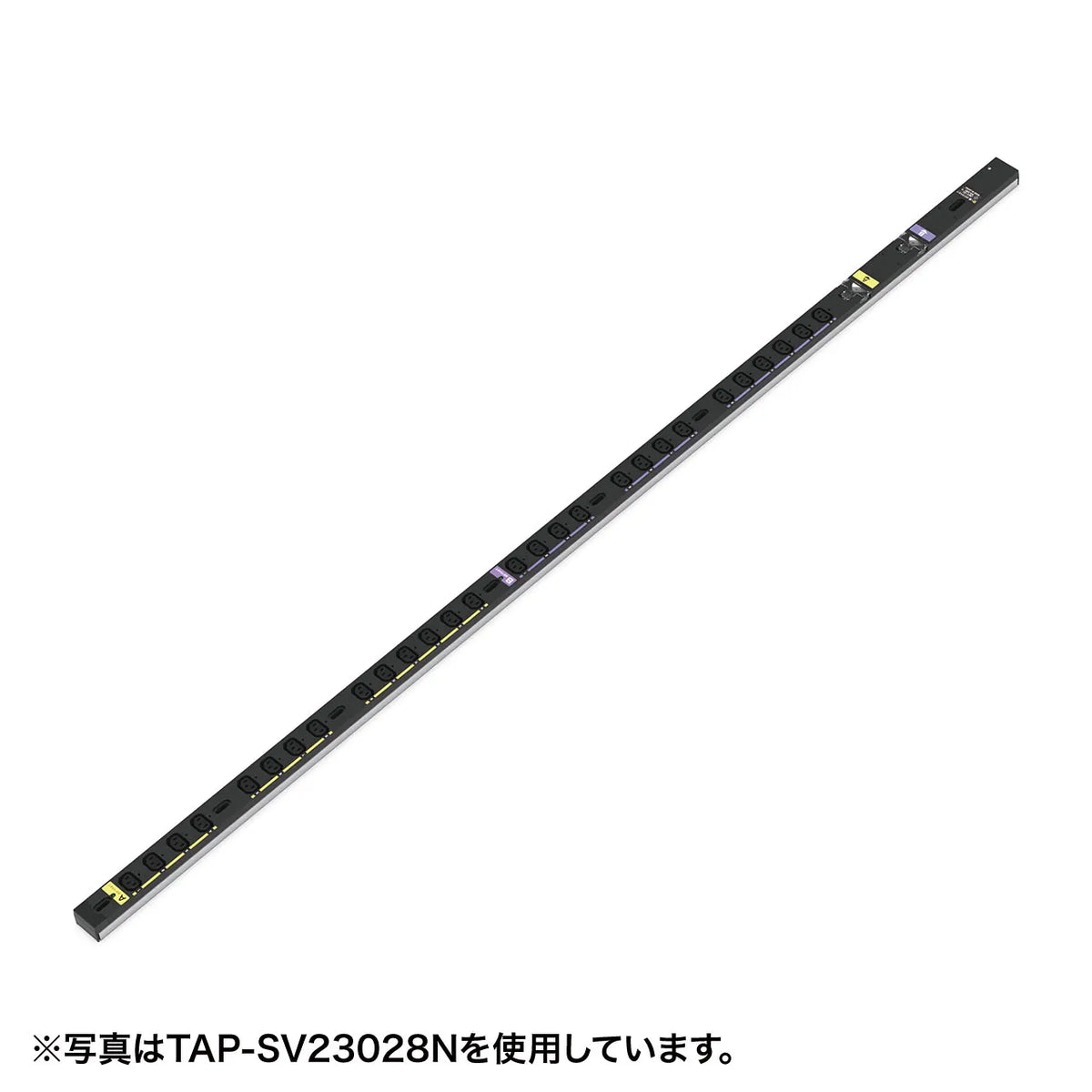

19-inch server rack power outlet, 200V (30A), TAP-SV23020N
19-inch server rack power outlet, 200V (30A), TAP-SV23020N
GTIN（JAN）：4969887825426
SKU：TAP-SV23020N
Regular price
¥57,200 JPY
Regular price
Sale price
¥57,200 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Slim 200V Outlet for 19-inch Server Racks]
●This 200V outlet can be easily installed in 19-inch server racks.

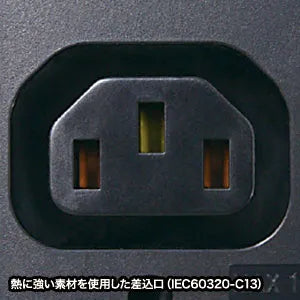

●The outlets are made of heat-resistant material. (Shape/IEC60320-C13)
●The tap body has mounting holes, so it can be directly mounted with screws.
*Mounting screws are not included.
●It can be mounted to a mounting frame with the optional L-shaped mounting bracket.
*L-shaped bracket (TAP-SVSET) is sold separately.
●It uses a lightweight and sturdy aluminum frame.
●It is a slim type with a width of 44mm and no slide rails.
●It comes standard with a power indicator LED lamp.

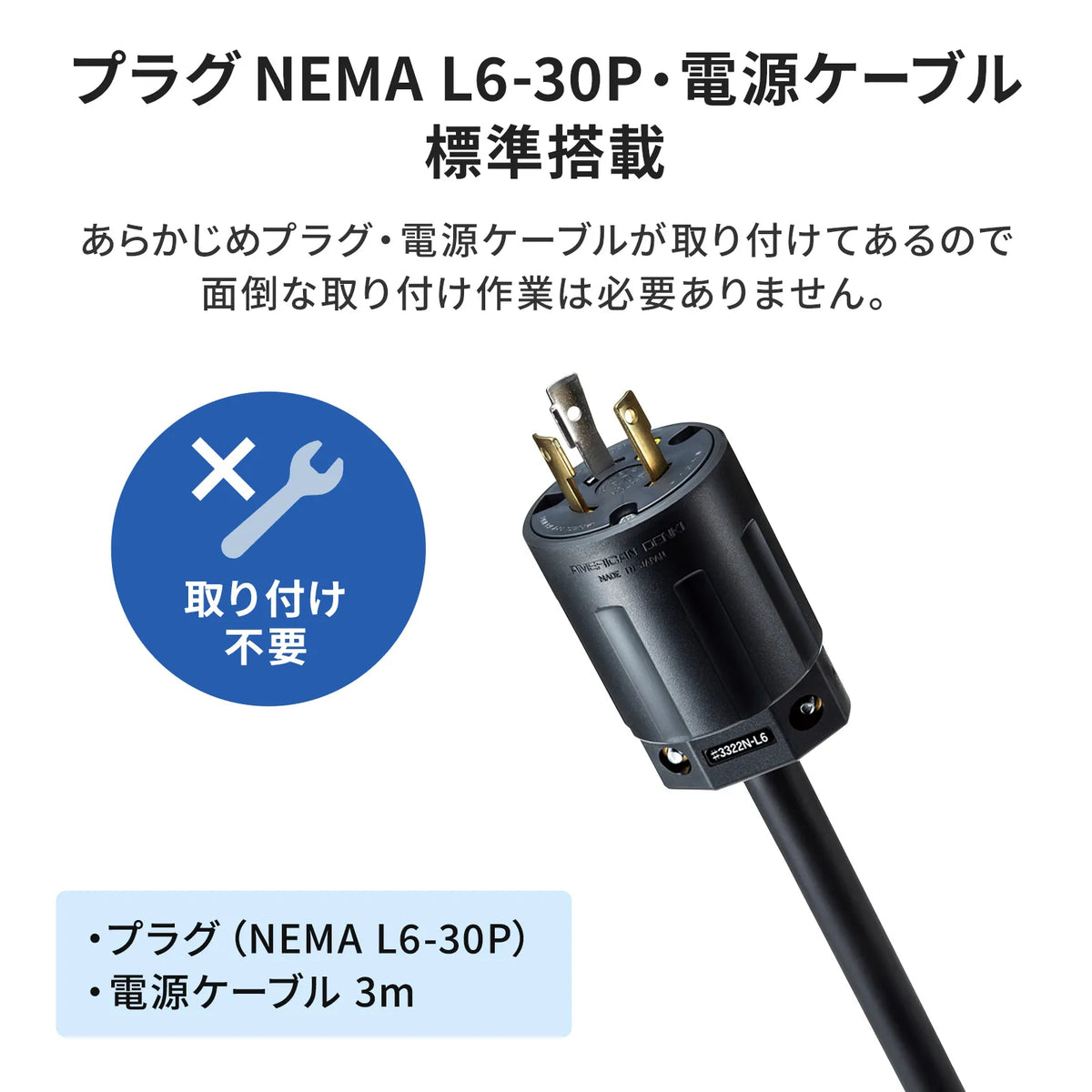

●A power cord (3m) and plug (NEMA L6-30P) are included as standard.

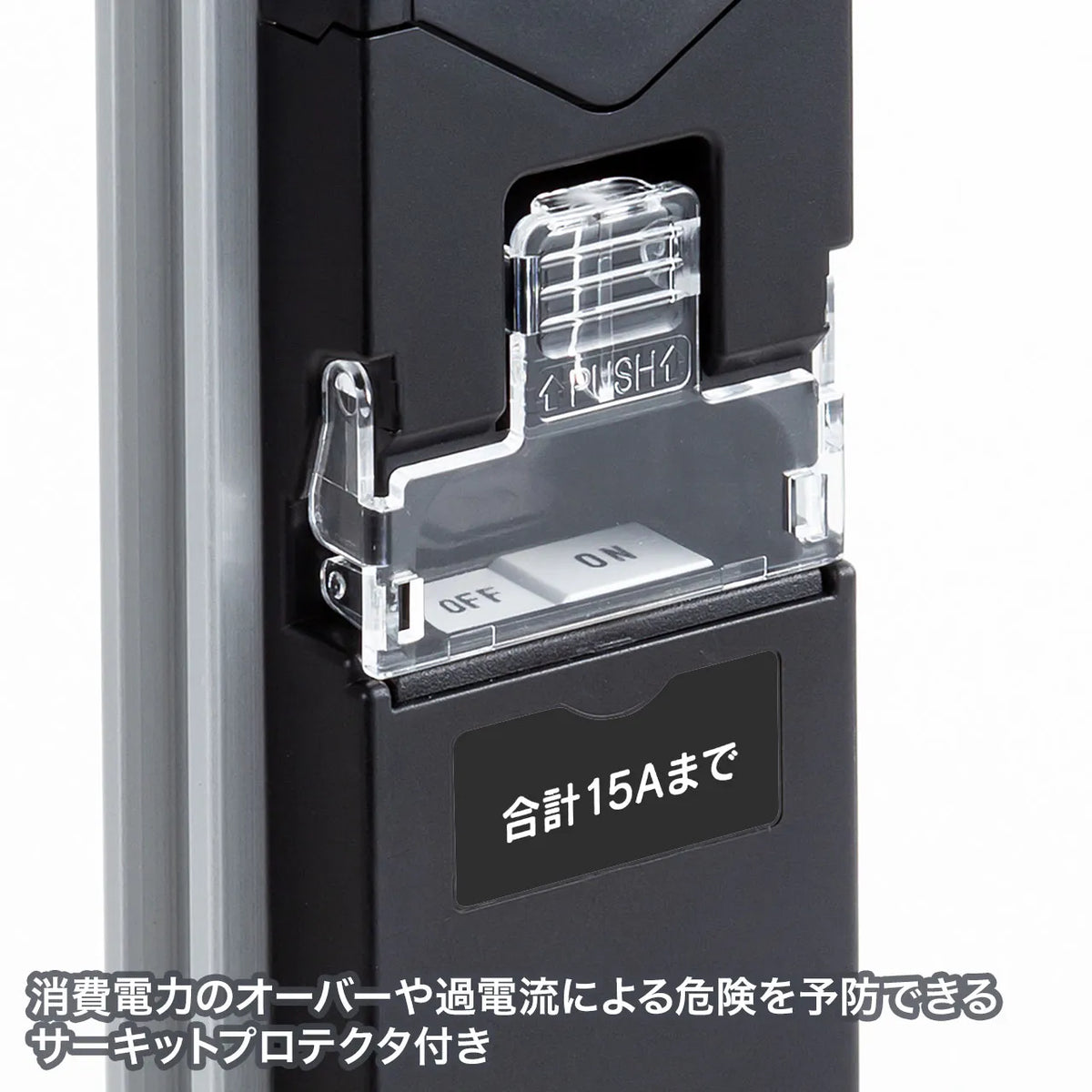

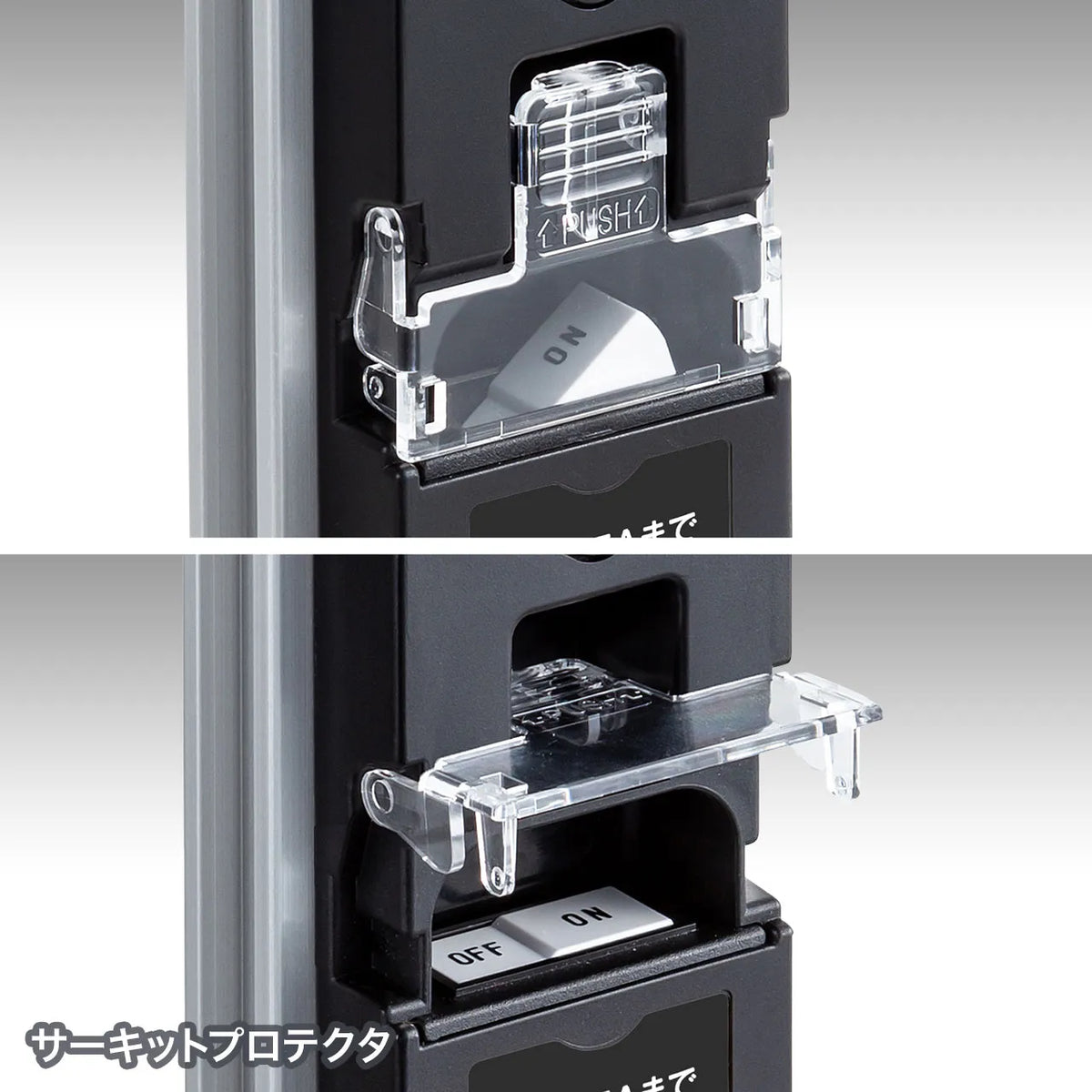

●It has a circuit protector to prevent danger from overpower consumption and overcurrent.
＜Installation Method＞
1. The tap body has mounting holes, so it can be directly mounted with screws.
*Mounting screws are not included.
*Cannot be mounted with the optional RAC-NUT (cage nut/screw set). The screws that can be used are M4 or M5 with a screw head diameter of 9.5 to 12.5 mm, and a length of approximately 25 to 30 mm.
2. It can be mounted to the mounting frame with the optional L-shaped mounting bracket.
*The L-shaped bracket (TAP-SVSET) is sold separately.
*If mounting horizontally to the side of the rack, TAP-SVSET and RAC-NUT (cage nut/screw set) are required.
■Rating: 250V・30A

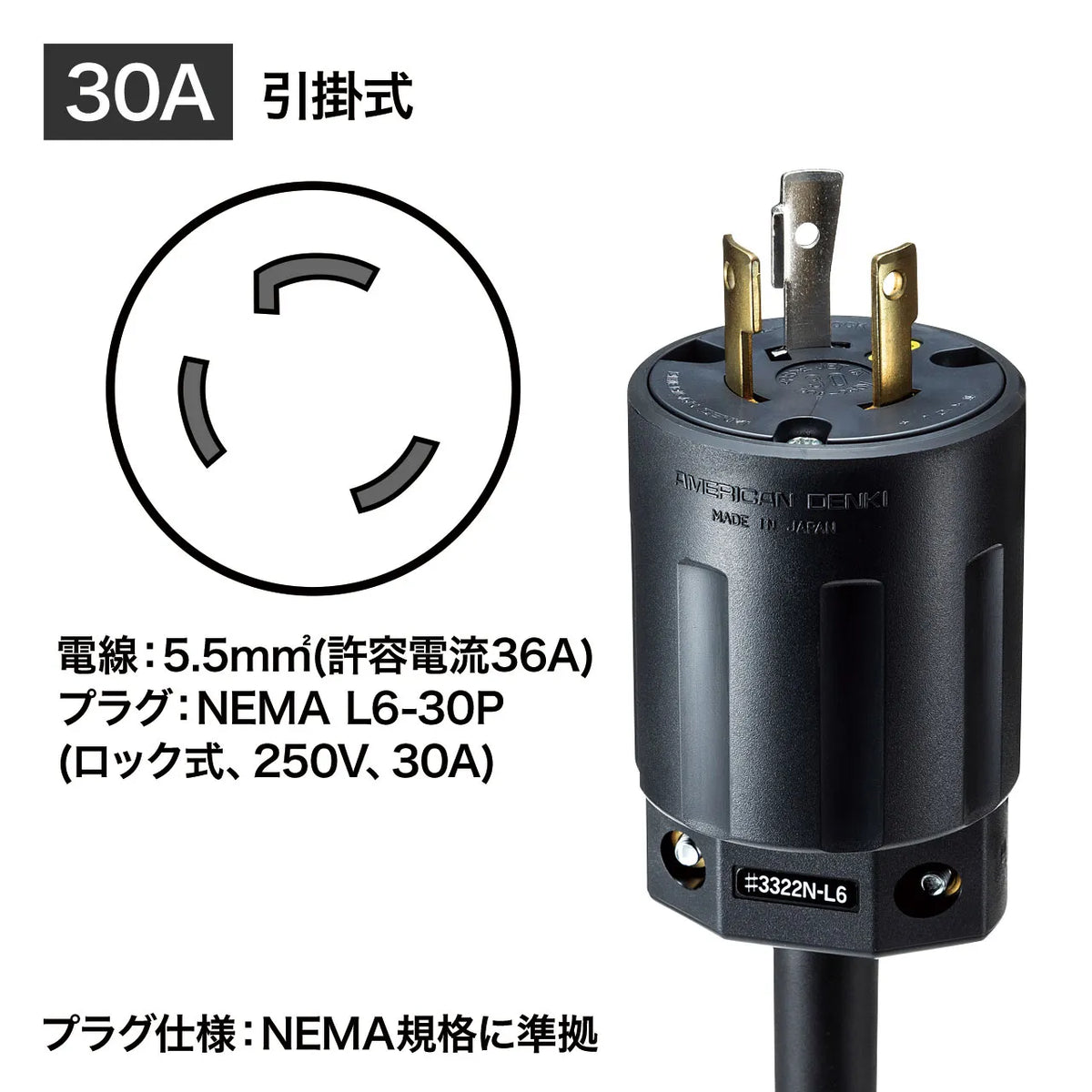

■Plug type: Hook type NEMA L6-30P (3P)
■Power cable length: 3m
■Outlets: IEC C13, 20 outlets

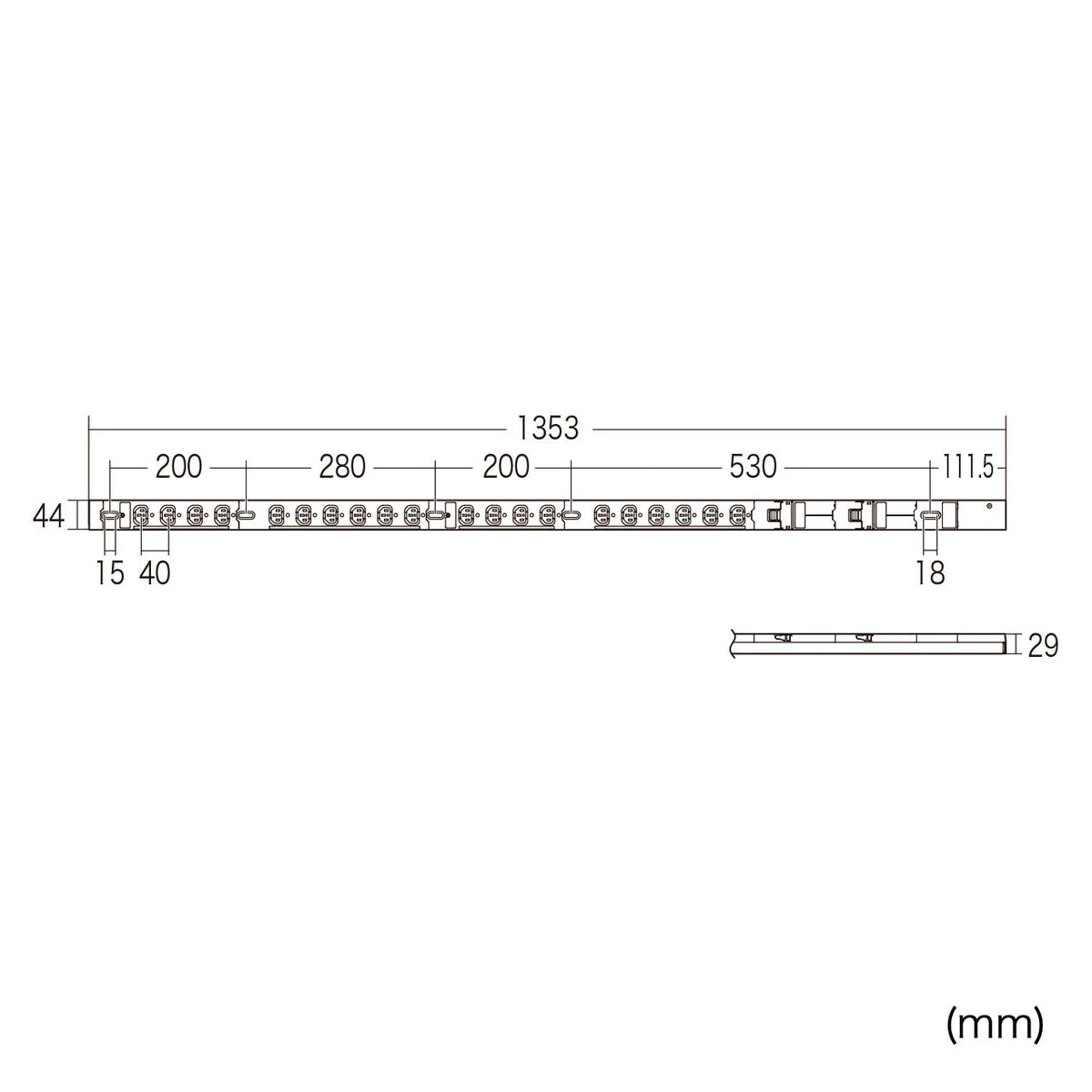

■Size: W1353xD44xH29mm
■Weight: Approx. 2670g
■Cable type: VCT (3 cores)
■Country of manufacture: Japan
■Usage area: Japan only. Cannot be used outside of Japan.
■Certification: Complies with the technical standards of the Electrical Appliances and Materials Safety Act (PSE)
＜Operating Environment Conditions＞
■Ambient Temperature: -5°C to 40°C
*However, the 24-hour average value shall not exceed 35°C
■Ambient Humidity: 85% or less (freezing and condensation are not permitted)
■Altitude: 2000m or less
■Operating Environment: Free from excessive water vapor, oil vapor, smoke, corrosive gases, etc. Also, the environment shall not be subjected to abnormal vibrations or shocks.
