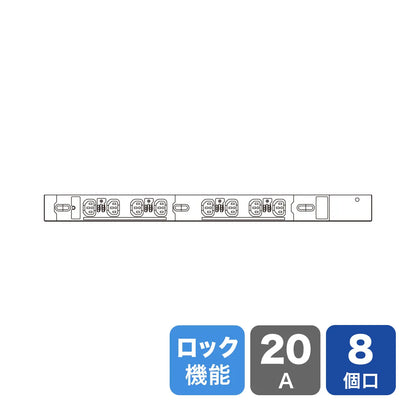

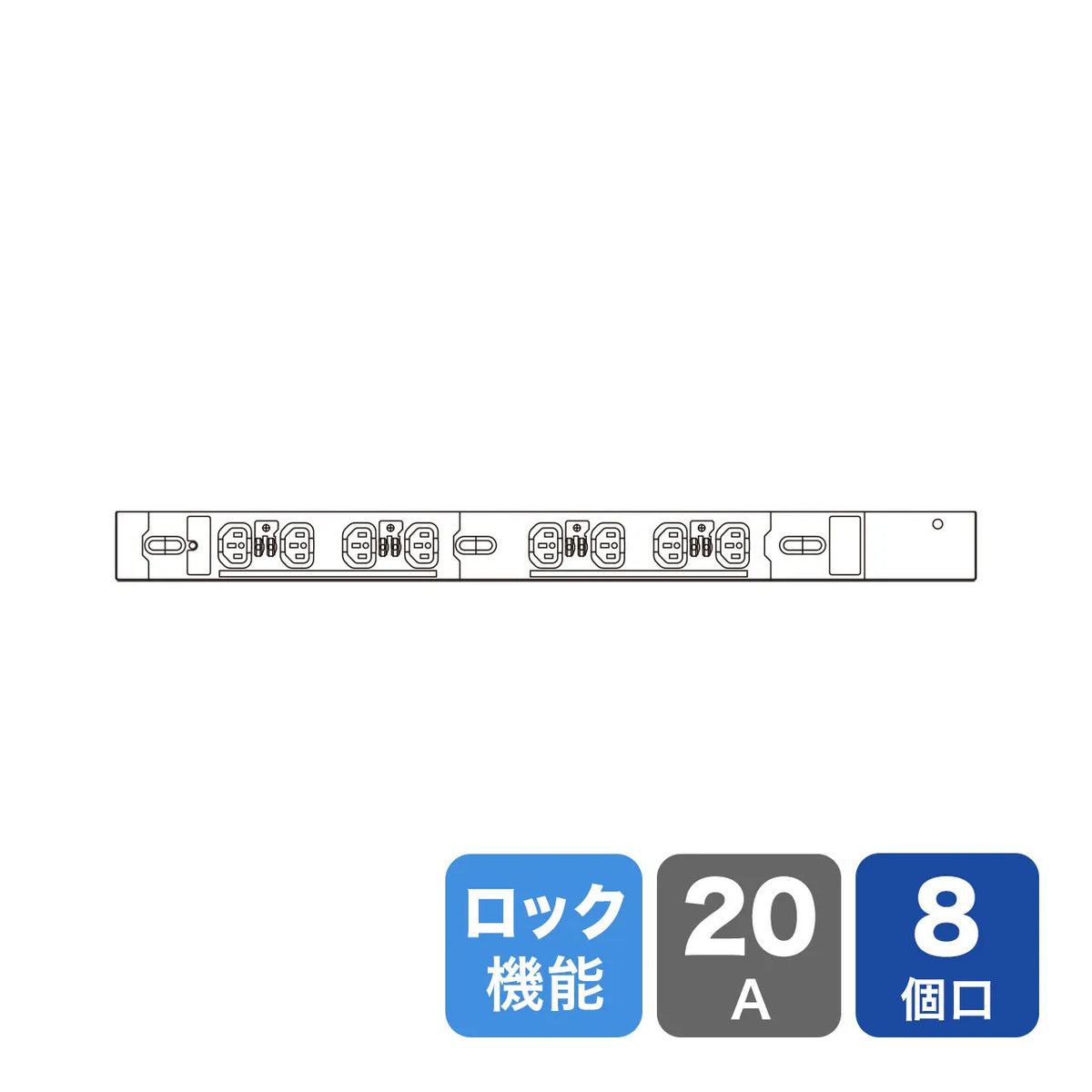

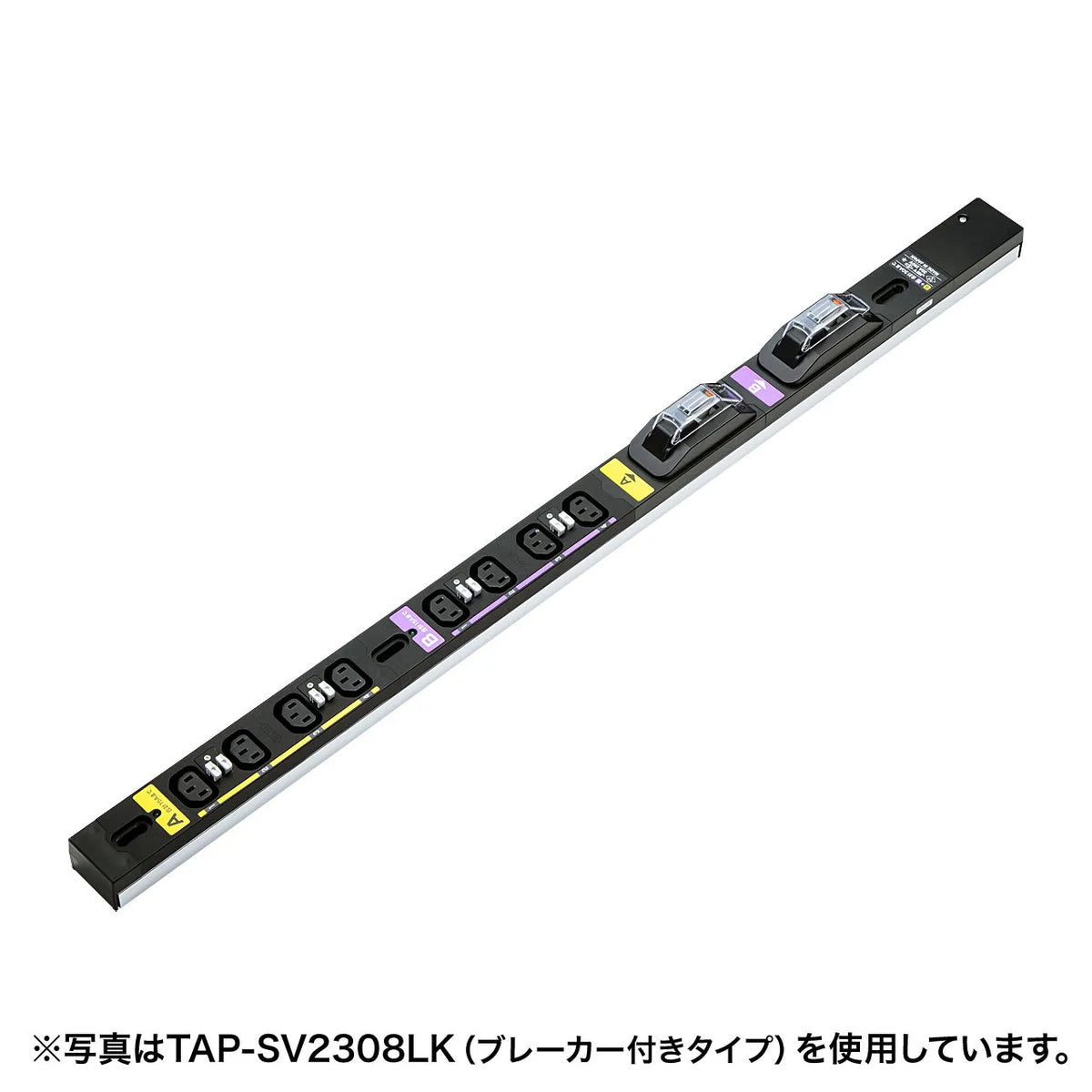

[Slim 200V Outlet for 19-inch Server Racks]

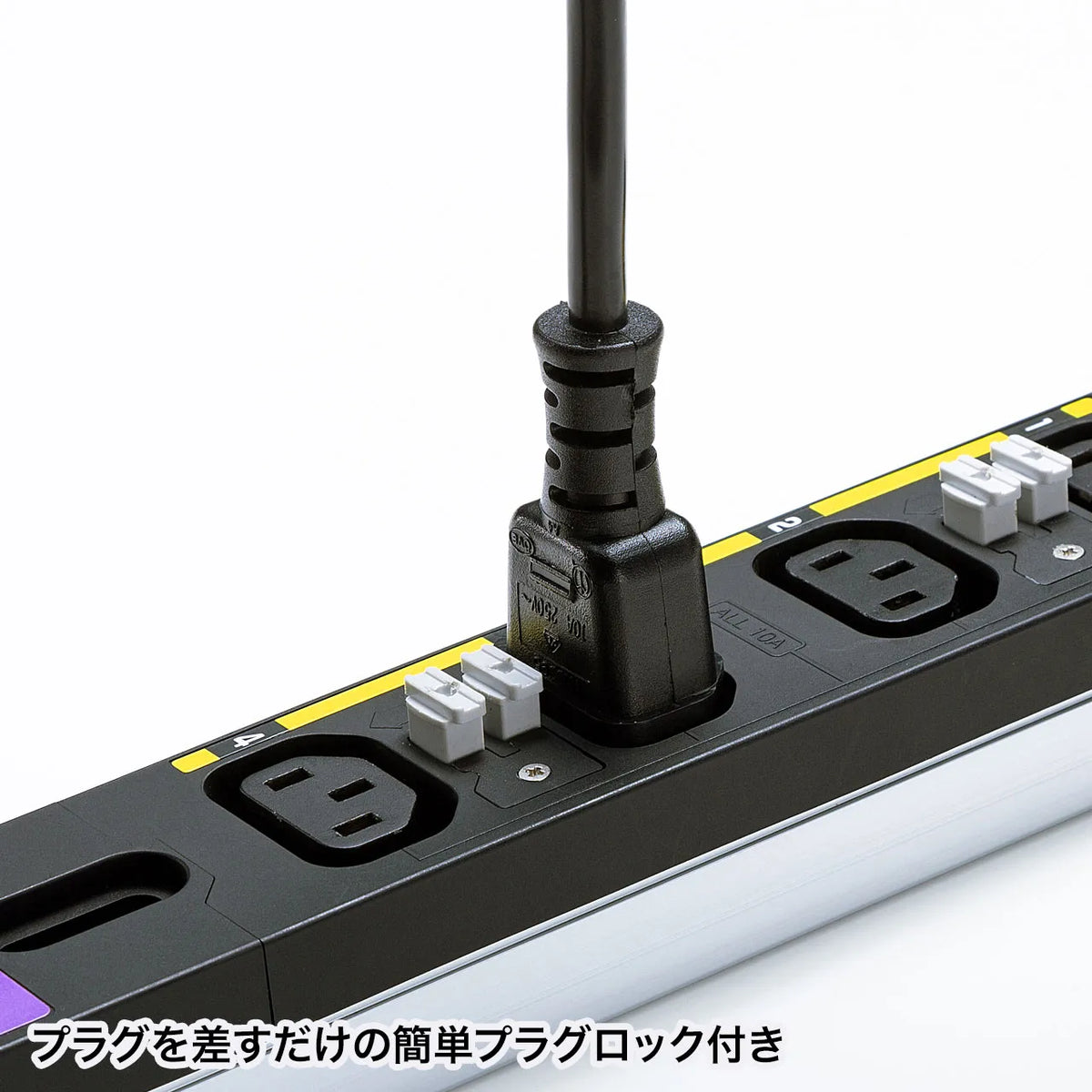

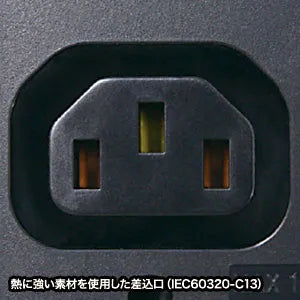

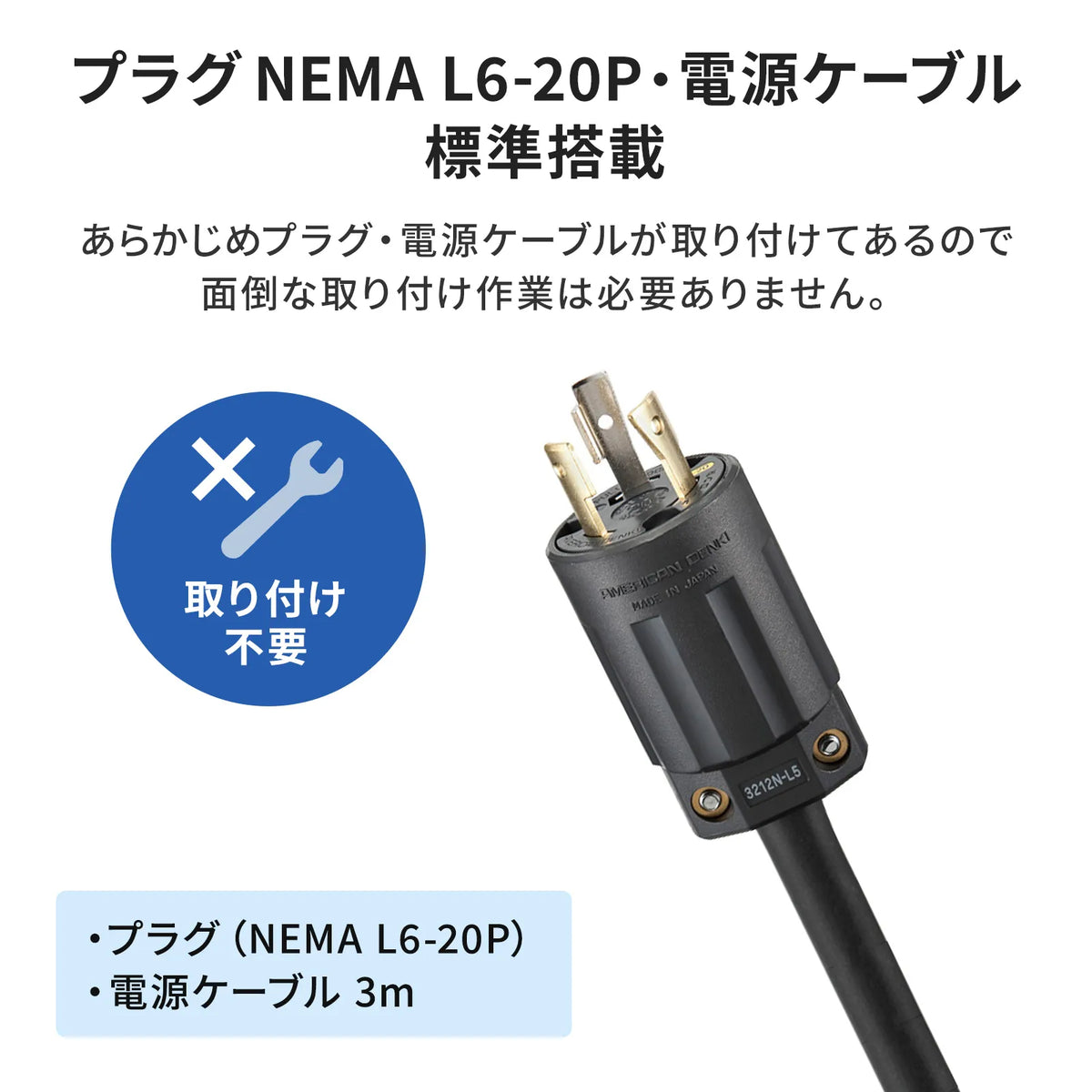

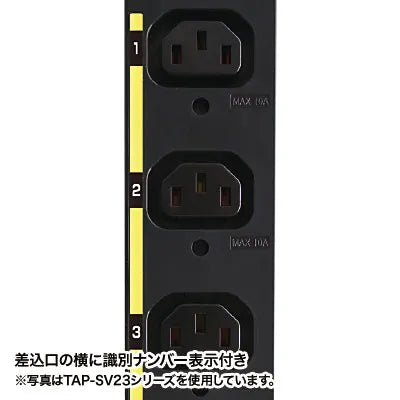

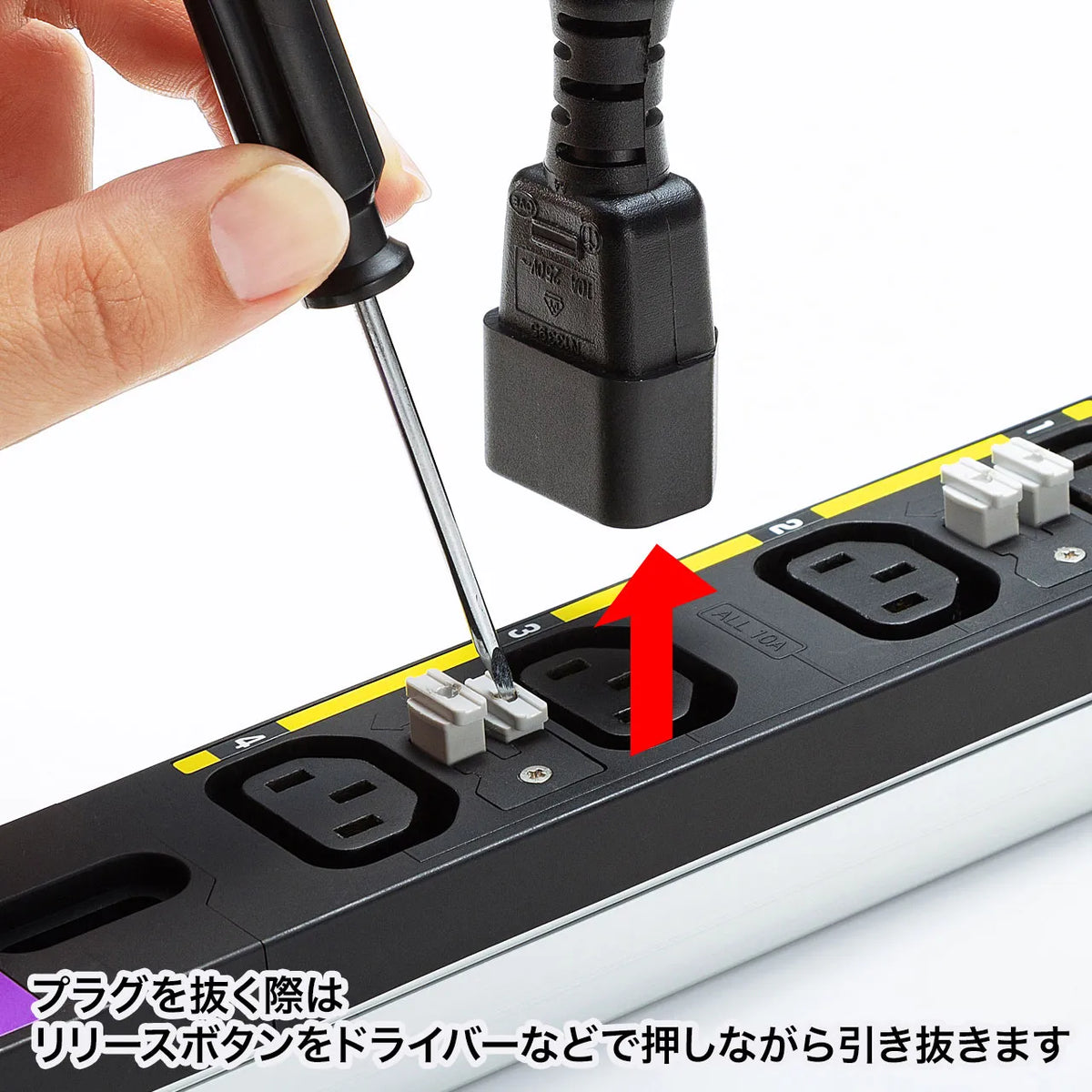

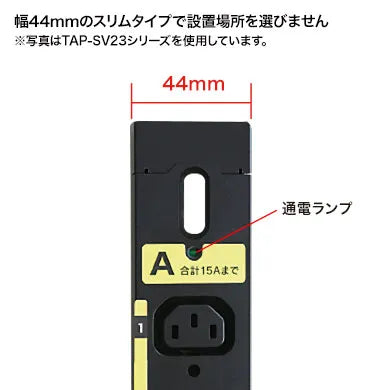

●This 200V outlet can be easily installed in 19-inch server racks. *Available in 8, 12, 16, 20, 24, and 30 outlet configurations with IEC60320 C13 connectors. ●The outlets are made of heat-resistant material. (Shape/IEC60320-C13) ●Equipped with a locking mechanism to prevent accidental disconnection; simply insert the connector to lock it in place. *When removing the connector, press the release button with the tip of a screwdriver or similar tool while pulling it out. ●The main body has mounting holes and can be directly mounted with screws. *Mounting screws are not included. ●Can be mounted to a mounting frame with optional L-shaped mounting brackets. *L-shaped brackets (TAP-SVSET) are sold separately. ●Features a lightweight and durable aluminum frame. ●Slim type with a width of 44mm and no slide rails. ●Equipped with a power indicator LED lamp as standard. ●Power cable (3m) and power plug (NEMA L6-20P) are included as standard.

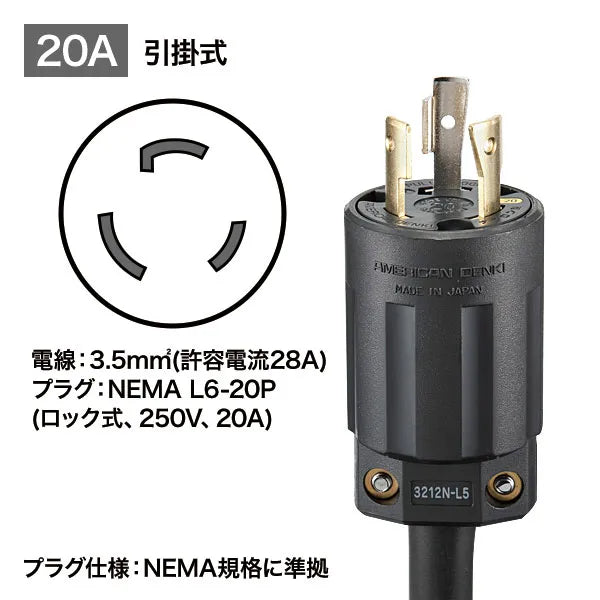

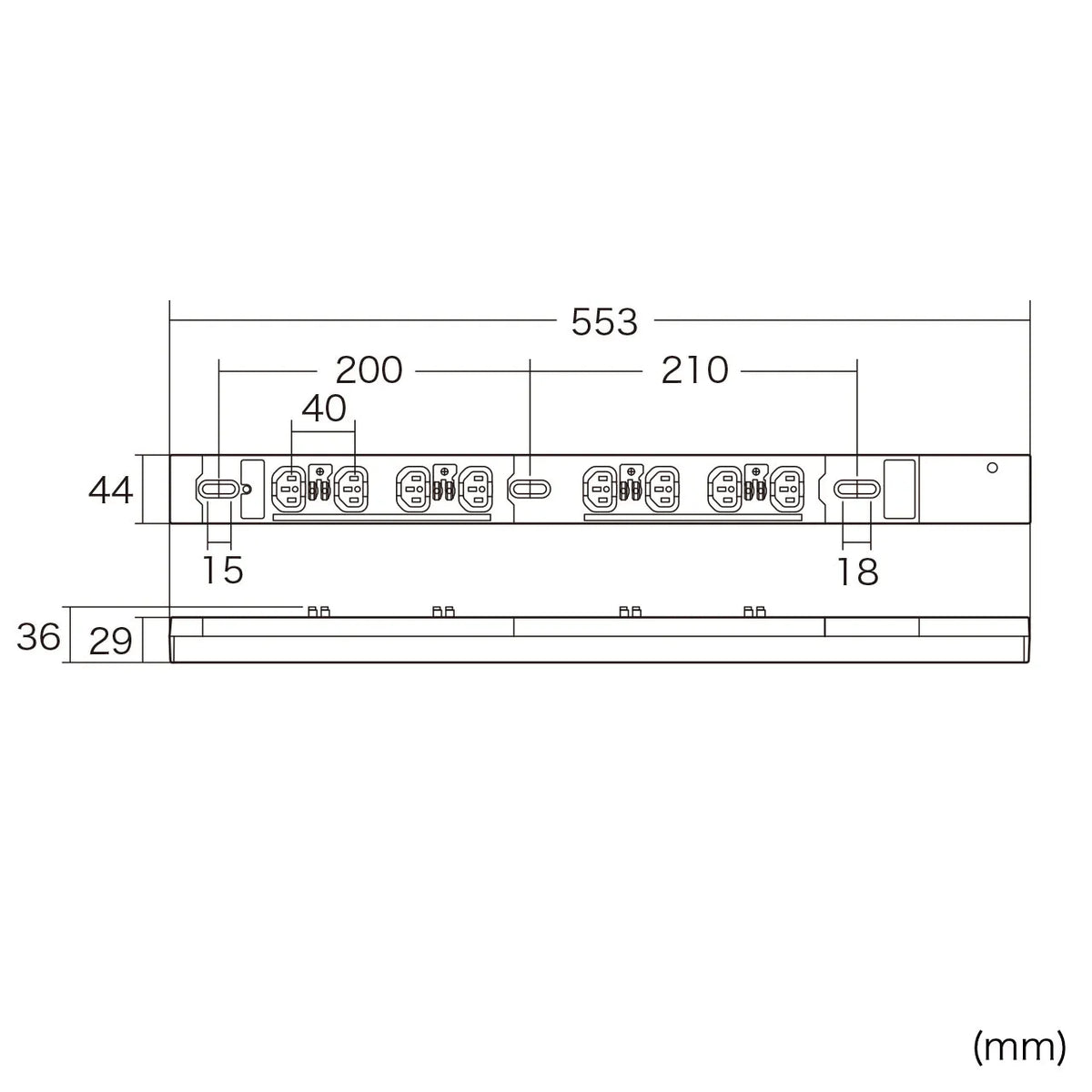

■Rating: 20A・250V ■Plug specifications: Hook type NEMA L6-20P (3P) ■Outlets: IEC C13 8 outlets ■Cable type: VCT (3 cores) ■Cable length: 3m ■Size: W553xD44xH36mm ■Country of manufacture: Japan ■Certification: Complies with the technical standards of the Electrical Appliances and Materials Safety Act (PSE) ■Usage area: Japan only. Cannot be used outside of Japan. ＜Operating Environment Conditions＞ ■Ambient Temperature: -5°C to 40°C (However, the 24-hour average must not exceed 35°C) ■Ambient Humidity: 85% or less (No freezing or condensation) ■Altitude: 2000m or less ■Operating Environment: Free from excessive water vapor, oil vapor, smoke, corrosive gases, etc. Also, an environment free from abnormal vibrations and shocks.
