SANWA SUPPLY
19-inch server rack power strip (20A) TAP-SV209BN
19-inch server rack power strip (20A) TAP-SV209BN
GTIN（JAN）：4969887825143
SKU：TAP-SV209BN
Regular price
¥20,328 JPY
Regular price
Sale price
¥20,328 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Easy installation in 19-inch server racks with 3 mounting methods; includes circuit protector]
●Easy installation in 19-inch server racks with 3 mounting methods.
●Equipped with a power indicator LED lamp as standard.
●Uses a locking type outlet to prevent accidental disconnection.
●The bottom and sides of the tap body are made of lightweight and sturdy aluminum.
●The terminal block has a transparent cover that allows you to see the wiring status at a glance.
●A power cord (3m) and plug are included as standard.

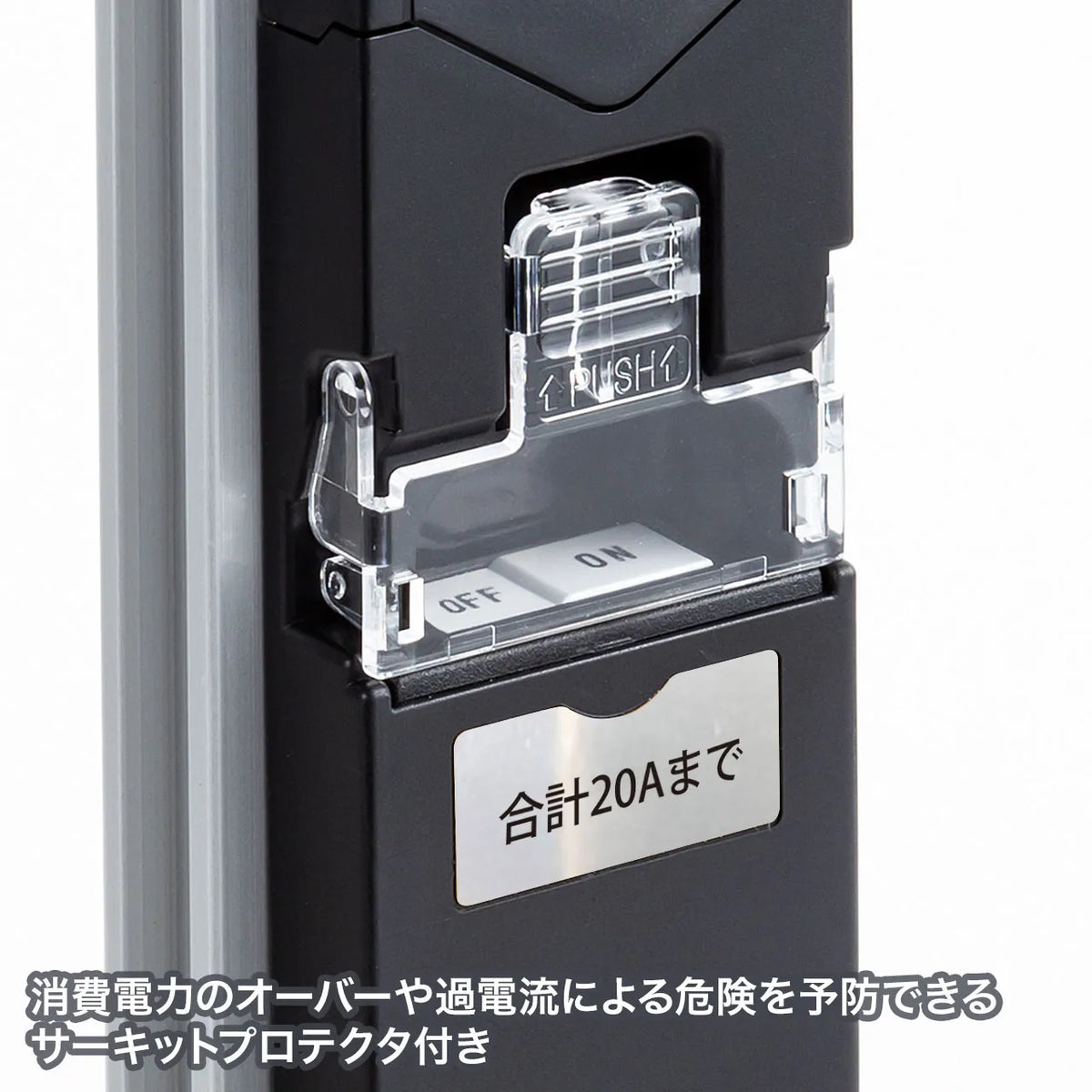

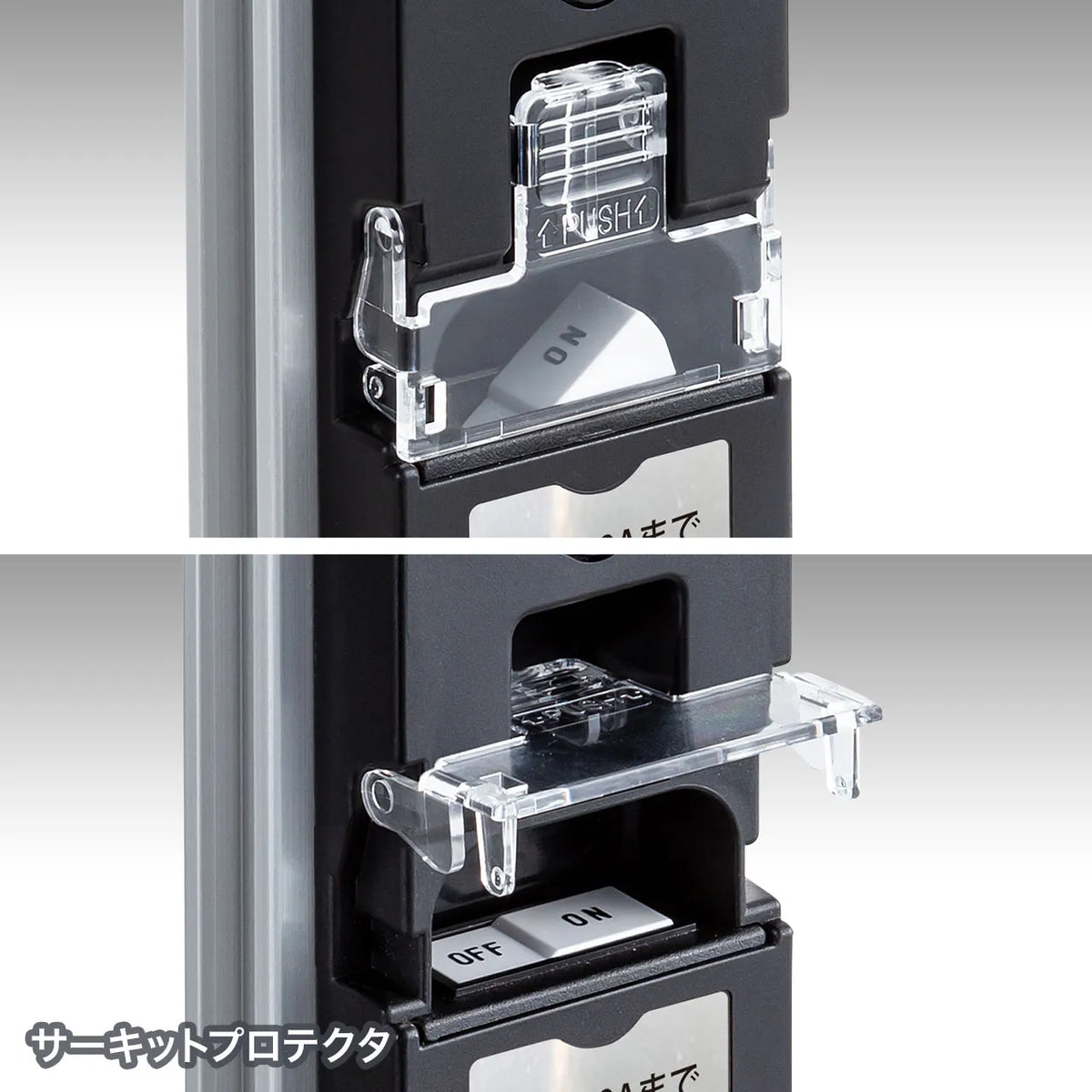

●Equipped with a circuit protector to prevent danger from overpower consumption and overcurrent.
＜Installation Method＞
1.Can be mounted to the side frame with the included mounting bracket.
2.The tap body has mounting holes, so it can be mounted directly with screws.
*Mounting screws are not included.
3.Can be mounted to the mounting frame with the optional L-shaped mounting bracket.
*L-shaped bracket (TAP-SVSET) is sold separately.
*The only included hardware is two brackets for the slide rail on the tap body.
■Rated capacity: 125V・20A (up to 2000W total)

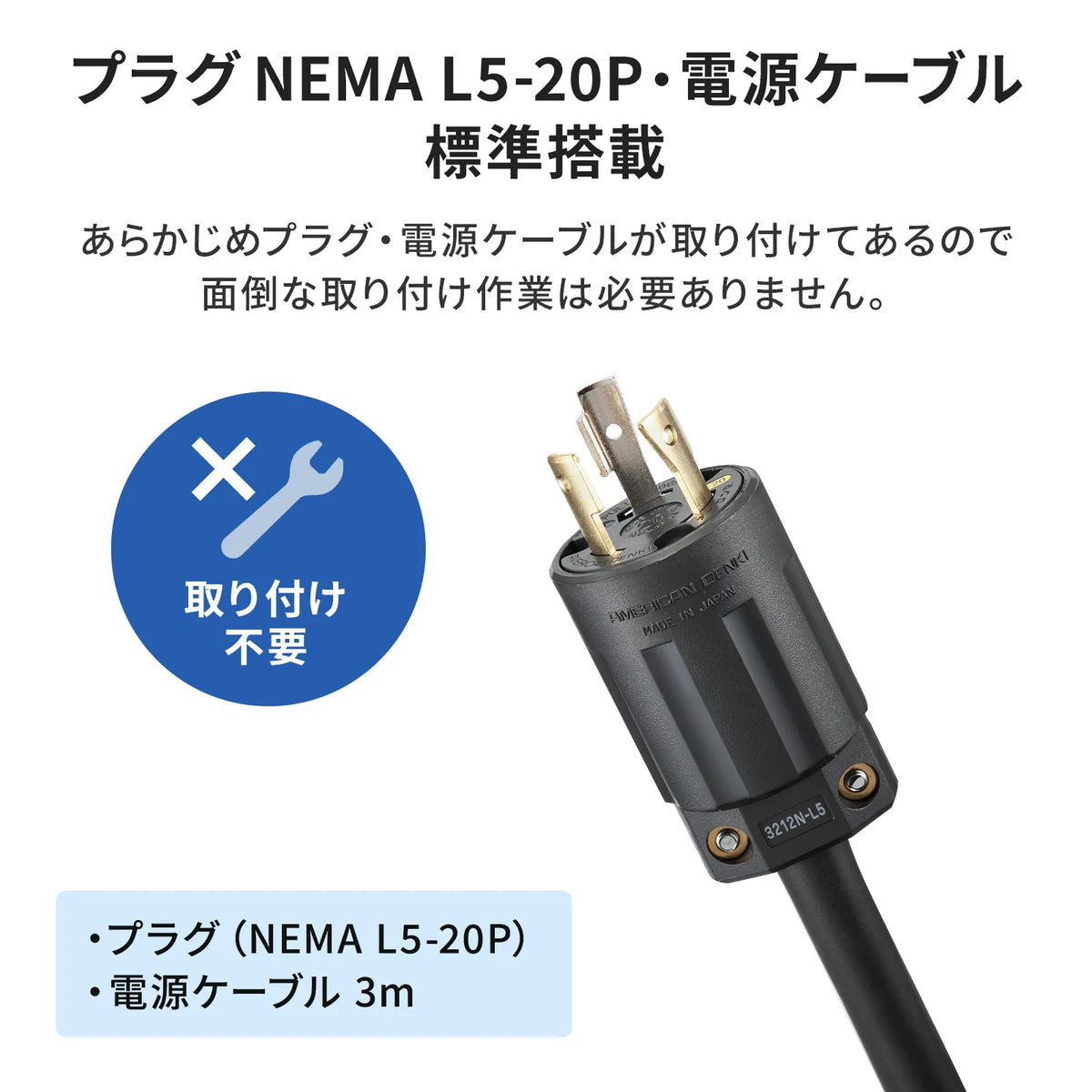

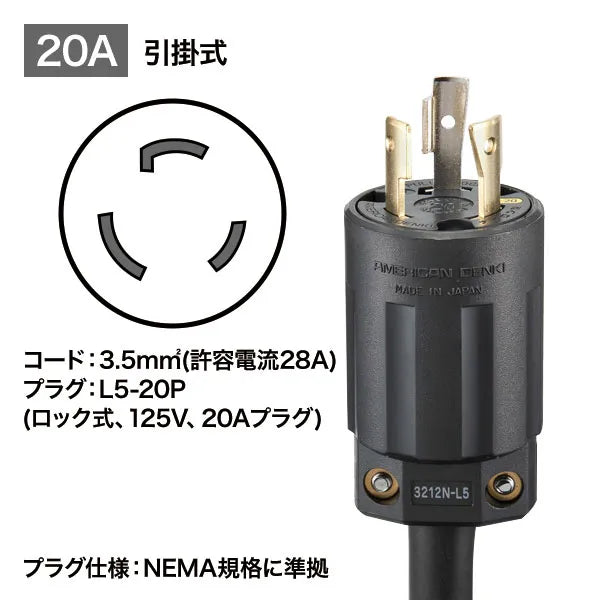

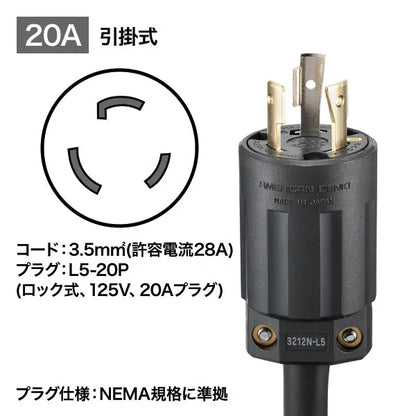

■Plug specifications: Hook type NEMA L5-20P (3P)
■Cable specifications: 3.5 sq mm (SQ) (allowable current 28A)
■Power cable length: 3m
■Outlets: 3P locking type, 9 outlets

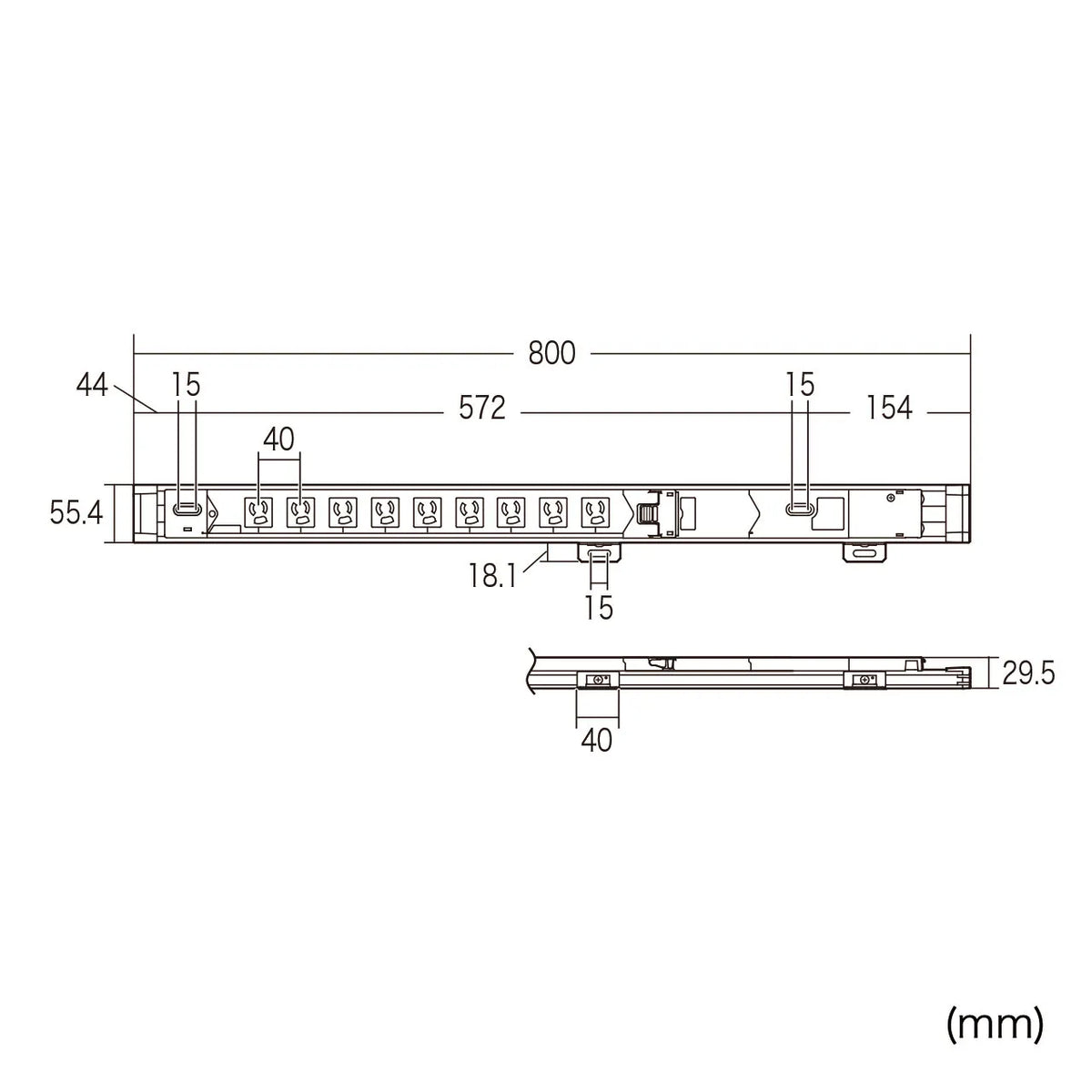

■Size: W800xD55.4xH29.5mm
■Cable type: VCTF3.5 (3 cores)
■Crimping terminal: Round crimp terminal R2-5 (equivalent to JIS C2805)
■Accessories: Brackets for the slide rail on the main body x2
■Country of manufacture: Japan
■Usage area: Japan only. Cannot be used outside of Japan.
■Certification: Complies with the technical standards of the Electrical Appliances and Materials Safety Act (PSE)
＜Operating Environment Conditions＞
■Ambient Temperature: -5°C to 40°C
*However, the 24-hour average value shall not exceed 35°C
■Ambient Humidity: 85% or less (freezing and condensation are not permitted)
■Altitude: 2000m or less
■Operating Environment: Free from excessive water vapor, oil vapor, smoke, corrosive gases, etc. Also, the environment shall not be subjected to abnormal vibrations or shocks.
●Easy installation in 19-inch server racks with 3 mounting methods.
●Equipped with a power indicator LED lamp as standard.
●Uses a locking type outlet to prevent accidental disconnection.
●The bottom and sides of the tap body are made of lightweight and sturdy aluminum.
●The terminal block has a transparent cover that allows you to see the wiring status at a glance.
●A power cord (3m) and plug are included as standard.
●Equipped with a circuit protector to prevent danger from overpower consumption and overcurrent.
＜Installation Method＞
1.Can be mounted to the side frame with the included mounting bracket.
2.The tap body has mounting holes, so it can be mounted directly with screws.
*Mounting screws are not included.
3.Can be mounted to the mounting frame with the optional L-shaped mounting bracket.
*L-shaped bracket (TAP-SVSET) is sold separately.
*The only included hardware is two brackets for the slide rail on the tap body.
■Rated capacity: 125V・20A (up to 2000W total)
■Plug specifications: Hook type NEMA L5-20P (3P)
■Cable specifications: 3.5 sq mm (SQ) (allowable current 28A)
■Power cable length: 3m
■Outlets: 3P locking type, 9 outlets
■Size: W800xD55.4xH29.5mm
■Cable type: VCTF3.5 (3 cores)
■Crimping terminal: Round crimp terminal R2-5 (equivalent to JIS C2805)
■Accessories: Brackets for the slide rail on the main body x2
■Country of manufacture: Japan
■Usage area: Japan only. Cannot be used outside of Japan.
■Certification: Complies with the technical standards of the Electrical Appliances and Materials Safety Act (PSE)
＜Operating Environment Conditions＞
■Ambient Temperature: -5°C to 40°C
*However, the 24-hour average value shall not exceed 35°C
■Ambient Humidity: 85% or less (freezing and condensation are not permitted)
■Altitude: 2000m or less
■Operating Environment: Free from excessive water vapor, oil vapor, smoke, corrosive gases, etc. Also, the environment shall not be subjected to abnormal vibrations or shocks.
