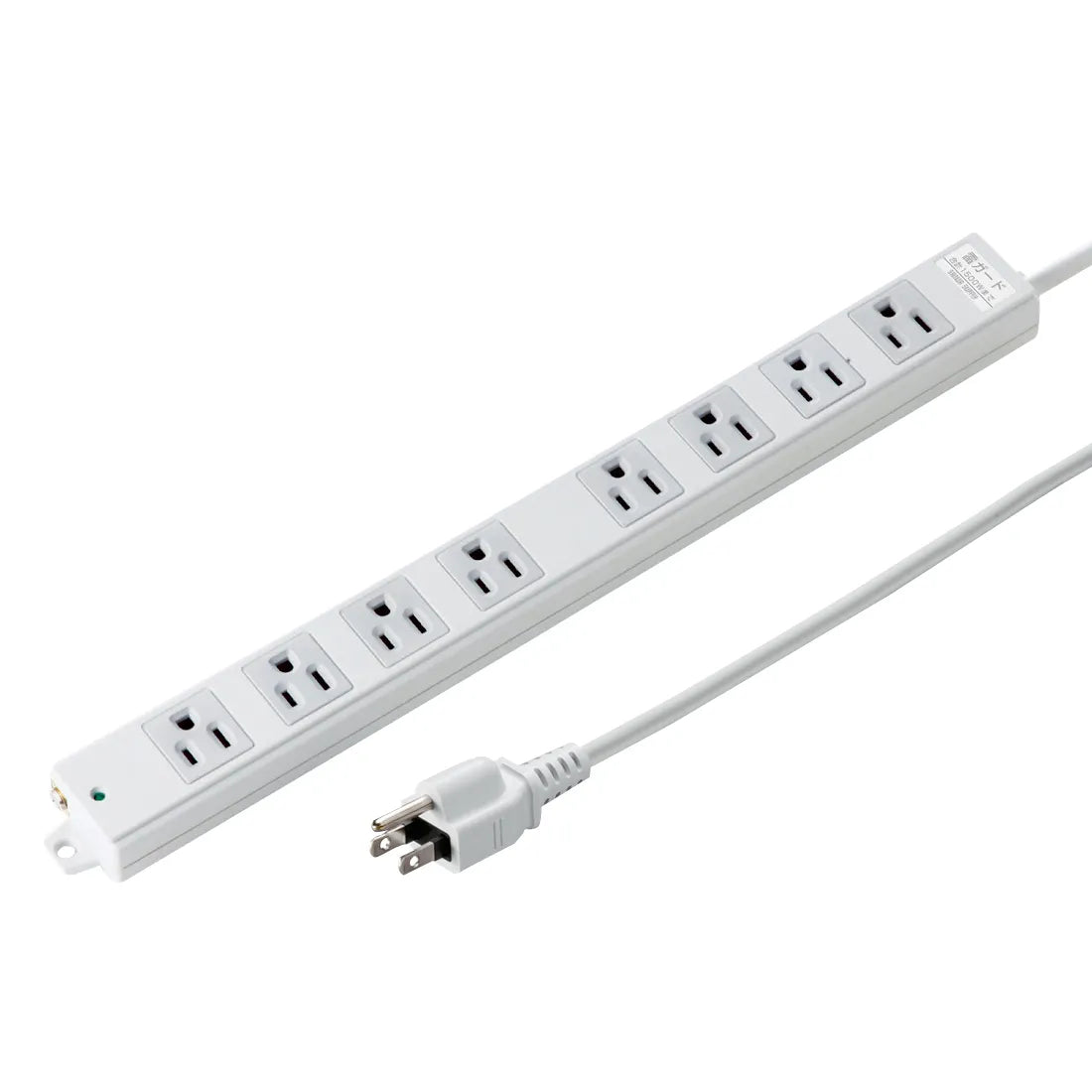

Surge protector power strip for construction sites (3-prong, magnetic, 8 outlets, 3m) TAP-K8NSP-3
Surge protector power strip for construction sites (3-prong, magnetic, 8 outlets, 3m) TAP-K8NSP-3
GTIN（JAN）：4969887831540
SKU：TAP-K8NSP-3
Regular price
¥6,897 JPY
Regular price
Sale price
¥6,897 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Built-in surge protector, 3-prong magnetic, 8 outlets, 3m.]
●Equipped with surge protector function. Protects equipment from damage caused by lightning surges. Surge protection is installed both between power lines and between power and ground.
●Equipped with surge protector indicator lamp. You can check if the surge protector is working.
●Heat-resistant double-layered case.
●Plug with insulating cap, effective in preventing tracking fires.
●Magnetic backing allows for temporary attachment to steel desks, etc. Convenient for easy maintenance.
●Environmentally friendly product using lead-free solder.

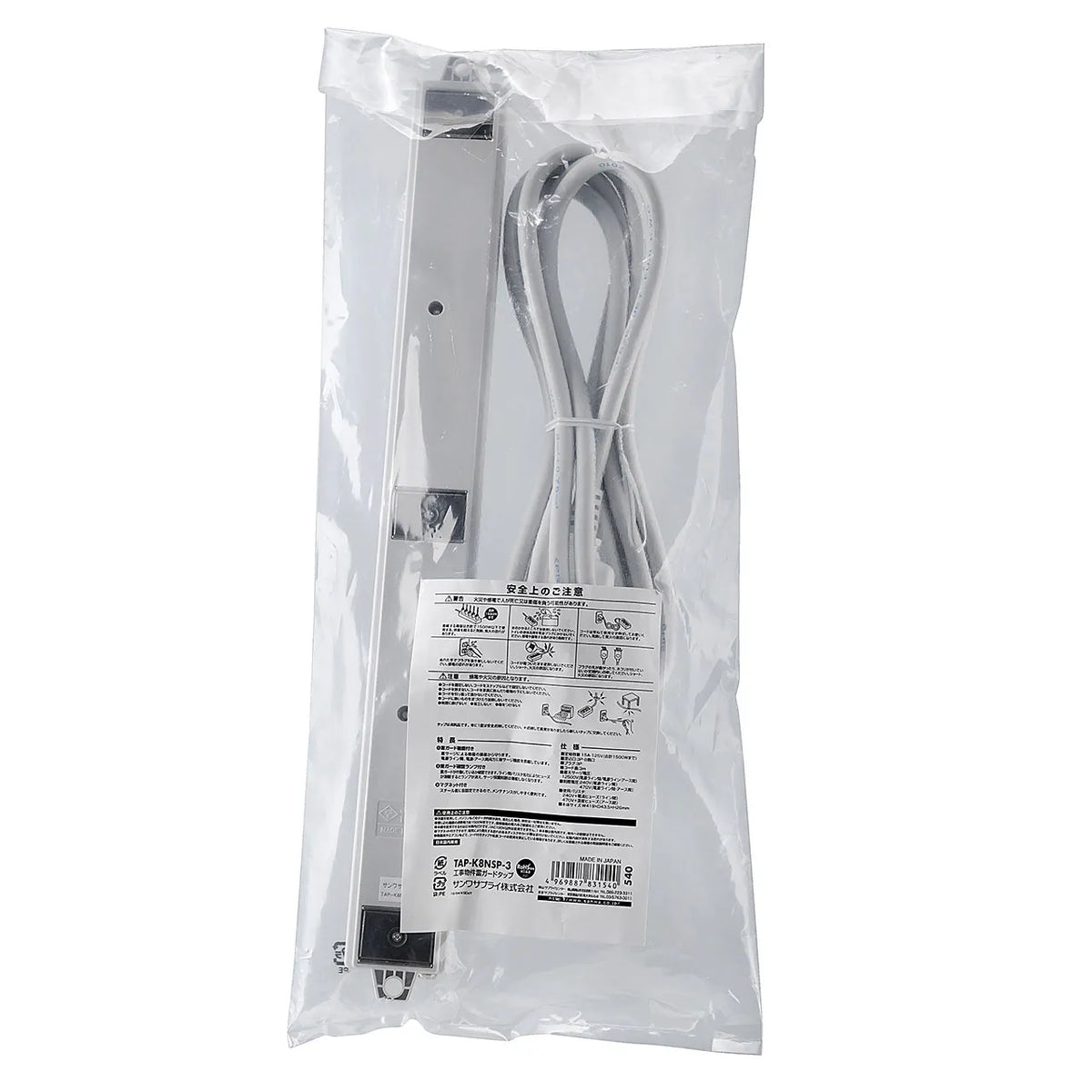

●Uses a simple plastic bag package that reduces waste and is environmentally friendly.
■Color: Gray
■Rated capacity: 15A・125V (up to 1500W)

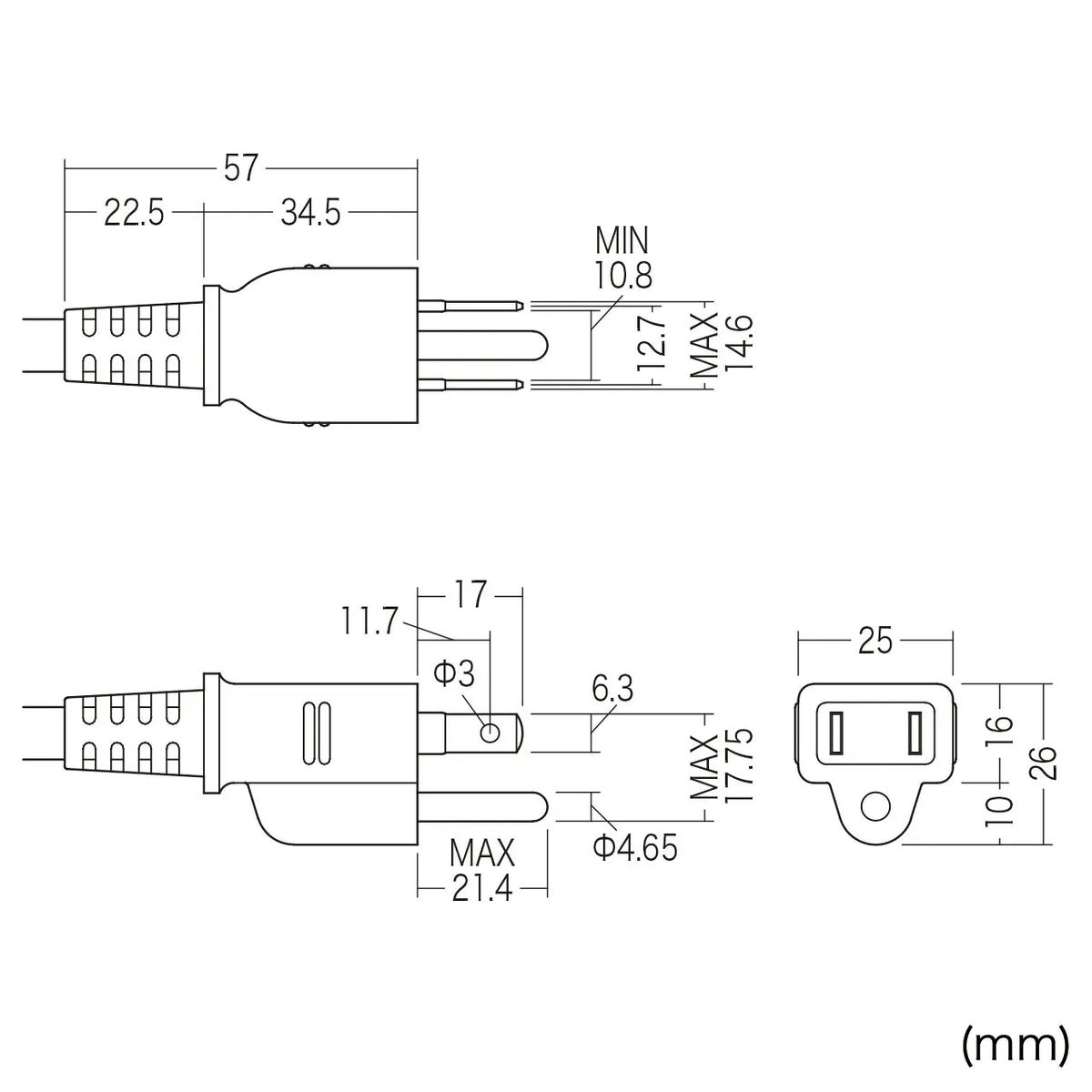

■Plug specifications: 3P (with insulation cap)
■Outlets: 3P (normal type)・8 outlets
■Outlet pitch: 40mm (60mm only in the center)
■Temporary fixing hole spacing: 407mm
■Cord type: Vinyl cabtyre round cord (VCTF)

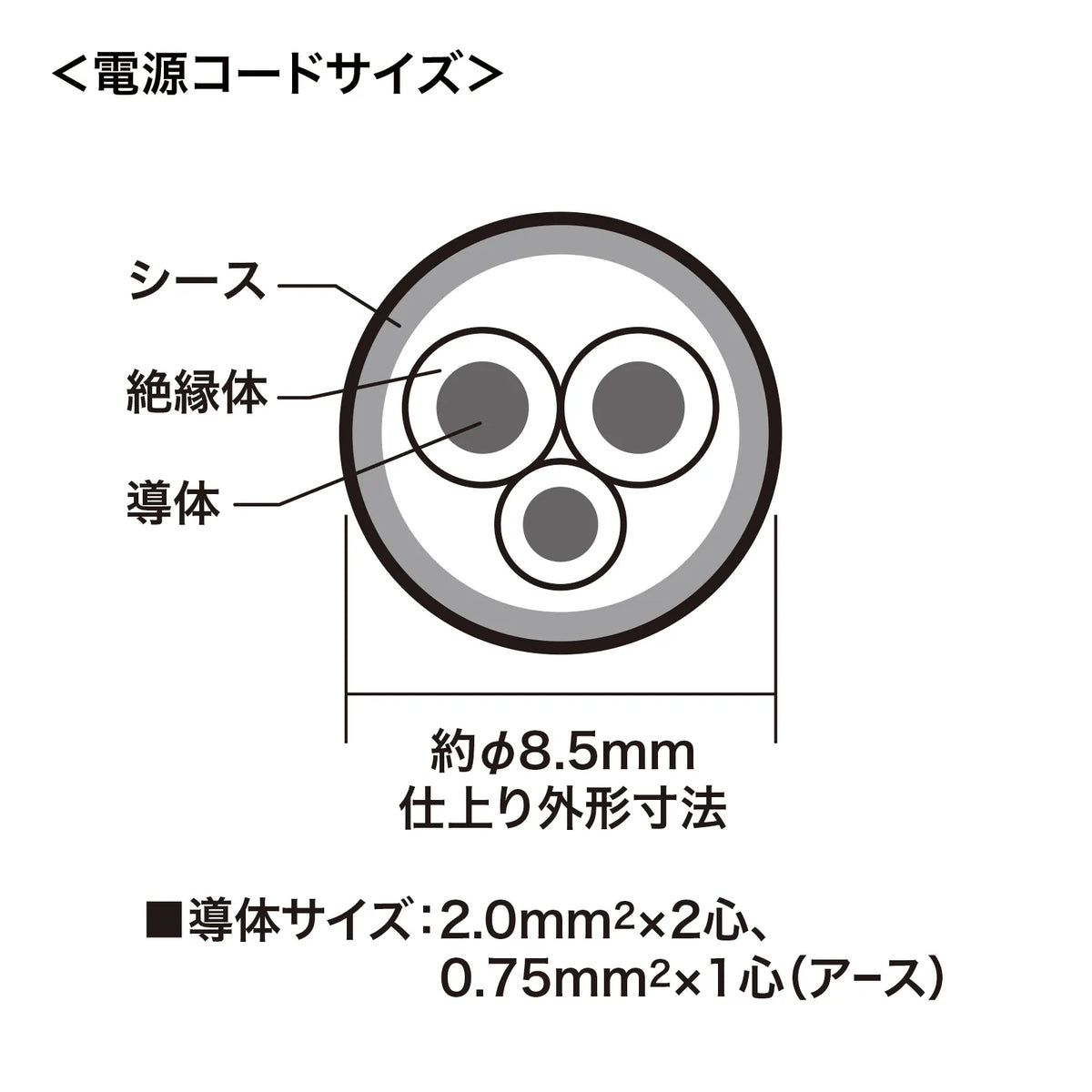

■Cord: VCTF 2.0 sq mm (SQ) x 2 cores, 0.75 sq mm (SQ) x 1 core (ground)
Finished external dimensions Approximately 8.5mm in diameter
■Cord length: 3m

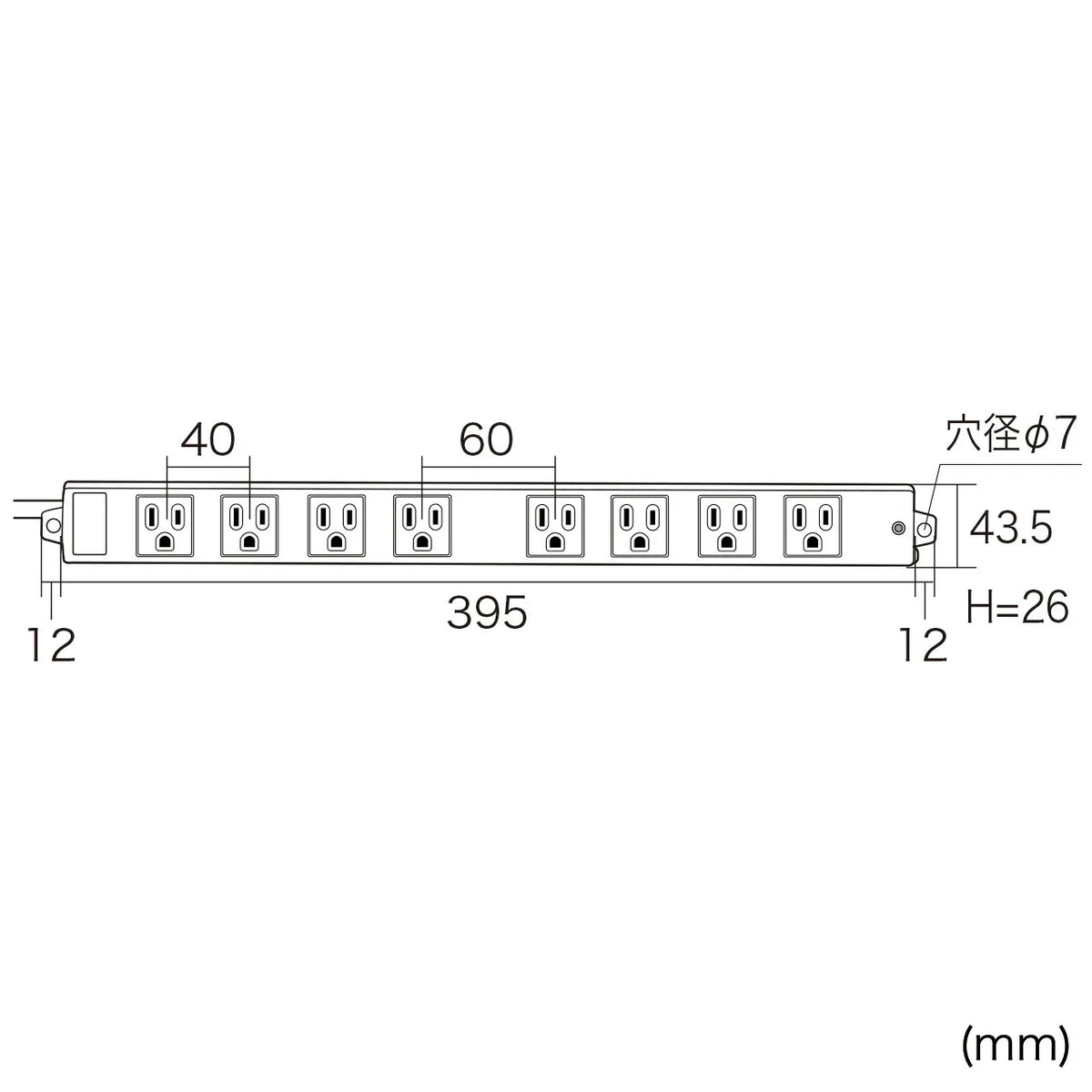

■Body size: W419xD43.5xH26mm
■Surge withstand capability:
Line-to-line: 1000A (8/20us)
Line-to-ground: 500A (8/20us)
*Peak current value where the rate of change of the varistor voltage is within ±10% when a shock wave current is passed through each once.
■Limiting voltage:
Line-to-line: Maximum 1000V (100A)
Line-to-ground: Maximum 1500V (50A)
■Varistor used:
240V + current fuse (between lines)
470V + thermal fuse (between ground)
■Usage area: Japan only. Cannot be used outside of Japan.
■Certification: Complies with the technical standards of the Electrical Appliances and Materials Safety Act (PSE)
●Equipped with surge protector function. Protects equipment from damage caused by lightning surges. Surge protection is installed both between power lines and between power and ground.
●Equipped with surge protector indicator lamp. You can check if the surge protector is working.
●Heat-resistant double-layered case.
●Plug with insulating cap, effective in preventing tracking fires.
●Magnetic backing allows for temporary attachment to steel desks, etc. Convenient for easy maintenance.
●Environmentally friendly product using lead-free solder.
●Uses a simple plastic bag package that reduces waste and is environmentally friendly.
■Color: Gray
■Rated capacity: 15A・125V (up to 1500W)
■Plug specifications: 3P (with insulation cap)
■Outlets: 3P (normal type)・8 outlets
■Outlet pitch: 40mm (60mm only in the center)
■Temporary fixing hole spacing: 407mm
■Cord type: Vinyl cabtyre round cord (VCTF)
■Cord: VCTF 2.0 sq mm (SQ) x 2 cores, 0.75 sq mm (SQ) x 1 core (ground)
Finished external dimensions Approximately 8.5mm in diameter
■Cord length: 3m
■Body size: W419xD43.5xH26mm
■Surge withstand capability:
Line-to-line: 1000A (8/20us)
Line-to-ground: 500A (8/20us)
*Peak current value where the rate of change of the varistor voltage is within ±10% when a shock wave current is passed through each once.
■Limiting voltage:
Line-to-line: Maximum 1000V (100A)
Line-to-ground: Maximum 1500V (50A)
■Varistor used:
240V + current fuse (between lines)
470V + thermal fuse (between ground)
■Usage area: Japan only. Cannot be used outside of Japan.
■Certification: Complies with the technical standards of the Electrical Appliances and Materials Safety Act (PSE)
