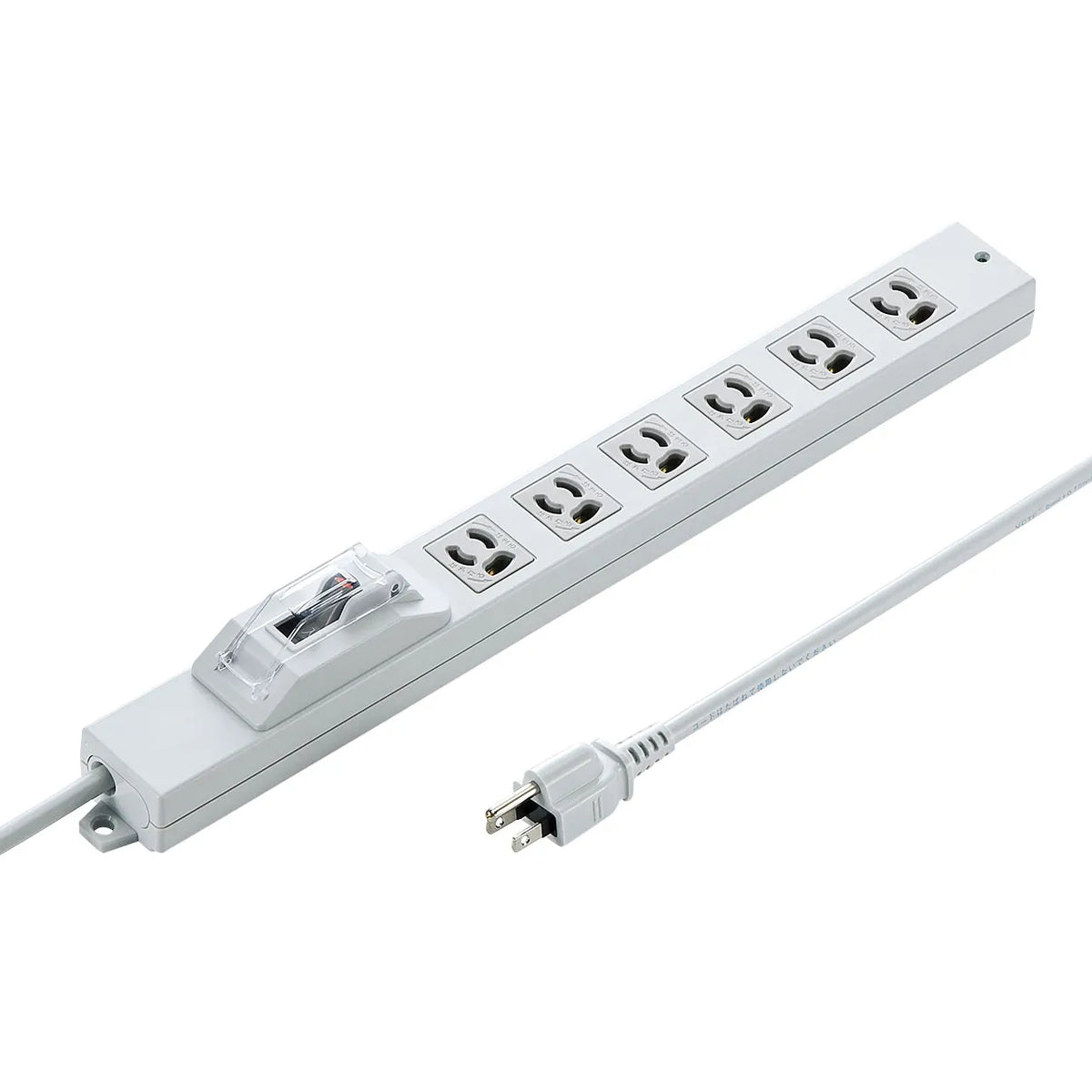

Safety breaker tap TAP-BR36A-1

[Protects against the danger of overcurrent with a safety breaker.]

●This product is equipped with an instantaneous safety breaker for short-circuit protection, which automatically shuts off the electrical circuit when an overcurrent occurs, preventing equipment failure and fire due to overheating.
●It can prevent serious accidents by responding to overcurrents caused by short circuits in electrical circuits due to faulty construction or accidents, or by overuse of electrical equipment, making it ideal for use in factories with many machine tools, or in offices with many computers, displays, and peripherals.
●Both lines (voltage side and ground side) are shut off when the breaker operates.
※The ground wire is always connected.

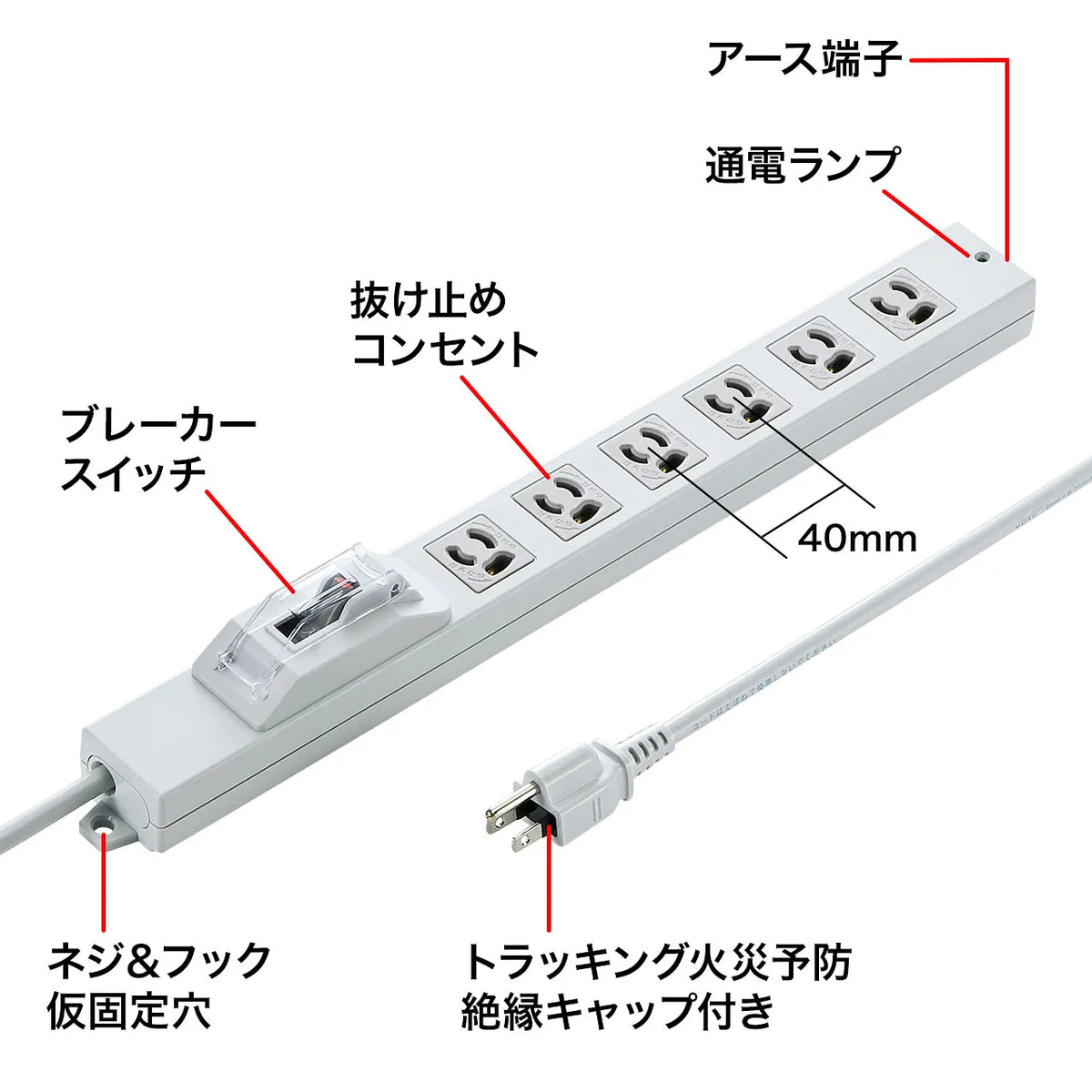

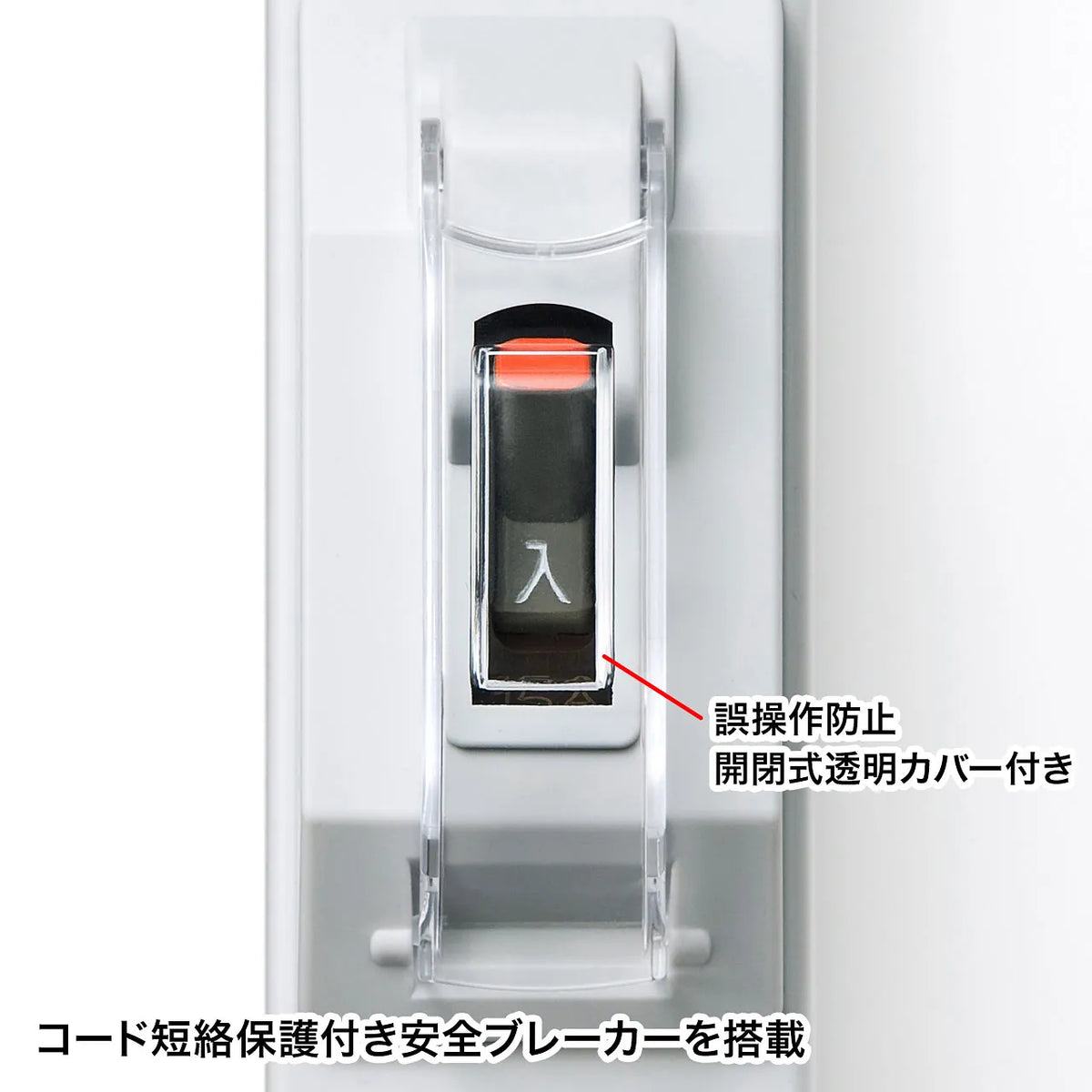

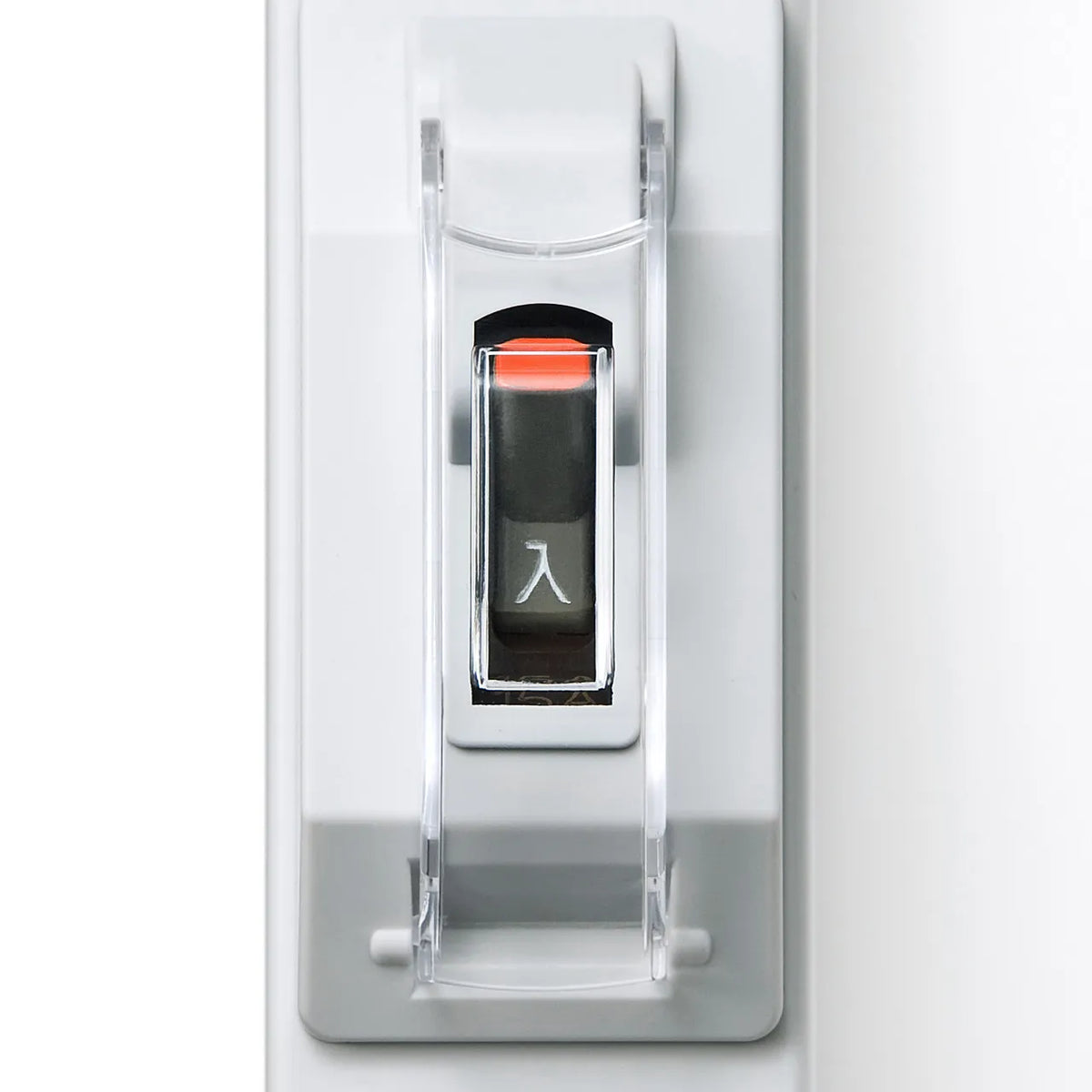

●The breaker section has a transparent cover that can be opened and closed to prevent accidental operation, ensuring safety.
●Connected equipment can be turned ON/OFF all at once.
●Equipped with a power indicator lamp that allows you to check the power status at a glance.
●Equipped with an earth terminal that has the effect of dissipating noise generated from the equipment.
●The locking outlet prevents accidental plug disconnection, ensuring safe use.
●Equipped with an insulating cap to prevent tracking fires.

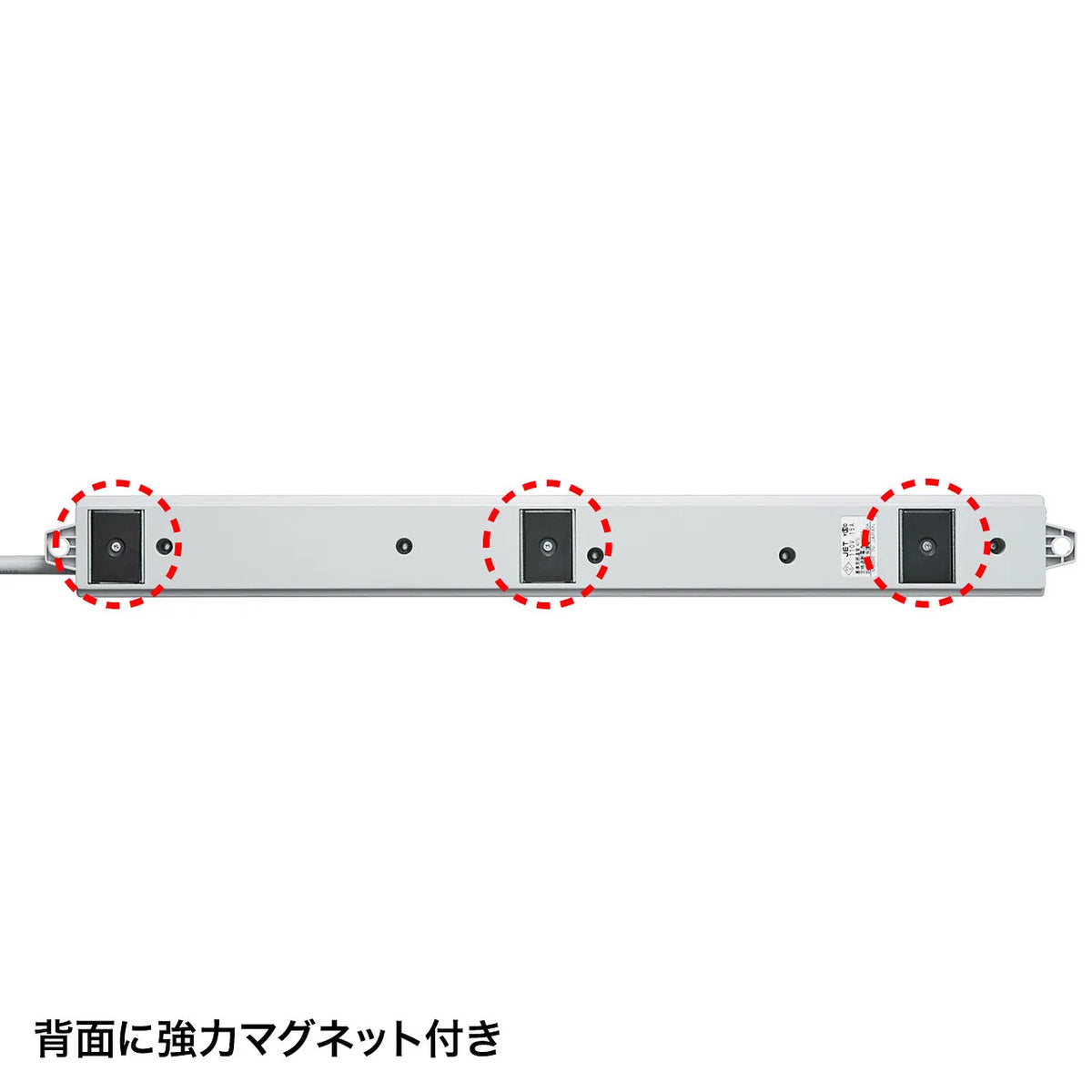

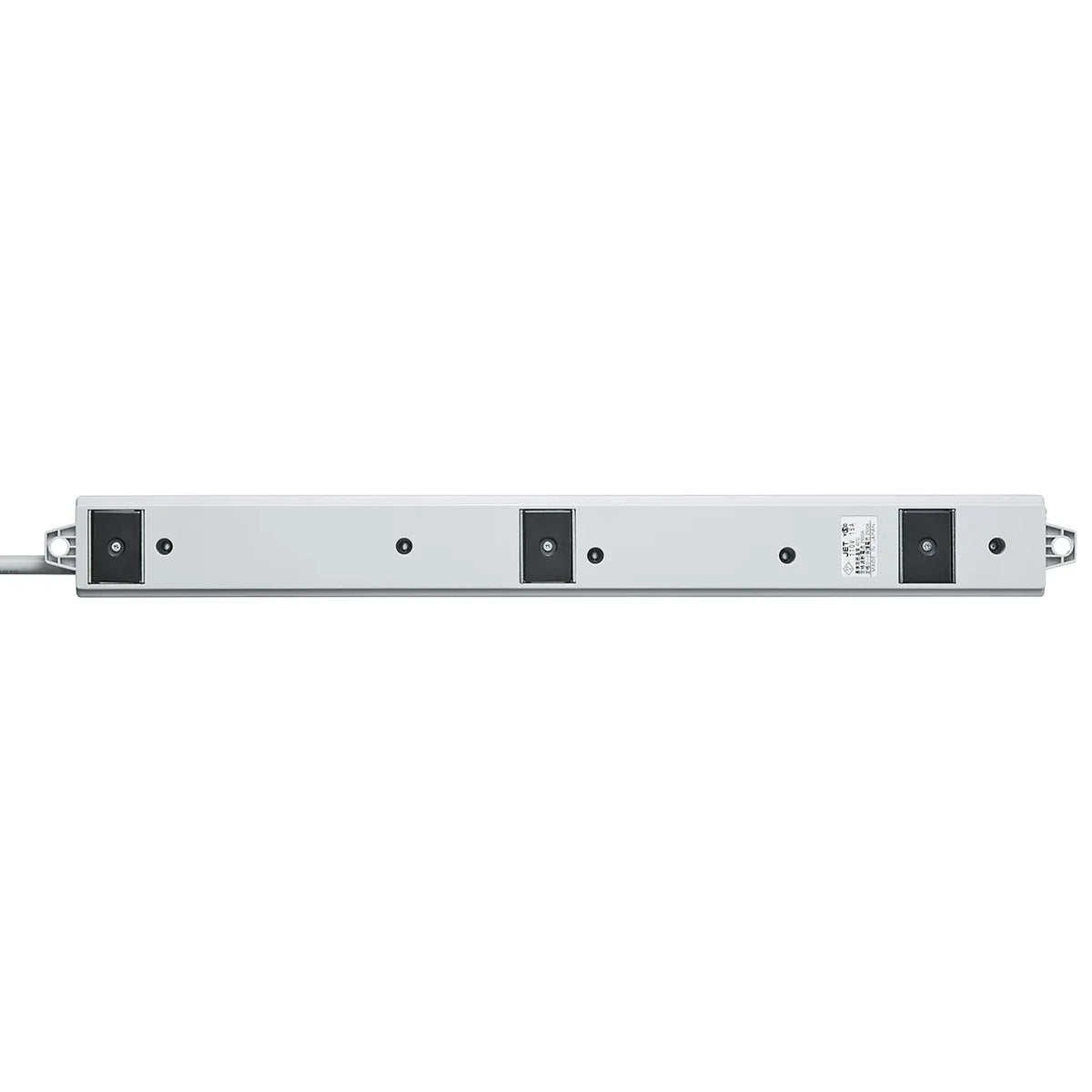

●A strong magnet is attached to the back. It can be easily temporarily fixed to steel desk panels, etc.
●Includes screw and hook holes for temporarily fixing the power strip.
＜What is a safety breaker with cord short-circuit protection?＞
This safety breaker quickly shuts off the circuit even at low current levels that conventional safety breakers would not easily operate in the event of a short circuit in the power cord after the connected device. It shuts off quickly in the event of a spark caused by a relatively small short circuit.
＜Caution＞
*The power consumption of the device to be plugged in must be 1500W or less. Please check the power of the connected device before use.
*This product can only be used in Japan. (Cannot be used with anything other than AC100V)
*This product is for indoor use only. It cannot be used outdoors.
*Sanwa Supply will not be held responsible for any loss or alteration of data on computers, etc., caused by using this product.
＜About the time the circuit breaker will operate＞
If the current exceeds 15A, the circuit breaker will automatically trip.
At 125% (18.75A), it will trip within approximately 60 minutes.
At 200% (30A), it will trip within approximately 2 minutes.

■Rated capacity: 15A・125V (up to 1500W total)

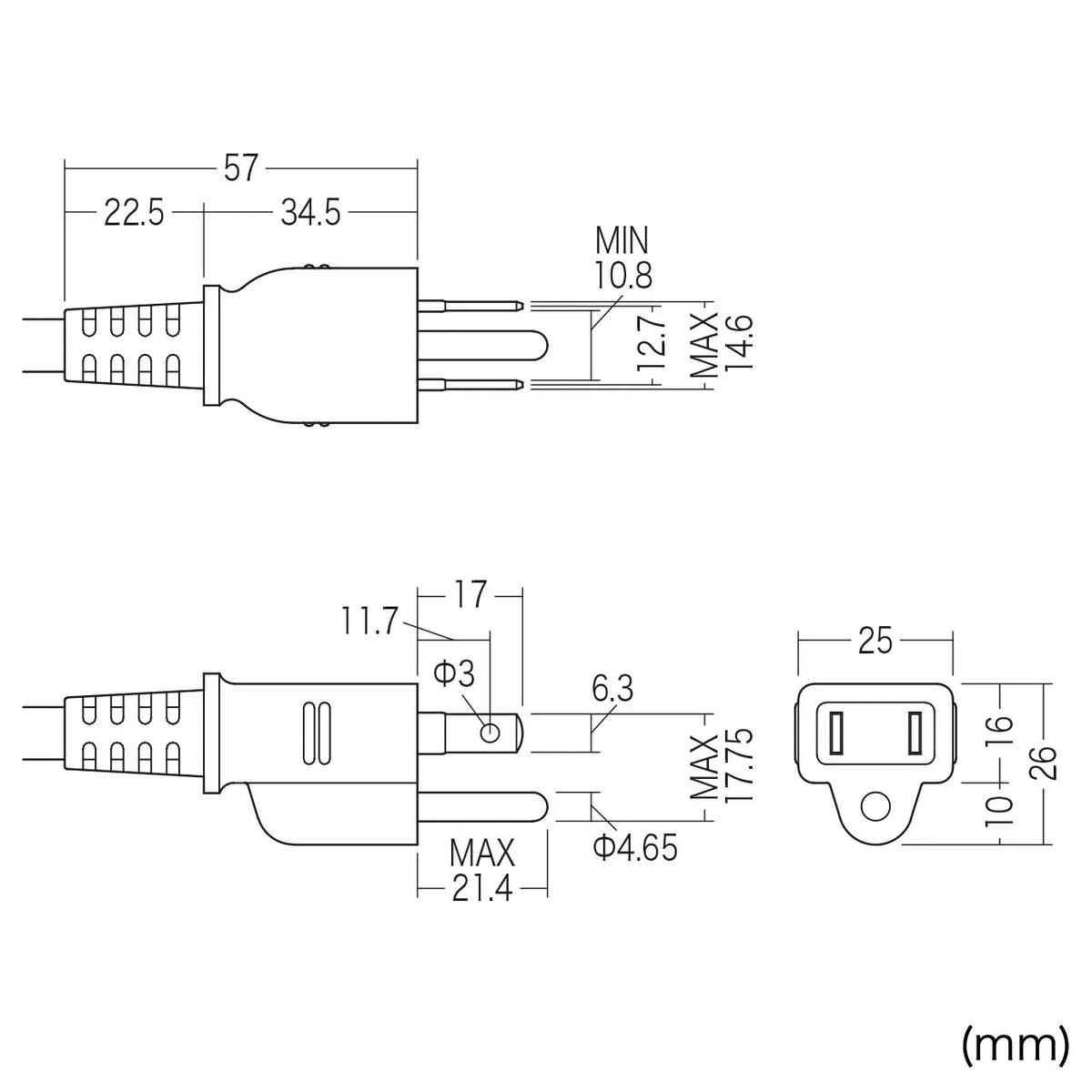

■Plug: 3P (with tracking fire prevention insulation cap)
■Outlet: 3P・6 outlets (locking type)
■Cord: VCTF2.0 sq (SQ) x 2 cores, 0.75 sq (SQ) x 1 core
Finished outer diameter: approx. 8.5mm
■Cord length: 1m

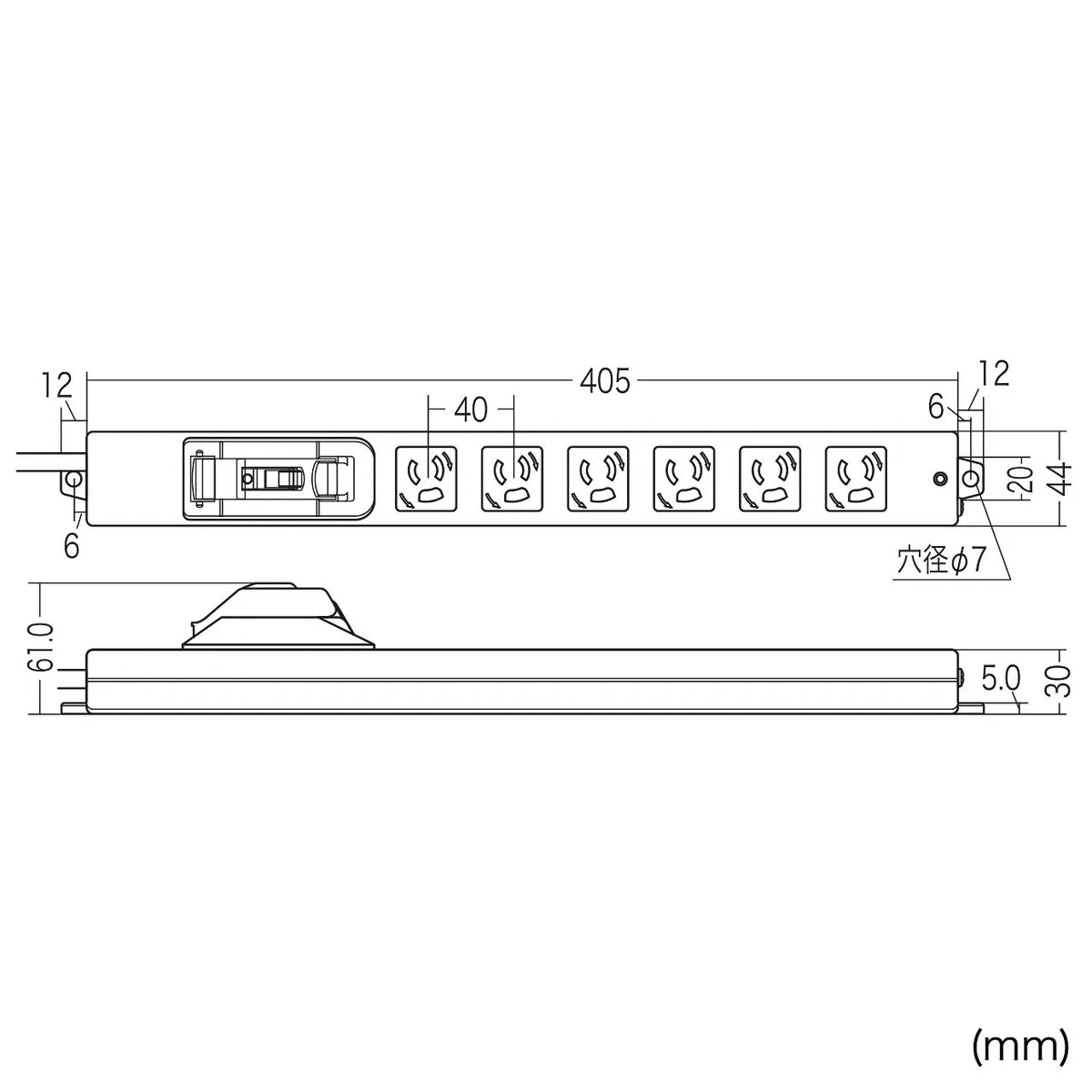

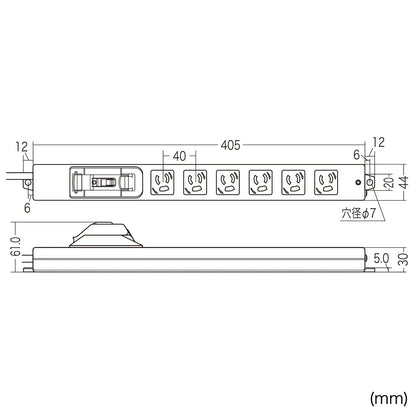

■Body size: W429 x D44 x H30 (61) mm
※( ) indicates the height of the circuit breaker cover.
■Country of manufacture: Japan
■Usage area: Japan only. Cannot be used outside of Japan.
■Certification: Complies with the technical standards of the Electrical Appliances and Materials Safety Act (PSE).
