SANWA SUPPLY
Surge protector tap TAP-3805SPN
Surge protector tap TAP-3805SPN
GTIN（JAN）：4969887228777
SKU：TAP-3805SPN
Regular price
¥12,197 JPY
Regular price
Sale price
¥12,197 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)

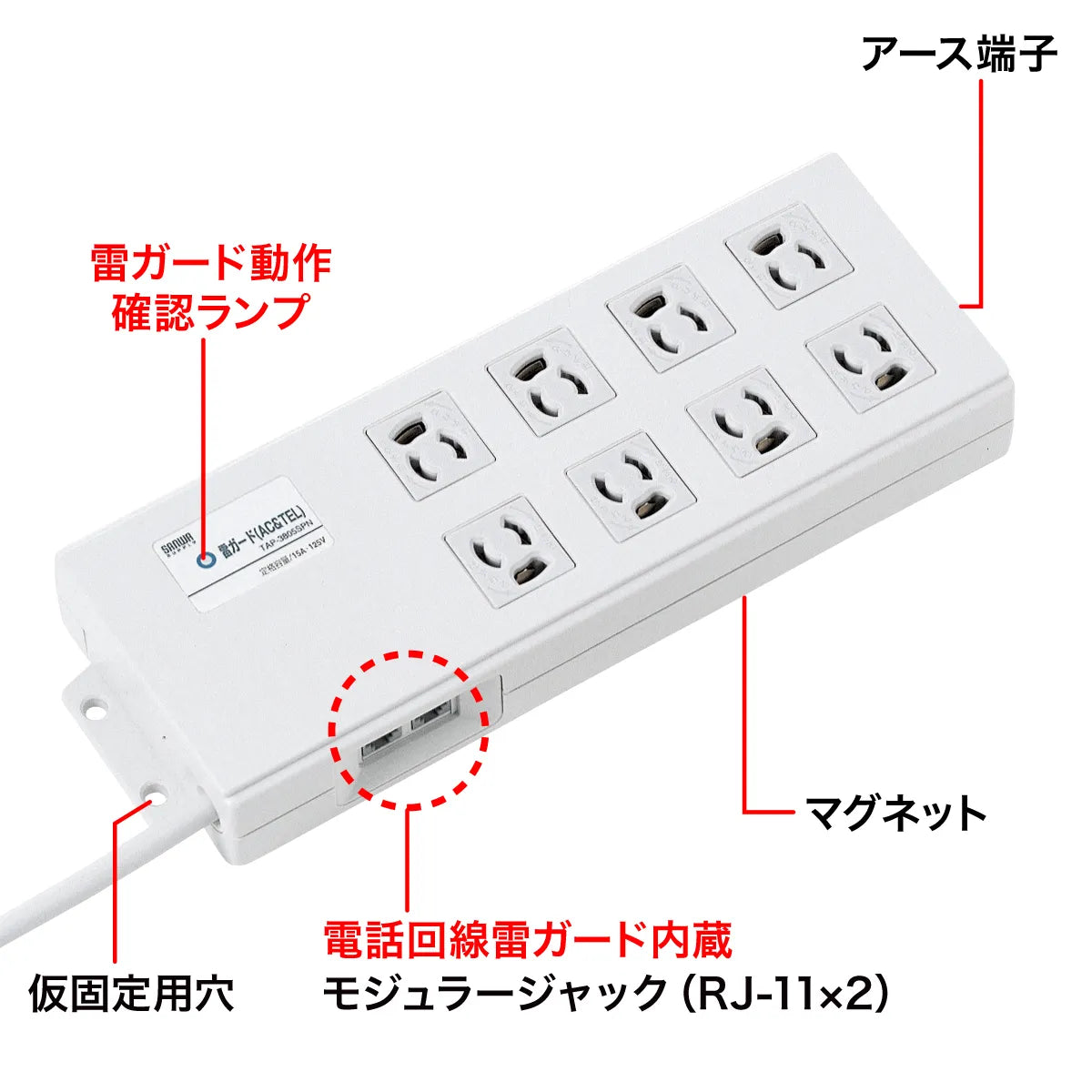

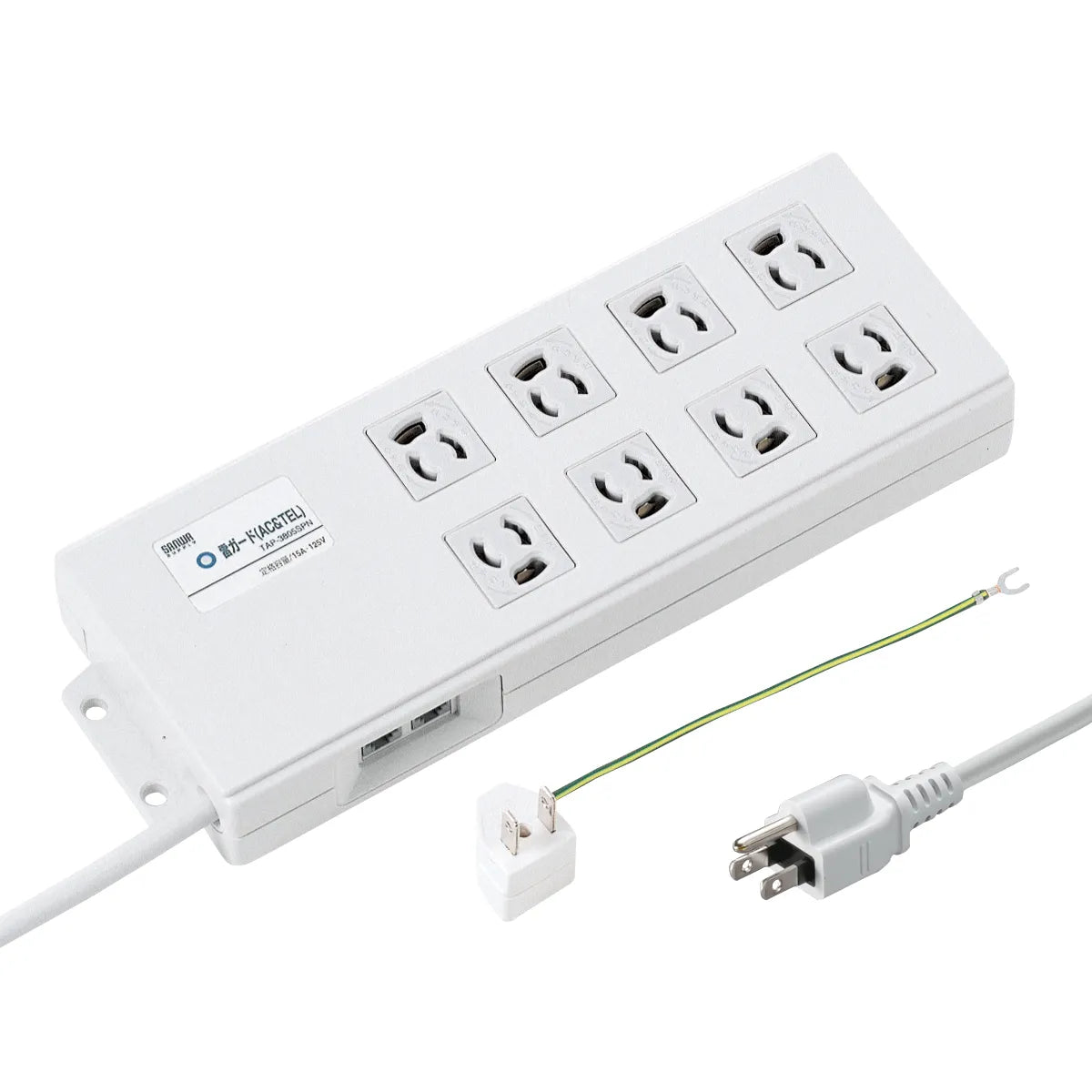

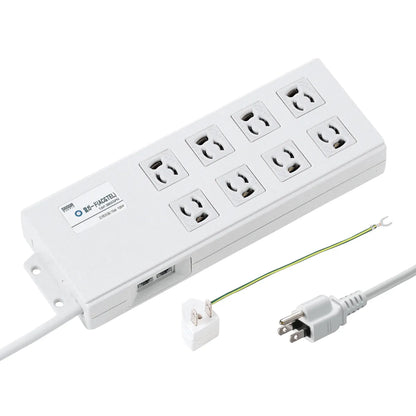

[This is a 3-prong, 8-outlet power strip with a locking mechanism, surge protection, noise filter, and magnet.]
●Provides double protection for both the ADSL line and the power supply.
●Equipped with a high-performance arrester (power shield) to protect communication equipment using telephone lines. It can be used with PC-related equipment such as TAs, DSUs, and modems used on ISDN and analog lines, as well as fax machines and telephones.
*In the event of a direct lightning strike, the equipment may not be protected.
●Equipped with a built-in power noise filter.
●Equipped with a lightning surge absorption element (varistor) to protect connected equipment from lightning surges.
●Includes a fuse to prevent damage to the varistor in the event of an excessive lightning surge. (Operation indicator by LED)
●The outlets have a locking mechanism, so you can use it with peace of mind without worrying about plugs accidentally coming loose.
●Comes with a magnet for easy attachment to steel desks, etc.
●The plug is a 3-prong (grounded) plug and comes with a 3-prong to 2-prong conversion adapter.
●Equipped with a ground terminal for earth connection.
●Equipped with hook holes for temporary fixing to the wall with screws, etc.
●The outlets use heat-resistant urea resin, and the case has a double-molded safety design.
■Rated capacity: 15A・125V (up to 1500W total)

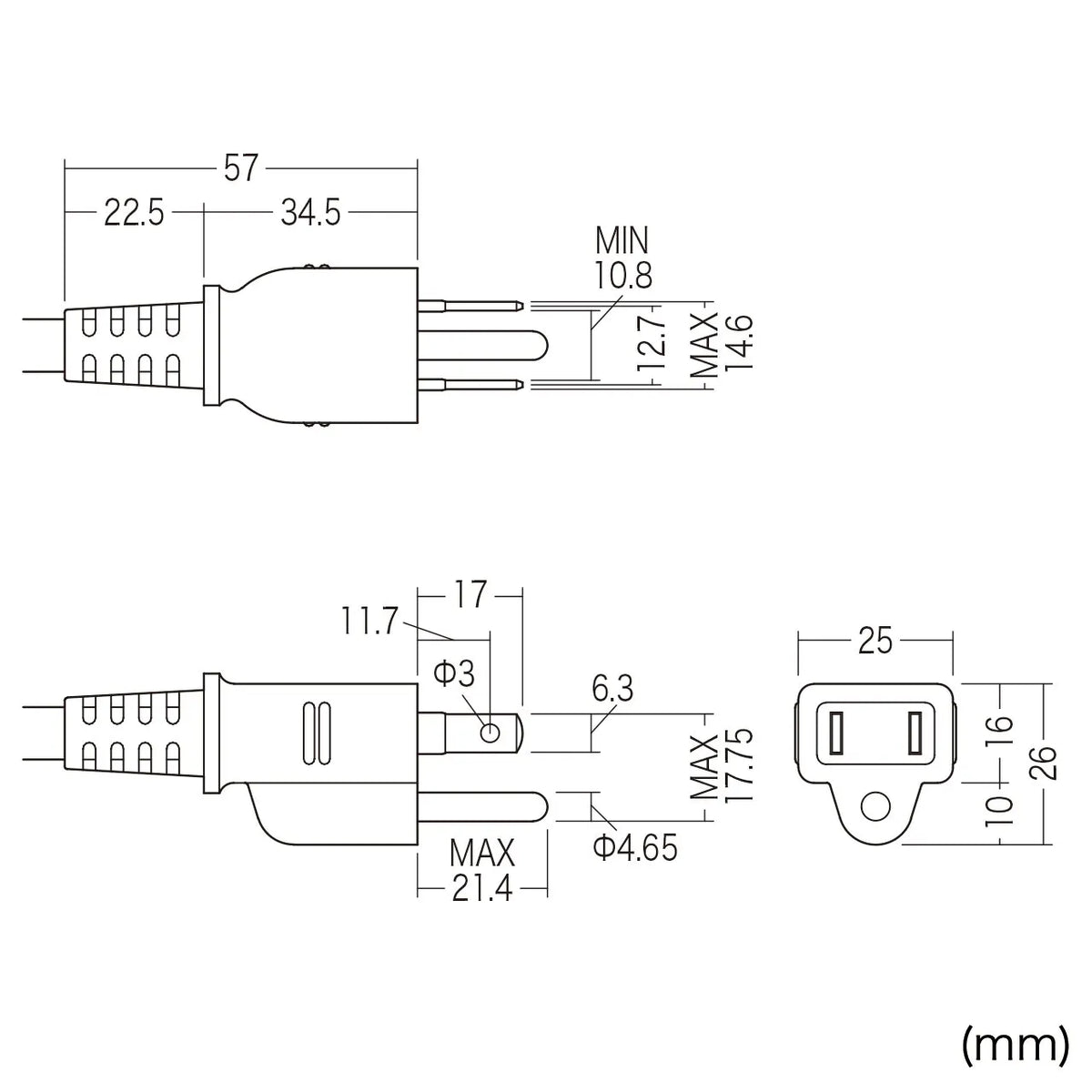

■Plug: 3P (3P→2P conversion adapter included)
■Outlets: 3P・8 outlets (locking type)
■Cord: VCTF 2.0 sq mm (SQ) x 2 cores, 0.75 sq mm (SQ) x 1 core (ground)
Finished outer dimensions: Diameter approx. 8.5 mm
■Cord length: 2 m
■Temporary fixing hole spacing: 272 mm
■Varistor voltage: 470V
■Limiting voltage: 775V (50A)
■Surge withstand capacity: 5500A (2 times)
■Noise filter characteristics: 0.5 to 30dB or more at 10MHz
• Power line noise (normal mode)
• Power line-to-ground noise (common mode)
■Communication input: RJ-11 (6-pin 2-core) • Communication output: RJ-11 (6-pin 2-core)

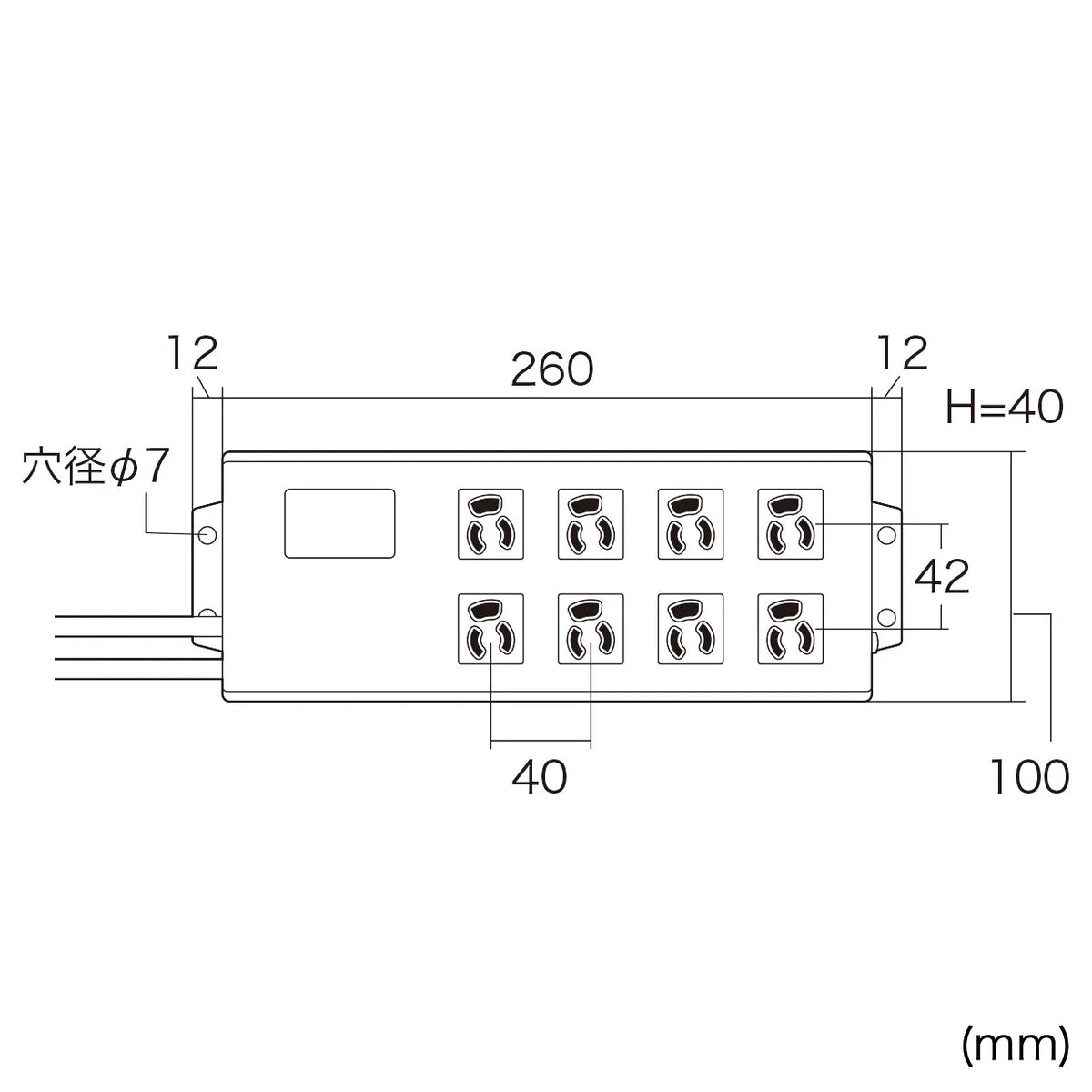

■Body size: W284 x D100 x H40mm
■Country of manufacture: Japan
■Usage area: Japan only. Cannot be used outside of Japan.
■Certification: Complies with the technical standards of the Electrical Appliances and Materials Safety Act (PSE)
●Provides double protection for both the ADSL line and the power supply.
●Equipped with a high-performance arrester (power shield) to protect communication equipment using telephone lines. It can be used with PC-related equipment such as TAs, DSUs, and modems used on ISDN and analog lines, as well as fax machines and telephones.
*In the event of a direct lightning strike, the equipment may not be protected.
●Equipped with a built-in power noise filter.
●Equipped with a lightning surge absorption element (varistor) to protect connected equipment from lightning surges.
●Includes a fuse to prevent damage to the varistor in the event of an excessive lightning surge. (Operation indicator by LED)
●The outlets have a locking mechanism, so you can use it with peace of mind without worrying about plugs accidentally coming loose.
●Comes with a magnet for easy attachment to steel desks, etc.
●The plug is a 3-prong (grounded) plug and comes with a 3-prong to 2-prong conversion adapter.
●Equipped with a ground terminal for earth connection.
●Equipped with hook holes for temporary fixing to the wall with screws, etc.
●The outlets use heat-resistant urea resin, and the case has a double-molded safety design.
■Rated capacity: 15A・125V (up to 1500W total)
■Plug: 3P (3P→2P conversion adapter included)
■Outlets: 3P・8 outlets (locking type)
■Cord: VCTF 2.0 sq mm (SQ) x 2 cores, 0.75 sq mm (SQ) x 1 core (ground)
Finished outer dimensions: Diameter approx. 8.5 mm
■Cord length: 2 m
■Temporary fixing hole spacing: 272 mm
■Varistor voltage: 470V
■Limiting voltage: 775V (50A)
■Surge withstand capacity: 5500A (2 times)
■Noise filter characteristics: 0.5 to 30dB or more at 10MHz
• Power line noise (normal mode)
• Power line-to-ground noise (common mode)
■Communication input: RJ-11 (6-pin 2-core) • Communication output: RJ-11 (6-pin 2-core)
■Body size: W284 x D100 x H40mm
■Country of manufacture: Japan
■Usage area: Japan only. Cannot be used outside of Japan.
■Certification: Complies with the technical standards of the Electrical Appliances and Materials Safety Act (PSE)
