SANWA SUPPLY
Noise filter tap TAP-3804NFN
Noise filter tap TAP-3804NFN
GTIN（JAN）：4969887228760
SKU：TAP-3804NFN
Regular price
¥11,471 JPY
Regular price
Sale price
¥11,471 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)

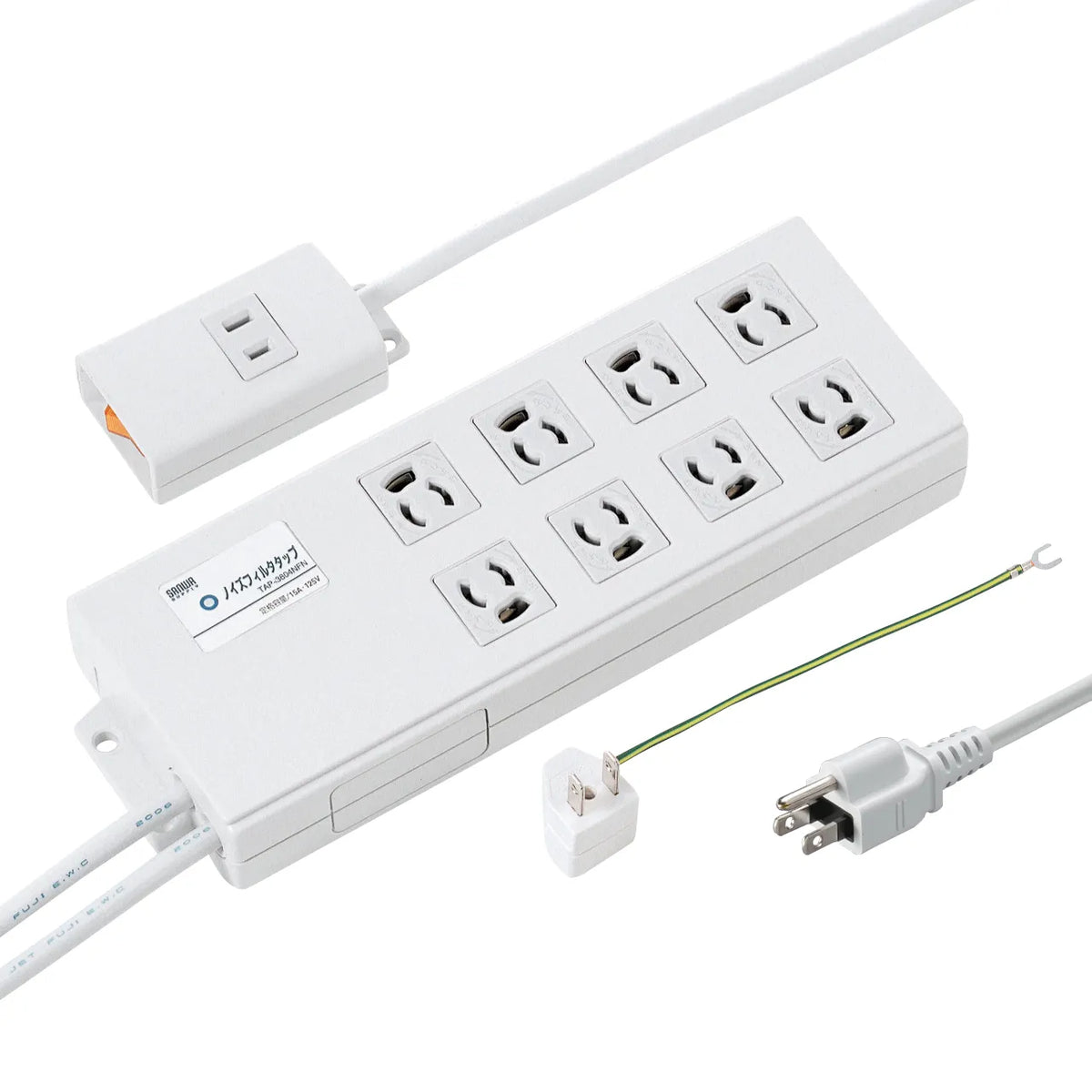

[This is a 3P, 8-outlet power strip with a locking mechanism, noise filter, centralized switch, and magnet.]

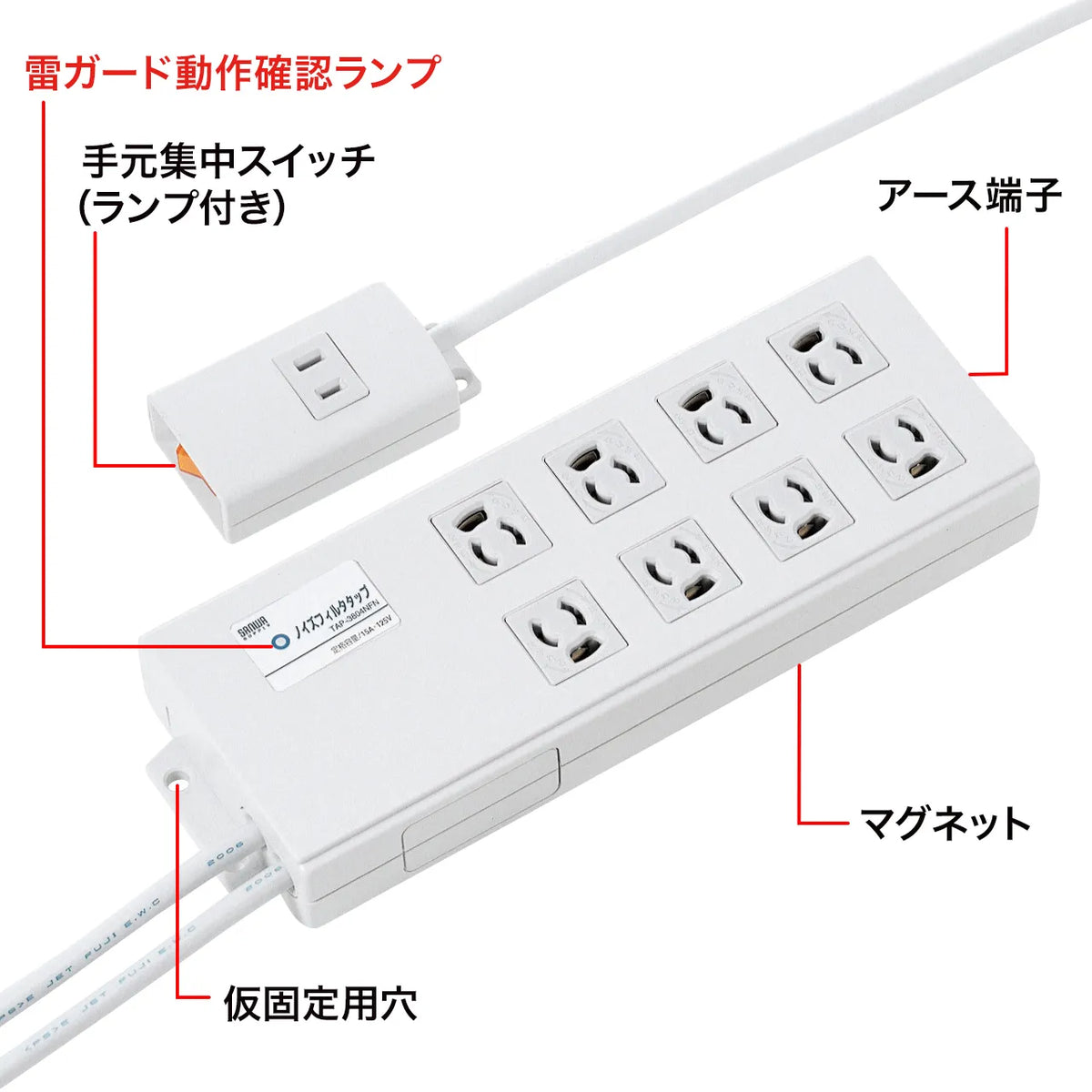

●Built-in power noise filter.
●Built-in lightning surge absorption element (varistor) to protect connected devices from lightning surges.
●Includes a fuse to prevent damage to the varistor in the event of an excessive lightning surge. (LED operation indicator)
●The outlets have a locking mechanism, so you can use it with peace of mind without worrying about accidental plug disconnection. (Excluding the outlet at the handle)
●Comes with a centralized switch for turning all outlets ON/OFF at once. (Includes 1 x 2P outlet)
●Comes with a magnet for easy attachment to steel desks, etc.
●The plug is a 3P (grounded) plug and comes with a 3P to 2P conversion adapter.
●Comes with a ground terminal for ground connection.
●Comes with a hook hole for temporary fixing to the wall with screws, etc.
●The outlets are made of heat-resistant urea resin, and the case has a double-molded safety design.
■Rated capacity: 15A・125V (up to 1500W total)

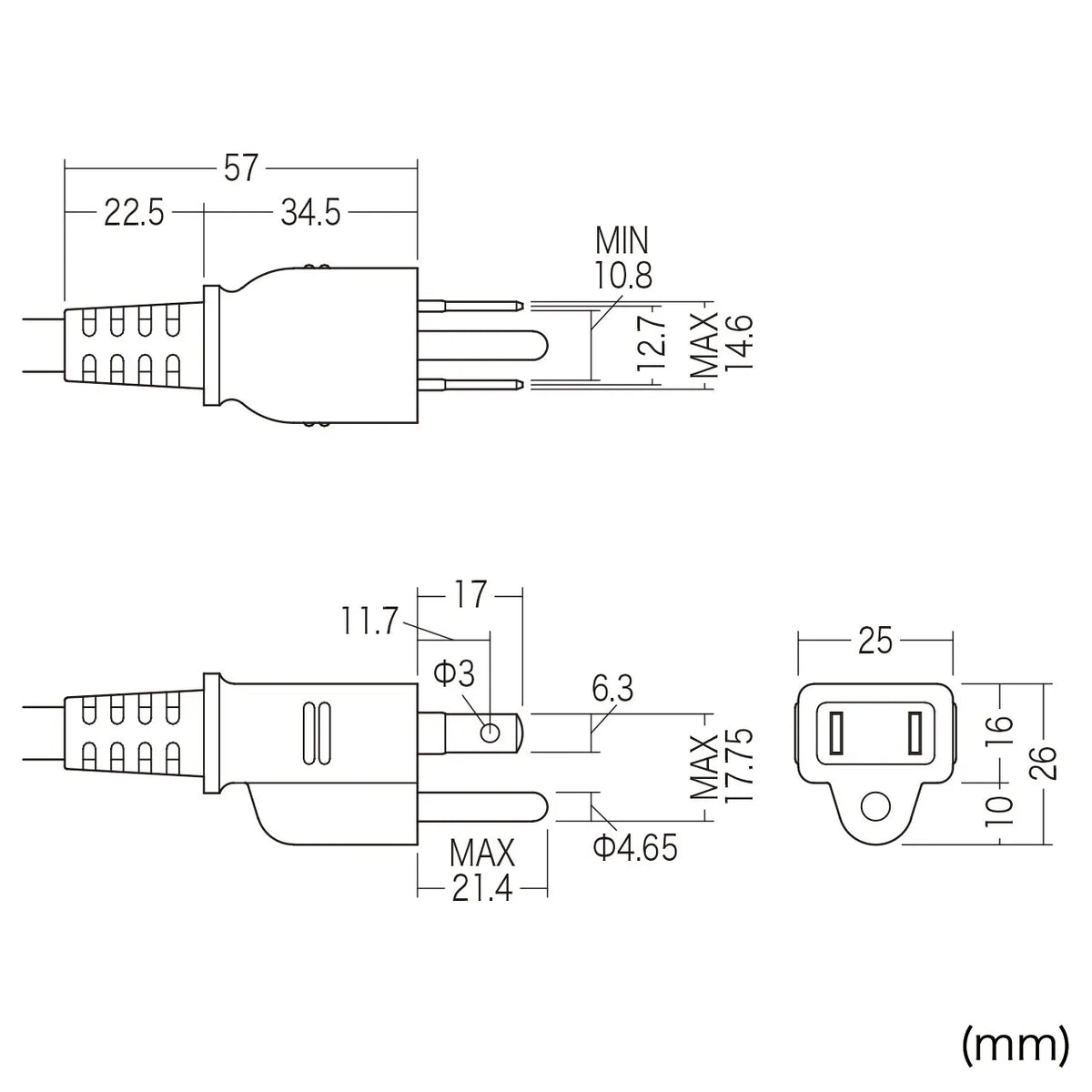

■Plug: 3P (with 3P→2P conversion adapter)
■Outlets:
Main unit/3P・8 outlets (locking type)
Handheld unit/2P・1 outlet
■Cord: VCTF 2.0 sq mm (SQ) x 2 cores, 0.75 sq mm (SQ) x 1 core (ground)
Finished outer dimensions: Diameter approx. 8.5 mm
■Cord length: 2m
■Switch cord length: 1.5m
■Temporary fixing hole spacing: 272 mm
■Varistor voltage: 470V
■Limiting voltage: 775V (50A)
■Surge withstand capacity: 5500A (2 times)
■Noise filter characteristics: 0.5 to 30dB or more at 10MHz
• Power line noise (normal mode)
• Power line-to-ground noise (common mode)

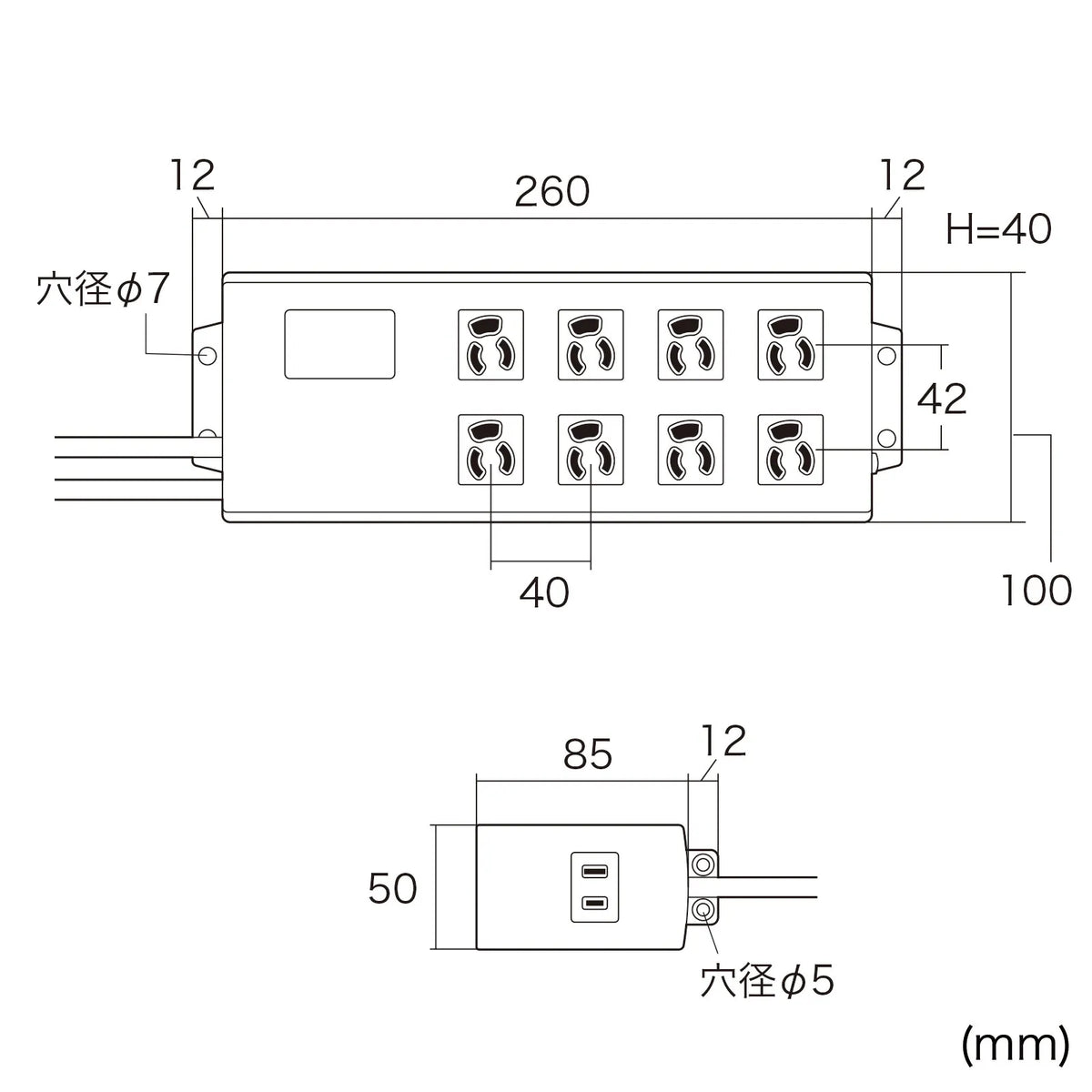

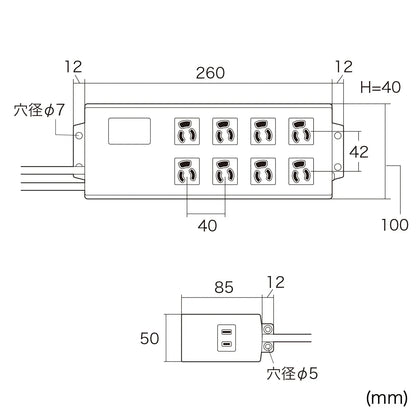

■Body size: W284xD100xH40mm
■Country of manufacture: Japan
■Usage area: Japan only. Cannot be used outside of Japan.
■Certification: Complies with the technical standards of the Electrical Appliances and Materials Safety Act (PSE)
●Built-in power noise filter.
●Built-in lightning surge absorption element (varistor) to protect connected devices from lightning surges.
●Includes a fuse to prevent damage to the varistor in the event of an excessive lightning surge. (LED operation indicator)
●The outlets have a locking mechanism, so you can use it with peace of mind without worrying about accidental plug disconnection. (Excluding the outlet at the handle)
●Comes with a centralized switch for turning all outlets ON/OFF at once. (Includes 1 x 2P outlet)
●Comes with a magnet for easy attachment to steel desks, etc.
●The plug is a 3P (grounded) plug and comes with a 3P to 2P conversion adapter.
●Comes with a ground terminal for ground connection.
●Comes with a hook hole for temporary fixing to the wall with screws, etc.
●The outlets are made of heat-resistant urea resin, and the case has a double-molded safety design.
■Rated capacity: 15A・125V (up to 1500W total)
■Plug: 3P (with 3P→2P conversion adapter)
■Outlets:
Main unit/3P・8 outlets (locking type)
Handheld unit/2P・1 outlet
■Cord: VCTF 2.0 sq mm (SQ) x 2 cores, 0.75 sq mm (SQ) x 1 core (ground)
Finished outer dimensions: Diameter approx. 8.5 mm
■Cord length: 2m
■Switch cord length: 1.5m
■Temporary fixing hole spacing: 272 mm
■Varistor voltage: 470V
■Limiting voltage: 775V (50A)
■Surge withstand capacity: 5500A (2 times)
■Noise filter characteristics: 0.5 to 30dB or more at 10MHz
• Power line noise (normal mode)
• Power line-to-ground noise (common mode)
■Body size: W284xD100xH40mm
■Country of manufacture: Japan
■Usage area: Japan only. Cannot be used outside of Japan.
■Certification: Complies with the technical standards of the Electrical Appliances and Materials Safety Act (PSE)
