Quick One SXJ-3545-30
Quick One SXJ-3545-30
GTIN(JAN):4937897007897
SKU:SXJ-3545-30
Regular price
¥12,293 JPY
Regular price
Sale price
¥12,293 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
【Product Features】

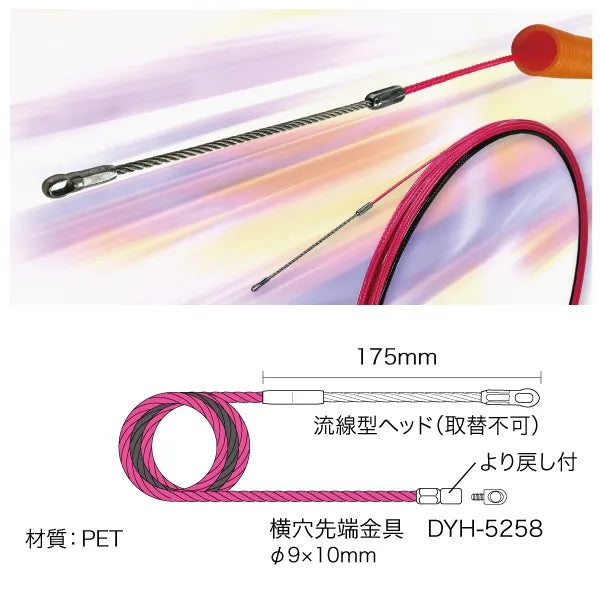

Three-stage step rod allows for easy bending and strong pushing (30m)
●New wire puller specifically designed for corrugated pipes
*Can also be used with other conduits.
●Shape that is less likely to get caught even on bent corrugated pipes
●Special processing for increased wire pulling power
●Additional wiring OK
●Smooth, lubricated rod for excellent wire pulling!

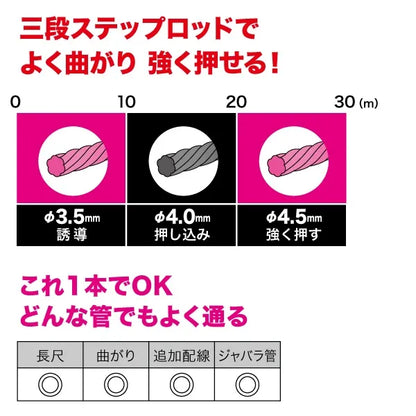

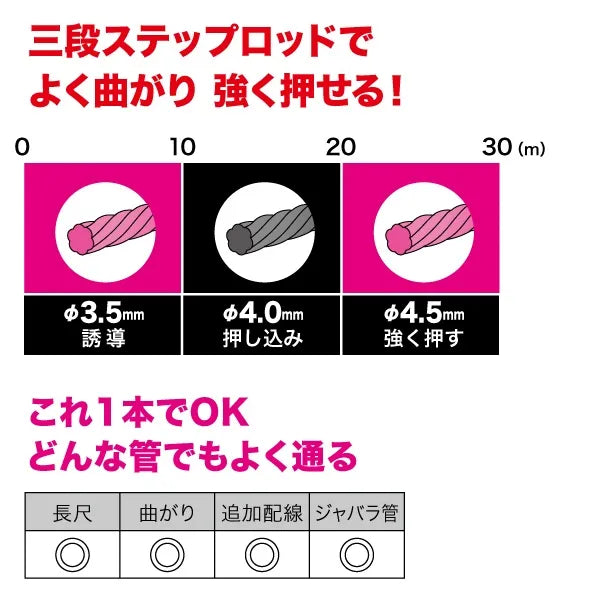

●Hybrid type with rod diameter increasing in three stages from thin to thick (φ3.5, φ4.0, φ4.5mm), making it easy to bend and push
●Streamlined head (non-replaceable)
●Single-wire twist rod
●Tip fitting with swivel (replaceable)
●Screw size: M5
■ Specifications
・Wire diameter: φ3.5 (10m) + φ4.0 (10m) + φ4.5 (10m)
・Length: 30m
・Weight: 0.56kg
・Total breaking load: 0.8N (90kgf)
・Packaging specifications
Individual packaging: Sleeve, wrap packaging
Individual packaging size and weight: W600 x D600 x H53mm, 800g
Inner packaging: Cardboard box (10 pieces)
Inner packaging size and weight: W650 x D650 x H580mm, 10.6kg, 1 box
・Country of origin: Japan
Three-stage step rod allows for easy bending and strong pushing (30m)
●New wire puller specifically designed for corrugated pipes
*Can also be used with other conduits.
●Shape that is less likely to get caught even on bent corrugated pipes
●Special processing for increased wire pulling power
●Additional wiring OK
●Smooth, lubricated rod for excellent wire pulling!
●Hybrid type with rod diameter increasing in three stages from thin to thick (φ3.5, φ4.0, φ4.5mm), making it easy to bend and push
●Streamlined head (non-replaceable)
●Single-wire twist rod
●Tip fitting with swivel (replaceable)
●Screw size: M5
■ Specifications
・Wire diameter: φ3.5 (10m) + φ4.0 (10m) + φ4.5 (10m)
・Length: 30m
・Weight: 0.56kg
・Total breaking load: 0.8N (90kgf)
・Packaging specifications
Individual packaging: Sleeve, wrap packaging
Individual packaging size and weight: W600 x D600 x H53mm, 800g
Inner packaging: Cardboard box (10 pieces)
Inner packaging size and weight: W650 x D650 x H580mm, 10.6kg, 1 box
・Country of origin: Japan
