SANWA SUPPLY

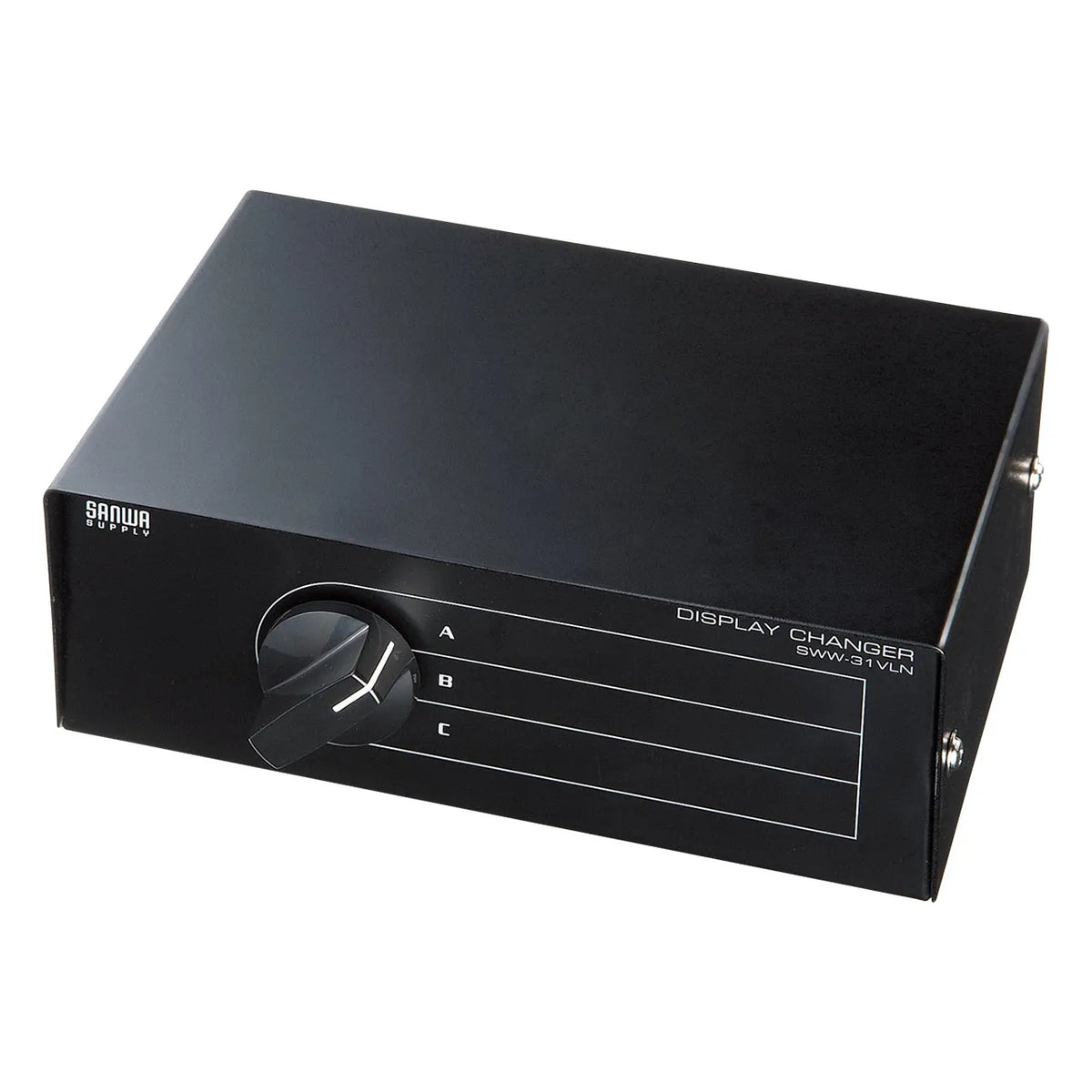

Display switch (3 circuits) SWW-31VLN
Display switch (3 circuits) SWW-31VLN
GTIN（JAN）：4969887592267
SKU：SWW-31VLN
Regular price
¥5,372 JPY
Regular price
Sale price
¥5,372 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Display Switcher with Straight-Through Full Connection and Full Circuit Switching for Stable Operation]
●This is a manual switching display switcher that straight-throughs all signal lines from pin 1 to pin 15 of the display connector across all circuits.
●When switching, it is as if the display cable has been straightened out, so compatibility issues are virtually eliminated.
●It also supports wide displays.
●With full circuit switching and straight-through full connection specifications, it is compatible with any type of computer.
※The computer on the port that has not been switched will appear as if no display is connected. Depending on the computer, external video output may be stopped or the resolution settings may be reset. This is due to the specifications of the computer (graphics card) and cannot be addressed by this product, so please be aware of this in advance.
※If the display is not connected when the computer starts up, it may not be possible to output at the correct resolution. In that case, switch to the computer you want to start up and start the computer with the display connected.
※Image signals experience significant signal loss on the cable, and the degree of degradation is greatly affected by the quality of the cable. Especially when transmitting over long distances, please use a high-quality composite coaxial cable. Ghosting and image quality degradation may occur in noisy environments or depending on your display and computer.
*Mini D-sub (HD) 15pin = HD (3WAY) 15pin.
■Resolution/Bandwidth: Unlimited
*Supports all resolutions that can be displayed with a direct connection between the computer and display device.

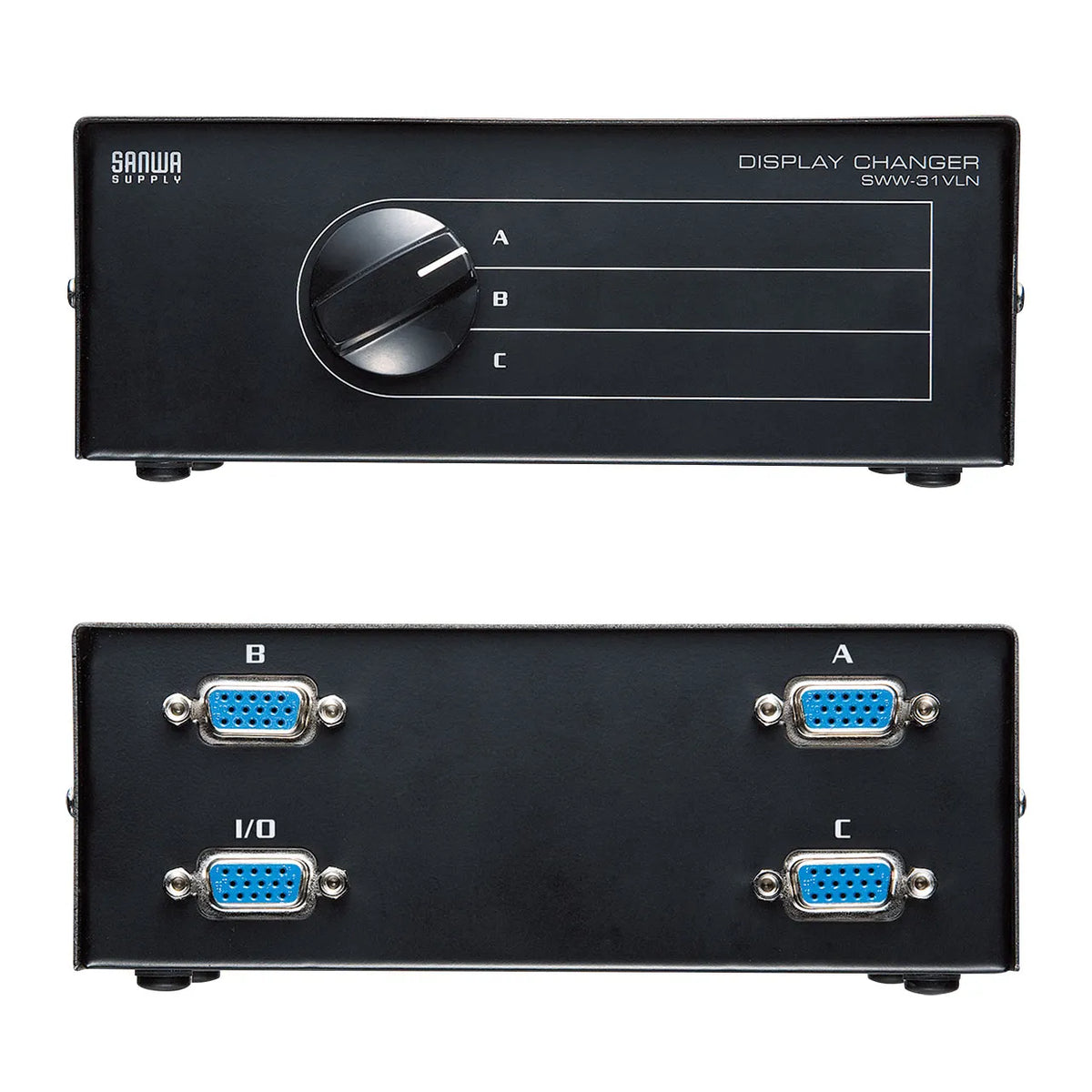

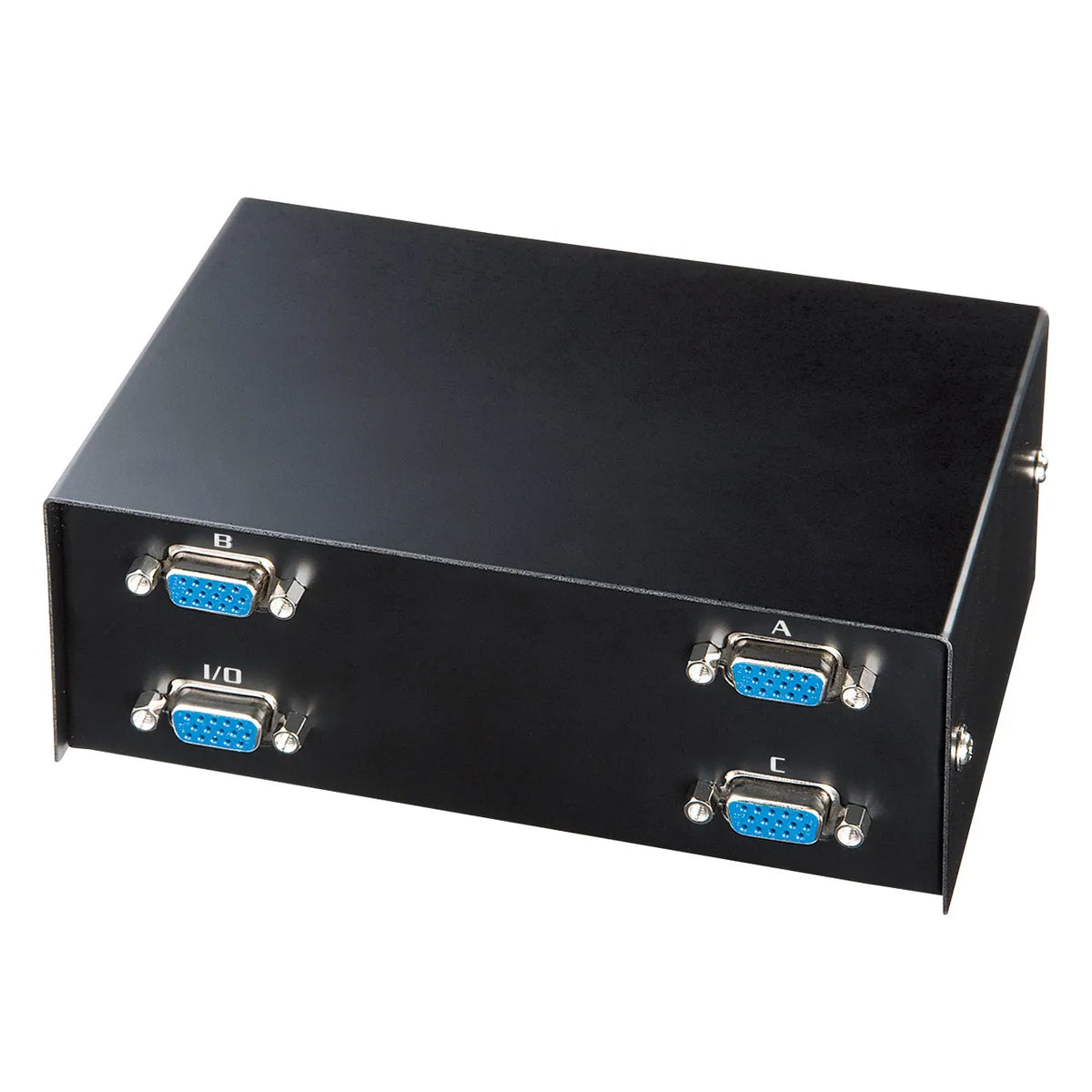

■Interface: Mini D-sub (HD) 15pin female x4
■Switching: 3:1 or 1:3
■Operating Temperature: 5 to 40 degrees Celsius
■Storage Temperature: -20 to 60 degrees Celsius
■Humidity: 0 to 80% (non-condensing)
■Material: Steel
■Size: W153 x D115 x H60.5mm (main unit size)
■Weight: 474g
■Accessories: Instruction manual, warranty
●This is a manual switching display switcher that straight-throughs all signal lines from pin 1 to pin 15 of the display connector across all circuits.
●When switching, it is as if the display cable has been straightened out, so compatibility issues are virtually eliminated.
●It also supports wide displays.
●With full circuit switching and straight-through full connection specifications, it is compatible with any type of computer.
※The computer on the port that has not been switched will appear as if no display is connected. Depending on the computer, external video output may be stopped or the resolution settings may be reset. This is due to the specifications of the computer (graphics card) and cannot be addressed by this product, so please be aware of this in advance.
※If the display is not connected when the computer starts up, it may not be possible to output at the correct resolution. In that case, switch to the computer you want to start up and start the computer with the display connected.
※Image signals experience significant signal loss on the cable, and the degree of degradation is greatly affected by the quality of the cable. Especially when transmitting over long distances, please use a high-quality composite coaxial cable. Ghosting and image quality degradation may occur in noisy environments or depending on your display and computer.
*Mini D-sub (HD) 15pin = HD (3WAY) 15pin.
■Resolution/Bandwidth: Unlimited
*Supports all resolutions that can be displayed with a direct connection between the computer and display device.
■Interface: Mini D-sub (HD) 15pin female x4
■Switching: 3:1 or 1:3
■Operating Temperature: 5 to 40 degrees Celsius
■Storage Temperature: -20 to 60 degrees Celsius
■Humidity: 0 to 80% (non-condensing)
■Material: Steel
■Size: W153 x D115 x H60.5mm (main unit size)
■Weight: 474g
■Accessories: Instruction manual, warranty
