4-input, 1-output HDMI switcher (4K compatible/screen split/capture function) SW-UHD41UVC

[An HDMI switcher equipped with four HDMI inputs, allowing for intuitive switching between camera footage and HDMI devices, and supporting 4-screen split display and 2-screen output. It supports UVC (USB Video Class), enabling capture on a PC for YouTube streaming and Zoom.]

● Equipped with four HDMI inputs, it allows for instant switching of video output from up to four HDMI devices (cameras, PCs, game consoles, etc.).
● Features an easy-to-use interface that is intuitive even for first-time HDMI switcher users.
● Supports UVC (USB Video Class), allowing it to be used as a capture device on a PC, and can also be used as a switcher for presentations in video conferences such as YouTube streaming, Zoom, and Teams.
*Video capture software and live streaming software are not included.
*Copy-protected video cannot be captured.
*Smartphone video output cannot be captured on a PC via this product due to HDCP (copyright protection).
● By using a high-quality camera or video camera, you can display higher-definition video than with a typical webcam. Furthermore, the camera allows for easy zooming, panning, and angle adjustment, giving you complete control over the image.
*Cameras that do not support HDMI pass-through output (a function that allows outputting captured images from the HDMI terminal) cannot be used.
●Equipped with HDMI OUT, allowing you to switch while checking the output status on your display.

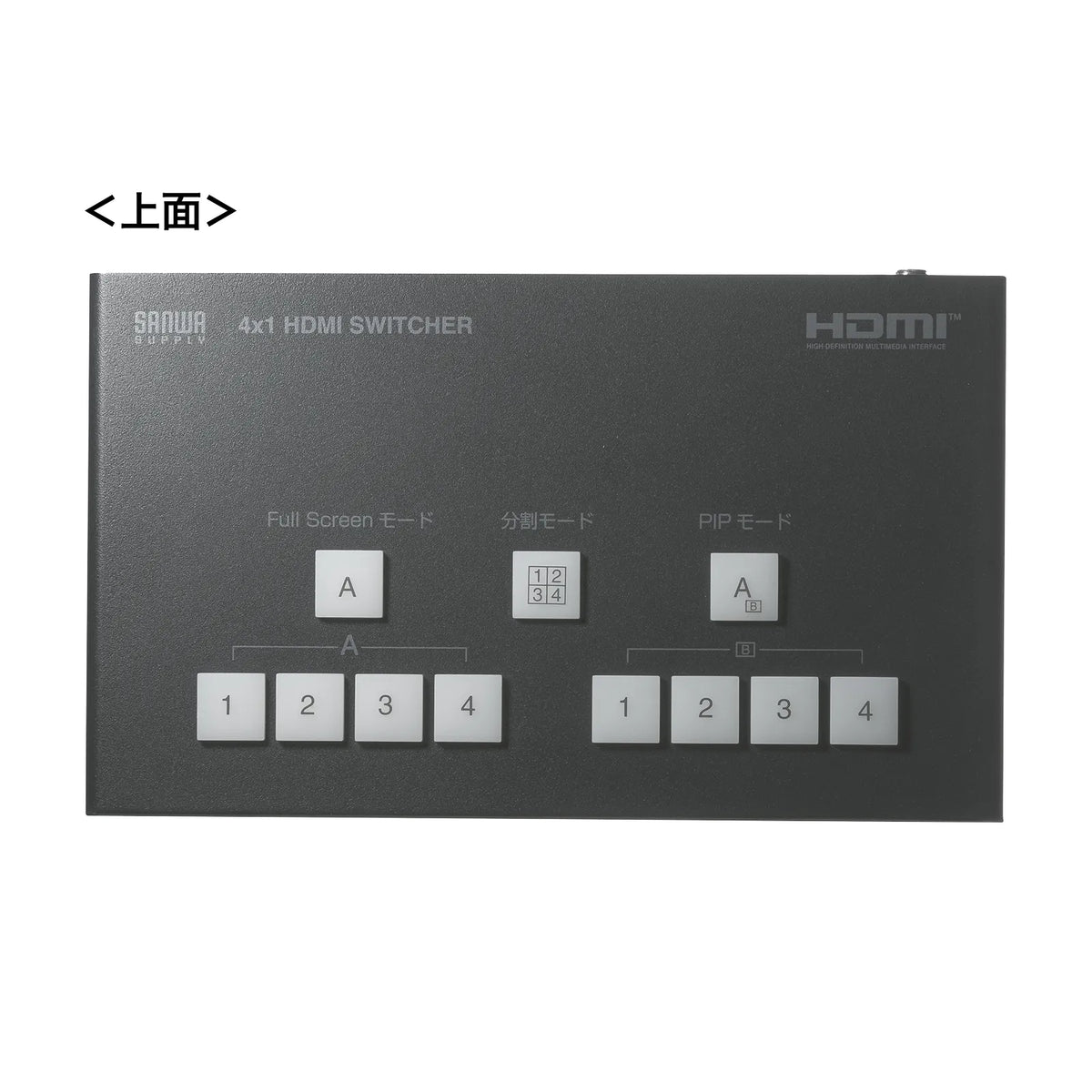

●Equipped with a multi-viewer function (split-screen display) that allows you to output to four screens simultaneously on one display.
●Supports PIP (Picture-in-Picture), allowing sub-screens to be displayed at all times in the four corners of the screen. Switching between the main screen and sub-screens is also easy.
●Supports 4K/30Hz, allowing you to output beautiful, high-definition HDMI signals.
●Equipped with a seamless switching function that displays the image after switching within 1 second. There is no time lag before the image is displayed, allowing for comfortable switching and display.
●Equipped with a 3.5mm microphone input, allowing you to input audio using a PC microphone, etc.
*The microphone input only supports microphones with a 3.5mm 3-pole plug.
●Equipped with a 3.5mm analog audio output, allowing you to check the input audio with earphones or headphones.
●All HDMI terminals are gold-plated. This makes them resistant to rust and prevents signal degradation.
＜System Requirements＞
・CPU/Intel® Core i5 Gen 4, 3GHz or higher
Intel® Core i7 Gen 4 or higher
・RAM/4GB RAM or higher (8GB or higher recommended)
*When recording using video capture software or using live streaming software, it may not function properly if the above operating environment is not met.

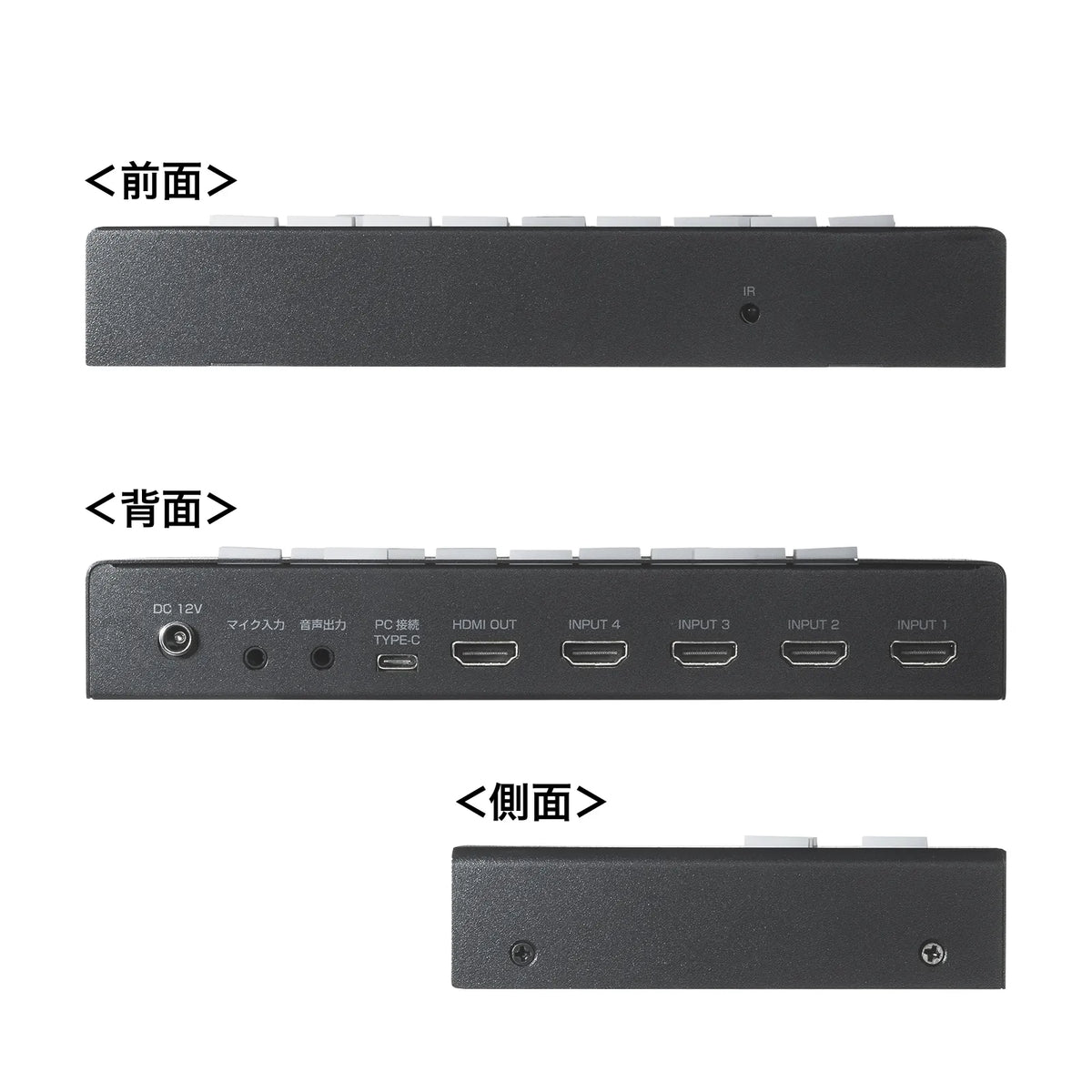

■Interface: Input/HDMI Type A (19PIN) female x4
Output/HDMI Type A (19PIN) female x1
Capture/USB 5Gbps Type-C female x1
Audio input/3.5mm microphone jack x1
Audio output/3.5mm stereo mini jack x1
■Switching content: HDMI input 4/HDMI output 1

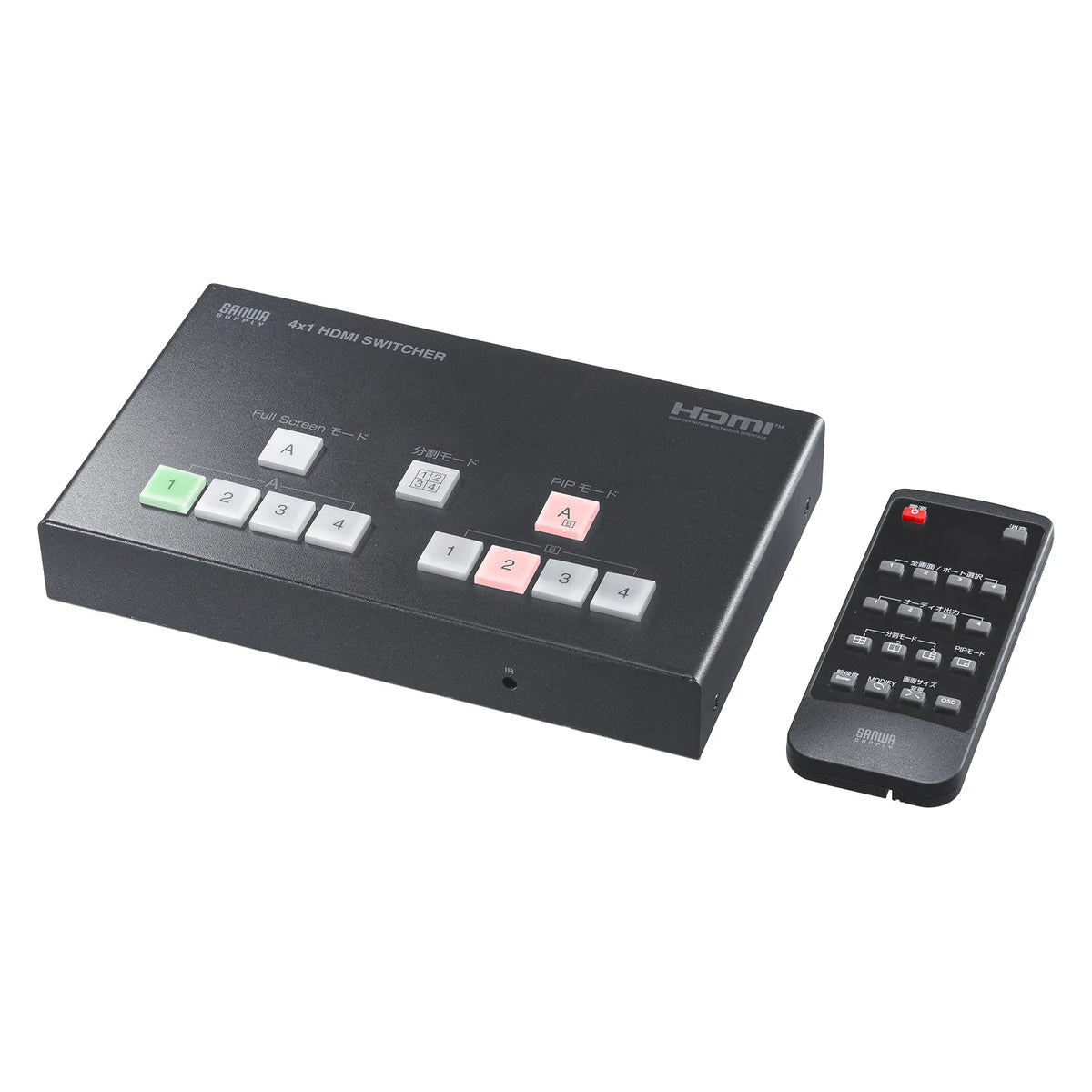

■Switching method: Switching button on the unit, remote control
■Maximum resolution: 4K/30Hz
■Supported input resolutions: 3840x2160 (30Hz)
1920x1080p (30/50/60Hz)
1920x1080i (50/60Hz)
1280x720p (50/60Hz)
720x576p (50Hz) z)
720x480p (60Hz)
720x576i (50Hz)
720x480i (60Hz)
800x600 (60Hz)
■Supported output resolutions: 3840x2160 (30Hz)
2560x1440 (60Hz)
1920x1080 (60Hz)
■Supported audio formats: HDMI input/output/LPCM2ch (32KHz, 44.1KHz, 48KHz)
Analog output/LPCM2ch (44.1KHz, 48KHz)
■HDMI standard: HDMI Ver.1.4
■Data Rate: Maximum 9Gbps
■CEC (Connected Electronic Control): Not supported
■Pixel Clock: Maximum/300MHz
■HDCP: HDCP1.4

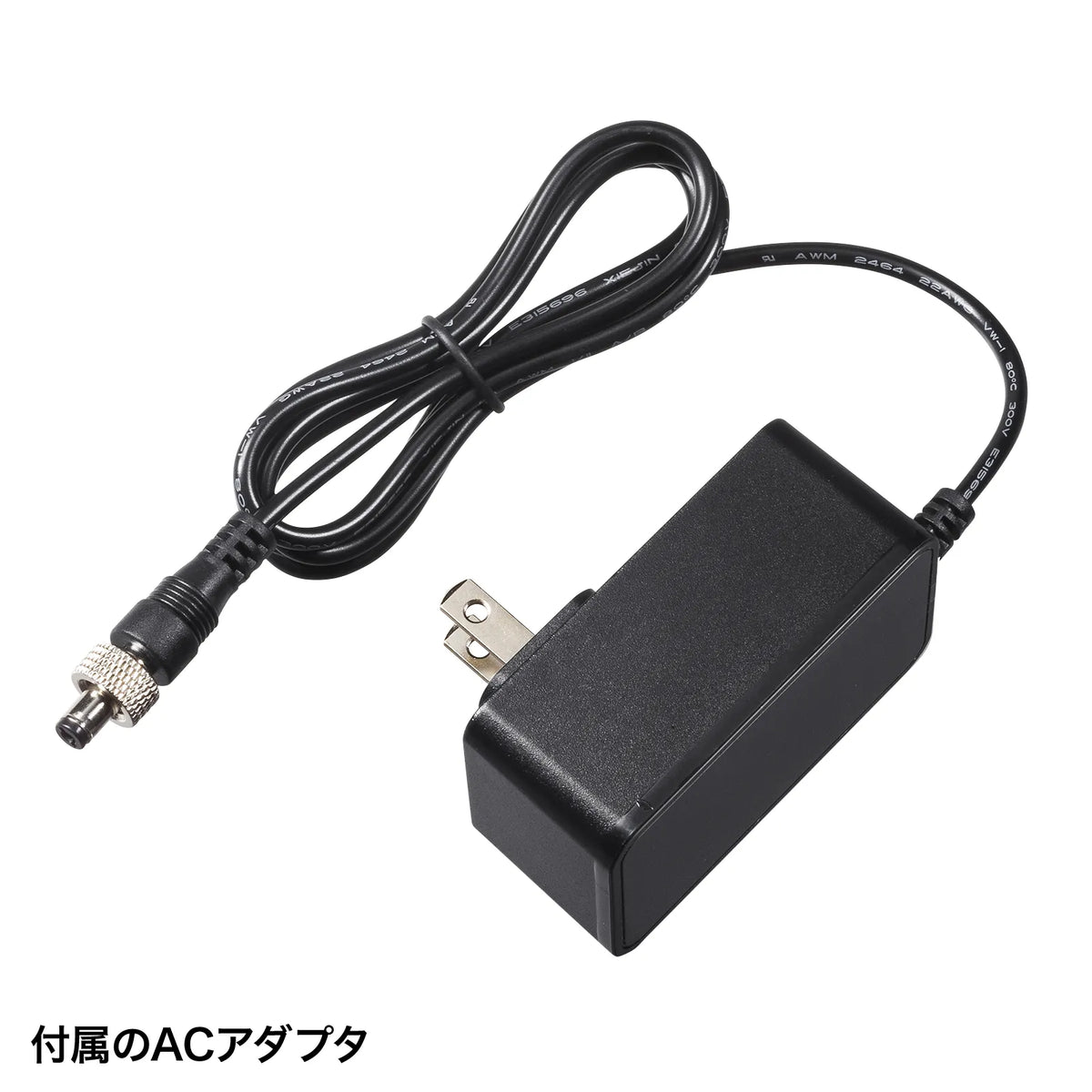

■Power Supply: AC adapter (DC12V 2A)
■Power Consumption: Maximum/12W
■Environmental Conditions: Operating/Temperature 0 to 40 degrees, Humidity 20 to 90% or less (non-condensing)
Storage/Temperature -20 to 60 degrees, Humidity 20 to 90% or less (non-condensing)
■Signal Classification: HDMI
■Number of Circuits: 4x1
■Dimensions: W210xD124xH32mm
■Weight: Approx. 640g
■Encoding Method: Software encoding
■Video Capture Method: USB 5Gbps/YUY2, USB2.0/MJPEG
■Frame rate: Supports 60fps or less

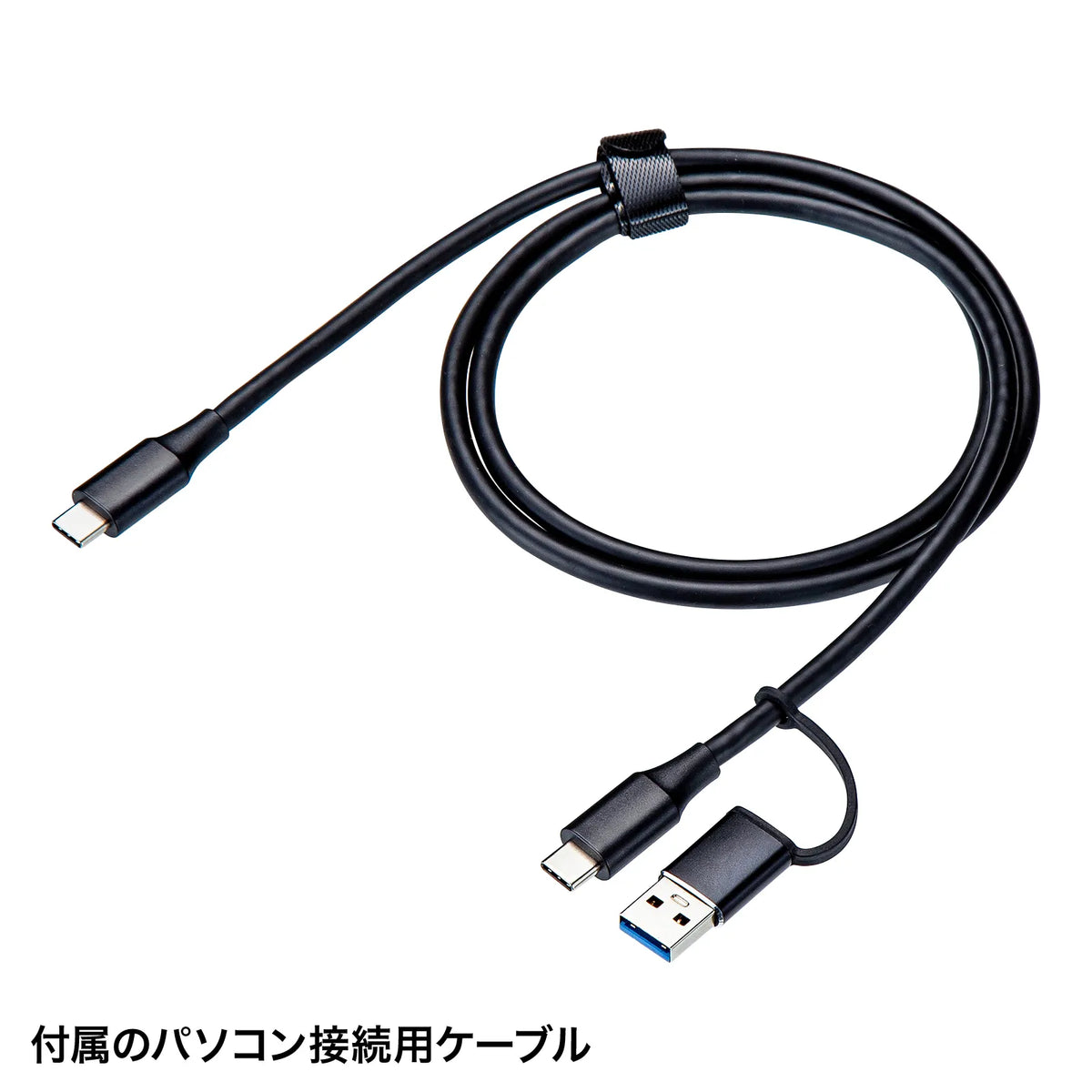

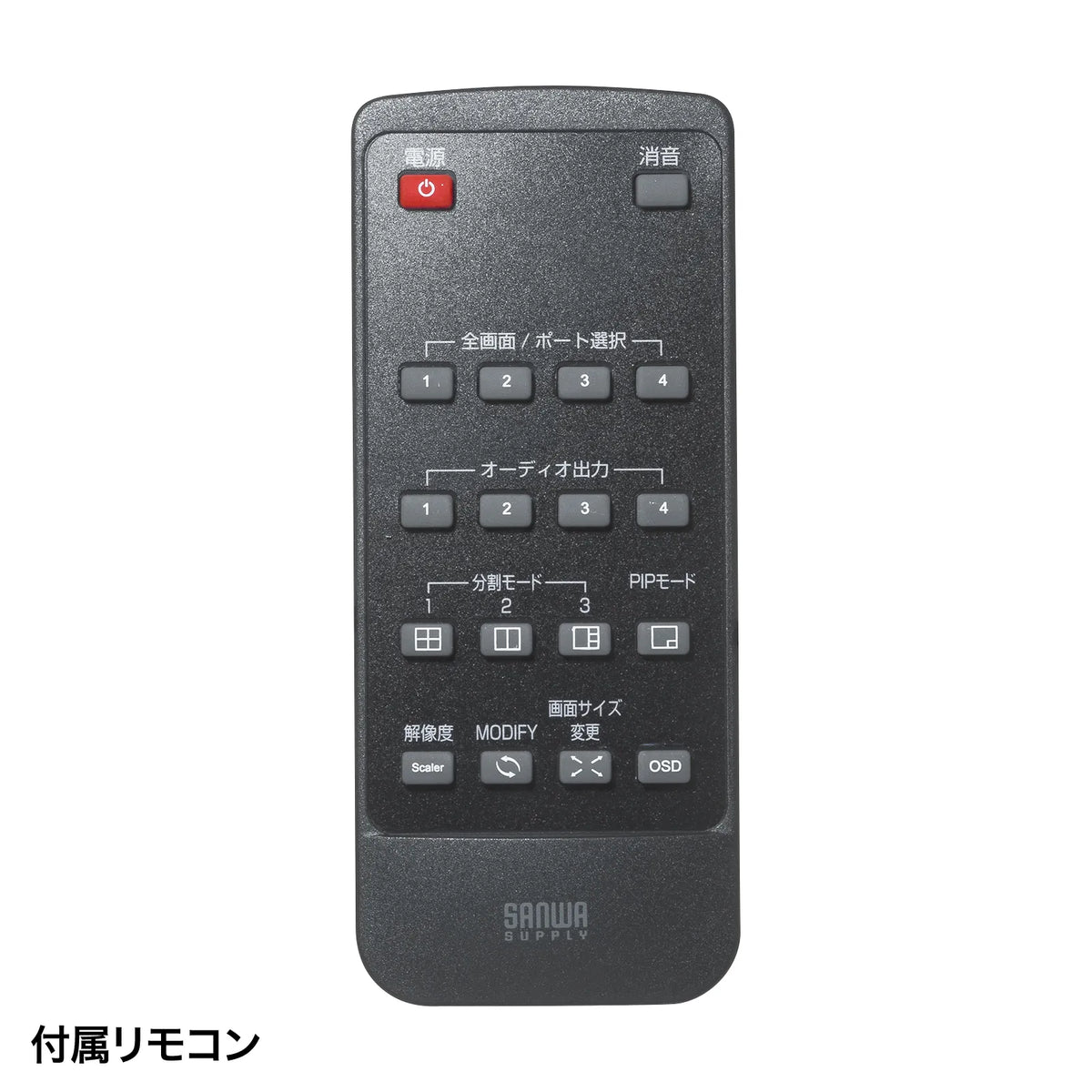

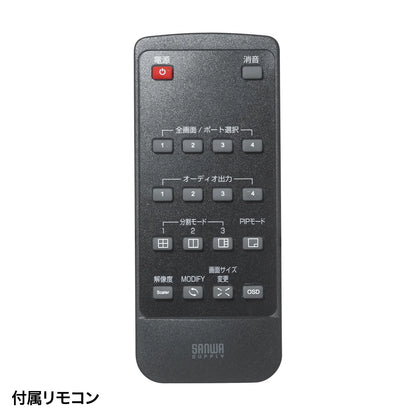

■Set contents: Main unit, AC adapter (DC12V 2A) x1, PC connection cable (1m) x1, remote control (battery included/CR2025), instruction manual
