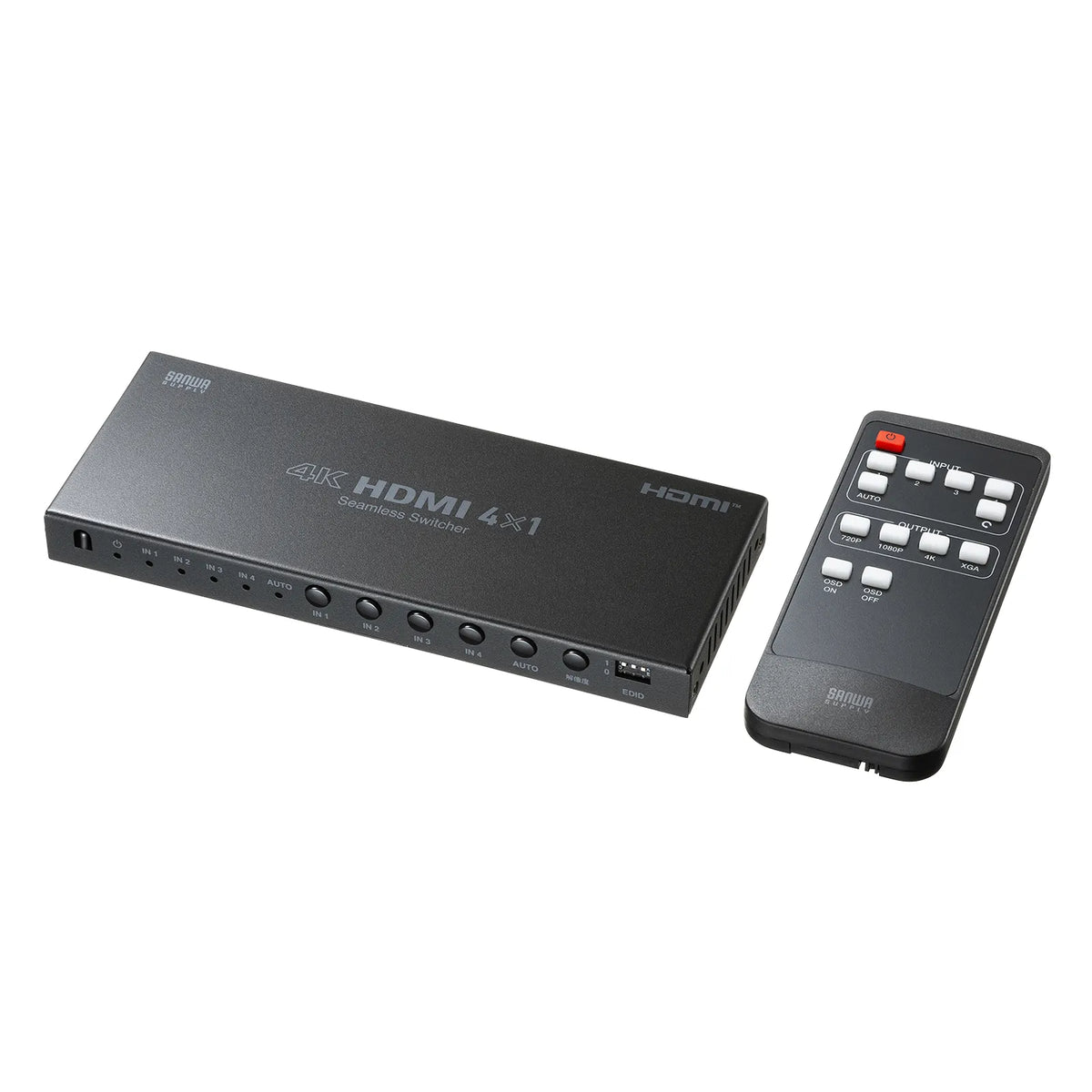

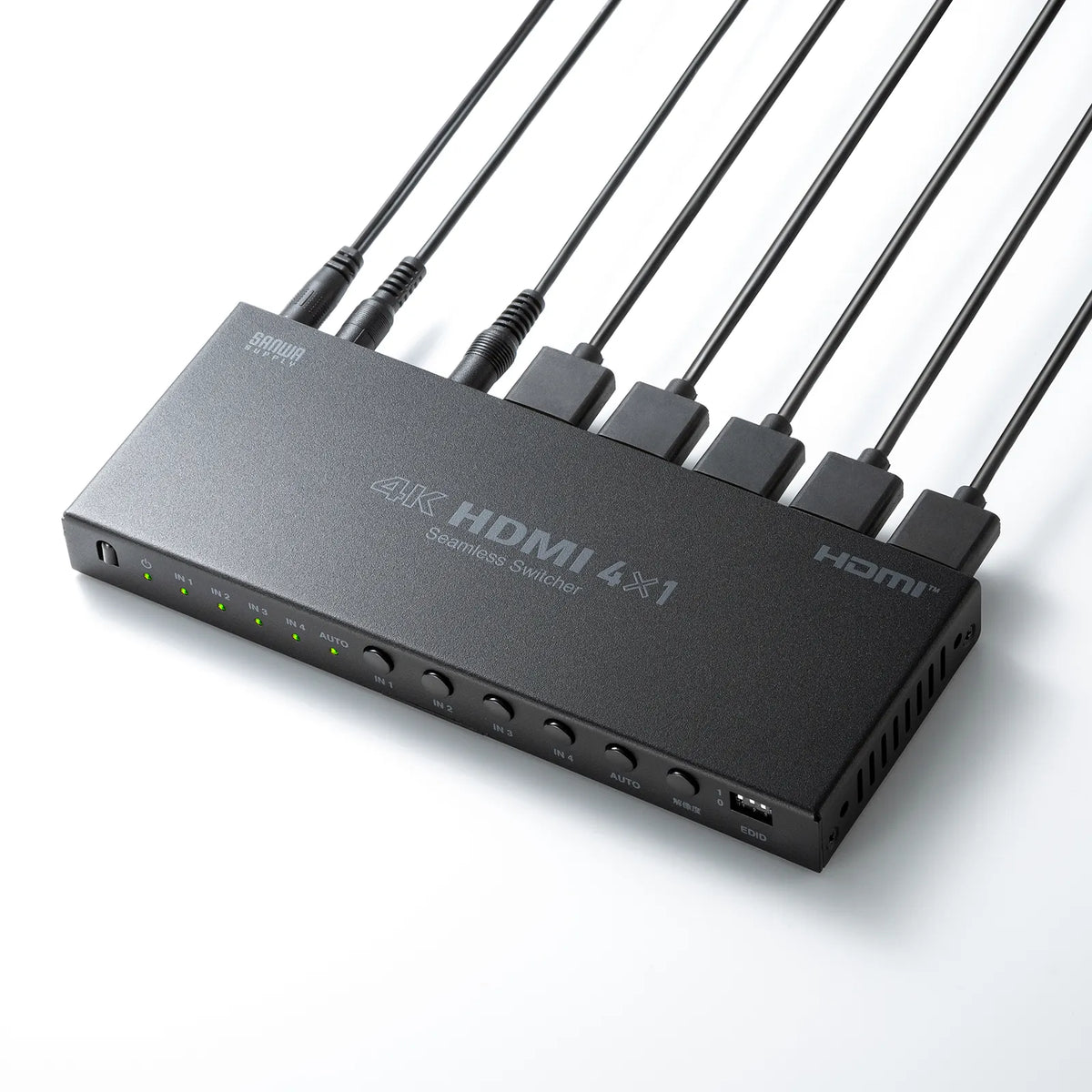

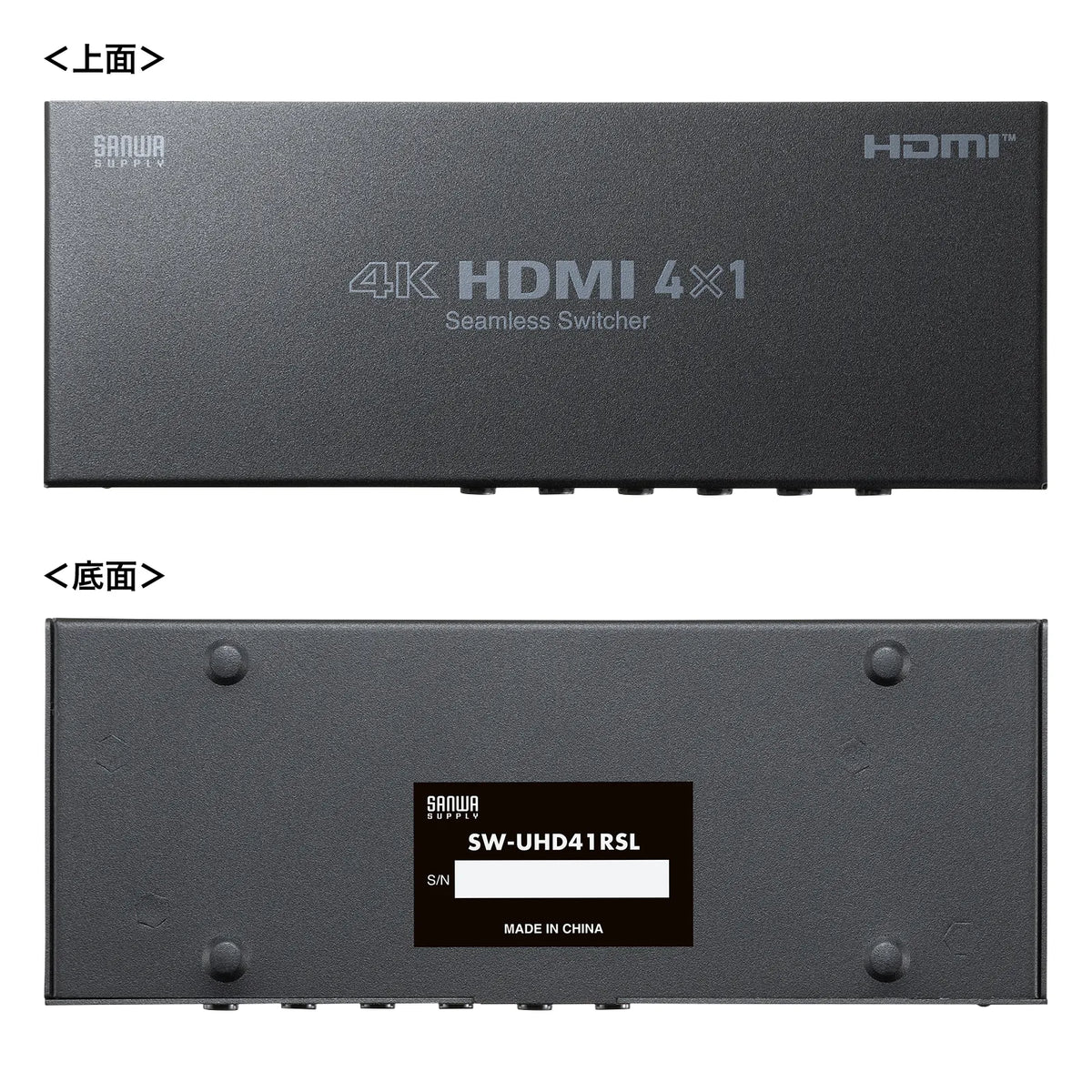

4-input 1-output HDMI switch (4K compatible/seamless switching/with remote control) SW-UHD41RSL

[Seamless switching for high-speed video display in under 1 second! 4K compatible 4-port HDMI switcher with easy remote control switching.]

●This HDMI switcher allows you to easily switch and output video and audio from four HDMI devices to one 4K display or 4K projector.

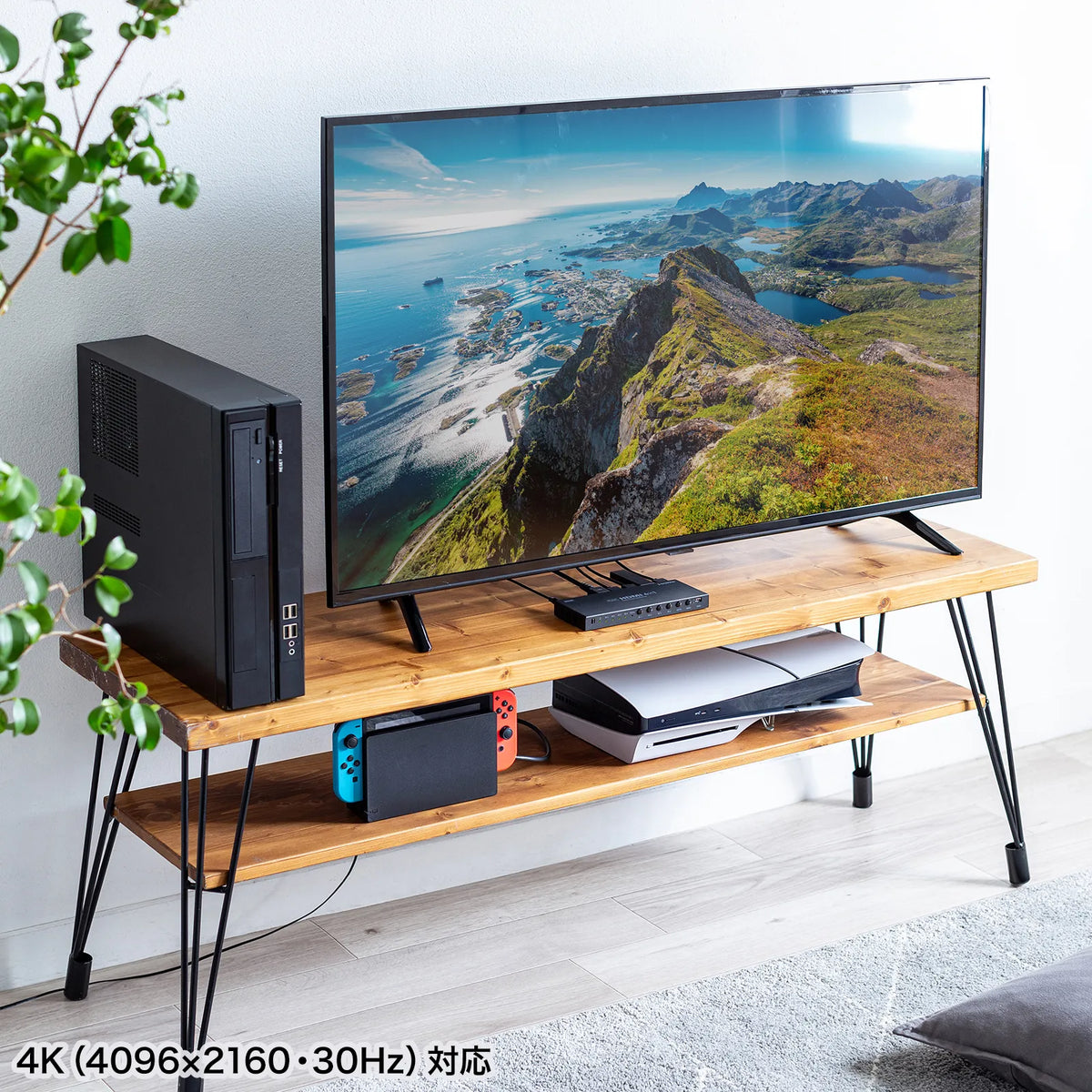

●Supports 4K resolution, allowing you to output beautiful, high-definition HDMI signals for movies, games, etc.
●Equipped with a seamless switching function that allows video display in under 1 second after switching. There is no time lag before the video is displayed, allowing for comfortable switching and display.
●When switching during meetings or presentations with multiple members, you can quickly display the video, enabling stress-free operation and increasing productivity.
●Equipped with an auto-scan switching function that automatically switches between four HDMI devices sequentially at 5-second intervals. You can display smoothly without manual operation.

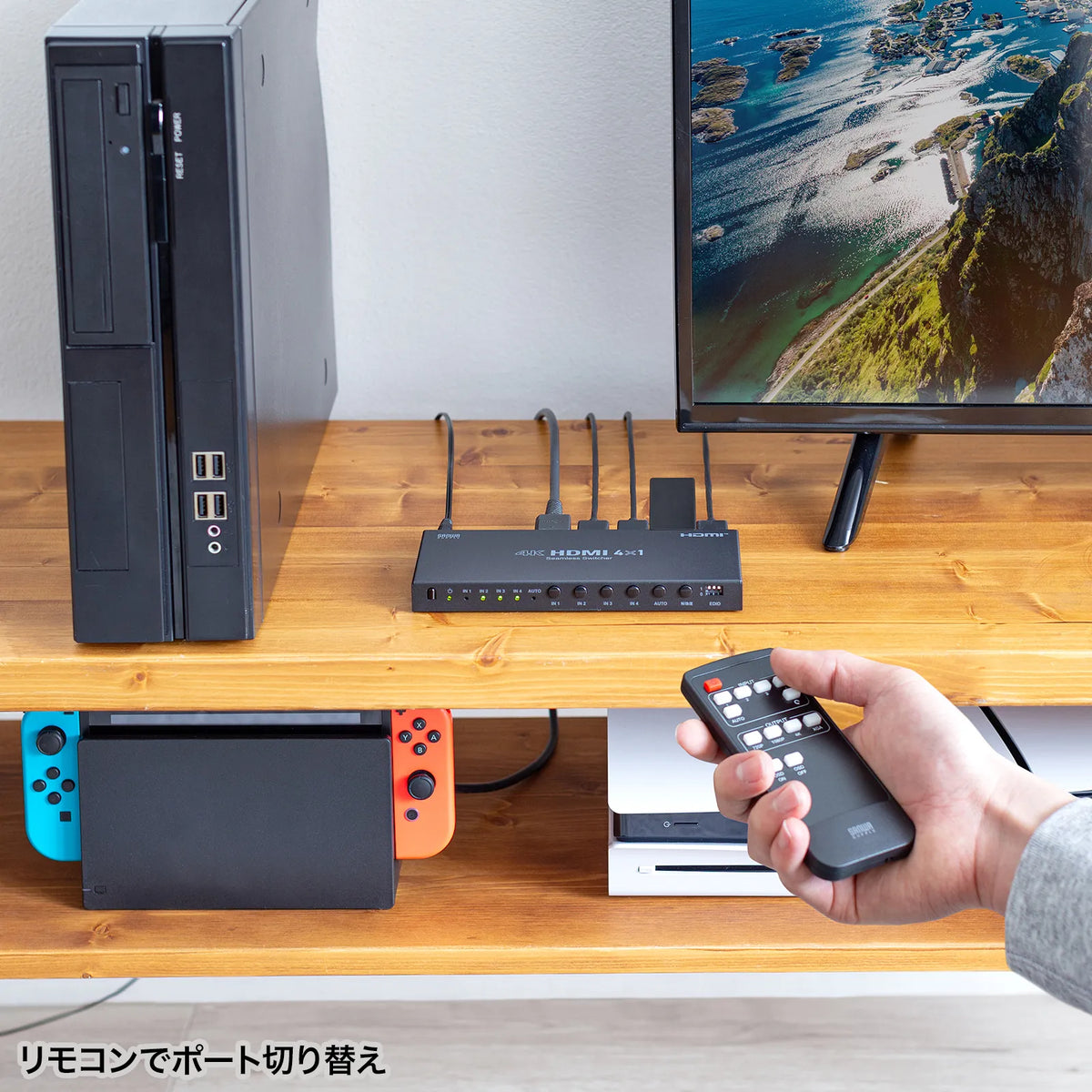

●Ports can be easily switched from your hand using the remote control. Provides comfortable operation.
●Equipped with upscaler and downscaler functions that can output according to the resolution of the video device being displayed.
●Equipped with an audio separation function that separates audio from the HDMI signal and converts it to an analog audio signal for output. It can output HDMI video and audio as is, while simultaneously outputting analog audio.
●All HDMI terminals are gold-plated. They are resistant to rust and prevent signal degradation.
●Also compatible with Nintendo Switch™, PlayStation® 4 Pro, and PlayStation® 5. (Supported resolution up to 4K/30Hz)

【Caution】
*Operation is not guaranteed with all HDMI devices.
*"PlayStation", "PLAYSTATION", "PlayStation", "PS5", and "PS4" are registered trademarks of Sony Computer Entertainment Inc.
*Nintendo Switch is a trademark or registered trademark of Nintendo.

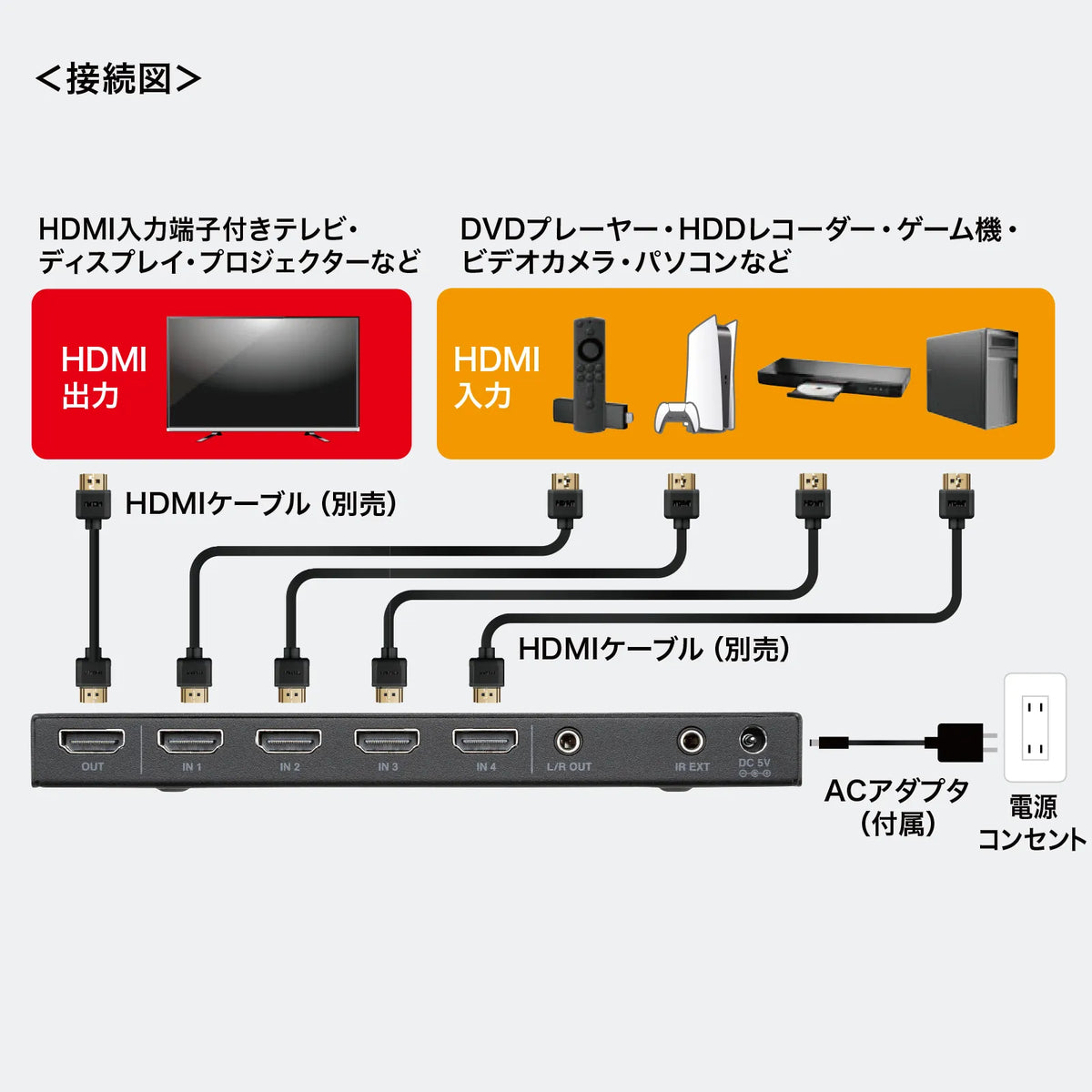

■Compatible devices: Video equipment, home game consoles, and PCs equipped with standard HDMI output terminals
■Compatible output devices: TVs, PC displays, projectors, etc. equipped with standard HDMI input terminals
*While EIZO monitors generally work, operation is not guaranteed. Prior testing is recommended.
*Please ensure that the display you are using supports the supported output resolution.

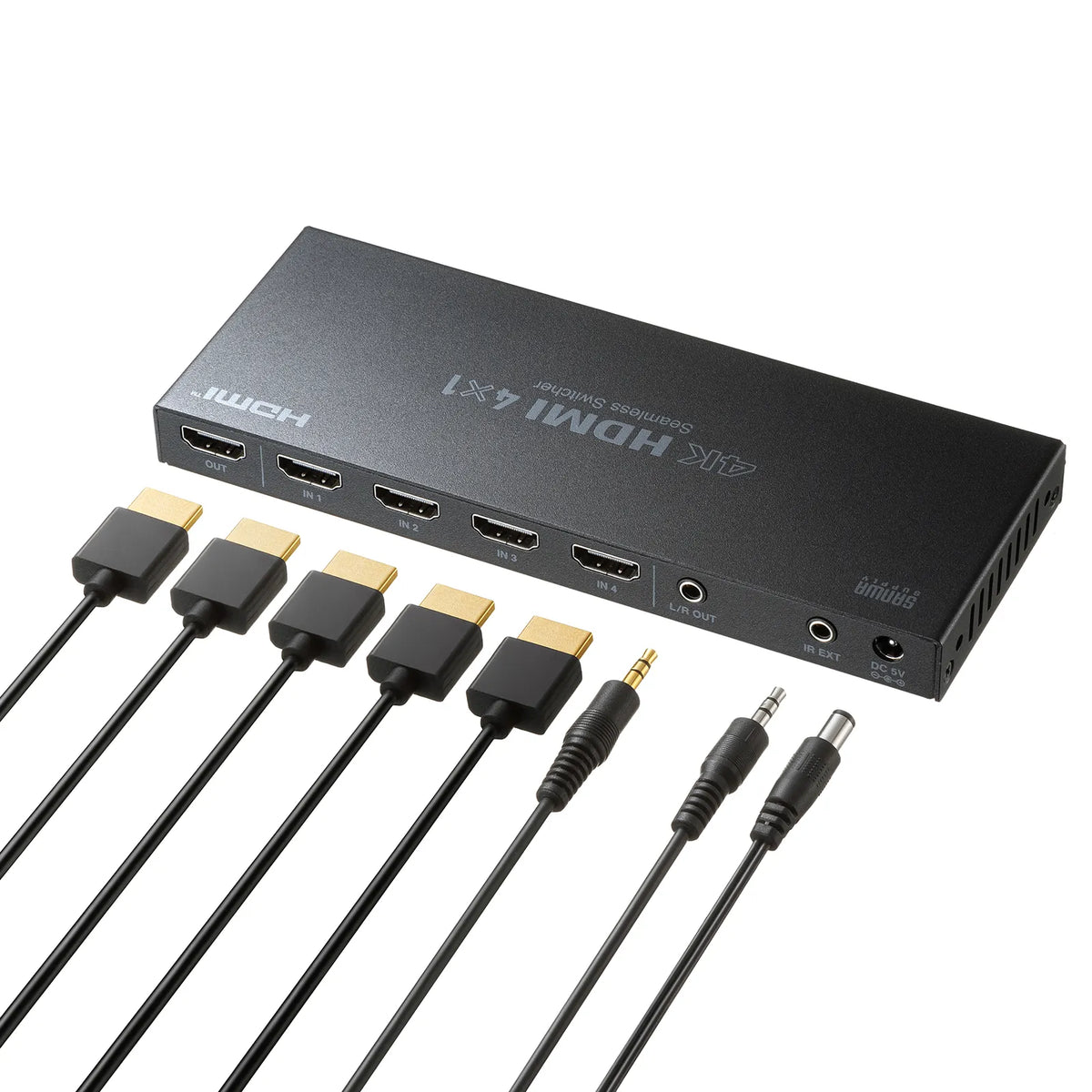

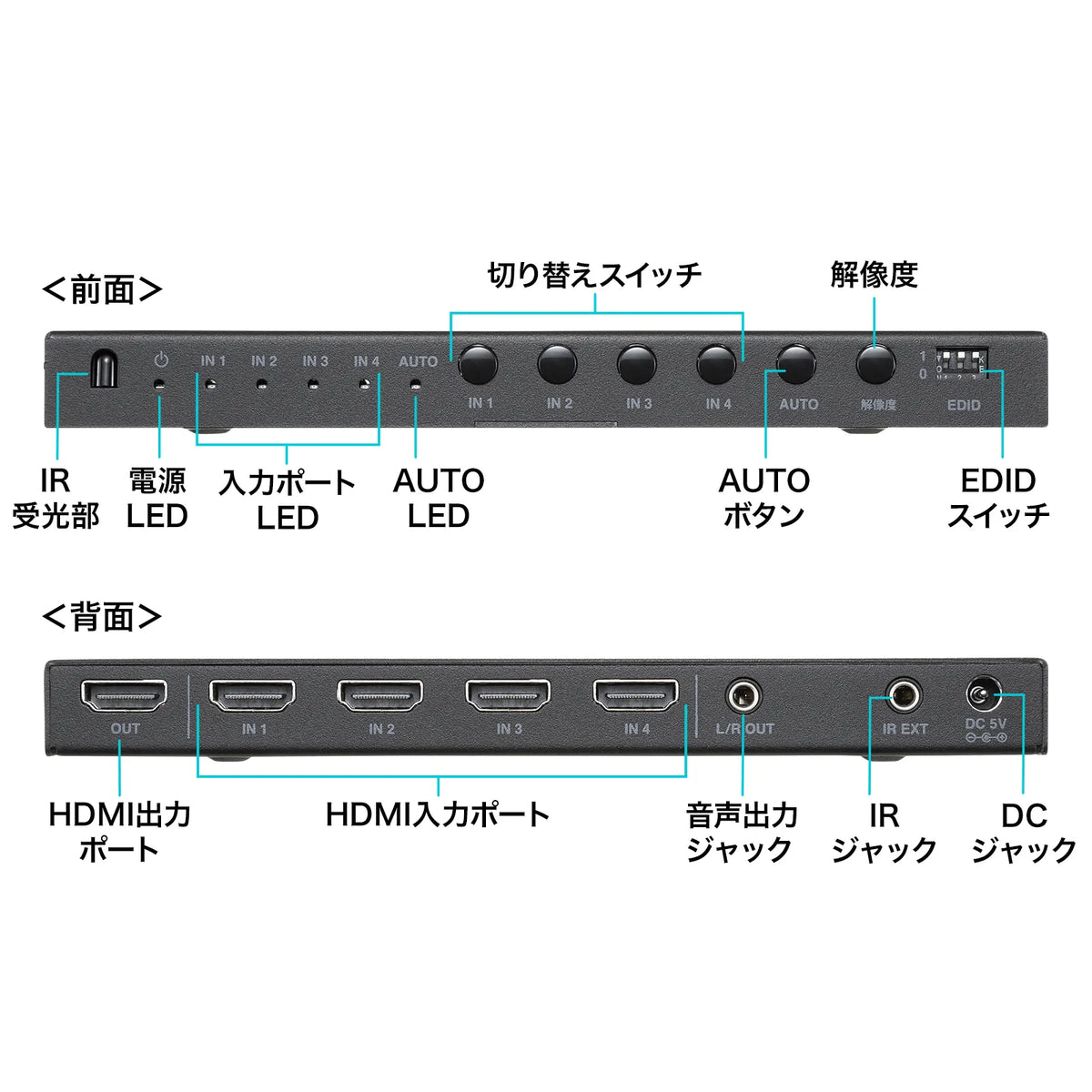

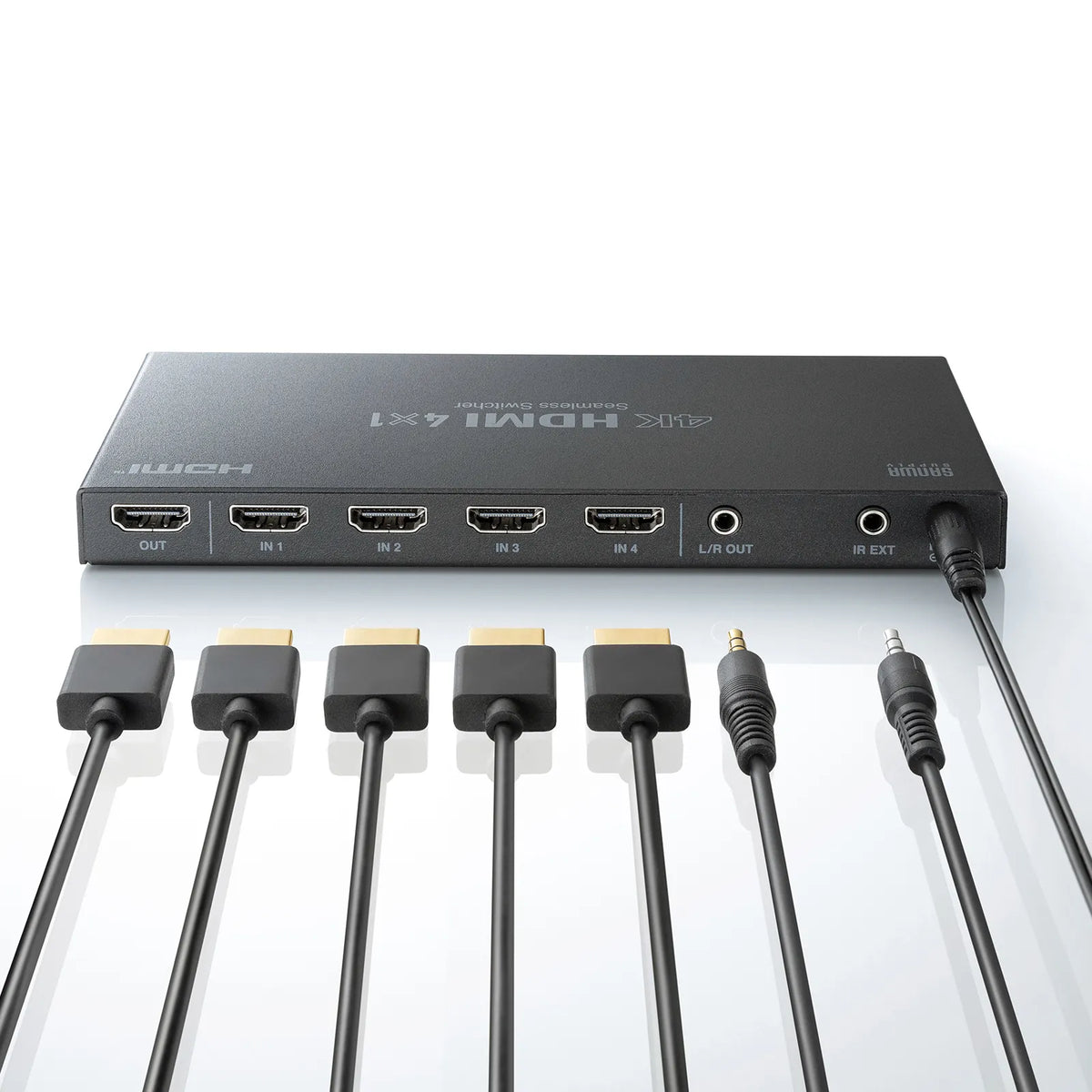

■Interface: Input: HDMI Type A (19PIN) Female x4
Output: HDMI Type A (19-pin) female x1
Audio output: 3.5mm stereo mini jack x1
For infrared remote control: IR jack x1
■Switching contents: HDMI input 4, HDMI output 1

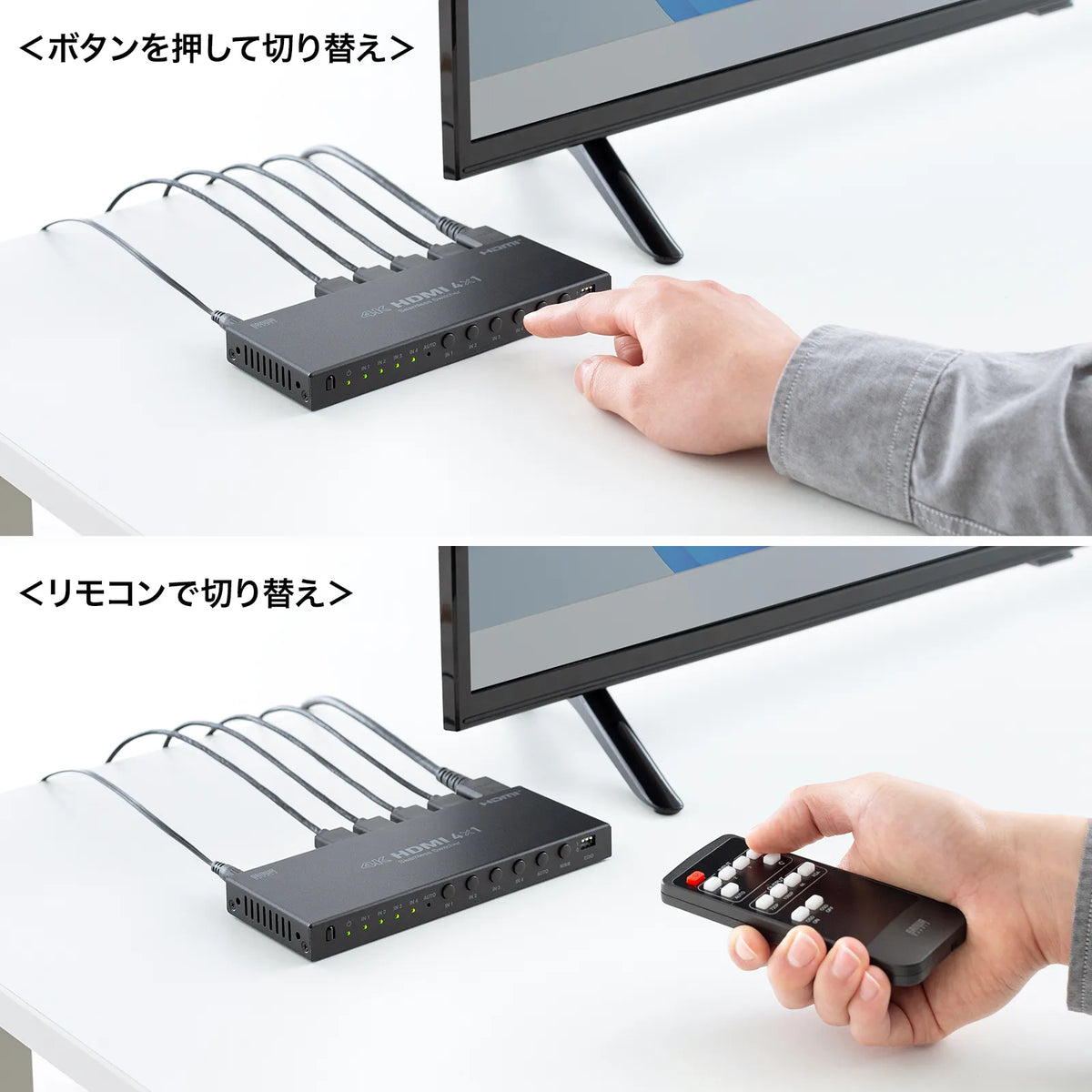

■Switching method: Switching button on the unit, remote control
■Supported input resolutions: 4096x2160 (30Hz)
3840x2160 (30Hz)
1920x1200 (60Hz)
1920x1080 (60Hz)
1600x1200 (60Hz)
1440x1050 (60Hz)
1280x1024 (60Hz)
1360x768 (60Hz)
1280x720 (60Hz)
1024x768 (60Hz)
*Other resolutions cannot be input.
■Supported output resolutions: 3840x2160 (30Hz)
1920x1080p (60Hz)
1280x720 (60Hz)
1024x768 (60Hz)
*Output to resolutions other than those listed above is not possible. Please check that your display supports the supported resolutions.
■Supported audio formats: HDMI input and output
Dolby Digital 2/5.1ch, Dolby Digital Plus2/5.1/7.1ch, Dolby TrueHD 2/5.1/7.1ch, DTS5.1ch, LPCM2/5.1/7.1ch
Analog output: LPCM2ch (24bit/48kHz)
■HDMI standard: HDMI Ver1.4b
■HDCP: HDCP1.4
■CEC (Customer Electronic Control): Not supported
■Data rate: 10.2Gbps
(Maximum)
■Pixel clock (Maximum): 297MHz
■Power supply: AC adapter
(5V 1A)
■Power consumption (Maximum): Approx. 2.5
■Operating temperature: 0 to 40 degrees
■Operating humidity: 20 to 90% or less
*No condensation
■Storage temperature: -20 to 60 degrees
■Storage humidity: 20 to 90% or less
*No condensation
■Set contents: Switcher (main unit) x1, instruction manual, AC adapter (5V 1A), remote control (battery included: CR2025),
Wall mount kit x1 set, IR receiver cable x1
■Number of circuits: 4x1
■Signal classification: HDMI
