SANWA SUPPLY

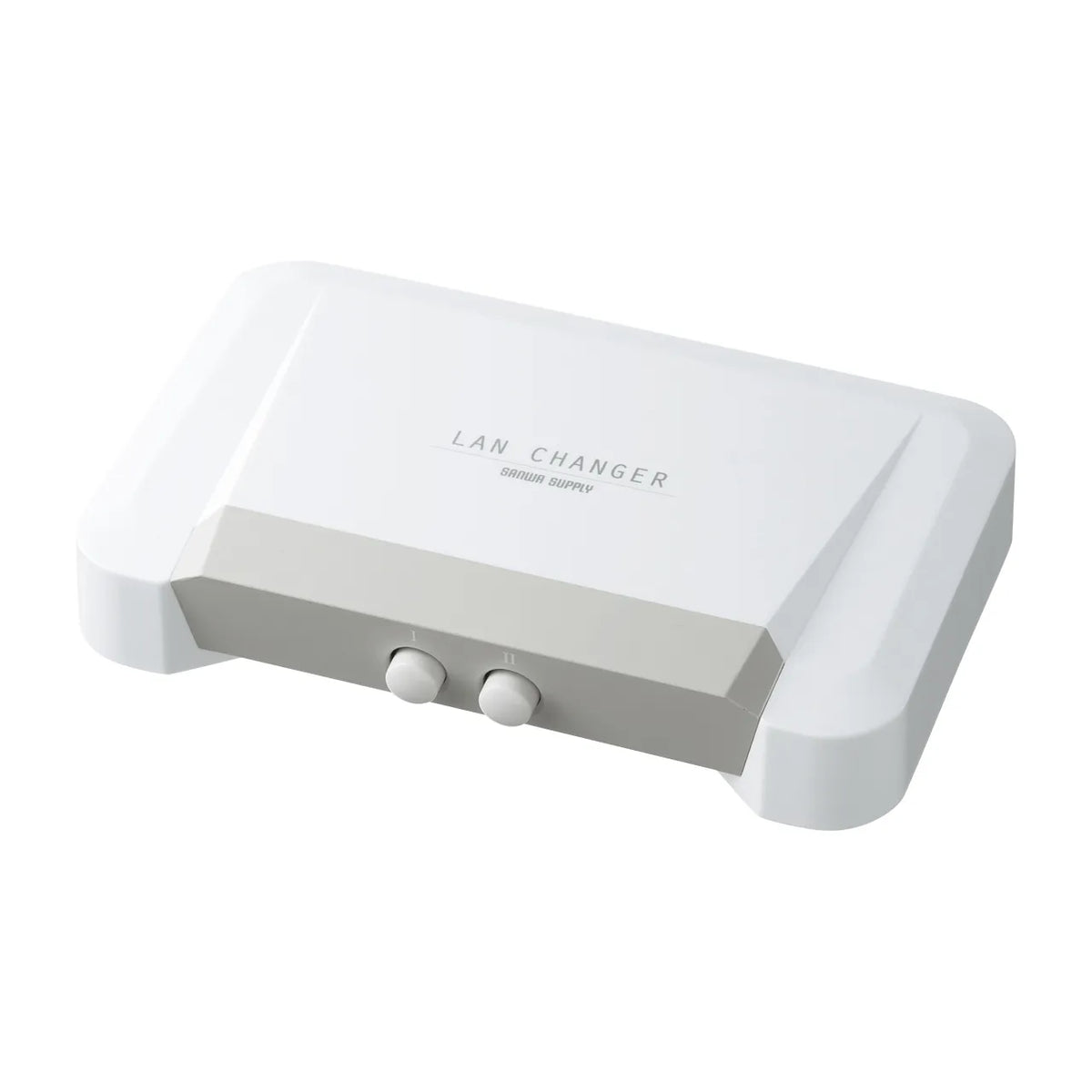

LAN Switch (2 circuits) SW-LAN21
LAN Switch (2 circuits) SW-LAN21
GTIN（JAN）：4969887565032
SKU：SW-LAN21
Regular price
¥3,485 JPY
Regular price
Sale price
¥3,485 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[A LAN switch that physically switches LAN lines with straight-through full connection and full circuit switching. Can also be used as a simple firewall.]
●This LAN switch physically switches all 8 pins and 8 cores of a LAN line with full connection and full circuit switching.
●When switching, it is as if only the LAN cable and the LAN cable are extended with a relay adapter, so compatibility issues hardly occur.
●There is no need to manually plug and unplug LAN cables, and switching is done with a single switch.
●Since no LAN signals are connected to the unconnected port, it can also be used as a simple firewall. (IP address setting is required)

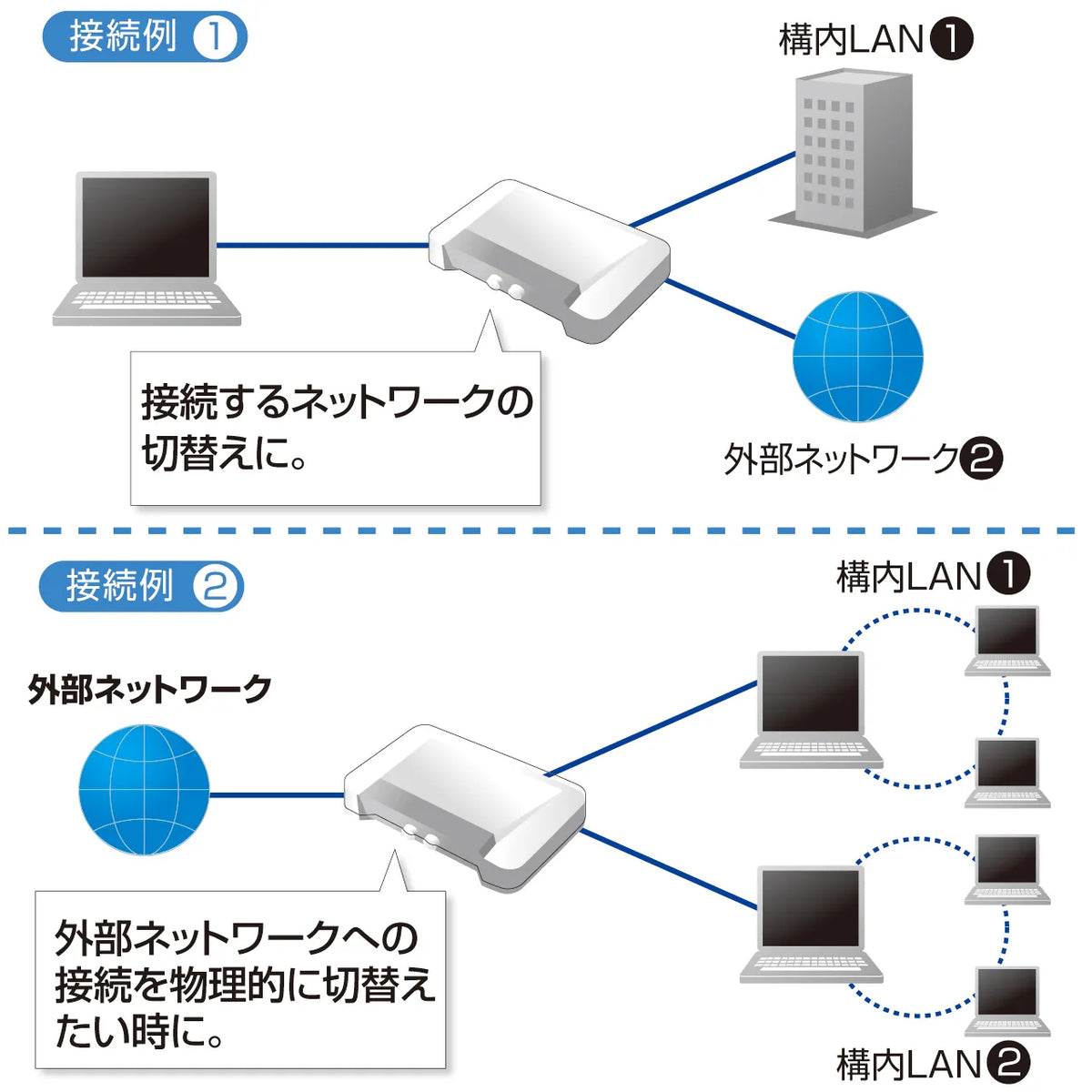

●Convenient for physically switching between external and internal networks, or for environments where you only connect to the network when necessary.
＜Caution＞
※Although this product has been confirmed to work in 10BASE-T/100BASE-TX/1000BASE-T environments, it is not a product conforming to the LAN standard (TIA/EIA-568).
※Because the switch is inserted in the middle of the LAN cable, the results of the cable test may not be satisfactory.
*Please note that using this product may cause a decrease in circuit speed, but we cannot guarantee or address any speed issues with this product.

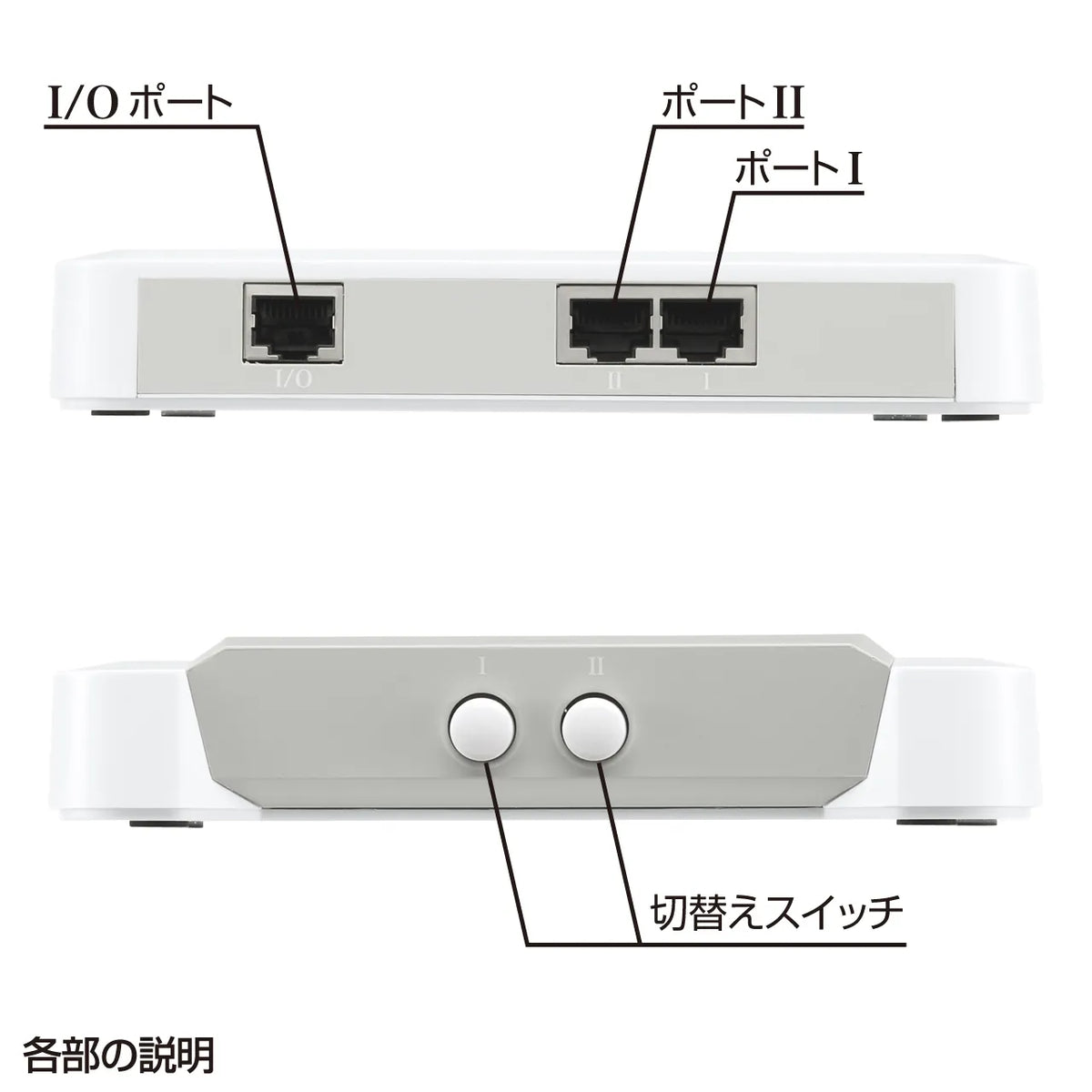

■Interface: RJ-45 female x3
■Transmission speed (theoretical value): 1000BASE-T, 100BASE-TX, 10BASE-T
*Transmission speed is not guaranteed
■Switching: 2:1 or 1:2
■Operating temperature: 0 to 60 degrees Celsius
■Storage temperature: -20 to 60 degrees Celsius
■Operating humidity: 0 to 95% (non-condensing)
■Material: ABS resin
■Size: W155 x D98 x H29.5 mm
■Weight: Approx. 160g
●This LAN switch physically switches all 8 pins and 8 cores of a LAN line with full connection and full circuit switching.
●When switching, it is as if only the LAN cable and the LAN cable are extended with a relay adapter, so compatibility issues hardly occur.
●There is no need to manually plug and unplug LAN cables, and switching is done with a single switch.
●Since no LAN signals are connected to the unconnected port, it can also be used as a simple firewall. (IP address setting is required)
●Convenient for physically switching between external and internal networks, or for environments where you only connect to the network when necessary.
＜Caution＞
※Although this product has been confirmed to work in 10BASE-T/100BASE-TX/1000BASE-T environments, it is not a product conforming to the LAN standard (TIA/EIA-568).
※Because the switch is inserted in the middle of the LAN cable, the results of the cable test may not be satisfactory.
*Please note that using this product may cause a decrease in circuit speed, but we cannot guarantee or address any speed issues with this product.
■Interface: RJ-45 female x3
■Transmission speed (theoretical value): 1000BASE-T, 100BASE-TX, 10BASE-T
*Transmission speed is not guaranteed
■Switching: 2:1 or 1:2
■Operating temperature: 0 to 60 degrees Celsius
■Storage temperature: -20 to 60 degrees Celsius
■Operating humidity: 0 to 95% (non-condensing)
■Material: ABS resin
■Size: W155 x D98 x H29.5 mm
■Weight: Approx. 160g
