USB/VGA compatible slide LCD console drawer SW-KVMVDR

[An LCD drawer with integrated monitor and keyboard with touchpad that can be stored in a server rack. Compatible with KVM switches, allowing for efficient operation by switching between multiple servers.]

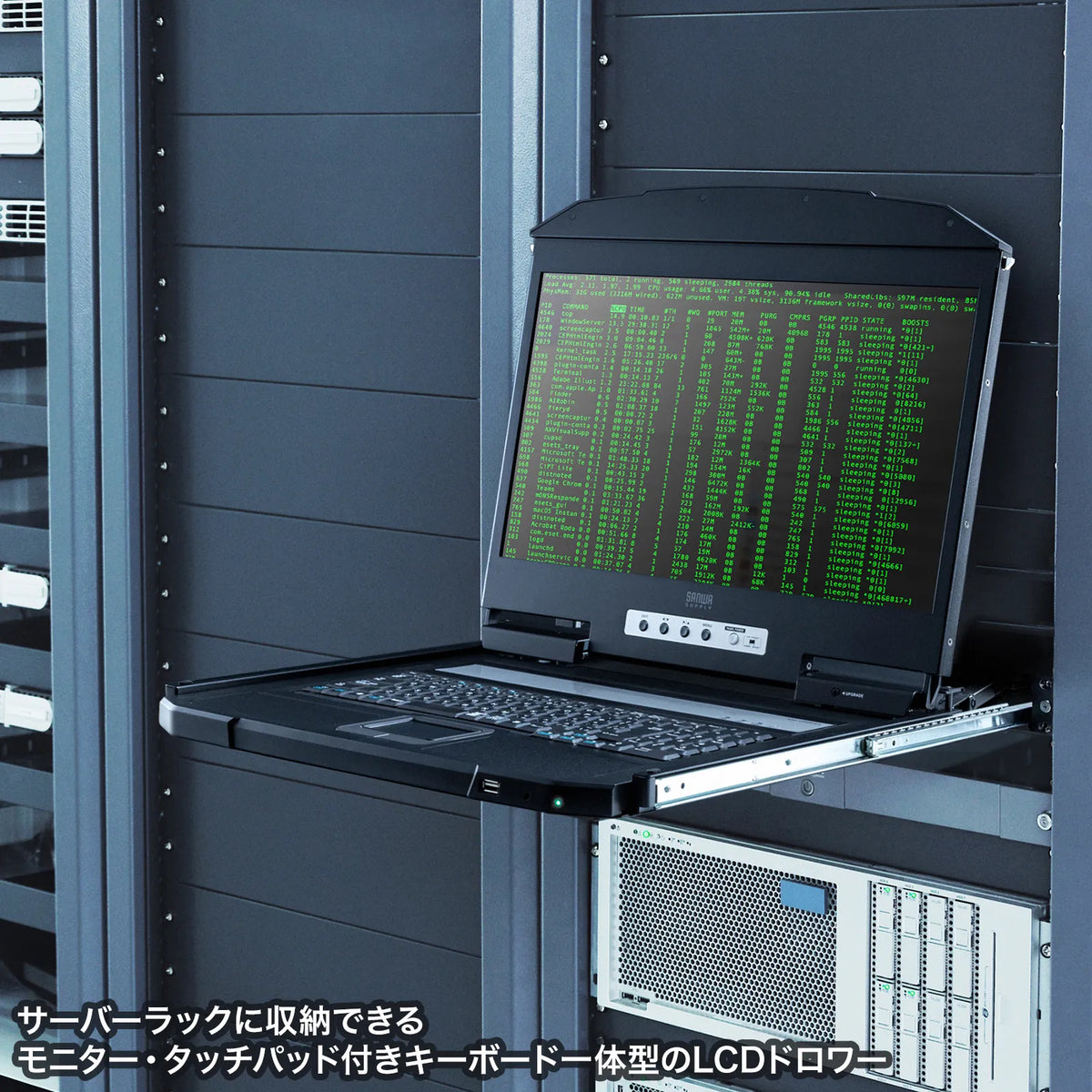

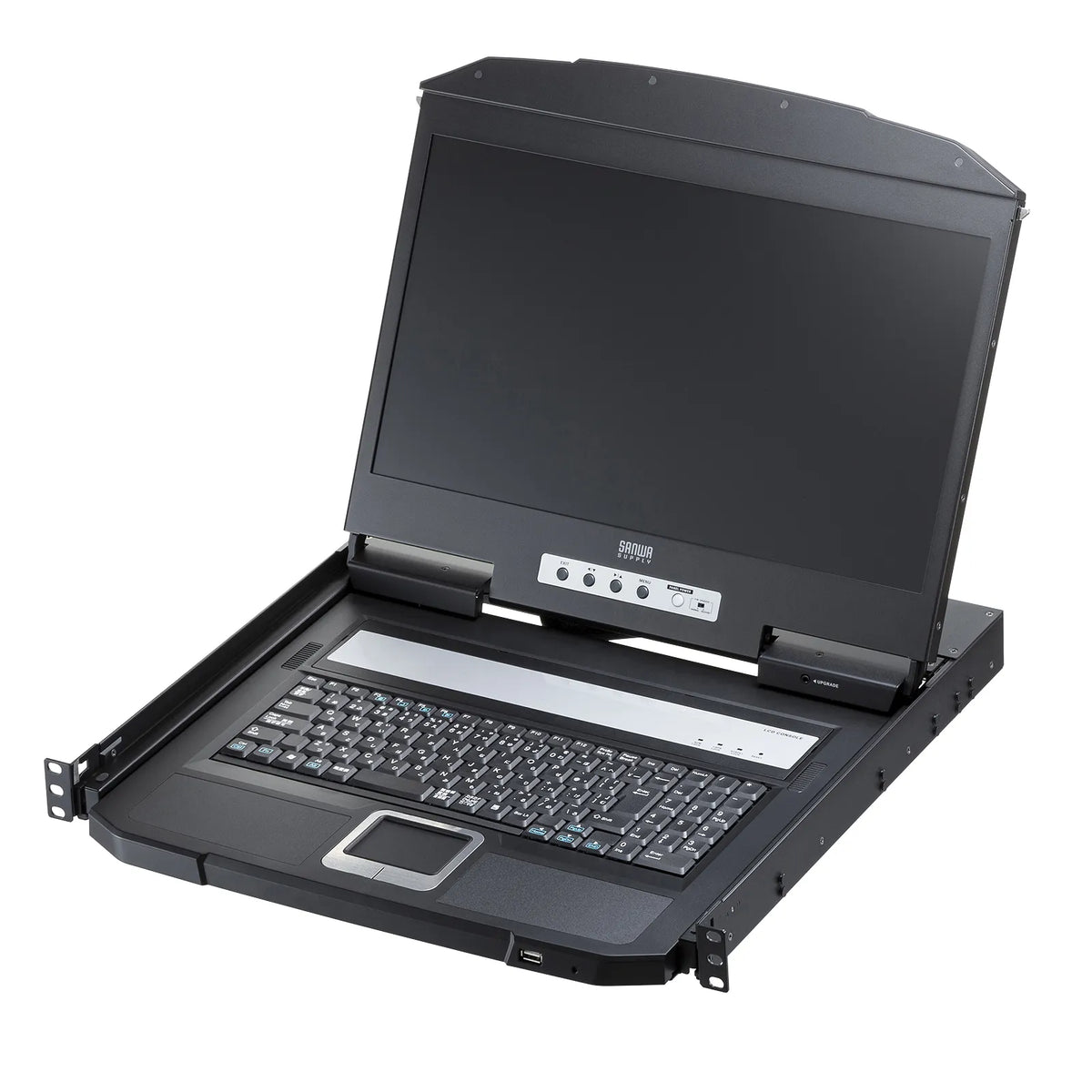

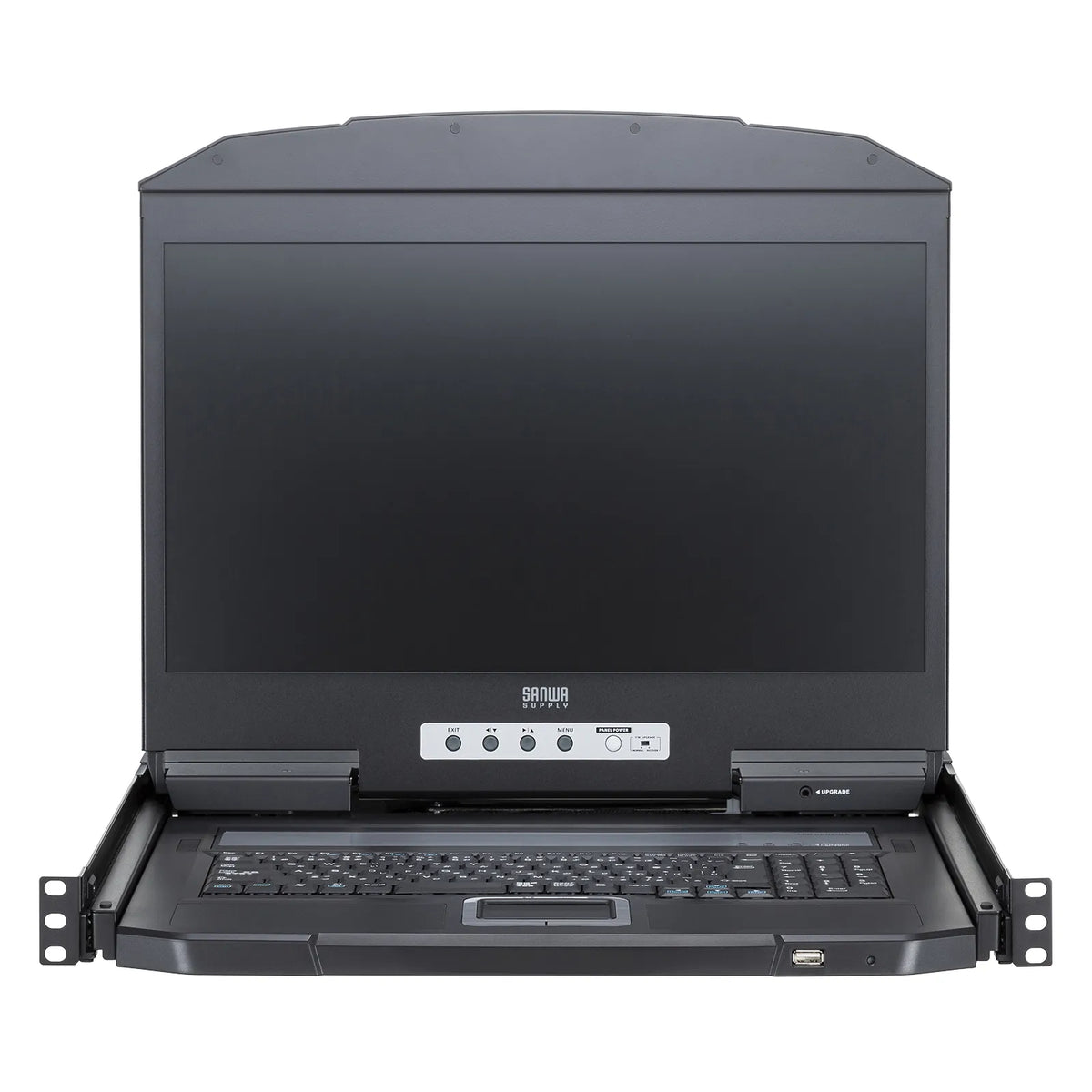

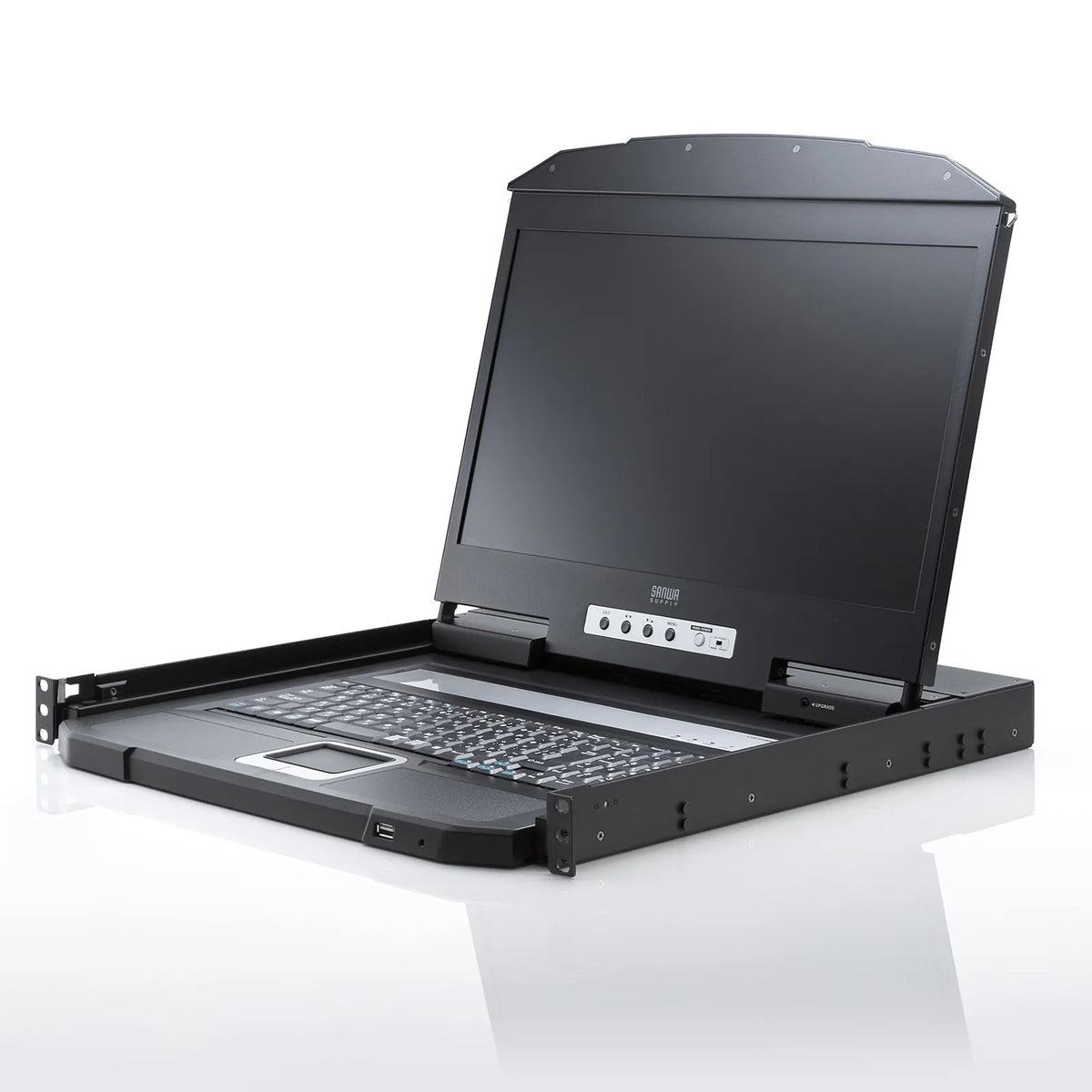

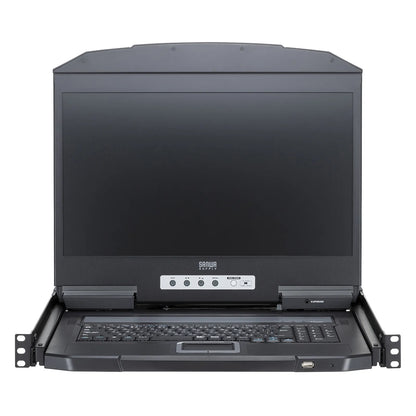

●This LCD console drawer integrates an 18.5-inch widescreen LCD monitor and a keyboard with touchpad, and can be stored in a server rack.
●The monitor supports input up to 1920x1200/60Hz and displays the image scaled to 1366x768 pixels.

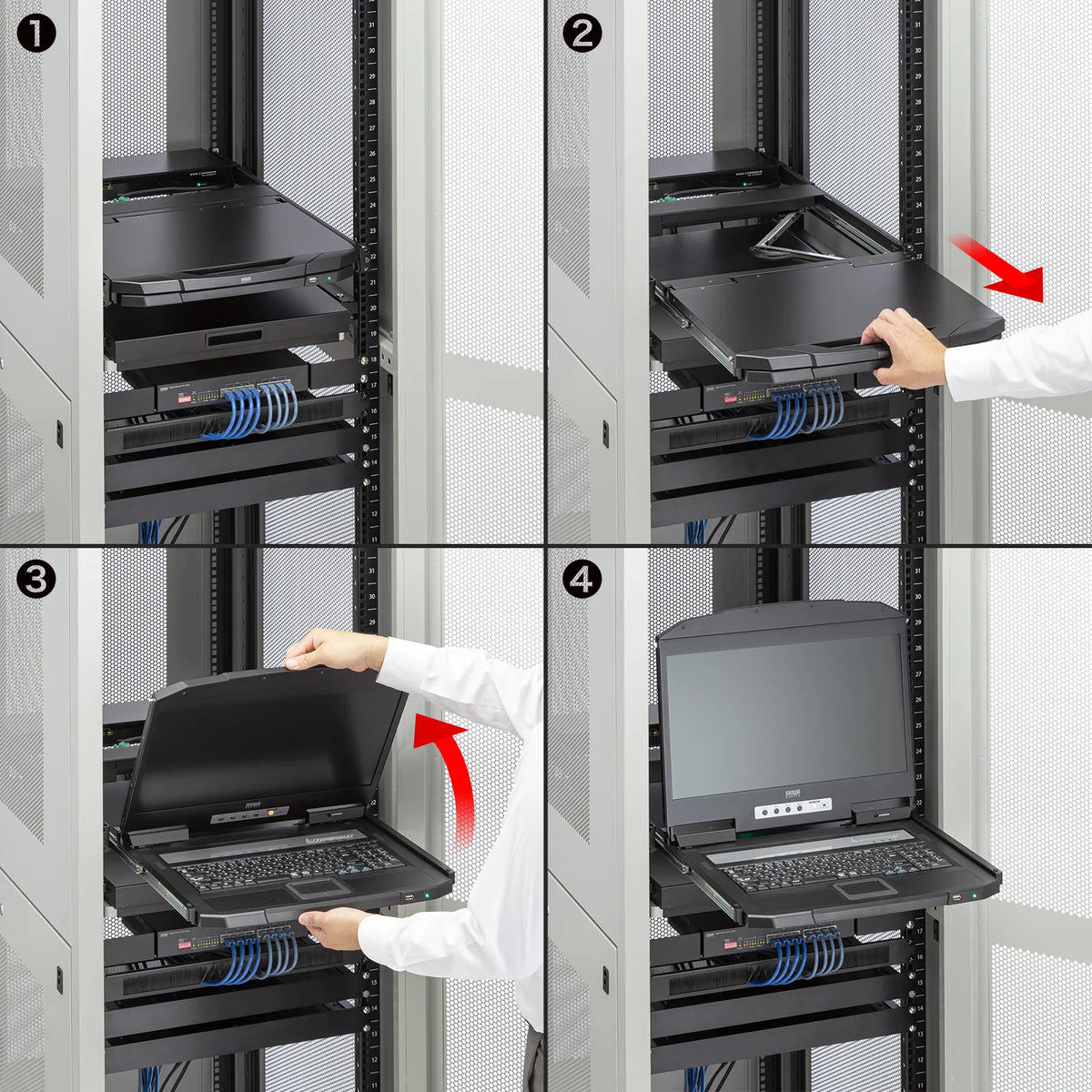

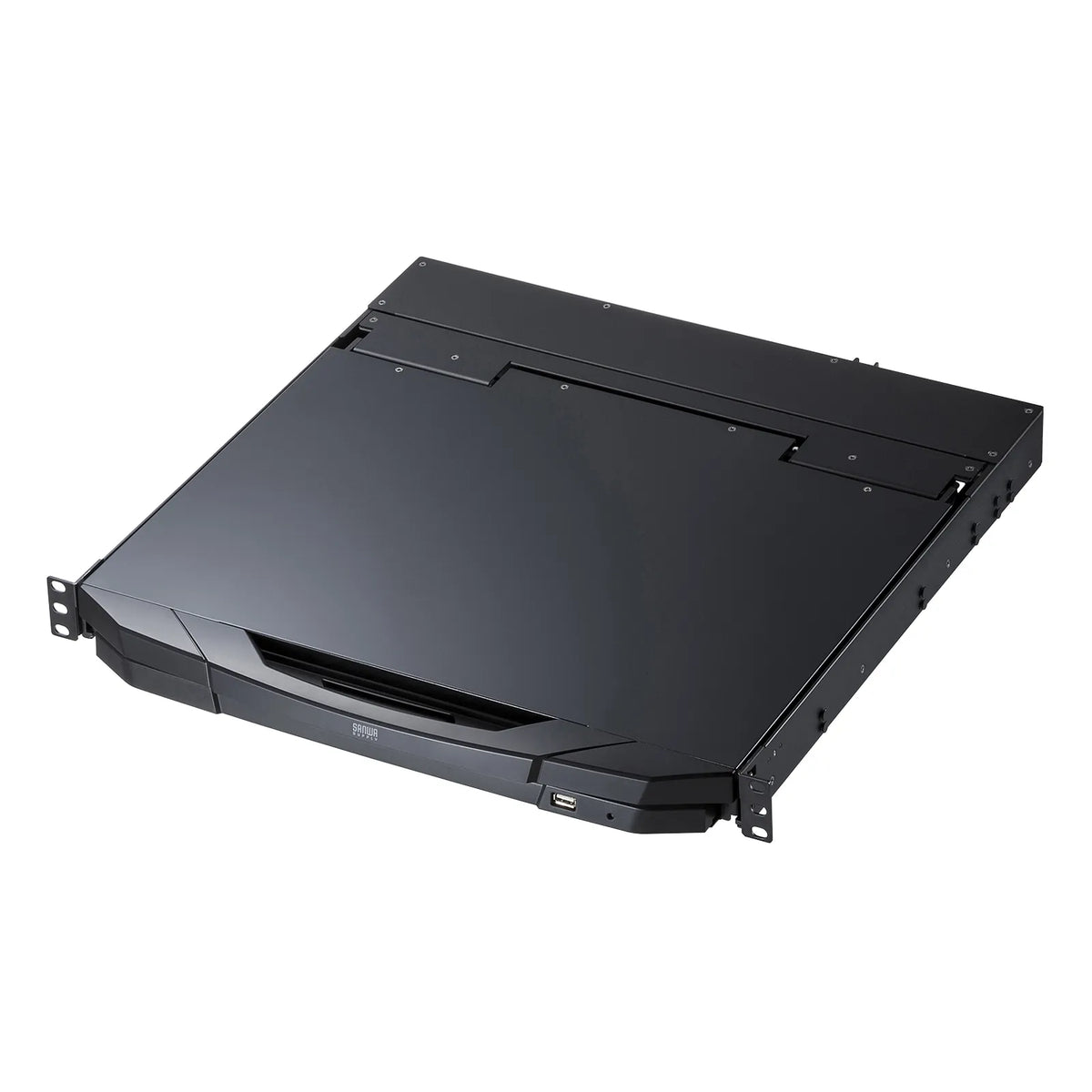

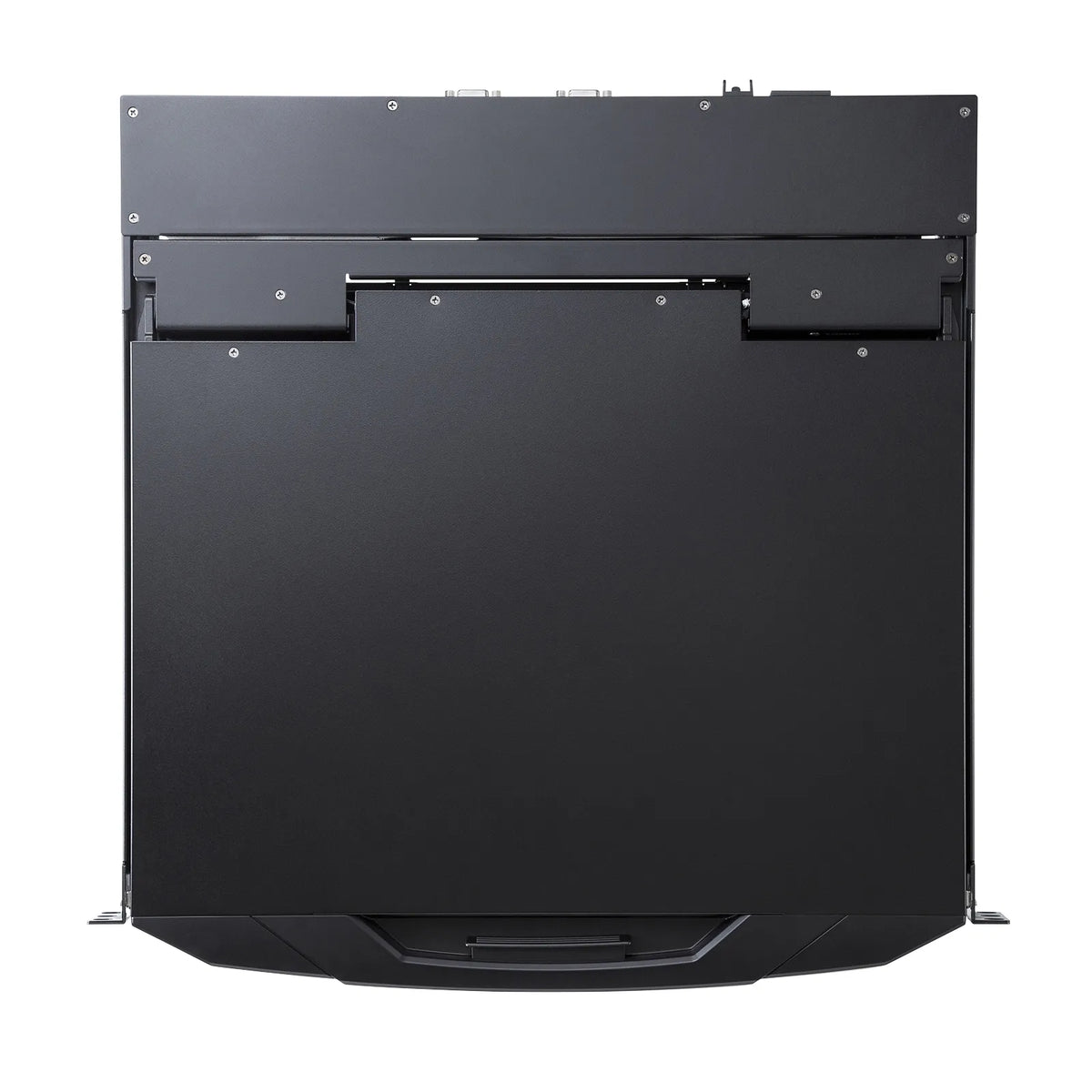

●The slide rail structure allows for neat storage in a 1U size server rack when not in use.

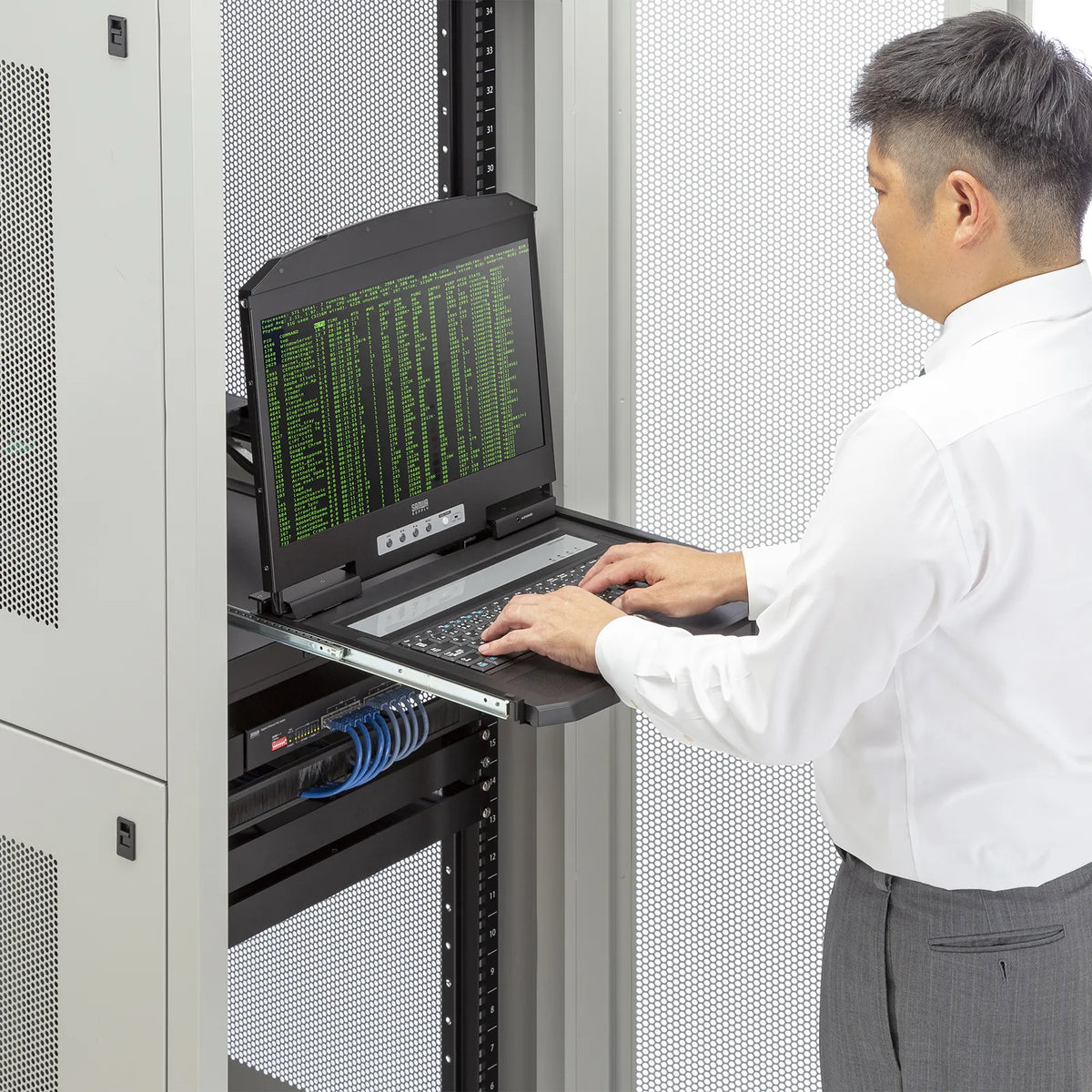

●By allowing the installation and storage of the monitor, keyboard, and mouse consoles necessary for server management in a space-saving manner, work efficiency is greatly improved.

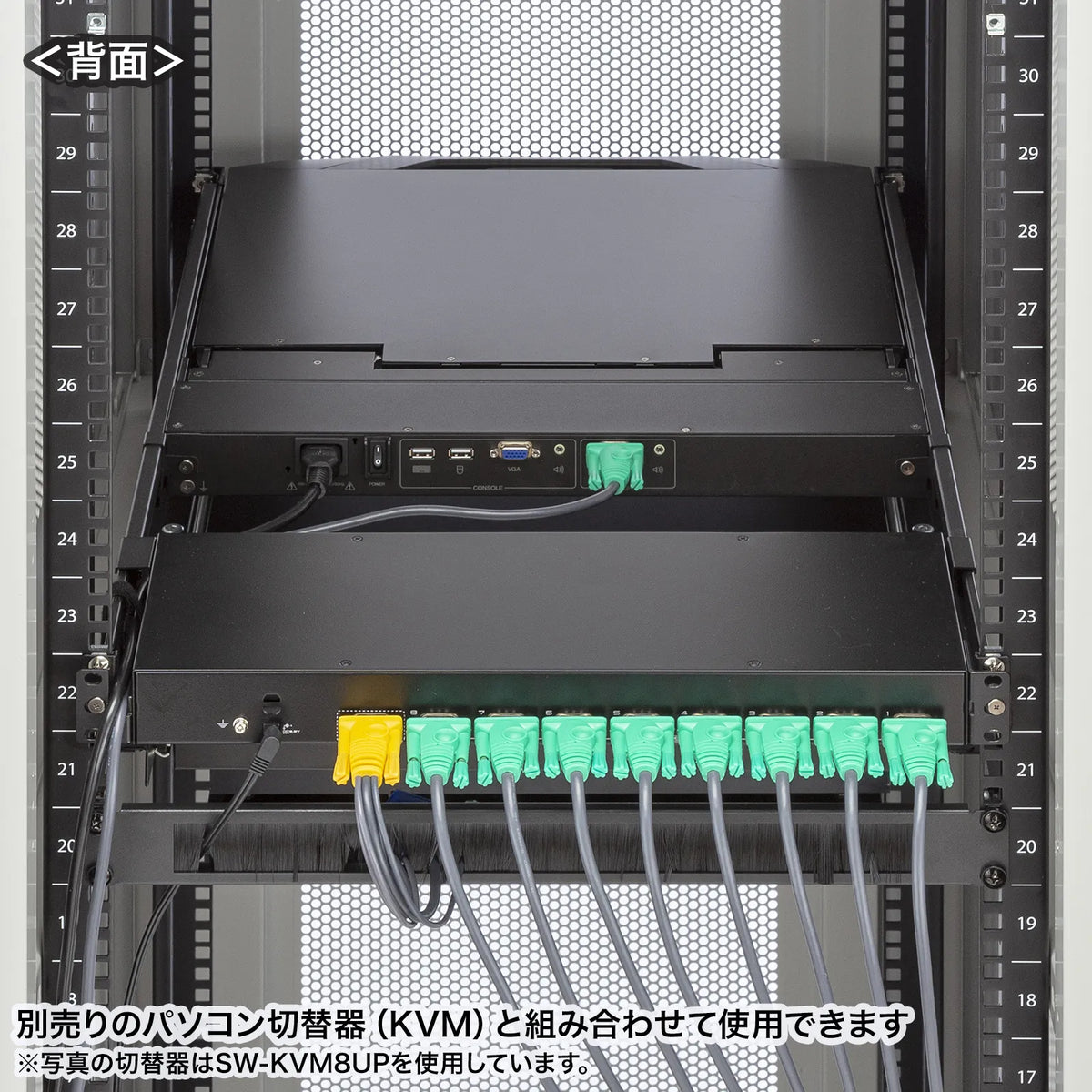

●Compatible with long rails, allowing for combination with Sanwa Supply's automatic KVM switch (SW-KVM8UP).
It is possible to efficiently operate by switching between multiple servers.

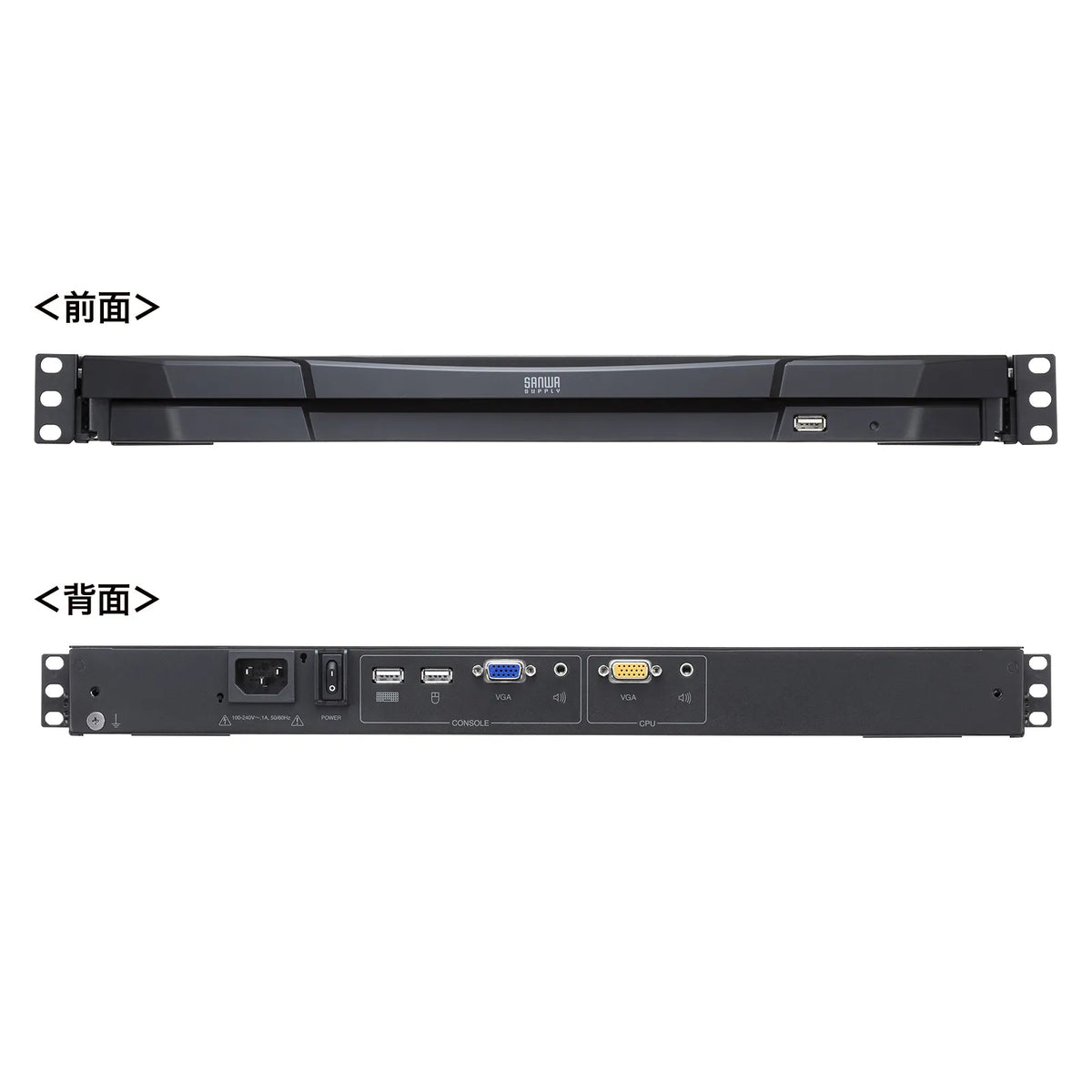

●The front panel features a USB port for a second mouse, and the rear panel has a second KVM console (USB keyboard/mouse and VGA monitor) port and a 3.5mm stereo mini jack for speakers.



＜Display Section＞
■LCD Panel: 18.5-inch TFT-LCD
■Monitor Resolution/Refresh Rate: 1366x768/60Hz
■Supported Input Resolutions: 1920x1200/60Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz , 1366x768/60Hz, 1280x1024/75,60Hz, 1280x800/60Hz, 1024x768/75,70,60Hz, 800x600/75,72,60,56Hz, 720x400/70Hz, 640x480/75,72,60Hz
■Response time: 5ms
■Pixel pitch: 0.3mm x 0.3mm
■Supported Colors: 16.7 million colors
■Brightness: 250 cd/m²
■Contrast Ratio: 1000:1
■Viewing Angle: 170 degrees (horizontal), 160 degrees (vertical)

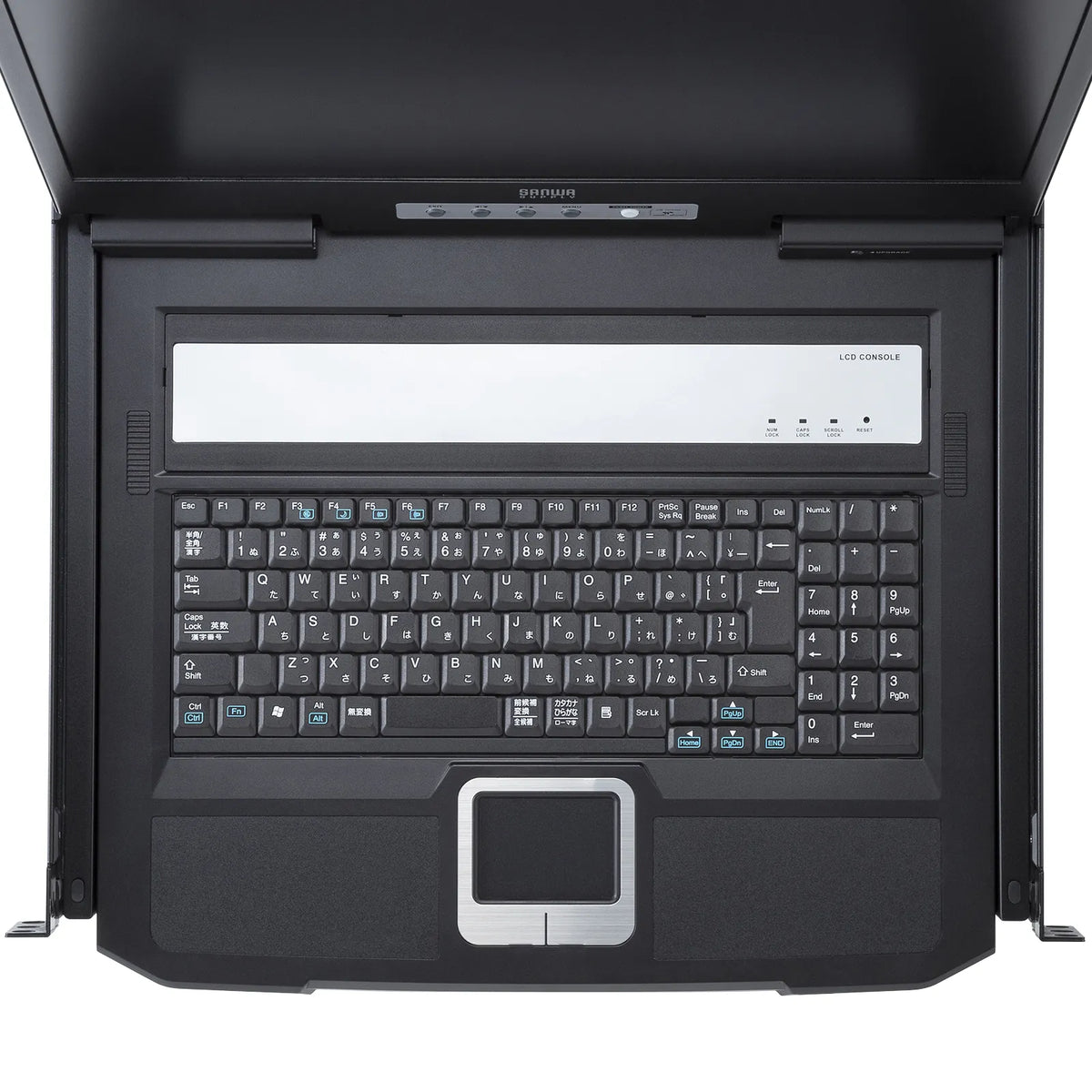

＜Keyboard＞
■Number of Keys: 105 keys (Japanese layout)
■Method: Membrane type
■Key Stroke: 2.6 mm
■Pitch: 19 mm (excluding non-character keys)

＜Touchpad＞
■Touchpad Method: Capacitive type
■Tap Function: Yes (single click, double click, drag, scroll)

＜LED＞
■Power Related: Power lamp (green) x1, LCD panel power button (orange) x1
■Keyboard: Num Lock (green) x1, Caps Lock (green) x1, Scroll Lock (green) x1

＜Button/Switch＞
■Reset button: Pinhole type button x1
■Firmware upgrade switch: Slide type switch (2 positions) x1
■AC power switch: Rocker type switch x1
■Monitor operation switch: Push button x5

＜Common specifications＞
■Number of rack units required: 1U
■Number of servers that can be connected: 1 *Multiple servers can be switched using a Sanwa Supply automatic PC switch (SW-KVM8UP)
■Interface:
【Server connection】
All-in-one connector/SPDB 18-pin (female) x1 *VGA/keyboard/mouse signal lines are integrated
Speaker/3.5mm stereo mini jack x1
【For second console】
Display/Mini D-Sub (HD) 15-pin female x1
Keyboard/USB A connector female x1
Mouse/USB A connector female x1
Speaker/3.5mm stereo mini jack x1
USB2.0 hub/USB A connector female x1
【Firmware upgrade connector】
3.5mm audio jack female x1
■Power supply: AC100V to 240V 50/60Hz
■Power consumption: 13.8W (100V)
■Installation conditions:
Compatible racks with a minimum rack depth of 68cm to a maximum of 105cm.
Installation in the rack is only possible horizontally upwards.
Levelness depends on the rack specifications.
19-inch server rack/Leave 1U space above and below to avoid interference.
■Environmental conditions:
Operating temperature/0 to 40 degrees
Operating humidity/0 to 80% (non-condensing)
Storage temperature/-20 to 60 degrees
Storage humidity/0 to 80% (non-condensing)
■Size: W481xD477xH43mm (when stored)
■Weight: 8.8kg (without rack rails)
10.2kg (with rack rails)
■Set contents: Main unit x1
Instruction manual and warranty x1
Power cable (1.8m) x1
PC connection cable (1.8m) x1
Audio cable (1.8m) x1
Ground wire (green Y-shaped) (1.2m) x1
Firmware upgrade cable (1.8m) x1
Cable tie ( Velcro fasteners x3
Rack rail (right)
Rack rail (left)
SW-KVM8UP mounting bracket (front left) x1
SW-KVM8UP mounting bracket (front right) x1
SW-KVM8UP mounting bracket (rear left) x1
SW-KVM8UP mounting bracket (rear right) x1
SW-KVM8UP bracket mounting screws (M3x5mm, 9 pieces per bag)
Main unit mounting screws (M4x6mm, 6 pieces per bag)
Cage nut set (M5x10mm, 10 pieces per bag)
