USB/HDMI compatible slide LCD console drawer SW-KVMHDDR

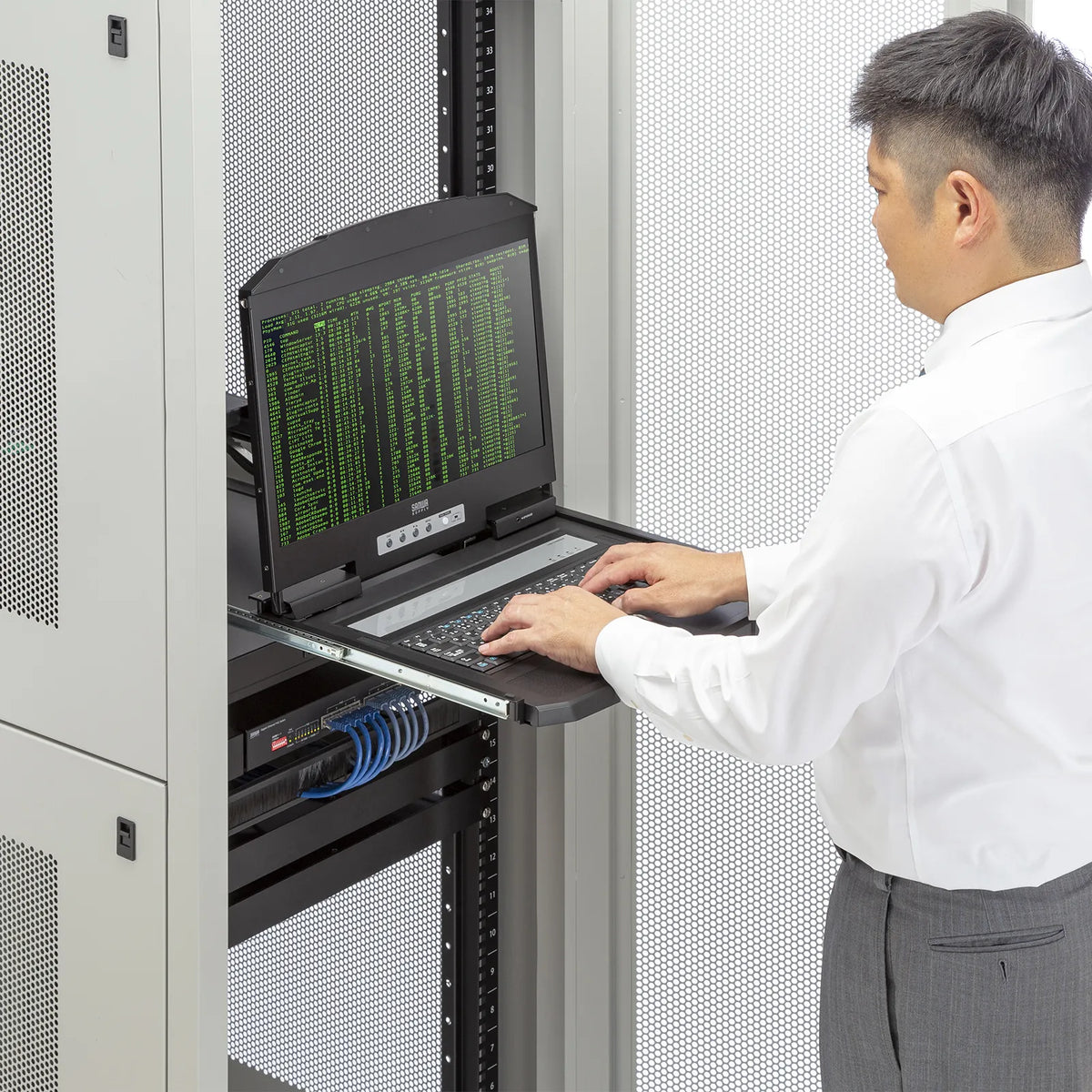

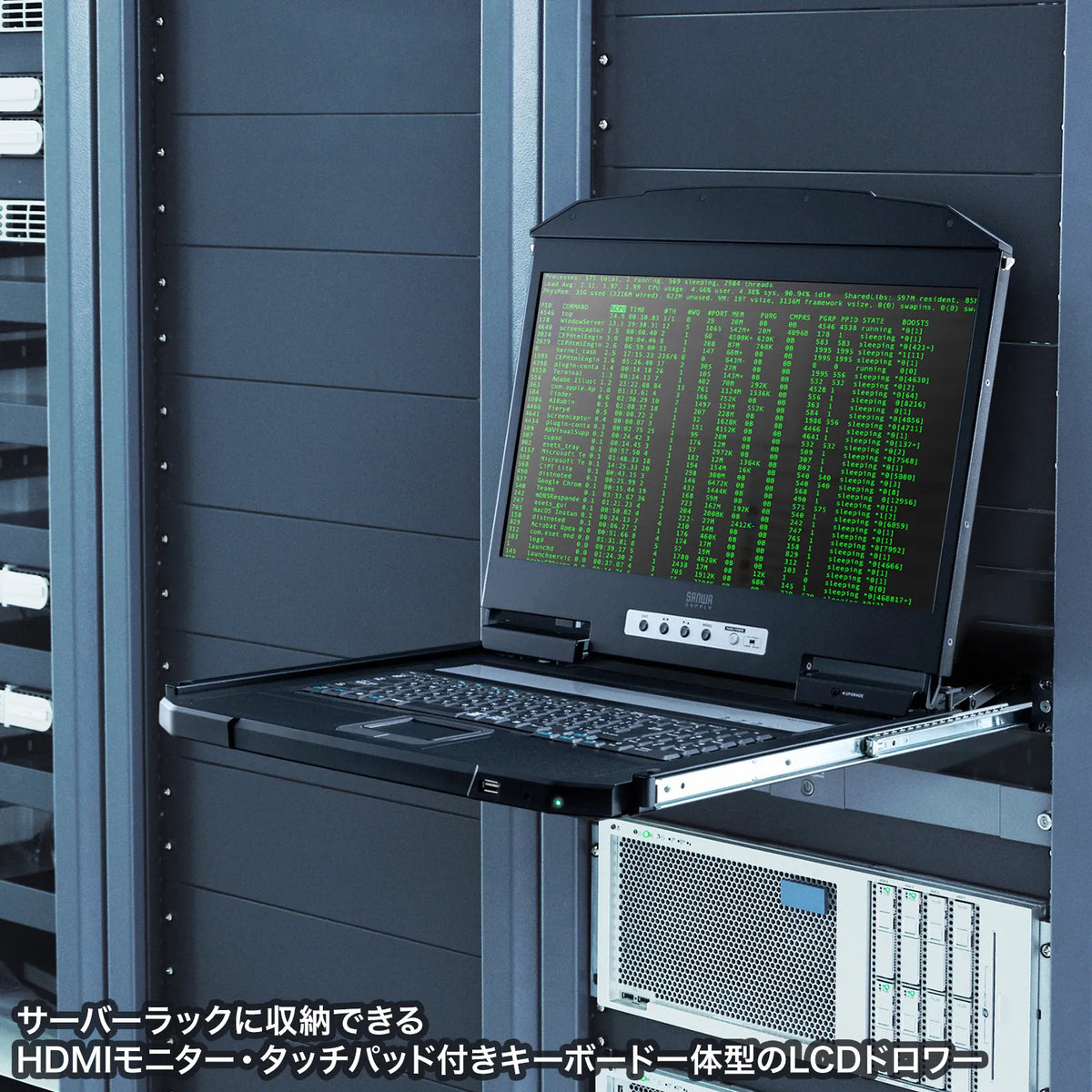

[An LCD drawer with an integrated HDMI monitor and keyboard with touchpad that can be stored in a server rack. It is also compatible with KVM switches, allowing for efficient operation by switching between multiple servers.]

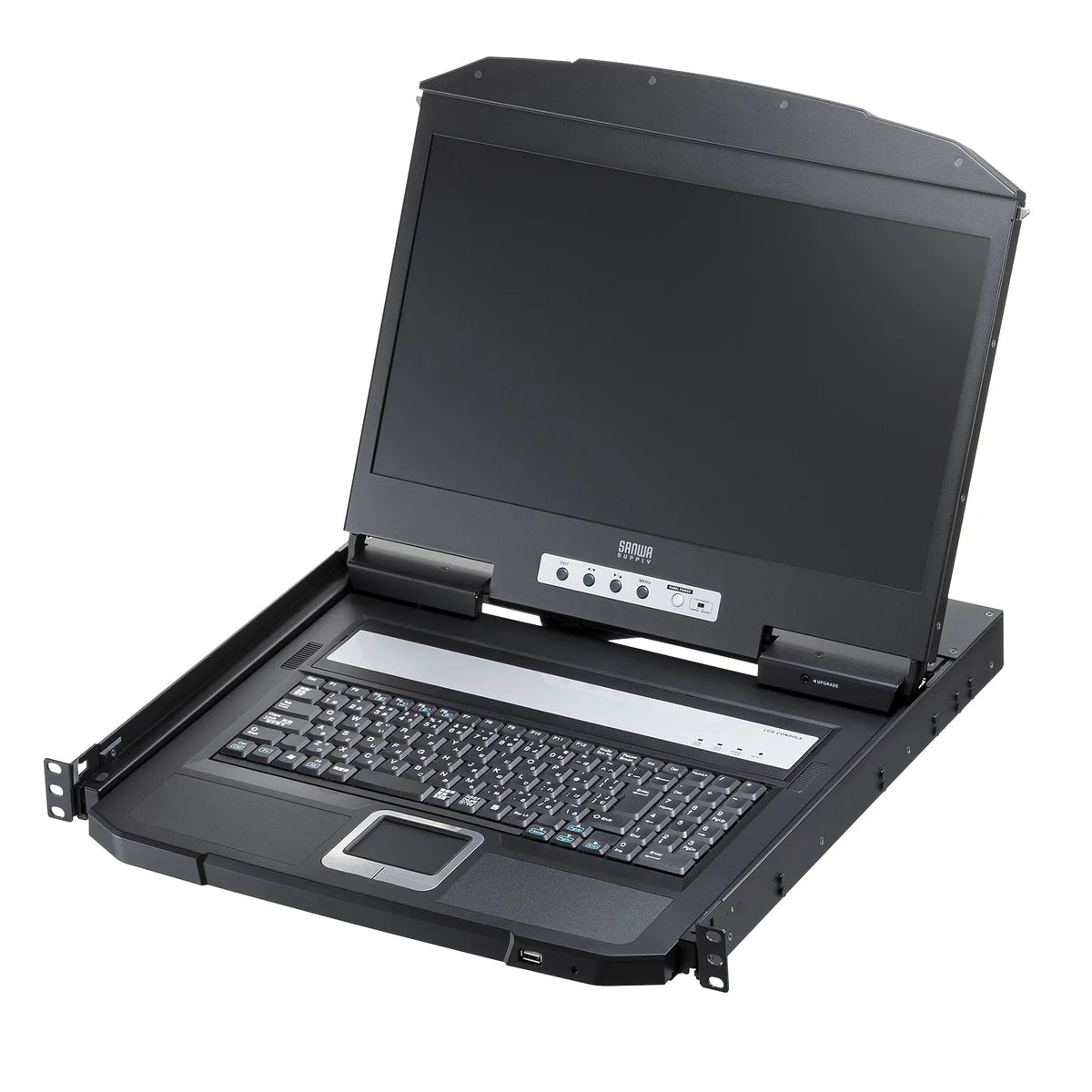

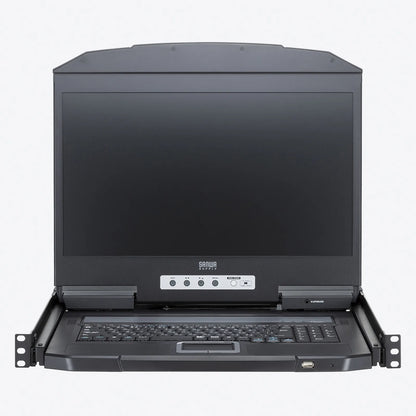

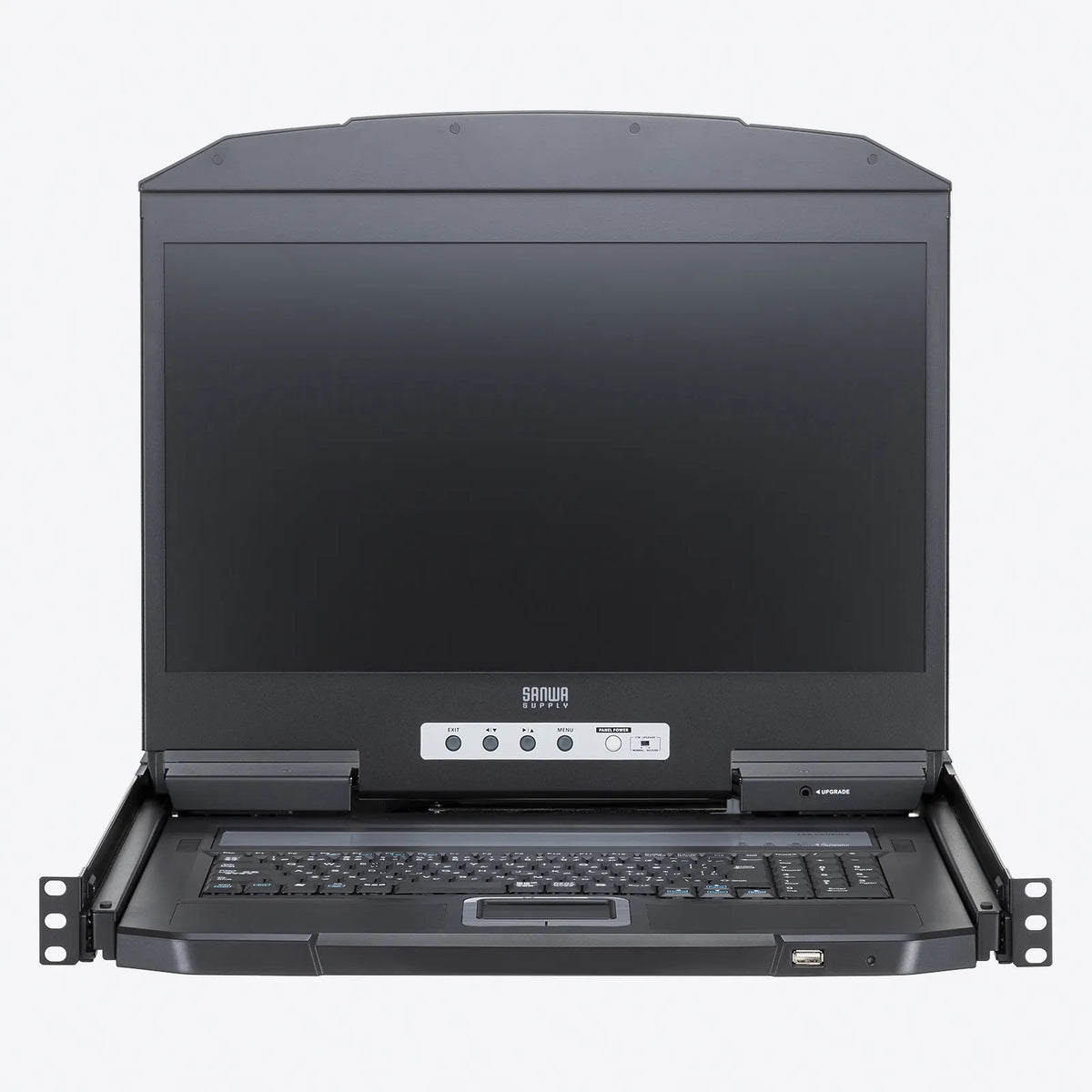

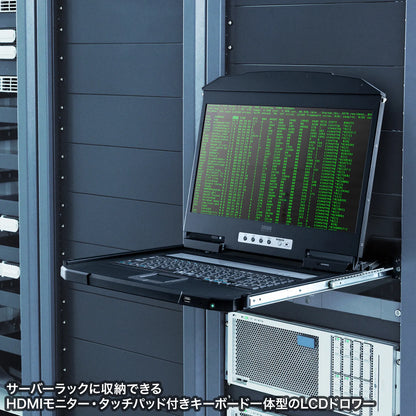

●This is an LCD console drawer that can be stored in a server rack, with an integrated 18.5-inch widescreen LCD monitor and keyboard with touchpad.
●The monitor supports input up to 1920x1200/60Hz and displays the output scaled to a resolution of 1920x1080 dots.

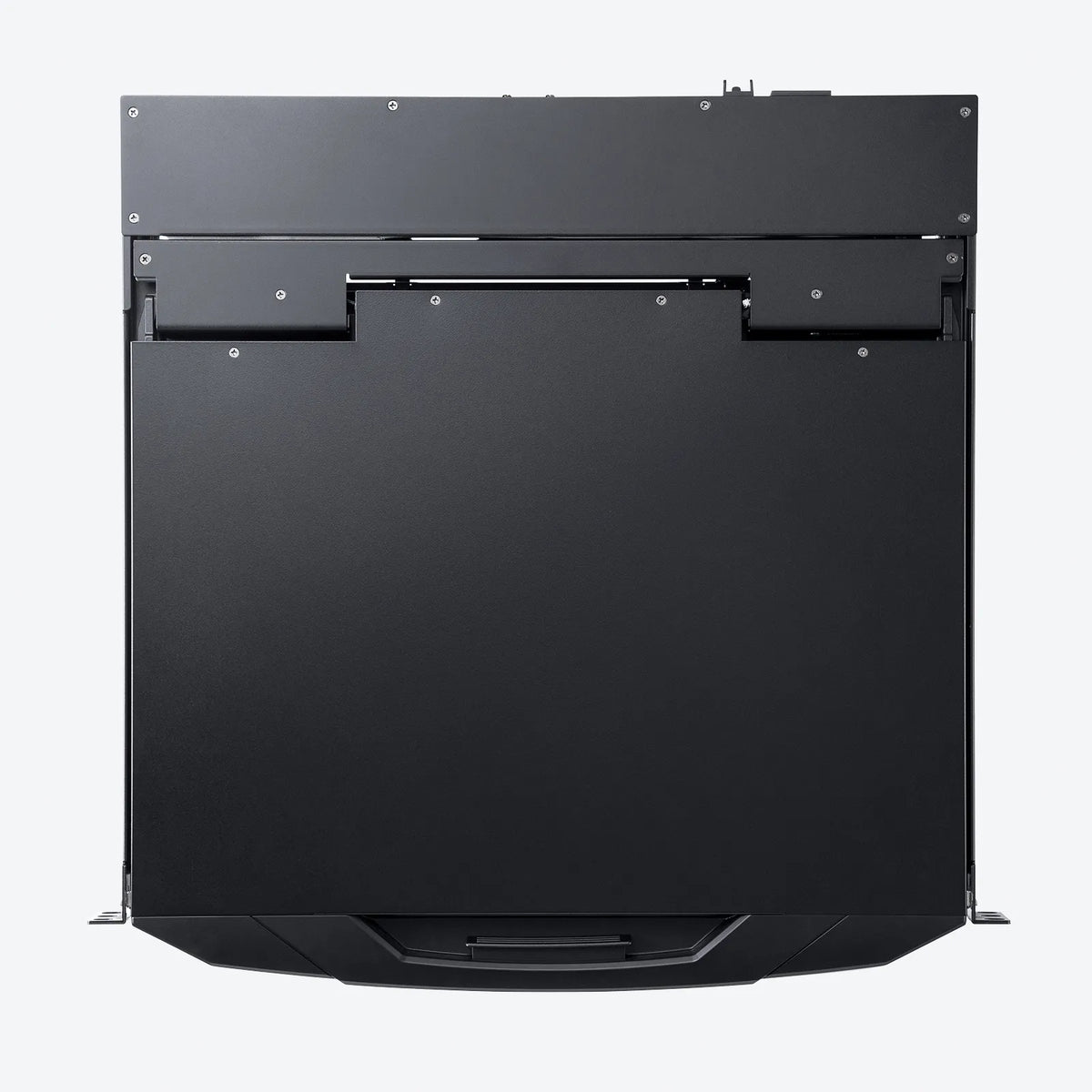

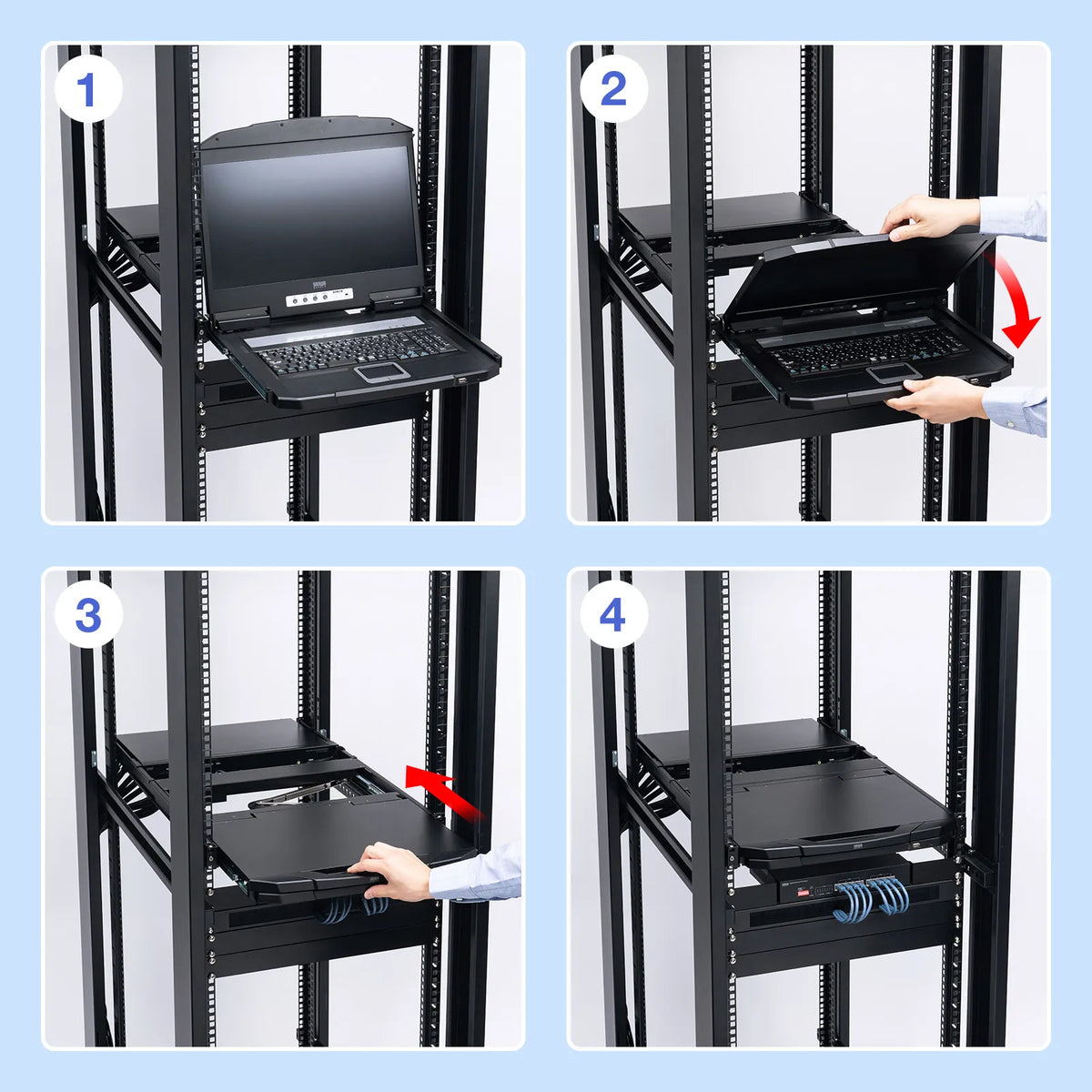

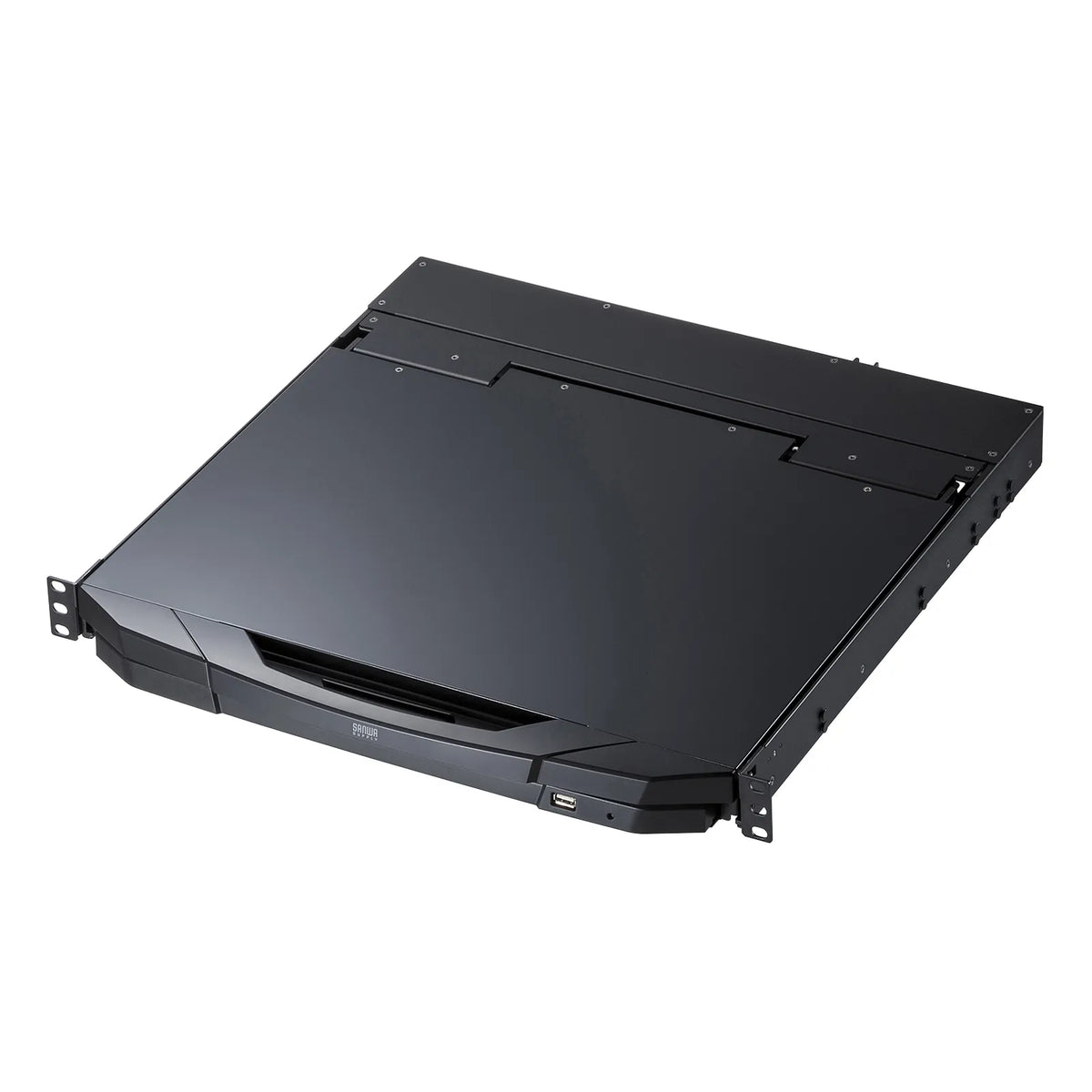

●The slide rail structure allows for neat storage in a 1U size server rack when not in use.
●By installing and storing the monitor, keyboard, and mouse consoles necessary for server management in a space-saving manner, work efficiency is greatly improved.

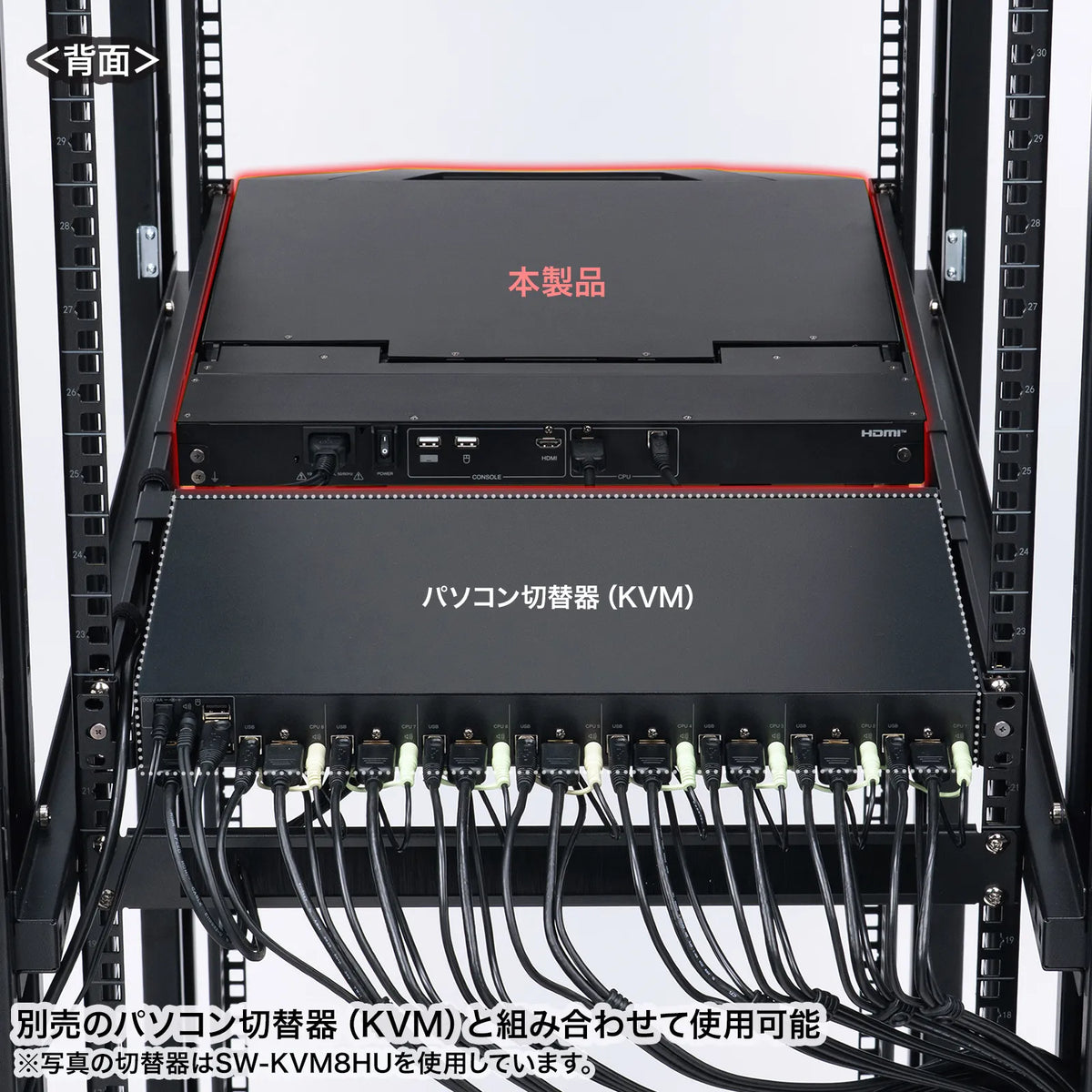

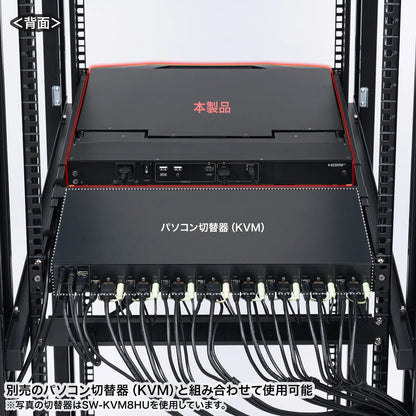

●With long rail support, it can be combined with Sanwa Supply's automatic PC switch (SW-KVM8HU).
It is possible to efficiently operate by switching between multiple servers.
*When installing the SW-KVM8HU at the back of a server rack, a rack depth of 87.9cm to 105cm is required.

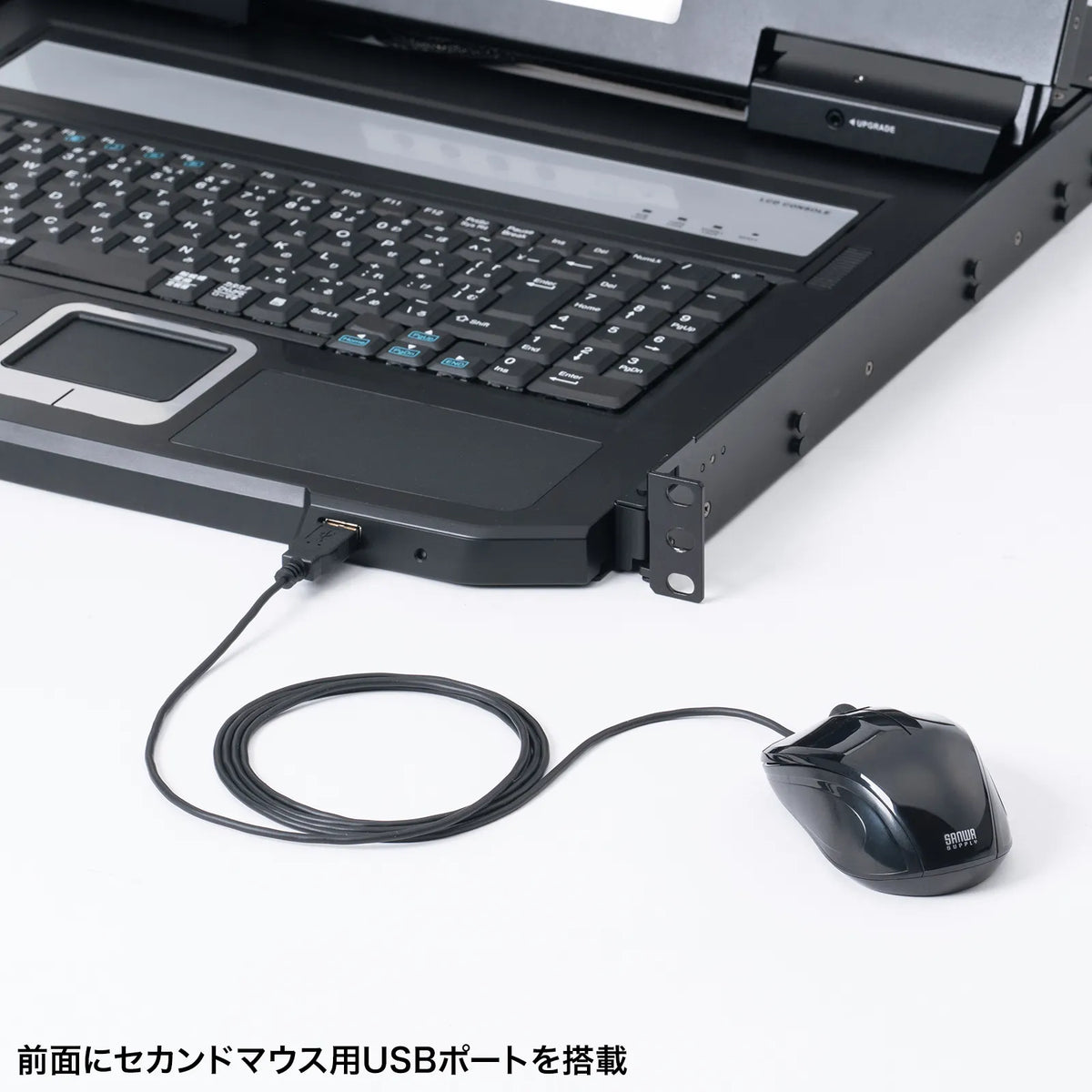

●The front panel has a USB port for a second mouse, and the rear panel has a second KVM console (USB keyboard/mouse and HDMI monitor) port.



■Compatible models: Windows-based (DOS/V) desktop or notebook PCs, Apple Mac series
(Models with USB A connector female and HDMI output)
Sanwa Supply automatic PC switch (SW-KVM8HU)
■Compatible OS Windows: 11, 10, 8.1, 8
■Compatible OS Windows Server: 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003 R2, 2003
■Compatible OS mac: macOS (Sequoia) 15, macOS (Sonoma) 14, macOS (Ventura) 13, macOS (Monterey) 12, macOS (BigSur) 11, macOS 10.12 to 10.15
■Compatible OS Linux: CentOS, Ubuntu, openSUSE
■Shape: Optional
■Video output connector: HDMI
■Display section
■LCD panel: 18.5-inch TFT-LCD
■Monitor resolution/refresh rate: 1920x1080/60Hz
■Supported input resolutions: 1920x1200/60Hz, 1920x1080/60Hz, 1680x10 50/60Hz, 1440x900/60Hz, 1366x768/60Hz, 1280x1024/75,60Hz, 1280x800/60Hz, 1024x768/75,70,60Hz, 800x600/75,72,60,56Hz, 720x400/70Hz, 640x480/75,72,60Hz
■Response time: 20ms
■Pixel pitch: 0.213mm x 0.213mm
■Supported Colors: 16.7 million colors
■Brightness: 350 cd/mm2
■Contrast Ratio: 1000:1
■Viewing Angle: 178 degrees (horizontal), 178 degrees (vertical)
■Keyboard Section

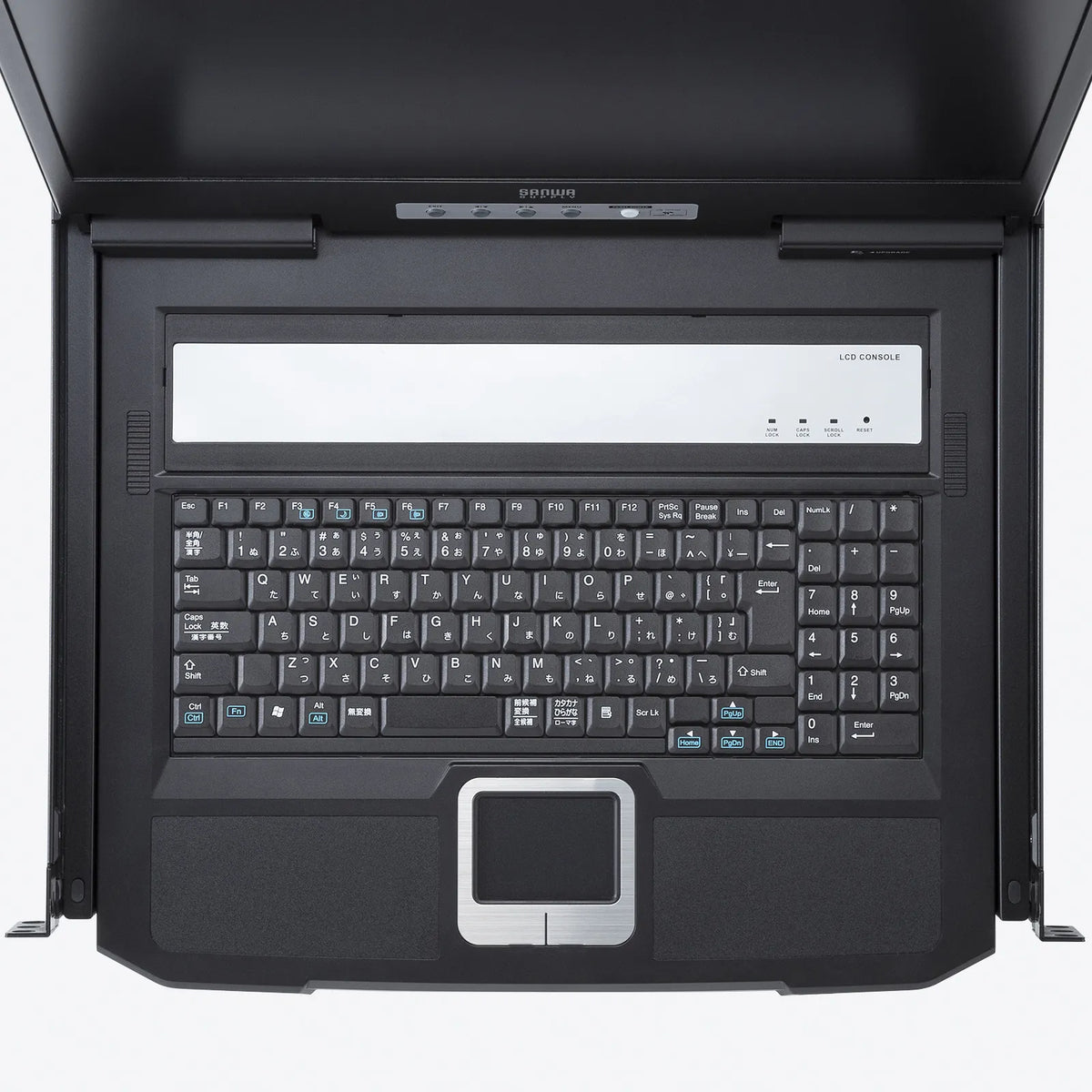

■Number of Keys: 105 keys (Japanese layout)
■Method: Membrane type
■Key Stroke: 2.6 mm
■Pitch: 19 mm (excluding non-character keys)
■Touchpad Section
■Touchpad Method: Capacitive type
■Tap Function: Yes (single click, double click, drag, scroll)
■LED Section
■Power Related: Power lamp (green) x1, LCD panel power button (orange) x1
■Keyboard: Num Lock (green) x1, Caps Lock (green) x1, Scroll Lock (green) x1
■Button/Switch Section
■Reset Button: Pinhole type button x1
■Firmware Upgrade Switch: Slide switch (2 positions) x1
■AC Power Switch: Rocker switch x1
■Monitor Operation Switch: Push button x5
■Common Specifications
■Required Rack Units: 1U
■Number of Servers Connected: 1 *Multiple servers can be switched using a Sanwa Supply automatic PC switch (SW-KVM8HU)

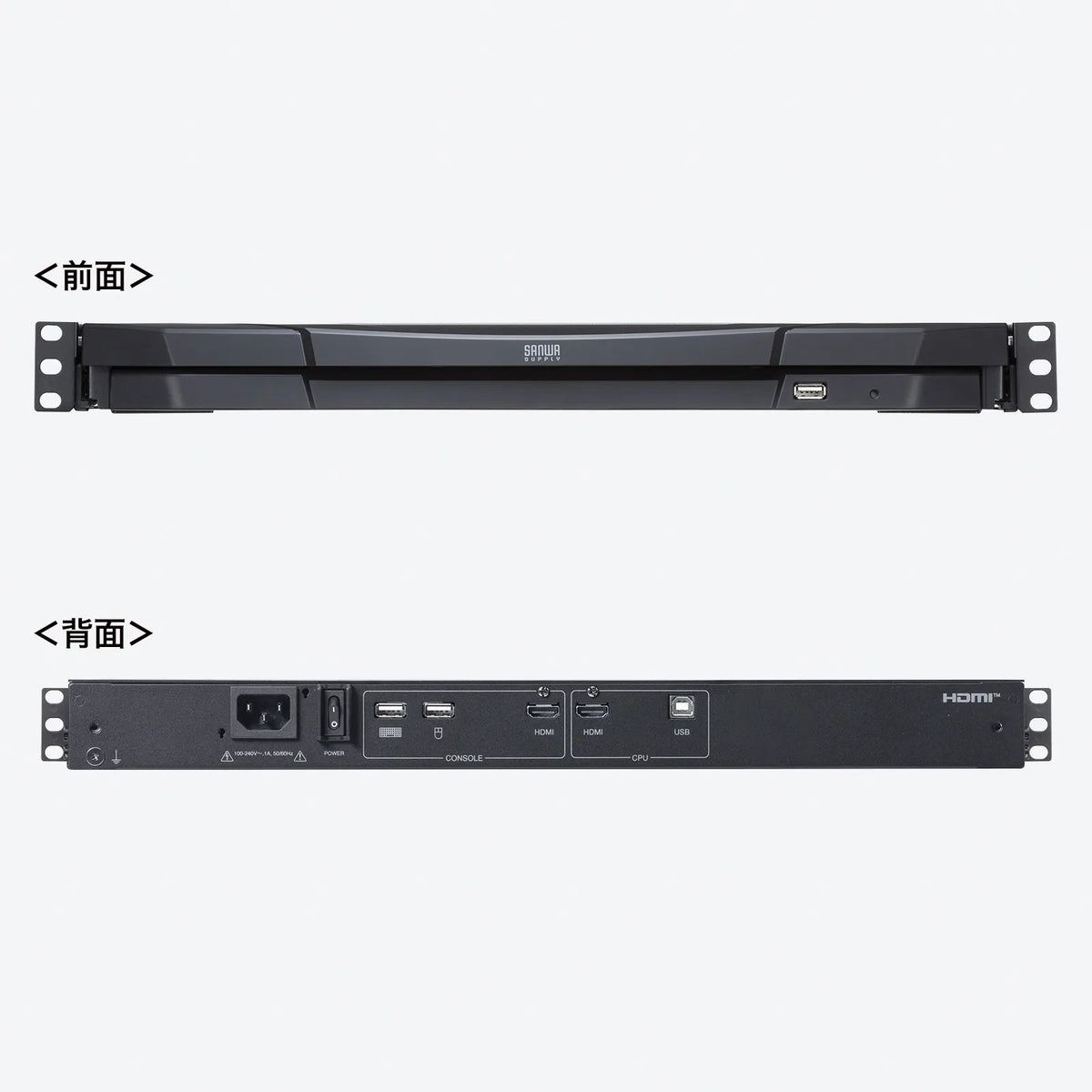

■Interface: [Server Connection]
Display/HDMI (female) x1
Keyboard, Mouse, USB 2.0 Hub/USB B connector (female) x1

[For Second Console]
Display/HDMI (Type A) female x1
Keyboard/USB A connector female x1
Mouse/USB A connector female x1
USB 2.0 Hub/USB A connector female x1

[Firmware Upgrade Connector]
3.5mm audio jack female x1
■Power Supply: AC100V to 240V 50/60Hz
■Power Consumption: 13.8W (100V)
■Installation Requirements:
When installing the SW-KVM8HU at the back of a server rack, a rack depth of 82.4cm to 105cm is required.
When installing the SW-KVMHDDR alone, it can be mounted in a rack with a depth of 66cm to 105cm.
Installation in the rack is only possible horizontally and upwards.
The degree of horizontality depends on the rack specifications.
19-inch server rack
Leave 1U space above and below to avoid interference

■Environmental conditions: Operating temperature: 0 to 40 degrees
Operating humidity: 0 to 80% (non-condensing)
Storage temperature: -20 to 60 degrees
Storage humidity: 0 to 80% (non-condensing)
■Dimensions: W481 x D477 x H43 mm (when stored)
■Weight: 9.01 kg (without rack rails)
10.38 kg (With rack rails)
■Set contents: Main unit x1
Instruction manual x1
Power cable (1.8m) x1
PC connection cable (1.8m) x1
Ground wire (green Y-shaped) (1.2m) x1
Firmware upgrade cable (1.8m) x1
Cable tie (hook and loop fastener) x3
Rack rail (right)
Rack rail (left)
SW-KVM8HU Mounting bracket (front left x1)
SW-KVM8HU mounting bracket (front right) x1
SW-KVM8HU mounting bracket (rear left) x1
SW-KVM8HU mounting bracket (rear right) x1
SW-KVM8HU bracket mounting screws (M3x5mm, 9 pieces per bag)
Main unit mounting screws (M4x6mm, 6 pieces per bag)
Cage nut set (M5x10mm, 10 pieces per bag)
