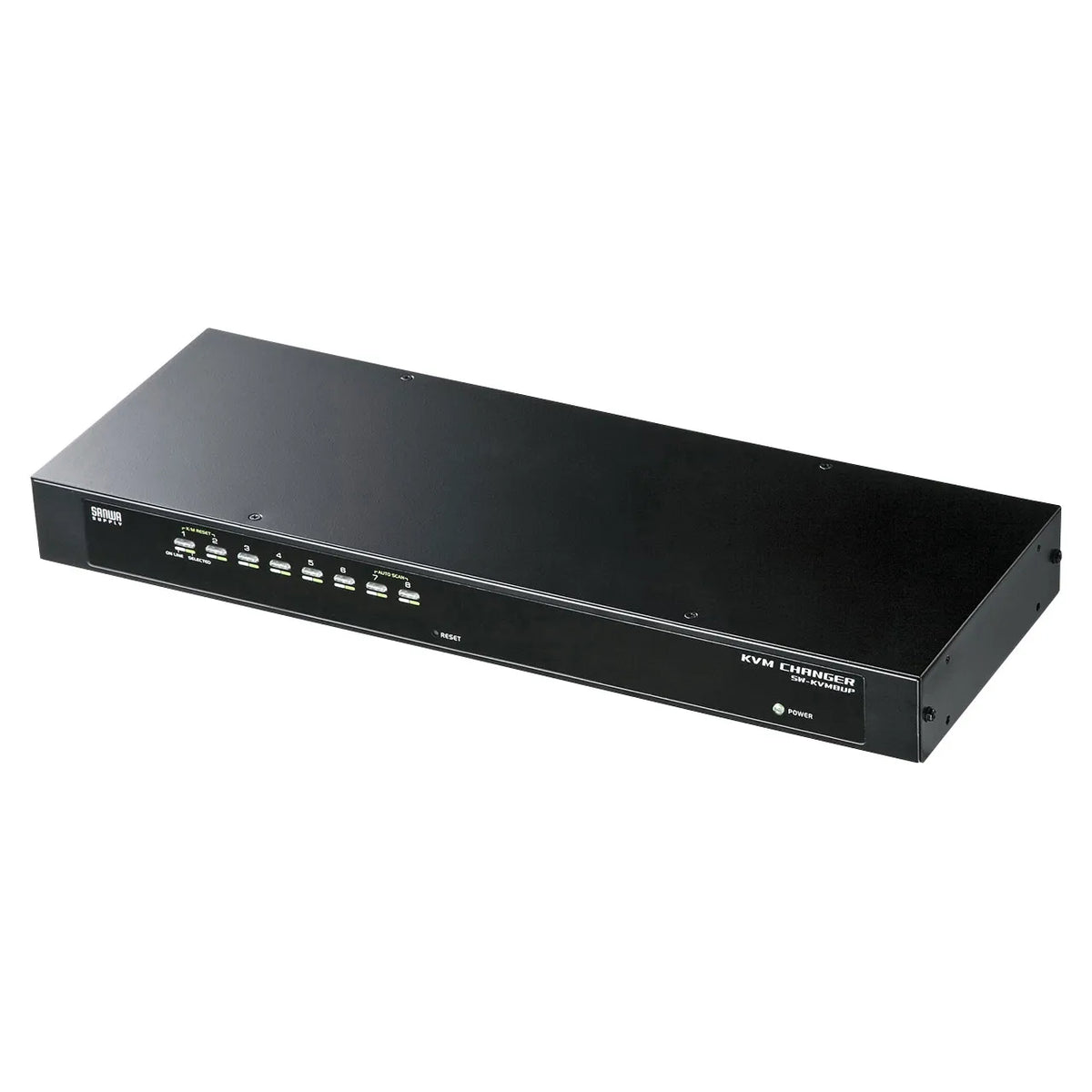

PS/2 and USB compatible automatic PC switch (8:1) SW-KVM8UP

[Dual-interface KVM switch (8 ports) supporting both PS/2 and USB connections]

●Allows switching and operation of up to 8 computers with a single console (keyboard, mouse, and display).
●Connection to computers is possible via both PS/2 and USB. It is also possible to connect a mix of PS/2 and USB connected computers. *1
●Supports dual-interface connection for keyboards and mice, allowing connection via both PS/2 and USB. Cross-interface connections, such as a USB mouse and a PS/2 keyboard, are also possible.
●Equipped with keyboard and mouse emulation functionality. Avoids boot errors during computer startup regardless of which port the KVM is selected.

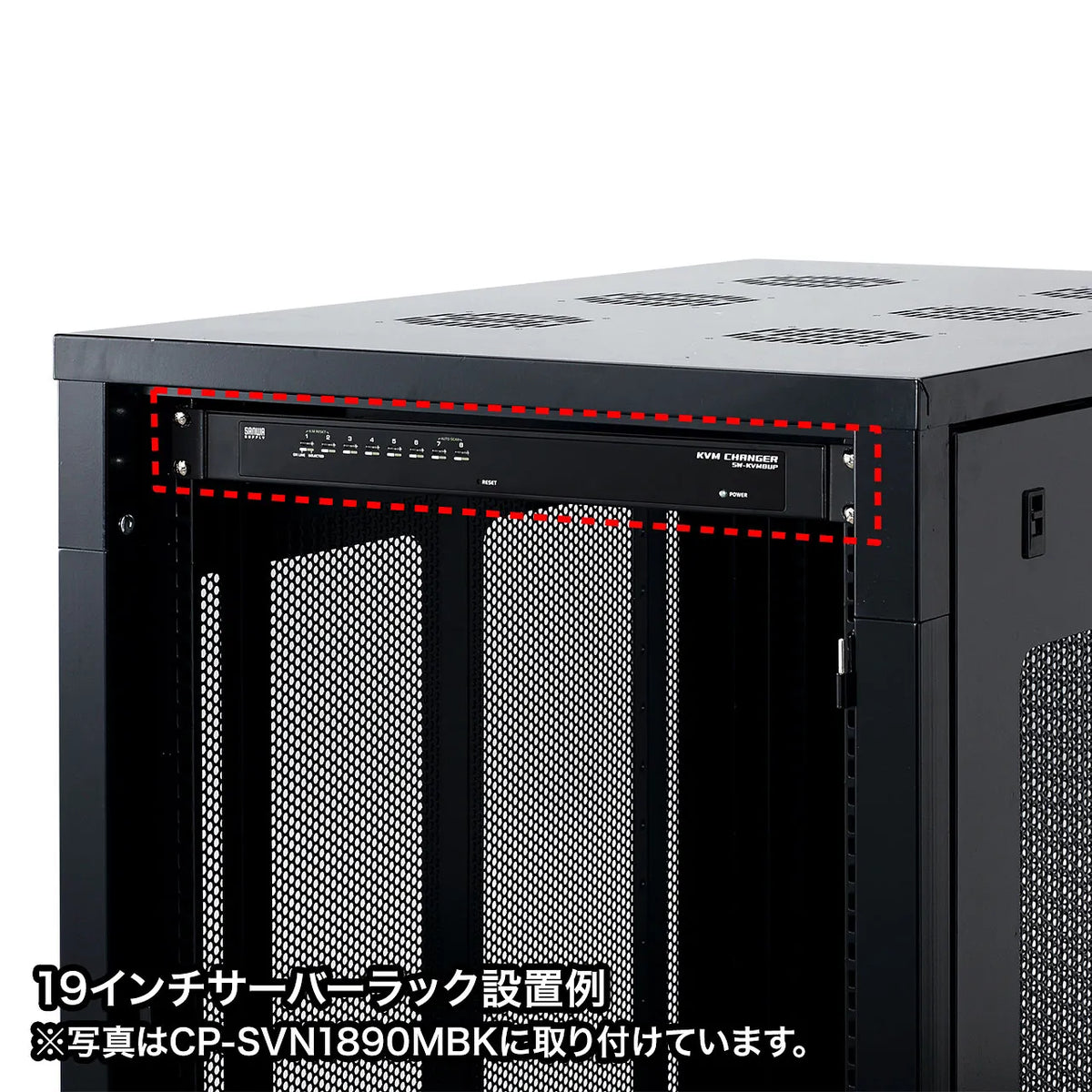

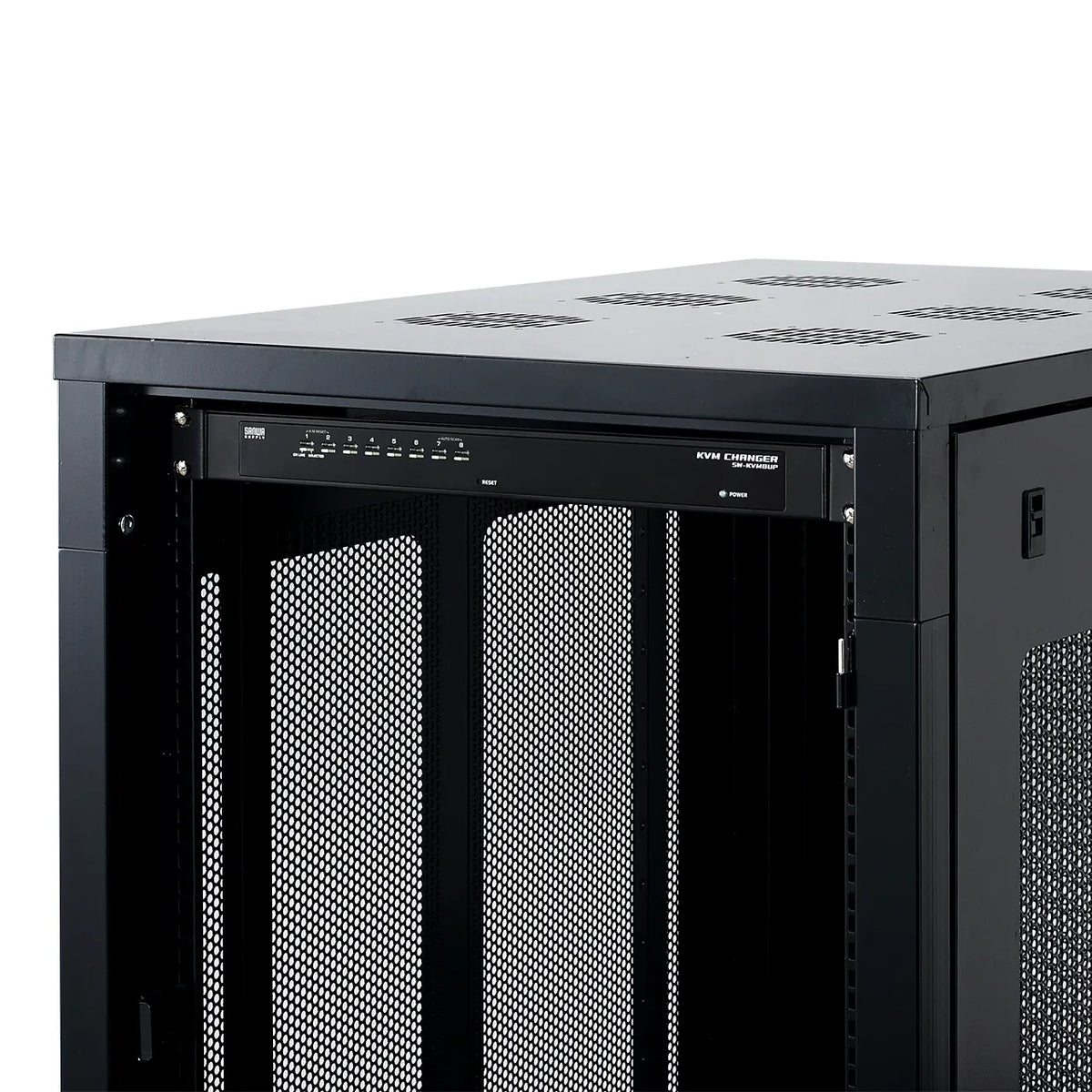

●Can be mounted in a 19-inch server rack (1U size). Mounting hardware included.

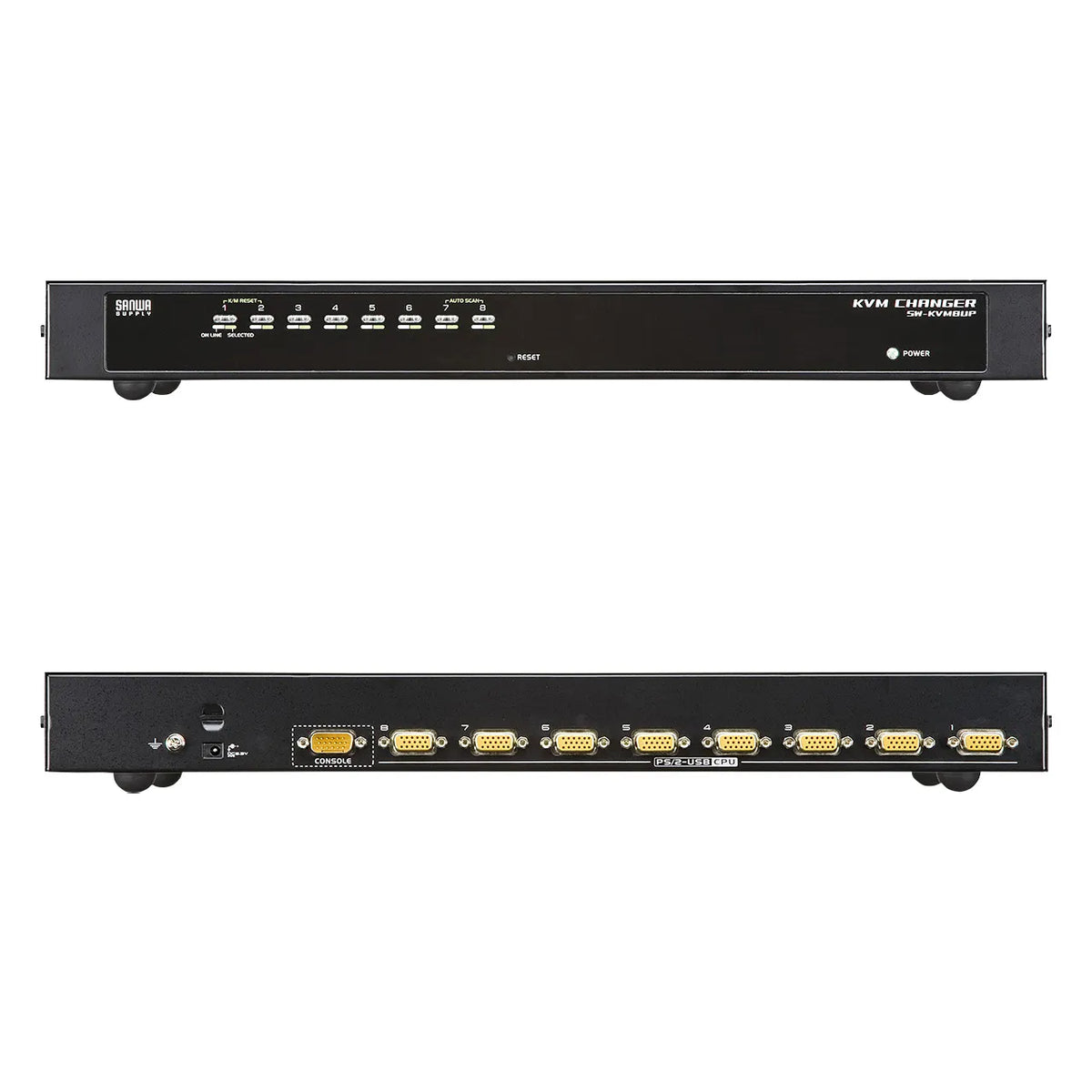

●Switching methods include button switching on the front panel, hotkey switching via key input, and OSD screen switching.
● Equipped with a multi-functional OSD convenient for system management, including the ability to restrict the OSD screens that can be operated at the user level, a broadcast function to simultaneously shut down all PCs from the console, and a 2-level password security function.
● Supports resolutions up to ultra-high resolution 2048x1536 dots, making the most of the image quality of high-performance displays.
● Compatible with Windows OS, MacOS, and Linux. Can be used in environments with multiple operating systems.
*May not be usable depending on the kernel version and distribution specifications.
● Equipped with an auto-scan mode that automatically switches ports at regular intervals. Ideal for checking the operating status of PCs.
● Supports hot-plugging, so maintenance is easy as there is no need to turn off the power to the switch when adding or removing PCs.
● Supports cascading up to 2 stages. Up to 64 PCs can be controlled with one console.
● Adopts an all-in-one connector that combines keyboard, mouse, and display signals into one. Easy connection and a clean appearance.

*1: This product does not include a connection cable to a PC. Please purchase a connection cable separately depending on the connection connector.





■Compatible models: Windows-based (DOS/V) PCs, Apple Mac series
*Models with USB A connector female and mini D-sub (HD) 15-pin display connector
■Compatible models (keyboards): USB keyboards
*Bluetooth keyboards are not supported. *USB hub ports on keyboards cannot be used via this product. *Functions requiring drivers, such as special buttons on keyboards, cannot be used via this product. *May not work with keyboards with fingerprint authentication or touchpads. *Keyboards with N-key rollover functionality, such as gaming keyboards, are not supported.
■Compatible models (mouse): PS/2 mouse, USB mouse
*Bluetooth mice are not supported
■Compatible models (display): Multiscan displays with a mini D-sub (HD) 15-pin connector
*EIZO monitors are not guaranteed to work.
■Main supported resolutions: Up to 2048x1536 pixels can be displayed
(DDC2B compatible)
■Supported OS Windows: 11, 10, 8.1, 8

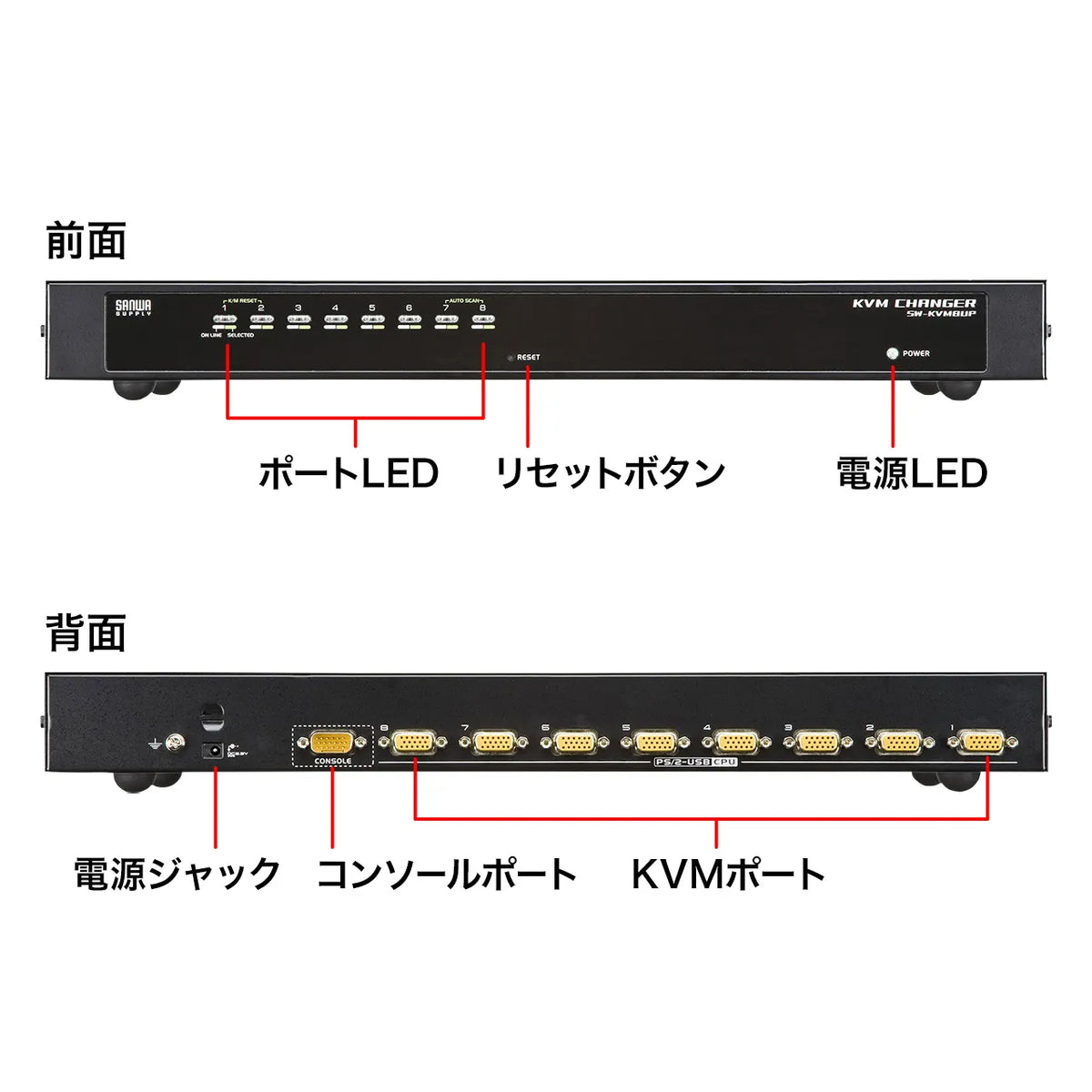

■Interface (PC side): All-in-one connector / SPDB18 pin (female) x8
*Integrates VGA/keyboard/mouse signal lines
■Supported OS Windows Server: 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003 R2, 2003
■Interface (peripheral device side): All-in-one connector / SPDB18 pin (male) x1
*Integrates VGA/keyboard/mouse signal lines
■Supported OS mac: macOS (Sonoma) 14, macOS (Ventura) 13, macOS (Monterey) 12, macOS (BigSur) 11. macOS 10.12 to 10.15
■Cable length: Dedicated cable for console connection/0.27m
■Shape: Desktop type
■Video output connector: VGA
■Supported OS Linux: CentOS, Ubuntu, openSUSE
■Maximum number of connected PCs: 8
■Switching method: Main unit button switching, Hotkey switching, Auto scan switching, OSD switching
■Display emulation function: None
■19-inch rack mountable: Yes

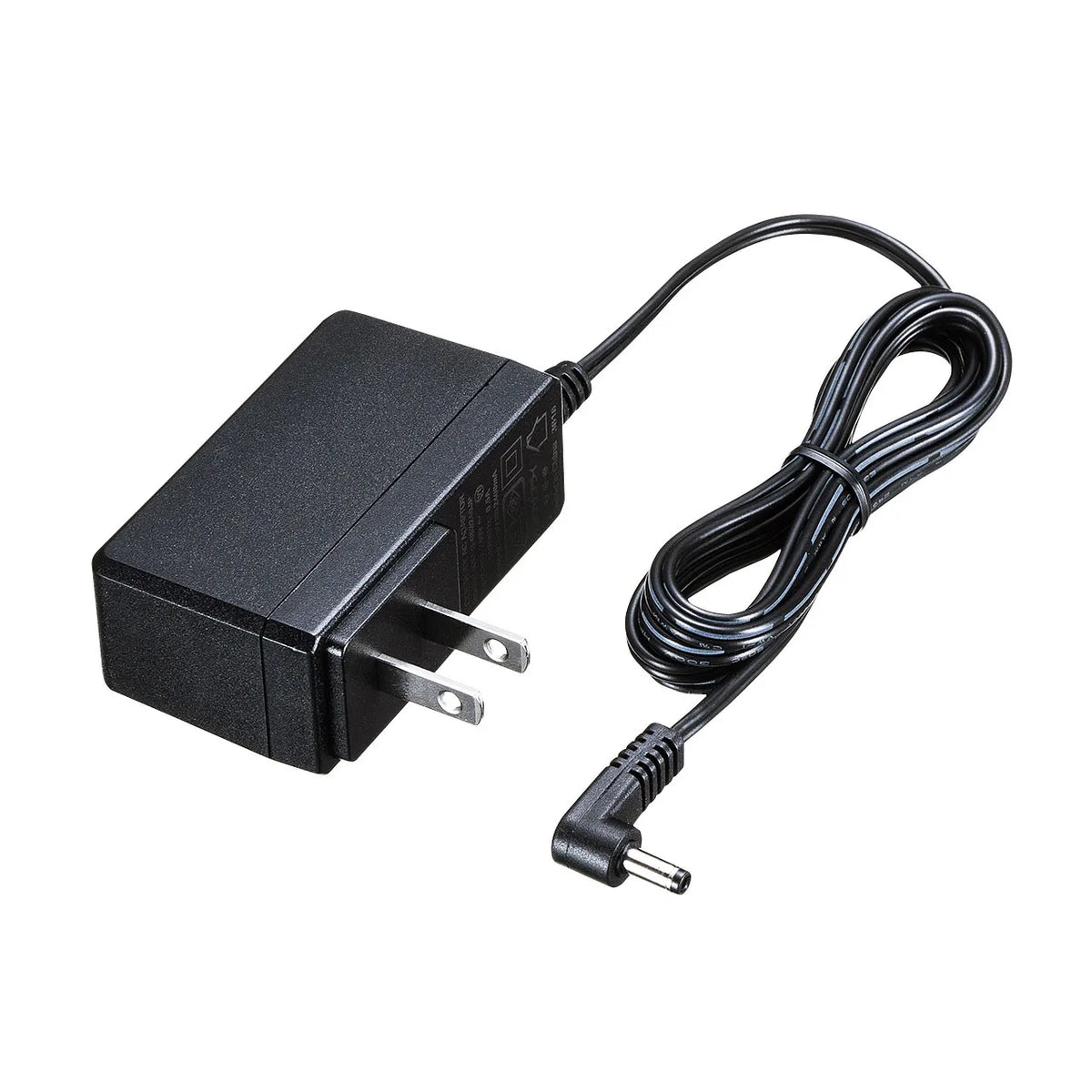

■Power supply: AC adapter
(DC5.3V 2.4A)
■Current consumption (maximum): 460mA
■Power consumption: 2.44
(maximum)
■Operating temperature and humidity: Temperature/0 to 50 degrees Humidity/80% or less
(No condensation)

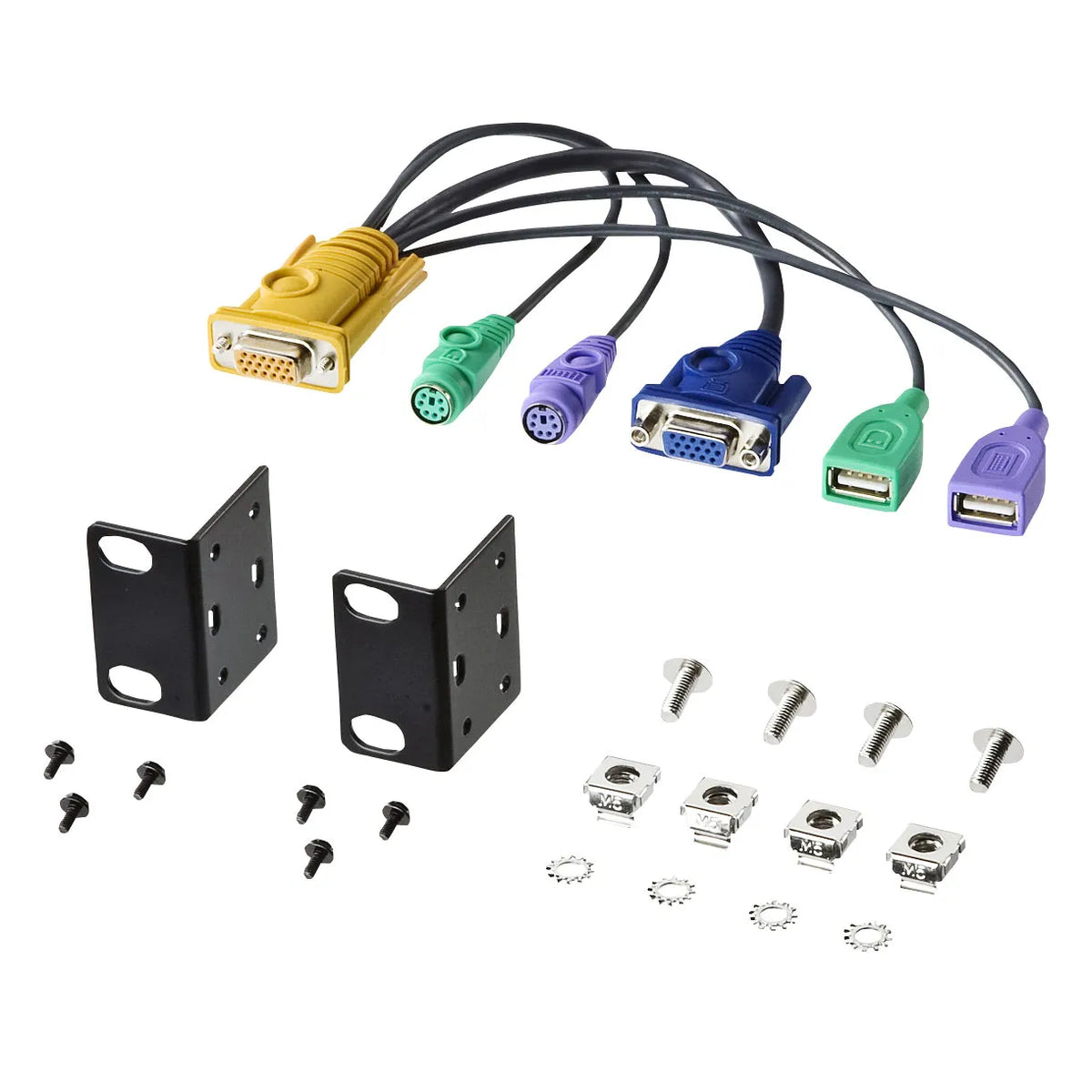

■Storage temperature and humidity: Temperature/-20 to 60 degrees Humidity: 80% or less (no condensation) ■Set contents: Main unit x1, AC adapter (5.3V/2.4A) x1, dedicated cable for console connection (0.27m) x1, rack mount kit (bracket x2, screws x6), instruction manual, warranty card, ground wire (grounding wire, approx. 1.2m), rubber feet x4, rack fixing screws x4, rack fixing nuts x4, rack fixing washers x4 *Keyboards with N-key rollover functionality, such as gaming keyboards, are not supported.
